Product Type	Laminating machine for documents
Brand	Acco
Model	Fusion 1000L
Dimensions (L x W x H)	370 x 107.5 x 80 mm
Weight	1.29 kg
Power Supply	120 V AC, 60 Hz, 1.9 A, 230 W
Warm-up Time	Approximately 5 minutes
Laminating Speed	330 mm/min (13 in/min)
Maximum Pouch Width	241 mm (9.5 inches)
Maximum Pouch Thickness	3 mil (75 microns) for documents, 3 mil (125 microns) for 4x6" photos
Maximum Item Thickness	0.7 mm
Operating Temperature	Automatic warm-up with green ready light
Main Functions	Lamination of documents up to legal size, photos, menus; manual stop and unplug
Recommended Pouch Type	Swingline GBC brand pouches, max size 9" x 14 ½"
Maintenance and Cleaning	Clean the exterior with a damp cloth; use a cleaning card or paper for the rollers
Safety	Unplug before cleaning; do not open (risk of electric shock); do not use empty pouches
Warranty	Limited one (1) year warranty
Spare Parts and Repairability	No user-serviceable parts; authorized service only

Frequently Asked Questions - Fusion 1000L Acco

How to turn on the Fusion 1000L laminating machine?

Plug the device into a suitable electrical outlet, then slide the switch from the 'O' (off) position to the '3 mil' (on) position. The green light turns on after approximately 5 minutes of warm-up, indicating the machine is ready.

What type of pouches to use with the Fusion 1000L?

Use only Swingline GBC brand pouches, maximum size 9" x 14 ½" (241 mm x 368 mm) and thickness 3 mil (75 microns) for documents or 3 mil (125 microns) for 4x6" photos. Do not cut pouches before laminating.

What to do if the pouch does not come out the back of the machine?

If the pouch gets stuck, set the switch to the 'O' (off) position, unplug the power cord, then gently pull the pouch towards you from the front of the machine to remove it.

How to clean the rollers of the laminator?

First unplug the device. Clean the exterior with a damp cloth (no detergents or solvents). For the rollers, regularly insert a cleaning card or a sheet of paper into the machine to remove residue.

Can I laminate important documents without a prior test?

It is highly recommended to do a preliminary test with a similar non-important document to verify proper operation and lamination quality.

What is the warranty of the Fusion 1000L laminating machine?

The limited warranty is one (1) year from the date of purchase, covering manufacturing and material defects. It is void if there is misuse, neglect, or unauthorized modification.

What to do in case of unusual odor during first use?

A slight odor may be emitted during initial uses. This is normal and will disappear after a few heating cycles. Ensure the machine is used in a well-ventilated area.

Can I use A3 size pouches with this model?

The standard Fusion 1000L model accepts pouches up to 9" x 14 ½". For A3 pouches (12" x 16 ½"), there is a specific Fusion 1000L A3 version. Check the exact model of your device.

How to avoid damaging the machine?

Only use suitable pouches, do not laminate an empty pouch, do not cut pouches, and ensure the power supply matches specifications. Follow safety and maintenance instructions.

Where to find after-sales service or spare parts?

Never attempt to repair the device yourself. Contact an authorized Swingline GBC service technician via customer service (1-800-541-0094 in the USA, 1-800-268-3447 in Canada, 1-800-759-6825 in Mexico).

USER MANUAL Fusion 1000L Acco

Fusior™ 1000L Swinflone.GBC

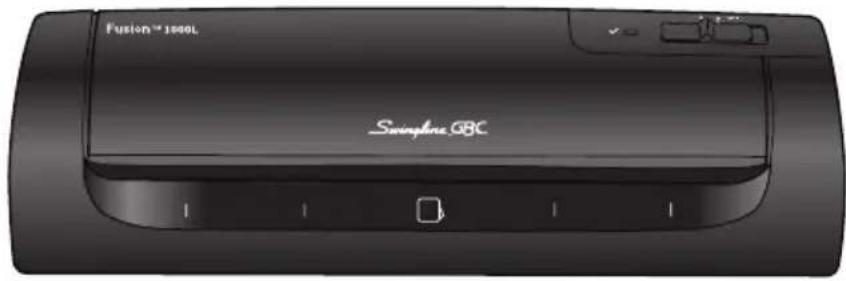

FUSION™ 1000L

9"&12" LAMINATORS

GB instruction manual 4

lamination made simple!

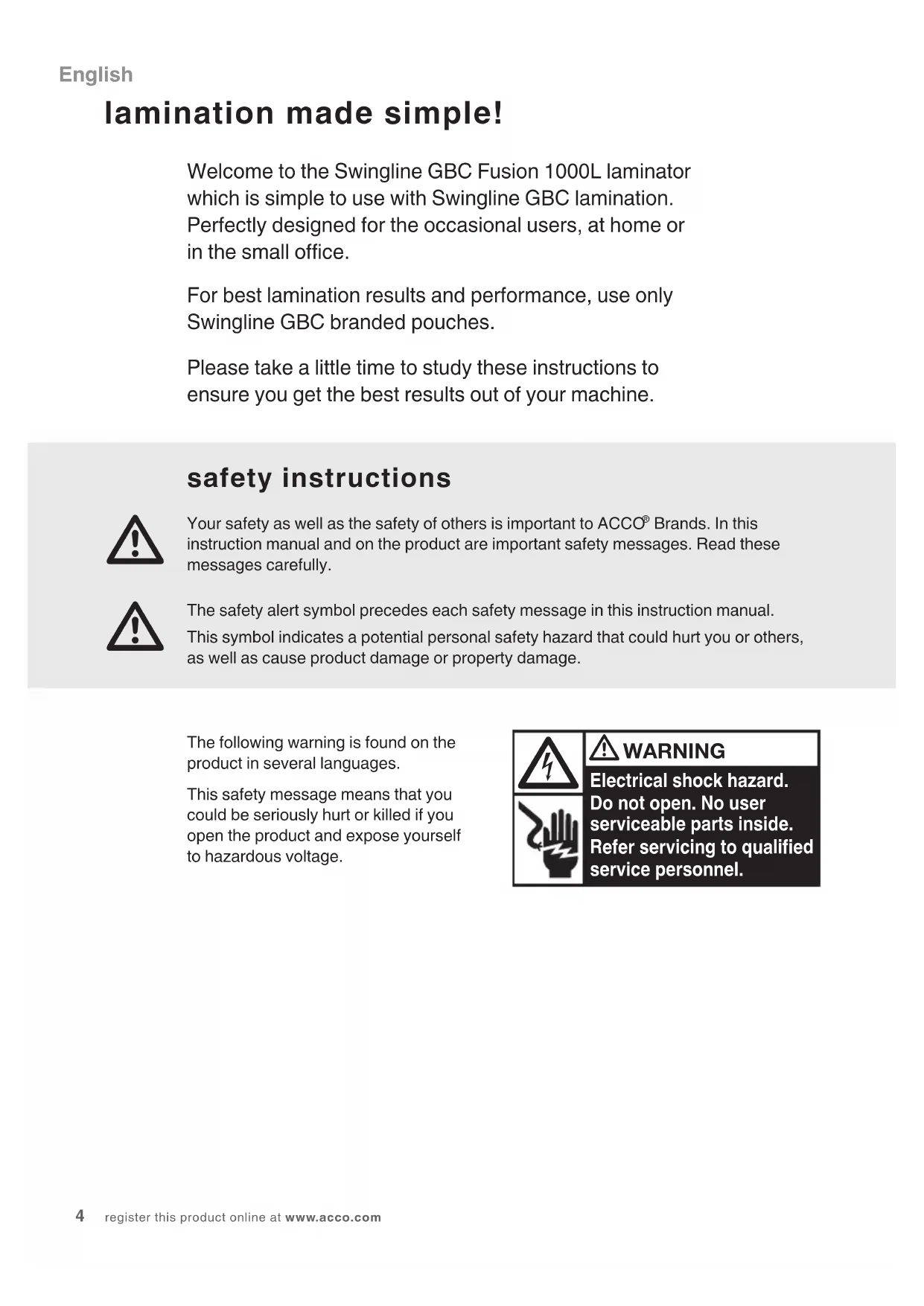

Welcome to the Swingline GBC Fusion 1000L laminator which is simple to use with Swingline GBC lamination. Perfectly designed for the occasional users, at home or in the small office.

For best lamination results and performance, use only Swingline GBC branded pouches.

Please take a little time to study these instructions to ensure you get the best results out of your machine.

safety instructions

Your safety as well as the safety of others is important to ACCO® Brands. In this instruction manual and on the product are important safety messages. Read these messages carefully.

The safety alert symbol precedes each safety message in this instruction manual. This symbol indicates a potential personal safety hazard that could hurt you or others, as well as cause product damage or property damage.

The following warning is found on the product in several languages.

This safety message means that you could be seriously hurt or killed if you open the product and expose yourself to hazardous voltage.

WARNING

Electrical shock hazard. Do not open. No user serviceable parts inside. Refer servicing to qualified service personnel.

points to note

• Use this unit only for its intended use of laminating documents
• Do not laminate an empty pouch
• The unit must be connected to a supply voltage corresponding to the electrical rating shown on the unit
• The socket-outlet shall be installed near the equipment and shall be easily accessible
• Do not use a carrier with this machine
• Ensure the machine is clear of pouches prior to starting the next pouch
• Clean the lamination rollers on a regular basis
• Maximum 9" document pouch 9" x 14½" on 9" Swingline GBC Fusion 1000L laminator
• Maximum 12" document pouch 12" x 16½" on 12" Swingline GBC Fusion 1000L laminator
• Failure to comply will result in damage and invalidate guarantee

service

Do not attempt to service or repair the pouch laminator yourself. Unplug the unit and contact an authorized Swingline GBC service representative for any required repairs.

technical specifications

Electrical 9": 120V AC / 60Hz /1.9A / 230W12": 120V AC / 60Hz /2.7A / 330W

Machine Dimensions 9": 14.57x4.23x3.15 inch(370x107.5x80mm)12": 18.3x4.29x3.18 inch(465x109x81mm)

Machine Weight 9": 2.84lbs (1.29kg)12": 3.55lbs (1.61kg)

Maximum Pouch Width 9": 9.5 inch (241mm)12": 12.0 inch (303mm)

Maximum Pouch Thickness	9": 3 mil (up to legal) (75mic)9": 3 mil (up to photo 4x6 inch) (125mic)12": 5 mil (up to photo 4x6 inch) (125mic)
Maximum Thru-put Thickness	0.7mm
Warm-Up Time Approximately 5 minutes
Speed 13 inches (330mm)	per minute

getting ready to laminate

Easy Set Up

1 Take the electrical plug and place in an appropriate power source, which is near the table you intend to use.
2 To use the laminator move the slider to the right from the Ⓞ to the '3 mil' position. Below the slider you will see a white line, this indicates that you have switched the laminator on.

NOTE: Only use 3 mil/5 mil photo pouches

O 3 mil ✓ □

Visual Ready Alert

3 The laminator will start to warm up. When the laminator is ready to use the green light next to the 'tick √' is illuminated.

NOTE: Your new laminator may emit a slight odor during the initial operation. Its is normal and will diminish after a few hours of operation.

0 3 mil ✓

loading the pouch

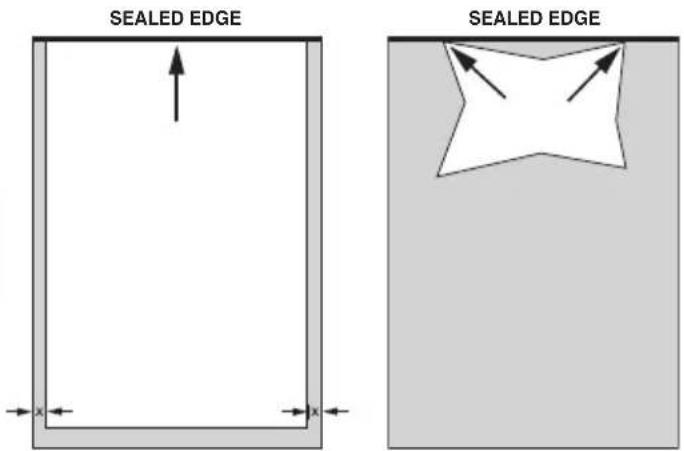

1 Take your item to be laminated and place in to the appropriate sized laminating pouch, ensuring it is firmly located along the sealed edge. This is to help ensure that you get optimal quality output.

SEALED EDGE SEALED EDGE

Letter, Legal, Menu, etc. Irregular shaped item

NOTE: Do not cut pouches prior to lamination.

Before laminating important or unique documents, always run a test pouch through the laminator using a similar type document.

laminating

1 On the front of the laminator there are line indicators to help you feed your pouch accurately. Using the indicators feed the sealed edge of the pouch, into the laminator. The laminator will grip the pouch and guide it through.

Fusion™ 1900L Synpline CBC

2 Upon exiting remove your laminated item immediately and lay on a flat surface to ensure best quality.

3 When you are finished laminating push the slider switch back to the O' position and unplug.

NOTE: If pouch does not appear at back move slider to position, unplug the power cord and remove the pouch by pulling towards you from the front.

Feed a cleaning card or sheet of paper through the laminator to clean the rollers before continuing.

cleaning

WARNING: UNPLUG THIS PRODUCT BEFORE CLEANING THE EXTERIOR. WIPE EXTERIOR ONLY WITH A DAMP CLOTH AND DO NOT USE DETERGENTS OR SOLVENTS.

Regularly feed a cleaning card or sheet of paper through the laminator to clean the rollers.

Limited One (1) Year Warranty

ACCO Brands USA LLC, 300 Tower Parkway, Lincolnshire, IL 60069 (in Canada, ACCO Brands Canada Inc., 5 Precidio Court, Brampton, ON L6S-6B7; and in Mexico, ACCO Mexicana, S.A. de C.V. Av. Circuito Industrial Norte #6 Parque Industrial Lerma 52000, Lerma Edo. de México) (each, respectively, "ACCO Brands") warrants to the original purchaser that this ACCO Brands product is free from defects in workmanship and material under normal use and service for a period of 1 year after purchase.

ACCO Brands' obligation under this warranty is limited to replacement or repair, at ACCO Brands' option, of any warranted part found defective by ACCO Brands without charge for material or labor. Any replacement, at ACCO Brands' option, may be the same product or a substantially similar product that may contain remanufactured or refurbished parts. This warranty shall be void in the following circumstances:

(i) if the product has been misused,
(ii) if the product has been damaged by negligence or accident, or
(iii) if the product has been altered by anyone other than ACCO Brands or ACCO Brands' authorized agents.

For warranty execution, please call 1-800-541-0094 in the USA/1-800-268-3447 in Canada/1-800-759-6825 in Mexico or go to HYPERLINK "http://www.gbc.com" www.gbc.com.

TO THE EXTENT ALLOWED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED WARRANTIES. REPRESENTATIONS OR PROMISES INCONSISTENT WITH OR IN ADDITION TO THIS WARRANTY ARE UNAUTHORIZED AND SHALL NOT BE BINDING ON ACCO BRANDS. TO THE EXTENT PERMITTED BY APPLICABLE LAWS, ANY IMPLIED WARRANTIES (IF APPLICABLE) ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACCO BRANDS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL OR SIMILAR DAMAGES, WHETHER OR NOT FORSEEABLE. SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR SIMILAR DAMAGES, SO THE ABOVE EXCLUSION OR LIMITAITON MAY NOT APPLY TO YOU.

FOR CONSUMERS WHO HAVE THE BENEFIT OF CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR JURISDICTION OF PURCHASE OR, IF DIFFERENT, IN THEIR JURISDICTION OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS.

To the extent permitted by law, this warranty is not transferable and will automatically terminate if the original product purchaser sells or otherwise disposes of the product.

This warranty gives you specific legal rights. Other rights, which vary from jurisdiction to jurisdiction, may exist. In addition some jurisdictions do not allow (i) the exclusion of certain warranties, (ii) limitations on how long an implied warranty lasts and/or (iii) the exclusion or limitation of certain types of costs and/or damages, so the above limitations may not apply.

FCC CLASS B NOTICE

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CANADA CLASS B NOTICE

This Class B digital apparatus complies with Canadian ICES-003

MODIFICATIONS

Any modifications made to this device may void the authority granted to the user by the FCC and/or by Industry Canada to operate this equipment.

ACCO is a registered trademark of ACCO Brands.

Copyright © 2011 ACCO Brands. All rights reserved.

Issue August 2012

Fusion is a registered trademark of ACCO Brands.

service address

ACCO Brands, 101 Bolton Ave 9E, Booneville, MS 38829 USA

Tel. [phone] www.acco.com
