MW07 - Mouse Acme Made - Free user manual and instructions

Product Type	Wireless Optical Mouse
Brand	Acme Made
Model	MW07
Connectivity	Nano USB Receiver
Power Source	1 AA battery (not included)
Sensor	Optical, 800-1480 DPI resolution (adjustable)
Buttons	5 buttons (left click, right click, scroll wheel, back, forward)
Scroll Wheel	Yes, with scroll speed control
Dimensions (approx.)	100 x 60 x 35 mm
Weight (approx.)	100 g (with battery)
Range	Up to 10 meters (typical)
Compatibility	Windows, macOS, Linux
Receiver Storage	Yes, integrated under the mouse
Standards	FCC Part 15, WEEE
Warranty	See included warranty document
Maintenance	Clean with a dry, soft cloth. Do not immerse in water.
Safety	Do not disassemble, expose to heat or moisture.
Country of Origin	China (estimated)

Frequently Asked Questions - MW07 Acme Made

How to install the MW07 mouse?

Insert the AA battery into the compartment, plug the Nano receiver into a USB port on your computer. The mouse is ready to use.

What to do if the mouse does not work?

Check that the Nano receiver is properly connected, try another USB port. Remove and reinsert the battery. If the problem persists, perform a re-pairing by removing the battery and receiver, then reinsert them.

How to change the sensitivity (DPI)?

Press the DPI button on the mouse to switch between 800 DPI and 1480 DPI. The adjustment is immediate.

What are the Forward and Back buttons for?

They allow navigation in web pages or documents: Back to go to the previous page, Forward to go to the next page.

How to store the Nano receiver?

The mouse has a storage compartment under the battery cover. Push the receiver to insert or remove it.

What battery to use?

Use an alkaline or rechargeable AA battery. Do not use damaged batteries.

How to clean the mouse?

Unplug the mouse (remove the battery) and clean it with a slightly damp soft cloth. Never immerse in water or use chemicals.

Does the mouse work with Mac?

Yes, it is compatible with Windows, macOS, and Linux. Plug in the receiver, no driver installation is needed.

What is the wireless range?

The typical range is about 10 meters in open field. Obstacles may reduce distance.

How to activate the warranty?

Keep the purchase receipt and warranty document. The warranty is valid according to the conditions stated in the manual. In case of problem, contact your retailer.

USER MANUAL MW07 Acme Made

Line drawing of a computer mouse with a small inset showing a component (no text or symbols)

wireless optical mouse

www.acme.eu

acme®

Solid orange horizontal bar with no text or symbols

4 GB User's manual 44 Warranty card

7 LT Vartotojo gidas 45 Garantinis lapas

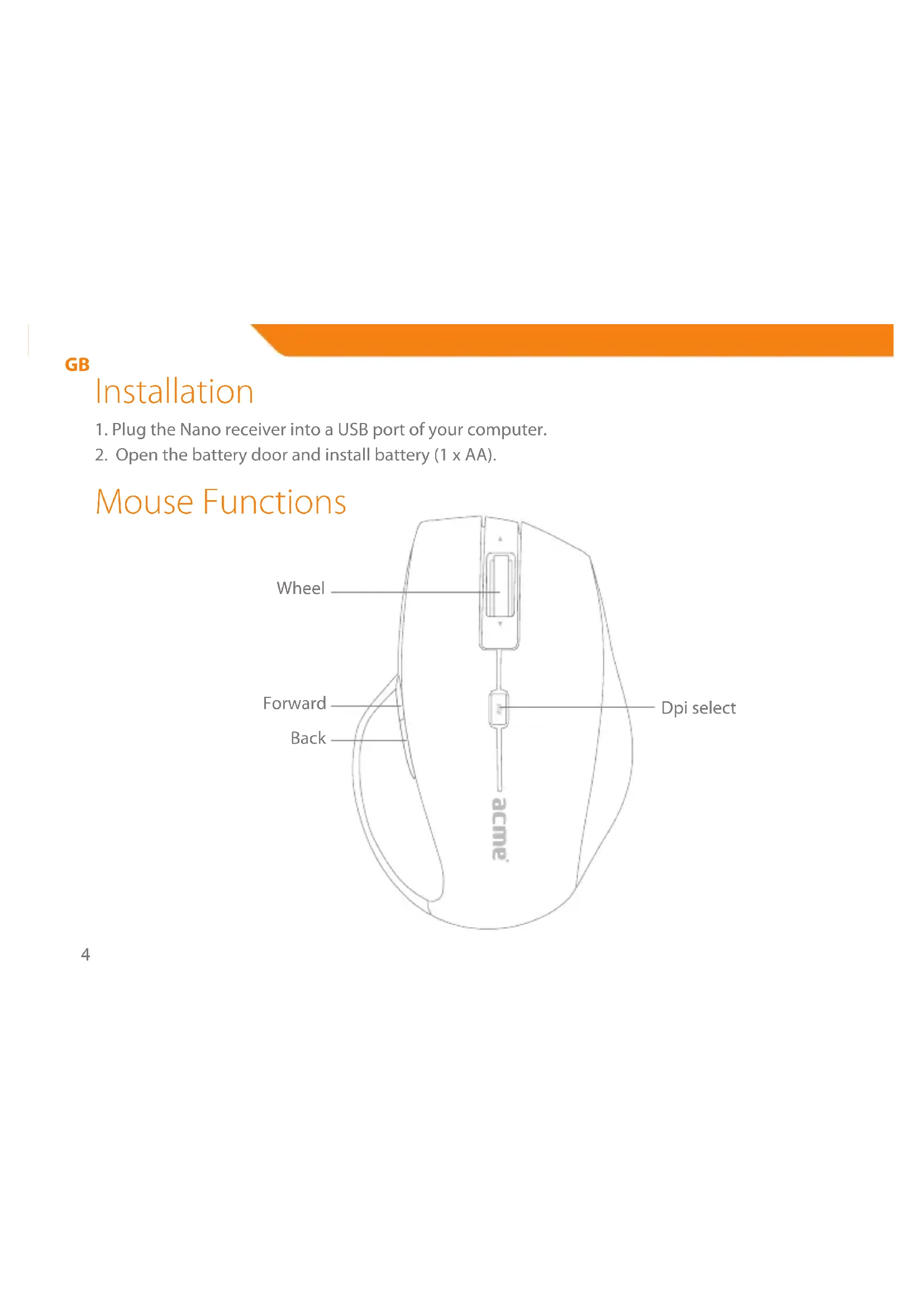

1. Plug the Nano receiver into a USB port of your computer.
2. Open the battery door and install battery (1 x AA).

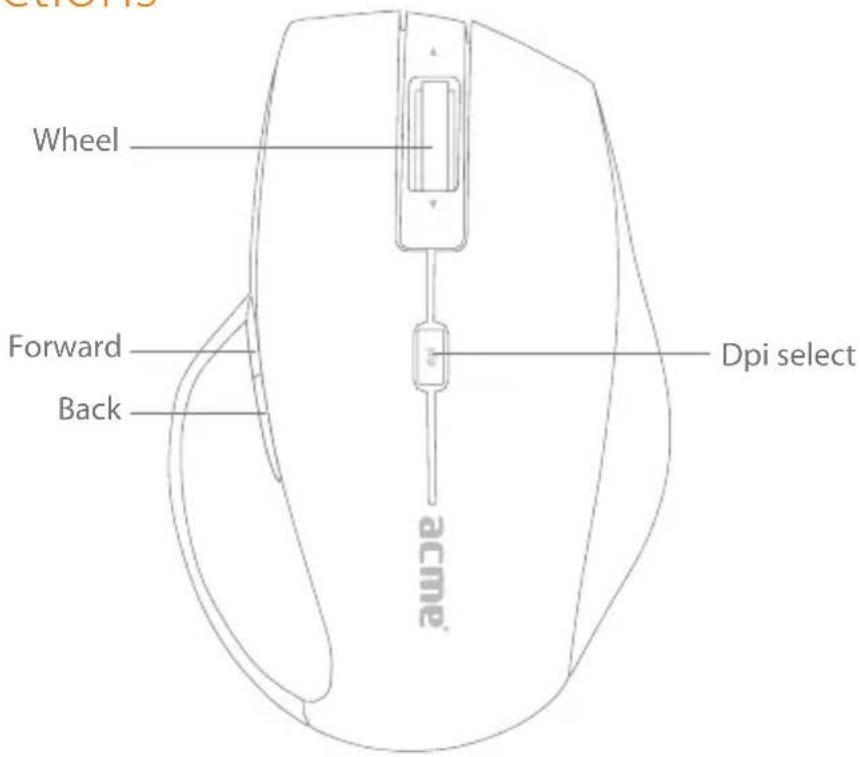

Mouse Functions

Wheel Forward Back Dpi select acme®

Speed Control

Press the DPI button, then you can toggle the DPI between 800 dpi and 1480 dpi.

Universal Back / Forward

Use the back button to access previous page and use the forward button to access next page.

Receiver Storage

Store or take out the Nano receiver from the Nano receiver storage by push/pull the Nano receiver.

Trouble Shooting

1. Check Nano receiver connection; try to inserting Nano Receiver to another USB port on your computer.
2. Connection between the mouse and the Nano Receiver. Re-insert the Nano Receiver. Take out the battery and reinstall it.

Note

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired operation.

GB

GB

Safety instructions:

• Do not disassemble the product or remove any parts
- Do not put the product into water or any liquid. Should this happen, ta computer and contact your vendor or after sales service center for maintenance
- Do not put the product close to heat source, or expose it to high temperature.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

Waste Electrical and Electronic Equipment (WEEE) Symbol

The use of the WEEE symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help protect the environment. For more detailed information about the recycling of this product, please contact your local authority, your household waste disposal service provider or the shop where you purchased the product.

Prijungimas

Solid orange horizontal bar with no text or symbols

GB

Warranty card www.acme.eu/warranty

Product Product model
Product purchase date Seller name, address
Failures (date, description, position of the person who accepts the product, first name, last name and signature)

1. Warranty period

Warranty enters into force starting with the day when the buyer acquires the product from the seller. Warranty period is indicated on the package of the product.

2. Warranty conditions

The warranty is valid only by providing an original document of the product acquisition and this warranty includes name of the product model, product purchase date, name and address of the seller.

If it is noticed during the warranty period that the product has faults and these faults where not caused by any of the reasons when the warranty is not applied as indicated in the paragraphs below, manufacturer undertakes to replace the product.

The warranty is not applied to regular testing, maintenance and repair or replacement of the parts which are worn out naturally.

The warranty is not applied if damage or failures occurred due to the following reasons:

usage and/or operating the product without following the manual, technical requirements and safety standards as provided by the manufacturer, and additionally, inappropriate warehousing, falling from heights as well as hard strikes.

• Corrosion, mud, water and sand.

Repair works, modifications or cleaning, which were performed by a service not authorised by the manufacturer.

• Usage of the spare parts, software or consump materials which do not apply to the product.
- Accidents or events or any other reasons which depend on the manufacturer, which includes lightning, water, fire, magnetic field and inappropriate ventilation.
- If the product does not meet standards and specifications of a particular country, in which it was not bought. Any attempt to adjust the product in order to meet technical and safety requirements such as those in the countries withdraws all the rights to the warranty service.

If no failures are detected in the product, all the expenses in relation to the service are covered by the buyer.

Garantinis lapas www.acme.eu/warranty

LT

Solid orange horizontal bar with no text or symbols

Model: MW07

wireless optical mouse

acme®

www.acme.eu
