Product Type	2-way drop ceiling speaker
Brand	Ecler
Model	IC6 CLASS TR
Category	In-ceiling speaker
Dimensions (diameter x depth)	230 mm x 120 mm
Cut-out diameter	200 mm
Weight	3.5 kg
Impedance	16 Ω (low impedance)
Power handling (RMS)	75 W (16 Ω)
70 V line power	1.5 / 3.7 / 7.5 / 10 / 15 W (selectable)
100 V line power	3 / 7.5 / 15 / 20 / 30 W (selectable)
Frequency response	60 Hz - 20 kHz
Low-frequency transducer (woofer)	Kevlar® woven 165 mm
High-frequency transducer (tweeter)	Silk dome 25 mm
Connectivity	Removable Euroblock (input)
Installation system	Screwable tabs (3 front screws)
Grille material	Perforated steel (paintable)
Power supply	Passive (external amplification)
Operating temperature	-10 °C to +50 °C
Maintenance and cleaning	Removable grille, dry cleaning
Safety	Indoor use, avoid water and heat
Spare parts and repairability	Grille, transformer, transducers
General information	2-year warranty, made in EU

Frequently Asked Questions - IC6 CLASS TR Ecler

What type of cable should I use to connect the IC6 CLASS TR?

Use a speaker cable with a minimum cross-section of 2x1.5 mm². The supplied Euroblock connector accepts wires up to 2.5 mm².

How do I select the power on the 70 V or 100 V line?

The front rotary selector allows you to choose between 6 positions: position 1 for low impedance mode (16 Ω - 75 W), positions 2 to 6 for 70 V lines (1.5 to 15 W) and 100 V lines (3 to 30 W). Refer to the table in the manual.

Can I paint the speaker grille?

Yes, the IC6 CLASS TR is designed to be painted. Remove the grille and paint it carefully, avoiding blocking the central perforations. Use an acrylic spray paint.

What depth is required in the drop ceiling?

Allow a minimum depth of 120 mm for the housing, plus 20 mm of space for cabling.

How do I install multiple IC6 CLASS TR in parallel?

In low impedance mode, the 16 Ω impedance allows up to 4 speakers to be connected in parallel to a 4 Ω amplifier. In high impedance mode, respect the total power of the line (70 V or 100 V) and do not exceed the amplifier's power.

What is the warranty for the IC6 CLASS TR?

The Ecler manufacturer's warranty is 2 years. To benefit from the warranty, keep the purchase invoice and follow the installation conditions.

Can the speaker be used outdoors?

No, the IC6 CLASS TR is designed for indoor installation in a drop ceiling. It is not protected against moisture or weather.

How do I clean the speaker?

Remove the grille by turning it slightly. Clean it with a dry cloth or soft brush. For the housing, use a slightly damp cloth without solvent.

Can I replace the tweeter or woofer myself?

Replacing the transducers is possible but requires disassembling the speaker and disconnecting the cables. It is recommended to call an Ecler approved technician to maintain the warranty.

What accessories are supplied with the IC6 CLASS TR?

The delivery includes: the speaker, the grille, the removable Euroblock connector, a cut-out template, and the user manual. The mounting screws are pre-assembled.

USER MANUAL IC6 CLASS TR Ecler

Congratulations! You are the owner of a carefully designed and manufactured piece of equipment. We thank you for trusting in us and choosing our IC6CLASS-TR speaker for drop ceilings.

In order to get the optimum operation and efficiency from this unit, it is VERY IMPORTANT - before you plug anything in - to read this manual very carefully and bear in mind all considerations specified within. We strongly recommend that maintenance be carried out by our Authorized Technical services.

2. PRECAUTIONS

Never use this unit in proximity to water. Do not expose the unit to water splashing. Avoid placing the unit next to heat sources such as spotlights or heaters.

Use only the accessories specified by the manufacturer, adapted for each application.

3. INTRODUCTION

IC6CLASS-TR are built from a careful selection of components in a design that provides high quality sound and fast installation with a minimum of tools.

Main characteristics:

2-way in-ceiling speaker
16Ω impedance, for easy installation of several units in parallel
- Integrated high impedance transformer for use on 70/100V line distributed systems.
- High or low impedance selector with 5 power taps, on the front of the unit once the speaker is installed in the ceiling.
Woven Kevlar® woofer
- Silk dome tweeter
- Quick installation system using screw tabs with a minimum of tools

4. LOCATION, ASSEMBLY AND CONNECTIONS

For proper product installation, circular holes have to be made in selected places and the appropriate wiring has to be prepared for each unit.

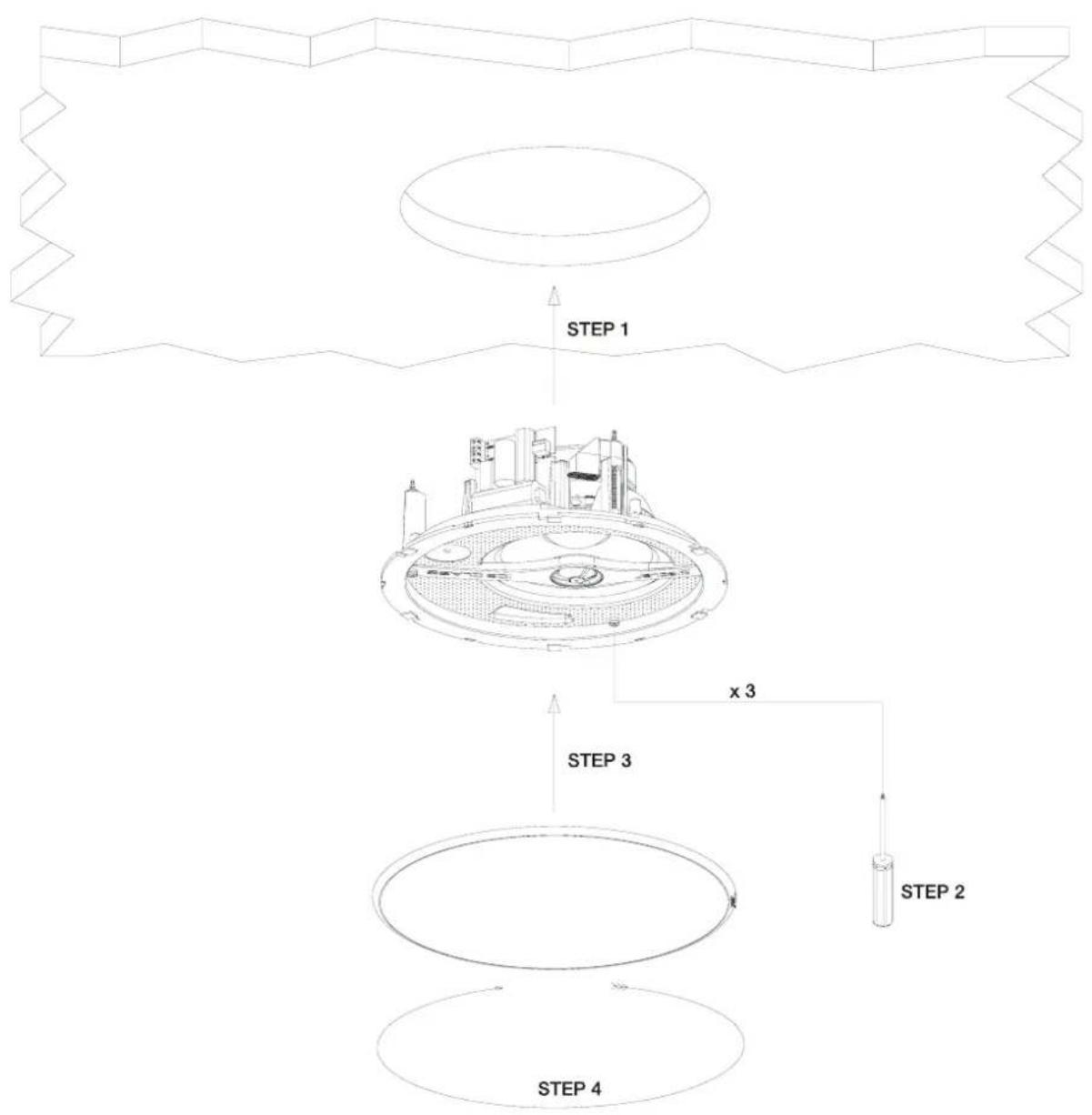

Here are the steps to follow for proper installation:

1. Make the mounting hole in the drop ceiling, after marking its outline with the supplied cutting template
2. Strip and connect the two wires of the speaker cable end to the supplied loose Euroblock terminal, respecting the polarity between the speaker (IN + and -), the other speakers of the system and the amplifier feeding them. Insert the loose Euroblock connector of the cable into the IN Euroblock terminal of the speaker.
3. Insert the speaker's frame into the hole, taking care that the 3 revolving fasteners remain in the retracted position
4. Tighten each of the 3 screws accessible from the front of the unit. The revolving fasteners rotate and at the end of the tightening, the frame is fixed at its final position

NOTE: In most cases, the electro-acoustical response of a ceiling/wall speaker like the IC6CLASS-TR will be better if it is installed in a ceiling or on a wall made of low-porosity materials and without the rear cover. The response in the low frequency range will be especially affected, since these types of ceilings act as baffles" or mechanical loudspeaker enclosures.

1. Using a flat screwdriver, set one of the following taps with the power selector on the front of the speaker:

	Connection to a 70V line	Connection to a 100V line
Tap #1	16 Ω - 75 W	16 Ω - 75W
Tap #2	1,5 W 3 W
Tap #3	3,7 W 7,5 W
Tap #4	7,5 W 15 W
Tap #5	10 W 20 W
Tap #6	15 W 30 W

1. Test the operation by powering up the sound system.
2. Finally, install the grill on the speaker frame and turn it slightly so that the revolving fasteners of the frame and the grille are fitted together. During assembly, hold the grate by the edges (not the perforated, centre part) to avoid damaging it.

5. PAINT

IC6CLASS-TR is ready to be painted and thus can match any cosmetic criteria of the environment in which it is installed.

Once the installation is complete, the front grill is the only visible part of the unit, simply paint it to get the desired result. Paint it carefully, avoiding excess paint from clogging the small holes in its central area.

1. NOTA IMPORTANTE
2. PRECAUCIONES
3. INTRODUCCION
4. UBICACION, MONTAJE Y CONEXIONADO
   5 PINTADO
5. CHARACTERISTICAS TÉCNICAS
6. DIAGRAMA

ES

0 8

0 8
0 8
0 8
0 9
1 8
1 9

1. NOTA IMPORTANTE

Power selector 3W/7.5W/15W/20W/30W

Frequency response (-6dB) 45Hz - 22kHz

Sensitivity 1W/1m 86dB

External diameter 270mm

Internal diameter 224.5mm

Recommended cut out diameter 227mm

Required depth 95mm

Weight

2.5kg
