PC10651 - Popcorn machine WestBend - Free user manual and instructions

Product Type	Stovetop Popcorn Maker
Brand	WestBend
Model	PC10651
Capacity	1/2 cup of kernels (approx. 60 g)
Main Material	Steel
Handle	Wood
Power Source	Stovetop (gas or electric)
Dimensions (approx.)	25 cm diameter, 15 cm height
Weight (approx.)	0.8 kg
Main Function	Kernel popping with manual stirring
Usage	Turn handle counterclockwise
Cooking Time	Approx. 3 minutes
Recommended Oil	Vegetable oil (do not use butter, margarine or lard)
Care	Wash in warm soapy water, dry thoroughly; do not wash in dishwasher
Safety	Do not leave unattended; keep children away; do not use water on an oil fire
Warranty	90-day limited (parts and labor) in USA and Canada
Customer Service	[phone] or [e-mail]
Replacement Parts	Available via Focus Electronics (www.focuselectrics.com)

Frequently Asked Questions - PC10651 WestBend

How to assemble the lid on the kettle?

Hold the lid by the main handle, insert the lid rod into the kettle hole, then align the clamp under the handle between the two depressions on the rim and push down until it locks. Secure the locking clamp by pressing on the wooden handle.

What type of oil to use?

Use vegetable oil (1 to 3 tablespoons). Do not replace with butter, margarine or lard as they burn or produce too much smoke.

How long does it take to pop the corn?

The popping cycle takes about 3 minutes. When you no longer hear intense popping and the handle becomes harder to turn, remove from heat.

How to clean the appliance after use?

Wash all parts in warm soapy water, rinse and dry completely. Do not wash in dishwasher to prolong life.

What to do if the corn does not pop?

Use fresh popcorn kernels. Dry or old kernels do not pop well. Also check that the stovetop temperature is high enough.

Can I use butter instead of oil?

No, butter, margarine or lard burn or produce too much smoke. Use exclusively vegetable oil.

What stovetop settings to use?

For an electric stove: medium-high heat. For a gas stove: medium heat. For a two-burner stove: medium/low. Adjust according to popcorn formation.

Is the appliance under warranty? What are the conditions?

Yes, 90-day limited warranty on parts and labor from date of purchase with proof of purchase. Valid only in USA and Canada for indoor household use.

How to order replacement parts?

Order online at www.focuselectrics.com, by email at [e-mail], or by phone at [phone]. Indicate the model and the part needed.

Can I wash the parts in the dishwasher?

No, do not wash any parts in the dishwasher. Wash by hand in warm soapy water, rinse and dry completely to prolong life.

USER MANUAL PC10651 WestBend

Register this and other Focus Electronics products through our website:

www.registerfocus.com

Important Safeguards 2

Assembling Your Stove-Top Popper 3

Using Your Stove-Top Popper 3

Warranty 4

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

OPERATING PRECAUTIONS

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• Do not place an empty popper on a heated stove top. The pan may melt or pit if heat cannot be transferred to oil and popcorn.
• Do not leave popper unattended while popping. Popcorn should be stirred continually throughout the popping process.
• Hot oil can burn or catch fire if left too long on a heated stove top. Always attend heating oil and do not heat it without adding other ingredients.
• Do not allow bare skin near a pan that contains hot oil. Hot oil may occasionally pop out of the pan while heating.
• Never use water or liquid to extinguish an oil fire. For best results, use an approved fire extinguisher.
• Close supervision is necessary when used by or near children.
• Do not use for other than its intended use.
• For household use only.

SAVE THESE INSTRUCTIONS

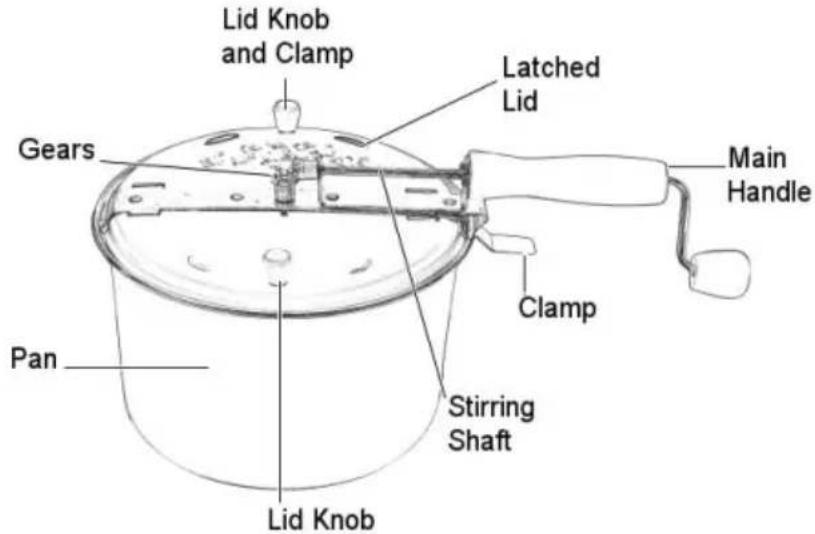

ASSEMBLING YOUR STOVE-TOP POPPER

Before using your stove-top popper and after each use, wash all parts in warm,

soapy water, rinse

thoroughly and dry. To prolong the life of your stove-top popper, do not wash parts in the dishwasher.

1. Hold the lid by the main handle and place the lid peg in the hole of the popper pan.
2. Line up the clamp under the main handle between the two dimples on the pan rim.
3. Press down on the main handle until the lid locks in place.
4. Attach the lid clamp to the pan by pressing down on the wood lid knob.

USING YOUR STOVE-TOP POPPER

Heat The Stove:

• For an electric range, set the burner to medium high.
• For a gas range, set the burner to medium.
• For flat-top ranges, set the burner to medium low.

Note: Because stove top heat output varies, adjust the temperature as needed so popping is completed about three minutes after the popcorn is added to the pan. Flat-top ranges cook hotter than standard ranges, pay close attention to the popping. Like most pans, the Stove-Top popper will rock when used on a flat-top range.

Popping Popcorn:

Tip: Use fresh popcorn. Old popcorn loses its moisture and won't pop well.

1. Place 1-3 tablespoons of oil and 12 cup popcorn in the popper and place on the stove top. Note: Don't use butter, margarine, shortening or lard in place of oil, as these will burn or smoke excessively.
2. Slowly and continuously, turn the handle clockwise.
3. The popping cycle will be complete in approximately three minutes. When you no longer hear vigorous popping and stirring becomes difficult, remove from heat. Carefully empty the popcorn into a serving bowl from the left side lid. Use a hot pad if you find it necessary to open the lid when emptying.

PRODUCT WARRANTY

Appliance 90-Day Limited Warranty

Focus Electronics, LLC ("Focus Electronics") warrants this appliance from failures in the material and workmanship for ninety (90) days from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electronics' discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electronics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCUSED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electronics Customer Service Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. Focus Electronics is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electronics, LLC several ways. Order online at www.Focuselectrics.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Electronics, LLC

Attn: Customer Service

P.O.Box 2780

West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the unit, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electronics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electronics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product):
