USER MANUAL 25340 PROCTOR SILEX

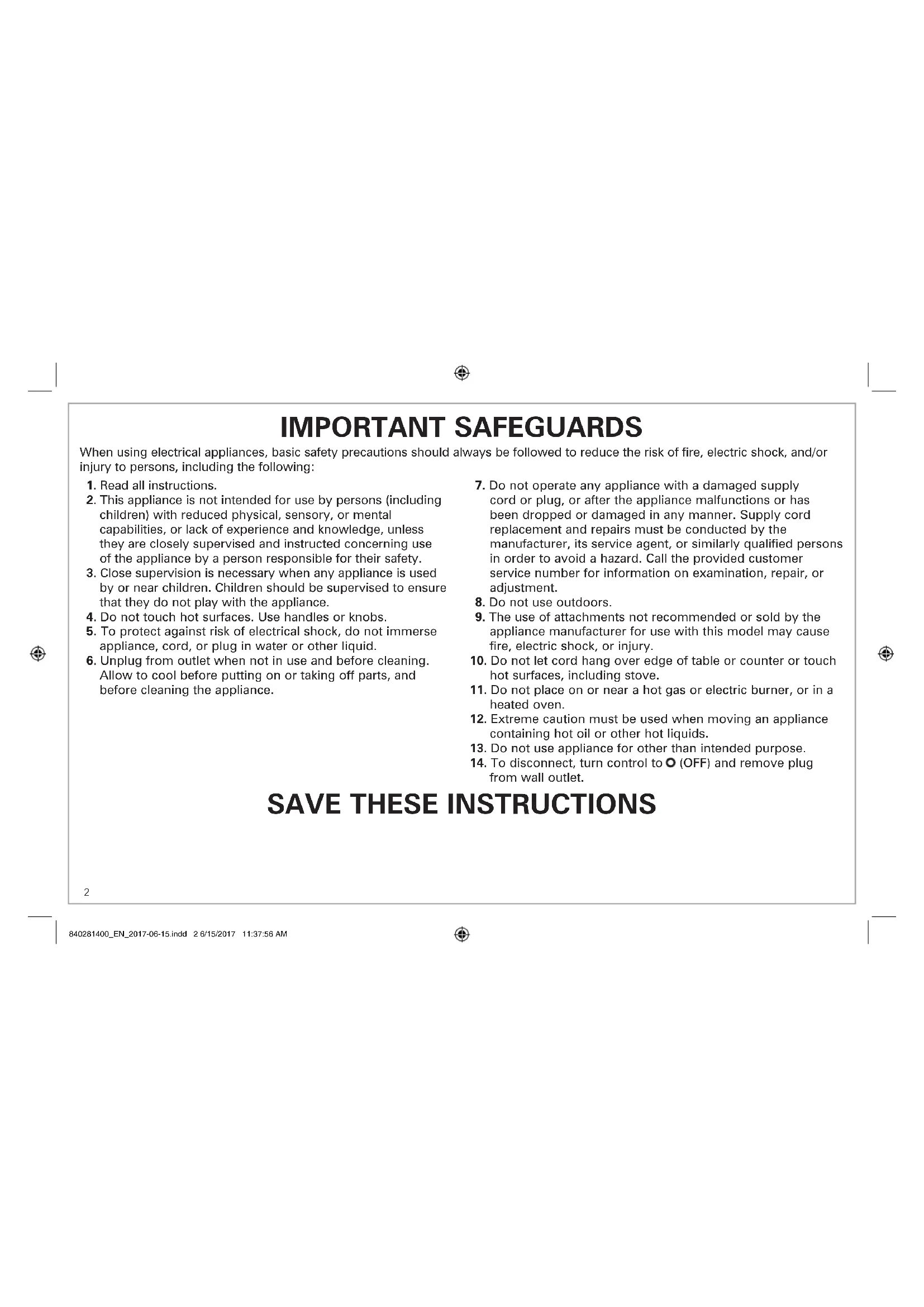

1. Read all instructions.

2. This appliance is not intended for use by persons (including

children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used

by or near children. Children should be supervised to ensure that they do not play with the appliance.

4. Do not touch hot surfaces. Use handles or knobs.

5. To protect against risk of electrical shock, do not immerse

appliance, cord, or plug in water or other liquid.

6. Unplug from outlet when not in use and before cleaning.

Allow to cool before putting on or taking off parts, and before cleaning the appliance.

7. Do not operate any appliance with a damaged supply

cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

8. Do not use outdoors.

9. The use of attachments not recommended or sold by the

appliance manufacturer for use with this model may cause fire, electric shock, or injury.

10. Do not let cord hang over edge of table or counter or touch

hot surfaces, including stove.

11. Do not place on or near a hot gas or electric burner, or in a

12. Extreme caution must be used when moving an appliance

containing hot oil or other hot liquids.

13. Do not use appliance for other than intended purpose.

14. To disconnect, turn control to

(OFF) and remove plug from wall outlet. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

SAVE THESE INSTRUCTIONS

840281400_EN_2017-06-15.indd 2 6/15/2017 11:37:56 AM3 Other Consumer Safety Information This appliance is intended for household use only. w WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. To avoid an electrical circuit overload, do not use another high- wattage appliance on the same circuit with this appliance. An extension cord should be connected to the appliance first, before it is plugged into the outlet. Always use grill on flat surface to ensure grease and oils drain properly. Use caution when cleaning spilled hot grease. Use caution when cooking and around splattering grease. Always use drip tray and make sure it is resting on counter directly under grill before use. Never move grill when in use. Unplug unit and let cool before moving. Always use an oven mitt to protect hand when opening the grill. w CAUTION Burn Hazard: Escaping steam may cause burns. 840281400_EN_2017-06-15.indd 3 6/15/2017 11:37:56 AM4 Drip Tray* Parts and Features Cover *To order parts: US: 1.800.851.8900 www.proctorsilex.com Canada: 1.800.267.2826 Mexico:

BEFORE FIRST USE: Wipe the bottom and top cooking plates with a soapy, damp cloth. Rinse cloth; then wipe plates again and dry. Base Bottom Plate-Release Button Cooking Dial Hinge-Release Button Temperature Dial Nonstick Reversible/ Removable Cooking Plates* Indicator Lights Top Plate- Release Button CAUTION: HOT SURFACE. The temperature of accessible surfaces may be high when the appliance is operating. 840281400_EN_2017-06-15.indd 4 6/15/2017 11:37:57 AM5 Indicator Lights Your contact grill features two indicator lights. Red indicates that power is on. Flashing green light indicates that the unit is preheating and will turn solid when preheated. Cord Wrap Hinge-Release Button Red Power ON Light Green Preheat Light Parts and Features (cont.) Plate-Release Buttons 840281400_EN_2017-06-15.indd 5 6/15/2017 11:37:58 AM6 How to Grill w WARNING Burn Hazard. Always use an oven mitt to protect hand when opening a hot grill. Escaping steam can burn.

1. Slide the drip tray into place

under front of grill.

2. Plug into outlet. 3. Preheat with cover closed. 4. Turn cooking dial to CLOSED.

The red light comes on.

5. Turn temperature dial to

desired heat setting.

6. Once the grill has reached the

set temperature, the flashing green light will turn solid.

7. When preheated, raise grill

cover. Place food to be cooked onto grill. Use heat- safe non-metal utensils to prevent scratching.

8. Lower grill cover. Set kitchen

timer for desired cooking time. 840281400_EN_2017-06-15.indd 6 6/15/2017 11:38:00 AM7 How to Grill (cont.)

9. Lift cover and check food.

If additional cooking time is needed, lower cover.

10. When finished grilling, turn

cooking dial to (OFF) and unplug. Let cool before removing drip tray to discard grease. 840281400_EN_2017-06-15.indd 7 6/15/2017 11:38:01 AM8 How to Use Griddle w WARNING Burn Hazard. Always use an oven mitt to protect hand when opening a hot grill. Escaping steam can burn.

1. Slide the drip tray into place

under front of grill.

2. Slide the hinge release button

to disengage locked hinge.

3. Lower lid as far as it will go to

rest on the countertop.

4. Push release button to release

and reverse top plate.

5. Reverse the plate and snap

6. Push release button to release

and reverse bottom plate.

7. Reverse the plate and snap

8. Plug into outlet.

840281400_EN_2017-06-15.indd 8 6/15/2017 11:38:03 AM9 How to Use Griddle (cont.)

9. Turn cooking dial to OPEN.

The red light comes on.

10. Turn temperature dial to

desired heat setting.

11. Once the griddle has reached

the set temperature, the flashing green light will turn solid.

12. Place food to be cooked onto

bottom griddle plate; then add food to the top plate.

13. Turn food halfway through

cooking. NOTE: Always let cool; then wipe the top plate before going from the open position to the closed position.

14. When finished cooking,

turn cooking dial to (OFF) and unplug. Let cool before removing drip tray to discard grease. 840281400_EN_2017-06-15.indd 9 6/15/2017 11:38:04 AM10 Helpful Tips

• Use plastic utensils on the nonstick cooking plate. Do not use metal utensils since they will damage the nonstick surface.

• Use cooking spray for convenient, stick-free cooking. Or if you prefer, brush cooking plates with vegetable oil before preheating.

• Always preheat before using.

• Thicker sandwiches may shift when the lid is closed. Use a plastic spatula to reposition. There is no need to press down on the handle. The weight of the cover will grill the top of the sandwich.

• Cleanup is easy! Let the grill cool down; then wipe cooking plates with damp paper towel. 840281400_EN_2017-06-15.indd 10 6/15/2017 11:38:04 AM11 Care and Cleaning w WARNING Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, or base in water or any liquid.

1. Unplug and allow to cool. 2. Wipe cooking plates with a paper

towel to remove drippings. NOTE: Do not use steel wool, scouring pads, or abrasive cleansers on any part of the unit. Never use sharp or pointed objects for cleaning.

3. To remove plates for cleaning,

press plate release button and lift out plates. Remove top plate first and then bottom plate.

4. If grease gets under the top or

bottom plates, use a soapy, damp cloth and carefully wipe entire surface to remove all grease. Wipe dry.

5. Remove drip tray; wash in

dishwasher or hot, soapy water.

6. DO NOT use the “SANI” setting

when washing in the dishwasher. “SANI” cycle temperatures could damage your product. DISHWASHER-SAFE

7. Wipe outside of unit with a

damp, soapy cloth. Then wipe with a damp cloth and dry. 840281400_EN_2017-06-15.indd 11 6/15/2017 11:38:04 AM12 This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance. Limited Warranty 840281400_EN_2017-06-15.indd 12 6/15/2017 11:38:05 AM13
