38526PS - Grill plate PROCTOR SILEX - Free user manual and instructions

Product Type	Electric Griddle Plate
Brand	Proctor Silex
Model	38526PS
Power Supply	120 V ~ 60 Hz
Material	Nonstick coating, glass cover
Capacity	Suitable for hamburgers, bacon, sausages, fried chicken, pork chops
Temperature Control	Yes, rotary control with indicator light
Temperature Range	Up to 190 °C (375 °F) – per cooking chart
Handles	Removable, to be assembled (handle/feet)
Included Accessories	Glass cover, temperature control
Recommended Utensils	Wood or plastic to protect the nonstick coating
Care and Cleaning	Hand wash or dishwasher safe for griddle and cover; wipe temperature control with a damp cloth
Do Not Dishwash	Temperature control and cord
Safety	Polarized plug, do not immerse, hot surfaces, supervision required
Warranty	3 years (defects in materials and workmanship)
Customer Service	Hamilton Beach Brands, Inc. – proctorsilex.ca
Country of Destination	United States and Canada

Frequently Asked Questions - 38526PS PROCTOR SILEX

How to assemble the handle and feet of the Proctor Silex 38526PS griddle?

Use a Phillips screwdriver. Remove the pre-installed screws and washers, place the handle/feet, then screw back without overtightening. Check stability on a flat surface.

What utensils should be used on the nonstick coating?

Use wood or plastic utensils to avoid damaging the coating.

Can I put the griddle and cover in the dishwasher?

Yes, the griddle and glass cover are dishwasher safe. However, the temperature control and cord must be hand washed with a damp cloth.

What is the recommended cooking temperature for hamburgers?

For 151 g hamburgers, set the temperature to 180 °C (350 °F) and cook for 15 to 20 minutes.

How to know when the griddle is preheated?

The indicator light on the temperature control turns off when the cooking temperature is reached (5 to 10 minutes preheat).

Is the appliance suitable for deep frying?

No, the appliance is not designed for deep frying. Avoid too much oil to reduce splattering.

What if the griddle does not heat?

Check that the temperature control is properly plugged into the griddle, the dial is not set to OFF, and the wall outlet works. If the problem persists, contact customer service.

Can I use an extension cord?

Yes, an approved extension cord with equivalent or higher electrical ratings may be used. For grounded models, the extension cord must be a 3-wire grounding type.

How to clean the temperature control?

Unplug the appliance, wipe the control with a damp cloth and dry it thoroughly. Never immerse it in water.

What is the warranty of the Proctor Silex 38526PS griddle?

A limited 3-year warranty against defects in materials and workmanship. Keep your proof of purchase. The warranty does not cover glass, normal wear, or misuse.

USER MANUAL 38526PS PROCTOR SILEX

Open to US customers only.

PARTICIPEZ POUR COURIR LA CHANCE DE GAGNER UN MONTANT DE 100 $ À DÉPENSER SUR NOTRE SITE WEB.

Visitez le register.proctorsilex.com

English 2 proctorsilex.com

Francais 9 proctorsilex.ca

Espanol 17
proctorsilex.com.mx

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs, which may be warm. Use oven mitts.
5. Be sure that Handle/Feet are assembled and fastened properly. See detailed assembly instructions.
6. To protect against electrical shock, do not immerse cord, plug, or temperature control in water or other liquid.
7. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
9. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.

1. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
2. Always attach plug to appliance first; then plug cord into wall outlet. To disconnect, turn any control to OFF and then remove plug from wall outlet.
3. Do not use appliance for other than intended use.
4. Never leave appliance unattended while in use.
5. This appliance is not intended for deep frying foods.
6. Use only temperature-controlling plug provided by manufacturer. Use of other temperature-control plug may cause injury.
7. Do not operate the appliance by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Shock Hazard: This product is provided with either a polarized (one wide blade) or grounded (3-prong) plug to reduce the risk of electric shock. The plug fits only one way into a polarized or grounded outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

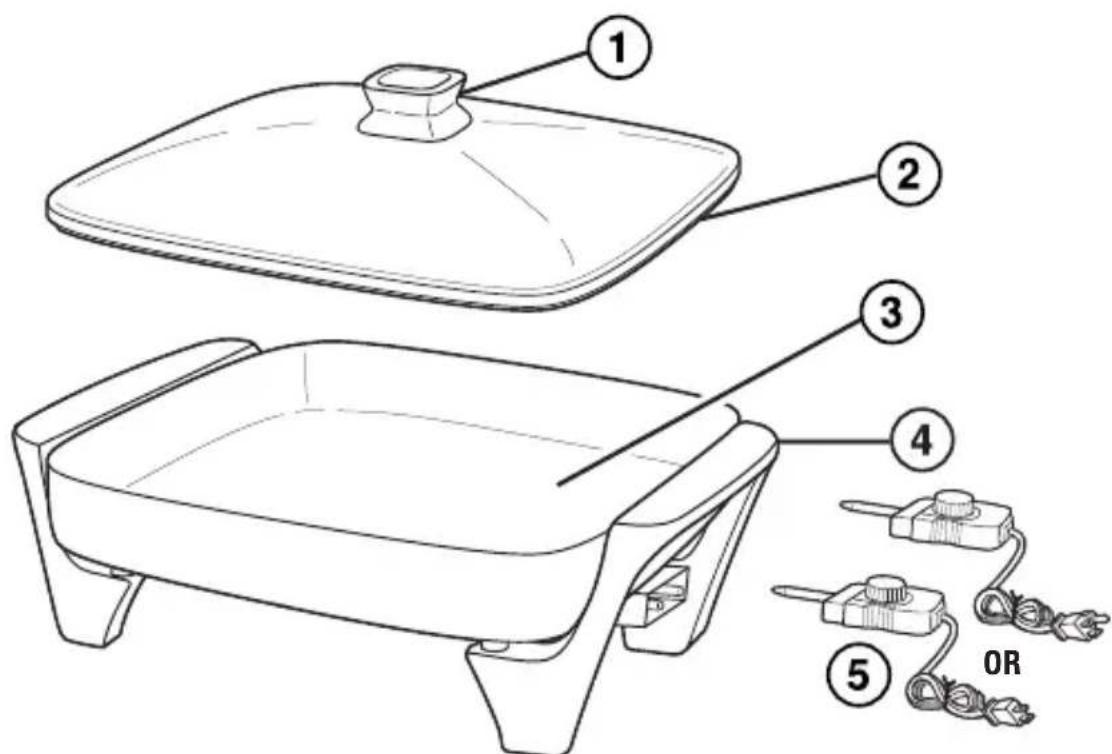

Parts and Features

To order parts: proctorsilex.com

1. Lid Handle
2. Glass Lid
3. Nonstick Skillet
4. Handle/Feet
5. Temperature Control

Assembly

Assembly of handle/feet to base is required. See below.

1. Long Screw
2. Split Lock Washer
3. Flat Washer

Tools Required: Phillips-head screwdriver. Do NOT overtighten.

NOTE: Screws and washers may be partially screwed into base for shipping purposes. Remove them to assemble handle/feet to base. After assembly the handles/feet should feel secure. If the handles/feet are loose, or the unit rocks when on a flat surface, the handles are not installed properly. Loosen the screws and realign handles; then retighten as shown. Periodically check screws and retighten as necessary.

How to Use

WARNING Burn Hazard.

• To reduce the risk of burns, do not carry or move the skillet when it contains hot oil or food.
• To reduce the risk of burns due to oil splatter, do not put a large amount of oil in a hot skillet. When frying, pour oil in skillet and then preheat unit.

BEFORE FIRST USE: Wash skillet and lid in hot, soapy water. Rinse and dry thoroughly.

1. Always use skillet on a dry, level, heat-resistant surface.
2. Plug the temperature control into the skillet. Set temperature control dial to OFF; then plug cord into wall outlet.
3. Refer to the Cooking Chart that follows for selecting the correct heat setting.
4. Preheat skillet, uncovered, 5 to 10 minutes until desired temperature is reached.
5. When the indicator light on the temperature control goes out, the cooking temperature has been reached. Food may now be added. Heat may be increased or decreased, depending upon personal preference and the type or amount of food being prepared.
6. When finished cooking, remove food, turn temperature control to OFF, and unplug unit from wall outlet.

NOTES: Only use wooden or plastic cooking utensils to prolong the life of the nonstick coating.

Never use the skillet and the cover in the oven or microwave oven, or on the range top.

Cooking Chart

FOOD TEMPERATURE TIME
Hamburgers (1/3 lb. [151 g] each)	350°F (180°C) 15 to 20 minutes
Bacon 350°F (180°C) 10 to 15 minutes
Sausage links and patties	350°F (180°C) 15 minutes
Fried Chicken 375°F	(190°C) 20 to 30 minutes
Pork Chops 325°F	(160°C) 20 to 30 minutes

Cooking times are based on fresh ingredients.

Care and Cleaning

WARNING Electrical Shock Hazard.

To reduce the risk of electrical shock, do not immerse the cord, plug, or temperature control in water or any other liquid.

1. When finished cooking, turn temperature control to OFF; unplug from outlet and then from skillet.
2. Let skillet cool completely.
3. Clean skillet and lid with hot, soapy water, using a nylon scouring pad. Rinse; then dry. Skillet and lid may also be washed in a dishwasher.

NOTE: Do not use metal scouring pads or abrasive cleansers.

This will damage the nonstick coating.

1. If necessary, wipe the temperature control and cord with a damp cloth and then wipe dry.

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/ customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.
