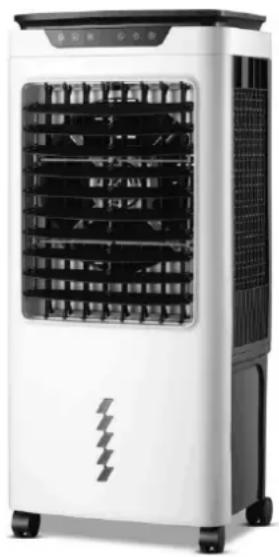

USER MANUAL AIR 55 Orbegozo

ENGLISH Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions. SAFETY INSTRUCTIONS

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not

play with the appliance.

3. Keep the appliance and the cable cord out of the reach

of children less than 8 years old.

4. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the

Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it

is not working properly.AIR 55

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other

10. Make sure the appliance has been unplugged before

11. This appliance must be installed following the national

regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual,

you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible

injury. Never insert fingers, pencils or any other object through the grille when fan is running. Disconnect the plug when moving from one location to another. Disconnect plug when removing guards for cleaning. Be sure fan is on a stable, even surface when operating to avoid overturning. DO NOT use fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.AIR 55

Do not operate this product near an open fire, it may ignite and cause fire, resulting in body injury or property damage. Do not operate in areas where gasoline, paint or other flammable liquids are used or stored. Never attempt to disassemble or alter the product in any way not instructed by this manual. Shock, fire, or bodily injury may occur. Do not cover or restrict airflow to the inlet or exhaust grills in any manner as the appliance may over heat and become a fire risk. Keep all objects at least 1.5 meter from the front, sides and rear of the appliance. FUNCTIONS

1. Refrigeration / Humidification: This appliance can be used as humidifier, used with the ice boxes, this

appliance can refresh the ambience.

2. Electronic control: safe durable.

3. Adjustable speed: have three speed, low, medium, high.

4. Operating modes: normal, and night.

5. Humidifier function: this function humidifies the ambient.

6. Swing function: the inner slats swing automatically, deliver wind at wide angle flatly. Also swing the outer

slats transversely by your hands, choose the wind direction up and down.

7. Remote control: to use the appliance in distance.

8. Removable air filter and cooling pad: easy to clean, can use soft brush and detergent.

1. Open the package and take out the air cooler.

2. In the back of the unit you can find the deposit’s lid: pour clean water into the tank.

Please pay attention to the water lever. Pour up to 35 L. To en-have the cooling effect, you can put the ice box into the upper tank (after some hours in freezer). Attention: cut the power when you pour the water into the tank.AIR 55

Press to turn the air cooler On / Off

Press to change the fan SPEED between low, medium and high. The currently selected fan speed will be illuminated on the front display panel.

Press to activate the EVAPORATIVE COOLING . Ensure that the water level is sufficient for operation. When this function is not turned on the unit will operate as a fan / air purifier.

TIMER: Repeatedly press the timer button to select in how many hours the unit should turn off, up to a maximum of 12 hours.

Press to change to NIGHT: The fan speed will decrease by 1 level every half hour and then remain at low.

Press to activate the SWING MODE. The airflow will gently swing from left to right. The vertical direction of the airflow can be adjusted manually. The Swing symbol will be illuminated when the function is active. Press again to turn it off.AIR 55

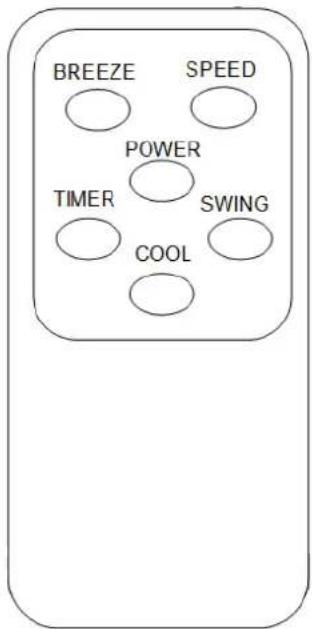

The remote control enables you to control all the same functions as the control panel. The remote control should be pointed towards the receiver on the front of the air cooler. ATTENTION: Do not mix old and new or different types of batteries If not in use for a prolonged period the batteries should be removed. Please note: Design of the remote may vary The remote controller needs 2 * 1.5V AAA batteries to operate (not included).

Using methods: a) Add water to the ICE BOX under not full situation and put it into the refrigerating chamber of refrigerator to make sure that it icing absolutely. b) Ice crystal put the ICE BOX in the upper tank. c) It has two ICE BOX, the can be used circularly.

Clean with neutral detergent and soft cloth. Attention: unplug the power plug when clean the appliance. Do not leave any water on the control panel.

Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty and may cause bodily harm.

Issue Possible Reason Solution No power

1. Power cord is not plugged in

2. No power from the socket.

3. The power button has not been

1. Connect the power cord

2. Check socket is switched on

– test with a different appliance.

Odour emission from unit

1. New unit. When the unit is used for

the first time, the Honeycomb cooling media will have an odour, which will dissipate within a week of use

If the above solutions do not resolve the problem please contact the service centre.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU. GUARANTEE This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/ For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/ Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.AIR 55
