USER MANUAL 225720 MILWAUKEE

Line drawing of a mechanical device with a labeled 'Milwaukee' on its body (no other text or symbols)

Cat. No. / No de cat.

2257-20

102 X 77 SPOT INFRARED IMAGER

102 X 77 INSTRUMENT D'IMAGERIE DE POINTS CHAUDS À INFRAROUGE

REPRODUCTOR DE IMÁGENES INFRARROJO DE IMAGEN ÚNICA DE 102 X 77

WARNING To reduce the risk of injury, user must read and understand operator's manual.

IMPORTANT SAFETY INSTRUCTIONS

AWARNING READ ALL SAFETY WARNINGS AND INSTRUCTIONS. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save these instructions - This operator's manual contains important safety and operating instructions for the MILWAUKEE Visual Infrared Imager. Before using the Visual Infrared Imager, read this operator's manual and all labels on the Visual Infrared Imager.

WORK AREA SAFETY

• Keep children and bystanders away while operating imager. Store idle imager out of the reach of children and do not allow persons unfamiliar with the tool or these instructions to operate them.
• Avoid dangerous environments. Do not use in rain, snow, damp or wet locations. Do not use in the presence of explosive atmospheres (gaseous fumes, dust or flammable materials) because sparks may be generated when inserting or removing batteries, possibly causing fire.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating imager. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

BATTERY TOOL USE AND CARE

• This tool is designed to be powered by one (1) 9V battery properly inserted into the imager. Do not attempt to use with any other voltage or power supply.
• Do not leave battery within the reach of children.
• Install battery according to polarity (+ / - diagrams.
• Properly dispose of used batteries immediately.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

SERVICE

- Have your imagerserviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Do not disassemble. Incorrect reassembly may result in the risk of electric shock or fire. If it is damaged, take it to a MILWAUKEE service facility. - Store in a cool, dry place. Do not store where temperatures may exceed 140^ (60°C) such as in direct sunlight, a vehicle or metal building during the summer.

- Do not remove or deface labels. Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

Federal Communications Commission

⚠ WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.

SPECIFICATIONS

Cat. No....2257-20

Voltage....9 DC

Temperature Measurement

Infrared (IR) Resolution ....102 x 77 pixels (Picture Elements or Data Points)

Object Temperature Range 2 ....14°F to 626°F (-10°C to 330°C)

Thermal Sensitivity .... 0.1°C/25°C NETD (Noise Equivalent Temperature Difference)

Spatial Resolution....3.0 mrad IFOV (Instantaneous Field of View)

Accuracy ....±5°C or 5% @ 25°C, whichever is greater

Emissivity 0.95 Infrared (IR) Detector Type Uncooled Microbolometer focal-plane array (FPA)

Spectral Range 7.5 to 14 μm Distance to Spot Radio 56 to 1"

Thermal Imaging

Field of View (FOV) .....26.8° (Horiz.) X 35.4°(Vert)

Focus Method ....Fixed Focus Minimum Distance in Focus ....36" (91.4 mm)

Thermal frame rate 8 Hz

Physical and Environmental

Drop Test ....6' (2 m) Drop to concrete

Operating Temperature Range .....14°F to 122°F (-10°C to 50°C)

Operating Storage Humidity Range...... 10%-90% Non-condensing

General

Display Color TFT-LCD 1.8" (4.6 cm)

measured diagonally

NOTE: Displayed readings < -10°C and > 330°C are not specified.

SYMBOLOGY

Direct Current

To reduce the risk of injury, user must operator's manual

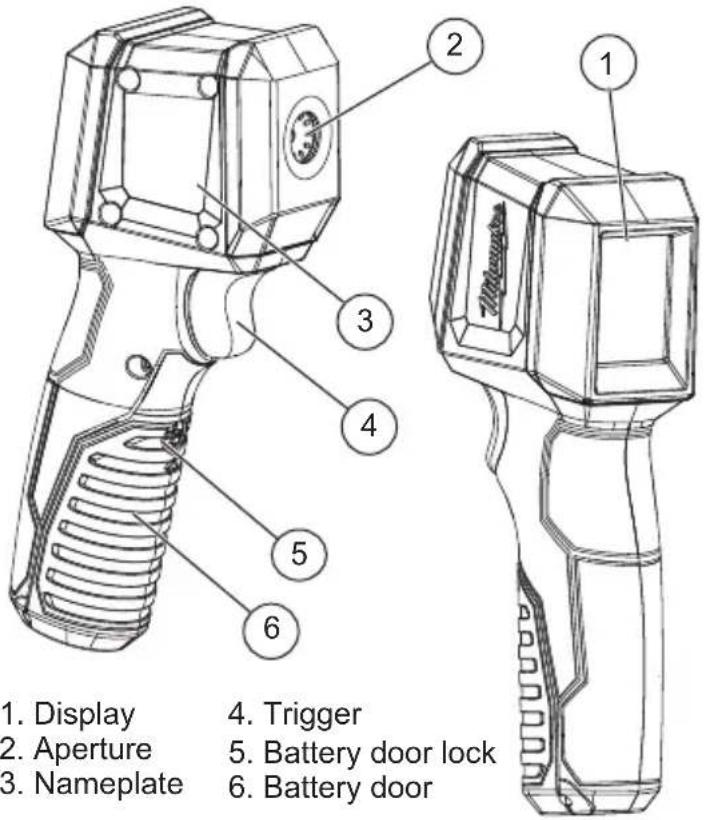

FUNCTIONAL DESCRIPTION

1. Display 2. Aperture 3. Nameplate 4. Trigger 5. Battery door lock 6. Battery door

ASSEMBLY

Loading/Changing the Battery

1. Using a flat screwdriver, rotate the battery door lock to the unlocked position and open the battery door.

2. Connect one (1) 9V battery to the connector block. Fit the battery into the compartment.

3. Close the battery door. Turn the battery door lock to the locked position.

Technical line drawing of a mechanical device with no visible text or symbols

Selecting Celsius or Fahrenheit

1. Using a flat screwdriver, rotate the battery door lock to the unlocked position and open the battery door.

2. Remove the battery to expose the °F/°C switch.

3. Toggle switch to the right position for ^ F or to the left position for ^ C.

4. Fit the battery into the compartment.

5. Close the battery door. Turn the battery door lock to the locked position.

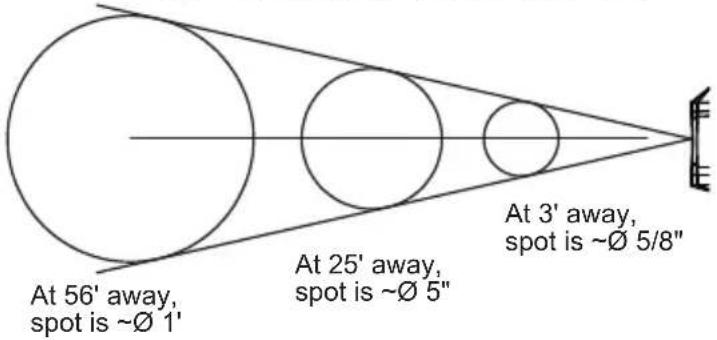

56:1 Distance to Spot

NOTE: A quick change in ambient, operating, or environment temperature ( >10^ F) affects the meter's readings. Allow the meter to reach ambient temperature before use (5 to 30 minutes, depending on temperature change).

Center of Spot ○ Spot size at distance indicated

At 56' away, spot is ~Ø 1' At 25' away, spot is ~Ø 5" At 3' away, spot is ~Ø 5/8"

OPERATION

Scanning Object Temperature

1. Pull the trigger to wake up the tool.
2. Pull and hold the trigger for at least 2 seconds and scan the surface temperature of an object.
3. Release the trigger to freeze the image on screen.
4. After 15 seconds of inactivity, the tool will turn off.

Low Battery

When the Low Battery icon is displayed, change the battery.

MAINTENANCE

⚠ WARNING To reduce the risk of injury, always remove the batteries from the tool before performing any maintenance. Never disassemble the tool. Contact a MILWAUKEE service facility for ALL repairs.

Maintaining Tool

Keep your tool in good repair by adopting a regular maintenance program. After six months to one year, depending on use, return the tool to a MILWAUKEE service facility for repairs.

If the tool does not start or operate at full power with new batteries, clean the contacts on the battery door. If the tool still does not work properly, return the tool to a MILWAUKEE service facility for repairs.

Cleaning the Lens

Blow off loose particles with clean compressed air. Carefully wipe the surface with a cotton swab moistened with water. Using a second cotton swab, dry completely.

⚠ WARNING To reduce the risk of personal injury and damage, never immerse your tool in liquid or allow a liquid to flow inside it.

Cleaning

Clean dust and debris from tool. Keep tool handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean the tool since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

Repairs

For repairs, return the tool to the nearest service center listed on the back cover of this operator's manual

ACCESSORIES

WARNING

Use only recommended accessories. Others may be hazardous.

For a complete listing of accessories, go online to www.milwaukeeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CST

or visit www.milwaukeeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd 1.800.268.4015

Monday-Friday, 7:00 AM - 4:30 PM CST

or visit www.milwaukeetool.ca

LIMITED WARRANTY USA & CANADA

MILWAUKEE Test & Measurement Product (including bare tool, M12™ battery pack(s) and battery charger) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on this product which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of five (5) years* after the date of purchase. Return of the Test & Measurement tool to the nearest Milwaukee Electric Tool Corporation - factory Service Center, freight prepaid and insured is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

* See separate & distinct CORDLESS BATTERY PACK LIMITED WARRANTY statement for the warranty period of the LITHIUM-ION battery pack that ships with Test & Measurement Product. *Alkaline battery that ships with Test & Measurement Product is separately warranted by the alkaline battery manufacturer.

*The warranty period for a Voltage Detector with Work Light – 2201 20, Voltage Detector with LED – 2202-20 or M12™ 2-Beam Plumb Laser – 2230 20 is one (1) year from the date of purchase.

Warranty Registration is not necessary to obtain the applicable warranty on MILWAUKEE product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested.

ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only.

LIMITED WARRANTY - MEXICO, CENTRAL AMERICA & CARIBBEAN

TECHTRONIC INDUSTRIES' warranty is for 5 years since the original purchase date.

This warranty card covers any defect in material and workmanship on this Product.

To make this warranty valid, present this warranty card, sealed/stamped by the distributor or store where you purchased the product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of purchase to the ASC. Call toll-free1 01 [phone] to find the nearest ASC, for service, parts, accessories or components.

Procedure to make this warranty valid

Take the product to the ASC, along with the warranty card sealed/ stamped by the distributor or store where you purchased the product, and any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative with this warranty process.

Exceptions

&This warranty is not valid in the following situations

a) When the product is used in a different manner from the end-user guide or instruction manual.
b) When the conditions of use are not normal.
c) When the product was modified or repaired by people not authorized by TECHTRONIC INDUSTRIES.
Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.

^0 SERVICE AND ATTENTION CENTER

Call to 01 [phone]

,IMPORTED AND COMMERCIALIZED BY

TECHTRONIC INDUSTRIES MEXICO, SA DE CV

Av President Masarik #29 piso 7, Col. Polanco V Sección

CP 11560, Deleg. Miguel Hidalgo, CDMX

Model:

Date of Purchase:

Distributor or Store Stamp:
