Dear Customers,

Congratulations to your new ultrasonic cleaner. Innovative components and technologies will let you enjoy this product for a very long time. The vibrations caused by ultrasonic waves will effectively remove dust, streaks and dirt from surfaces. Please read the operating instructions carefully before first time use and keep them for future reference.

Safety instructions:

• This device is for household use only.
- Make sure the device, mains cable and mains plug do not get in contact with water or other liquids.
- Disconnect the mains plug after use and before cleaning. Do not pull the cable when disconnecting the plug.
- Do not operate the device if the device itself or the mains cable is damaged.
- If the mains cable is damaged, it must be replaced by the manufacturer, its customer service or any other equally qualified person in order to avoid hazards.
- Keep away from children!
- This device is suitable for use by children of 8 years and above and by persons with reduced physical, sensory or mental capacities, or lack of experience and knowledge, as long as they have been supervised or received instructions regarding the safe use of the device and understand the hazards resulting thereof. Children must not play with the device. Cleaning and user maintenance must not be performed by children if unsupervised.

• Store packaging material and accessories out of reach of children: When playing with packaging material, there is a risk of suffocation and a risk of swallowing small parts.
• Never open the product. The warranty gets void in case of damage caused by unauthorized procedures.
• Keep the surface and control panel of the device clean and dry at all times.
• Make sure the voltage specifications on the rating label match your local mains voltage. Disconnect the mains plug in order to fully disconnect the device from the power supply.
• Please refer to chapter “Cleaning and care” for more information on cleaning the device.
• Never use the device without water; the device could get damaged otherwise.
• Do not guide the mains cable over sharp edges and do not let it get in contact with hot surfaces.
• Do not use or place the device or any accessories near hot objects or surfaces, such as gas or electric ovens.
• The ultrasonic cleaner has been designed for cleaning jewelry, shaving heads, glasses, CDs/DVDs, etc.
• Do not operate the device with wet hands.
• Place the device on a stable surface (e.g. worktop).

GB

• Disconnect the mains plug before filling the device. Make sure not to exceed the "MAX" marking when filling the device with water.
• Do not place any sensitive or very small objects inside the stainless steel tank, as those could cause scratching. Use the cleaning basket for such objects.
• Do not use aggressive cleaners or chemicals, and avoid using corrosive cleaners, ammonia, bleach and heavily scented cleaning agents.
• Never touch inner walls and cleaners during operation.

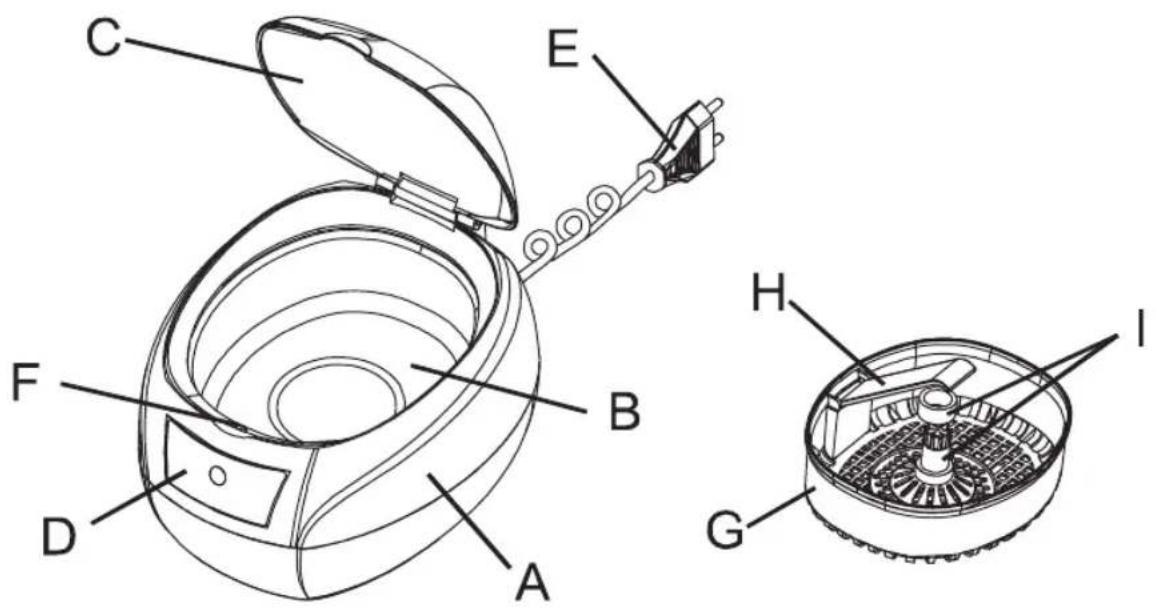

Operating elements:

GB

Technical diagram of a portable device with labeled parts A through I, showing internal structure and wiring connections.

Jewelry Glasses and watches	Consumer goods
Necklaces RingsEarrings Bracelets etc.	GlassesSun glassesMetal braceletsWaterproof watches etc.	Electric shaving headsDentures CombsTooth brushes etc.
Stationary / CDs Metal products Cutlery
Nibs of fountain pens and ball pens, heads of ink cartridges, etc.	HardwareWatch componentsOld coinsBadgesValvesMachinery parts, etc.	CutleryTablewareCooking utensils etc.

Do not leave any water in the cleaning tank! Empty the tank immediately after each cleaning process, as the device would be damaged otherwise.

Three cleaning methods for different applications:

General cleaning
	Use normal water for general cleaning. (The water should fully cover the object to be cleaned, but not exceed the maximum fill level marking.)

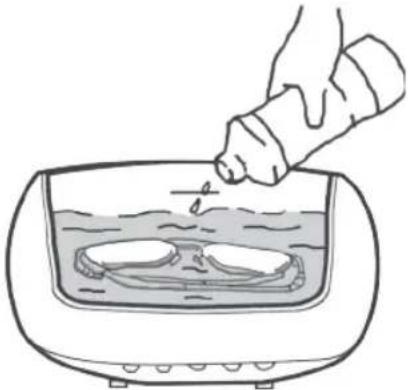

Thorough cleaning
	Use some dishwasher or neutral cleaner. Add a special cleaning agent to the water when thoroughly cleaning surgical instruments.

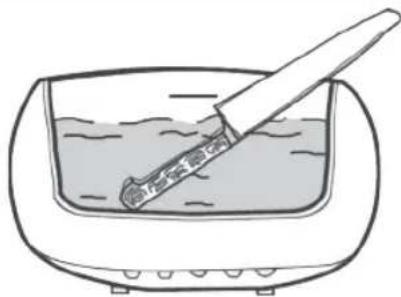

Partial cleaning
	Use the device for cleaning larger objects, such as shown in the picture.

Diagram illustrating the step-by-step installation of a portable air conditioner with labeled parts and directional arrows.

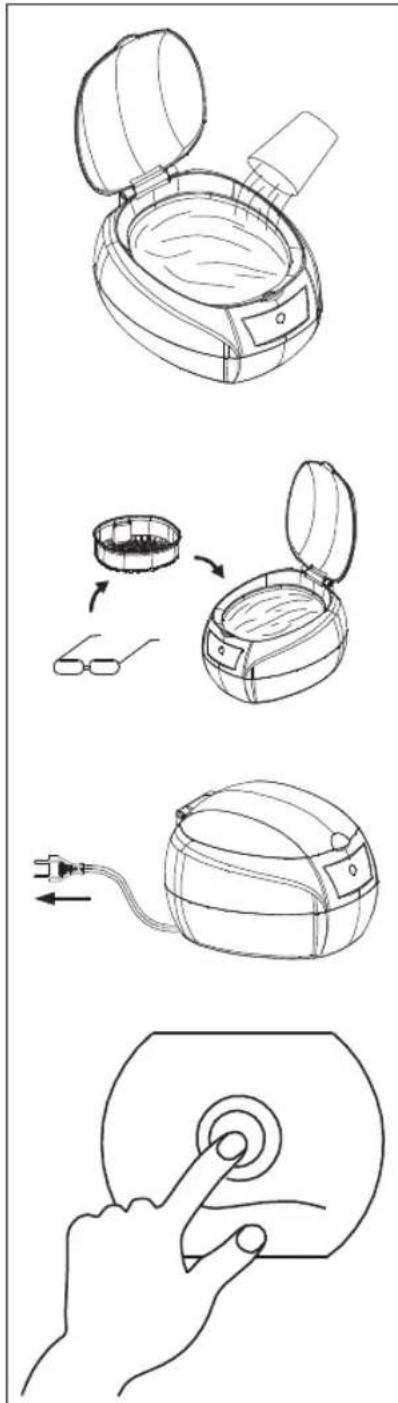

1. Open the lid and place the object to be cleaned inside the tank. Then fill the tank with water. The water must cover the object to be cleaned but not exceed the maximum fill level marking.
2. Close the lid and connect the device to the wall socket. The blue power LED (internal cover) lights up for 1 to 2 seconds.
3. Set the power switch to ON position; the blue LED indicator lamp lights up and the device starts cleaning. The cleaning process of the cleaning tank will cause a buzzing sound during cleaning.
4. After 3 minutes the cleaning process will stop automatically. Set the power switch back to OFF position at any time in order to stop the cleaning process.
5. Switch off the device after cleaning, open the lid and remove the cleaned object from the device. Empty the tank.

Cleaning and care:

• Disconnect the mains plug before cleaning the ultrasonic cleaner. Clean the ultrasonic cleaner with a damp cloth.
• Do not leave the cleaned objects inside the cleaning tank after cleaning has been completed.
• Turn off the device before pouring the water from the cleaning tank.
• Remove dirt with a damp cloth and use a neutral cleaning agent if necessary. Wipe dry after each use.
• Do not use aggressive cleaners, acid or leach. Those can damage the material.
• Store the device at a cool and dry location.
• Have repairs done by authorized repair services only.

Disposal instructions:

Please note that electronic devices must not be disposed of through normal household waste. Return them to collection facilities, local recycling centers or manufacturers/shops. This also applies to our devices, which you should return to public/

local collection facilities free of charge. For that reason all of our devices are marked with the crossed-out wheelie bin as a reference for disposal instructions.

By contributing to the proper disposal of this product you help to protect the environment and health of your fellow human beings. Wrong or improper disposal will endanger the environment and human health.

GB

EC Declaration of conformity:

according to directives 2004/108/EG, 2006/95/EG

Document no.: 1409151

Month/year: Sep-15

Manufacturer/importer: Weinberger GmbH & Co. KG

INDUSTRIEPARK OST

Address: Bergische Str. 11

42781 Haan

Product description: Ultrasonic cleaner

Article no.: 43675

Model no.: SU-739

The mentioned product conforms to the requirements of the following European standards.

Applicable standard(s)

EN 62233:2008

PAH requirement for GS AfPS GS 2014:01 PAK

Issued by: Weinberger GmbH & Co. KG

Place, date: Haan, 14.09.2015

Legally binding signature:

Houws Fink

Thomas Fink

General Manager
