USER MANUAL ZAM850X ZANKER

CONTENTS The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.4

IMPORTANT SAFETY INSTRUCTIONS

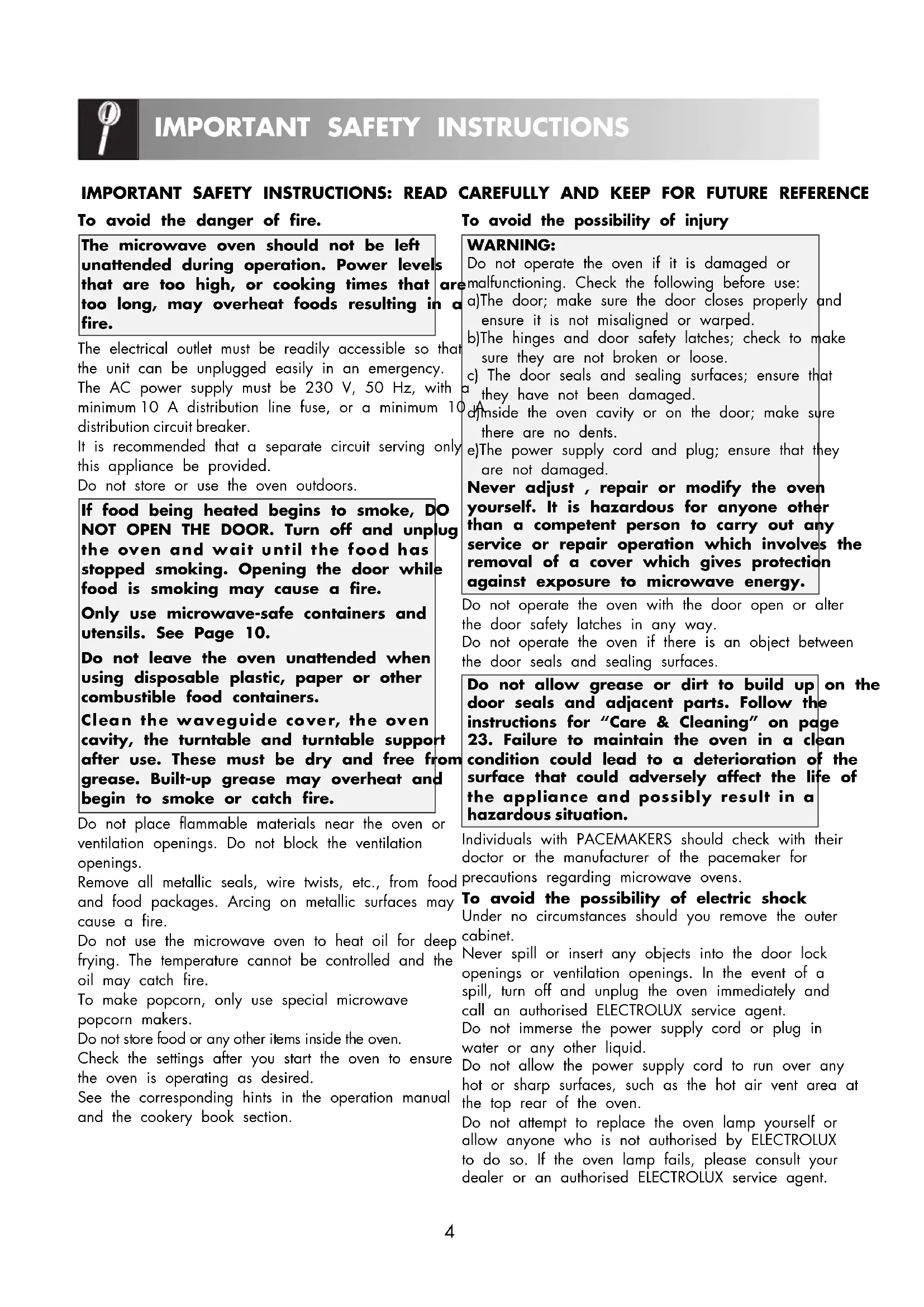

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE To avoid the possibility of injury

Do not operate the oven if it is damaged or

alfunctioning. Check the following before use: a)The door; make sure the door closes properly and ensure it is not misaligned or warped. b)The hinges and door safety latches; check to make sure they are not broken or loose. c) The door seals and sealing surfaces; ensure that they have not been damaged. d)Inside the oven cavity or on the door; make sure there are no dents. e)The power supply cord and plug; ensure that they are not damaged. Never adjust , repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy. Do not operate the oven with the door open or alter the door safety latches in any way. Do not operate the oven if there is an object between the door seals and sealing surfaces. Do not allow grease or dirt to build up on the door seals and adjacent parts. Follow the instructions for “Care & Cleaning” on page

23. Failure to maintain the oven in a clean

condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens. To avoid the possibility of electric shock Under no circumstances should you remove the outer cabinet. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately and call an authorised ELECTROLUX service agent. Do not immerse the power supply cord or plug in water or any other liquid. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven. Do not attempt to replace the oven lamp yourself or allow anyone who is not authorised by ELECTROLUX to do so. If the oven lamp fails, please consult your dealer or an authorised ELECTROLUX service agent. To avoid the danger of fire. The microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fire. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency. The AC power supply must be 230 V, 50 Hz, with a minimum 10 A distribution line fuse, or a minimum 10 A distribution circuit breaker. It is recommended that a separate circuit serving only this appliance be provided. Do not store or use the oven outdoors. If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire. Only use microwave-safe containers and utensils. See Page 10. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers. Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire. Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings. Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire. To make popcorn, only use special microwave popcorn makers. Do not store food or any other items inside the oven. Check the settings after you start the oven to ensure the oven is operating as desired. See the corresponding hints in the operation manual and the cookery book section.ENGLISH

If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised ELECTROLUX service agent. To avoid the possibility of explosion and sudden boiling:

WARNING: Liquids and other foods must

not be heated in sealed containers since they are liable to explode. Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide- mouthed container to allow bubbles to escape. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container. To prevent sudden eruption of boiling liquid and possible scalding:

1. Stir liquid prior to heating/reheating.

2. It is advisable to insert a glass rod or similar utensil

into the liquid whilst reheating.

3. Let liquid stand for at least 20 seconds in the oven

at the end of cooking time to prevent delayed eruptive boiling. Do not cook eggs in their shells, and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven. Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode. To avoid the possibility of burns Use pot holders or oven gloves when removing food from the oven to prevent burns. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns. To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly. Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature. Always stand back from the oven door when opening it to avoid burns from escaping steam and heat. Slice stuffed baked foods after heating to release steam and avoid burns. Keep children away from the door to prevent them burning themselves. To avoid misuse by children

WARNING: Only allow children to use the

oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Do not lean or swing on the oven door. Do not play with the oven or use it as a toy. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot. Other warnings Never modify the oven in any way. This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use. To promote trouble-free use of your oven and avoid damage. Never operate the oven when it is empty. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specified in the dishes instructions must not be exceeded. Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven. Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable. To prevent the turntable from breaking: (a) Before cleaning the turntable with water, leave the turntable to cool. (b) Do not put hot foods or hot utensils on a cold turntable. (c) Do not put cold foods or cold utensils on a hot turntable. Do not place anything on the outer cabinet during operation. NOTE: If you are unsure how to connect your oven, please consult an authorised, qualified electrician. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.6 OVEN & ACCESSORIES ACCESSORIES: Check to make sure the following accessories are provided: (15) Turntable (16) Turntable support (17) 4 fixing screws (not shown).

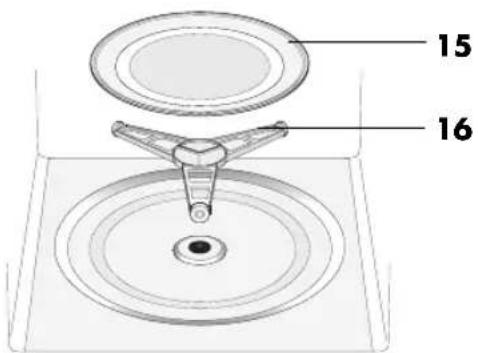

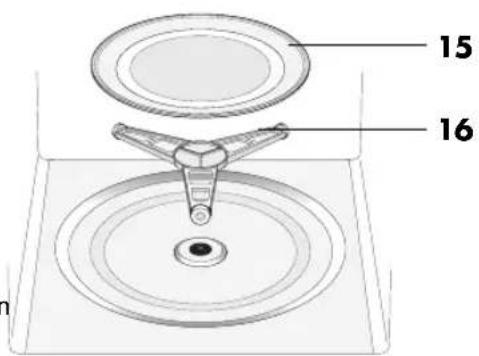

• Place the turntable support in the seal packing on the floor of the cavity.

• Then place the turntable on the turntable support.

• To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven. NOTE: When you order accessories, please mention two items: part name and model name to your dealer

authorised ELECTROLUX service agent.

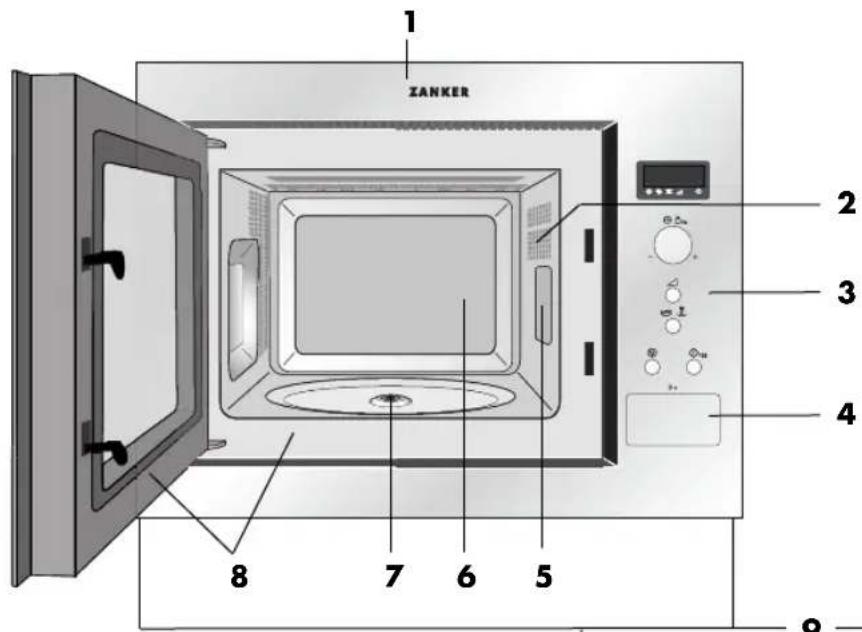

8. Door seals and sealing surfaces

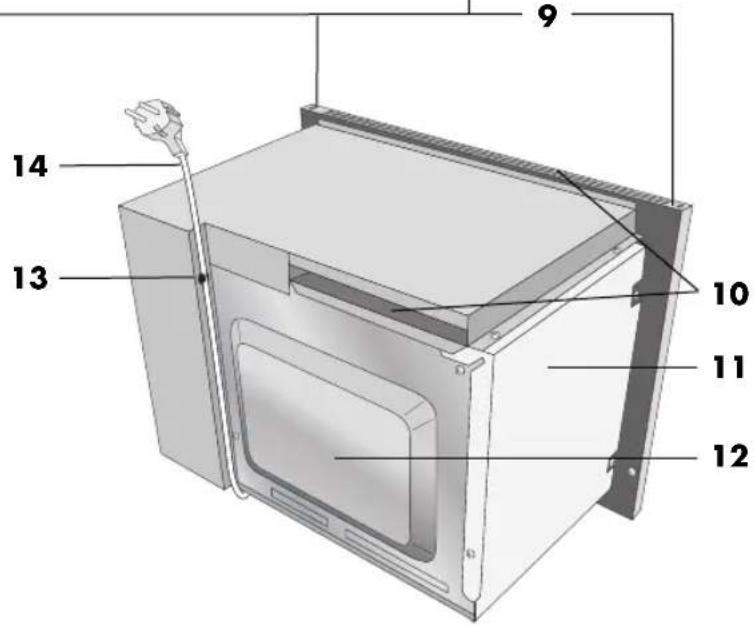

13. Power supply cord support clip

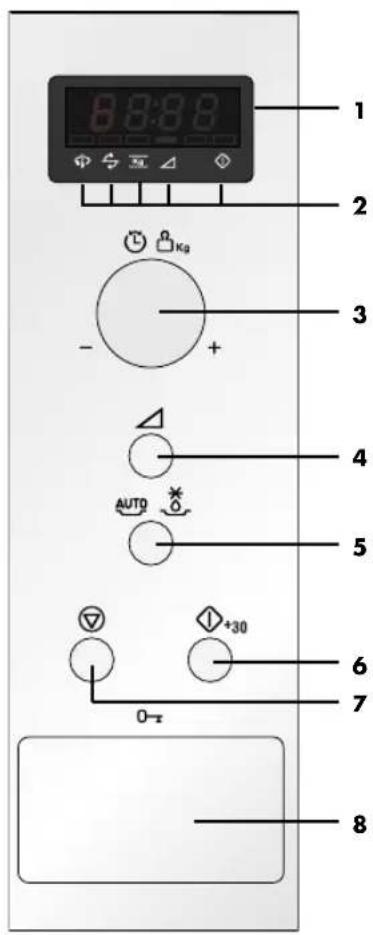

To set the clock, see next page. Using the STOP button Use the STOP button to:

1. Erase a mistake during programming.

2. Stop the oven temporarily during cooking.

3. Cancel a programme during cooking, touch twice.

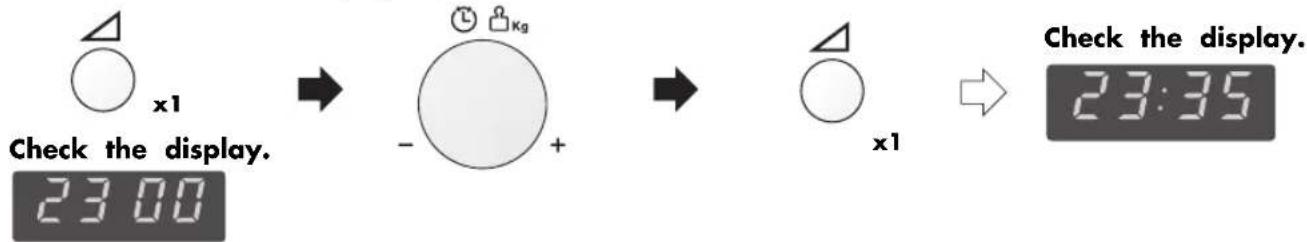

Example: To set the 12 hour clock to 11:35. Example: To set the 24 hour clock to 23:35.

Rotate the TIMER/WEIGHT knob until the correct minute is displayed (35).

5. Press the MICROWAVE POWER

LEVEL button to start the clock. NOTE:

3. If the electrical power supply to your microwave

oven is interrupted, the display will intermittently show after the power is reinstated. If this occurs during cooking, the programme will be erased. The time of day will also be erased.

4. When you want to reset the time of day, follow the

above example again.

3. Press the MICROWAVE

POWER LEVEL button to change from hours to minutes.

Rotate the TIMER/WEIGHT knob until the correct hour is displayed (23).

Rotate the TIMER/WEIGHT knob until the correct minute is displayed (35).

There are two setting modes: 12 hour clock and 24 hour clock. To set the clock, follow the example below.

To set the 12 hour clock, hold the MICROWAVE POWER LEVEL button down for 3 seconds. will appear in the display.

To set the 24 hour clock, hold the MICROWAVE POWER LEVEL button down for 3 seconds. will appear in the display. Check the display.

4. Press the MICROWAVE

POWER LEVEL button to change from hours to minutes.

POWER LEVEL button to change from 12 hours to 24 hours.

LEVEL button to start the clock.

Microwaves are energy waves, similar to those used for TV and radio signals. Electrical energy is converted into microwave energy, which is directed into the oven cavity via a waveguide. To prevent food and grease entering the waveguide it is protected by the waveguide cover. Microwaves cannot pass through metal, because of this the oven cavity is made of metal and there is a fine metal mesh on the door. During cooking the microwaves bounce off the sides of the oven cavity at random. Microwaves will pass through certain materials, such as glass and plastic, to heat the food. (See ‘Microwave safe cookware’ on page 10.) To cook/defrost food in a microwave oven, the microwave energy must be able to pass through the container to penetrate the food. Therefore it is important to choose suitable cookware. Round/oval dishes are preferable to square/oblong ones, as the food in the corners tends to overcook. A variety of cookware can be used as listed on page

Water, sugar and fat in food absorb microwaves which cause them to vibrate. This creates heat by friction, in the same way your hands get warm when you rub them together. The outer areas of the food are heated by the microwave energy, then the heat moves to the centre by conduction, as it does in conventional cooking. It is important to turn, rearrange or stir food to ensure even heating. Once cooking is complete, the oven automatically stops producing microwaves. Standing time is necessary after cooking, as it enables the heat to disperse equally throughout the food. Microwaves cook food faster than conventional cooking. It is therefore essential that certain techniques are followed to ensure good results. Many of the following techniques are similar to those used in conventional cooking. Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care shouldbe taken as overheating can lead to fire.Density Food density will affect the amount of cooking time needed. Light porous foods, such as cakes orbread, cook more quickly than heavy, dense foods, such as roasts and casseroles.Quantity The cooking time must be increased as the amount of food placed in the oven increases. E.g. Fourpotatoes will take longer to cook than two.Size Small foods and small pieces cook faster than large ones, as microwaves can penetrate from all sidesto the centre. For even cooking make all the pieces the same size.Shape Foods which are irregular in shape, such as chicken breasts or drumsticks, take longer to cook in thethicker parts. Round shapes cook more evenly than square shapes when microwave cooking. Temperature The initial temperature of food affects the amount of cooking time needed. Chilled foods will take of food longer to cook than food at room temperature. Cut into foods with fillings, e.g. jam doughnuts, to release heat or steam. FOOD CHARACTERISTICS Arrange Place the thickest parts of food towards the outside of the dish. E.g. Chicken drumsticks. Cover Use vented microwave cling film or a suitable lid. Pierce Foods with a shell, skin or membrane must be pierced in several places before cooking or reheating as steam will build up and may cause food to explode, e.g. Potatoes, Fish, Chicken, Sausages.Important: Eggs should not be heated using microwave power as they may explode, even aftercooking has ended, e.g. poached, fried, hard boiled. Stir, turn and For even cooking it is essential to stir, turn and rearrange food during cooking. Always stir and rearrange rearrange from the outside towards the centre. Stand Standing time is necessary after cooking to enable the heat to disperse equally throughout the food. Shield Some areas of food being defrosted may become warm. Warm areas can be shielded with small pieces of foil, which reflect microwaves, e.g. legs and wings on a chicken. COOKING TECHNIQUES10

USING A FOOD THERMOMETER TO DETERMINE COOKING TIME Once cooked, every drink and every foodstuff has a certain internal temperature at which the cooking process can be switched off and the food will be cooked. The internal temperature can be ascertained with a food thermometer. The most important temperatures are specified in the temperature table. Heating drinks (Coffee, Water, Tea, etc.) 65-75

Drink / Food Internal temp. at the end of Internal temp. after 10 - 15 min cooking time standing Aluminium foil / / Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at foil containers least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer, e.g. Microfoil ®, follow instructions carefully. Browning dishes Always follow the manufacturers instructions. Do not exceed heating times given. Be very careful as these dishes become very hot. China and ceramics / Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration. Glassware e.g. Pyrex ® Care should be taken if using fine glassware as it can break or crack if heated suddenly. Metal It is not recommended to use metal cookware when using microwave power as it will arc, which can lead to fire. Plastic / polystyrene Care must be taken as some containers warp, melt or discolour at high temperatures. e.g. fast food containers Cling film Should not touch the food and must be pierced to let the steam escape. Freezer / roasting bags Must be pierced to let steam escape. Ensure bags are suitable for microwave use. Do not use plastic or metal ties, as they may melt or catch fire due to the metal arcing. Paper - plates, cups Only use for warming or to absorb moisture. Care must be taken as overheating may and kitchen paper cause fire. Straw and wooden Always attend the oven when using these materials as overheating may cause fire. containers Recycled paper May contain extracts of metal which will cause ‘arcing’ and may lead to fire. and newspaper Cookware Microwave Comments safeENGLISH

1. When the door is opened during the cooking process, the cooking time on the digital display stops

automatically. The cooking time starts to count down again when the door is closed and the START/+30 button is pressed.

2. If you wish to know the power level during cooking, press the MICROWAVE POWER LEVEL button.

As long as your finger is touching the MICROWAVE POWER LEVEL button, the power level will be displayed.

3. You can rotate the TIMER/WEIGHT knob clockwise or counterclockwise. If you rotate the knob

counterclockwise, the cooking time will decrease from 90 minutes by degrees. Example: Suppose you want to heat soup for 2 minutes and 30 seconds on 560 W microwave power.

1. Enter the desired cooking time by

by pressing the MICROWAVE POWER LEVEL button twice.

+30 button to begin cooking. Your oven can be programmed for up to 90 minutes. (90.00) The input unit of cooking (defrosting) time varies from 10 seconds to five minutes. It depends on the total length of the cooking (defrosting) time as shown on the table. Cooking time Increasing unit 0-5 minutes 10 seconds 5-10 minutes 30 seconds 10-30 minutes 1 minute 30-90 minutes 5 minutes

Your oven has 5 power levels. To choose the power level for cooking, follow the advice given in the recipe section. Generally the following recommendations apply: 800 W used for fast cooking or reheating e.g. soup, casseroles, canned food, hot beverages, vegetables, fish, etc. 560 W used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes. At this reduced setting, the sauce will not boil over and food will cook evenly without over cooking at the sides. 400 W for dense foods which require a long cooking time when cooked conventionally, eg. beef dishes, it is advisable to use this power setting to ensure the meat will be tender. 240 W to defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard. 80 W For gentle defrosting, eg. cream gateaux or pastry. W = WATT To set the power, touch the MICROWAVE POWER LEVEL button until the desired level is displayed. If MICROWAVE POWER LEVEL button is touched once, will be displayed. If you miss your desired level, continue touching the MICROWAVE POWER LEVEL button until you reach the level again. If the level is not selected, the level 800 W is automatically set. Check the display.12

A maximum of 3 sequences can be input, consisting of manual cooking time and mode. Example: To cook: 5 minutes on 800 W power (Stage 1) 16 minutes on 240 W power (Stage 2) STAGE 1

1. Enter the desired cooking time

by rotating TIMER/WEIGHT knob.

3. Enter desired time by

level by pressing the MICROWAVE POWER LEVEL button four times.

+30 button once to begin cooking.

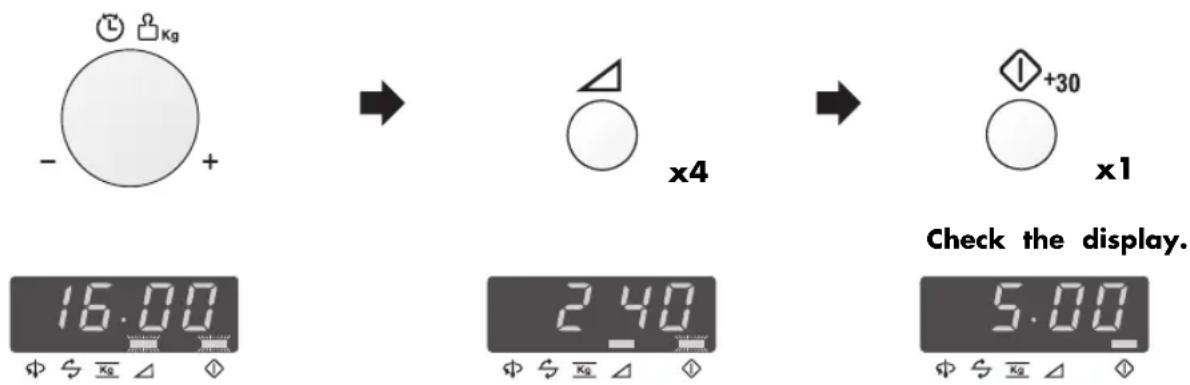

(The oven will begin to cook for 5 minutes on 800 W, and then for 16 minutes on 240 W.) Check the display.13

The START/+30 button allows you to operate the two following functions: a. Direct start You can directly start cooking on 800 W microwave power level for 30 seconds by pressing the START/+30 button. NOTE: To avoid the misuse by children the START/+30 button can be used only within 3 minutes after preceding operation, i.e., closing the door, pressing the STOP button or cooking completion. b. Extend the cooking time You can extend the cooking time during manual cooking for multiples of 30 seconds if the button is pressed while the oven is in operation.

3. TO CHECK THE POWER LEVEL

To check the microwave power level during cooking press the MICROWAVE POWER LEVEL button. As long as your finger is touching the MICROWAVE POWER LEVEL button the power level will be displayed. The oven continues to count down although the display shows the power level.

1. Press and hold the STOP key for 3

seconds. NOTE: When the Safety Lock is set you cannot input any buttons except the STOP button.

TO CANCEL THE SAFETY LOCK FUNCTION

1. Press and hold the STOP key for 3 seconds.

x1 for 3 seconds x1 for 3 seconds14

AUTO PROGRAMMES OPERATION

The AUTO PROGRAMMES function automatically works out the correct cooking mode and cooking time. You can choose from 7 AUTO COOK menus and 5 AUTO DEFROST menus. What you need to know when using this automatic function:

1. Press the AUTO PROGRAMMES button once, the

display will appear as shown. The menu can be chosen by pressing the AUTO PROGRAMMES button until the desired menu number is displayed. See pages 15 - 17 “AUTO PROGRAMMES charts”. To select a defrost menu, press the AUTO PROGRAMMES button at least 8 times. If you press the button 8 times, will appear in the display. The menu will be changed automatically by holding down the AUTO PROGRAMMES button.

2. The weight or quantity of the food can be input by

rotating the TIMER/WEIGHT knob until the desired weight is displayed.

• Enter the weight of the food only. Do not include the weight of the container.

• For food weighing more or less than weights given in the automatic chart, use manual programmes. For best results, follow the cooking charts on pages 19 -

When action is required (e.g. to turn food over), the oven stops and the audible signals sound, remaining cooking time and any indicator will flash on the display. To continue cooking, press the START/+30 button. START/+30 button TIMER/WEIGHT knob AUTO PROGRAMMES button Menu number

The final temperature will vary according to the initial food temperature. Check food is piping hot after cooking. If necessary, you can extend the cooking time and change the power level. Example: To cook gratin weighing 1,0 kg using AUTO COOK AC-7.

2. Enter the weight by rotating

1. Select the menu required by

• Add 1 tbsp water per 100 g and salt as desired. (For mushrooms no additional water is necessary).

• When audible signal sounds, stir and re-cover.

• After cooking, stand for approx. 2 min. IMPORTANT: If frozen vegetables are compacted together, cook manually.

• Cut into small pieces, eg. strips, cubes or slices.

• Add 1 tbsp water per 100 g and salt as desired. (For mushrooms no additional water is necessary).

• When audible signal sounds, stir and re-cover.

• After cooking, stand for approx 2 min.

• Transfer meal to suitable microwave-proof dish.

• Cook without cover if the manufacturer instructs.

• When audible signal sounds, stir and re-cover.

• After cooking, stir and stand for approx. 2 min.

• Remove the frozen gratin from the package. If the container is not suitable for microwave ovens, transfer gratin to a suitable microwave proof dish.

• Cover with microwave cling film.

• If the container is suitable for microwave ovens, remove original paper cover and cover with microwave cling film.

• After cooking, let stand for approx. 5 min. Boiled Potatoes: Peel the potatoes and cut them into similar sized pieces. Jacket Potatoes: Choose potatoes of similar size and wash them.

• Put the boiled or jacket potatoes into a bowl.

• Add the required amount of water (per 100 g), approx 2 tbsp and a little salt.

• When audible signal sounds, stir and re-cover.

Important: Chilled foods are cooked from 5

C, frozen foods are cooked from -18

• Place the food in a flan dish in the centre of the turntable.

• When the audible signal sounds, turn the food over, rearrange and separate. Shield thin parts and warm spots with small pieces of aluminium foil.

• After defrosting, wrap in aluminium foil for 10 - 15 min, until thoroughly defrosted.

• Place the block of minced meat in a flan dish in the centre of the turntable.

• When the audible signal sounds, turn the food over. Remove the defrosted parts if possible.

• After defrosting cover with aluminium foil, stand for 5 - 10 min, until thoroughly defrosted.

• Place the poultry in a flan dish in the centre of the turntable.

When the audible signal sounds, turn over and shield thin parts and warm spots with small pieces of aluminium foil.

• After defrosting, rinse with cold water, cover with aluminium foil and stand for 15 - 30 min until thoroughly defrosted.

• Finally clean the poultry under running water.

• Remove all packaging from the cake.

• Place directly on the turntable, or on a plate in the middle of the turntable.

• After defrosting, cut the cake into similar sized pieces keeping space between each piece and let stand for 10 - 30 min until evenly defrosted.

Distribute in a flan dish in the centre of the turntable. For 1,0 kg distribute directly on the turntable.

• When the audible signal sounds, turn over, re- arrange and remove defrosted slices.

• After defrosting cover in aluminum foil and stand for 5 - 15 min, until thoroughly defrosted. AUTO DEFROST NO. Ad-1 Defrost Steak and Chops Ad-2 Defrost Minced Meat Ad-3 Defrost Poultry Ad-4 Defrost Cake Ad-5 Defrost Bread BUTTON AUTO COOK NO. AC-6 Cook Fish fillet with sauce AC-7 Cook Gratin WEIGHT (Increasing Unit) / UTENSILS 0,4 - 1,2 kg* (100 g) Gratin dish and microwave cling film 0,5 - 1,5 kg* (100 g) Gratin dish PROCEDURE

• See recipes for “Fish Fillet with Sauce” on page 17.

• Total weight of all ingredients.

• See recipes for “Gratin” on page 18.

• Total weight of all ingredients. BUTTON

x10 x11 x12 Important: Chilled foods are cooked from 5

C, frozen foods are cooked from -18

2. Place the fish fillet in a round gratin dish with

the thin ends toward the centre and sprinkle with salt.

3. Spread the sauce on the fish fillet.

4. Cover with microwave cling film and cook on

AUTOCOOK (AC-6), “Fish fillet with sauce”.

5. After cooking, stand for approx. 2 min.

FISH FILLET WITH SAUCE (AC-6) Fish fillet with curry sauce 0,4 kg 0,8 kg 1,2 kg 200 g 400 g 600 g fish fillet salt 40 g 80 g 120 g banana (sliced) 160 g 320 g 480 g ready-made curry sauce

1. Place the fish fillet in a round gratin dish with

the thin ends toward the centre and sprinkle with salt.

2. Spread the banana and the ready-made curry

sauce on the fish fillet.

3. Cover with microwave cling film and cook on

AUTOCOOK (AC-6), “Fish fillet with sauce”.

4. After cooking, stand for approx. 2 min.

1. Steaks and Chops should be frozen in one layer.

2. Minced meat should be frozen in a thin shape.

3. After turning over, shield the defrosted portions with small, flat pieces of aluminium foil.

4. The poultry should be processed immediately after defrosting.

5. Gateaux topped and coated with cream are very sensitive to microwave energy. For the best result, if

the cream begins to soften rapidly, it is best to remove it from the oven immediately and stand for 10 - 30 minutes at room temperature.18

. Mix together the leaf spinach with the onion and season with salt, pepper and nutmeg.

2. Grease the gratin dish. Place alternate layers of

potato slices, diced ham and spinach in the dish. The top layer should be spinach.

3. Mix the eggs with crème fraiche, add salt and

pepper and pour over the gratin.

4. Cover the gratin with the grated cheese, sprinkle

with paprika powder and cook on AUTOCOOK (AC-7), “Gratin”.

2 12clove of garlic (crushed) salt & pepper 40 g 80 g 120 g feta cheese (diced) 10 g 20 g 30 g sunflower kernel paprika powder

1. Grease the gratin dish and place alternate layers

of potato slices and courgette in the dish.

2. Mix the eggs with crème fraiche, season with salt,

pepper and garlic and pour over the gratin.

3. Crumble the feta cheese and sprinkle over the

4. Finally sprinkle the gratin with sunflower kernels

and paprika powder and cook on AUTOCOOK (AC-7), “Gratin”.

COOKING CHARTS ABBREVIATIONS USED tbsp = tablespoon tsp = teaspoon Cup = cupful KG = kilogram g = gram l = litre ml = millilitre cm = centimetre min = minutes Food / Drink Quantity Power Time Method -g/ml- -Setting- -Min-

TABLE: HEATING FOOD & DRINK

• from chilled Coffee, 1 cup 150 800 W approx.1 do not cover Milk, 1 cup 150 800 W approx.1 do not cover Water, 1 cup 150 800 W 1

-2 do not cover 6 cups 900 800 W 10-12 do not cover 1 bowl 1000 800 W 11

-13 do not cover One plate meal 400 800 W 3-6 sprinkle some water onto the sauce, cover (vegetables, meat and trimmings) stir half way through the heating Stew / Soup 200 800 W 1

cover, stir after heating Vegetables 200 800 W 2-2

if necessary add some water, cover 500 800 W 4-5 stir half way through the heating Meat, 1 slice* 200 800 W 3-4 thinly spread sauce over the top, cover Fish fillet* 200 800 W 2-3 cover Cake, 1 piece 100 400 W

place in a flan dish Baby food, 1 glass 190 400 W approx.1 transfer into a suitable microwave container, after heating stir well and test the temperature Melting butter or margarine* 50 800 W

cover Melting chocolate 100 400 W 2-3 stir occasionally TABLE: THAWING Food Quantity Power Thawing time Method Standing time -g- -Setting- -Min- -Min- Roast meat (e.g. pork, beef, 1500 80 W 58-64 place in a flan dish, turn halfway 30-90 lamb, veal) 1000 80 W 42-48 through defrosting 30-90 500 80 W 19-23 30-90 Goulash 500 240 W 8-12 stir halfway through defrosting 10-15 Sausages, 8 pieces 600 240 W 6-9 place next to each other, 5-10 4 pieces 300 240 W 4-5 turn half way through defrosting 5-10 Chicken legs 200 240 W 4-5 turn half way through defrosting 10-15 Fish fillet 400 240 W 7-10 turn half way through defrosting 5-10 Bread rolls, 2 pieces 80 240 W approx.1 only partially defrost - Cake, 1 slice 150 80 W 2-5 place in a flan dish 5 Fruit e.g. cherries, 250 240 W 4-5 spread them out evenly 5 strawberries, raspberries, plums turn half way through defrosting time The times shown in the table are guidelines which may vary according to freezing temperature, quality and weight of the foodstuffs. Food Quantity Power Cooking time Added water Method Standing time -g- -Setting- -Min- -tbsps/ml- -Min-

TABLE: THAWING & COOKING

Fish fillet 300 800 W 10-12 - cover 1-2 One plate meal 400 800 W 9-11 - cover, stir after 6 minutes 2 Broccoli 300 800 W 7-9 3-5 tbsps cover, stir half way through cooking 2 Peas 300 800 W 7-9 3-5 tbsps cover, stir half way through cooking 2 Mixed vegetables 500 800 W 11-13 3-5 tbsps cover, stir half way through cooking 220 COOKING CHARTS All the recipes in this book are calculated on the basis of 4 servings - unless otherwise stated.

ADAPTING RECIPES FOR THE MICROWAVE

OVEN If you would like to adapt your favourite recipes for the microwave, you should take note of the following: Shorten cooking times by a third to a half. Follow the example of the recipes in this book. Foods which have a high moisture content such as meat, fish, poultry, vegetables, fruit, stews and soups can be prepared in your microwave without any difficulty. Foods which have little moisture, such as platters of food, should have the surface moistened prior to heating or cooking. The amount of liquid to be added to raw foods, which are to be braised, should be reduced to about two thirds of the quantity in the original recipe. If necessary, add more liquid during cooking. The amount of fat to be added can be reduced considerably. A small amount of butter, margarine or oil is sufficient to flavour food. For this reason your microwave is excellent for preparing low-fat foods as part of a diet. Fish, Poultry Quantity Power Time Method Standing time & Vegetables -g- -Setting- -Min- -Min-

TABLE: COOKING MEAT, FISH , POULTRY & VEGETABLES

Roasts 500 800 W 8-10* season to taste, place in a shallow flan dish 10 (pork, 400 W 10-12 turn over after * veal, lamb) 1000 800 W 19-21* 10 400 W 11-14 1500 800 W 33-36* 10 400 W 13-17 Roast beef (medium) 1000 800 W 9-11* season to taste, place in a flan dish, 10 400 W 5-7 turn over after * Fish fillet 200 800 W 3-4 season to taste, place in a flan dish, cover 3 Chicken 1200 800 W 21-24 season to taste, place in a shallow flan dish, 3 turn half way through cooking Chicken legs 200 800 W 3-4 season to taste, place in a flan dish, cover 3 Broccoli 500 800 W 9-11 add 4-5 tbsps water, cover, stir halfway through cooking - Peas 500 800 W 9-11 cover, add 4-5 tbsps water, stir halfway through cooking - Carrots 500 800 W 10-12 cut into rings, add 4-5 tbsps water, cover, - 300 800 W 7-9 stir halfway through cooking Boiled Potatoes 500 800 W 9-11 cut into large pieces of a similar size, add a little salt, - add 150 ml water, cover, stir occasionally during cooking RECIPES MUSHROOM SOUP Utensil: Bowl with lid (2 l Capacity) Ingredients 200 g mushrooms, sliced 50 g onion, finely chopped 300 ml meat stock 300 ml cream 25 g flour 25 g butter or margarine salt, pepper 1 egg 150 g cream

1. Place the vegetables and the stock in the bowl, cover

and cook. 8-9 min. 800 W

2. Blend all the ingredients in a mixer.

3. Mix the flour and butter to a paste and blend into the

soup. Season with salt and pepper, cover and cook. Stir after cooking. 4-6 min. 800 W

4. Mix the egg yolk with the cream, gradually stir into the

soup. Heat for a short time, but do not let it boil! 1-2 min. 800 W After cooking, stand for approx. 5 min.ENGLISH

Utensil: Dish with lid (2 l capacity)

ngredients 600 g veal fillet 10 g butter or margarine 50 g onion, finely chopped 100 ml white wine seasoned gravy browning, for approx.

1. Cut the veal into strips.

2. Grease the dish with the butter. Put the meat and

onion into the dish, cover and cook. Stir once during cooking. 7-10 min. 800 W

3. Add the white wine, gravy browning and cream, stir,

cover and continue cooking. Stir occasionally. 4-5 min. 800 W

4. Stir the mixture after cooking, stand for approx. 5

min. Garnish with parsley. LASAGNE Utensils: Bowl with lid (2 l capacity) Shallow square gratin dish with lid (approx 20 x 20 x 6 cm) Ingredients 300 g tinned tomatoes 50 g ham, chopped 50 g onion, finely chopped 1 clove of garlic, crushed 250 g minced beef 2 tbsp tomato puree salt, pepper 150 ml crème fraiche 100 ml milk 50 g Parmesan cheese, grated 1 tsp mixed chopped herbs 1 tsp olive oil 1 tsp vegetable oil to grease the dish 125 g lasagne verde 1 tbsp Parmesan cheese, grated

1. Chop the tomatoes, mix with the ham and onion, garlic,

minced meat and tomato puree. Season, cover and cook. 7-9 min. 800 W

2. Mix the crème fraiche with the milk, Parmesan cheese,

herbs, oil, and spices.

3. Grease the dish and cover the bottom of the mould with

of the pasta. Put half of the minced meat mixture on the pasta and pour on some sauce. Repeat and finish with the remaining pasta. Cover the pasta with sauce and sprinkle with Parmesan cheese. Cook with the lid on. 15-17 min. 560 W After cooking, stand for approx. 5-10 min. STUFFED HAM Utensils: Bowl with lid (2 l capacity) Oval gratin dish (approx. 26 cm long) Ingredients 125 g leaf spinach, chopped 125 g fromage frais, 20 % fat content 40 g Emmental cheese, grated pepper, paprika 6 slices cooked ham (300 g) 125 ml water 125 ml cream 20 g flour 20 g butter or margarine 10 g butter or margarine to grease the dish

1. Mix the spinach with the cheese and fromage frais,

2. Place a tablespoon of the filling on top of each slice of

the cooked ham, and roll up. Secure the ham with a wooden skewer.

3. Make a béchamel sauce; to do this, pour the water

and cream into a bowl and heat. 3-4 min. 800 W Mix the flour and butter to make a roux, add to the liquid, and whisk until disolved. Cover, cook until thick. 1 min. 800 W After cooking, leave to stand for approximately 2 minutes. Stir and taste.

4. Place the sauce into the greased dish, place the filled

rolls of ham into sauce and cook with lid. 3-4 min. 800 W After cooking, stand for approx. 5 min.22 SOLE FILLETS Utensils: Shallow,oval oven dish with microwave cling film (approx. 26 cm long) Ingredients 400 g sole fillets 1 lemon, whole 150 g tomatoes 10 g butter 1 tbsp vegetable oil 1 tbsp parsley, chopped salt, pepper 4 tbsps white wine 20 g butter or margarine

1. Wash the fish and pat dry. Remove any bones.

2. Cut the lemon and the tomatoes into thin slices.

3. Grease the oven dish with butter. Place the fish fillets

in the dish and drizzle the vegetable oil

4. Sprinkle parsley over the dish, place the tomato slices

on top and season. Place the lemon slices on top of the tomatoes and pour the white wine over them.

5. Place small pats of butter on top of the lemon, cover

and cook. 13-16 min. 800 W After cooking,stand for approx. 2 min. Tip: This recipe can also be used for Cod, Haddock, Halibut, Mullet or Plaice. RECIPES RATATOUILLE Utensils: Bowl with lid (2 l capacity) Ingredients 5 tbsp olive oil 1 clove garlic, crushed 50 g onion, sliced 250 g aubergine, cubed 200 g courgette, cubed 200 g pepper, large cubes 75 g fennel, large cubes 1 bouquet garni 200 g tinned artichoke hearts, cut into quarters salt, pepper

1. Place the olive oil and garlic in the bowl. Add the

prepared vegetables, except the artichoke hearts, and season with pepper. Add the bouquet garni, cover and cook, stirring once. 19-21 min. 800 W For the last 5 min, add the artichoke hearts and cook.

2. Season the ratatouille to taste with salt and pepper.

Remove the bouquet garni before serving. After cooking, stand for appox. 2 min. Tip: Ratatouille can be served hot with meat dishes. Served cold, it also makes an excellent starter. Tip: A bouquet garni consists of: one stalk of parsley, a bunch of herbs suitable for seasoning soup, one stalk of lovage, one stalk of thyme, several bay leaves.

FRUIT JELLY WITH VANILLA SAUCE

Utensils: Dish with lid (2 l capacity) Dish with lid (1 l capacity) Ingredients 150 g redcurrants, washed and stalks removed 150 g strawberries, washed and haulms removed 150 g raspberries, washed and hulls removed 250ml white wine 100 g sugar 50 ml lemon juice 8 gelatin leaves 300 ml milk 1/2 vanilla pod 30 g sugar 15 g cornflour Tip: You can also use defrosted frozen fruits.

1. Put some of the fruit to one side for decoration. Purée

the rest of the fruit with the white wine, put it into a dish, cover and heat. 7-9 min. 800 W

2. Stir in the sugar and the lemon juice.

3. Soak the gelatin in cold water for approx. 10 min,

then take it out and squeeze dry. Stir the gelatin in with the hot purée until it has dissolved. Place the jelly in the refrigerator and leave to set.

4. To make the vanilla sauce; put the milk into the other

dish. Slit the vanilla pod and remove the insides, stir this into the milk with the sugar and the cornflour. Cover and cook, stir during cooking and again at the end. 3-4 min. 800 W

5. Turn out the jelly onto a plate and decorate with the

AND REMOVE ANY FOOD DEPOSITS. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Oven exterior The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel. Oven controls Open the door before cleaning to de-activate the oven controls. Care should be taken when cleaning the oven control. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner. Oven Interior

1. For cleaning, wipe any splatters or spills with a

soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover.

2. Make sure that mild soap or water does not

penetrate the small vents in the walls which may cause damage to the oven.

3. Do not use spray type cleaners on the oven

interior. Turntable and turntable support Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe. Door To remove all trace of dirt, regularly clean both sides of the door, the door seals and sealing surfaces with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. NOTE: A steam cleaner should not be used.24 WHAT TO DO IF... SYMPTOM ... the microwave appliance is not working properly? ... the microwave mode is not working? ... the turntable is not turning? ... the microwave will not switch off? ... the interior light is not working? ... the food is taking longer to heat through and cook than before?

POSSIBLE SYMPTOMS/REMEDIES

Check that - the fuses in the fuse box are working, - there has not been a power outage. - If the fuses continue to blow, please contact a qualified electrician. Check that - the door is properly closed, - the door seals and their surfaces are clean, - the START/+30-button has been pressed. Check that - the turntable support is correctly connected to the drive, - the ovenware does not extend beyond the turntable, - food does not extend beyond the edge of the turntable preventing it from rotating. - there is nothing in the well beneath the turntable. - Isolate the appliance from the fuse box. - Call an authorised ELECTROLUX service agent. - Call an authorised ELECTROLUX service agent. The interior light bulb can be exchanged only by a trained ELECTROLUX service agent. - Set a longer cooking time (double quantity = nearly double time) or - if the food is colder than usual, rotate or turn from time to time or - set a higher power setting. NOTE: If you cook the food over the standard time with only 800 W, the power of the oven will lower automatically to avoid overheating. (The microwave power level will be reduced to 560 W). After pausing for 90 seconds, 800 W power can be reset. Cooking Mode Microwave 800 W Standard time 20 minutes Reduced Power Microwave 560 WENGLISH

Standard Guarantee conditions We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• Appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

• Appliance has been used for normal domestic purposes only, in accordance with manufacturer's instructions.

• Appliance hasn't been serviced, maintained, repaired, taken apart or tampered with by person not authorised by us.

• Electrolux Service Force Centre must undertake all service work under this guarantee

• Any appliance or defective part replaced shall become the Company's property.

• This guarantee is in addition to your statutory and other legal rights. Exclusions

• Damage, calls resulting from transport, improper use, neglect, light bulbs, removable parts of glass, plastic.

• Costs for calls to put right appliance which is improperly installed, calls to appliances outside United Kingdom.

• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.

• Products of Electrolux manufacturer that are not marketed by Electrolux Service and Spare Parts If your appliance requires service or spare parts, contact your local Service Force Centre: 0870 5 929 929 (Call will be routed to Service Force Centre covering your postcode area). For address of local Service Force Centre and further information, please visit: www.serviceforce.co.uk Before calling out an engineer, please ensure you have read the details under the heading "What to do if..." When you contact the Service Force Centre you will need to give the following details: Your name, address and postcode, your telephone number, clear concise details of the fault, model and serial number of the appliance (found on the rating plate), the purchase date. Please note a valid purchase receipt or guarantee documentation is required for in guarantee service calls. Customer Care For general enquiries concerning your Electrolux appliance, or for information on Electrolux products, contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk Customer Care Department, Electrolux Major Appliances, Addington Way, Luton, Bedfordshire, LU4 9QQ For Customer Service in The Republic of Ireland please contact us at the address below: Electrolux Group (Irl) Ltd, Long Mile Road, Dublin 12, Republic of Ireland Tel: +353 (0)1 4090751, Email: service.eid@electrolux.ie Electrolux 08705 950 950 AEG-Electrolux 08705 350 350 Zanussi-electrolux 08705 727 727 Tel: (calls may be recorded for training purposes) European Guarantee This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed, the appliance guarantee will move with you subject to the following qualifications:-

• The appliance guarantee starts from the date you first purchased the appliance which will be evidenced by productio of a valid purchase document issued by the seller of the appliance.

• The appliance guarantee is for the same period and to the same extent for labour and parts as exists in your new country of residence for this particular model or range of appliances.

• The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred to another user.

• The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.

• The appliance is installed in accordance with all relevant regulations in force within your new country of residence. The provisions of this European Guarantee do not affect any of the rights granted to you by law.IMPORTANT INFORMATION AC Line Voltage Distribution line fuse/circuit breaker AC Power required: Microwave Output power: Microwave Microwave Frequency Outside Dimensions: ZAM850X ZAM860X Cavity Dimensions Oven Capacity Turntable Weight Oven lamp : 230 V, 50 Hz, single phase : Minimum 10 A : 1.2 kW : 800 W (IEC 60705) : 2450 MHz * (group 2/Class B) : 492 mm (W) x 370 mm (H) x 316 mm (D) : 592 mm (W) x 370 mm (H) x 316 mm (D) : 285 mm (W) x 202 mm (H) x 298 mm (D) ** : 17 litres ** : ø 272 mm, glass : approx. 15.5 kg : 25 W/240 - 250 V This oven complies with the requirements of Directives 2004/108/EC and 2006/95/EC. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AS PART OF CONTINUOUS IMPROVEMENT Ecologically responsible disposal of packaging materials and old appliances Packaging materials Electrolux microwave ovens require effective packaging to protect them during transportation. Only the minimum packaging necessary is used. Packaging materials (e.g. foil or styrofoam) can place children at risk. Danger of suffocation. Keep packaging material away from children. All packaging materials used are environment friendly and can be recycled. The cardboard is made from recycled paper and the wooden parts are untreated. Plastic items are marked as follows: «PE» polyethylene eg packaging film «PS» polystyrene eg packaging (CFC-free) «PP» polypropylene eg packaging straps By using and re-using the packaging, raw materials are saved and waste volume is reduced. Packaging should be taken to your nearest recycling centre. Contact your local council for information. Disposal of old appliances Old appliances should be made safe before disposal by removing the plug, and cutting off and disposing of the power cable. It should then be taken to the nearest recycling centre. Check with your local Council or Environmental Health Office to see if there are facilities in your area for recycling the appliance.

• This Product fulfils the requirement of the European standard EN55011. In conformity with this standard, this product is classified as group 2 class B equipment. Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food. Class B equipment means that the equipment is suitable to be used in domestic establishments. ** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.27 INSTALLATION ENGLISH If fitting the microwave in position B or C:• The cupboard must be a minimum of500 mm (E) above the worktop and mustnot be installed directly above a hob.• This appliance has been tested and approvedfor use near domestic gas, electric andinduction hobs only.• Sufficient space between hob andmicrowave should be allowed to preventoverheating of microwave oven,surrounding cupboard and accessories.• Do not operate the hob without pans whenthe microwave oven is operating.• Care should be taken when attending to themicrowave oven while the hob is on.

SAFE USE OF THE APPLIANCE

INSTALLING THE APPLIANCE

. Remove all packaging and check carefully for any signs of damage.

2. This oven is designed to fit into a 360 mm high

cupboard as standard. When fitting into a 350 mm high cupboard:- Unscrew and remove the 4 feet from the bottom of the oven. There are 3 tall feet and 1 short foot. Replace the 3 tall feet with those provided in the accessory pack. Do not replace the short foot.

3. If fitting the microwave oven above a

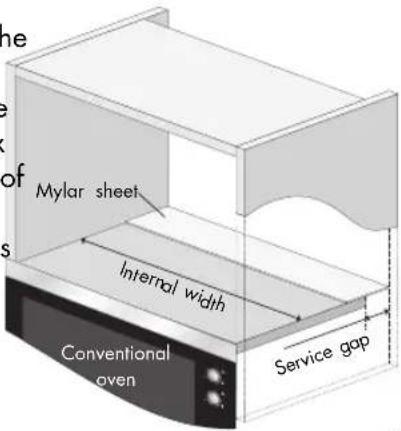

conventional oven (position A) then use the mylar sheet provided. a. Cut the Mylar sheet to fit the internal width of the unit. b. Peel back the protective cover on the tape and fix to the rear of the shelf so that it covers the service gap. (See diagram.)

. Fit the appliance into the kitchen cupboard slowly, and without force, until the front frame of the oven seals against the front opening of the cupboard.

5. Ensure the appliance is

stable and not leaning. Ensure that a 5 mm gap is kept between the cupboard door above and the top of the frame (see diagram.)

6. Fix the oven in position with

the screws provided. The fixing points are located on the top and bottom corners of the oven (see diagram, item 9, on page 6).

7. It is important to ensure that the installation of

this product conforms to the instructions in this operation manual and the hob or conventional oven manufacturer’s installation instructions. 5 mm Position APosition BPosition CPosition DConventional oven Mylar sheetConventional oven

• The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply by incorporating a switch in the fixed wiring in accordance with the wiring rules.

• The socket should not be positioned behind the cupboard.

• The best position is above the cupboard, see (A). When not connecting the power supply cord to position (A) it should be removed from the support clip (see diagram, item 13, on page 6) and routed under the oven.

• Connect the appliance to a single phase 230 V/50 Hz alternating current via a correctly installed earth socket. The socket must be fused with a 10 A fuse.

• The power supply cord may only be replaced by an electrician.

• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when the appliance is being installed.

• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.

• Do not immerse the power supply cord or plug in water or any other liquid. CONNECTING THE APPLIANCE TO THE POWER SUPPLY

ELECTRICAL CONNECTIONS If the plug that is fitted to your appliance is not suitable for your socket outlet, you must call your local Electrolux service agent.

DIT APPARAAT MOET GEAARD ZIJN
