USER MANUAL KGN39IZEA BOSCH

1.3 Restriction on user group.......... 7

4 Installation and connection......14

4.1 Scope of delivery..................... 14

4.2 Criteria for the installation

4.4 Preparing the appliance for

the first time............................. 15

4.5 Connecting the appliance to

the electricity supply................ 15 5 Familiarising yourself with your appliance...........................15

6.4 Fruit and vegetable con-

tainer with humidity control ..... 16

10 Refrigerator compartment......20

10.1 Tips for storing food in the

refrigerator compartment ...... 21

10.2 Chill zones in the refriger-

ator compartment.................. 21 11 Freezer compartment..............21

compartment volume ............ 21

11.3 Tips for storing food in the

freezer compartment ............. 22

11.4 Tips for freezing fresh food ... 22

11.5 Shelf life of frozen food at

−18°C................................... 22

11.6 Defrosting methods for

12.1 Defrosting in the refriger-

ator compartment.................. 23

12.2 Defrosting in the freezer

compartment ......................... 23 13 Cleaning and servicing...........23

13.1 Preparing the appliance for

15.1 Taking the appliance out of

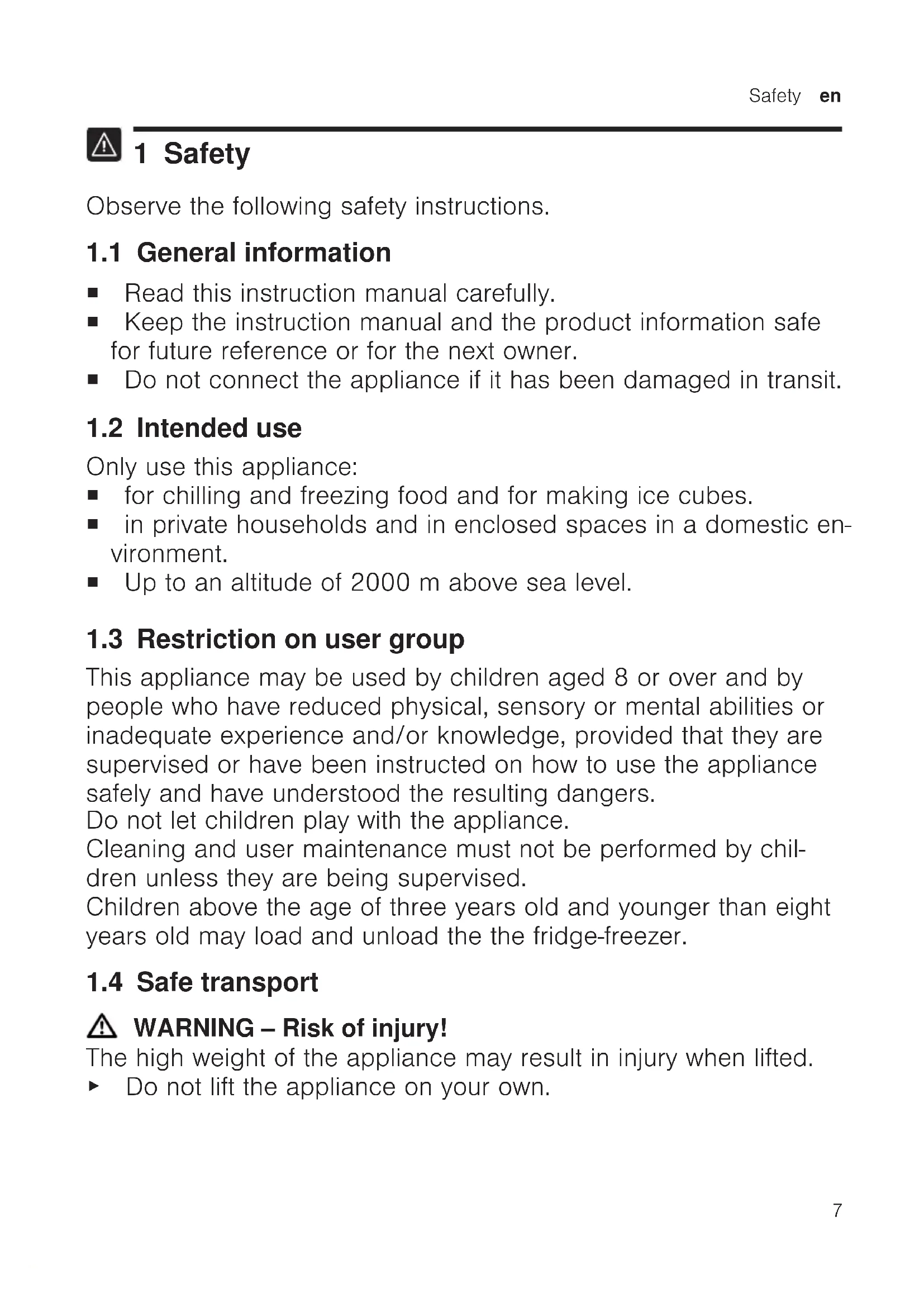

1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡ for chilling and freezing food and for making ice cubes. ¡ in private households and in enclosed spaces in a domestic en- vironment. ¡ Up to an altitude of 2000 m above sea level. 1.3 Restriction on user group This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by chil- dren unless they are being supervised. Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer. 1.4 Safe transport WARNING‒Risk of injury! The high weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own.en Safety

1.5 Safe installation WARNING‒Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶ The protective conductor system of the domestic electrical in- stallation must be properly installed. ▶ Never equip the appliance with an external switching device, e.g. a timer or remote control. ▶ When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an isolating switch must be integrated into the permanent electrical installation according to the installation regulations. ▶ When installing the appliance, check that the power cable is not trapped or damaged. If the insulation of the power cord is damaged, this is dangerous. ▶ Never let the power cord come into contact with heat sources. WARNING‒Risk of explosion! If the appliance's ventilation openings are sealed, a leak in the re- frigeration circuit may result in a flammable mixture of gas and air. ▶ Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING‒Risk of fire! It is dangerous to use an extended power cord and non-approved adapters. ▶ Do not use extension cables or multiple socket strips. ▶ Only use adapters and power cords approved by the manufac- turer. ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.Safety en

Portable multiple socket strips or portable power supply units may overheat and cause a fire. ▶ Do not place portable multiple socket strips or power supply units on the back of the appliance. 1.6 Safe use WARNING‒Risk of electric shock! An ingress of moisture can cause an electric shock. ▶ Only use the appliance in enclosed spaces. ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use steam- or high-pressure cleaners to clean the appli- ance. WARNING‒Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not let children play with packaging material. Children may breathe in or swallow small parts, causing them to suffocate. ▶ Keep small parts away from children. ▶ Do not let children play with small parts. WARNING‒Risk of explosion! If the cooling circuit is damaged, flammable refrigerant may es- cape and explode. ▶ To accelerate the defrosting process, do not use any other mechanical devices or means other than those recommended by the manufacturer. ▶ If food is stuck to the freezer compartment, loosen it with a blunt implement such as the handle of a wooden spoon. Products which contain flammable propellants and explosive sub- stances may explode, e.g. spray cans. ▶ Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.en Safety

WARNING‒Risk of fire! Electrical devices within the appliance may cause a fire, e.g. heat- ers or electric ice makers. ▶ Do not operate electrical devices within the appliance. WARNING‒Risk of injury! Containers that contain carbonated drinks may burst. ▶ Do not store containers that contain carbonated drinks in the freezer compartment. Injury to the eyes caused by escaping flammable refrigerant and hazardous gases. ▶ Do not damage the tubes of the refrigerant circuit or the insula- tion. The appliance may tip. ▶ Do not stand or support yourself on the base, runners or doors. WARNING‒Risk of burns! Individual parts on the back of the appliance become hot during operation. ▶ Never touch these hot parts. WARNING‒Risk of cold burns! Contact with frozen food and cold surfaces may cause burns by refrigeration. ▶ Never put frozen food straight from the freezer compartment into your mouth. ▶ Avoid prolonged contact of the skin with frozen food, ice and surfaces in the freezer compartment. CAUTION‒Risk of harm to health! To prevent food from being contaminated, you must observe the following instructions. ▶ If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compartments of the appliance. ▶ Regularly clean the surfaces that may come into contact with food and accessible drain systems.Safety en

▶ Store raw meat and fish in suitable containers in the refrigerator so that they do not touch or drip on other food. ▶ If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mould. Metal or metal-style parts in the appliance may contain aluminium. If acidic food comes into contact with aluminium in the appliance, aluminium foil ions may pass into the food. ▶ Do not consume soiled food. 1.7 Damaged appliance WARNING‒Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. ▶ If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box. ▶ Call customer services. →Page29 Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk. WARNING‒Risk of fire! If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite. ▶ Keep naked flames and ignition sources away from the appli- ance. ▶ Ventilate the room. ▶ Switch off the appliance. →Page18en Safety

▶ Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. ▶ Call after-sales service. →Page29Preventing material damage en

2 Preventing material damage ATTENTION! If not rolling freely, the appliance's castors may damage the floor when the appliance is moved. ▶ Transport the appliance using a sack truck. ▶ Use floor protection when moving the appliance, and do not move it in a zigzag fashion. Using the appliance, base, runners or doors as a seat or climbing surface may damage the appliance. ▶ Do not stand or lean on the appli- ance, base, runners or doors. Contamination with oil or fat may cause plastic parts and door seals to become porous. ▶ Keep plastic parts and door seals free of oil and grease. Metal or metal-style parts in the appli- ance may contain aluminium. Alu- minium reacts when it comes into contact with acidic foods. ▶ Do not store unpackaged food in the appliance. If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discol- our. ▶ Never clean fittings and accessory in the dishwasher. 3 Environmental protec- tion and saving energy 3.1 Disposing of packaging The packaging materials are environ- mentally compatible and can be re- cycled. ▶ Sort the individual components by type and dispose of them separ- ately. 3.2 Saving energy If you follow these instructions, your appliance will use less power. Selecting the installation location ¡ Keep the appliance out of direct sunlight. ¡ Install the appliance as far away as possible from heating elements, cookers and other heat sources: – Maintain a 30mm clearance to electric or gas cookers. – Maintain a 300mm clearance to oil or solid-fuel cookers. ¡ Make sure there is a small gap between the side wall and the ap- pliance. ¡ Never cover or block the external ventilation openings. Saving energy during use Note:The arrangement of the fittings does not affect the energy consump- tion of the appliance. ¡ Open the appliance only briefly and then close it carefully. ¡ Never cover or block the interior ventilation openings or the exterior ventilation openings. ¡ Transport purchased food in a cool bag and place in the appli- ance quickly.en Installation and connection

¡ Allow warm food and drinks to cool down before storing them. ¡ Thaw frozen food in the refrigerator compartment to utilise the low tem- perature of the food. ¡ Always leave some space between the food and to the back panel. 4 Installation and con- nection 4.1 Scope of delivery After unpacking all parts, check for any transport damage and for com- pleteness of delivery. If you have any complaints, contact your dealer or our after-sales service

• Page29. The delivery consists of the following: ¡ Free-standing appliance ¡ Equipment and accessories

¡ Energy label ¡ Information on energy consump- tion and noises 4.2 Criteria for the installation location WARNING Risk of explosion! If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mix- ture of gas and air. ▶ Only install the appliance in a space with a volume of at least

per 8g refrigerant. The volume of refrigerant is indicated on the rating plate. →Fig. 1 /

The weight of the appliance ex works may be up to 75kg depending on the model. The subfloor must be sufficiently stable to bear the weight of the appli- ance. Permitted room temperature The permitted room temperature de- pends on the appliance's climate class. The climate class can be found on the rating plate. →Fig. 1 /

Climate class Permitted room tem- perature SN 10°C to 32°C N 16°C to 32°C ST 16°C to 38°C T 16°C to 43°C The appliance is fully functional within the permitted room temperature. If an appliance with climate class SN is operated at colder room temperat- ures, the appliance will not be dam- aged up to a room temperature of 5°C.

Depending on the appliance specifications

Not in all countriesFamiliarising yourself with your appliance en

Over-and-under and side-by-side installation If you want to install 2 refrigeratingappliances one over the other or sideby side, you must maintain a clear-ance of at least 150mm between theappliances. Selected appliances canbe installed without a minimum clear-ance. Ask your dealer or kitchenplanner about this. 4.3 Installing the appliance ▶ Install the appliance in accordancewith the enclosed installation in-structions. 4.4 Preparing the appliance for the first time 1. Remove the informative material.2. Remove the protective foil andtransit bolts, e.g. remove the ad-hesive strips and carton.3. Clean the appliance for the firsttime. →Page23 4.5 Connecting the appliance to the electricity supply 1. Insert the mains plug of the appli-ance's power cable in a socketnearby.The connection data of the appli-ance can be found on the ratingplate. →Fig. 1 /

2. Check the mains plug is insertedproperly.a The appliance is now ready for

use. 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the partsof your appliance here.→Fig. 1

Refrigerator compartment→Page20

Freezer compartment→Page21

Bottle shelf →Page16

Interior ventilation opening

Fruit and vegetable containerwith humidity control→Page16

Door storage compartmentfor large bottles →Page17Note:Deviations between your appli-ance and the diagrams may differwith regard to their features and size.en Features

5.2 Control panel You can use the control panel to con- figure all functions of your appliance and to obtain information about the operating status.

lights up when the alarm is switched on.

The temperature setting but- ton (refrigerator compartment) sets the temperature of the refrigerator compartment.

(Refrigerator compart- ment) lights up when Super cooling is switched on.

Displays the set temperature for the refrigerator compart- ment in°C.

(Refrigerator compart- ment) lights up when the en- ergy-saving mode in the refri- gerator compartment is switched on.

The temperature setting but- ton (freezer compartment) sets the temperature of the freezer compartment.

(Freezer compartment) lights up when Super freezing is switched on.

Displays the set temperature for the freezer compartment in °C.

(Freezer compartment) lights up when the energy- saving mode in the freezer compartment is switched on. 6 Features The features of your appliance de- pend on the model. 6.1 Shelf In order to achieve an improved over- view and to remove food more quickly, pull out the shelf. To vary the shelf as required, you can remove the shelf and re-insert it elsewhere.

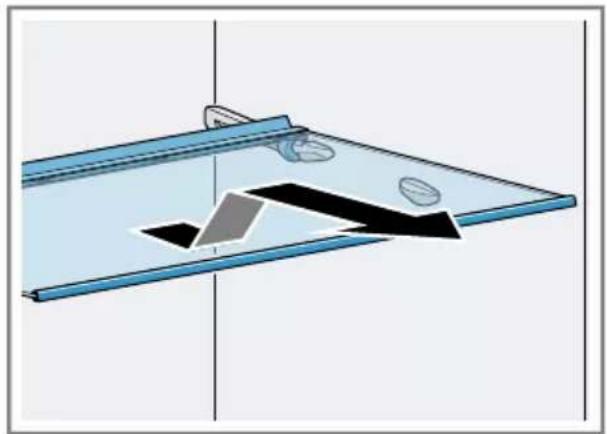

• "Removing the shelf", Page24 6.2 Bottle shelf Store bottles securely on the bottle shelf. To vary the bottle shelf as required, you can remove the bottle shelf and re-insert it elsewhere.

• "Removing the shelf", Page24 6.3 Storage container The temperatures in the storage con- tainer are lower than in the refriger- ator compartment. Temperatures be- low 0°C may occur occasionally. In order to reach temperatures close to 0 °C in the storage container, set the refrigerator compartment temper- ature to 2 °C. →Page18 Use the lower temperatures in the storage container to store highly per- ishable food, e.g. fish, meat and sausages. 6.4 Fruit and vegetable con- tainer with humidity con- trol Store fresh fruit and vegetables loose in the fruit and vegetable container. Cover any chopped fruit and veget- ables, or store in air-tight packaging.operation en

You can adjust the humidity in the fruit and vegetable container using the humidity controller. This allows fresh fruit and vegetables to be stored for longer than with conven- tional storage.

• Fig. 3 The air humidity in the fruit and vegetable container can be set according to the type and amount of food to be stored by moving the humidity controller: ¡ Low humidity required when primarily storing fruit or mixed items, or if the appliance is very full. ¡ High humidity required when primarily storing vegetables or when the appliance is not very full. Condensation may form in the fruit and vegetable container depending on the food and quantity stored. Remove the condensation with a dry cloth and adjust the air humidity to a lower setting using the humidity con- troller. To ensure that the quality and aroma are retained, store fruit and veget- ables that are sensitive to cold out- side of the appliance at temperatures of approx. 8°C to 12°C, e.g. pine- apple, bananas, citrus fruits, cucum- bers, courgettes, peppers, tomatoes and potatoes. 6.5 Door rack To adjust the door rack as required, you can remove the door rack and re-insert elsewhere.

• "Removing door rack", Page24 6.6 Accessories Use original accessories. These have been made especially for your appli- ance. The accessories for your appliance depend on the model. Egg tray Store eggs safely on the egg tray. Ice cube tray Use the ice cube tray to make ice cubes. Making ice cubes Use only drinking water tomake ice cubes.

1. Fill the ice cube tray with drinking

water up to ¾ and place in the freezer compartment. If the ice cube tray is stuck to the freezer compartment, loosen it with a blunt implement only (e.g. spoon handle).

2. To loosen the ice cubes, twist the

ice cube tray slightly or hold it briefly under flowing water. operation 7 Basic operation operation 7.1 Switching on the appli- ance

1. Electrically connect the appliance.

• Page15 a The appliance begins to cool.en operation

a A warning tone sounds and flashes because the freezer com- partment is still too warm.

2. Switch off the warning tone using

the temperature setting button (freezer compartment). a goes out as soon as the set temperature has been reached.

3. Set the required temperature.

• Page18 7.2 Operating tips ¡ Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put any food in the appli- ance until the set temperature has been reached. ¡ The front panels of the housing are temporarily heated slightly. This prevents condensation in the area of the door seal. ¡ When you close the door, a va- cuum may be created. The door is then difficult to open again. Wait a moment until the vacuum is offset. ¡ The temperature in the appliance varies due to the following condi- tions: – How often the appliance is opened – Load capacity – Temperature of newly stored food – Ambient temperature – Direct sunlight 7.3 Switching off the appli- ance ▶ Disconnect the appliance from the power supply. Unplug the appli- ance from the mains or switch off the circuit breaker in the fuse box. 7.4 Setting the temperature Setting the refrigerator compartment temperature ▶ Press the temperature setting but- ton (refrigerator compartment) re- peatedly until the temperature dis- play (refrigerator compartment) shows the required temperature. To reach the set temperature, slide the temperature controller for the storage container to a position that is one third from the bottom.

• Page18 The recommended temperature in the refrigerator compartment is 4°C. Setting the storage container temperature

1. To reduce the temperature, slide

the temperature controller in the direction.

2. To increase the temperature, slide

the temperature controller in the direction.

• Fig. 4 Setting the freezer compartment temperature ▶ Press the temperature setting but- ton (freezer compartment) re- peatedly until the temperature dis- play (freezer compartment) shows the required temperature. The recommended temperature in the freezer compartment is −18°C.Additional functions en

8 Additional functions Find out which additional functions can be used for your appliance. 8.1 Super cooling With Super cooling, the refrigerator compartment cools as cold as pos- sible. Switch on Super cooling before pla- cing large quantities of food. Note:When Super cooling is switched on, increased noise may occur. Switching on Super cooling ▶ Press the temperature setting but- ton (refrigerator compartment) re- peatedly until (Refrigerator compartment) lights up. Note:After approx. 6hours, the ap- pliance switches to normal operation. Switching off Super cooling ▶ Press the temperature setting but- ton (refrigerator compartment) re- peatedly until the temperature dis- play (refrigerator compartment) shows the required temperature. 8.2 Automatic Super freezing With automatic Super freezing, the freezer compartment cools down to a much lower temperature than in nor- mal mode. This freezes food more quickly. The automatic Super freezing switches on if you place fresh food in the bottom frozen food container, starting from the left-hand side. If the automatic Super freezing is switched on, (Freezer compart- ment) lights up and increased noises may occur. After operation, the appliance switches from automatic Super freez- ing to normal operation. Cancelling automatic Super freezing ▶ Press the temperature setting but- ton (freezer compartment) re- peatedly until the temperature dis- play (freezer compartment) shows the required temperature. 8.3 Manual Super freezing With Super freezing, the freezer com- partment cools as cold as possible. Switch on Super freezing four to sixhours before placing food weigh- ing 2kg or more into the freezer compartment. In order to utilise the freezer capacity, use Super freezing.

• "Prerequisites for freezing capa- city", Page21 Note:When Super freezing is switched on, increased noise may occur. Switching on manual Super freezing ▶ Press the temperature setting but- ton (freezer compartment) re- peatedly until (Freezer com- partment) lights up. Note:After approx. 60hours, the ap- pliance switches to normal operation. Switching off manual Super freezing ▶ Press the temperature setting but- ton (freezer compartment) re- peatedly until the temperature dis- play (freezer compartment) shows the required temperature.en Alarm

8.4 Energy-saving mode You can set the appliance to save energy with the energy-saving mode. The appliance automatically sets the temperatures. Refrigerator com- partment 8°C Freezer compart- ment −16°C Switching on energy-saving mode ▶ Press the temperature setting but- ton repeatedly until lights up. Switching off energy-saving mode ▶ Press the temperature setting but- ton repeatedly until the temperat- ure display shows the required temperature. 9 Alarm 9.1 Door alarm If the appliance door is open for a while, the door alarm switches on. A warning tone sounds and lights up. Switching off the door alarm ▶ Close the appliance door. a The warning tone is switched off. 9.2 Temperature alarm If the freezer compartment becomes too warm, the temperature alarm is switched on. A warning tone sounds and flashes. CAUTION Risk of harm to health! During the thawing process, bacteria may multiply and spoil the frozen food. ▶ Do not refreeze food after it has been defrosted or started to de- frost. ▶ Refreeze food only after cooking. ▶ These items should no longer be stored for the maximum storage period. The temperature alarm can be switched on in the following cases: ¡ The appliance is switched on. Do not store any food until the ap- pliance has reached the set tem- perature. ¡ Large quantities of fresh food are being placed inside. Switch on Super freezing before placing large quantities of food in the appliance. ¡ The freezer compartment door is open for too long. Check whether the frozen food has defrosted or thawed. Switching off the temperature alarm ▶ Press the temperature setting but- ton (freezer compartment). a The warning tone is switched off. 10 Refrigerator compart- ment You can keep meat, sausage, fish, dairy products, eggs, prepared meals and pastries in the refrigerator com- partment. The temperature can be set from 2°C to 8°C.Freezer compartment en

The refrigerator compartment can also be used to store highly perish- able foods in the short to medium term. The lower the selected temper- ature, the longer the food remains fresh. 10.1 Tips for storing food in the refrigerator compart- ment ¡ Only store food when fresh and undamaged. ¡ Store food covered or in air-tight packaging. ¡ To avoid impeding the circulation of air and to prevent food from freezing, do not place food in front of the inner ventilation openings or in direct contact with the back wall. ¡ Allow hot food and drinks to cool down first before placing in the ap- pliance. ¡ Observe the best-before date or use-by date specified by the manu- facturer. 10.2 Chill zones in the refri- gerator compartment The air circulation in the refrigerator compartment creates different chill zones. Coldest zone The coldest zone is in the storage container. Tip:Store highly perishable food such as fish, sausages and meat in the coldest zone. Warmest zone The warmest zone is at the very top of the door. Tip:Store food that does not spoil easily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its aroma and the butter will still be easy to spread. 11 Freezer compartment You can store frozen food, freeze food and make ice cubes in the freezer compartment. The temperature can be set from −16°C to −24°C. Long-term storage of food should be at –18°C or lower. The freezer compartment can be used to store perishable food long- term. The low temperatures slow down or stop the spoilage. 11.1 Freezing capacity The freezing capacity indicates the quantity of food that can be frozen right through to the centre within a specific period of time. Information on freezing capacity can be found on the rating plate.

Prerequisites for freezing capacity

1. Approx. 24 hours before placing

fresh food in the appliance, switch on Super freezing.

• "Switching on manual Super freezing", Page19

2. Place food in the bottom frozen

food container first. 11.2 Fully utilising the freezer compartment volume Learn how to store the maximum amount of frozen food in the freezer compartment.

1. Remove all fittings from the freezer

compartment. →Page24en Freezer compartment

2. Store food directly on the shelves

and on the floor of the freezer compartment. 11.3 Tips for storing food in the freezer compartment ¡ Store food in air-tight packaging. ¡ Do not bring food which is to be frozen into contact with frozen food. ¡ Place thefood over thewhole area ofthefrozen food containers. ¡ To ensure that the air can circulate freely in the appliance, push the frozen food containers in as far as they will go. 11.4 Tips for freezing fresh food ¡ Freeze fresh and undamaged food only. ¡ Freeze food in portions. ¡ Cooked food is more suitable than food that can be eaten raw. ¡ Vegetables: Wash, chop up and blanch before freezing. ¡ Fruit: Wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution. ¡ Food that is suitable for freezing in- cludes baked items, fish and sea- food, meat, game, poultry, eggs without shells, cheese, butter and quark, ready meals and leftovers. ¡ Food that is unsuitable for freezing includes lettuce, radishes, eggs in shells, grapes, raw apples and pears, yoghurt, sour cream, crème fraîche and mayonnaise. Packing frozen food If you select suitable packaging ma- terial and the correct type of pack- aging, you can determine the product quality and prevent freezer burn.

1. Place the food in the packaging.

2. Squeeze out the air.

3. Pack food airtight to prevent it

from losing flavour and drying out.

4. Label the packaging with the con-

tents and the date of freezing. 11.5 Shelf life of frozen food at −18°C Food Storage time Fish, sausages, pre- pared meals and baked goods up to 6months Poultry, meat up to 8months Vegetables, fruit up to 12months The imprinted freezer calendar indic- ates the maximum storage duration in months at a constant temperature of –18°C. 11.6 Defrosting methods for frozen food CAUTION Risk of harm to health! During the thawing process, bacteria may multiply and spoil the frozen food. ▶ Do not refreeze food after it has been defrosted or started to de- frost. ▶ Refreeze food only after cooking. ▶ These items should no longer be stored for the maximum storage period. ¡ Defrost animal-based food, such as fish, meat, cheese, quark, in the refrigerator compartment. ¡ Defrost bread at room temperat- ure. ¡ Prepare food for immediate con- sumption in the microwave, in the oven or on the hob.Defrosting en

12 Defrosting 12.1 Defrosting in the refri- gerator compartment The refrigerator compartment in your appliance defrosts automatically. 12.2 Defrosting in the freezer compartment The fully automatic NoFrost system ensures that the freezer compartment remains frost-free. Defrosting is not required. 13 Cleaning and servi- cing To keep your appliance working effi- ciently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inac- cessible points. Cleaning by cus- tomer service can give rise to costs. 13.1 Preparing the appliance for cleaning

1. Disconnect the appliance from the

power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

2. Take out all of the food and store it

in a cool place. Place ice packs (if available) onto the food.

3. Remove all fittings and accessor-

ies from the appliance.

• Page24 13.2 Cleaning the appliance WARNING Risk of electric shock! An ingress of moisture can cause an electric shock. ▶ Do not use steam- or high-pres- sure cleaners to clean the appli- ance. Liquid in the lighting, controls or in- ner ventilation openings can be dan- gerous. ▶ The rinsing water must not drip into the lighting, controls or inner ventilation openings. ATTENTION! Unsuitable cleaning products may damage the surfaces of the appli- ance. ▶ Do not use hard scouring pads or cleaning sponges. ▶ Do not use harsh or abrasive de- tergents. ▶ Do not use cleaning products with a high alcohol content. If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discol- our. ▶ Never clean fittings and accessory in the dishwasher.

1. Prepare the appliance for cleaning.

2. Clean the appliance, the fittings,

the accessories and the door seals with a dish cloth, lukewarm water and a little pH-neutral washing-up liquid.

3. Dry thoroughly with a soft, dry

4. Insert the fittings.

5. Electrically connect the appliance.

6. Putting the food into the appliance.en Cleaning and servicing

13.3 Removing the fittings If you want to clean the fittings thor- oughly, remove these from your ap- pliance. Removing the shelf ▶ Pull out, life and remove the shelf.

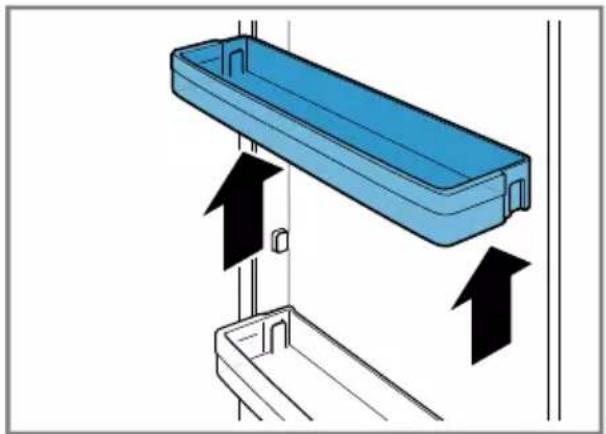

• Fig. 5 Removing door rack ▶ Lift the door rack and remove it.

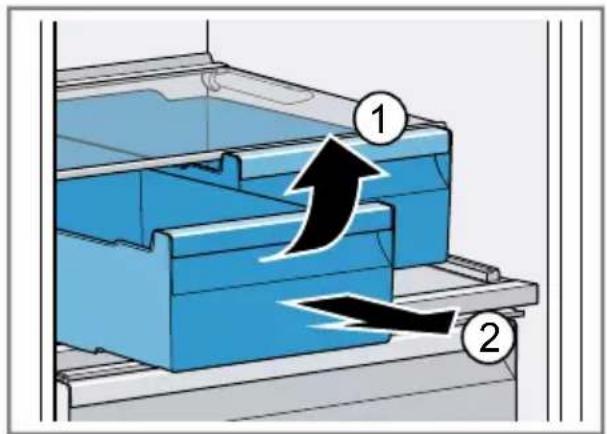

• Fig. 6 Removing the storage container

1. Pull out the storage container as

2. Lift the storage container at the

front and remove it .

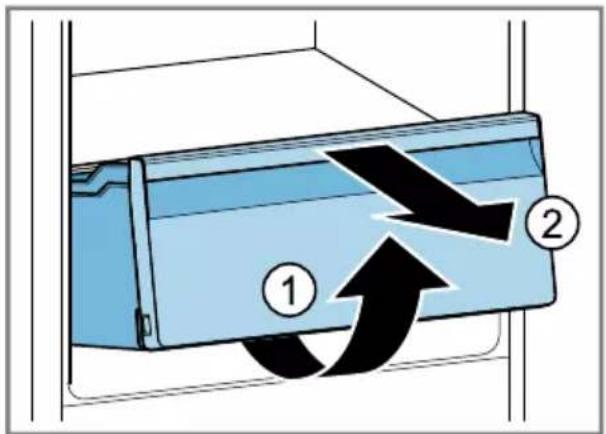

• Fig. 7 Removing the fruit and vegetable container

1. Pull out the fruit and vegetable

container as far as it will go.

2. Lift the fruit and vegetable con-

tainer at the front and remove it

as far as it will go.

2. Lift the frozen food container at the

front and remove it .

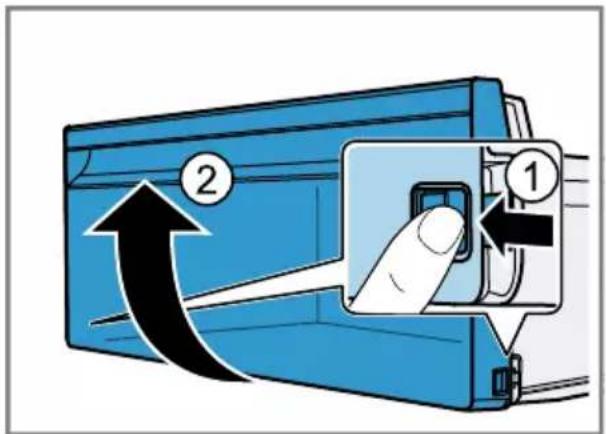

• Fig. 9 Removing the front of the container You can remove the front of the fruit and vegetable container to facilitate cleaning. ▶ Press in the snap-in hooks on the side of the container and re- move the front from the container in a turning motion .

14 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. Fault Cause and troubleshooting The appliance is not cooling, the displays and lighting are lit. Showroom mode is switched on. ▶ Press and hold the temperature setting button (refri- gerator compartment) for 9 to 11seconds until an audible signal sounds. The LED lighting does not work. Different causes are possible. ▶ Call customer service. The customer service number can be found in the enclosed customer service directory. Side panels of the ap- pliance are warm. Not a fault. The side panels contain pipes which heat up during the cooling process. Units touching the ap- pliance will not be damaged by the heat. No action required. A warning signal sounds and flashes. Different causes are possible. ▶ Press the temperature setting button (freezer com- partment). a The alarm is switched off. The appliance door is open. ▶ Close the appliance door. External ventilation openings are covered up. ▶ Remove any obstructions from in front of the ex- ternal ventilation openings. Larger quantities of fresh food have been put in. ▶ Do not exceed the max. freezing capacity.

• "Freezing capacity", Page21en Troubleshooting

Fault Cause and troubleshooting The set temperature is not reached. Fully automatic de- frosting no longer works. The freezer compartment door was open for a long time. The evaporator (refrigeration unit) in the noFrost system is heavily iced up. Requirement:Store the frozen food well insulated in a cool place.

Switch off the appliance. →Page18

2. Disconnect the appliance from the mains.

Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

3. Move the appliance away from the wall.

4. Leave the appliance door open.

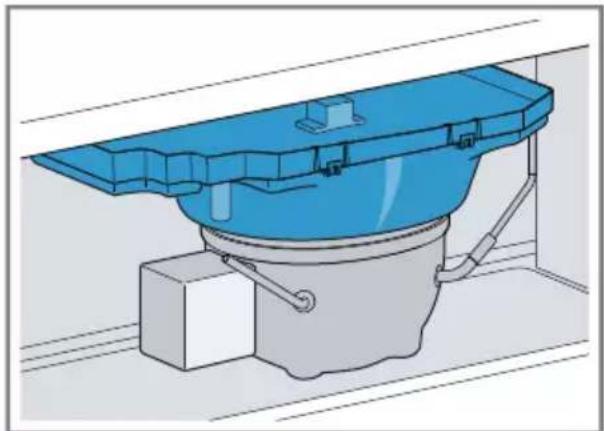

a After approx. 20 minutes, the condensation starts to run into the evaporation pan at the rear of the appli- ance.

5. To prevent the evaporation pan from overflowing,

mop up the condensation water with a sponge. The evaporator is defrosted if no more condensa- tion water runs into the evaporation pan.

Clean the interior of the appliance. →Page23

Switch the appliance back on. →Page17 The temperature dif- fers greatly from the setting. Different causes are possible.

Switch off the appliance. →Page18

2. Switch the appliance back on after fiveminutes.

• Page17 ‒ If the temperature is too warm, check the temper- ature again after a couple of hours. ‒ If the temperature is too cold, check the temper- ature again on the following day. Condensation accu- mulates on the sur- face of the appliance and on the shelves in- side. The water contained in warm and humid air con- denses on the colder surfaces of the appliance.

1. Wipe away the water with a soft, dry cloth.

2. Open the appliance as briefly as possible.

3. Ensure that the appliance is always closed properly.

The appliance hums, bubbles, buzzes, gargles, clicks or crackles. Not a fault. A motor is running, e.g. refrigerating unit, fan. Refrigerant flows through the pipes. The motor, switches or solenoid valves are switching on or off. Automatic defrosting is running. No action required.Troubleshooting en

Fault Cause and troubleshooting The appliance makes noises. The appliance is not level. ▶ Align the appliance using a spirit level and the screw feet. The appliance is not free-standing. ▶ Observe the minimum clearances for the appliance. Fittings wobble or stick. ▶ Check the removable fittings and, if required, re- place these. Bottles or containers are touching. ▶ Move the bottles or containers away from each other. Super freezing is switched on. No action required.en Storage and disposal

14.1 Power failure During a power failure, the temperat- ure in the appliance rises; this re- duces the storage time and the qual- ity of the frozen food. On the website for your appliance, the technical data provides you with the storage times for frozen food in the event of a fault. Notes ¡ Open the appliance as little as possible during a power failure and do not place any other food in the appliance. ¡ Check the quality of the food immediately after a power failure. – Dispose of any frozen food that has defrosted and is hotter than 5°C. – Cook or fry slightly thawed frozen food, and then either con- sume it or freeze it again. 15 Storage and disposal 15.1 Taking the appliance out of operation

1. Disconnect the appliance from the

power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

2. Remove all of the food.

the appliance, leave the appliance open. 15.2 Disposing of old appli- ance Valuable raw materials can be re- used by recycling. WARNING Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. ▶ Leave shelves and containers in- side the appliance to prevent chil- dren from climbing in. ▶ Keep children away from the re- dundant appliance. WARNING Risk of fire! If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite. ▶ Do not damage the tubes of the re- frigerant circuit or the insulation.

1. Unplug the appliance from the

2. Cut through the power cord.

3. Dispose of the appliance in an en-

vironmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority. This appliance is la- belled in accordance with European Directive 2012/19/EU concerning used electrical and elec- tronic appliances (waste electrical and electronic equipment - WEEE). The guideline determ- ines the framework for the return and recycling of used appliances as applicable throughout the EU.Customer Service en

16 Customer Service Function-relevant genuine spare parts according to the corresponding Eco- design Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. Note:Under the terms of the manu- facturer's warranty applicable to the location, the use of Customer Service is free of charge. The minimum dura- tion of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years according to the terms of war- ranty applicable to the location. The terms of warranty do not affect other rights or claims held by yourself un- der local legislation. Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E- Nr.) and the production number (FD) of your appliance. The contact details for Customer Ser- vice can be found in the enclosed Customer Service directory or on our website. 16.1 Product number (E-Nr.) and production number (FD) You can find the product number (E- Nr.) and the production number (FD) on the appliance's rating plate.

Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly. 17 Technical data Refrigerant, cubic capacity and fur- ther technical specifications can be found on the rating plate.

This product contains a light source from energy efficiency class G. The light source is available as a spare part and should only be replaced by trained specialist staff. You can find more information about your model online at https:// eprel.ec.europa.eu/

. This web ad- dress is linked to the official EU EPREL product database. Please then follow the instructions on searching for the model. The model identifier is made up of the charac- ters before the slash in the product number (E-Nr.) on the rating plate. Al- ternatively, you can also find the model identifier in the first line of the EU energy label.

Only applies to countries in the European Economic Areafr
