USER MANUAL Big Mouth 67750 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Questions? Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.

4. To protect against risk of electric shock, do not immerse cord, plug, or motor base in water or other liquid.

5. Always turn appliance OFF (O) and unplug cord from outlet when not in use, before putting on or taking off parts, and before cleaning.

6. Avoid contacting moving parts. Keep fingers out of feed chute.

7. Never feed food by hand—always use the food pusher.

8. Always make sure the juice extractor is properly and completely assembled before the motor is turned ON. The unit will not turn ON unless properly assembled. Do not release safety locking latches while juice extractor is in operation.

9. Never operate without pulp container in place.

10. Be sure to turn switch to OFF (O) position after each use of your juice extractor. Make sure the motor stops completely before disassembling.

11. Do not put fingers or other objects into the juice extractor feed chute while it is in operation. If food becomes lodged in the opening, use food pusher to push it down. When this method is not possible, turn the motor OFF (O), unplug the cord from the outlet, and disassemble juicer to remove the remaining food.

12. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or electrical or mechanical adjustment.

13. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.

14. Do not use outdoors.

15. Do not let cord hang over edge of table or counter, or touch hot surfaces, including stove.

16. Do not leave juice extractor unattended while it is operating.

17. Blades are sharp; handle carefully. Do not touch the small cutting blades in the base of the stainless steel strainer basket.

18. Keep hair, clothing, and jewelry, as well as spatulas and other utensils, away from feed chute during operation to prevent the possibility of severe injury to persons and/or damage to the appliance.

19. Do not use the appliance if the rotating strainer basket is damaged.

20. Always use the juice extractor on a dry, level surface.

21. Any maintenance other than cleaning should be performed by an authorized service center.

22. To reduce the risk of personal injury and/or damage to the appliance, do not use bent, dented, or otherwise damaged strainer basket.

23. Do not operate without the pulp container in place.

24. Do not place on or near a hot gas or electric burner or in a heated oven.

25. Check that the control is OFF (O) before plugging cord into outlet. To disconnect, turn control to OFF (O) and then remove plug from wall outlet.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This product is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the counter-top or tabletop where it can be pulled on by children or accidentally tripped over.

The electrical rating of this appliance is listed on the bottom panel of the unit.

The strainer basket is a delicate screen. If bent or damaged, do not use, as it could break into small pieces and cause personal injury and/or damage the appliance. Call our toll-free customer service number to order a new basket. Replace basket when it shows signs of wear.

This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in to resume normal operation.

WARNING

Laceration Hazard.

Extra-wide feed chute. Do not place hands or fingers down feed chute. Always use the food pusher.

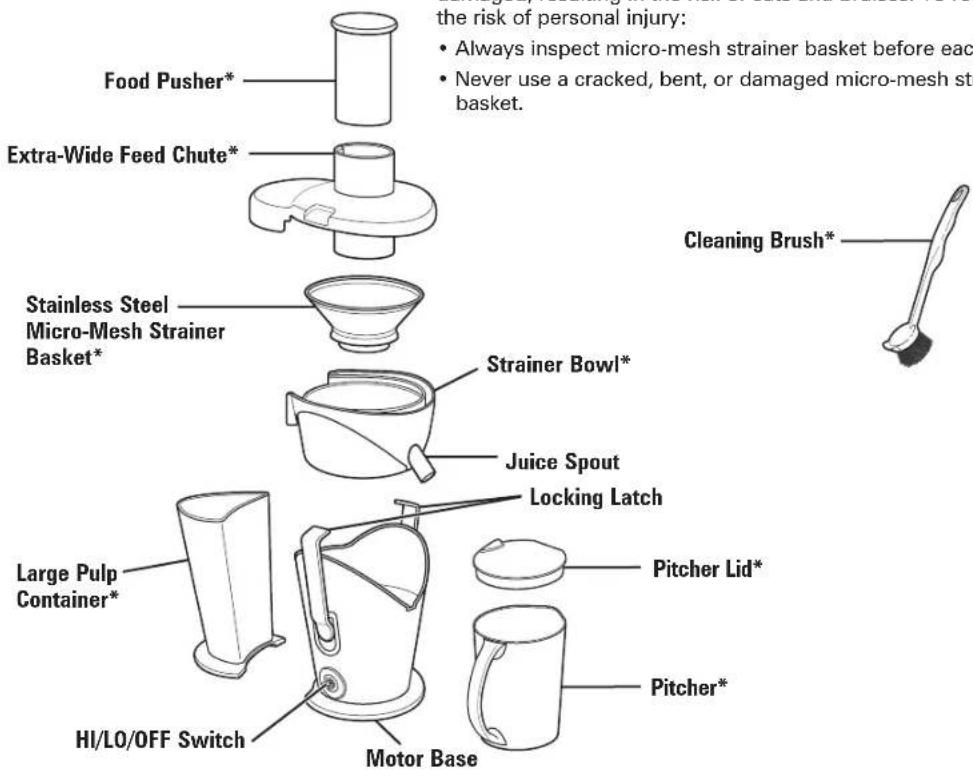

Parts and Features

*To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

the risk of personal injury: • Always inspect micro-mesh strainer basket before each • Never use a cracked, bent, or damaged micro-mesh str basket. Food Pusher* Extra-Wide Feed Chute* Stainless Steel Micro-Mesh Strainer Basket* Strainer Bowl* Juice Spout Locking Latch Large Pulp Container* PiTcher Lid* HI/LO/OFF Switch Motor Base PiTcher*

How to Assemble

Diagram showing two steps of a kitchen or cleaning process: dropping from a bowl to a funnel, with no text or symbols present.

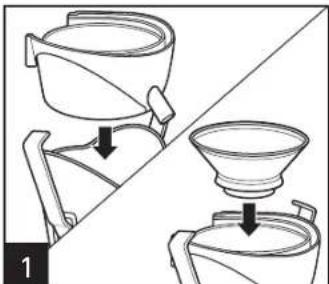

Place strainer bowl on top of the motor base. Then place the stainless steel strainer basket inside the strainer bowl.

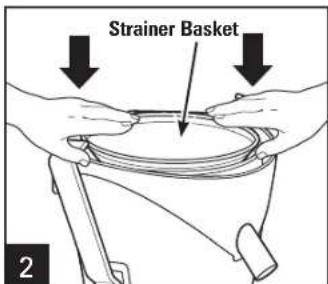

Strainer Basket 2

With hands on outer edge, press strainer basket down firmly to latch into position.

BEFORE FIRST USE: After unpacking the juice extractor, remove cardboard from filter basket and wash everything except the base in warm, soapy water. Rinse and dry immediately. Never immerse the base in water or other liquids; wipe it with a damp sponge.

Diagram showing a mechanical device with a cylindrical component above a container, no text or symbols present

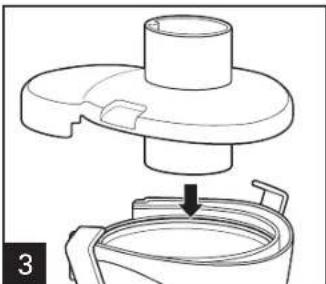

Place the juicer cover over the strainer bowl, positioning the feed chute over the strainer basket, and lower into position.

Diagram of a mechanical device with rotating arms and a central cylindrical component (no text or symbols)

Raise the locking latches up to lock into place.

Line drawing of a juice shaver with a side arm and handle, showing mechanical components (no text or symbols)

Place the pulp container into position by tilting the container slightly.

Line drawing of a two-wheeled food blender and its empty cup, no text or symbols present

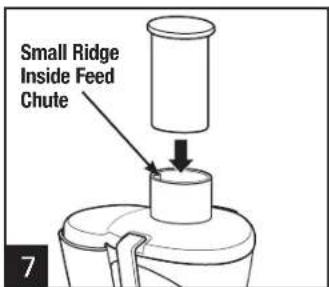

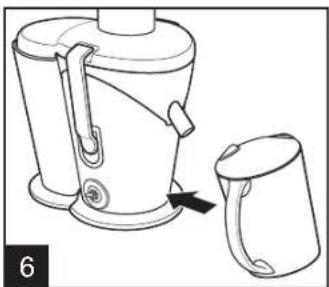

Place pitcher with lid under the juice spout. Slide the food pusher down the feed chute by aligning the groove in the food pusher with the small ridge on the inside of the top of the feed tube.

Small Ridge Inside Feed Chute

HINT: To minimize cleanup, place a plastic grocery bag in the pulp container to collect the pulp. (See page 6 for more information.)

How to Use

Wash fruits and vegetables.

NOTE: Most fruits and vegetables such as apples, carrots, and cucumbers will not need to be cut since they will fit into feed chute whole. It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in unit for best juice flavor.

Line drawing of a juice<|im_start|> Greenland Jamaica blender and its cup, showing no text or symbols

Ensure that unit is correctly assembled (see page 5) and place pitcher with lid under spout.

WARNING

Laceration Hazard.

Never use fingers to push food down the feed chute or to clear the feed chute. Always use the food pusher provided.

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the direction of insertion (no text or symbols present)

Turn switch to OFF (O) position. Plug cord into 120-volt outlet.

Line drawing of a mechanical device with a downward arrow indicating force or direction (no text or symbols)

With the motor running, place food down the feed chute. Using food pusher, gently guide food down feed chute. To extract the maximum amount of juice, always push food pusher down slowly.

Juice will flow into pitcher and separated pulp will accumulate in pulp container.

NOTE: Pulp container can be emptied during juicing by turning juice extractor OFF (O) and then carefully removing pulp container. (Replace empty pulp container before continuing to juice.)

Line drawing of a cylindrical trash bin with wood grain patterns on top (no text or symbols)

To minimize cleanup, place a plastic grocery bag in pulp container to collect pulp. When juicing is completed, simply remove grocery bag containing pulp.

NOTE: Do not allow pulp container to overfill since this may prevent correct operation or damage the unit.

How to Disassemble

Diagram showing a cable being inserted into an electrical outlet with two socket outlets, no text or symbols present

Turn juice extractor OFF (O) and unplug. Allow strainer basket to stop turning.

Line drawing of a juice<|im_start|> Greenland Jamaica blender with handle and side arm (no text or symbols)

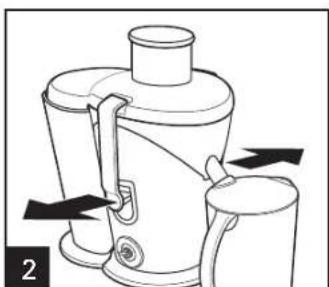

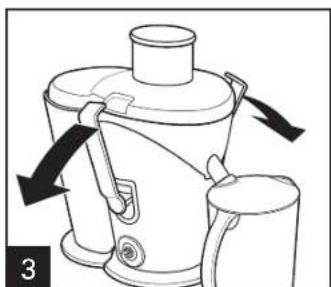

Release locking latches.

Line drawing of a juice maker with directional arrows indicating motion (no text or symbols)

Move the locking latches down.

Diagram of a mechanical device with a cylindrical component and a container, showing an upward arrow (no text or symbols present)

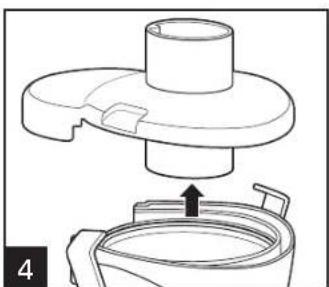

Lift off the cover.

Line drawing of a blender with a side panel and a side handle, showing no text or symbols

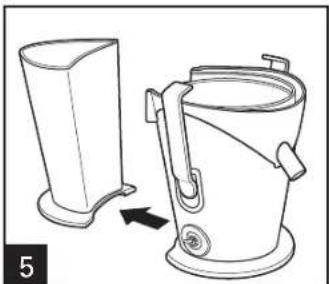

Remove the pulp container by sliding away from motor base.

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

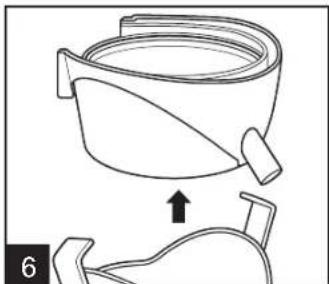

Lift off the strainer bowl with the strainer basket still in place.

Illustration of hands holding a container with a lid and arrow indicating a process (no text or symbols)

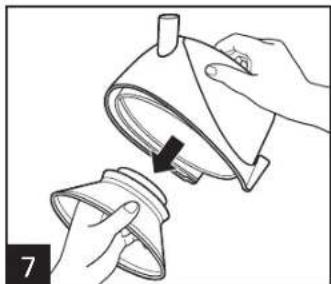

To remove the strainer basket, turn the strainer bowl upside down and carefully remove the strainer basket. (It is recommended to remove the strainer basket over a sink.)

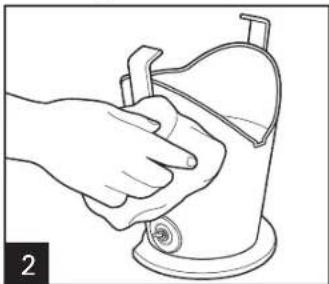

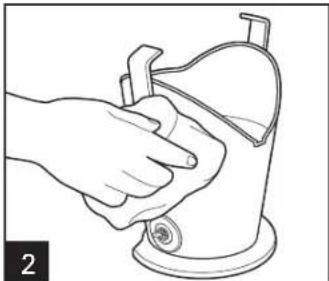

Care and Cleaning

Diagram showing a cable being inserted into an electrical socket, with no text or symbols present.

Line drawing of a hand opening a portable blender with a lid (no text or symbols)

Line drawings of various kitchen utensils including a blender, cup, bowl, and pitcher (no text or labels)

WARNING Shock Hazard.

Do not immerse motor base in water or any other liquid.

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product. Do not place the motor base in the dishwasher. Some part distortion may occur if your household dishwasher's temperature is higher than normal or if the parts are placed too close to the heating element.

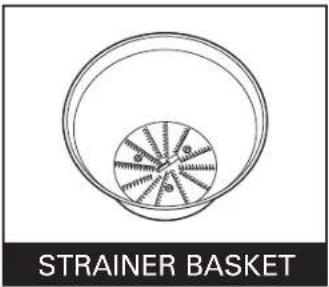

STRainer BASKET

Discoloration of the plastic may occur with some fruit and vegetables. To help prevent this, wash all parts immediately after use.

CAUTION Laceration Hazard.

The center of the strainer basket contains small, sharp blades to process fruits and vegetables during the juicing function. Do not touch blades when handling the strainer basket.

Always treat the strainer basket with care; it can be damaged easily.

To assist with cleaning, soak the strainer basket in hot, soapy water for approximately 10 minutes immediately after juicing is completed. If pulp is left to dry on the basket it may clog the fine pores of the filter mesh, thereby lessening the effectiveness of the juice extractor.

Illustration of hands performing a medical procedure on a surgical instrument (no text or symbols visible)

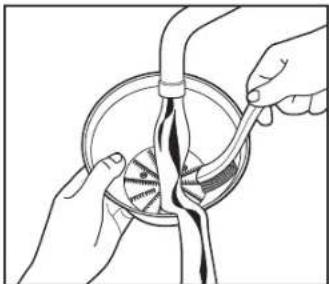

The cleaning brush included with the unit is the most effective way to clean the strainer basket. Using the brush, hold the strainer basket under running water and brush inside and outside of the basket.

Juicing Tips, Techniques, and Recipes

PURCHASING AND STORING FRUITS AND VEGETABLES:

• Always wash fruits and vegetables before juicing.
• Always use fresh fruits and vegetables for juicing.
- To save money and obtain fresher produce, purchase fruits or vegetables that are in season.
- Keep your fruits and vegetables ready for juicing by washing them before storing.
- Most fruits and hardier-type vegetables can be stored at cool room temperature. More delicate and perishable items such as berries, leafy greens, celery, cucumbers, and herbs should be stored in the refrigerator until required.

PREPARING FRUITS AND VEGETABLES:

• It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in juice extractor for best juice flavor.
• All fruits with pits and large seeds such as nectarines, peaches, apricots, plums, and cherries MUST be pitted before juicing.

USING THE PULP:

• The remaining pulp left after juicing fruits or vegetables is mostly fiber and cellulose which, like the juice, contain vital nutrients necessary for the daily diet and can be used in many ways. Pulp can be frozen for later use.
• There are a number of recipes that use pulp. You can also use pulp to thicken casseroles or soups.
• Pulp is great used in the garden for compost.

SOY MILK, ALMOND MILK, AND RICE MILK:

This juice extractor may be used to make soy milk, almond milk, and rice milk. Follow these steps:

1. Soak 1 cup (237 ml) of soybeans, almonds, or rice in 4 cups (946 ml) of water for 8 to 12 hours covered in the refrigerator.
2. Drain nuts and discard water. Cover nuts, beans, or rice with 1 1/2 cups (355 ml) fresh water.
3. Slowly ladle the nuts, beans, or rice with the water into the food chute.
4. Place cheesecloth in a container. Pour mixture into a tight woven cheesecloth and let stand until completely drained. Squeeze cheesecloth, if necessary. Refrigerate milk immediately.

NOTES:

• Almonds must be soaked 8 to 12 hours before juicing.
• Soy milk should be boiled to improve the flavor.
• Vanilla, honey, and sugar may be added to enhance the flavor of each milk type.

Juicing Chart

Fruit or Vegetables Examples Speed

Firm Fruits and Vegetables Apples, Peeled Oranges, Carrots, Beets, Cucumbers, Ginger HIGH

Soft Fruits and Vegetables Strawberries, Pitted Peaches, Watermelons, Grapes, Tomatoes LOW

Leafy Greens Spinach, Kale, Beet Greens LOW

Recipes

Carrot, Ginger, and Apple Juice

6 medium carrots

1/4-inch-thick (0.6 cm) slice fresh ginger (about 1-inch [2.5-cm] diameter)

1 large Granny Smith apple

Directions:

1. Cut apple as needed to fit through the chute of the juice extractor.

2. Juice the ingredients in the order listed.

3. Stir and serve immediately.

Serves: 2

Blueberry, Raspberry, Strawberry, and Apple Juice

1 cup (237 ml) blueberries

1 cup (237 ml) raspberries

4 large strawberries, hulled

1/4 of a Granny Smith apple

Directions:

1. Juice the ingredients in the order listed.

2. Stir and serve immediately

Serves: 1–2

Beet, Orange, Ginger, and Carrot Juice

1 large beet, trimmed

1 medium orange, peeled

3 medium carrots

1/4-inch-thick (0.6 cm) slice fresh ginger (about 1-inch [2.5-cm] diameter)

Directions:

1. Cut beet, orange, and carrots as needed to fit through the chute of the juice extractor.

2. Juice the ingredients in the order listed.

3. Stir and serve immediately.

Serves: 1–2

Go-Getter Green Juice

4 medium kale leaves

2 medium carrots, trimmed

1/2 lemon, peeled

1-inch (2.5-cm) piece fresh ginger

1 cup (237 ml) baby spinach leaves

1 medium Granny Smith apple

Directions:

1. Cut carrots, apple, and lemon as needed to fit through the chute of the juice extractor.

2. Juice the ingredients in the order listed.

3. Stir and serve immediately

Serves: 1–2

Recipes (cont.)

Veggie Cocktail

8 medium tomatoes

1 small lemon, peeled
1 large rib celery
1 medium carrot
1 onion slice
1 teaspoon (5 ml) Worcestershire sauce
1/2 teaspoon (2.5 ml) salt, if desired

Directions:

1. Cut tomatoes, lemon, and carrot as needed to fit through the chute of the juice extractor.
2. Juice the ingredients in the order listed except Worcestershire sauce and salt.
3. Stir in Worcestershire sauce and salt. Serve immediately.

Serves: 2–3

Pomegranate Blueberry Juice

2 cups (473 ml) pomegranate seeds

1 cup (237 ml) blueberries

Directions:

1. Juice the ingredients in the order listed.

2. Stir and serve immediately.

Serves: 1–2

Test Kitchen Tip: Use just the seeds of a pomegranate for juicing since the membranes will make the juice bitter. To deseed the pomegranate, start by making a thin slice from the bottom to make it stable for cutting. Cut out the core at the top. Make shallow cuts to section into 6 wedges. Gently break the pomegranate apart and pry the seeds out with your fingers. Pomegranate juice can stain, so we suggest wearing gloves and something like an old T-shirt. Work over a bowl to catch the seeds and drips before placing in the juice extractor.

Kale, Cucumber, and Cilantro Green Juice

6 large leaves kale

1 large cucumber
1 rib celery with leaves
1 medium lime, peeled
2 small handfuls cilantro
1 medium Granny Smith apple

Directions:

1. Cut cucumber and apple as needed to fit through the chute of the juice extractor.
2. Juice the ingredients in the order listed.
3. Stir and serve immediately

Serves: 1–2

12

Troubleshooting

PROBLEM PROBABLE CAUSE/SOLUTION

Machine will not work when switched ON.	The locking latches may not be correctly engaged. Check to see if the locking latches are properly positioned in the two grooves on either side of the juice cover. Refer to page 5, Steps 3 and 4.This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in to resume normal operation.
Motor appears to stall when juicing.	The juicing action may be too vigorous. Try slower juicing action by pushing the food pusher down more slowly. Refer to page 6, Step 3.Wet pulp can build up under the juicer cover or pulp container. Turn unit OFF (O) and unplug. Empty the pulp bin; then clean juice cover and strainer basket.
Excess pulp building up in the micro-mesh strainer basket.	Turn OFF (O) and unplug. Remove strainer basket and clean mesh walls with a fine brush. This will remove excess fiber buildup which could be inhibiting the juice flow. Refer to pages 7 and 8.
Pulp is too wet and insufficient juice is produced.	Try a slower juicing action.Turn OFF (O) and unplug. Remove strainer basket and clean mesh walls with a fine brush. This will remove excess fiber buildup which could be inhibiting the juice flow. Refer to pages 7 and 8.
Juice sprays out of spout.	Try slower juicing action by pushing the food pusher down more slowly. Refer to page 6, Step 3.
Juice drips out of spout immediately after juicing.	With motor ON, raise and lower food pusher in feed chute several times. The action forces remaining pulp and juice out of strainer bowl.
Machine vibrates excessively.	Buildup of pulp in mesh of strainer basket. Turn unit OFF (O) and unplug. Clean strainer basket. Refer to page 8. If machine vibration continues after cleaning, this could be a sign of a damaged strainer basket. Call our toll-free customer service number to order a new strainer basket.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and three (3) years from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

IMPORTANTES INSTRUCTIONS

Diagram showing two steps of a funnel pouring liquid into a container (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a container, showing a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with rotating arms and a cylindrical top (no text or symbols)

Line drawing of a two-stage juicer with lever mechanism (no text or symbols)

Line drawing of a juice maker and its empty cup, no text or symbols present

Line drawing of a cylindrical object with textured surface and base, labeled '4' in corner (no text or symbols on the object itself)

Line drawing of a juice<|im_start|> Greenland Jamaica blender and its empty cup (no text or symbols)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the direction of insertion (no text or symbols present)

Line drawing of a mechanical device with a downward arrow indicating compression or force (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with two socket outlets, connected by a cable (no text or symbols present)

Line drawing of a juice maker with handle and side arm, no text or symbols present

verrouillage.

Line drawing of a juice maker with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a container, showing an upward arrow (no text or symbols present)

Line drawing of a kitchen utensil and a stand mixer (no text or symbols)

Diagram showing two mechanical components with an arrow indicating motion or assembly (no text or symbols)

Illustration of hands holding a container with a lid, showing a mechanical component being inserted (no text or symbols present)

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Line drawing of a hand opening a cylindrical device with a knob, labeled with number 2 (no text or symbols on the device itself)

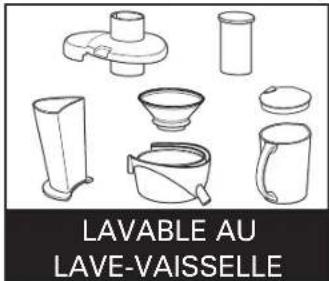

LAVABLE AU LAVE-VAISSELLE

AVERTISSEMENT

Illustration of hands using a tool to lift a circular component, no text or symbols present

Diagram showing two steps of pouring liquid into a container, with arrows indicating direction (no text or symbols)

Diagram showing a mechanical assembly with a cylindrical component and a container, no text or symbols present.

Diagram of a mechanical device with rotating arms and a central cylindrical component (no text or symbols)

Line drawing of a juice shaver with lever mechanism (no text or symbols)

Line drawing of a pair of household appliances, one with handle and one with lid, shown without any text or symbols.

Line drawing of a two-wheeled food blender and its cup, showing internal components and a handle (no text or symbols)

Line drawing of a cylindrical trash bin with wood grain and a base, no text or symbols present

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Line drawing of a mechanical device with a downward arrow indicating a component (no text or symbols)

Diagram showing a cable being inserted into an electrical socket, with a magnified view highlighting the socket's internal structure.

Line drawing of a juice maker with handle and side arm, no text or symbols present

Line drawing of a blender with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a container, showing an upward arrow (no text or symbols present)

Quite la cubierta.

Line drawing of a blender with a side panel and a side handle, showing no text or symbols

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of hands holding a small container with a lid, no text or symbols present

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Line drawing of a hand holding a small container with a handle, no text or symbols present

Illustration of hands performing a medical procedure on a circular object, possibly a dial or tube, with no visible text or symbols.

Mixcoac MEXICO 03910 D.F.

Tel: [phone] • Fax: [phone]

Nuevo Leon
