USER MANUAL Digital Smoothie 56207 HAMILTON BEACH

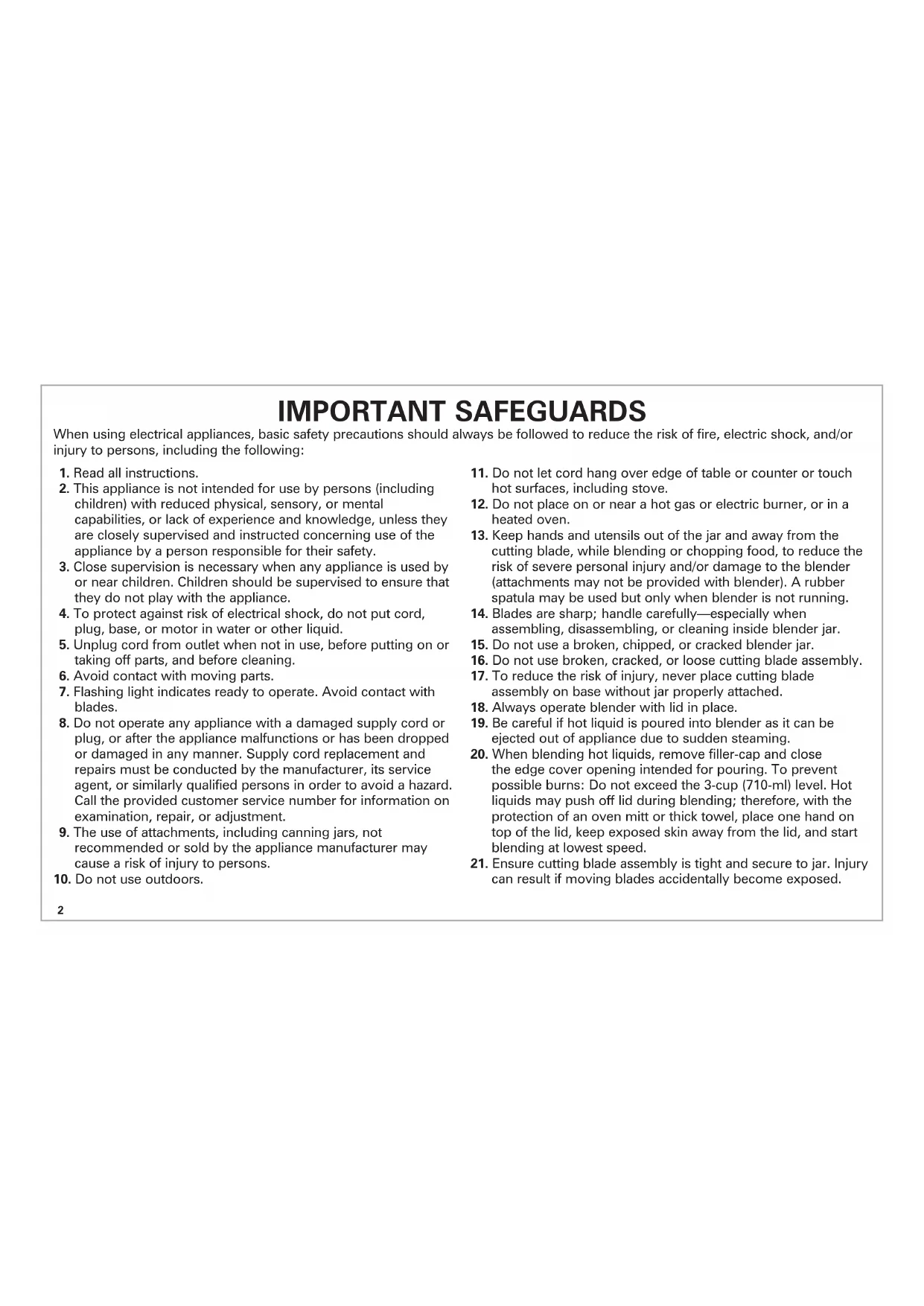

1. Read all instructions.

2. This appliance is not intended for use by persons (including

children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used by

or near children. Children should be supervised to ensure that they do not play with the appliance.

4. To protect against risk of electrical shock, do not put cord,

plug, base, or motor in water or other liquid.

5. Unplug cord from outlet when not in use, before putting on or

taking off parts, and before cleaning.

6. Avoid contact with moving parts.

7. Flashing light indicates ready to operate. Avoid contact with

8. Do not operate any appliance with a damaged supply cord or

plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

9. The use of attachments, including canning jars, not

recommended or sold by the appliance manufacturer may cause a risk of injury to persons.

10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter or touch

hot surfaces, including stove.

12. Do not place on or near a hot gas or electric burner, or in a

13. Keep hands and utensils out of the jar and away from the

cutting blade, while blending or chopping food, to reduce the risk of severe personal injury and/or damage to the blender (attachments may not be provided with blender). A rubber spatula may be used but only when blender is not running.

14. Blades are sharp; handle carefully—especially when

assembling, disassembling, or cleaning inside blender jar.

15. Do not use a broken, chipped, or cracked blender jar.

16. Do not use broken, cracked, or loose cutting blade assembly.

17. To reduce the risk of injury, never place cutting blade

assembly on base without jar properly attached.

18. Always operate blender with lid in place.

19. Be careful if hot liquid is poured into blender as it can be

ejected out of appliance due to sudden steaming.

20. When blending hot liquids, remove filler-cap and close

the edge cover opening intended for pouring. To prevent possible burns: Do not exceed the 3-cup (710-ml) level. Hot liquids may push off lid during blending; therefore, with the protection of an oven mitt or thick towel, place one hand on top of the lid, keep exposed skin away from the lid, and start blending at lowest speed.

21. Ensure cutting blade assembly is tight and secure to jar. Injury

can result if moving blades accidentally become exposed. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:3 Other Consumer Safety Information This appliance is intended for household use only. Use for food or liquids only. w WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. If the cutting blade assembly locks and will not move, it will damage the motor. Do not use. Call the customer care center for information. Do not place blender jar in the freezer filled with food or liquid. This can result in damage to the cutting blade assembly, jar, blender, and possibly result in personal injury. The wattage/ampere rating of the blender is determined by an Underwriters Laboratory test and is based on available cutting blade assembly, jar combinations, and attachments that may not be provided with your unit, but are available as replacement parts. This is a measure of input wattage/amperes after 30 seconds of operation. The blender as provided may draw significantly less power. Peak power is the measure of the motor wattage during the first seconds of operation. This is when a blender requires the most power to crush ice, frozen fruit, etc. This is a better measure of what a blender motor can consume when power is needed most. Wattage/Peak Power Information

SAVE THESE INSTRUCTIONS

22. If the jar should twist or rotate when the motor is switched

ON, switch OFF ( ) immediately and tighten jar in collar or on blender base.

23. Do not leave blender unattended while it is operating.

24. To disconnect cord, turn the control to OFF ( ). Then remove

plug from wall outlet.

25. Do not use appliance for other than intended purpose.

26. CAUTION: In order to avoid a hazard due to unattended

resetting of the motor thermal protective device, this appliance must not be powered through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.4 Parts and Features

1.2 L (equivalent of 40 oz.)

Thermal Shock-Resistant Jar* Base Cutting Blade Assembly* Collar* Mess-Free Spout With Hinged Cap Lid* BEFORE FIRST USE: After unpacking blender, wash everything except blender base in hot, soapy water. Dry thoroughly. Wipe blender base with a damp cloth or sponge. DO NOT IMMERSE BASE IN WATER. Care should be taken when handling cutting blade assembly as it is very sharp. *To order parts: US: 1.800.851.8900 www.hamiltonbeach.com Canada: 1.800.267.2826 Mexico:

Using Your Blender IMPORTANT: Your blender jar and cutting blade assembly are subject to wear during normal use. Always inspect jar for nicks, chips, or cracks. Always inspect cutting blade assembly for broken, cracked, or loose blades. If jar or cutting blade assembly is damaged, do not use. Call our toll-free customer service number to obtain replacement parts.

on jar. Plug into outlet.

4. Press the ON/OFF (I/ )

button. The ready light will blink. Select cycle to activate blender. The blender will not operate unless the ON/OFF (I/ ) button is pressed first.

5. Choose your desired speed.

Note when using PULSE, the blender will only run when the button is held down. Avoid contact with blades or moving parts.

6. The SMOOTHIE program

pulses to crush ice, switches to LOW to mix, and then ramps to HIGH for smoothness. After the 45-second cycle, the blender will stop automatically.6 Using Your Blender (cont.)

7. Press and hold the PUREE/

ICY DRINK button until desired consistency is reached. This function blends at high speed.

w WARNING Burn Hazard. When blending hot liquids, open center vent opening of lid and close the edge cover intended for pouring. Hot liquids may push lid off jar during blending. Do not fill blender jar beyond the 3-cup (710-ml) level. With the protection of an oven mitt or thick towel, place one hand on top of lid. Keep exposed skin away from lid. Start blending at lowest speed.

9. Push STOP button when

finished blending. Push the ON/OFF (I/ ) button to turn off the blender; the ON/OFF (I/ ) button will continue to blink after the blender has stopped and will stay in the standby (power ready) mode until the ON/OFF (I/ ) button is pushed again.

11. Open spout. Pour mixture into

at a lower speed. Follow Cleaning Your Blender on page 9.7 Blending Drinks TIPS FOR BEST RESULTS:

• Always place liquid in blender jar first, then remaining ingredients.

• If ice or frozen fruit pieces are not blending, stop blender and pulse a few times.

• Do not let ice stand in jar or allow ice to freeze in jar. Immediately crush ice after placing in jar. NOTE: This blender is equipped with a motor overload protector. If the motor stops during operation and the panel light is flashing, unplug the unit. Add a small amount of liquid to the mixture that you are blending. Plug unit back into the outlet. Press the ON/OFF (I/ ) button. This makes the blender ready for use—light on the panel will blink. Select the desired function/setting to continue blending. TYPE OF DRINK INGREDIENTS NUMBER OF SERVINGS BLENDER SETTING/TIME Fruit Smoothie 1 cup (237 ml) milk 1 1/2 cups (355 ml) yogurt 2 cups (473 ml) frozen berries or other fruit Sweetener to taste (optional) 3 to 4 (makes 4 cups [946 ml]) SMOOTHIE setting for 45-second program or until blended. Milkshake 1 1/2 cups (355 ml) milk 2 large scoops ice cream 2 to 3 tablespoons (15 to 44 ml) flavored syrup 2 to 3 (makes 3 cups [710 ml]) CLEAN setting for 5 to 10 seconds or PULSE 5 or more times until blended. Frozen Drink 1 cup (237 ml) drink mix, such as Piña Colada mix 10 ice cubes

• To add foods when blender is operating, open hinged pouring cap and add ingredients through the opening.

• For best performance, the minimum amount of liquid needed per recipe is 1 cup (8 ounces/237 ml). Add more liquid if food is not blending properly.

• If blending action stops during blending or ingredients stick to sides of the jar, there may not be enough liquid in the jar to blend efficiently.

• Do not try to mash potatoes, mix stiff dough, whip egg whites, grind raw meat, or extract juices from fruits and vegetables.

• Do not store food or liquids in the blender jar.

• Avoid bumping or dropping the blender when in operation or at any time. Cleaning Your Blender w WARNING Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, base, or motor in water or other liquid.

1. Plug into outlet. Add 3 cups (710 ml) warm water and one or two

drops of liquid dish detergent to blender jar. Place lid on jar. Press CLEAN button to clean the jar, and then press STOP button to turn off. Unplug. Pour out the water.

2. Remove blender jar from base. Rotate the collar counterclockwise

until the collar and cutting blade assembly come apart from the blender jar.

3. Wipe blender base, control panel, and cord with a damp cloth

or sponge. To remove stubborn spots, use a mild, nonabrasive cleanser.

4. The blender jar, lid, cutting blade assembly, and collar are

5. DO NOT use the “SANI” setting when washing in the dishwasher.

“SANI” cycle temperatures could damage your product. Parts may also be washed with hot, soapy water. Care should be taken when handling the cutting blade assembly, since the blades are very sharp. Rinse and dry thoroughly. Do not soak.9 This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and three (3) years from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance. Limited Warranty10
