USER MANUAL 50162 HAMILTON BEACH

1. Read all instructions.

2. To protect against risk of electrical shock, do not put cord,

plug, or base in water or other liquid.

3. Close supervision is necessary when any appliance is used

by or near children.

4. Unplug cord from outlet when not in use, before putting on

or taking off parts, and before cleaning.

5. Avoid contacting moving parts.

6. Do not operate any appliance with a damaged cord or plug,

or after appliance malfunctions, or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or electrical or mechanical adjustment.

7. The use of attachments, including canning jars, not recom-

mended or sold by the appliance manufacturer may cause a risk of injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch

hot surfaces, including the stove.

10. Keep hands and utensils out of jar while blending to reduce

the risk of severe injury to persons or damage to the blender. A rubber spatula may be used but must be used only when blender is not running.

11. Blades are sharp; handle carefully–especially when assembling,

disassembling or cleaning inside blender jar.

14. To reduce the risk of injury, never place cutting assembly

blades on base without jar properly attached.

15. Always operate blender with lid in place.

16. When using the strainer, do not exceed the maximum amount

of fruit, which could cause the blender to fail or result in permanent damage to the blender.

17. When blending hot liquids, remove centerpiece of two-piece

lid. Hot liquids may push lid off jar during blending. To prevent possible burns: Do not fill blender jar beyond the 3-cup (750-ml) level. With the protection of an oven mitt or thick towel, place one hand on top of lid. Keep exposed skin away from lid. Start blending at lowest speed.

18. Do not leave blender unattended while it is operating.

19. To disconnect cord, turn the control to OFF (

O); then remove plug from wall outlet.

20. Do not use appliance for other than intended purpose.

When using electrical appliances, basic safety precautions should always be followed, including the following: SAVE THESE INSTRUCTIONS! 840192701 EN.qxd:Layout 1 4/26/10 1:49 PM Page 23

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only. Use for food or liquids only. WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over, a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the blender. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. Do not place blender jar in the freezer filled with food or liquid. The contents may freeze and may result in damage to the cutting blades, jar, blender, and possibly result in personal injury. If cutting blades lock and do not move, it will damage the motor. Do not use. Call the toll-free customer service number for information. The wattage/ampere rating of the blender is determined by an Underwriters Laboratory test. These tests are based on available cutting blades and jar combinations that may not be provided with your unit. This is a measure of input wattage/amperes after 30 seconds of operation. Peak power is the measure of the motor wattage during the first seconds of operation. This is when a blender requires the most power to crush ice, frozen fruit, etc. This is a better measure of what a blender motor can consume when power is needed most. The blender as provided may draw significantly less power. Wattage/Peak Power Information 840192701 EN.qxd:Layout 1 4/26/10 1:49 PM Page 34 Parts and Features Filler Cap Lid Strainer Assembly Plastic Jar With Nonremovable Cutting Blades Control Panel Base Dishwasher Drain Holes 840192701 EN.qxd:Layout 1 4/26/10 1:49 PM Page 45 Using Your Blender with the Aguas Frescas Strainer See page 9 for recipes. BEFORE FIRST USE: Wash all parts in hot, soapy water. Dry thoroughly.

NOTE: Add liquids first for best results.

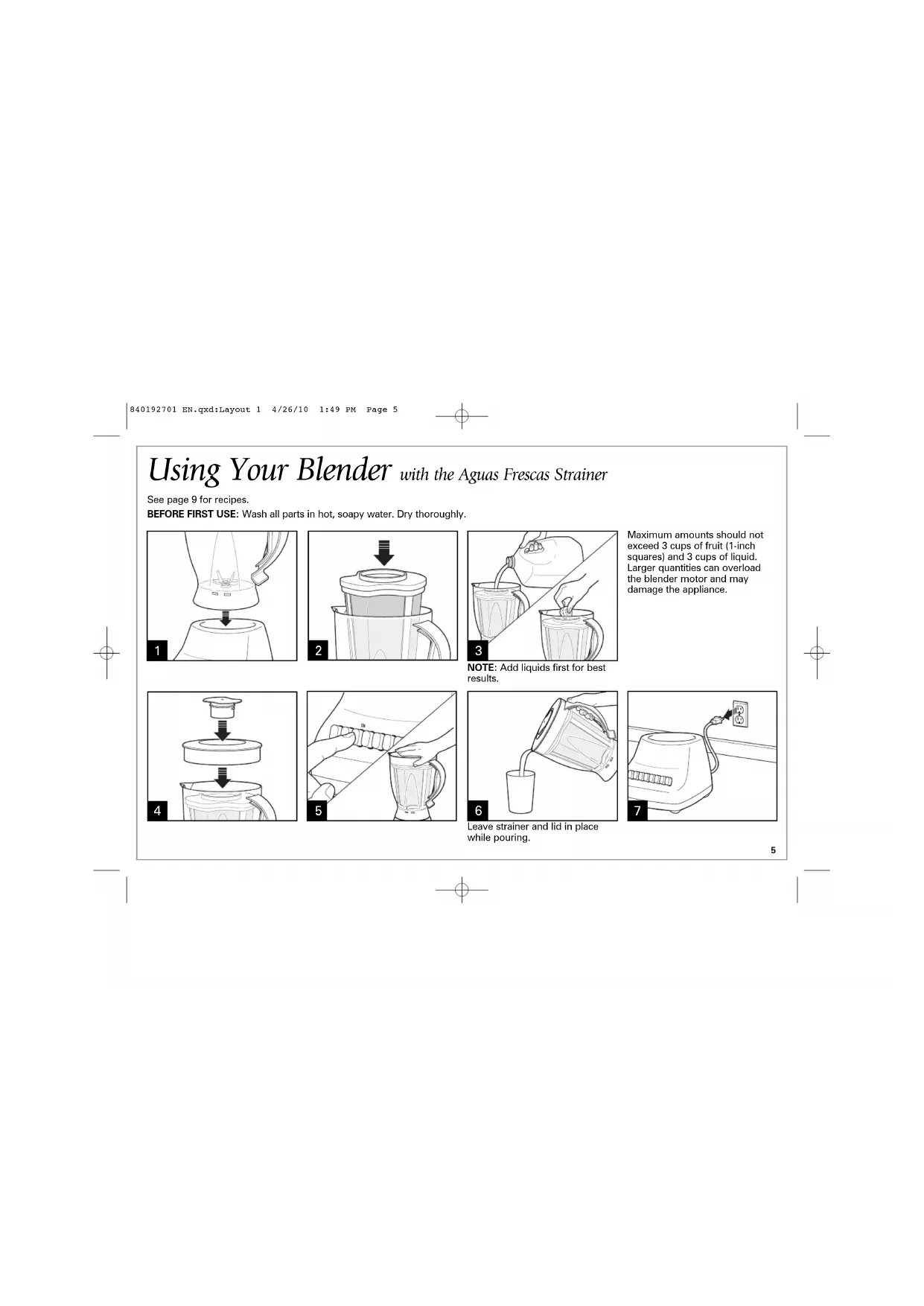

Maximum amounts should not exceed 3 cups of fruit (1-inch squares) and 3 cups of liquid. Larger quantities can overload the blender motor and may damage the appliance. Leave strainer and lid in place while pouring. 840192701 EN.qxd:Layout 1 4/26/10 1:49 PM Page 56 Using Your Blender for traditional recipes BEFORE FIRST USE: Wash all parts in hot, soapy water. Dry thoroughly.

NOTE: Add liquids first for best results.

840192701 EN.qxd:Layout 1 4/26/10 1:49 PM Page 67 Cleaning Your Blender Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid. w WARNING

Carefully wash jar with blades, lid, filler cap, and strainer in hot, soapy water. Rinse and dry thoroughly. Do not soak. Wipe blender base, control panel, and cord with a damp cloth or sponge. To remove stubborn spots, use a mild, nonabrasive cleanser. 840192701 EN.qxd:Layout 1 4/26/10 1:49 PM Page 78 Troubleshooting PROBLEM Blender leaks. Does not blend well. PROBABLE CAUSE

• Make sure lid with filler cap is pushed down tightly on jar.

• Make sure enough liquid has been added. A minimum of 8 ounces (250 ml) is recommended.

• Do not try to mash potatoes, mix stiff dough, whip egg whites, grind raw meat, or extract juices from fruits and vegetables. The blender is not made to perform these tasks.

• If mixture is too thick, continue to add liquid until mixture is blended to desired consistency. Blending Tips Crushing Ice For best performance, when a recipe calls for liquid, place the liquid in blender jar followed by the ice cubes. Ensure ice cubes are separated. When only crushed ice is desired, add 1 cup (250 ml) of ice cubes to jar. Place lid on blender jar; then Pulse on any of the 5 pulse speeds. Allow blades to come to a complete stop between pulses. Continue until ice is crushed to desired consistency. For best results, always crush ice immediately after removing from freezer. Using the Strainer For best results, cut fruit into 1-inch pieces before placing in strainer. (Maximum amount of fruit should not exceed 3 cups.) Soak dry ingredients, such as soybeans, before placing them in strainer. Make sure lid and filler cap are fully assembled and pushed down tightly on jar. General To add foods when blender is operating, remove filler cap from container lid and add ingredients through the opening. Do not store food or liquids in the blender jar. 840192701 EN.qxd:Layout 1 4/26/10 1:49 PM Page 89 Recipes Agua de Melón 1/2 cantaloupe or honeydew melon, seeded and diced (about 3 cups) 3 cups water 1/4 cup honey, or to taste Place the strainer basket into the blender jar and press firmly into place. Place all ingredients into the strainer basket and blend until liquefied, about 1 minute. With lid and strainer basket in place, pour into ice-filled glass or pour into pitcher and chill. Watermelon Water NOTE: Instead of melon you can use strawberries, pineapple, or mango. 3 cups watermelon, seeded and diced 3 cups water 1/4 cup sugar, or to taste Juice from 2 limes Place the strainer basket into the blender jar and press firmly into place. Place all ingredients into the strainer basket and blend until liquefied, about 1 minute. With lid and strainer basket in place, pour into ice-filled glass or pour into pitcher and chill. Horchata (Rice-Cinnamon Drink) 1 cup long-grained white rice, soaked 1 cup water 2 cups nonfat milk 1/4 cup sugar 1 tsp vanilla extract 1/4 teaspoon ground cinnamon, or to taste Preparation: Place the rice in a bowl and pour in enough boiling water to cover the rice. Cover bowl and place in refrigerator overnight (6–8 hours). Strain the water from rice and rinse well. Place the strainer basket into the blender jar and press firmly into place. Place water, milk, and soaked rice into blender. Cover and blend until liquefied, about 1 minute. Add sugar, vanilla, and cinnamon. Pulse until sugar is completely dissolved. With lid and strainer basket in place, pour into ice-filled glass or pour into pitcher and chill. Will last in the refrigerator for about 3–5 days. Shake well before using. 840192701 EN.qxd:Layout 1 4/26/10 1:49 PM Page 910 Recipes Almond Milk 1 cup raw almonds, soaked 3 cups water 1/2 teaspoon vanilla extract, optional 1/4 cup sugar, or to taste Preparation: Place the almonds in a bowl and pour in enough boiling water to cover the almonds. Cover bowl and place in refrigerator overnight (6–8 hours). Strain the water from almonds and rinse. Place the strainer basket into the blender jar and press firmly into place. Place water into the strainer basket with soaked almonds. Cover and blend until liquefied, about 1 minute. Add sugar and vanilla. Pulse until sugar is completely dissolved. With lid and strainer basket in place, pour into ice-filled glass or pour into pitcher and chill. Will last in the refrigerator for about 3–5 days. Shake well before using. 840192701 EN.qxd:Layout 1 4/26/10 1:49 PM Page 1011 This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use. We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance. Limited Warranty 840192701 EN.qxd:Layout 1 4/26/10 1:49 PM Page 1112
