USER MANUAL MO20S4W GORENJE

Never touch the surfaces of heating or cooking appliances. They will become hot during operation. Keep children at a safe distance. There is a risk of burning! Microwave energy & High voltage! Do not remove the cover. WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. Children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

IMPORTANT SAFETY INSTRUCTIONS6

• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;

• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

• Children should be supervised to ensure that they do not play with the appliance.

• Don't remove oven's feet, do not block air events of the oven.

• Only use utensils that are suitable for use in microwave ovens.

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

• If smoke is observed, switch o or unplug the appliance and keep the door closed in order to stifle any flames;

• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;

• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;7

• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

• The oven should be cleaned regularly and any food deposits removed;

• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely aect the life of the appliance and possibly result in a hazardous situation;

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not let the cord hang over the edge of the table or worktop.

• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.

• Never replace the light bulb inside the oven. It must always be replaced by Gorenje service.

• Do not clean the appliance with steam cleaners, high- pressure cleaners, sharp objects, abrasive cleaning agents, and abrasive sponges and stain removers.8 Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and

roller track in place when operating the oven.

2. Do not use the oven for any reason other than food

preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.

3. Do not operate the oven when empty. This could

4. Do not use the oven cavity for any type of storage,

such a papers, cookbooks, etc.

5. Do not cook any food surrounded by a membrane,such

as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.

6. Do not insert any object into the openings on the outer

7. Do not at any time remove parts from the oven such as

the feet, coupling, screws, etc.

8. Do not cook food directly on the glass tray. Place food

in/on proper cooking utensil before placing in the oven. IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN – Do not use metal pans or dishes with metal handles. – Do not use anything with metal trim. – Do not use paper covered wire twist-ties on plastic bags. – Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed. – Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used. – Do not cook in a container with a restricted opening, such as a pop bottle or sealed oil bottle, as they may explode if heated in a microwave oven. – Do not use conventional meat or candy thermometers. – There are the thermometers available specifically for microwave cooking. These may be used.

9. Microwave utensils should be used only in accordance

with manufacturer's instructions.

10. Do not attempt to deep-fry foods in this oven.

11. Please remember that a microwave oven only heats

the liquid in a container rather than the container itself. SAFETY INSTRUCTIONS

Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

12. Always test the temperature of cooked food yourself

especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

13. Food containing a mixture of fat and water,

e.g.stock,should stand for 30-60 seconds in the oven after it has been turned o. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

14. When preparing/cooking food/liquid and remember

that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

15. Cooking utensil may become hot because of heat

transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

16. To reduce the risk of fire in the oven cavity:

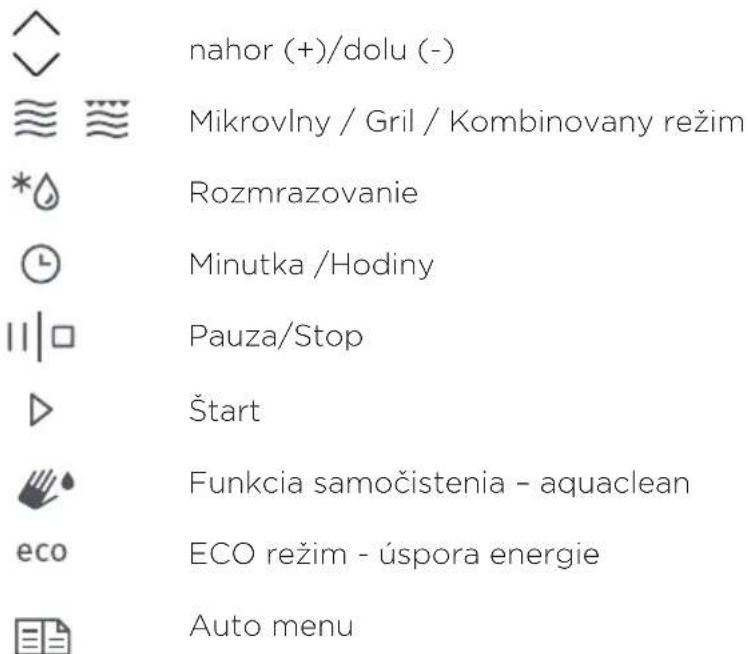

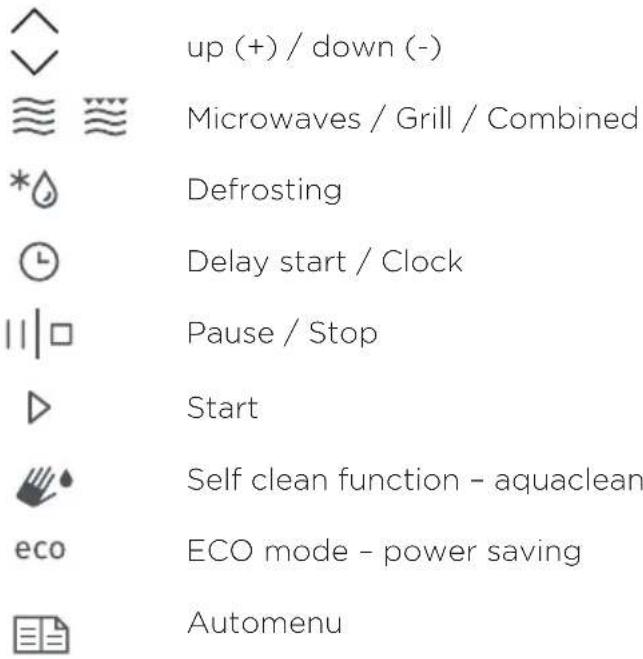

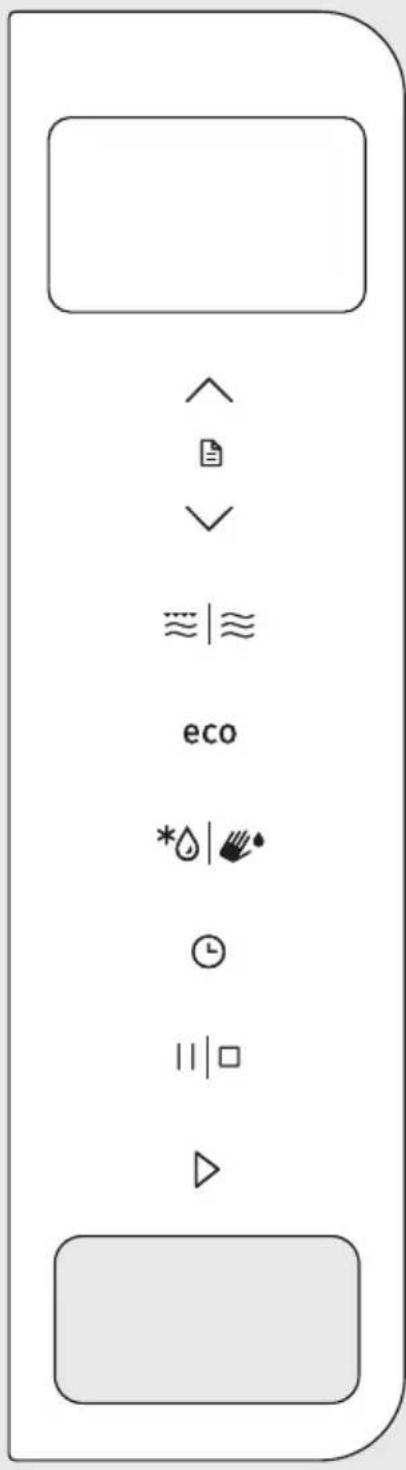

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b) Remove wire twist-ties from bags before placing bag in oven. c) If materials inside the oven should ignite, keep oven door closed, turn the oven o at the wall switch, or shut o power at the fuse or circuit breaker panel.DISPLAY UNIT Displays the selected functions and time. KEYS up (+) / down (-) Microwaves / Grill / Combined Defrosting Delay start / Clock Pause / Stop Start Self clean function – aquaclean ECO mode – power saving Automenu

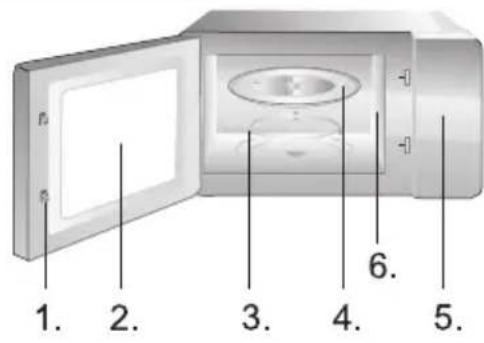

plate covering the wave guide) Grill rack (Only be used for grill or for combination function and be placed on glass tray. CONTROL PANEL

The oven is fitted with a digital clock. When the oven is in the standby mode, the clock can be set in the 24-hour mode by pressing the CLOCK key. Example: To set the time to 8:30: a) Press CLOCK key. Press UP or DOWN keys to set 8 hours. b) Press CLOCK key once. Press UP or DOWN keys to set 30 min. c) Press CLOCK key once to confirm the setting. NOTE: During cooking, clock can be displayed at any time by pressing the CLOCK key. Clock has to be set every time the oven is connected or re-connected to the power mains. This function has two options: a) Rapid heating with microwaves (100% power) Example: Cooking with 100% power for 5 minutes.

1. Press DOWN and then UP key to set the time to

2. Press the START key to start the program.

b) Cooking and reheating with microwaves For example, suppose you want to cook for 10 minute at 60% of microwave power.

1. Press the MICROWAVE key repeatedly or use the

3. Press the START key to start.

There are 5 power levels available (100%, 80%, 60%, 40%, 20%), maximum operating time is 60 minutes. Grilling is especially suitable for thin slices of meat, escalopes or steaks, meat chops, skewers, sausages, or pieces of chicken. Grilling is also suitable for toasting bread or sandwiches and finishing dishes au gratin. Maximum operating time that can be set for the grill is 60 minutes. Example: Grilling for 12 minutes

2. Press UP or DOWN keys to set the time to 12:00.

3. Press the START key to start the program.

NOTE: During cooking or grilling, the oven will automatically beep twice when halfway through the progress. This is to

remind you to turn around the food. After this is done, close the oven door and press the START key. If you do not wish to turn around the food, cooking or grilling will continue. The oven will operate with microwaves 30 percent of the time, and with grill 70 percent of the time. This operating mode is suitable for cooking pudding, soués, omelettes, baked potatoes, and poultry. Maximum operating time that can be set is 60 minutes. Example: Set combined operation C-1 for 25 minutes.

1. Press the MICROWAVE key several times or upress UP

or DOWN keys until C-1 appears on the screen.

2. Confirm the selected combination by pressing START.

3. Press UP or DOWN keys to set the time to 25:00.

4. Press the START key to start the program.

The oven will operate with microwaves 55 percent of the time, and with grill 45 percent of the time. This operating mode is suitable for cooking fish or dishes au gratin. Maximum operating time that can be set is 60 minutes. Example: Set combined operation C-2 for 25 minutes.

1. Press the MICROWAVE key several times or press UP

or DOWN keysuntil C-2 appears on the screen. Confirm by press START.

2. Press UP or DOWN keys to set the time to 25:00.

3. Press the START key to start the program.

The oven allows defrosting of meat, poultry, and seafood. Defrosting time and operating power will be adjusted automatically according to the preset weight. Weight of the food to be defrosted may be between 100 g and 2000 g. Example: Defrosting 600 g of frozen fish

1. Press the DEFROST key.

2. Press UP or DOWN keys to set the weight to 600 g.

3. Press the START key to start the program.

The oven also allows speed defrosting. Example: Rapid defrosting of bread

1. Press the DEFROST key twice.

2. Press UP or DOWN keys to set the desired time.

3. Press the START key to start the program.

For the food in the auto menu, only the type of food and the weight/amount have to be set. The oven will aid you in the setting of power and time. Example:

corresponding food code from A1 - to A11. Press the START key.

2. Press UP or DOWN keys to indicate the food weight.

3. Press the START key to start.

Menu Weight/amount Microwave power

softmelt 100g 30% + 10% 200, 300 g 30% + 20% + 10% A10 plate warmer 1, 2, 6 pcs 100% A11 staywarm 100, 200, 300 g 80% + 60% + 80% Microwave oven allows cooking in four steps. Example: To defrost frozen meat for 10 minutes, then heat it for 5 minutes at 60%:

1. Press the DEFROST key twice.

2. Press UP or DOWN keys to set the time to 10:00.

3. Press the MICROWAVE key several times or press UP

or DOWN keys to select power level (60%). Press the START key.

4. Press the UP or DOWN keys to select time 05:00.

5. Press the START key to start the program.

NOTE: Defrost function can only be used in the first step. Auto menu cannot be a step in a multi-step cooking program.

COOKING14 Tips for using the oven Use this function to rapidly heat (100% microwave power) or cook your food. In the standby mode, press the START key and the oven will operate for 30 seconds. With each consecutive press of the START key, the operating time will be extended by 30 seconds. NOTE: Pressing the START key again will prolong the cooking time by 30 seconds in all programs except in automatic mode, and in the auto defrost mode. This function is used to prevent uncontrolled or inadvertent use of the oven by children. To set: In standby or preset mode, hold down the PAUSE/ STOP key for 3 seconds, a beep sounds and lock indicator lights. In the locked mode, all buttons are disabled except PAUSE/STOP key. To cancel: Hold down the PAUSE/CANCEL button for 3 seconds until lock indicator on display goes o. Preset function allows the oven to start up in a later time. Suppose you want to cook for 10 minute at 60% of microwave power now the clock running at 11:10 and you want the oven to start cooking at 11:30.

1. Press the MICROWAVE key several times or press UP

or DOWN keys to select power level (60%). Press the START key.

7. Press START key to start.

Press Eco button. The display will turn o and the microwave is in Eco mode which minimizes power usage. To cancel the Eco mode and turn on the display again, press any other button or open or close the door. For regular cleaning of your oven the following procedure is recommended: Press the key and hold it for approximately 3 seconds. Put in a glass of water – 200ml – and press START button. After program has finished, wait 2-3 minutes and then remove the glass and wipe the oven with soft cloth.

FUNCTION – AQUACLEAN15 Use this function to set the loudness of the keys and other appliance sounds. Press the ECO key and hold it for approximately 3 seconds. »Vol« will appear on the display and sound will be turned

To turn on the sounds again, press the ECO key and hold it for approximately 3 seconds. “VOL” will appear on the display.

SOUND1. Turn the oven o and remove the power plug from the wall socket before cleaning.

2. Keep the inside of the oven clean. When food

splatters of spilled liquids adhere to oven walls,wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.

3. The outside oven surface should be cleaned with

a damp colth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Do not allow the Control Panel to become wet. Clean

with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.

5. If steam accumulates inside or around the outside

of the oven door, wipe with a soft cloth.This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

6. It is occasionally necessary to remove the glass tray

for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

7. The roller ring and oven cavity floor should be

cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapours collect during repeated use but in no way aect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.

8. Remove odors from your oven by combining a cup of

water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth. Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an ocial collection point for recycling. By doing this, you help to preserve the environment. ENVIRONMENT

1. Make sure all the packing materials are removed from

the inside of the door.

2. Inspect the oven after unpacking for any visual damage

such as: – Misaligned Door – Damaged Door – Dents or Holes in Door Window and Screen – Dents in Cavity If any of the above are visible, DO NOT use the oven.

3. This Microwave Oven weighs 11,5 kg and must be

placed on a horizontal surface strong enough to support this weight.

4. The oven must be placed away from high temperature

5. DO NOT place anything on top of the oven.

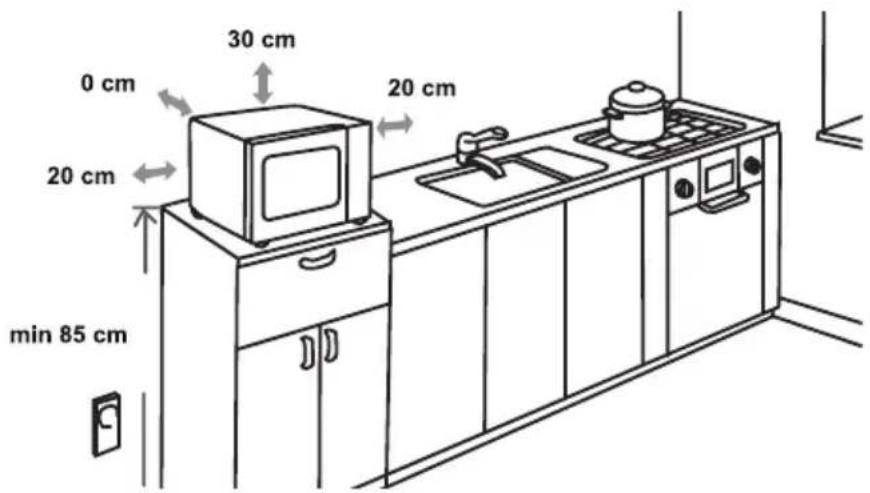

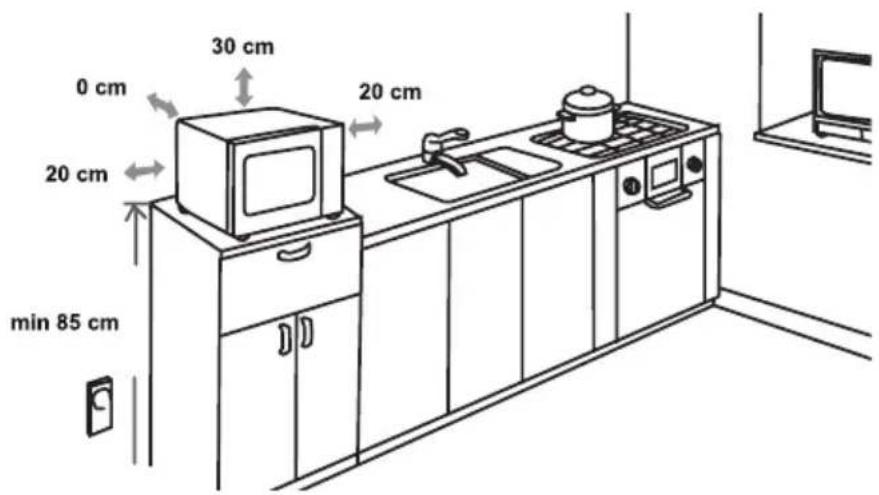

6. Keep the oven at least 20 cm away from both sidewalls

and 30 cm away from rear wall to ensure the correct ventilation.

7. DO NOT remove the turn -table drive shaft.

8. As with any appliance, close supervision is necessary

when used by children.

9. Make sure that the AC outlet is easily accessible so

that the plug can be removed quickly in an emergency. Otherwise, it should be possible to disconnect the device using a switch from the circuit. In this case, the existing provisions of the electrical safety standards are considered. The product has to be correctly installed on earthed socket with a single-phase AC (230 V/50 Hz). WARNING! THIS APPLIANCE MUST BE EARTHED!

10. This oven requires 1.3 KVA for its input consultation

with service engineer is suggested when installing the oven. CAUTION: This oven is protected internally by a 250V, 8 Amp Fuse. INSTALLATION

MOUNTING THE MICROWAVE OVEN18

Power consumption ....................................220-240V~50Hz, 1280W Output power ...................................................................................... 800W Grill heater ............................................................................................1000W Operating Frequency .................................................................2450MHz Outside Dimensions ........ 451mm(W) x 257mm(H) x 343mm(D) Oven Capacity ..................................................................................20 litres Uncrated Weight ...............................................................Approx. 11,5 kg Noise level .............................................................................Lc < 58 dB (A) This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment. Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures. a) Clean the door and sealing surface of the oven. b) Place the radio, TV, etc. as far away from your microwave oven as possible. c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception. WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE. SPECIFICATIONS MOUNTING DIMENSIONS RADIO INTERFERENCE19

1. If the oven will not perform at all, the information

on the display does not appear or the display disappeared: a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

2. If the microwave power will not function:

a) Check to see whether the timer is set. b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven. If none of the above rectify the situation, then contact the nearest authorized service agent. The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only. If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances. For personal use only! Additional recommendations for cooking with microwave and useful advices can be found on web side: http://www.gorenje.com WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

1. Always have the glass tray, roller arms, coupling and
