USER MANUAL FFT M11 9X2BXY BE WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code in your appliance

• Visiting our website docs.whirlpool.eu/docs and parts-selfservice.europeanappliances.com

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identi cation plate.

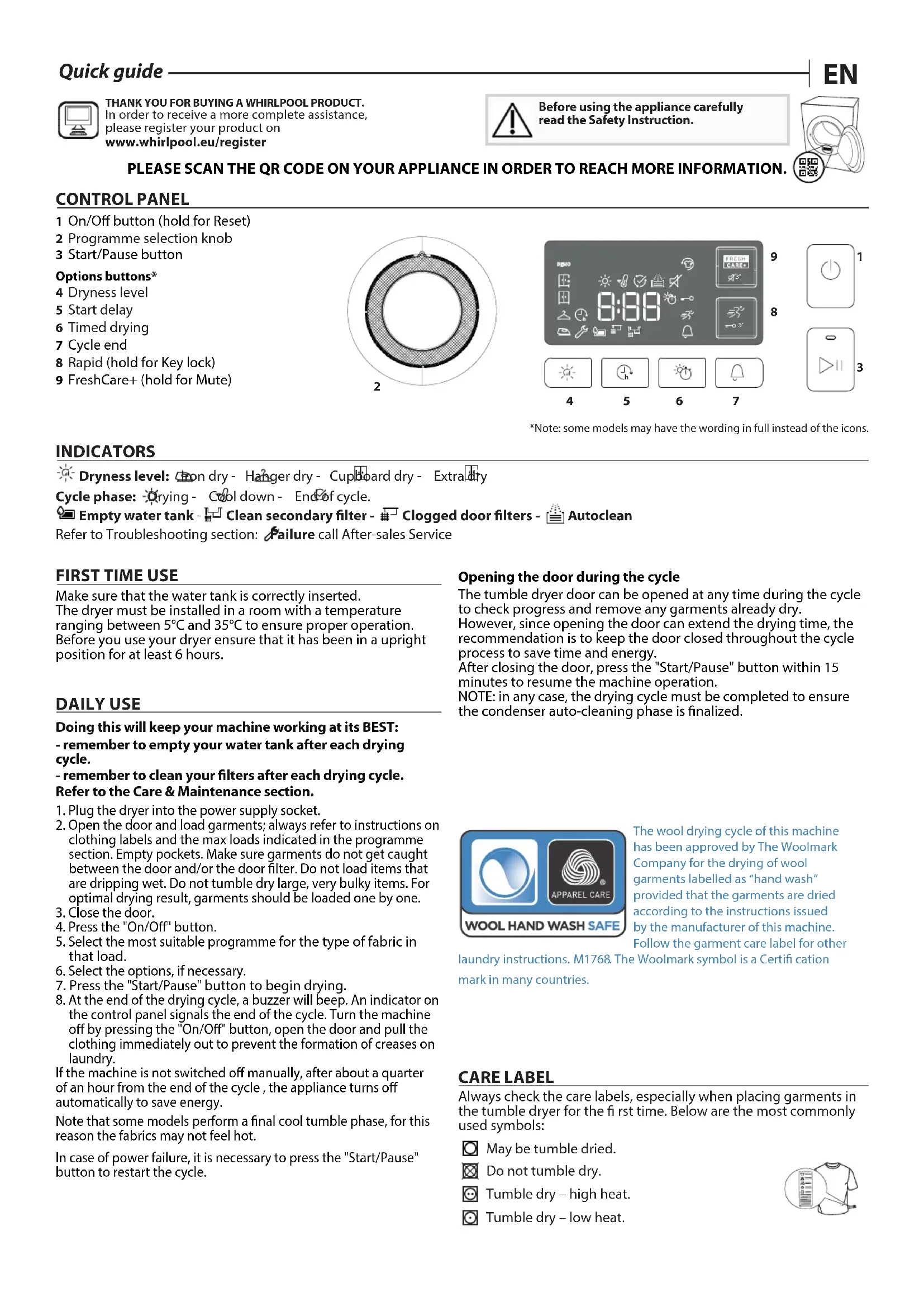

Before using the appliance carefully read the Safety Instruction. PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION. Quick guide Before using the appliance carefully read the Safety Instruction. Opening the door during the cycle The tumble dryer door can be opened at any time during the cycle to check progress and remove any garments already dry. However, since opening the door can extend the drying time, the recommendation is to keep the door closed throughout the cycle process to save time and energy. After closing the door, press the "Start/Pause" button within 15 minutes to resume the machine operation. NOTE: in any case, the drying cycle must be completed to ensure the condenser auto-cleaning phase is nalized. DAILY USE Doing this will keep your machine working at its BEST: - remember to empty your water tank after each drying cycle. - remember to clean your lters after each drying cycle. Refer to the Care & Maintenance section.

1. Plug the dryer into the power supply socket.

2. Open the door and load garments; always refer to instructions on

clothing labels and the max loads indicated in the programme section. Empty pockets. Make sure garments do not get caught between the door and/or the door lter. Do not load items that are dripping wet. Do not tumble dry large, very bulky items. For optimal drying result, garments should be loaded one by one.

4. Press the "On/O" button.

5. Select the most suitable programme

for the type of fabric in that load.

Start/Pause" button to begin drying.

8. At the end of the drying cycle, a buzzer will beep. An indicator on

the control panel signals the end of the cycle. Turn the machine o by pressing the "On/O" button, open the door and pull the clothing immediately out to prevent the formation of creases on laundry. If the machine is not switched o manually, after about a quarter of an hour from the end of the cycle , the appliance turns o automatically to save energy. Note that some models perform a nal cool tumble phase, for this reason the fabrics may not feel hot. In case of power failure, it is necessary to press the "Start/Pause" button to restart the cycle. The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of wool garments labelled as “hand wash” provided that the garments are dried according to the instructions issued by the manufacturer of this machine. Follow the garment care label for other laundry instructions. . The Woolmark symbol is a Certi cation mark in many countries.M1768 CARE LABEL Always check the care labels, especially when placing garments in the tumble dryer for the rst time. Below are the most commonly used symbols: May be tumble dried. Do not tumble dry. Tumble dry – high heat. Tumble dry – low heat.

Make sure that the water tank is correctly inserted. The dryer must be installed in a room with a temperature ranging between 5°C and 35°C to ensure proper operation. Before you use your dryer ensure that it has been in a upright position for at least 6 hours. CONTROL PANEL 1 On/O button (hold for Reset)2 Programme selection knob3 Start/Pause buttonOptions buttons*4 Dryness level 5 Start delay6 Timed drying7 Cycle end8 Rapid (hold for Key lock)9 FreshCare+ (hold for Mute)*Note: some models may have the wording in full instead of the icons. INDICATORS Dryness level: Iron dry - Hanger dry - Cupboard dry - Extra dry Cycle phase: Drying - Cool down - End of cycle. Empty water tank - Clean secondary lter - Clogged door lters - Autoclean Refer to Troubleshooting section: Failure call After-sales Service

1329784 56h3’’3’’These buttons allow you to personalise the selected programme according to personal requirements. Not all options are available for all programmes. Some options may be incompatible with ones you have previously set; if so, you will be alerted by the buzzer and/or blinking indicators. If the option is available, the option indicator will stay on. The programme may retain some options selected in previous drying cycles. PROGRAMS Eco cotton kg Max* This is the most ecient programme in terms of energy consumption and is suitable for drying normal wet cotton laundry. The values on the Energy Label are based on this programme. NOTE: for optimal energy eciency, select “Cupboard Dry” using dryness level option. To increase the dryness level, select “Extra Dry”. Mixed kg 4 This programme is ideal for drying cotton and synthetic fabrics together. Bed linen Kg Max* This programme is intended for drying cotton sheets. Shirts kg 3 This is a programme for Shirts made from cotton or cotton blend/synthetics. Sport kg 4 For drying synthetics or cotton sports garments. Duvet Programme intended to dry bulky items, such as a single duvet. Jeans kg 3 For drying sturdy cotton including denim trousers and jackets. Easy ironing This cycle relaxes bres, thus making ironing and folding easier. Suitable for small load of damp or dry cotton and cotton blend fabrics. Not for wet items. Refresh A short programme suitable for refreshing bres and garments through the emission of fresh air. Do not use on wet items. It can be used on with any load size but is more eective with small loads. It lasts about 20 minutes. Rapid 30' kg 0.5 Ideal for drying cotton garments spun at high speed in the washing machine. Coloured kg Max* Programme for the gentle drying of coloured fabrics. Silk kg 0.5 Gentle drying of silk garments. Wool kg 1 Programme for drying wool clothes. It is advisable to turn the items inside out before drying. If heavy edges remain damp, leave them to dry naturally. Delicates kg 2 For drying delicate laundry requiring gentle treatment. Synthetics kg 4 For drying synthetic fabrics. OPTIONS Dryness level Press the related button several times to obtain a dierent level of residual moisture on garments. An indicator signals the level being selected. Iron dry: very delicate drying. Items will be more easily ironed immediately after the cycle. Hanger dry: a level intended for delicate garments ready to be hanged. Cupboard dry: the laundry is ready to be folded and put away. Extra dry: for laundry intended to be worn at the end of the cycle. Timed drying This option is to manually set the drying time. Press the corresponding button to set the required time for drying. An indicator on the control panel signals the time being selected.

Start delay This option is for delaying the start of the cycle. Press the corresponding button several times to nd the required delay. Once the max time is reached, the option is reset by pressing the button again. An indicator on the control panel signals the time being selected. After pressing the "Start/Pause" button, the machine signals the time remaining to the start of the cycle. If the door is opened, press the "Start/Pause" button once the door has been closed. Rapid Enables quicker drying. FreshCare+ If laundry is left inside of the drum once the cycle has ended, it can be subjected to bacterial proliferation. This option helps to prevent this from happening by controlling the temperature and gently rotating the drum. This will continue for up to 6 hours after the end of the cycle. This setting will remain in the memory of the previous cycle. If this is used alongside Start Delay, a crease treatment will be perfomed during this phase by periodic rotations of the drum. Key lock This option makes all machine controls inaccesible, except the "On/O" button. When the machine is on:

• to activate the option, keep the button pressed until the machines signals that the option has been enabled.

• to disable the option, keep the button pressed until the machine signals that the option has been disabled. This option remains in memory if selected in previous drying. Cycle end This option activates a prolonged buzzer at the end of the cycle. Enable it if you are not sure to hear the normal sound at the end of the cycle. This option remains in memory if selected in the previous drying. Mute This option turns o all sounds of control panel. Only warnings remain active.

• to activate the option, keep the button pressed until the indicator goes on.

• to disable the option, keep the button pressed until the indicator goes o. The duration of these programs will depend on the size of the load, types of textiles, the spin speed used in your washer and any extra options selected. In machines equipped with display, the duration of the cycles is shown on the control panel. The remaining time is constantly checked and adjusted during the drying cycle to show the best possible estimate. Option to use - If all your loads on Automatic Cycles are consistently less dry or more dry than you would like, you may increase or decrease the dryness level using the specic option. *MAX LOAD 9 Kg (Dry load)THANK YOU FOR BUYING AN INDESIT PRODUCT. In order to receive a more complete assistance, please register your product on www.indesit.eu/register Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code in your appliance

• Visiting our website docs.indesit.eu and parts-selfservice.europeanappliances.com

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identi cation plate.

Before using the appliance carefully read the Safety Instruction. PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION. Quick guide Before using the appliance carefully read the Safety Instruction. Heat Pump System The heat pump contains uorinated greenhouse gases, contained in a hermetically sealed unit. This sealed unit contains

0.18 kg of the F gas R134a. GWP = 604 (1 t CO).

Power consumptiono-mode (Po) - Watts 0.50left-on mode (Pl) - Watts 2.00Programs Kg kWh MinutesEco Cotton * 9 2.12 250Eco Cotton 4.5 1.20 160Synthetics 4 0.63 90*This is the reference programme for the energy label and suitable to dry normal wet cotton laundry. This is the most ecient programme in terms of energy consumption for drying wet cotton laundry. (Standard/Default starting conguration).

TRANSPORT AND HANDLING

Never lift the dryer by holding on to its top side.

1. Unplug the dryer.

2. Remove the water from the water tank completely.

3. Make sure that door and water tank are properly closed.

Cleaning the tumble dryer

• The external metal, plastic and rubber parts can be cleaned with a damp cloth.

• Clean the front air intake grille regularly (every 6 months) with a vacuum cleaner to remove any lint, u or dust deposits. Furthermore, remove any lint deposits from the lters area, using a vacuum cleaner every so often.

• Do not use solvents or abrasives.

CARE AND MAINTENANCE

WARNING: unplug the dryer during the cleaning and

maintenance procedures. Emptying the water tank after each cycle (see Fig. A). Pull the container out of the dryer and empty it into a sink or other suitable drain, then place it back properly. Do not use the dryer without having inserted the container back in place. Cleaning the primary door lter after each cycle (see Fig. B). Pull the primary door lter out and clean it by removing the lint from the lter surface under running water or using a vacuum cleaner. Cleaning the secondary door filter when the relevant indicator turns on (see Fig. C). Pull the secondary door lter out and clean it in all its parts by washing it under running water or using a vacuum cleaner. Clogged lters - clean both door lters (see Fig. B, Fig. C). For optimal performance, dry the lters before inserting them back in place. Do not use the dryer without having inserted all lters back in place properly rst. The lters are essential parts for drying. They are intended to collect the lint formed during the drying process. In case of clogged filters, the air flow inside the dryer would be seriously aected: the drying time would be longer, the energy consumption would increase and the dryer could be damaged. If these procedures are not carried out properly, the dryer may not start. NOTE: After cleaning the lters the relevant indicator remains on; this is normal, it will disappear when you start a new drying cycle. Autoclean The maintenance of the bottom lter of this model is automatic. The dryer carries out cleaning when the sensors signal the need to do so. In this case, the machine goes on working even when the drying cycle is completed. An indicator on the control panel will signal the maintenance. Do not switch the machine o during this phase. PRODUCT DESCRIPTION

1. Water Tank (A)2. Air Intake grille3. Door lter: primary (B), secondary (C)

Step 1Step 2Step 3Step 1Step 2Step 3 ATHANK YOU FOR BUYING A WHIRLPOOL PRODUCT. In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register Policies, standard documentation, ordering of spare parts and additional product information can be found by:• Using QR code in your appliance

• Visiting our website docs.whirlpool.eu/docs and parts-selfservice.europeanappliances.com

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identi cation plate.

Before using the appliance carefully read the Safety Instruction. PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION. Quick guide Before using the appliance carefully read the Safety Instruction. TROUBLESHOOTING EN Before contacting the After-sales Service, refer to the table below. Often the malfunctions are minor and can be solved in few minutes. Malfunction Possible cause SolutionThe drying times are very long.An appropriate maintenance was not carried out.Refer to the Cleaning & Maintenance section and perform the operations described. The garments are too wet.Carry out a washing cycle with higher spin speed to remove as much water as possible. Room temperature. The drying time may be longer if the room temperature falls outside the 14–30°C range. The programme, the time and/or the drying level set are not suitable for the type and the amount of load inserted into the dryer. Refer to Programmes and Options sections to nd the programme and options most suitable for the type of load.The dryer may be overloaded. Refer to the Programmes section to check the max load for each programme. The tumble dryer does not turn on. The "On/O " button was not pressed. Press the "On/O " button. The plug is not inserted into the socket. Insert the plug into the socket. The socket is faulty. Try to plug another appliance in the same socket. Do not use connecting electrical devices to the socket, such as adapters or extensions. A power failure occurred. Wait for the power supply to be restored and switch the fuse on again if necessary. The tumble dryer does not start. The door has not been closed properly. Close the door. A time delay was set to the start of the cycle.For machines equipped with this function: wait for the set delay to end or switch the machine o to reset it. Refer to the Options section. The "Start/Pause" button was not pressed. Press the "Start/Pause" button.The Key Lock function was enabled (for machines equipped with this option).If Key Lock was selected, disable it. Switching the machine o will not disable this option. Refer to the Options section.Garments are wet at cycle completion.Small load. The automatic programme has not sensed the required nal moisture so that the dryer completes the programme and stops. If this happens simply select an additional short period of drying or select Extra Dry option if available. Large loads or heavier fabrics.Dryness levels can be modi ed to the speci c dryness desired. Extra Dry is recommended for ready to wear items. The drying cycle was paused and then not reactivated within 15 minutes, causing the machine to shut down. The drying cycle has to be set up once more and restarted. A power failure might have occurred, causing the machine to shut down. The drying cycle has to be set up once more and restarted. Lights on or ashing Water tankThe water tank is full. Empty the water tank. Refer to the Cleaning & Maintenance section. Door lter Failure of the air ow necessary for machine operation. Clean the door lter and check whether air intake is free. Carrying out these operations improperly may cause damages. Refer to Cleaning & Maintenance section. Bottom lter* The bottom lter requires cleaning. Clean the bottom lter. Refer to Cleaning & Maintenance section. The presence of wrench symbol signals a malfunction. The machine sensors detected a failure. Switch the dryer o and unplug it. Open the door immediately and pull laundry out, to allow the heat to dissipate. Wait for about 15 minutes. Reconnect the dryer to the power supply, load the laundry and restart the drying cycle. If the problem still occurs, contact the After-Sales Service Centre and communicate the letters and digits ashing on the display. For instance: F3 and E2. *Note: some models are auto-cleaning and not equipped with bottom lter. Please refer to the Cleaning & Maintenance section.DANKE, DASS SIE SICH FÜR EIN WHIRLPOOL PRODUKT ENTSCHIEDEN HABEN.Für eine umfassendere Unterstützung melden Sie Ihr Produkt bitte unter www.whirlpool.eu/register an Firmenrichtlinien, Standarddokumentation, Ersatzteilbestellung und zusätzliche Produktinformationen nden Sie unter:
