USER MANUAL CSCSTORAGE1 Tripp Lite

Register your product today and be automatically entered to win an ISOBAR surge protector in our monthly drawing!

triplite.com/warranty

Manufacturing Excellence.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to comply may invalidate the warranty and cause property damage or personal injury.

AC Unit

• Do not use a power adapter to connect the storage cart to a power source. Use only the cart's AC plug to connect directly to the supply mains.
• This equipment must be plugged into a grounded mains outlet.
• The power supply cord of this equipment is used as the disconnect device.
• Make sure the outlet to which this equipment is connected is easily accessible.

• If any of the following situations arise, schedule an appointment to have your equipment inspected by a service technician:

• The equipment has been exposed to moisture.

• The equipment has been dropped and damaged.
• The equipment shows obvious signs of breakage.

• The equipment is not functioning properly or is not functioning according to the instructions described in this Owner's Manual.

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Storage Cart

• Keep the cart in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.
• Leave adequate space around the cart for proper ventilation. Do not block, cover or insert objects into the cart's external ventilation openings.
• The cart is extremely heavy. Use caution when handling the cart. Do not attempt to unpack the cart unassisted. Use a mechanical device, such as a forklift or pallet jack, to move the cart in the shipping container.
• Inspect the shipping container and the cart for shipping damage. Do not use the cart if it is damaged.
• Use caution when cutting packing materials. The cart could be scratched, causing damage not covered by the warranty.
• Save all packing materials for later use. Repacking and shipping the cart or equipment without the original packing materials may cause product damage that will void the warranty.
• The cart includes 4 pre-installed locking/swivel casters.
• Always use the included handle when moving the cart (see Installing the Handle Bracket and Corner Safety Bumpers for more information).
• When moving the cart, always push it from behind; never pull it toward you.
• A rolling cart can cause personal injury and property damage if not properly supervised. If rolling the cart down a ramp is required, use extreme caution. Do not attempt to use ramps that have a slope grade greater than 12% .

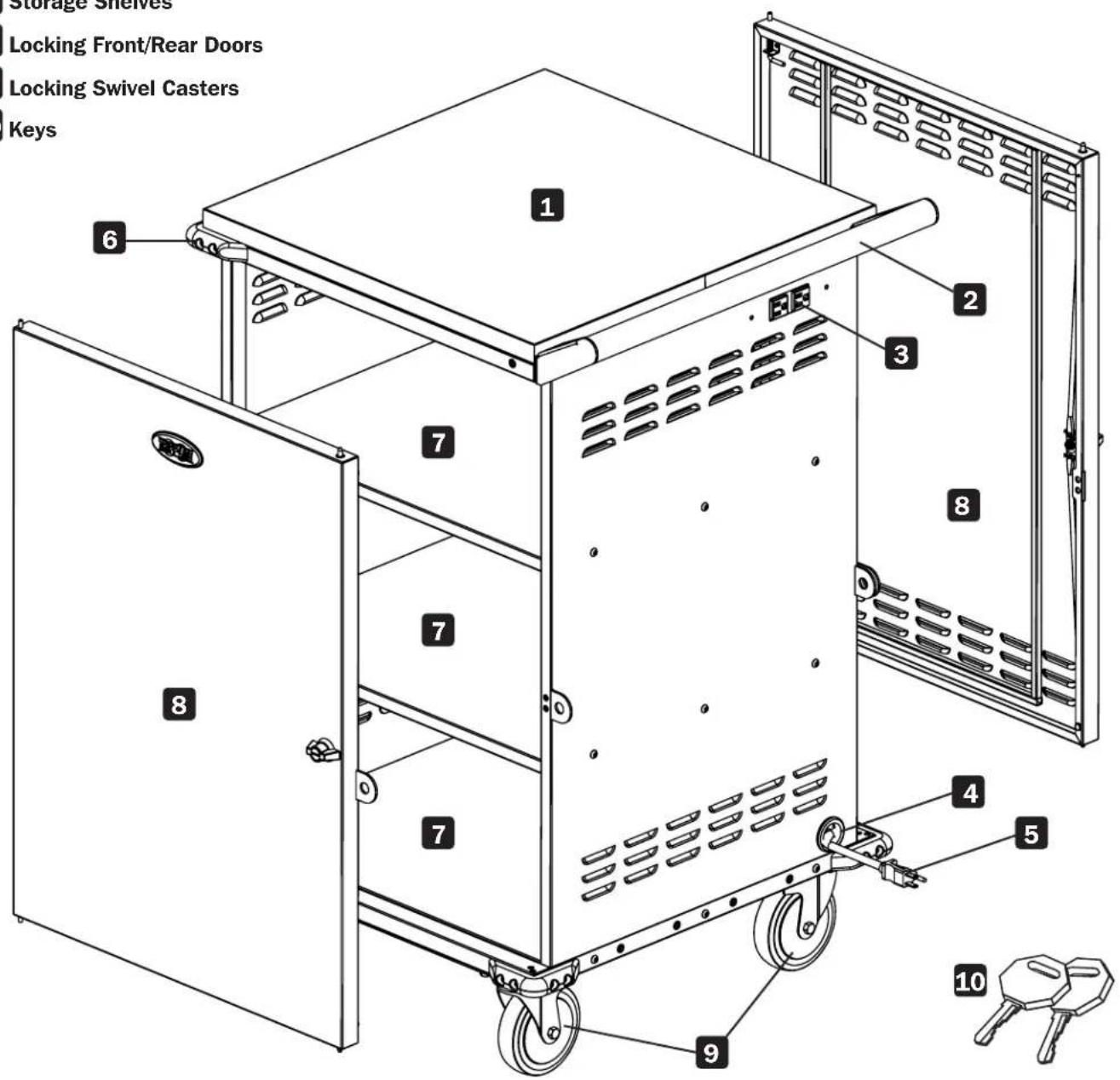

Feature Identification

1 Laminate Desktop Surface
2 Reversible Handle
3 Convenience Outlets
4 Power Cord Access Hole
5 10 ft. Power Cord with 5-15P Plug
6 Corner Safety Bumpers (6 Total)
7 Storage Shelves
8 Locking Front/Rear Doors
9 Locking Swivel Casters
10 Keys

Setup

Caution! Read All Instructions andWarnings Before Installation!

Warning: Storage carts can be extremely heavy. Do not attempt to unpack the cart without assistance. Follow the unpacking instructions document that shipped with this product before proceeding with setup. Use extreme caution when handling the cart, and be sure to follow all handling and installation instructions. Do not attempt to install equipment without first stabilizing the cart.

Power Requirements

The cart must be plugged into an AC outlet with a dedicated circuit. An AC outlet with a 20-amp (NEMA 5-20R) AC circuit is recommended for powering the cart. The AC outlet used to power the cart should not be shared. The total wattage of the cart and all connected components should not exceed 1440 watts.

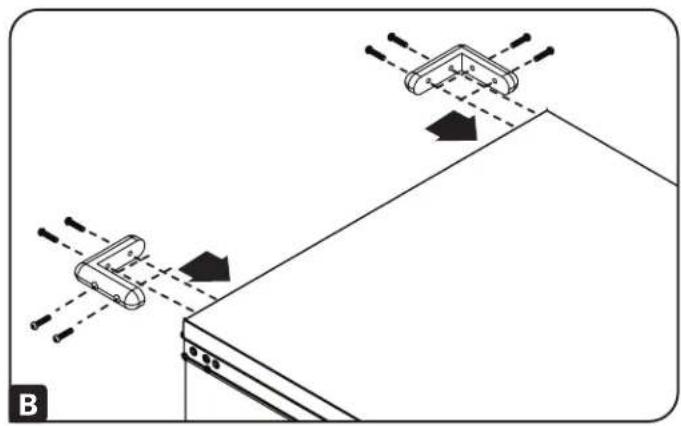

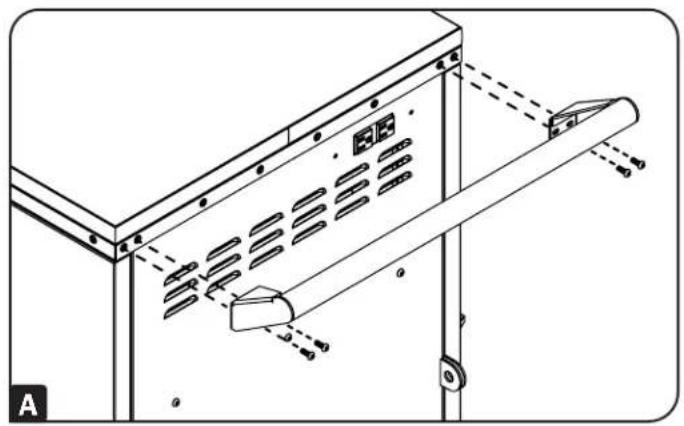

Installing the Handle Bracket and Corner Safety Bumpers

To install the handle bracket, choose a side on which to install the bracket (the same side as the cable access hole grommet is recommended). Using the included hex key tool and four (4) hex screws, secure the handle bracket to the cart A. Then install the two top corner safety bumpers using eight (8) hex screws (four per bumper) B.

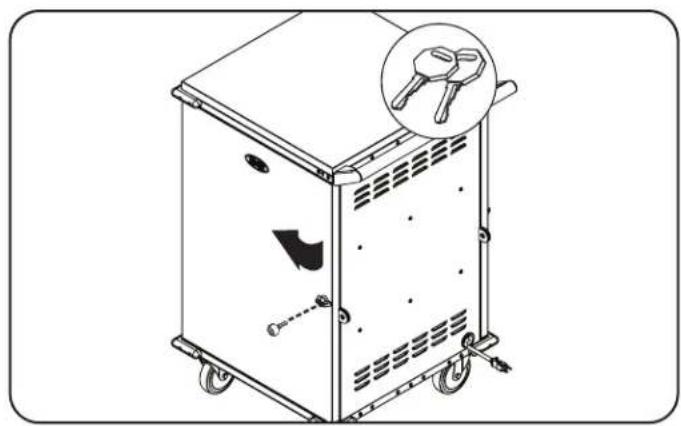

Door Locks

The doors contain a lock that is accessible with the included keys.

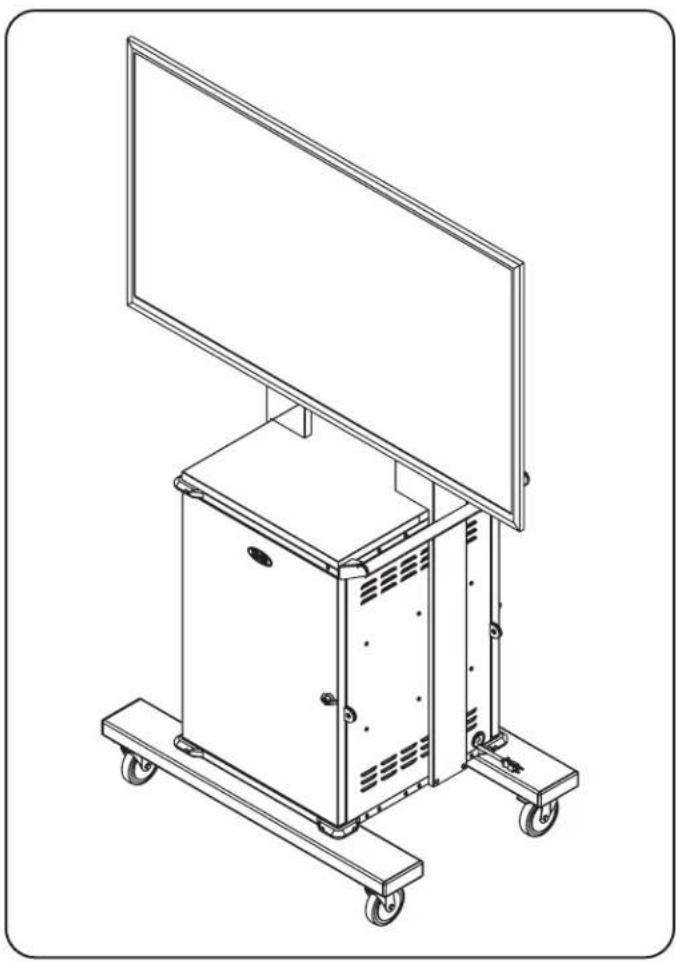

Optional Display Mount Adapter Kit

Add a television display to your cart with an optional display mount adapter kit (model: CSC36DM). The adapter kit accommodates displays up to 60 inches and includes all installation hardware. For further installation instructions, refer to the CSC36DM Installation Guide.

Specifications

Cabinet Dimensions (H x W x D) 40.03 x 24.30 x 23.56 in. / 1017 x 617 x 598 mm
Unit Weight 110.23 lb. / 50 kg
Load Capacity 250 lb. / 113 kg
AC Receptacles (2) NEMA 5-15R (external)
Power Requirement Input: 120V AC, 50/60 Hz, 12A
Operating Temperature 32° to 104°F (0° to 40°C)
Operating Humidity 5 to 95% RH, Non-Condensing

Storage, Service and Cleaning

Storage

The cart should be stored in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the cart in its original shipping container if possible.

Service

The cart is covered by the limited warranty described in this manual. For more information, visit www.triplite.com/support.

Cleaning

Before cleaning, always power off the cart by unplugging it from its AC source. dampen a clean, lint-free cloth with water and wipe down the cart, as necessary. Allow the surface area to dry before plugging in the cart.

Note: Avoid using abrasive cloths, solvents or aerosol sprays to clean the cart; doing so can damage the unit.

Warranty and Product Registration

2-Year Limited Warranty

Sell w t i r t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t s

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTIBILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from

Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
