Product Type	Wireless Car Charger
Brand	Tripp Lite
Model	U280CQ01
Dimensions (H x W x D)	121 x 74 x 52 mm
Weight	0.2 kg
Power Input	USB-C: 5 V / 2 A, 9 V / 1.67 A, 12 V / 1.5 A
Wireless Output	Up to 15 W (5 W, 7.5 W, 10 W, 15 W)
Charging Standards	Qi
Main Features	Fast wireless charging, automatic arms with touch buttons, windshield/dashboard/vent mount
Compatibility	iPhone 11/11 Pro/11 Pro Max/XS Max/XR/XS/X/8/8 Plus, Samsung Galaxy S10/S10+/S10e/S9/S9+/S8/S8+/Note 9/Note 8/S7/S7 Edge/S6 Edge Plus/Note 5 and other Qi devices
Protection	Overheating, overcharge, short circuit, foreign object detection
Operating Temperature	0 °C to 40 °C
Storage Temperature	-10 °C to 50 °C
Operating Humidity	10 to 80% RH non-condensing
Package Contents	Charger, windshield/dashboard mount, vent clip, 1 m USB-A to USB-C cable, manual
Warranty	2 years (limited)
Maintenance	Clean with a soft, dry cloth. Avoid liquids and abrasive products.
Spare Parts	Not provided. Contact Tripp Lite for after-sales service.

Frequently Asked Questions - U280CQ01 Tripp Lite

How to install the Tripp Lite U280CQ01 charger on the windshield?

Use the included mount. Clean the windshield surface, remove the protective film from the mount, and press it firmly onto the chosen area. Then insert the charger into the mount until it clicks into place.

Which phones are compatible with the U280CQ01 charger?

The charger is compatible with all Qi-compatible devices, including iPhone 8 and later, Samsung Galaxy S7 and later, and many others. For a full list, refer to the manual.

How do the automatic arms work?

Tap one of the touch buttons on each side of the charger to open the arms. Place your phone against the charger, the arms close automatically and charging begins.

What is the maximum charging speed?

Up to 15 W with a Quick Charge 2.0/3.0 adapter. For iPhones, charging is limited to 7.5 W; for Samsung Galaxy, up to 10 W.

What to do if the LEDs flash red?

The LEDs flash red (6 times) in case of foreign object detection (FOD). Remove any metallic or magnetic objects from the charger and try again.

Can I use the charger with a phone case?

Yes, but thick cases (over 5 mm) or those with metallic/magnetic elements may slow down or prevent charging. Remove the case if necessary.

How to clean the U280CQ01 charger?

Use a soft, dry cloth. Do not use liquid or abrasive products that could damage the device.

What is the warranty on the charger?

Tripp Lite offers a 2-year limited warranty from the date of purchase, covering defects in materials and workmanship. Refer to the manual for details.

Can I use a standard power adapter to power the charger?

Yes, you can use a USB-A adapter with the included cable. However, for fast charging, a Quick Charge 2.0/3.0 adapter is recommended (input up to 12 V/1.5 A).

Is the charger suitable for use in a car?

Yes, it is designed for in-car use. You can mount it on the windshield, dashboard, or air vent using the included accessories.

USER MANUAL U280CQ01 Tripp Lite

Wireless Car Charger with USB-C, Auto-Clamp, 15W Qi Charging, Windshield/Dash/Vent Phone Holder

Model: U280-CQ01

Español 8 • Français 15 • Русский 22

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

Copyright © 2020 Tripp Lite. All rights reserved.

Product Features

• Qi technology optimizes your charging capabilities when used with the latest Quick Charge (QC) compliant 2.0/3.0 adapters
• Adjustable arms effortlessly secure and release your Qi-enabled device by tapping the smart-touch buttons
• Anti-slip silicon pads on adjustable arms keep your device secure when encountering bumps or uneven road surfaces
  • USB-C supports inputs of 5V 2A, 9V 1.67A, 12V 1.5A
• Wireless charging coil supports output up to 15W
• Built-in protection technology prevents over-heating, over-charging and short circuits
• Universally compatible with all Qi-compatible smartphones and devices*

* Compatible with Apple iPhone 11/11 Pro/11 Pro Max/XS Max/XR/XS/X/8/8 Plus and Samsung Galaxy S10/S10 Plus/S10E/S9/S9 Plus/S8/S8 Plus/Note 9/Note 8/S7/S7 Edge/S6 Edge Plus/Note 5.

Package Includes

• Wireless Car Charger
  • Windshield/Dashboard Mounting Stand
• Vent Mounting Clip
  • USB-A to USB-C Cable, 3.3 ft.
• Owner's Manual

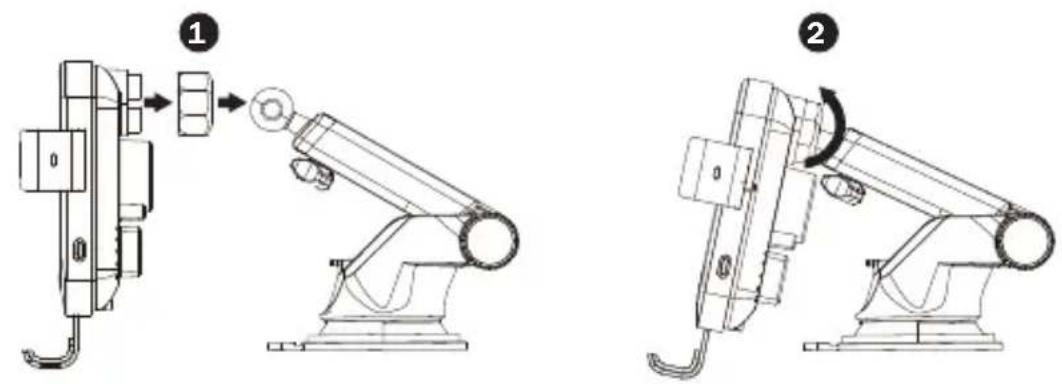

Assembly

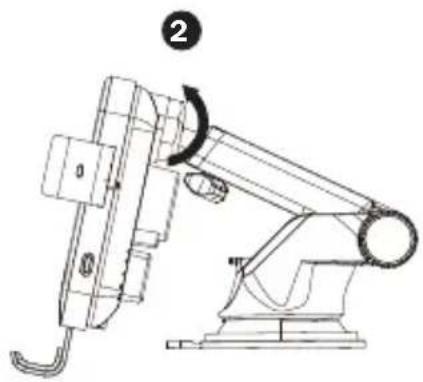

Windshield/Dashboard

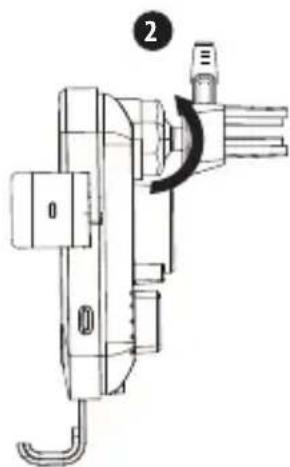

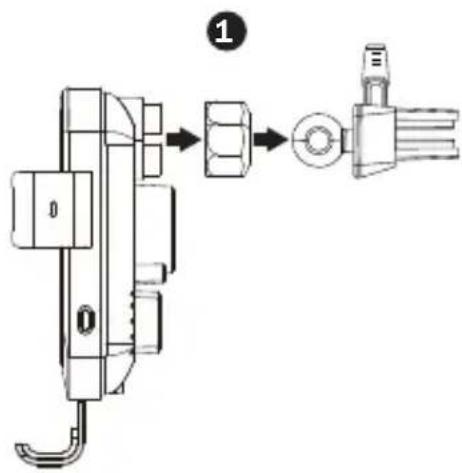

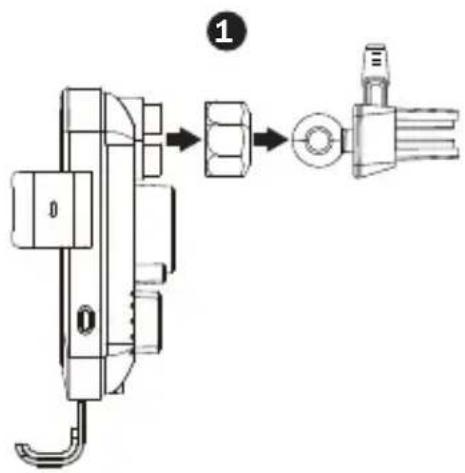

Air Vent

Technical line drawing of a mechanical device with no visible text or symbols

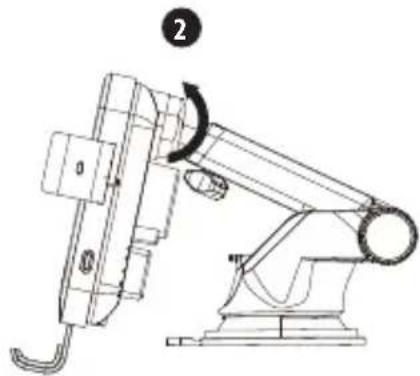

Installation

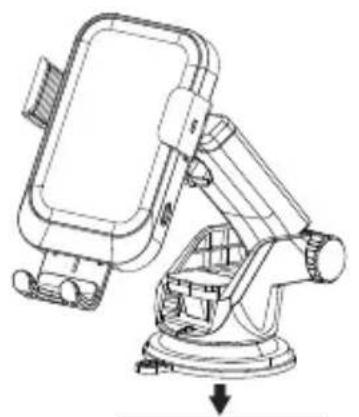

Windshield/Dashboard

Technical line drawing of a mobile phone mount with a downward arrow indicating motion (no text or symbols)

Dashboard Surface

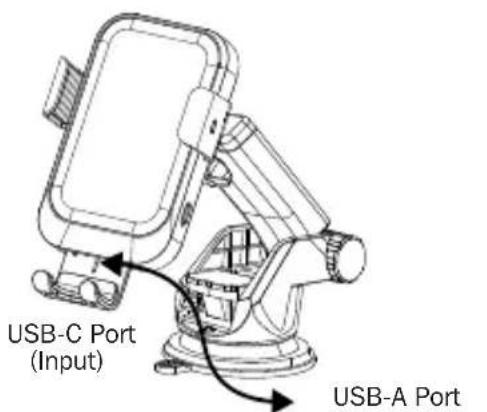

( (Power Source)

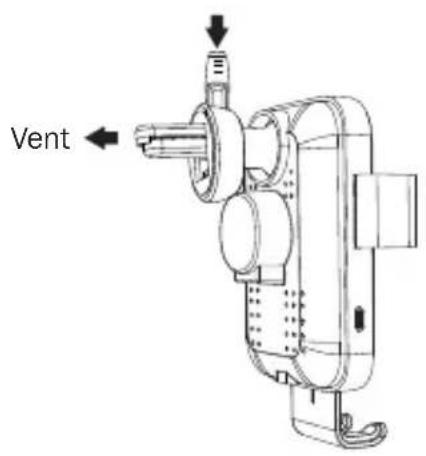

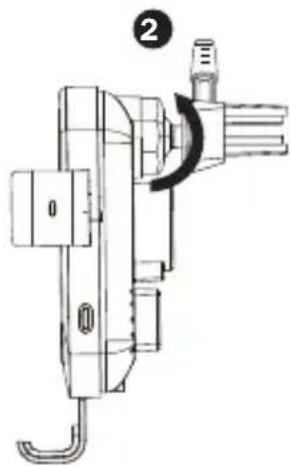

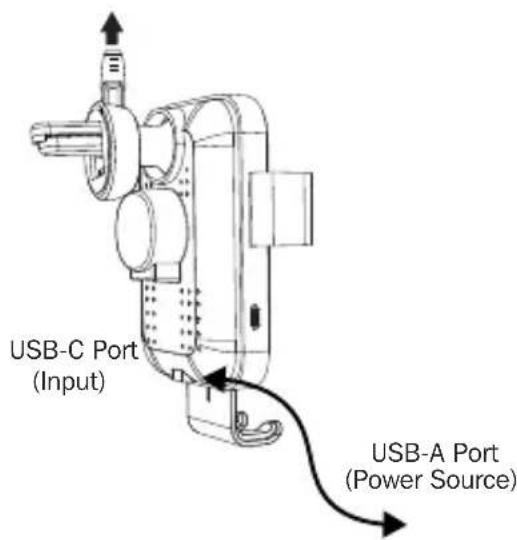

Air Vent

Operation

Notes:

• To achieve high-speed charging capabilities (up to 7.5W for Apple devices and 10W for Samsung devices), Quick Charge (QC) 2.0/3.0 adapters are recommended.
• Phone cases thicker than 5 mm may result in slower charging speeds.
• Magnetic or metal attachments will prevent charging.

• Compatible with Apple iPhone 11/11 Pro/11 Pro Max/XS Max/XR/XS/X/8/8 Plus and Samsung Galaxy S10/S10 Plus/S10E/S9/S9 Plus/S8/S8 Plus/Note 9/ Note 8/S7/S7 Edge/S6 Edge Plus/Note 5.

• Using the included USB-A to USB-C cable, connect the wireless charger to a USB-A power adapter.

Note: QC 2.0/3.0 power adapters are recommended.

2 Once connected to power, the LEDs surrounding the smart-touch buttons will turn green to indicate the charger is in standby mode.

1. Tap either smart-touch button located on each side of the charger to open the two adjustable arms. Place your phone on the charger. In doing so, the two arms will automatically secure the phone. The two blue LEDs located on each side of the charger will illuminate solid to indicate the phone is charging wirelessly.

Note: Foreign Body Detection (FBD) occurs when metal or magnetic objects are placed on the charger. The smart-touch button LEDs will flash blue 6x before cutting off power to the charger.

1. To remove the phone from the charger, touch either smart-touch button located on each side of the charger to open the two adjustable arms.

Specifications

Input	USB-C USB: 5V/2A, 9V/1.67A, 12V/1.5A
Output 5W, 7.5W, 10W, 15W
Qi Compatible Yes
Switch Frequency 110 kHz to 205 kHz
Operating Temperature Range 32°F to 104°F / 0°C to 40°C
Storage Temperature Range 14°F to 122°F / -10°C to 50°C
Operating Humidity Range 10% to 80% RH, Non-Condensing
Storage Humidity Range 5% to 95% RH, Non-Condensing
Max Output for Apple iPhone Up to 7.5W
Max Output for Samsung Galaxy Up to 10W
Dimensions (H x W x D)	4.8 x 2.8 x 2 in. / 121 x 74 x 52 mm
Weight 0.45 lb. / 0.2 kg

Warranty and Product Registration

2-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (2) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Warranty and Product Registration

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

WARNING

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609, EE UU tripplite.com/support

Technical line drawing of a robotic arm with no visible text or symbols

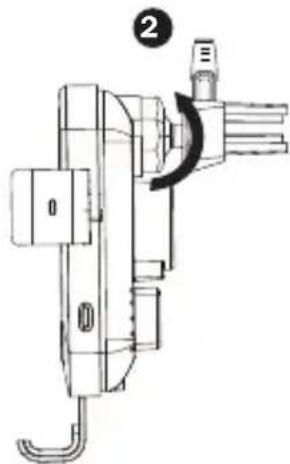

Ventila de Aire

Technical line drawing of a mechanical device with no visible text or symbols

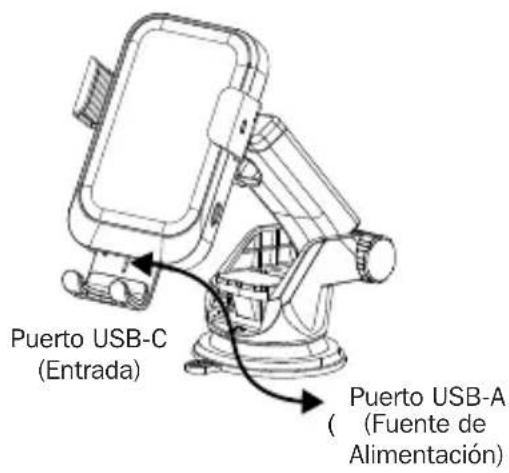

Instalación
