USER MANUAL ZKH7515W ZANKER

Thank you for selecting our appliance

We wish you lots of enjoyment with your new appliance and we hope that you will consider our brand again when purchasing household appliances.

Please read this user manual carefully and keep it throughout the product life cycle as a reference document. The user manual should be passed on to any future owner of the appliance.

Contents

Warnings and Important Safety Information 4
Description of the appliance 6
Controls 7
Before using the oven for the first time 9
Using the Oven 10
Baking and Roasting Tables 14
Cleaning and Maintenance 16
If something is wrong 21
Technical Data 22
Instructions for the Installer 23
Instructions to Building In 24
Service and spare parts 25
European Guarantee 25
Declaration of guarantee terms 26

Guide to using the user instructions

Safety instructions

Step by step instructions

Hints and Tips

This appliance conforms with the following ECC Directives:

• 2006/95 (Low Voltage Directive);
• 89/336 (EMC Directive);
• 93/68 (General Directive); and subsequent modifications.

MANUFACTURER:

ELECTROLUX HOME PRODUCTS ITALY S.p.A.

VialeBologna,298

47100 FORLI (Italy)

English

Warnings and Important Safety Information

Always keep these user instructions with the appliance. Should the appliance be passed on to third persons or sold, or if you leave this appliance behind when you move house, it is very important that the new user has access to these user instructions and the accompanying information.

These warnings are provided for the safety of the users and those living with them. So read them carefully before connecting and/or using the appliance.

Installation

• The installation must be performed by a qualified person in accordance with the rules and regulations in force. The individual operations for installing the appliance are described under the instructions for the installer.
• Have the appliance installed and connected by a qualified person with specialist knowledge, who will carry it out in accordance with the directives.
• If any modifications to the power supply are required because of the installation, these should also be carried out by a qualified electrician.

Operation

• This oven is designed for cooking foodstuffs; never use it for other purposes.
• When opening the oven door during or at the end of cooking be careful of the stream of hot air, which comes out of the oven.
• Be very careful when using the cooker. The extreme heat of the heating elements makes the shelves and other parts very hot.
• If you should for whatever reason use aluminium foil to cook food in the oven, never allow it to come into direct contact with the floor of the oven.

• When cleaning the oven, proceed with care: never spray anything onto the grease filter (if fitted), the heating elements and the thermostat sensor.

• If is dangerous to make modifications of any kind to this appliance or to its specifications.

• During the baking, roasting and grilling process, the oven window and the other parts of the appliance get hot, so children should be kept away from the appliance. Take care, if connecting electrical appliances to sockets near the oven, that cables do not come into contact with hot rings or get caught in the oven door.
  Always use oven gloves to take hot ovenproof dishes or pots out of the oven.
• Regular cleaning prevents the surface material from deteriorating.
• Before cleaning the oven, either turn the power off or pull the mains plug out.
• Make sure that the oven is in the "OFF" position, when the oven is no longer being used.
• This oven was made as a single appliance or as a combination appliance with electrical hotplate, depending on the model, for single-phase connection to 230V .
• The appliance must not be cleaned with a superheated steam cleaner or a steam jet cleaner.
• Do not use abrasive cleaners or sharp metal scrapers. These can scratch the glass in the oven door, which may result in the shattering of the glass.

Child Safety

• This appliance is intended for use by adults. It is dangerous to allow children to use it or play with it.
  Children should be kept away while the oven is working. Also, after you have switched the oven off, it remains hot for a long time.
• This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.

Customer Service

• Have checks and/or repairs carried out by the manufacturer's service department or by a service department authorised by the manufacturer and use only original spare parts.
• Do not attempt to repair the appliance yourself in the event of malfunctions or damage. Repairs carried out by untrained persons may cause damage or injury.

The symbol on the product or its packaging

indicates that this product is not to be treated as normal household waste. Instead it must be handed over to a collection point for the recycling of electrical and electronic equipment. The correct disposal of this product will help to protect the environment and human health. Environment and health are endangered by incorrect disposal. Formore detailed information about recycling of this product, please contact your local town hall, your household waste disposal service or the shop where you purchased the product.

Description of the appliance

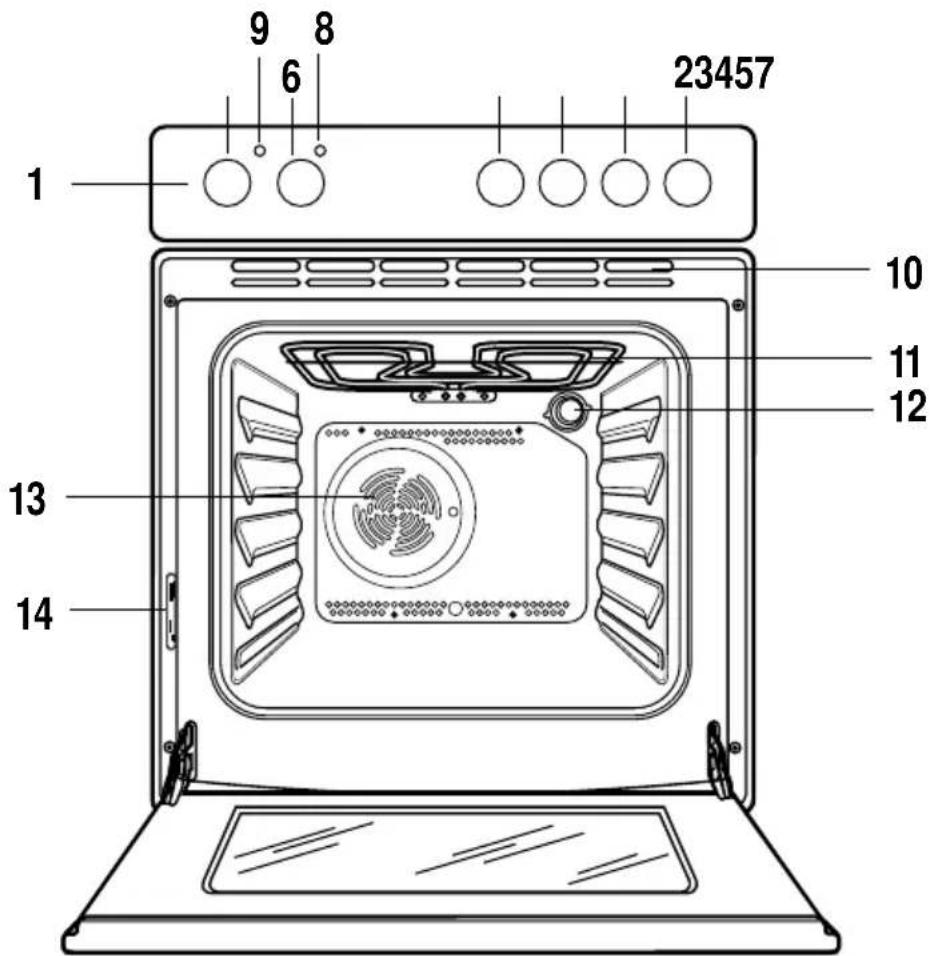

1. Control Panel
2. Front right hotplate/cooking zone control knob
3. Rear right hotplate/cooking zone control knob
4. Rear left hotplate/cooking zone control knob
5. Front left hotplate/cooking zone control knob
6. Oven Function Control Knob

7. Thermostat Control Knob

8. Mains On Indicator

9. Thermostat Control Indicator
10. Air Vents for Cooling Fan
    11.Grill
11. Oven light
12. Oven Fan
13. Rating plate

Oven accessories

Dripping pan

Cake tray

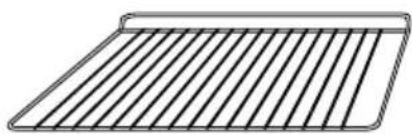

Anti-tip shelf

Controls

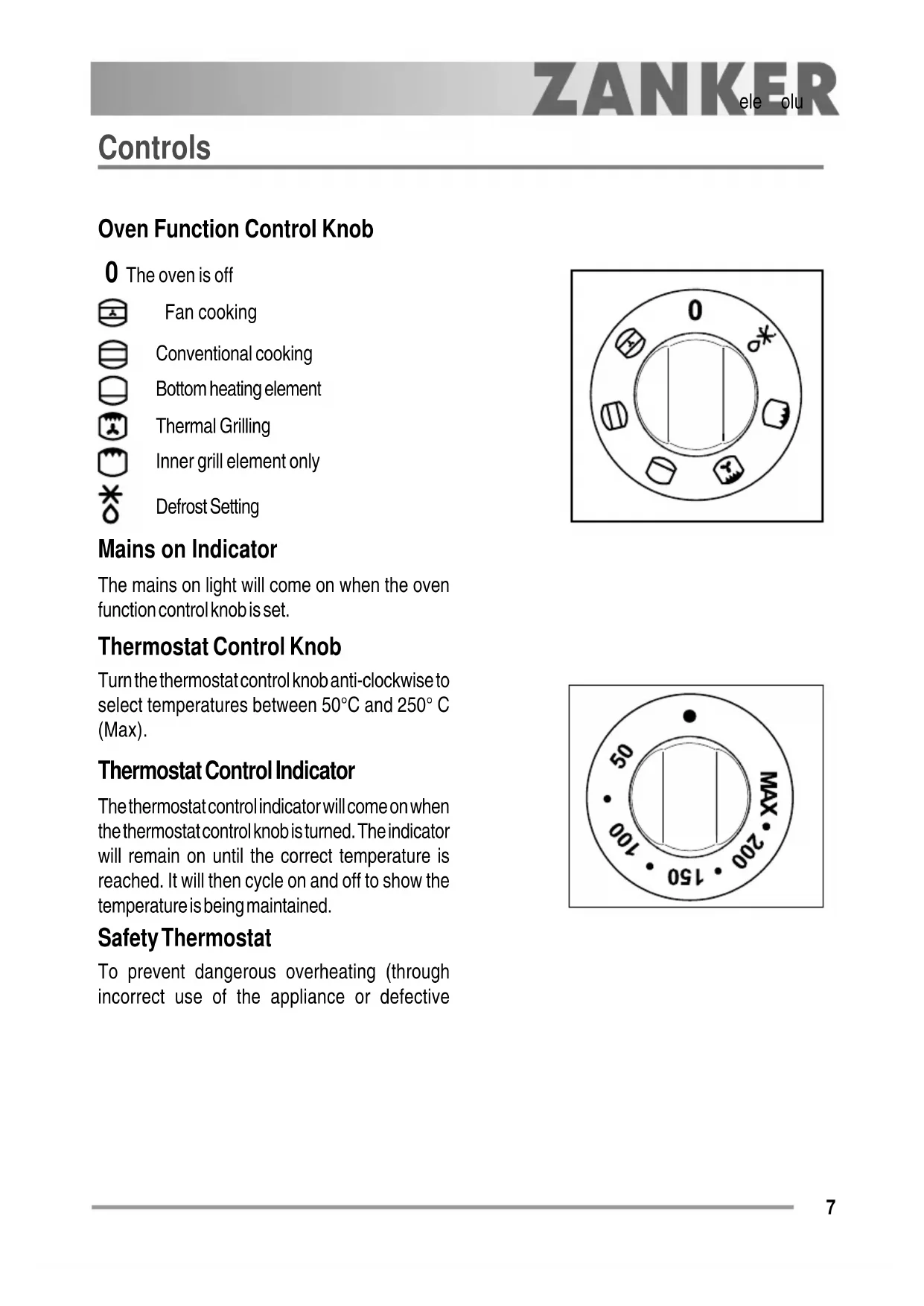

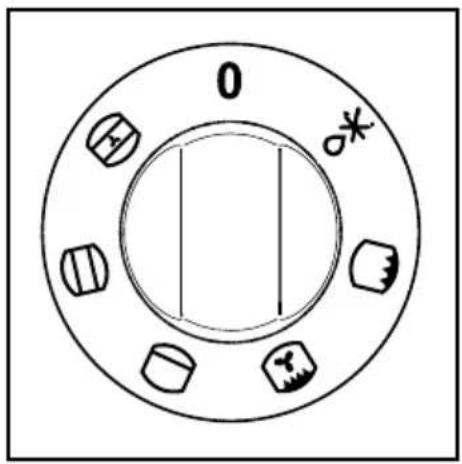

Oven Function Control Knob

0 The oven is off

Fan cooking

Conventional cooking

Bottom heating element

Thermal Grilling

Inner grill element only

Defrost Setting

Mains on Indicator

The mains on light will come on when the oven function control knob is set.

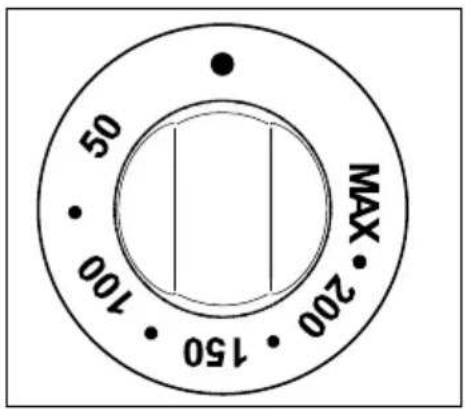

Thermostat Control Knob

Turn the thermostat control knob anti-clockwise to select temperatures between 50^ and 250^ (Max).

Thermostat Control Indicator

The thermostat control indicator will come on when the thermostat control knob is turned. The indicator will remain on until the correct temperature is reached. It will then cycle on and off to show the temperature is being maintained.

Safety Thermostat

To prevent dangerous overheating (through incorrect use of the appliance or defective

Hotplate control knobs

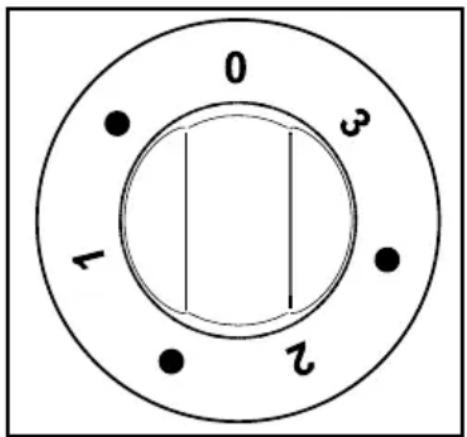

The Control Knobs for the hotplates can be found on the oven control panel. The energy regulator of the hotplates can be set by means of a 7-position control knob:

$$ 0 = O f f $$

$$ 1 = \text {M i n i m u m} $$

$$ 3 = \text {M a x i m u m} $$

The intermediate positions give an increasing heating power.

Double circuit cooking zone

If you wish to have the two electric circuits work simultaneously, turn the knob to Max position (3) and then turn it towards symbol "0". You will hear a click. Now the 2 circuits work together. Then, you can regulate the power of the cooking zone by turning the control knob anticlockwise.

Carefully supervise cookings with oil or fats, since these types of food can result in a fire, when over-heated.

components), the oven is fitted with a safety thermostat, which interrupts the power supply. The oven switches back on again automatically, when the temperature drops.

Should the safety thermostat trigger due to incorrect use of the appliance, it is enough to remedy the error after the oven has cooled down; if on the other hand, the thermostat triggers because of a defective component, please contact Customer Service.

The cooling fan

The oven is provided with a cooling fan, meant to keep the front panel, the knobs and the oven door handle cool. The fan switches on automatically when the oven is activated. Warm air is blown out through the aperture near the oven door handle. The fan switches off when, after cooking, the oven function control knob is set to OFF position 0.

Before using the oven for the first time

Remove all packaging, both inside and outside the oven, before using the oven.

Before using for the first time, the oven should be heated up without food.

During this time, an unpleasant odour may be emitted. This is absolutely normal. It is caused by manufacturing residues.

Ensure the room is well ventilated.

1. Switch the oven function control knob

to Fan cooking

1. Set the thermostat control knob to 250^ .
2. Open a window for ventilation.
3. Allow the oven to run empty for approximately 45 minutes.

This procedure should be repeated with the Conventional cooking and the grill functions for approximately 5-10 minutes.

Then let the oven cool down. Then dampen a soft cloth with warm water and a little mild washing-up liquid and use this to clean the oven cavity.

Before using for the first time, carefully wash the oven accessories as well.

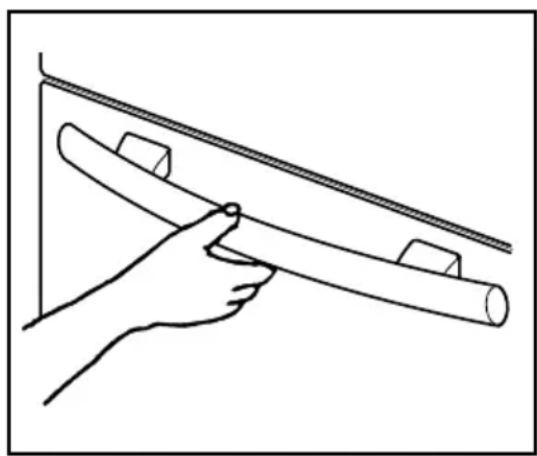

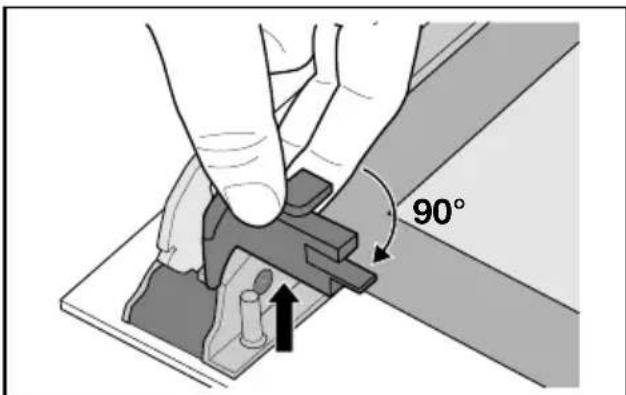

To open the oven door, always hold the handle in the centre.

Using the oven

The oven is supplied with an exclusive system which produces a natural circulation of air and the constant recycling of steam.

This system makes it possible to cook in a steamy environment and keep the dishes soft inside and crusty outside. Moreover, the cooking time and energy consumption are reduced to a minimum. During cooking steam may be produced which can be released when opening the oven door. This is absolutely normal.

However, always stand back from the oven when opening the oven door during cooking or at the end of it to allow any build up of steam or heat to release.

Attention! - Do not place objects on the oven base and do not cover any part of the oven with aluminium foil while cooking, as this could cause a heat build-up which would affect the baking results and damage the oven enamel. Always place pans, heat-resistant pans and aluminium trays on the shelf which has been inserted in the shelf runners.When food is heated, steam is created, like in a kettle. When the steam comes into contact with the glass in the oven door, it condenses and creates water droplets.

To reduce condensation, always preheat the empty oven for 10 minutes.

We recommend you wipe the water droplets away after every cooking process.

Always cook with the oven door closed. Stand clear when opening the drop down oven door. Do not allow it to fall open - support the door using the door handle, until it is fully open.

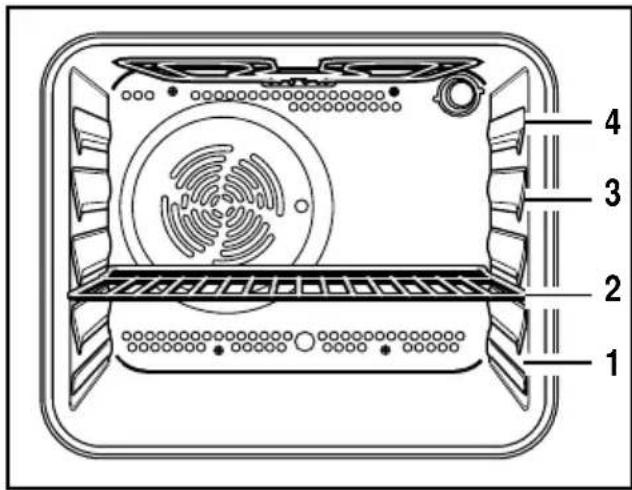

The oven has four shelf levels, and is supplied with two shelves. The shelf positions are counted from the bottom of the oven as shown in the diagram.

It is important that these shelves are correctly positioned as shown in the diagram.

Do not place cookware directly on the oven base.

Conventional Cooking

• The middle shelf position allows for the best heat distribution. To increase base browning simply lower the shelf position. To increase top browning, raise the shelf position.
• The material and finish of the baking trays and dishes used will affect base browning. Enamelware, dark, heavy or non-stick utensils increase base browning, while oven glassware, shiny aluminium or polished steel trays reflect the heat away and give less base browning.
• Always place dishes centrally on the shelf to ensure even browning.
• Stand dishes on suitably sized baking trays to prevent spillage onto the base of the oven and make cleaning easier.
• Do not place dishes, tins or baking trays directly on the oven base as it becomes very hot and damage will occur. When using this setting, heat comes from both the top and bottom elements. This allows you to cook on a single level and is particularly suitable for dishes which require extra base browning such as quiches and flans.

Gratins, lasagnes and hotpots which require extra top browning also cook well in the conventional oven.

How to use the conventional oven

1. Turn the oven function control knob to the required cooking function
2. Turn the thermostat control knob to the required temperature.

Bottom oven element only

This function is particularly useful when blindbaking pastry. It may also be used to finish off quiches or flans to ensure the base pastry is cooked through.

The thermostat control light will remain on until the correct temperature is reached. It will then cycle on and off to show the temperature is being maintained.

Grilling

• Most foods should be placed on the grid in the grill pan to allow maximum circulation of air and to lift the food out of the fats and juices. Food such as fish, liver and kidneys may be placed directly on the grill pan, if preferred.
• Food should be thoroughly dried before grilling to minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.
• Accompaniments such as tomatoes and mushrooms may be placed underneath the grid when grilling meats
• When toasting bread, we suggest that the top runner position is used.
• The food should be turned over during cooking, as required.

How to use the Inner Grill Element

The inner grill provides quick direct heat to the central area of the grill pan. By using the inner grill element for cooking small quantities, it can help to save energy.

1. Turn the oven control function knob on.
2. Turn the thermostat control knob on the required temperature.
3. Adjust the grid and grill pan runner position to allow for different thicknesses of food and follow the instructions for grilling.

The grill element is controlled by the thermostat. During cooking, the grill cycles on and off to prevent overheating.

Thermal grilling

Turn the oven function control knob to position

and regulate the thermostat to the temperature required.

This function offers an alternative method of cooking food items, normally associated with conventional grilling. The grill element and the oven fan operate alternately, circulating hot air around the food.

When using this function, select a maximum temperature of 200^ .

Fan cooking

• The food is cooked by means of preheated air force blown evenly round the inside of the oven by a fan set on the rear wall of the oven itself.
• Heat thus reaches all parts of the oven evenly and fast and this means that you can simultaneously cook different types of foods positioned on the various oven shelves. Fan cooking ensures rapid elimination of moisture and the dryer oven environment stops the different aromas and flavours from being transmitted from one food to another.
• The possibility of cooking on several shelf heights means that you can cook several different dishes at the same time and up to three tins of biscuits and mini pizzas to be eaten immediately or subsequently deep frozen.
• Naturally the oven can also be used for cooking on just one shelf. In this case you should use the lowest set of runners so that you can keep an eye on progress more easily.
• In addition, the oven is particularly recommended for sterilizing preserves, cooking home-made fruit in syrup, and for drying mushrooms or fruit.

Defrosting

The oven fan operates without heat and circulates the air, at room temperature, inside the oven.

Ensure the thermostat control knob is in the

OFF position.

i Hints and Tips

On baking:

Cakes and pastries usually require a medium temperature (150^ - 200^) and therefore it is necessary to preheat the oven for about 10 minutes.

Do not open the oven door before 3/4 of the baking time has elapsed.

Shortcrust pastry is baked in a springform tin or on a tray for up to 2/3 of the baking time and then garnished before being fully baked. This further baking time depends on the type and amount of topping or filling. Sponge mixtures must separate with difficulty from the spoon. The baking time would be unnecessarily extended by too much liquid.

If two baking trays with pastries or biscuits are inserted into the oven at the same time, a shelf level must be left free between the trays.

If two baking trays with pastries or biscuits are inserted into the oven at the same time, the trays must be swapped and turned around after about 2/3 of the baking time.

On Roasting:

Do not roast joints smaller than 1kg . Smaller pieces could dry out when roasting. Dark meat, which is to be well done on the outside but remain medium or rare inside, must be roasted at a higher temperature (200^ - 250^)

White meat, poultry and fish, on the other hand, require a lower temperature (150^ - 175^) . The ingredients for a sauce or gravy should only be added to the roasting pan right at the beginning if

the cooking time is short. Otherwise add them in the last half hour.

You can use a spoon to test whether the meat is cooked: if it cannot be depressed, it is cooked through. Roast beef and fillet, which is to remain pink inside, must be roasted at a higher temperature in a shorter time.

If cooking meat directly on the oven shelf, insert the roasting pan in the shelf level below to catch the juices.

Leave the joint to stand for at least 15 minutes, so that the meat juices do not run out.

To reduce the build up of smoke in the oven, it is recommended to pour a little water in the roasting pan. To prevent condensation forming, add water several times. The plates can be kept warm in the oven at minimum temperature until serving.

Caution!

Do not line the oven with aluminium foil and do not place a roasting pan or baking tray on the floor, as otherwise the oven enamel will be damaged by the heat build-up.

Cooking times

Cooking times can vary according to the different composition, ingredients and amounts of liquid in the individual dishes.

Note the settings of your first cooking or roasting experiments to gain experience for later preparation of the same dishes.

Based upon your own experiences you will be able to alter the values given in the tables.

Baking and Roasting Table

Conventional Cooking

Timings do not include pre-heating. The empty oven should always be pre-heated for 10 minutes.

TYPE OF DISH	Conventional Cooking		Fan Cooking		Cooking times in minutes	NOTES
	31	temp °C	31	°C
CAKES
Whisked recipes 2 170	2 (1and3)*	160 45-60 In cake mould
Shortbread dough 2 170	2 (1and3)*	160 20-30 In cake mould
Butter-milk cheese cake 1 175 2 165	60-80 In cake mould
Apple cake (Apple pie)	1	170	2lef+rich.	160	90-120	In cake mould
Strudel	2	180	2	160	60-80	In baking tray
Jam- tart	2	190	2(1and3)*	180	40-45	In cake mould
Fruit cake	2	170	2	150	60-70	In cake mould
Sponge cake	1	170	2(1and3)*	165	30-40	In cake mould
Christmas cake	1	150	2	150	120-150	In cake mould
Plum cake	1	175	2	160	50-60	In bread tin
Small cake	3	170	2	160	20-35	In baking tray
Biscuits	2	160	2(1and3)*	150	20-30	In baking tray
Meringues	2	135	2(1and3)*	150	60-90	In baking tray
Buns	2	200	2	190	12-20	In baking tray
Pastry: Choux	2or 3	210	2(1and3)*	170	25-35	In braking tray
Plate tarts	2	180	2	170	45-70	In cake mould
BREAD AND PIZZA
White bread	1 195 2		185 60-70
Rye bread	1	190	1	180	30-45	In bread tin
Bread rolls	2	200	2(1and3)*	175	25-40	In baking tray
Pizza	2 200 2		200 20-30 In baking
FLANS
Pasta flan	2	200	2(1and3)*	175	40-50	In mould
Vegetable flan	2	200	2(1and3)*	175	45-60	In mould
Quiches	1	210	1	190	30-40	In mould
Lasagne	2	200	2	200	25-35	In mould
Cannelloni	2	200	2	200	25-35	In mould
MEAT
Beef	2	190	2	175	50-70	On grid
Pork	2	180	2	175	100-130	On grid
Veal	2	190	2	175	90-120	On grid
English roast beef
rare	2 210 2		200 50-60 On grid
medium	2 210 2		200 60-70 On grid
well done	2 210 2		200 70-80 On grid
Shoulder of pork	2	180	2	170	120-150	With rind
Shin of pork	2	180	2	160	100-120	2 pieces
Lamb	2	190	2	175	110-130	Leg
Chicken	2	190	2	200	70-85	Whole
Turkey	2	180	2	160	210-240	Whole
Duck	2	175	2	220	120-150	Whole
Goose	2	175	1	160	150-200	Whole
Rabbit	2	190	2	175	60-80	Cut in pieces
Hare	2	190	2	175	150-200	Cut in pieces
Pheasant	2	190	2	175	90-120	Whole
Meat loaf	2	180	2	170	tot.150	in bread pan
FISH
Trout/Sea bream	2	190	2(1and3)*	175	40-55	3-4 fishes
Tuna fish/Salmon	2	190	2(1and3)*	175	35-60	4-6 fillets

(*)If you cook more than one dish at the same time, we recommend you place them on the levels quoted between brackets.

Timings do not include pre-heating.

The empty oven should always be pre-heated for 10 minutes.

TYPE OF DISH	Quantity		Grilling		Cooking time in minutes
			31	temp. °C	1st side	2nd side
Fillet steaks 4 800 3 250 12~15 12~14Beef-steaks 4 600 3 250 10~12 6~8Sausages 8 / 3 250 12~15 10~12Pork chops 4 600 3 250 12~16 12~14Chicken (cut in two)	2	1000	3	250	30~35	25~30
Kebabs	4 / 3 250		10~15 10~12
Chicken (breast)	4 400 3	250 12~15 1	2~14
Hamburger*	6 600 2	250 20-30
*Preheat 5'00"
Fish (fillets)	4 400 3	250 12~14 1	0~12
Sandwiches	4~6	/ 3 250 5~7	/
Toast	4~6	/	3	250	2~4	2~3

The temperatures quoted are guidelines. The temperatures may have to be adapted to personal requirements.

Thermal grilling

With thermal grilling select a maximum temperature of 200^ .

TYPE OF DISH	Quantity (gr.)	Shelf level	Temp. °C	Cooking time (minutes)
				lower side	upper side
Rolled joints (turkey)	1000	3	200	30 ~ 40	20 ~ 30
Chicken (cut in two)	1000	3	200	25 ~ 30	20 ~ 30
Chicken legs	—	3	200	15 ~ 20	15 ~ 18
Quail	500	3	200	25 ~ 30	20 ~ 25
Vegetable gratin	—	3	200	20 ~ 25	—
St. Jacques shells	—	3	200	15 ~ 20	—
Mackerel	—	3	200	15 ~ 20	10 ~ 15
Fish slices	800	3	200	12 ~ 15	8 ~ 10

The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures to suit individual preferences and requirements.

Cleaning and Maintenance

Before cleaning switch the oven off and let it cool down.

The appliance must not be cleaned with a superheated steam cleaner or a steam jet cleaner.

Important: Before carrying out any cleaning operation, the appliance must be disconnected from the power supply.

To ensure a long life for your appliance, it is necessary to perform the following cleaning operations regularly:

• Only perform when the oven has cooled down.
• Clean the enamelled parts with soapy water.
• Do not use abrasive cleaners.
• Dry the stainless steel parts and glass with a soft cloth.
• If there are stubborn stains, use commercially available for stainless steel or warm vinegar.

The oven's enamel is extremely durable and highly impermeable. The action of hot fruit acids (from lemons, plums or similar) can however leave permanent, dull, rough marks on the surface of the enamel. However such marks in the brightly polished surface of the enamel does not affect the operation of the oven. Clean the oven thoroughly after every use. This is the easiest way to clean dirt off. It prevents dirt being burnt on.

Cleaning materials

Before using any cleaning materials on your oven, check that they are suitable and that their use is recommended by the manufacturer.

Cleaners that contain bleach should NOT be used as they may dull the surface finishes. Harsh abrasives should also be avoided.

External cleaning

Regularly wipe over the control panel, oven door and door seal using a soft cloth well wrung out in warm water to which a little liquid detergent has been added.

To prevent damaging or weakening the door glass panels avoid the use of the following:

Household detergent and bleaches
- Impregnated pads unsuitable for non-stick saucepans
- Brillo/Ajax pads or steel wool pads
Chemical oven pads or aerosols
Rustremovers
- Bath/Sink stain removers

Clean the outer and inner door glass using warm soapy water. Should the inner door glass become heavily soiled it is recommended that a cleaning product such as Hob Brite is used. Do not use paint scrapers to remove soilage.

DO NOT clean the oven door while the glass panels are warm. If this precaution is not observed the glass panel may shatter.

If the door glass panel becomes chipped or has deep scratches, the glass will be weakened and must be replaced to prevent the possibility of the panel shattering. Contact your local Service Force Centre who will be pleased to advise further.

Oven Cavity

The enamelled base of the oven cavity is best cleaned whilst the oven is still warm.

Wipe the oven over with a soft cloth soaked in warm soapy water after each use. From time to time it will be necessary to do a more thorough cleaning, using a proprietary oven cleaner.

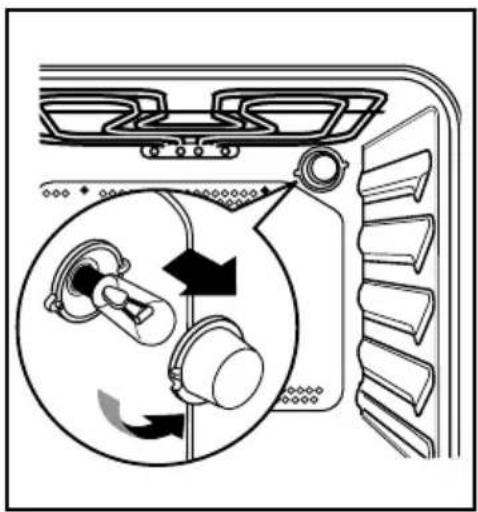

Replacing The Oven Light

Disconnect the appliance

If the oven bulb needs replacing, it must comply with the following specifications:

• Electric power: 25 W,
• Electric rate: 230 V( 50 Hz) ,
• Resistant to temperatures of 300^
• Connection type: E14.

These bulbs are available from your local Service Force Centre.

To replace the faulty bulb:

1. Ensure the oven is isolated from the electrical supply.
2. Push in and turn the glass cover anticlockwise.
3. Remove the faulty bulb and replace with the new one.
4. Refit the glass cover and restore the electrical supply.

The oven door

The oven door consists of two panes of glass. The oven door can be disassembled and the internal panes can be removed to make cleaning easier.

Important - Remove the oven door before cleaning it. The oven door could abruptly close if you try to remove the internal panes of glass when the door is still assembled.

To do so, proceed as follows.

1) open the door fully;

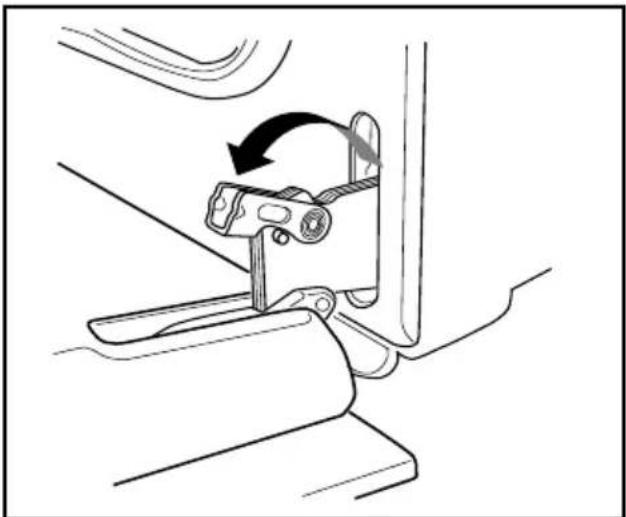

2) locate the two door hinges (Fig. 1);

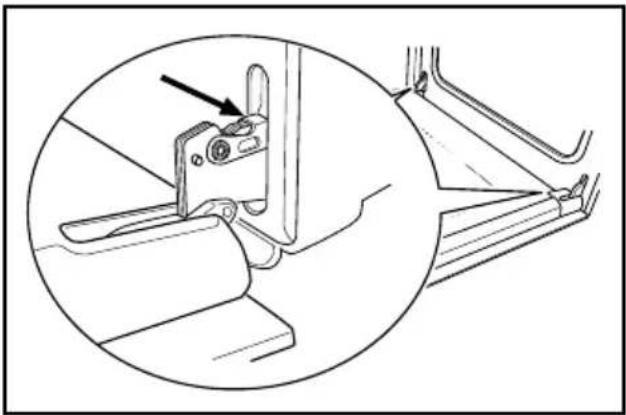

3) lift and turn the levers on the two hinges (Fig.2);
4) hold the door by the side edges and close it slowly but not COMPLETELY (Fig. 3);

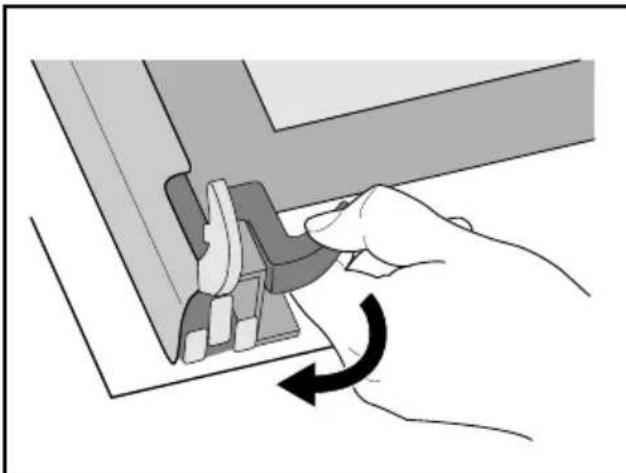

5) pull the door forward, removing it from its seat (Fig. 3);

Fig. 1

Fig. 2
Fig. 3

6) place the door on a stable surface (Fig. 4) protected by a soft cloth to prevent the handle surface from being damaged;

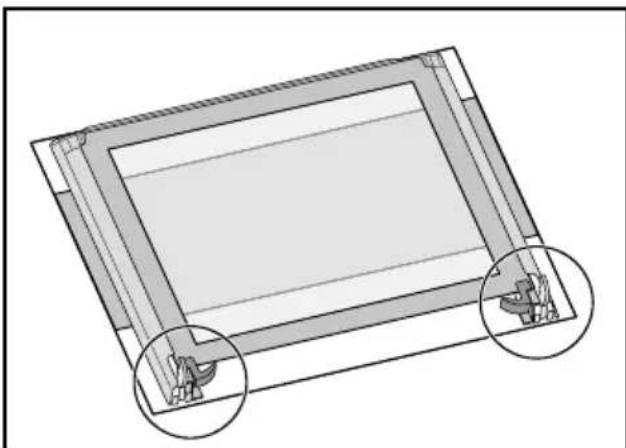

7) release the locking system to remove the internal panes of glass (Fig. 5);
8) turn the 2 fasteners 90^ and extract them from their seats (Fig. 6);
9) gently lift and carefully take off the uppermost panemarked by a decorative frame on 4 sides (Fig.7).

Clean the oven door with lukewarm water and a soft cloth. Do not use products such as scouring pads, steel wool, abrasive sponges or acids because they could damage the special heat-reflecting surface of the internal panes of glass.

After cleaning, reassemble the panes in the door and then the oven door, following the procedure described above in reverse. Make sure you reposition the panes correctly.

To perform this operation correctly, proceed as follows:

• the decorated internal pane with a frame on the 4 sides must be reassembled so that the screen-printing is facing outwards. The side of the pane of glass is correct if you do not feel any roughness near the screen printing when you pass your fingers over the surface.

Fig. 4

Fig. 5
Fig. 6

The internal pane of glass must be put back into the right seats as shown in Fig. 8

After the panes of glass have been reassembled in the oven door, perform the procedure described in point 8) in reverse to ensure they are locked.

Do not clean the oven door when it is still hot, as the glass could shatter. If scratches or deep cracks are noted on the surface of the glass, contact the authorised Assistance Centre for replacing the glass.

Models in stainless steel or aluminium: It is advisable to clean the oven door and control panel in stainless steel or aluminium only with a moist sponge, carefully drying with a soft cloth after cleaning. Never use steel wool, acids or abrasive products as they can damage the surface.

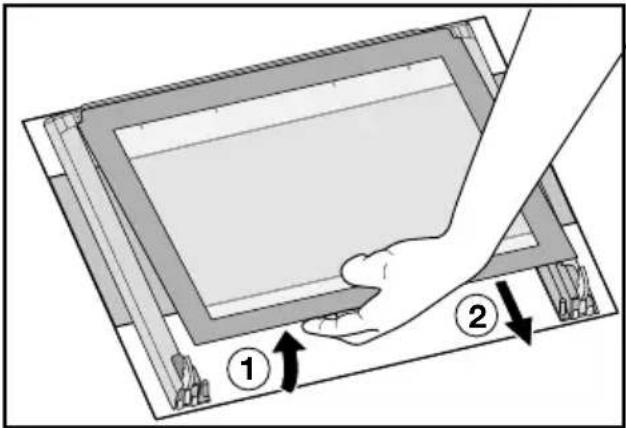

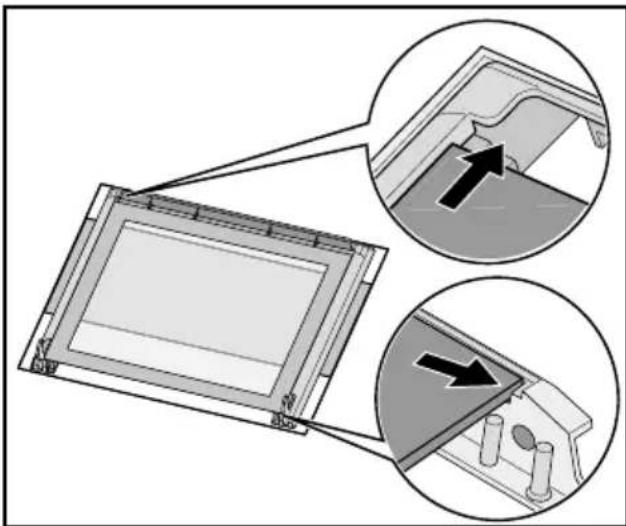

How to clean the oven door seal

A rubber seal around the oven opening guarantees correct operation.

Check the condition of this seal periodically. If it has to be cleaned, do not use abrasive objects or substances.

If you notice that the seal is damaged, contact your local service centre and do not use the oven until it has been repaired.

Fig. 7

Fig. 8

If something is wrong

If the appliance is not working correctly, please check the following before contacting the Electrolux Service Centre:

PROBLEM	SOLUTION
■ The oven is not switching on.	◆Check that both a cookingfunction and temperature have been selected or ◆Check whether the appliance is correctly connected and the socket switch or the mains supply to the oven is ON.
■ The oven temperature light does not come on.	◆Select a temperature with the thermostat control knob or ◆Select a function with the oven function control knob.
■ The oven light does not come on.	◆Select a temperature with the thermostat control knob or ◆Check the lightbulb, and replace it if necessary (see "Cleaning the Oven")
■ It takes too long to cook the dishes or they cook too quickly.	◆The temperature may need adjusting or ◆Following the advice contained in these instructions, especially the section "Practical Tips".
■ Steam and condensation settle on the food and in the oven cavity.	◆When the cooking process is completed, do not leave the dishes standing in the oven for longer than 15-20 minutes.
■ The oven fan is noisy.	◆Check that shelves and bakeware are not vibrating in contact with the oven back panel.

Technical Data

Heating element ratings

Bottom heating element 1000 W

Full oven (Top+Bottom) 1800 W

Fan cooking 1825 W

Grill 1650 W

Thermal grilling 1650 W

Oven light 25 W

This appliance can only be connected to the following cast iron or ceramic hobs:

Type: EHE 60000

Maximum power absorbed: 6000 W

Power supply voltage (50 Hz) 230 V

Type:EHC650

Maximum power absorbed 6200W

Power supply voltage (50 Hz) 230 V

Type:EHC660

Maximum power absorbed 7400W

Power supply voltage (50 Hz) 230 V

Maximum Total Power Rate

Oven with traditional hob 8875W

Oven with ceramic hob 9275W

Dimensions of the recess

Height under top mm 600

in column mm 587

Width mm 560

Depth mm 550

Oven

Height mm 335

Width mm 395

Depth mm 400

Oven capacity 561

Instructions for the Installer

The instructions given below are designed specifically for a qualified installer and should aid him or her to perform all installation, adjustment, and maintenance operations with absolute precision and in compliance with all current legislation and regulations. We strongly recommend that all operations for the installation of your cooker be carried out by Qualified Personnel in accordance with existing rules and regulations.

Electrical connection

Prior to making the electrical connection, make sure that:

the protection fuse and the domestic wiring system are suitable to carry the total electric load of the oven (see rating plate);
- your domestic wiring system has an efficient earth connection in compliance with rules and laws in force;
the wall socket or the omnipole switch used for the electrical connection can easily be reached after the oven is built in.

This appliance is delivered without an electric supply cable, therefore, you will have to fit to it a supply cable with standard plug, suitable for the total electric load shown on the rating plate. The plug is to be inserted into a suitable wall socket. If you require a direct connection to the electric network (mains), it will be necessary to fit between the appliance and the mains an omnipole switch, with a minimum gap between contacts of 3mm suitable for the required load and in compliance with rules in force. The green & yellow ground wire must not be interrupted by the switch, and should be 2 - 3cm longer than the phase and neutral wires. The supply cable must in all cases be laid out in such a way as to ensure that it does not reach at any given point a temperature 50^ higher than the ambient temperature.

Suitable power supply cables are the following types, considering the respective necessary section of cable: H07 RN-F, H05 RN-F, H05 RR-F, H05 VV-F, H05 V2V2-F (T90), H05 BB-F.

Connecting the terminal board

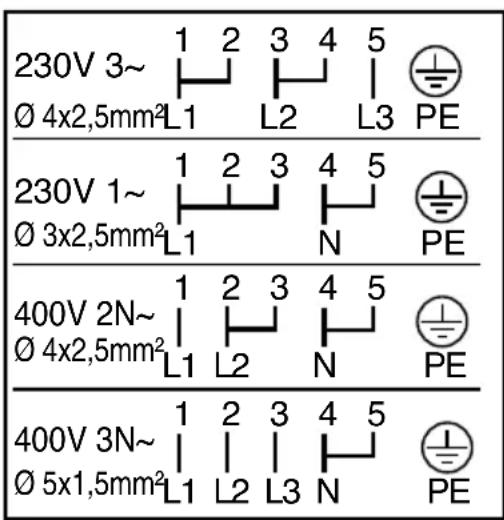

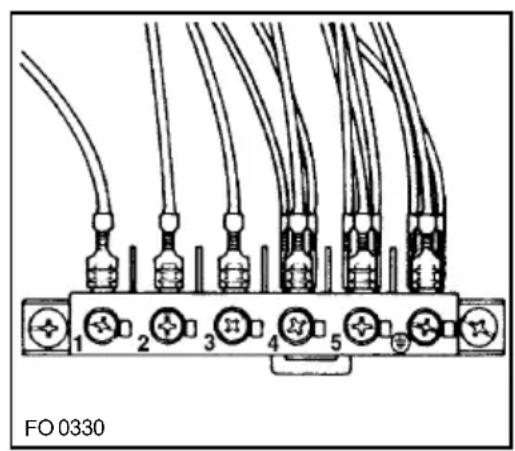

The appliance incorporates an easily accessible 6-pole terminal board whose jumpers (bridges) are already pre-set for operation on 400V tri-phase with neutral wire (Fig. 9). In case a different mains voltage is present, the jumpers on the terminal board must be rearranged as shown in the diagram (Fig. 10). The ground cable must be connected to terminal 12 After connecting the supply cable to the terminal board, secure it with a junction clamp.

Fig. 9

Fig. 10

Instructions for Building In

For problem-free functioning of the built-in appliance, the kitchen unit or the recess into which the appliance is built must have suitable dimensions.

In accordance with the regulations in force, all parts which ensure the shock protection of live and insulated parts must be fastened in such a way that they cannot be undone without tools.

These also include the fixing of any end walls at the beginning or end of a line of built-in units.

The shock protection must in any case be ensured by the building in of the appliance.

The appliance can be placed with its back or a side wall against higher kitchen units, appliances or walls. However, only other appliances or units of the same height as the appliance can be placed against the other side wall.

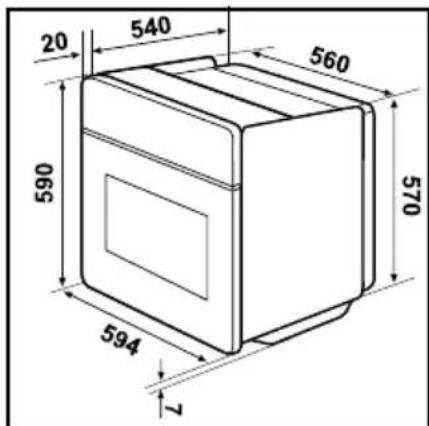

Oven dimensions (Fig. A)

Instructions for Building In

For problem-free functioning of the built-in appliance, the kitchen unit or the recess into which the appliance is built must have suitable dimensions (Fig. C).

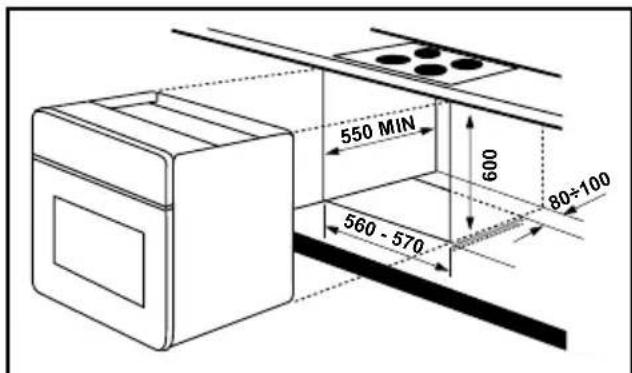

Securing the Appliance to the Cabinet

• Open the oven door;

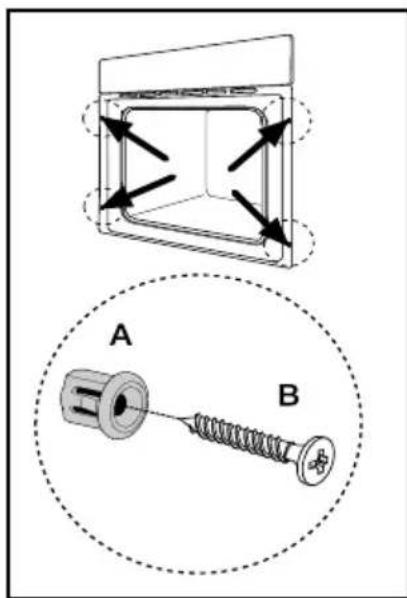

• fasten the oven to the cabinet placing the four distance holders provided with the appliance (Fig.D - A) which fit exactly into the holes in the frame and then fit four wood screws (Fig. D - B).

When installing a hob over the oven, the hob electrical connection and the oven one have to be carried out separately for security reasons and to let the oven be taken off the cabinet easier, if necessary. Any extensions must be made with cables suitable for the required power.

Fig. A

Fig. C

Fig. D

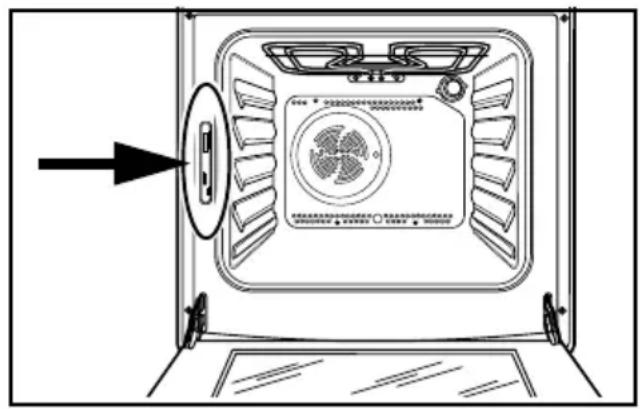

Service and spare parts

If after the checks listed in the chapter "What happens if something goes wrong", the appliance still does not work correctly, contact your local Service Centre, specifying the type of malfunctioning, the appliance model (Mod.), the product number (Prod. No.) and the serial number (Ser. No.) marked on the identification plate. This plate is placed on the front external edge of the oven cavity.

Original spare parts, certified by the product manufacturer and carrying this symbol, are only available at our Service

Centre and authorized spare parts shops.

European Guarantee

This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications:

• The appliance guarantee starts from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by the seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour and parts as exists in your new country of residence for this particular model or range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred to another user.
• The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.
• The appliance is installed in accordance with all relevant regulations in force within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

Declaration of guarantee terms

Our appliances are produced with the greatest of care. However, a defect may still occur. Our consumer services department will repair this upon request, either during or after the guarantee period. The service life of the appliance will not, however, be reduced as a result.

This declaration of guarantee terms is based on European Union Directive 99/44/EC and the provisions of the Civil Code. The statutory rights that the consumer has under this legislation are not affected by this declaration of guarantee terms.

This declaration does not affect the vendor's statutory warranty to the end user. The appliance is guaranteed within the context of and in adherence with the following terms:

1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy free of charge any defect that occurs within 24 months from the date the appliance is delivered to the first end user. These guarantee terms do not apply in the event of use for professional or equivalent purposes.
2. Performing the guarantee means that the appliance is returned to the condition it was in before the defect occurred. Defective parts are replaced or repaired. Parts replaced free of charge become our property.
3. So as to avoid more severe damage, the defect must be brought to our attention immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase showing the purchase and/or delivery date.
5. The guarantee will not apply if damage caused to delicate parts, such as glass (vitreous ceramic), synthetic materials and rubber, is the result of inappropriate use.
6. The guarantee cannot be called on for minor faults that do not affect the value or the overall reliability of the appliance.

7. The statutory warranty does not apply when defects are caused by:

8. a chemical or electrochemical reaction caused by water,

9. abnormal environmental conditions in general,
10. unsuitable operating conditions,

11. contact with harsh substances.

12. The guarantee does not apply to defects due to transport which have occurred outside of our responsibility. Nor will the guarantee cover those caused by inadequate installation or assembly, lack of maintenance or failure to respect the assembly instructions or directions for use.

13. Defects that result from repairs or measures carried out by people who are not qualified or expert or defects that result from the addition of non-original accessories or spare parts are not covered by the guarantee.
14. Appliances that are easy to transport may be delivered or sent to the consumer services department. Home repairs are only anticipated for bulky appliances or built-in appliances.
15. If the appliances are built-in, built-under, fixed or suspended in such a way that removing and replacing them in the place where they are fitted takes more than half an hour, the costs that result therefrom will be charged for. Connected damage caused by these removal and replacement operations will be the responsibility of the user.
16. If, during the guarantee period, repairing the same defect repeatedly is not conclusive, or if the repair costs are considered disproportionate, in agreement with the consumer, the defective appliance may be replaced with another appliance of the same value.

In this event, we reserve the right to ask for a financial contribution calculated according to the length of time it has been used.

1. A repair under guarantee does not mean that the normal guarantee period will be extended nor that a new guarantee period begins.
2. We give a twelve month guarantee for repairs, limited to the same defect.
3. Except in the event where liability is legally imposed, this declaration of guarantee terms excludes any compensation for damage outside the appliance for which the consumer wishes to assert his rights. In the event of legally admitted liability, compensation will not exceed the purchase price paid for the appliance.

These guarantee terms are only valid for appliances purchased and used in Belgium. For exported appliances, the user must first make sure that they satisfy the technical conditions (e.g.: voltage, frequency, installation instructions, etc.) for the country concerned and that they can withstand the local climatic and environmental conditions. For appliances purchased abroad, the user must first ensure that they meet the qualifications required in Belgium. Non-essential or requested adjustments are not covered by the guarantee and are not possible in all cases.

Our consumer services department is always at your disposal, even after the guarantee period has expired.

Address for our consumer services department:

BELGIUM

Tel: Fax:

Electrolux Home Products Belgium Consumer services 02/363.04.44 02/363.04.00

ELECTROLUX SERVICE 02/363.04.60

Bergensesteenweg 719

1502 Lembeek

E-mail: [e-mail]

GRAND-DUCHÉ DE LUXEMBOURG

ELECTROLUX HOME PRODUCTS

Consumer services

0035242431-1 0035242431-360

RuedeBitbourg.7

L-1273 Luxembourg-Hamm

E-mail: [e-mail]

www.electrolux.com

Albania	[phone]	Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien	[phone]	Bergensestenweg 719, 1502 Lembeek
Česká republika	[phone]	Budějovická 3, Praha 4, 140 21
Danmark	[phone]	Sjøllandsgade 2, 7000 Fredericia
Deutschland	[phone]	Muggenhofer Str. 135, 90429 Nürnberg
Eesti	[phone]	Pärnu mnt. 153, 11624 Tallinn
Espana	[phone]	Carretera M-300, Km. 29,900 Alcalá de Henares Madrid
France	www.electrolux.fr
Great Britain	[phone]	Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas	[phone]	4, Limnou Str., 54627 Thessaloniki
Hrvatska	[phone]	Slavonska avenija 3, 10000 Zagreb
Ireland	[phone]	Long Mile Road Dublin 12
Italia	[phone]	C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija	[phone]	Kr. Barona iela 130/2, LV-1012, Riga
Lietuva	[phone]	Ozo 10A, LT 08200 Vilnius
Luxembourg	[phone]	Rue de Bitbourg, 7, L-1273 Hamm
Magyarország	[phone]	H-1142 Budapest XIV, Erzsébet királyné útja 87
Nederland	[phone]	Vennotsweg 1, 2404 CG - Alphen aan den Rijn
Norge	[phone]	Rislokkvn. 2 , 0508 Oslo
Österreich	[phone]	Herzigasse 9, 1230 Wien
Polska	[phone]	ul. Kolejowa 5/7, Warszawa
Portugal	[phone]	Quinta da Fonte - Edificio Gonçalves Zarco - Q 35 -2774-518 Paço de Arcos
Romania	[phone]	Str. Garii Progresului 2, S4, 040671 RO
Schweiz - Suisse - Swizzera	[phone]	Industriestrasse 10, CH-5506 Mögenwil
Slovenija	[phone]	Gerbičeva ulica 98, 1000 Ljubljana
Slovensko	[phone]	Electrolux Slovakia s.r.o., Electrolux Domace spotrebije SK, Seberíniho 1, 821 03 Bratislava
Suomi	www.electrolux.fi
Sverige	[phone]	Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm
Türkije	[phone]	Tarlabaşi caddesi no : 35 Taksim Istanbul
Rocsnja	[phone]	129090 Mockba, Олимпийскайnpосnéт, 16, БUCT "Олимник"

Electrolux Home Products Belgium Consumer services 02/363.04.44 02/363.04.00

ELECTROLUX SERVICE 02/363.04.60

Bergensesteenweg 719 1502 Lembeek

E-mail : [e-mail]

GRAND-DUCHE DE LUXEMBOURG

ELECTROLUX HOME PRODUCTS

ServiceAprès-vente

0035242431-1

0035242 431-360
