USER MANUAL B127F1A1SMDD Tripp Lite

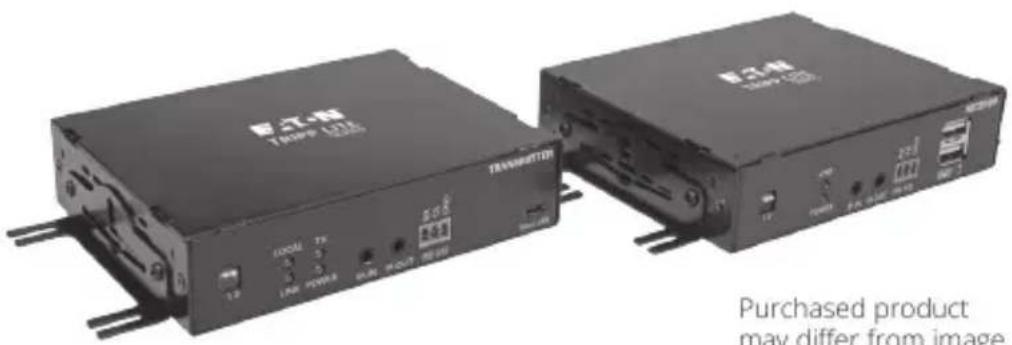

4K/30 DisplayPort over Fiber Extender Kit

Models:

B127F-1A1-MM-DD

(Multimode),

B127F-1A1-SM-DD

(Singlemode)

Purchased product may differ from image.

Espanol 11

Français 21

Deutsch 31

Italiano 41

Package Contents

B127F-1A1-MM-DD

(DisplayPort over Duplex LC Multimode Fiber Extender Kit)

Transmitter Unit
- Receiver Unit
- Mounting Hardware
External Power Supply (x2)

B127F-1A1-SM-DD

(DisplayPort over Duplex LC Singlemode Fiber Extender Kit)

Transmitter Unit
- Receiver Unit
Mounting Hardware
External Power Supply (x2)

Product Features

• DisplayPort over Duplex LC Fiber Extender Kits extend a 4K (3840x2160) @ 30 Hz signal:

B127F-1A1-MM-DD - Up to 1000 ft. (305 m) from the source

B127F-1A1-SM-DD - Up to 6.2 mi. (10 km) from the source

Supports 4K (3840x2160) @ 30 Hz 4:4:4 maximum video resolution
Supports 8-channel LPCM, AC-3 and DTS digital audio
- DisplayPort 1.2a compatible
- Plug and play—no software or drivers required
Additional DisplayPort on the transmitter unit allows connection of a local display, enabling users to monitor the remote display's content
- Remote receiver unit features built-in equalization (EQ) control and auto-EDID image adjustment

2

Product Features

Transmitter and receiver units feature built-in:

B127F-1A1-MM-DD - 10G Multimode LC, 850nm, 300M, DDM transceivers

B127F-1A1-SM-DD - 10G Singlemode LC, 1310nm, 10KM, DDM transceivers

• Local port at transmitter with built-in multi-resolution technology connects any display without affecting 4K/30 Hz signal transmission
• Includes mounting hardware that allows both the local transmitter and remote receiver units to be wall-mounted, rack-mounted or pole-mounted

Optional Accessories

P569-XXX-CERT or P568-XXX-2A Series High-Speed HDMI 2.0 Cable
P580-XXX DisplayPort Cable
N820-Series 10 Gb Duplex Multimode LC-to-LC Fiber Patch Cable
N370-XXM Duplex Singlemode LC-to-LC Fiber Patch Cable

Mounting Instructions

Both extender kit models include mounting hardware that allows for a variety of mounting methods. The following images illustrate how the included mounting brackets can be attached for different installations.

Note: The model shown in the below images is for illustrative purposes only. Your product may vary by model number, size or port orientation. The mounting options for all over IP units are the same.

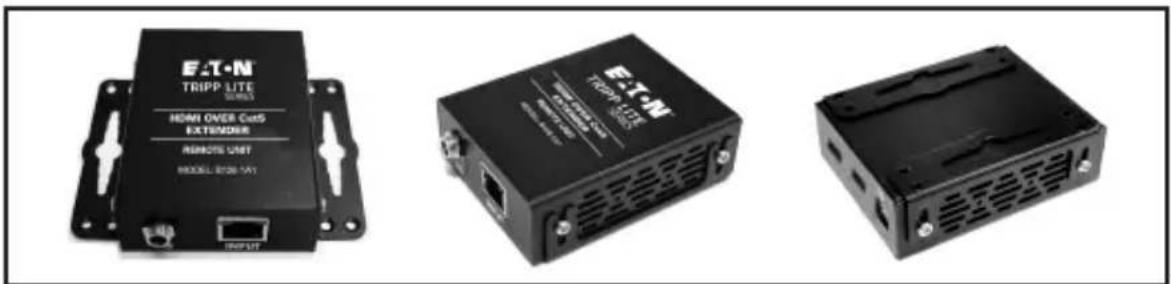

Wall-Mount

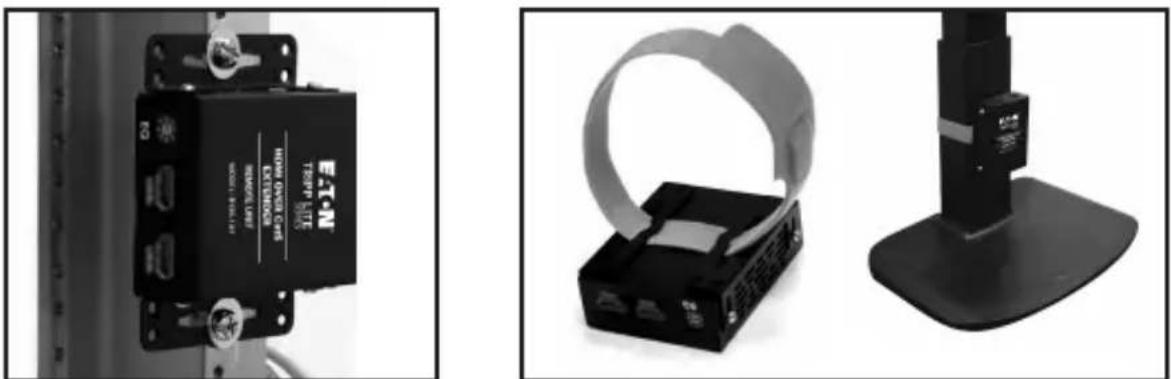

19-Inch Rack-Mount Pole-Mount

Standard Extender Kit Installation

Before installation, check the following settings of your source(s) and TV/monitor(s):

1. Set the display to 30Hz . Double-check the factory settings, as the default can be set to a lower frequency (Hz) than advertised.
2. Verify your monitor has the HDR feature enabled. Some displays may have this feature disabled as a factory setting.
3. Check if the Ultra HD (UHD) Deep Color setting is enabled on your TV/ monitor. Confirm with your TV/monitor manufacturer which HDMI ports support UHD Deep Color.

Notes:

1) Test to ensure the entire installation works properly before pulling cables through ceilings/walls.
2) To achieve maximum distance and performance, use 10 Gb duplex fiber cabling, such as the N820-Series 10 Gb Duplex Multimode LC-to-LC Fiber Cable (for B127-1A1-MM-DD) or N370-Series Duplex Singlemode LC-to-LC Fiber Cable (for B127-1A1-SM-DD). Preinstalled 10 Gb transceivers are intended to work with 10 Gb fiber cables. Using lower-rated fiber cables can result in signal loss or no image.

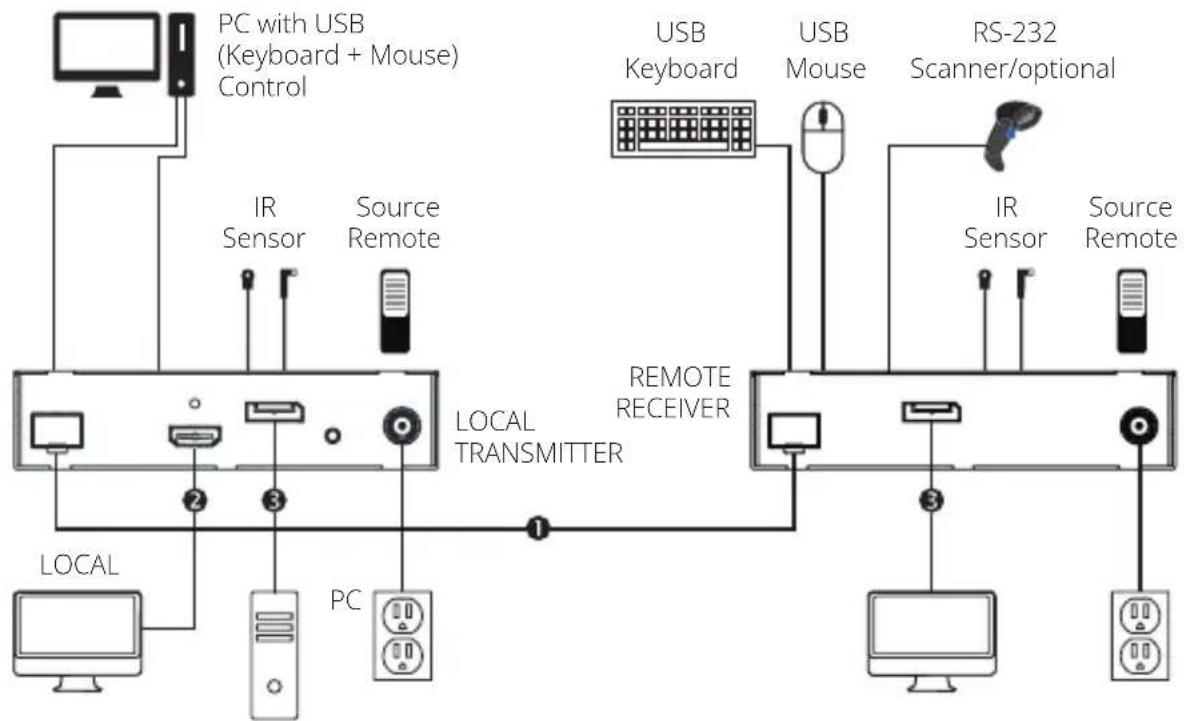

Standard Extender Kit Installation

B127F-1A1-XX-DD Extender Kits

B127-1A1-MM-DD: Up to 1000 ft. (300 m) multimode fiber cable

B127-1A1-SM-DD: Up to 2.6 mi. (10 km) singlemode fiber cable

Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/30 Hz
Up to 15 ft. (4.5 m) DisplayPort cable at 4K/30 Hz

Standard Extender Kit Installation

1 Make sure all equipment in the installation is powered OFF.
Using a DisplayPort cable (such as P580-XXX DisplayPort cables), connect the DisplayPort source to the INPUT port on the local transmitter unit.
(3) (Optional) Using an HDMI 2.0 cable (such as P569-XXX-CERT or P568-XXX-2A Series cables), connect a local monitor to the LOCAL port on the local transmitter unit. The LOCAL (orange) LED will illuminate to indicate the port is connected to a display.
B127F-1A1-MM-DD - Using duplex LC multimode (850 nm) fiber cable (such as the N820-Series cable), connect the LC fiber port on the local transmitter unit to the LC fiber port on the remote receiver unit.

B127F-1A1-SM-DD - Using duplex LC singlemode (1310 nm) fiber cable (such as the N370-XXM Series cable), connect the LC fiber port on the local transmitter unit to the LC fiber port on the remote receiver unit.

Using a DisplayPort cable (such as P580-XXX Series cables), connect the remote receiver unit's DisplayPort to a monitor.
Turn on the power to all of your connected displays (local and remote).
Connect the external power supply to the local transmitter unit and plug it into an available wall outlet or (optional) a Surge Protector, Power Distribution Unit (PDU) or Uninterruptible Power Supply (UPS). The POWER (green) LED on the local transmitter unit will illuminate to indicate the unit is receiving power from the external power supply. The POWER (green) LED on the remote receiver unit will illuminate to indicate the units are receiving power from the external power supply.
Turn on the power to the DisplayPort source. The OUTPUT (orange) LED on the local unit will illuminate to indicate a signal has been received from the source.
The (orange) LED will illuminate on both local transmitter and remote receiver units to indicate a signal has been received from source to display. The screen should now display on the connected monitor.

DIP Switch Settings

Note: This section applies to both B127-1A1-MM-DD and B127-1A1-SM-DD extender kits.

The extender kits provide one of the following functions via DIP switch settings:

• USB 1.1 - One Micro-USB input at transmitter, dual USB-A outputs at receiver
  Bi-Directional IR -Dual 3.5 mm jacks at both the transmitter and receiver
• RS-232 - One 3-pin phoenix connector at both the transmitter and receiver

DIP Switch Positions Function Selection
1 (Up), 2 (Up) IR Function
1 (Up), 2 (Down) USB Function
1 (Down), 2 (Down) RS-232 Function

(Optional) Connect the computer's DB9 port to the transmitter unit's RS-232 serial port. The serial port is a 3-position phoenix connector for RS-232 (DB connector) pin 2, 3 and 7 connection. Connect your RS-232 device (e.g. barcode scanner) to the 3-position phoenix connector on the receiver unit.

(Optional) Connect the included IR-OUT cable to the transmitter unit's IR-OUT port. Place the sensor on the IR-OUT cable in an unobstructed area within clear view of the device being controlled. Then connect the included IR-IN cable to the receiver unit's IR-IN port. The IR-IN cable will communicate the desired command via the transmitter's IR-OUT cable.

Note: The IR-OUT cable receives the signal from the remote control and sends it to the device being controlled (e.g. Blu-ray™ player, etc.).

(Optional) With a user-supplied USB Micro-B cable (such as the U050-XXX Series USB cable), connect to the transmitter's Micro-B port. Then connect a keyboard and mouse to the available USB-A ports on the receiver unit.

Warranty

1-Year Limited Warranty

We warrant our products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
