USER MANUAL PSCLAMP2 Tripp Lite

Mounting Clamp for Medical-Grade Power Strips

Model: PSCLAMP2

Technical line drawing of two mechanical clamping or mounting bracket components mounted on a vertical column (no text or symbols)

Table of Contents

1. Important Safety Instructions 2
2. Parts and Features 2
3. Installation 3
4. Lifetime Limited Warranty 4

Français 5

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2018 Tripp Lite. All rights reserved.

1. Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation of the product described in this manual. Read ALL instructions before attempting to install this product. Failure to comply may invalidate any warranty and cause serious property damage and/or personal injury.

2. Parts and Features

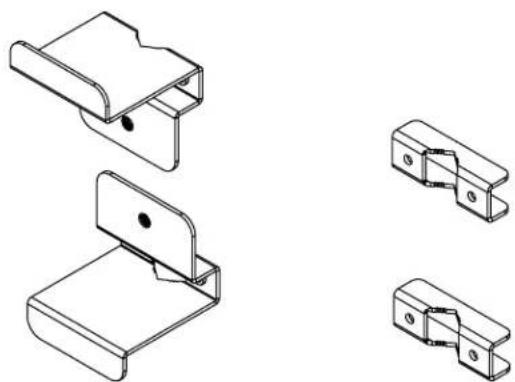

The PSCLAMP2 mounting kit includes:

• 2 Mounting Brackets
• 2 Retainer Brackets
- 4 Screws
• (2) M6 12 mm Phillips Head Screws
• (4) M5 30 mm Phillips Head Screws

The PSCLAMP2 is designed to be used with Tripp Lite's Medical-Grade Power Strips. To accommodate a wide variety of applications, the clamps fit tubes 7/8" - 1 ^1/4 ".

Technical line drawings of mechanical bracket components (no text or symbols)

Mounting Brackets Retainer Brackets

Illustration of six different screw fasteners (no text or symbols present)

M6 12 mm Screws M5 30 mm Screws

3. Installation

Before beginning installation, verify that all necessary package contents are present and that the power strip to be mounted conforms to the standards necessitated by its mounting location.

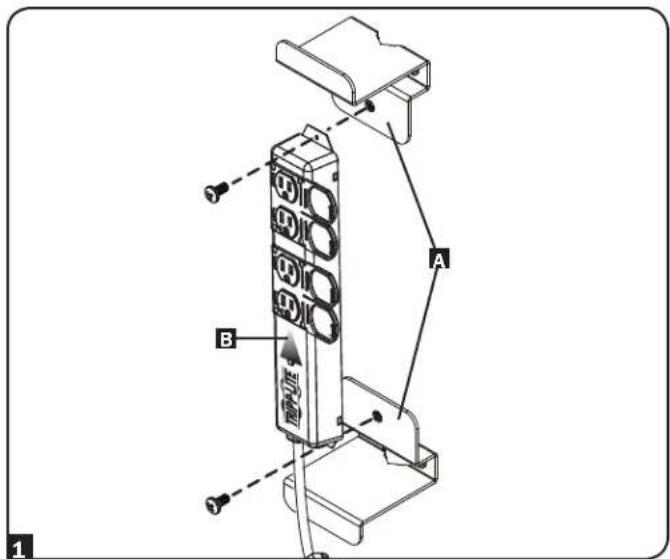

1 Secure mounting brackets A loosely to each end of the power strip B using the two M6 screws provided.

A B 1

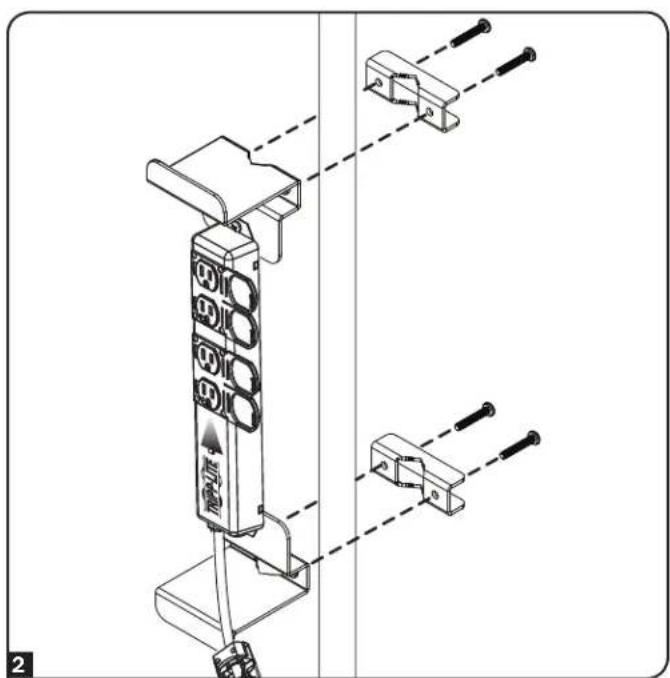

2 Mount the power strip to the mobile cart, IV tube or other application by using the retainer brackets and four M5 screws provided. Tighten the mounting brackets securely in place.

3 Tighten the M6 screws used to attach the power strip to the mounting brackets.

Technical diagram showing assembly of a vertical device with labeled components and dashed alignment lines

4. Lifetime Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609. Seller will pay return shipping charges. Call Tripp Lite at 773.869.1234 before sending any equipment back for repair.

The warranties of all TRIPP LITE surge suppressors are null and void if they have been connected to the output of any UPS system. The warranties of all TRIPP LITE UPS Systems are null and void if a surge suppressor has been connected to its output receptacles.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Tripp Lite has a policy of continuous improvement. Product specifications are subject to change without notice.
