EN1309N4 - Electrical enclosure Tripp Lite - Free user manual and instructions

Product Type	Weatherproof Enclosure for Wi-Fi Access Point
Brand	Tripp Lite
Model	EN1309N4
Material	Rugged plastic, NEMA 4 rated
Color	White
Protection Standard	NEMA 4 (watertight, weather-resistant)
Use	Indoor/Outdoor, Wi-Fi access point protection
Mounting	Wall mount on wooden studs or with suitable anchors
Included Hardware	Mounting screws, single-use tie, security Torx bit
Required Hardware Not Included	#10 x 2 in. (or longer) screws x2, wall anchors (if needed)
Capacity	One Wi-Fi access point
Compatibility	Cisco, Aruba access points (optional brackets)
Installation	Back or side conduit knockout, weather-tight fittings recommended
Cover Torque	Torque: 8 in/lb (0.9 Nm) using supplied Torx bit
Warranty	5-year limited
Maintenance	Clean with a soft, dry cloth
Safety	Use weather-tight fittings to maintain NEMA 4 rating
Weight	Not specified (estimated: approx. 1 kg)

Frequently Asked Questions - EN1309N4 Tripp Lite

How to install the Tripp Lite EN1309N4 enclosure?

To install the enclosure, first remove the cover. Attach the enclosure to the wall using at least two #10 x 2 in. screws (not included) anchored into studs. If no stud is available, use suitable anchors (threaded drywall anchors, expansion bolts, etc.). Ensure the screws are tight. Route power and data cables through a conduit knockout, then attach the access point inside using the provided screws. Finally, replace the cover and tighten the screws to 8 in/lb (0.9 Nm) using the supplied security Torx bit.

What screws to use for wall mounting the EN1309N4?

The manufacturer recommends using at least two #10 x 2 in. or larger screws (not included). The screws should be anchored into the center of wall studs. If installing on drywall without a stud, use appropriate wall anchors (threaded drywall anchors, expansion bolts, etc.). Plastic expansion anchors are not recommended due to the weight of the enclosure.

How to ensure the EN1309N4 is weathertight to meet NEMA 4 standard?

To maintain NEMA 4 (watertight) rating, use weather-tight fittings in conduit knockouts when running cables. Also ensure the cover screws are tightened to 8 in/lb (0.9 Nm) using the supplied security Torx bit. This ensures the gasket is properly compressed.

Can I use the EN1309N4 enclosure outdoors?

Yes, the enclosure is NEMA 4 rated, making it suitable for outdoor use. It is resistant to weather, rain, snow, and dust. Be sure to follow the installation instructions and use weather-tight fittings to maintain the seal.

What types of Wi-Fi access points are compatible with the EN1309N4?

The enclosure is designed to accommodate standard Wi-Fi access points. It is compatible with Cisco (Cisco bracket not included) and Aruba access points, as well as T-bar mounted access points. Use the provided screws to attach the access point inside the enclosure.

What to do if parts are missing from the EN1309N4 package?

If parts are missing or defective, visit tripplite.com/support for assistance. The manufacturer provides a component checklist in the manual. Make sure you have all parts before installation.

How to clean the Tripp Lite EN1309N4 enclosure?

To clean the enclosure, use a soft, dry cloth. Avoid harsh chemicals that could damage the plastic. If needed, lightly dampen the cloth with water, but ensure the enclosure is dry after cleaning.

What is the warranty period for the Tripp Lite EN1309N4?

The enclosure is covered by a 5-year limited warranty from the original purchase date. This warranty covers defects in materials and workmanship. It does not apply to normal wear and tear, misuse, abuse, or negligence.

Can I install the EN1309N4 enclosure on drywall without a stud?

Yes, but it is strongly recommended to use suitable wall anchors. Plastic expansion anchors are not recommended due to the weight of the enclosure. Use threaded drywall anchors, expansion bolts, or spring wing toggles. Ensure the anchor can support the weight.

How to attach the access point inside the EN1309N4 enclosure?

Before attaching the access point, connect all power and data cables. Use the provided screws to attach the access point to the enclosure. If using a specific bracket (such as the AIR-AP-BRACKET-2 for Cisco), install it first. The enclosure is also compatible with Aruba brackets and T-bar mounts.

USER MANUAL EN1309N4 Tripp Lite

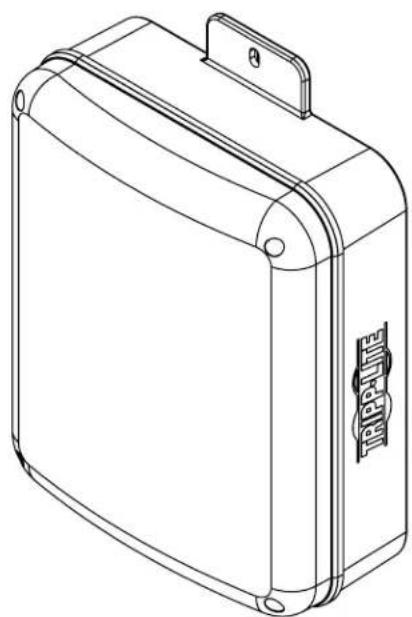

NEMA-4 Plastic Wi-Fi Access Point Enclosure

Model: EN1309N4

Line drawing of a rectangular electronic device with a label 'TRIPPLE' on its side (no other text or symbols)

Español 7 • Français 13 • Русский 19

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR surge protector in our monthly drawing!

tripplite.com/warranty

Manufacturing Excellence.

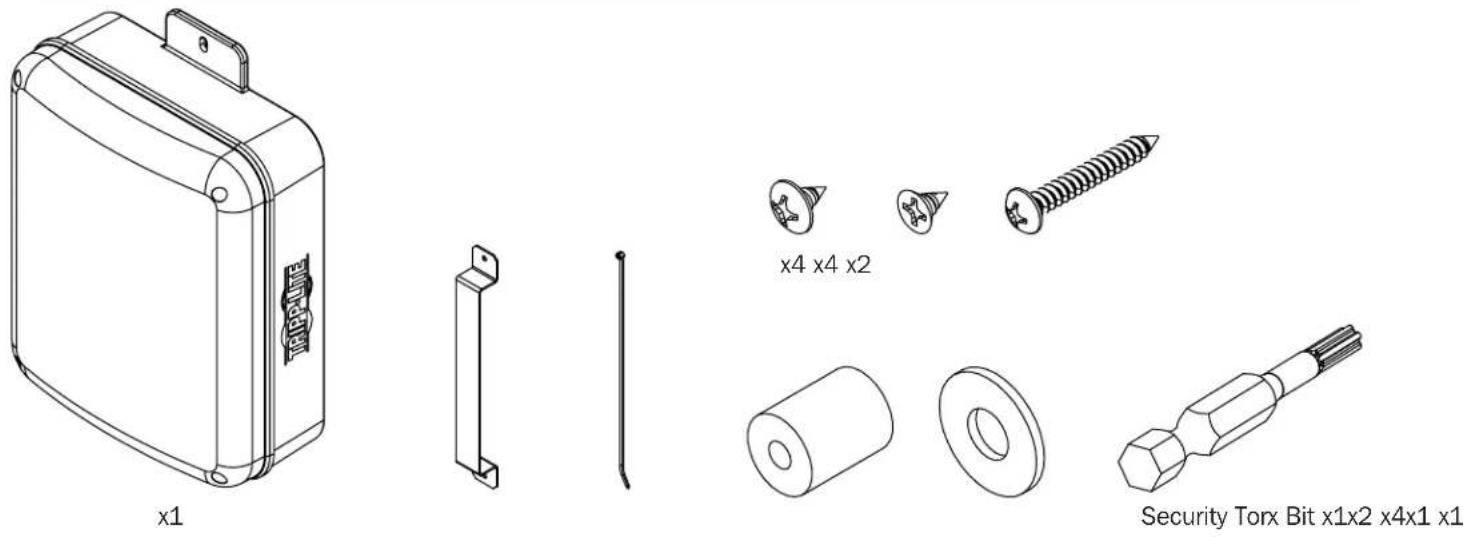

Components List

IMPORTANT:

Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.

Installation

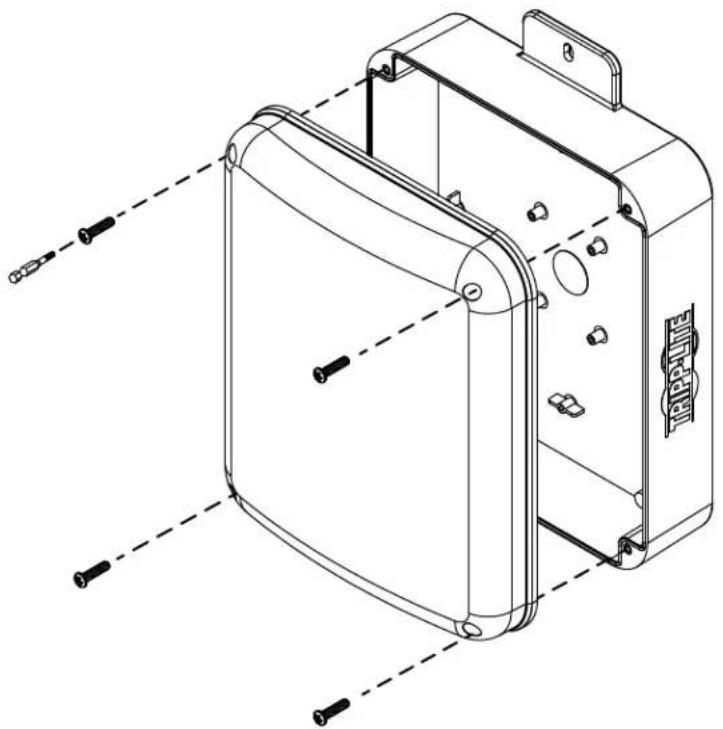

1. Remove Enclosure Cover

Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

Installation

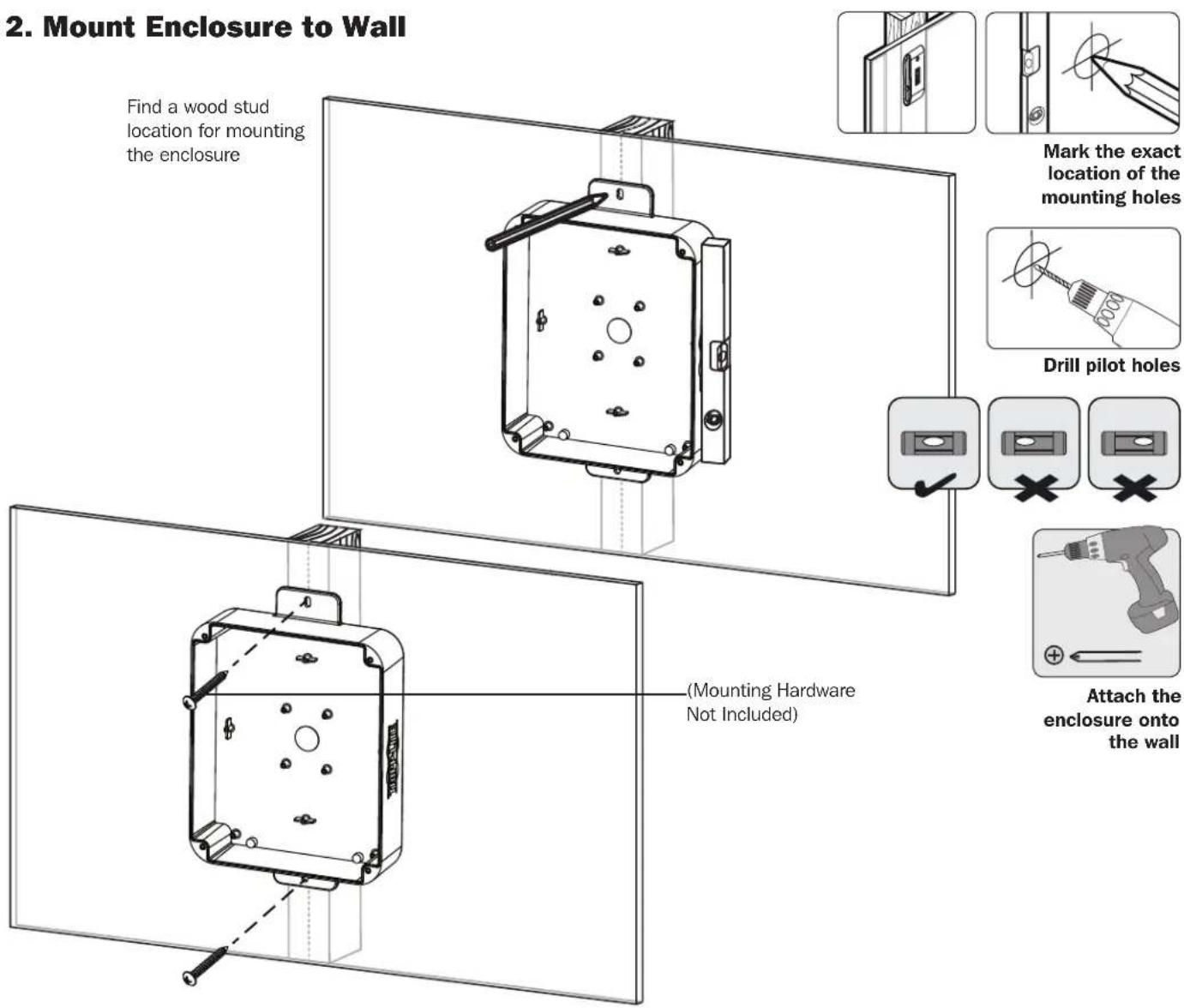

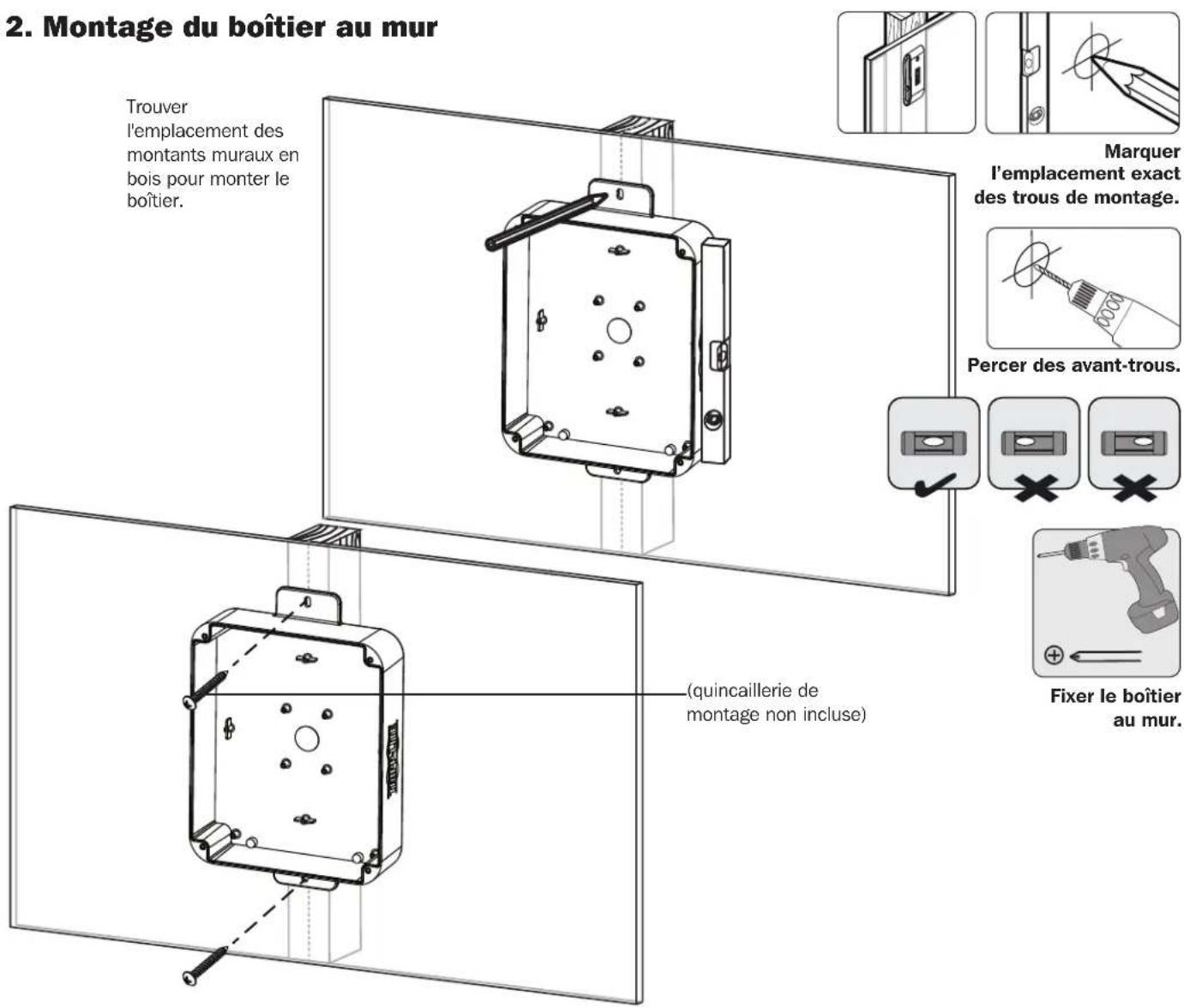

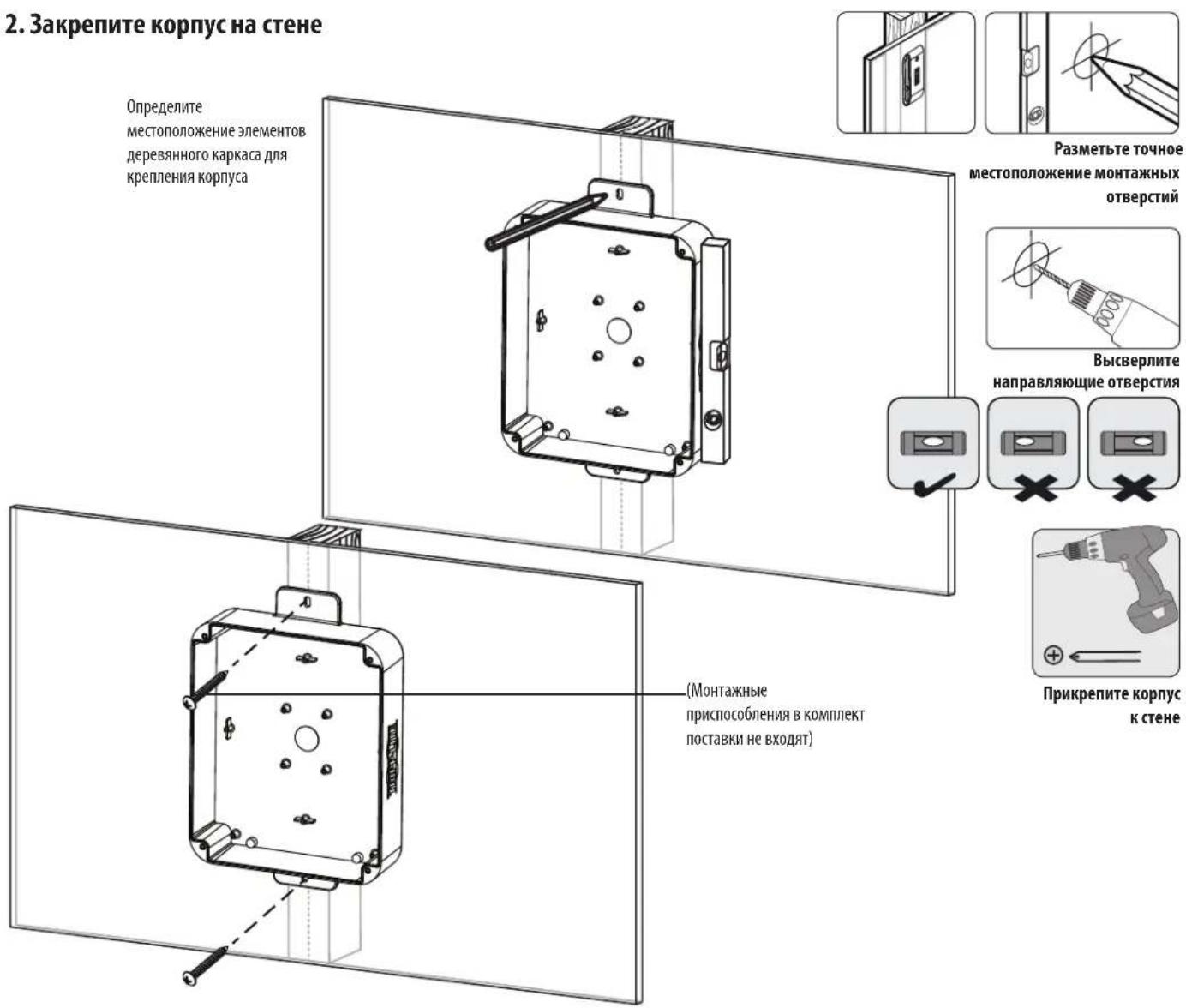

• Installers are responsible for providing wall-mounting hardware. Use a minimum of two #10 x 2" or larger screws (not included) to secure the enclosure in place.
• Make sure mounting screws are anchored into the center of the studs. Use of a stud finder is highly recommended.
• If there is no stud at the mounting location, it is recommended you use anchors to secure the enclosure in place. Due to the weight of the enclosure, plastic expansion wall anchors are not recommended for drywall installations. Suitable anchors include: threaded drywall anchors, threaded drywall toggles, sleeve-type hollow wall anchors (a.k.a. molly bolts) or toggle bolts.
• If placing the enclosure over a telecommunications receptacle, remove the wall plate, then fasten the enclosure to the wall. Once secured, fasten the wall plate over the receptacle.
• If no telecommunications receptacle is available, a surface mount box (or biscuit jack) and equipment cord can be mounted inside the unit.
• Use an adhesive-backed surface mount box.

Installation

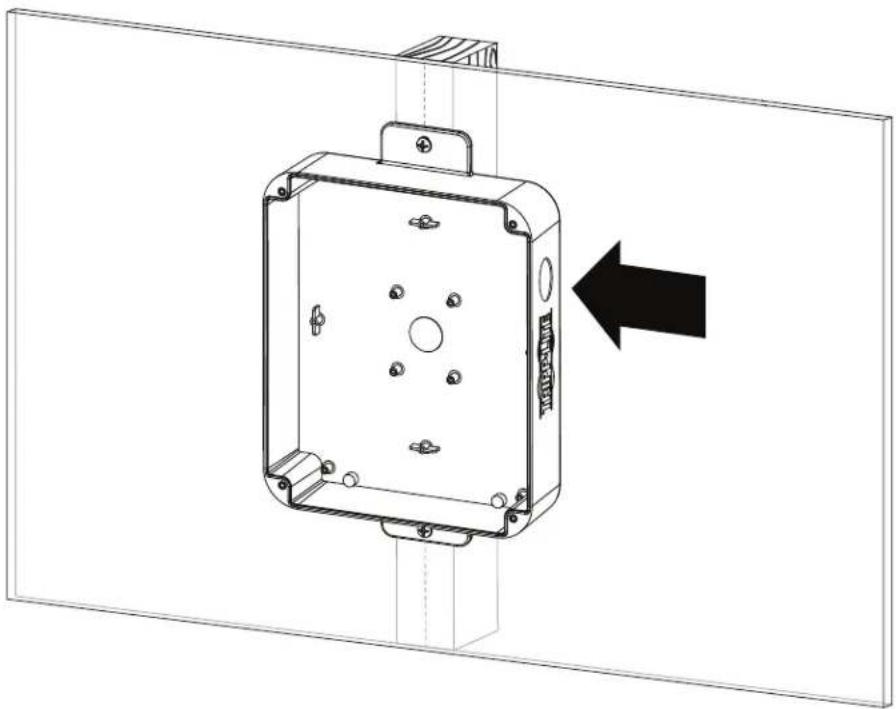

3. Use a Drill to Create a Rear or Side Conduit Cutout

Technical line drawing of a rectangular enclosure with mounting holes and a black arrow indicating direction (no text or symbols)

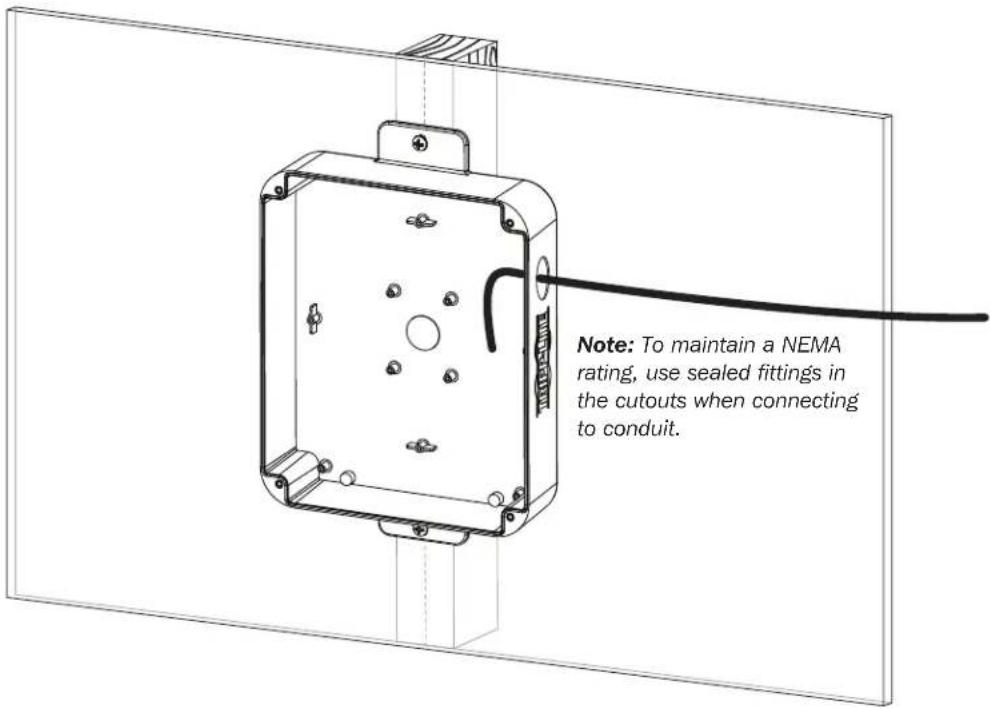

4. Run Data and Power Cable (If Required) Through the Conduit Cutout

Installation

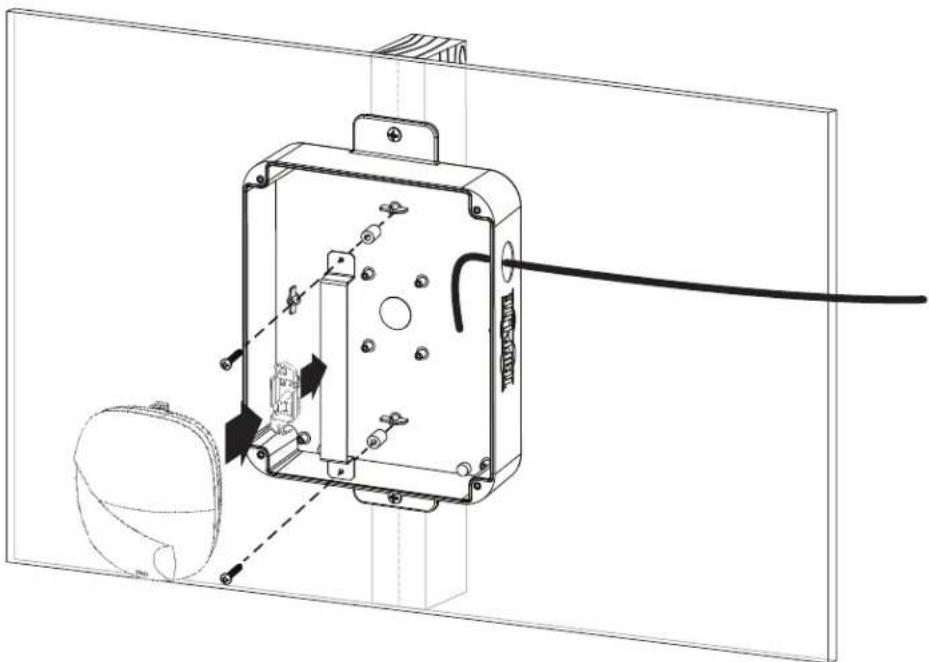

5. Using the Provided Screws, Attach the Access Point

IMPORTANT:

Attach all data and power cables to the access point prior to attaching to the enclosure.

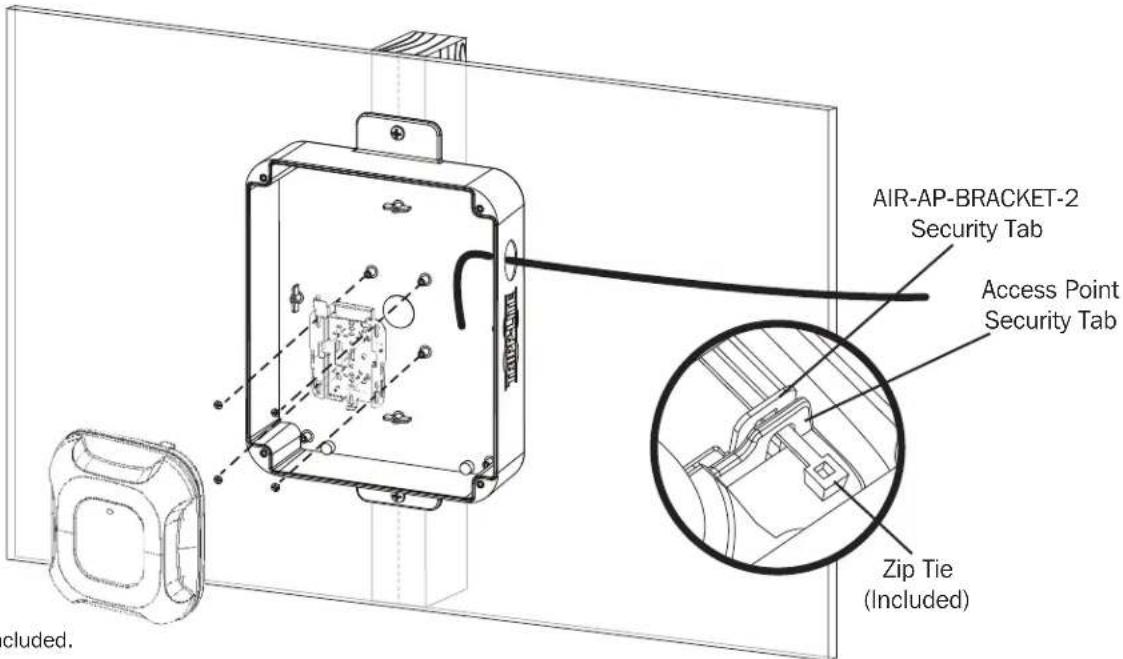

5a. Cisco Universal Bracket (AIR-AP-BRACKET-2)* Installation

* Cisco brackets not included.

5b. Aruba or Other T-Bar Mounted Access Point Installation

Technical line drawing of an electrical enclosure with wiring and a spherical component (no text or symbols)

Installation

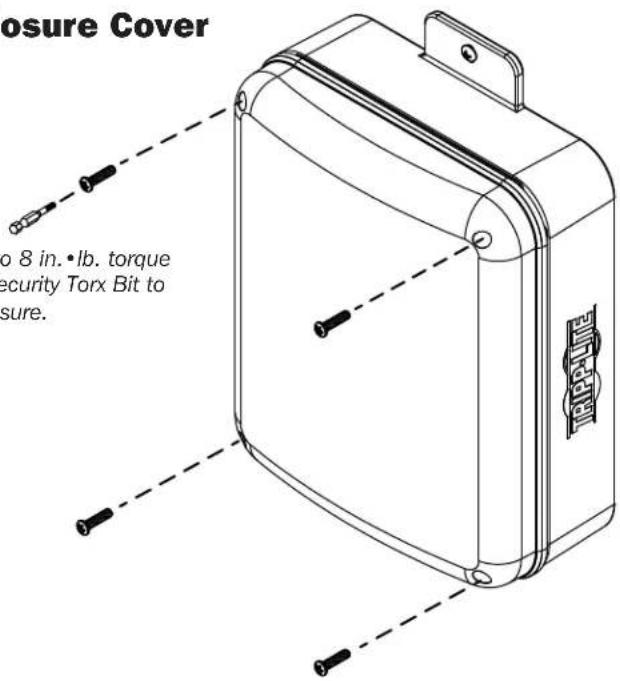

6. Reattach the Enclosure Cover

Note: Tighten screws to 8 in. • lb. torque (0.9 n•m) using the Security Torx Bit to properly seal the enclosure.

Warranty and Product Registration

5-year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Guía de Instalación

Line drawing of a rectangular electronic device with mounting flanges and a label on the side (no readable text or symbols)

English 1 • Français 13 • Русский 19

Technical line drawing of a device casing with mounting brackets and connectors, no text or symbols present

Instalación

Technical line drawing of a rectangular enclosure with mounting holes and a black arrow indicating direction (no text or symbols)

Technical line drawing of an electrical enclosure with wiring and a spherical component (no text or symbols)

Instalación

Line drawing of a rectangular electronic device with a label 'TRIPPLATE' on its side (no other text or symbols)

English 1 • Español 7 • Русский 19

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a device casing with mounting holes and internal components (no text or symbols)

Installation

Technical line drawing of a rectangular enclosure with mounting holes and a black arrow indicating direction (no text or symbols)

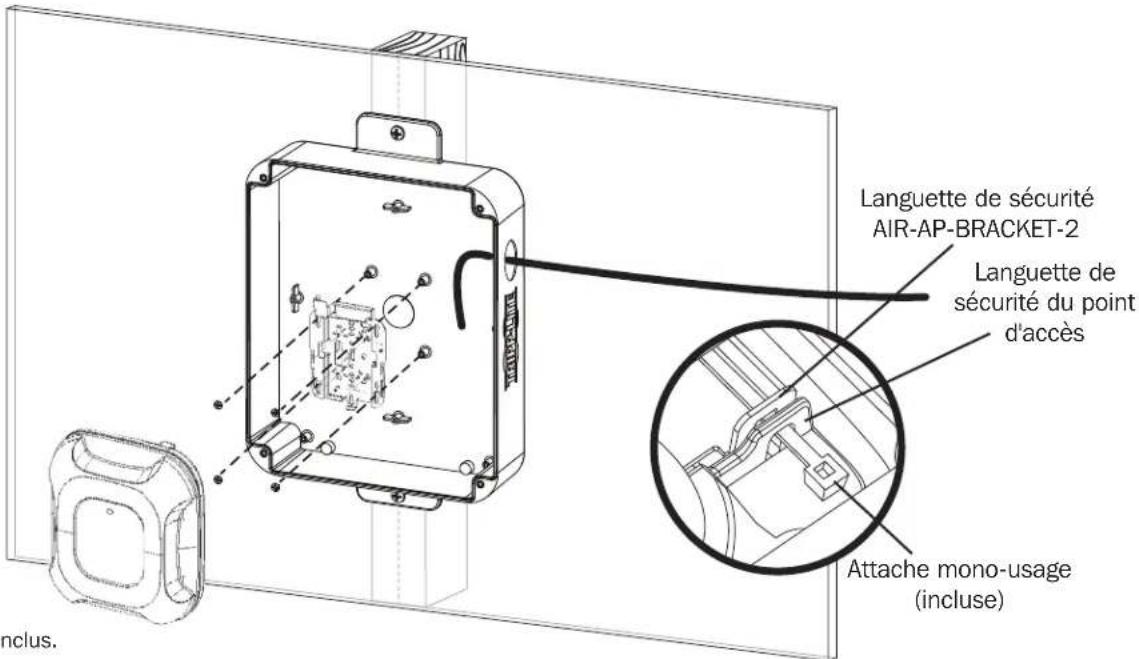

5a. Support universel Cisco (AIR-AP-BRACKET-2)\* Installation
