Product Type	TV Wall Mount
Brand	Tripp Lite
Model	DMWC3770M
Usage	Indoor Only
VESA Compatibility	200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 mm
Mounting Type	Corner wall mount for flat or curved screens
Maximum Load Capacity	50 kg (110 lb)
Material	Steel
Warranty	Limited 5 Years
Supported Wall Types	Wood studs, solid concrete, solid brick
Installation	Requires two persons or lifting equipment
Maintenance	Check security every 3 months
Safety	Use concrete anchors for masonry; do not drill into mortar joints
Recommended Tools	Drill, spirit level, stud finder
Package Contents	Wall plate, adapter brackets, screws, washers, spacers
Repairability	Spare parts available through Tripp Lite support

Frequently Asked Questions - DMWC3770M Tripp Lite

What is the maximum weight the DMWC3770M mount can support?

The DMWC3770M wall mount can support a maximum load of 50 kg (110 lb).

What screen sizes are compatible with this mount?

The mount is compatible with flat or curved screens using VESA standards: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, and 600x400 mm.

Is this mount suitable for curved screens?

Yes, the DMWC3770M is designed for flat or curved screens, thanks to its adjustable adapter brackets.

Can I install this mount on a drywall wall?

No, this mount must be attached to wood studs, solid concrete, or solid brick. Installation on drywall alone is not safe.

What tools are needed for installation?

You will need a drill, a spirit level, and a stud finder. For concrete, use a hammer drill.

How to fix the mount on a concrete wall?

Drill pilot holes of appropriate diameter, insert the provided concrete anchors, then screw the wall plate with anchor bolts. Never drill into mortar joints.

Is the warranty transferable?

The limited 5-year warranty applies to the original purchaser. It is generally not transferable unless otherwise stated.

Can I rotate the screen after installation?

The DMWC3770M is a corner mount, allowing some orientation. However, rotation angles are not specified in the manual; refer to the instructions for available adjustments.

How to maintain the wall mount?

Check every three months that all screws and fasteners are tight and the support is in good condition. Clean it with a dry cloth.

Where to find spare parts?

Visit www.triplite.com/support to order spare parts or get assistance.

USER MANUAL DMWC3770M Tripp Lite

Corner Wall Mount for Flat or

Curved Screens

Model: DMWC3770M

200x200/300x200

300x300/400x200

400x300/400x400

600x400

Espanol 12 • Français 23 • Pycckn 34 • Deutsch 45

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.triplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

Copyright © 2019 Tripp Lite. All rights reserved.

NOTE: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit www.triplite.com/support.
• This product was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure the unit can safely support the combined load of the equipment and all attached hardware and components.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and/or personal injury.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCULES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

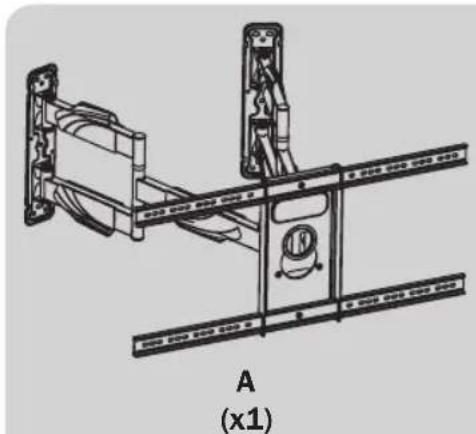

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit www.triplite.com/support for service.

Package M

M-A M5x14 (x4)

M-B M6x14 (x4)

M-C M6x30 (x4)

M-D M8x30 (x4)

M-E M8x50 (x4)

M-F D5 (x4)

M-G D8 (x4)

M-H (x8)

M-I (x8)

Package W

W-A (x8)

W-B (x8)

W-C (x8)

Assembly

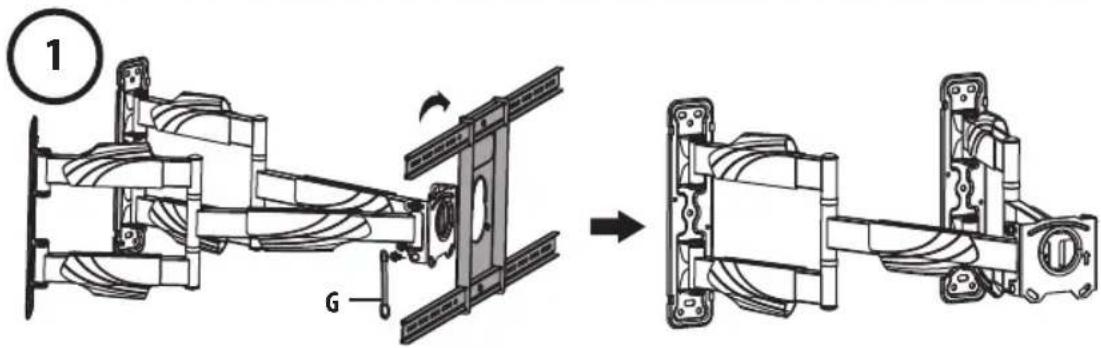

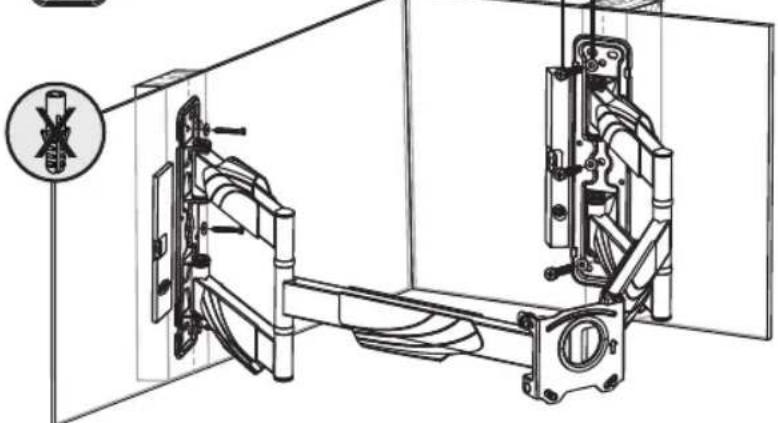

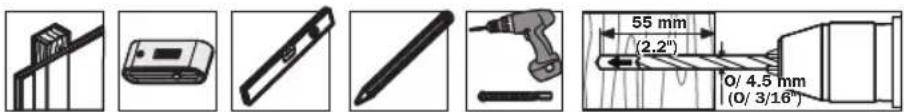

2a Mount on Wood Stud Wall

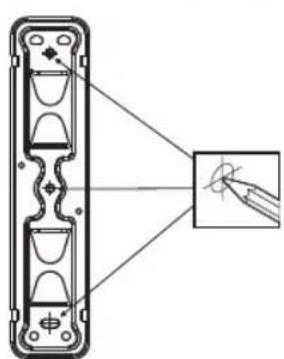

Find and mark the exact location of mounting holes

Drill pilot holes

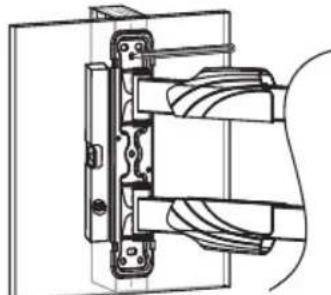

Screw the assembled wall plate to the wall

WARNING

• Make sure the mounting screws are anchored into the center of the studs. Use of a stud finder is highly recommended.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

Assembly

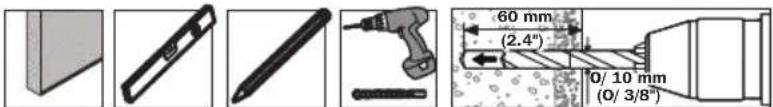

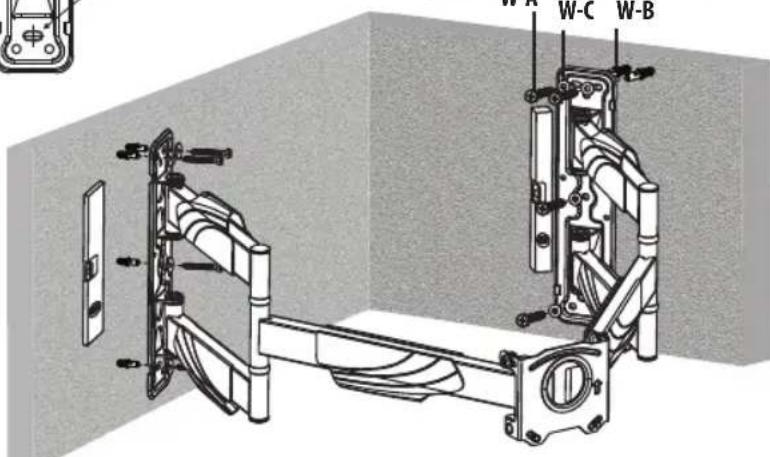

Mount on Solid Brick and Concrete Block

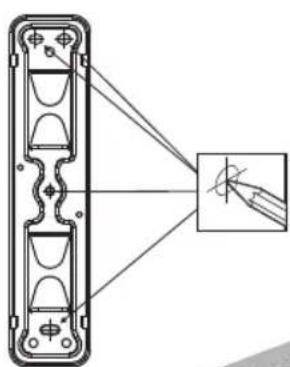

Find and mark the exact location of mounting holes

Drill pilot holes

Screw the assembled wall plate to the wall

WARNING

• When installing wall mounts onto a concrete masonry unit (also known as a CMU or "cinder block"), verify the actual concrete thickness is at least 35mm (1 - 3 / 8^ ) in order to hold the concrete anchors. DO NOT DRILL INTO MORTAR JOINTS! Be sure to mount the assembled wall-mount plate with the included concrete anchors, washers and anchor bolts onto solid sections of the blocks. The solid sections can generally be found 25mm(1^ ) toward the middle of the block from either end. An electric drill on a slow setting is suggested to drill the hole (rather than a hammer drill), so as to avoid breaking out the back of the hole when entering a hollow section.
• Installers must verify the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

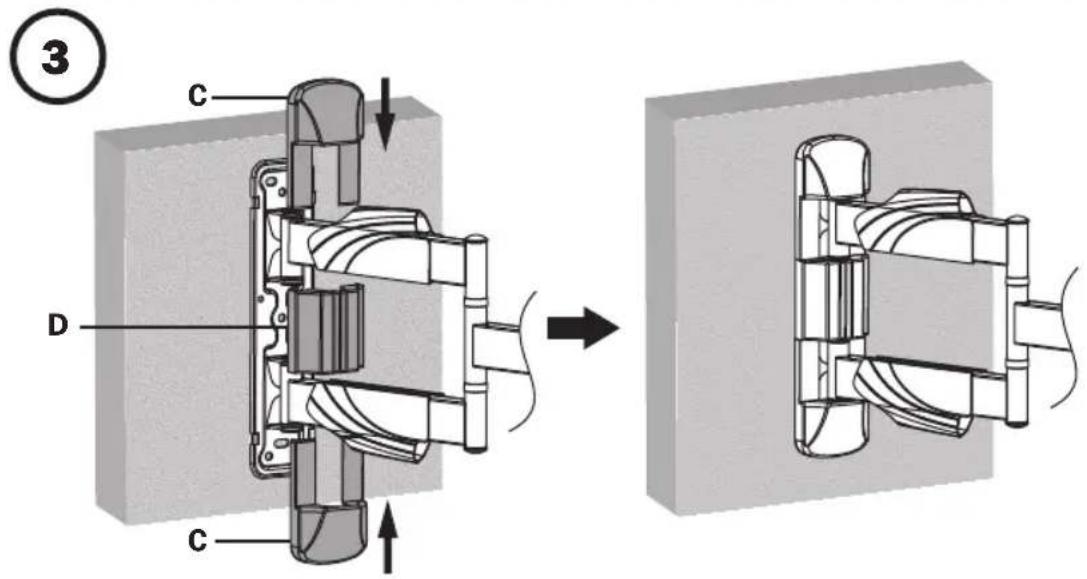

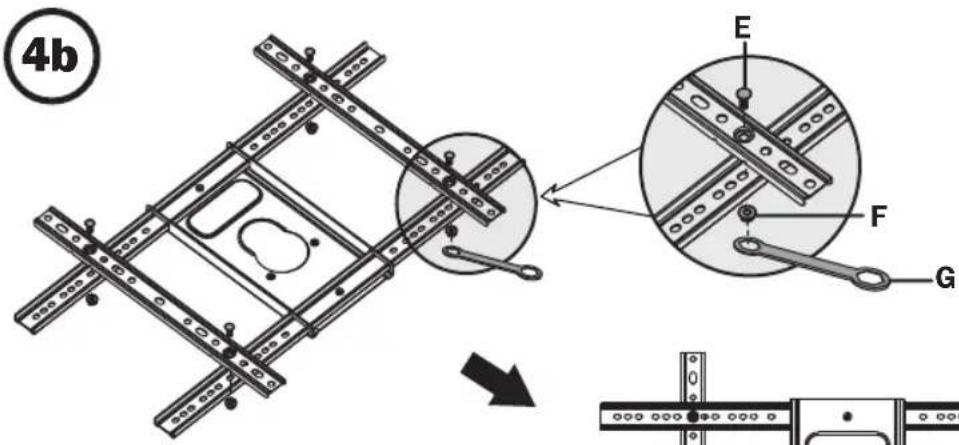

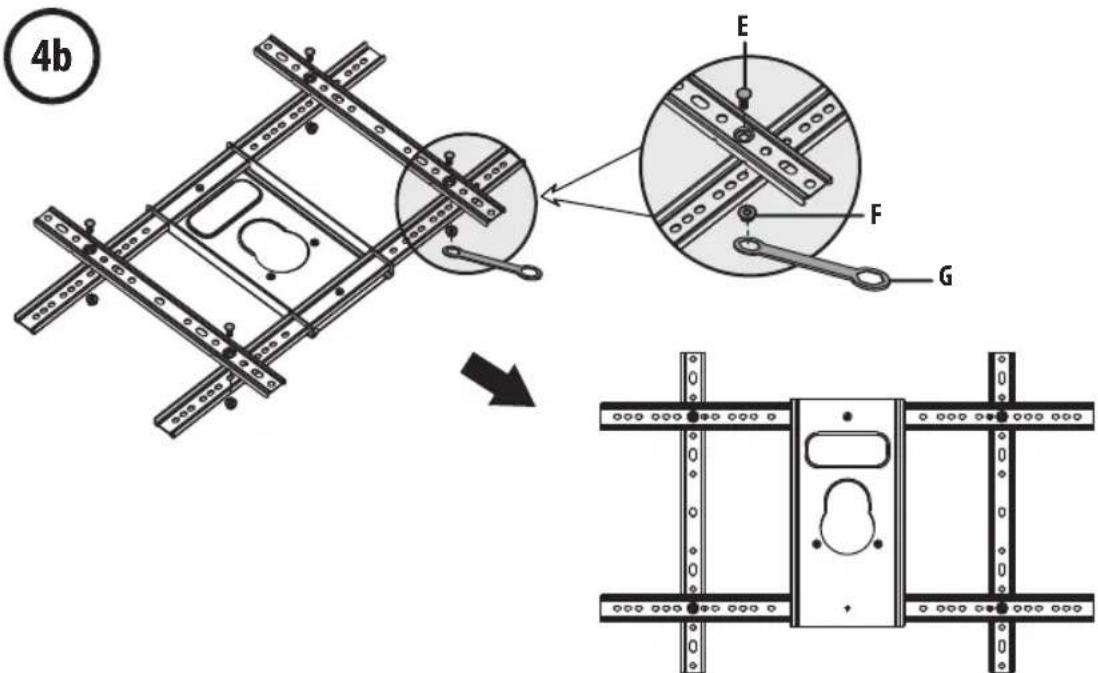

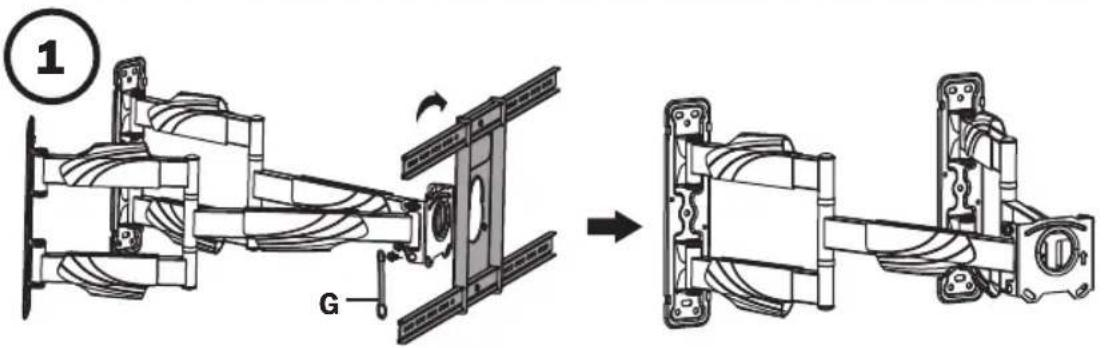

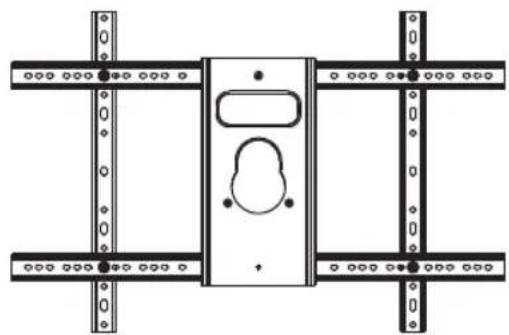

Assembly

Assembly

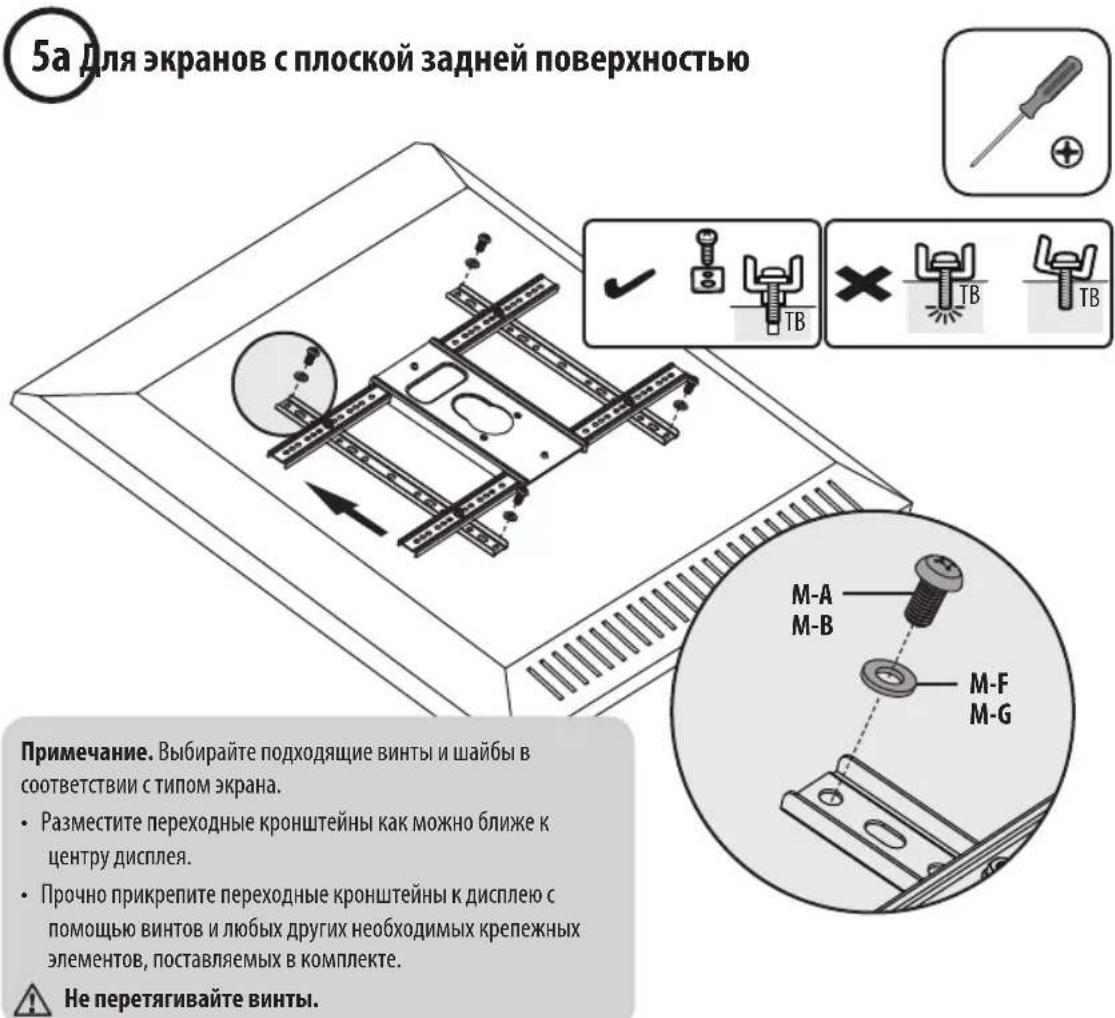

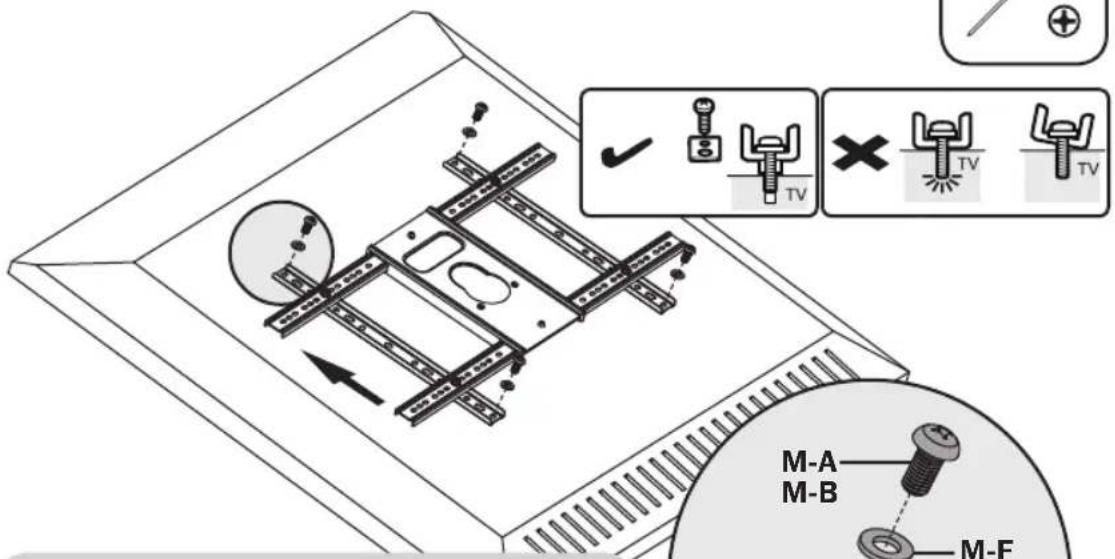

(5a) For Flat Back Screens

Note: Choose appropriate screws and washers according to the type of screen.

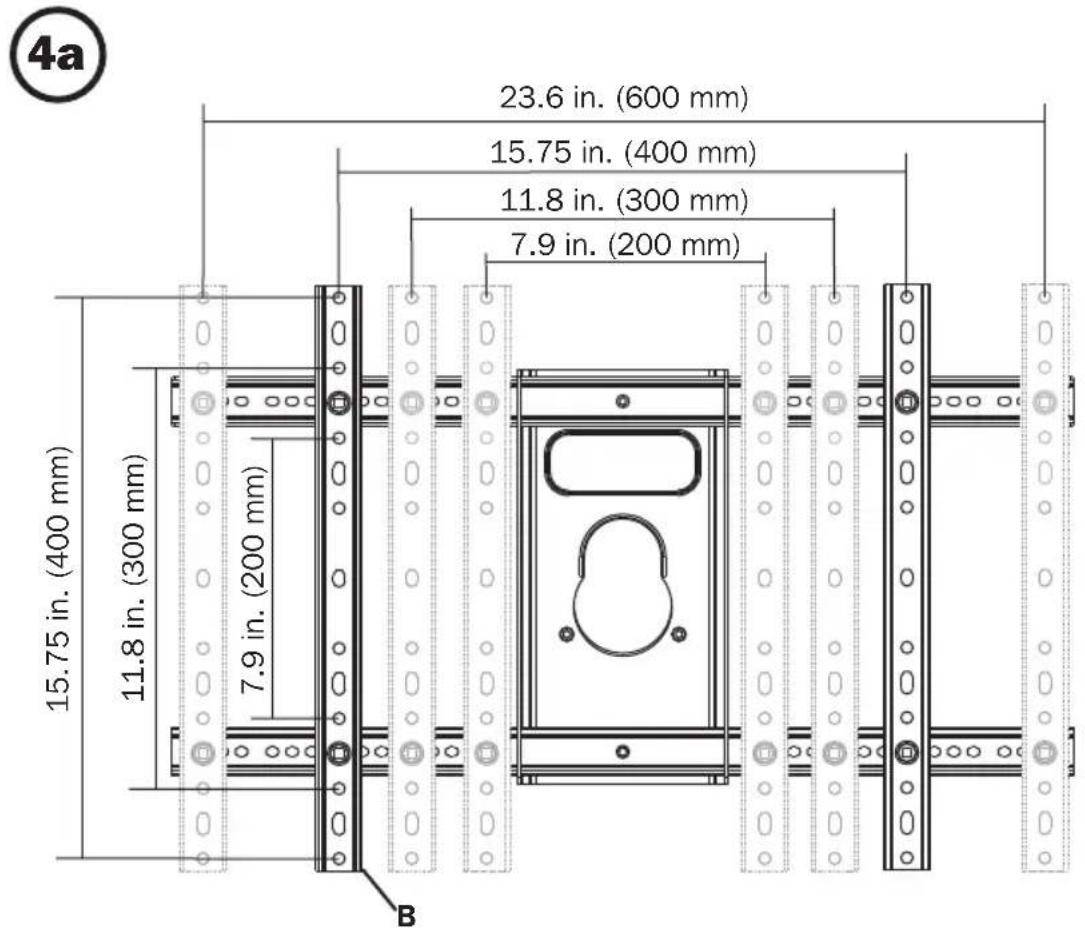

• Position the adapter brackets as close as possible to the center of the display.
• Firmly secure the adapter brackets onto the display using the screws and any other necessary hardware components included with the unit.

Do not over-tighten screws.

Assembly

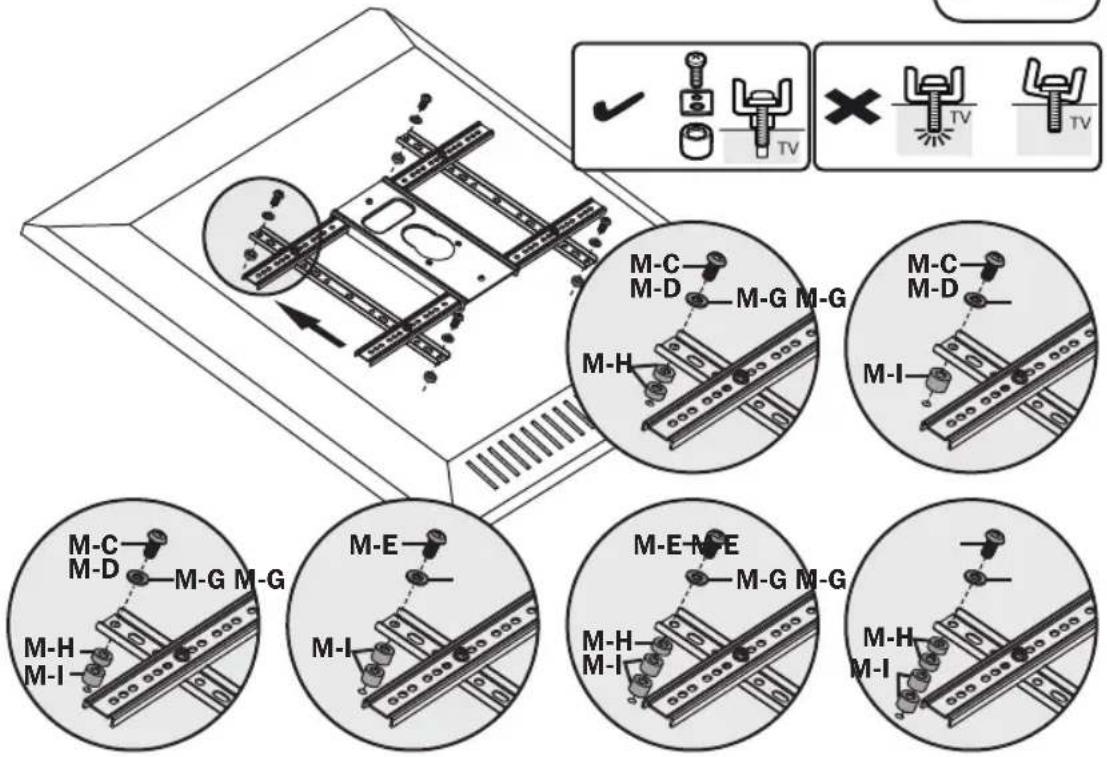

For Recessed Back Screen or to Access A/V Inputs

Note: Choose appropriate screws, washers and spacers (if necessary) according to the type of screen.

• Position the adapter brackets as close as possible to the center of the display.
• Firmly secure the adapter brackets onto the display using the screws and any other necessary hardware components included with the unit.

Do not over-tighten screws.

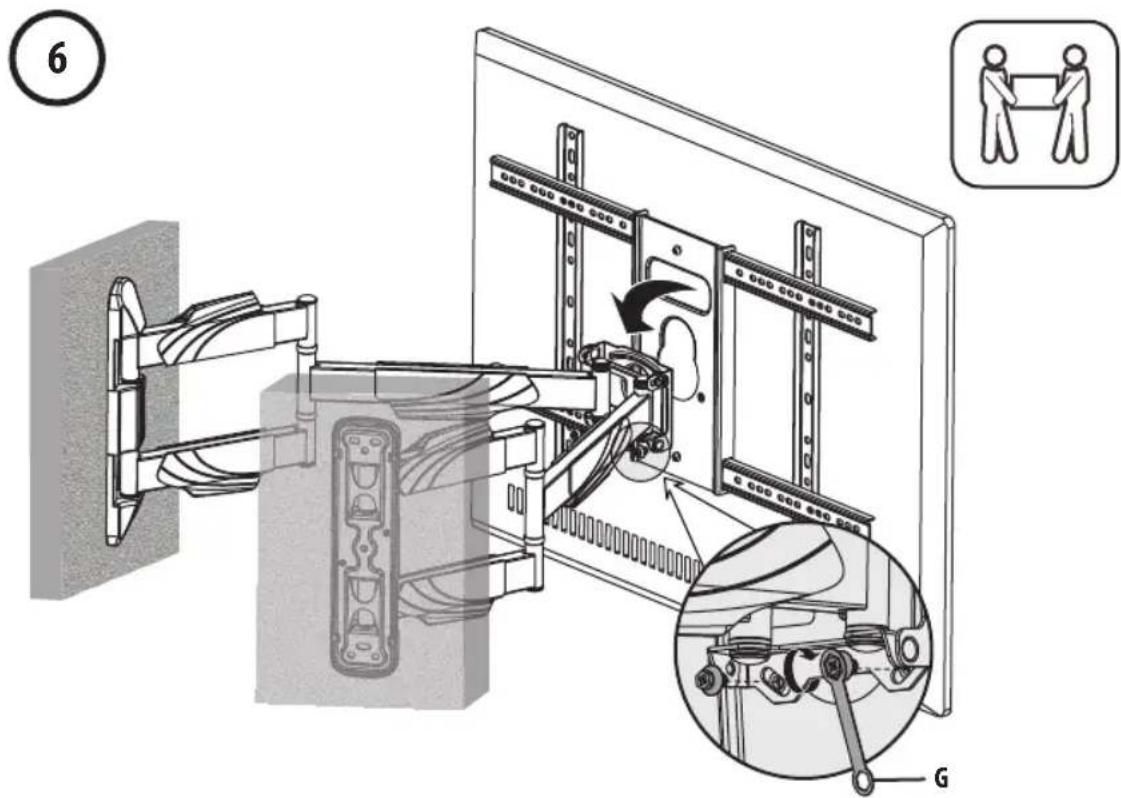

Assembly

Using an assistant or mechanical lifting equipment, hook the display with attached adapter brackets over the top of the wall-mount bracket. Tighten the bolt on the bottom of the wallmount bracket to secure the unit.

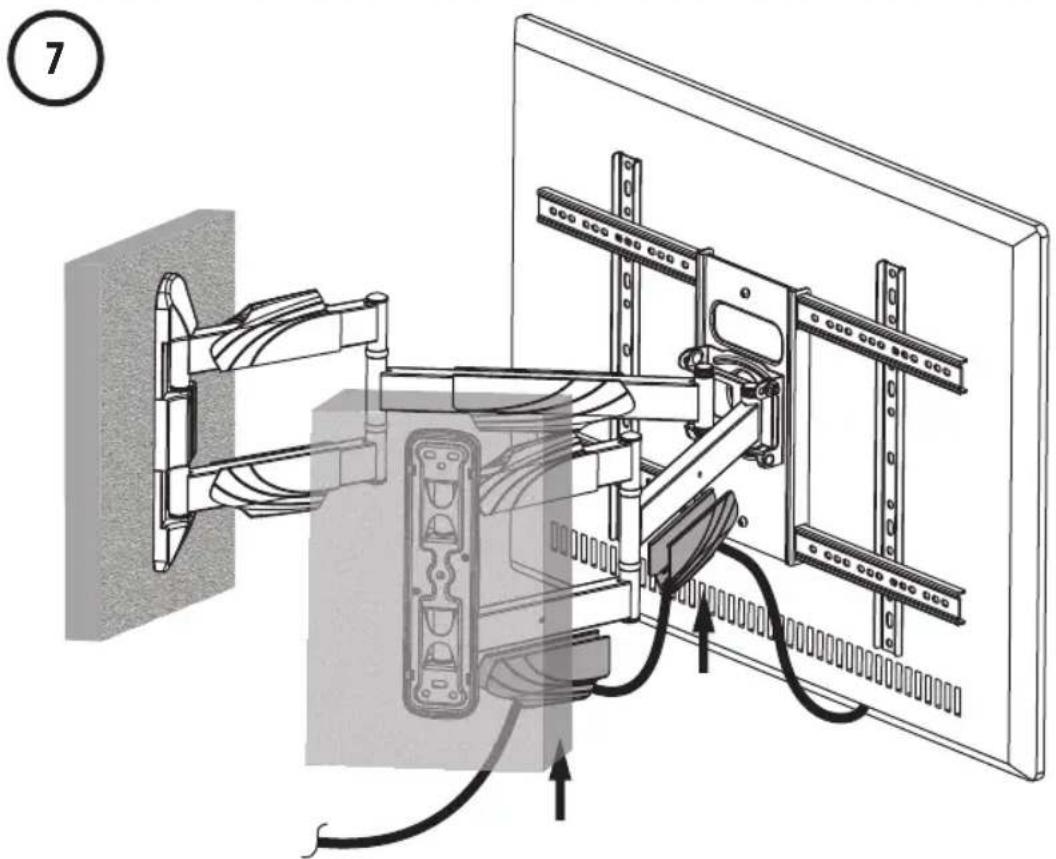

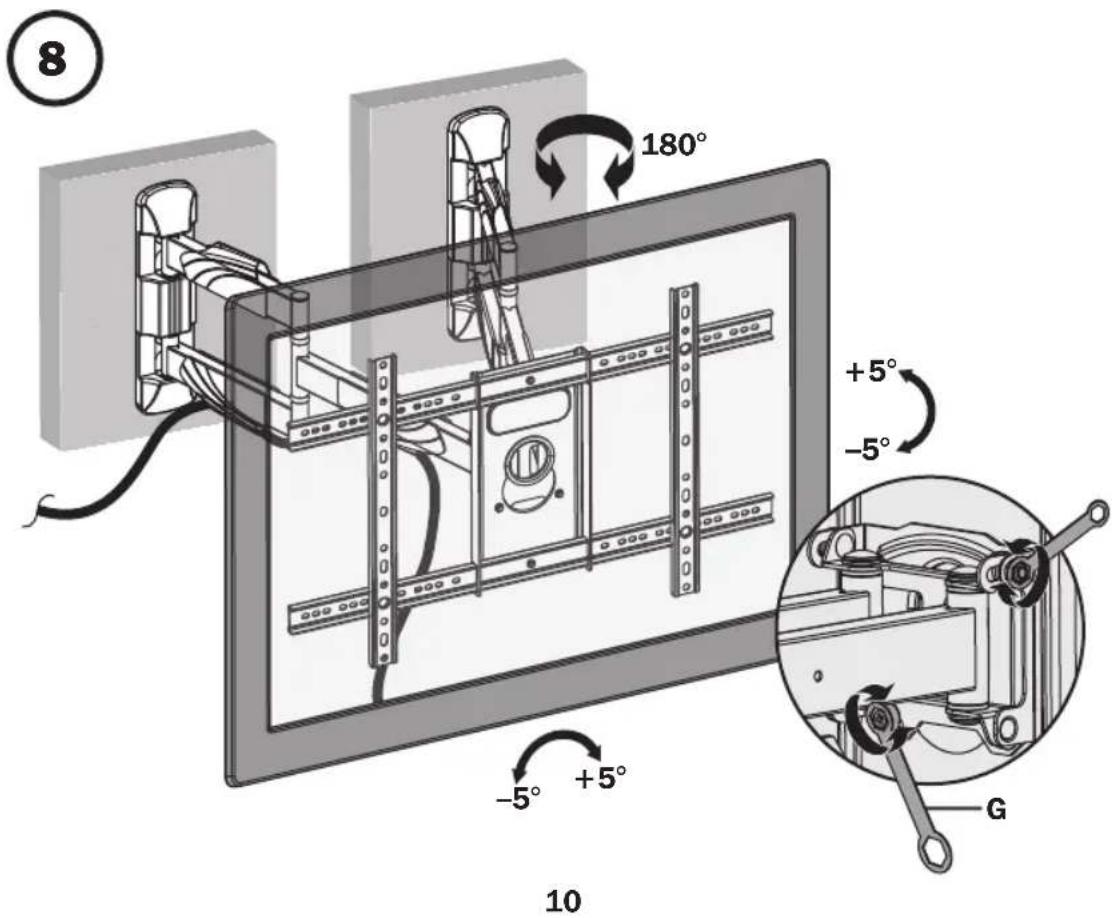

Assembly

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
• Please visit www.triplite.com/support if you have any questions.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 EE UU • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 EE UU • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

PykoBODCTBO NOIb30BaTeJia

1111 W. 35th Street, Chicago, IL 60609 USA - www.triplite.com/support

OxpanaHTcA ABTOpCKM pabOM © 2019 Tripp Lite. NpepeaTa Kaepaetca

PIMMEAHNE. IpeHnauJOM yCTaHOBKN i6OpKN MoDyJI BHNMaTeIbHO N3yUInTe BCE pa3dEnbl pyKOBoDCTBa.

BHUMAHNE!

• He naHnHaTe yCTaHOBky do Tex nop, noka He 03HaKOMITecb CO BcEMN yKa3aHnMn IN npedynpejckdeHnMaMn B HacToIeM pyKOBoDCTBe N He noIMeTe NxCMbIC. PnB O3HnKHOBeHnBOpocOB oTHocHTelbHo IIO6bIX yKa3aHn Nnn npedynpejckdeHn NocetTte CtpaHnCy WWW. tripplite.com/support.
  -Данhoeи3денипрета3нayeho Дя установи И спользоваяТОьКВцелax,уka3aHHbIX B NaCTOЯшем руховсbe. HenpaBnIbHЯ yctahOBka DAHHORI n3delenmoKET npNBecTN K npMHHeHIO MaTePnaIbHOrO use6a ИИСуоeCTBeHOrO BpeDA 3DopOBbI OIOdeN.
• YctaHOBKa daHHoro n3dennn I0JXHa npOH3BOuHTbC TOnbKO CneuaHCTOM CdoCTaTOUHOI TexHuueCKo KBaIINphiKauNei 6a3ObIMn HABbIKAMN CTpONTeJIbCTBA, B NOnHO Mepe IOHMAIOUM CmBICl INHΦOpMaun, IN3NoKeHHoB HAcTOnIeM PYKOBODCTBe.
• Y6eHNTecb B TOM, qTO daHHoe H3dEHNHe MOXET C 3aIacOM BblpeKINBaTb cyMMapHyIO harpy3ky, co3daBaemyo6OpyIDoBAHnEM N BCEMN BXOJUHMN B KOMPNeKT DeTaNIMN OCHACTKN I pyrHMN KOMHOHeHTAMN.
  -Дябзэпоги noьеминадлесацero pa3meшениооборудованьо6язатьhoe 6рашаиТecьзnomoьюнлпь3уNTecbгу3ОнБemHbIMobopуdOBaHnEM.
  -Данhoeи3делпретна3нayehoДЯИспьзOBAHЯТольКВЗakpbITbIXnomeшенyx.ИспьзOBAHе ДанHorOи3делняHaOTkpblOMB03dUxMeMOKETПиВecTNKEROBbIXOуИЗстpoI INPnUnHeHIOBpeDAЗDopOBbIОЛIDeI.

TapaHTnHbIe 06aTeNbCTBa

YcnoBna 5-JeTHeN OpraHueHHoI rapaHTn

IpoDaBeu rapaHTpye OTCyTCTBne H3HaayabHbIX DeEeKTOB MaTePnAa HIN H3ROTOBHeN B TeueHne 5 Nc MmEHTa nepBOHaauhBoH NOkynKn DaHHO I3dienpa npY cNOBn Ero HcNoBtOBAHn B COoTBcTbHn CO BcEMn npMehnMbIMn K HEmy yKa3aHnMn. B Cnyuae npoRbEHHa KaKHX-160 DeEeKTOB MaTePnAa HIN H3ROTOBHeN B TeueHne YKa3aHnHO pOda EueCctBnaET peMOHT mN 3aMeHy daHOrO I3dienn NCKHIOHTbHo No CBOEmy yCMOTpeHIO.

DEICTBNE HACTOUII HAPAHNTH NHE PACNPOCTPAHRETCA HA CNYAENECTBEHHOTIO 3HOCA IIN IOBPEKJEHNI B PE3YbTATE ABAPNI, HEHAJIEXKAUETOICNOBAHN, HAPUUEHNI PPABNJ EKCIUYATAUIN INXI XAIATHOCTN. IPODABELI HE IPEIOCTABJREITHKAKNX ABHO BIPAXEHHbIX TAPAHNTI 3A ICKLIQUEHMEM IPRMO I3IOXEHHO B HACTOUIEM DOKUMEHTE. 3A ICKLIQUEHMEM CIYAAEB, 3ATPUEEHHBIX DEICTBYOUIM 3AKOHODATEJBCTBOM, BCE NOIDPA3YMBAEMBIE TAPAHNTN, BKIOUAYBCE TAPAHNTN IPIRODHOCTIN IPIPODAKIN IINI ICSIOJIb30BAHNI PO HA3HAUYEHIO, ORPAHUNHBI IOI POIOJIKNTBJBOCTN DEICTBNI BblEUKA3AHBBIM TAPAHNTIHBM CPOKOM; KPOME TOTO, IN3 HACTOUIE TAPAHNTI ABHbIM O5PA3OM NCKLIQUAOTCB BCE NIOOCHBIE CNQAHNBIE KOCBEHHBIE YbBITKN. (B HeKOToBPx shTaTAX HeIONYCkAEiCBVBeHMe INa IPODOJNKITEbHOCTBJeICCTBNI TEX INI INHbNIOp4zMBAeMbIX rapAHNTI, A B HEKOTOpBx - NCKLIQUEHME IINI ORPAHUNHHe pa3MePa IOOChbIN INI KOB. B 3TNX CUYaAX BbIeN3IOKeHbIe OPAHUNHMI INN CKLIQUEHMI MOYTHBaC He pACnPoCTpaHHTbcR. HAcTOnaIraPANTN IpeoctabJIeT BAM KOHNPeTbIe Iopuueckme npaba, a h6obp dpyrNX BaWix npab MoKet 6bItb pa3NIHbIM B 3ABNCIMOCTN OTIpNCdNKUIN).

BHIMAHIE! Do hauana nncnboaHna daHoro yctpoiCTba nolb0BaTeNb donjney6eDntcB Ta TOM, qTO OHO ABJAEcTc npiroDhIM, COOTBETCTBYUIM mI 63oNaChbIM IIN ppeNOnaerMo rnpMeHeH.N B CBAI c 60nbMpa3Hoo6pa3mE KOHKpTehIX npmeHnn npou3BOInTeH He daT KaKnx-Im6 3abepeHn mI rapaHTN OTHOuHocTH DaHHbIX M3dEmI Dn KAKoro-N60 KOHKpTeHOrO npmeHHe H IN IX COOTBCTBn KaKIM-n60 KOHKpeThBM Tpe6OBaHnM.

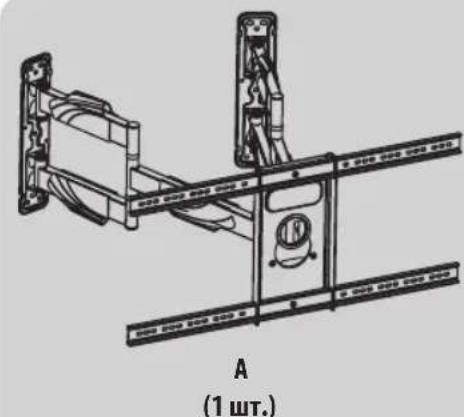

Iepeuehb KOMnneKtaun

BHIMAHHE! Npeed hauanom yctahOBk y6eHITecb B hauuHN BCEx DeTanei cornacho nepeuHIO
KOMnIeKTAuIN. B clyae oTCyTcBn IIN NOBpeKdEHHa KaHX-nI6o DeTanei
06paTntecb 3a nomoubNo Ha cTpaHnuy www.triplite.com/support.

YnaKOBOHyBII KOMnJIeKT M

M-A M5x14 (4 wt.)

M-B M6x14 (4 wt.)

M-C M6x30 (4 wt.)

M-D M8x30 (4 wt.)

M-E M8x50 (4 wt.)

M-F D5(4wt.)

M-G D8(4uT.)

M-H (8 wt.)

M-I (8 wt.)

YnakoBouhbli KOMNJIeKT W

W-A (8 wt.)

W-B (8 wT.)

W-C (8 wt.)

Popraok c60pkn

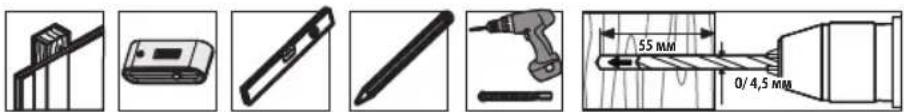

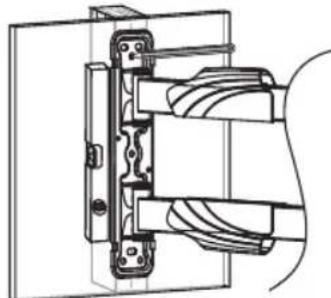

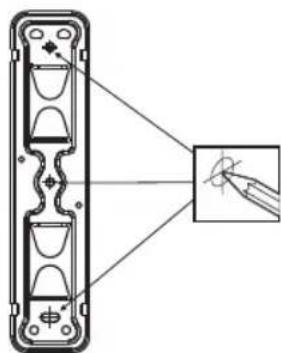

2a KpenJIeHnE K CTeHe C DepeBAnHbIM KapKaacOM

OppeIe n pa3MeTbTe TOUHOe MeCTOnOJIOKeHne MOHTaXhBIX OTBepCTn

BbCbePInTe HappaBnOuNe OTBePCTnA

PnBnHTte co6paHHy0 kpeJexHy0

NtactH Ky KteHe

BHIMAHHE!

Heo6xOIMO o6ecneuHTB BBePTbIBaHnE KpeenKbIX BNHTOB NO CEHTpy 3eMeHToB Kapkaca. CToIeNbIO HactoTaeNbHO peKoMeHdyETc HcNoJIb30BaHnE DeTeKTopa HeoDHopOHOCTeN.
- OTBETCTBENHOCTb 3a o6ecneueHnne noDxOJaIe KpeNExKHOO cHaCTKn Ipyrnx CnoCo6OB MOHTaKa BO3NaeraTcH a YCTAHOBUuKA.
YctahOBuHK 683aH y6eHbCBA TOM, YTO ONOPHAR NOBepXHOCTb C3anacOM BblpeKHT cyMMapHyO Harpy3ky, co3daBaemyIO 60pyoBaAHnEM N BCEMN BXOJUHMN B KOMIINEKT DeTaJIAMN OCHACTKN IpyrMMKOMNOHEHTAMN.

Popraok c60pkn

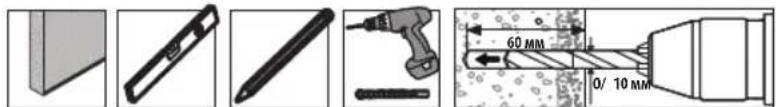

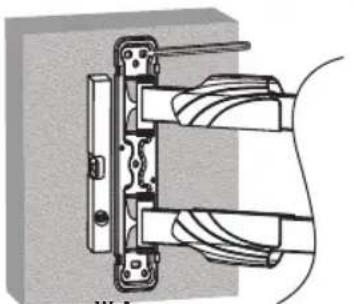

Kpenenne K cnlohomy knpny nn 6eToHHomy 6noky

OnpeDenIte npa3MeTbTe TOUHOE MecTOIOJIOKeHne MOHTAXHBIX OTBepCTN

BbCBePInTe HappaBnaHoune OTBepCTn

PnBnHTne co6paHHyO

KpenexHyo

Пл actинук

CTeHe

BHUMAHVEI

• Pn MOHTaKe HAcTeHHbIX KPOHtTeHOB Ha 6eToHHbI CTpOteBbHbI 6NOK (H3BeCTbH TaKke KaK BCm "WnaKo6eToHHbI 6NOK") y6eHntecb B ToM, 4TO 0aKTmueckA ToUuHa 6eToHa CoCTabNaeT He MeHee 35 MM cTebIO o6ecneueHn HAJIeXaUe ΦHKCaunn AnKePob dIg 6eToHa. HE BblCBEPJIbBAITE OTBEPCTNA B WBAx, 3ANJHEHHbIX CTPoTEJBHbIM PACTBOPOM! IpaTmHy dIy HaCTeHHoro KpeNenneHn B c6ope 083aTeBbHO cIeMy TMOTHpOBaT b CnMoOsbIO NoCTaBnEMLbIX B KOMPiKeTe C Hei AnKePob dIg 6eToHa, WaiN aHKePbIX 6oNTOB B CnIoOHbIX qACTX 6NOKOB.
  Cnnohhe qactn 06bHNO haojatcHa paacctoAHN 25 MM ot IIO6O r3 KpaEB 6noka K ero cehtpy. Bo n36eKahne pa3pyuweHna 3aHHe CTENK OTBepCTNa pni nonaHnn CBepNa B noNyU qactb, nla BBicBepnBaHNA OTBepCTNa peKomeHnyETc HcNoIb30BaTb 3JIeKTPnuCeKyIO dpelb Ha MaOn CKOpocTN BpaueHNA BmecTo nepphiopata.
• YctahOBuHK 6o3aH y6eHTbC B ToM, yTO onOpHaa NObepxHocT b 3aNaCom BblpeKHT cyMMapHyO Harpy3ky, co3daBaemyo 06opydobaHem N BcEMN BXoJaUHM B KOMnneKT DeTaJAMN OCHaCTKN IpyrUMN KOMnoHeHTamN.

Popraok c60pkn

Popraok c60pkn

Popraok c60pkn

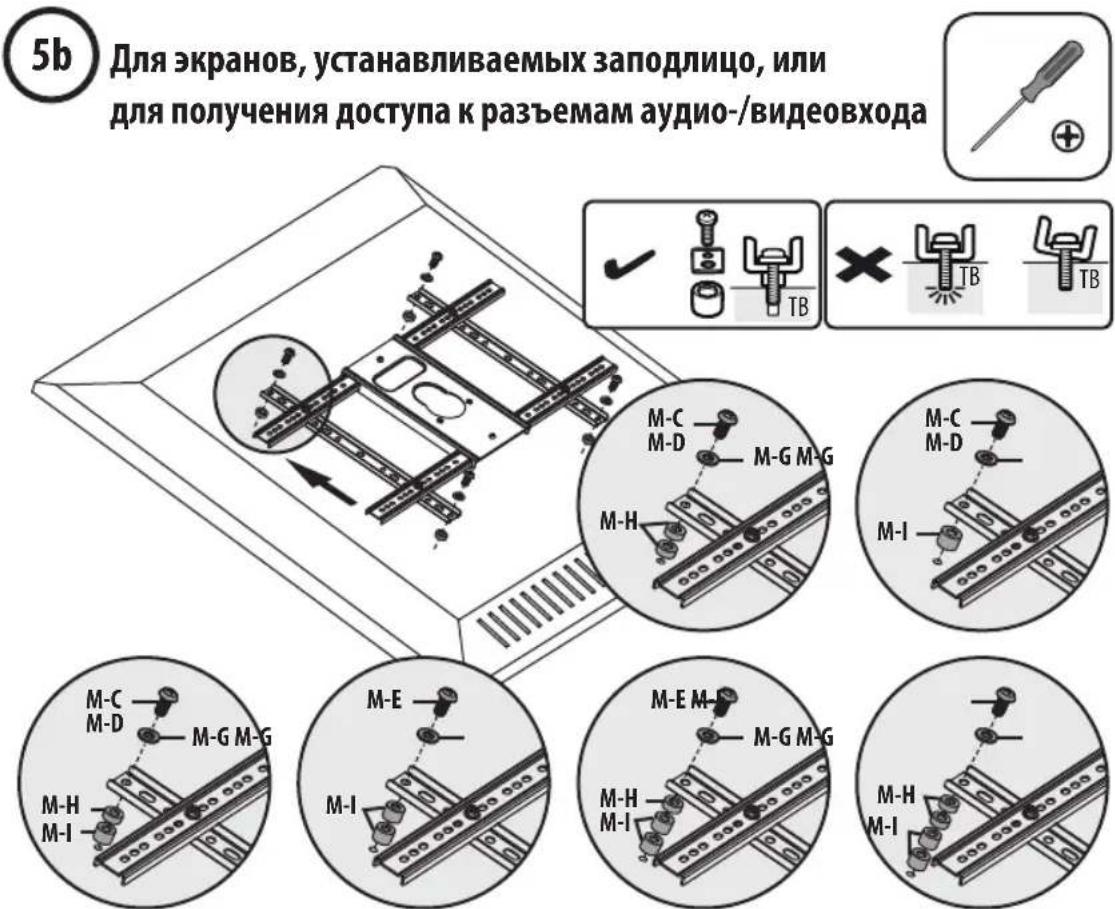

PpmeaHne. BbIbpaTne noxOJaMne BnHTbI, Wau6bI npocTabKn (npn Heo6xoDMOCtN) B COOTBETCBN C TINOM 3KpHa.

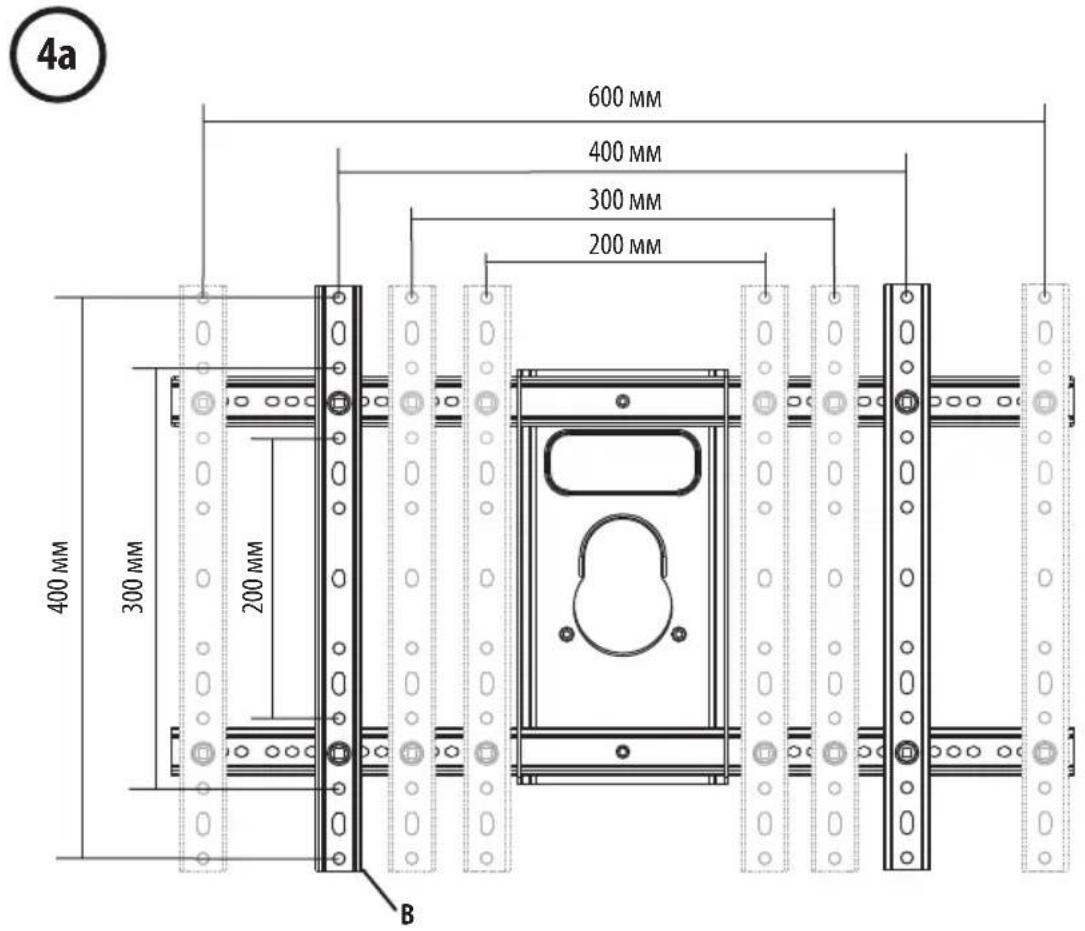

Pa3MeCTIe npexOHDhIe KPOHHTbI KaK MoKHO 6bnXe K cHTpy DcNlEa.
- PpOuHn npKpEnIte npExoHbIe KpOHWeHbI K dncIeHO C nOMOoiBnHTOB HIO6bIX ppyHX Heo6xOaMbIX KpeNEXbIX 3JIeMeHTOB, NOCTaBnaEmbix B KOMNKeTe.

He nepetaryBaTe BnHTbl.

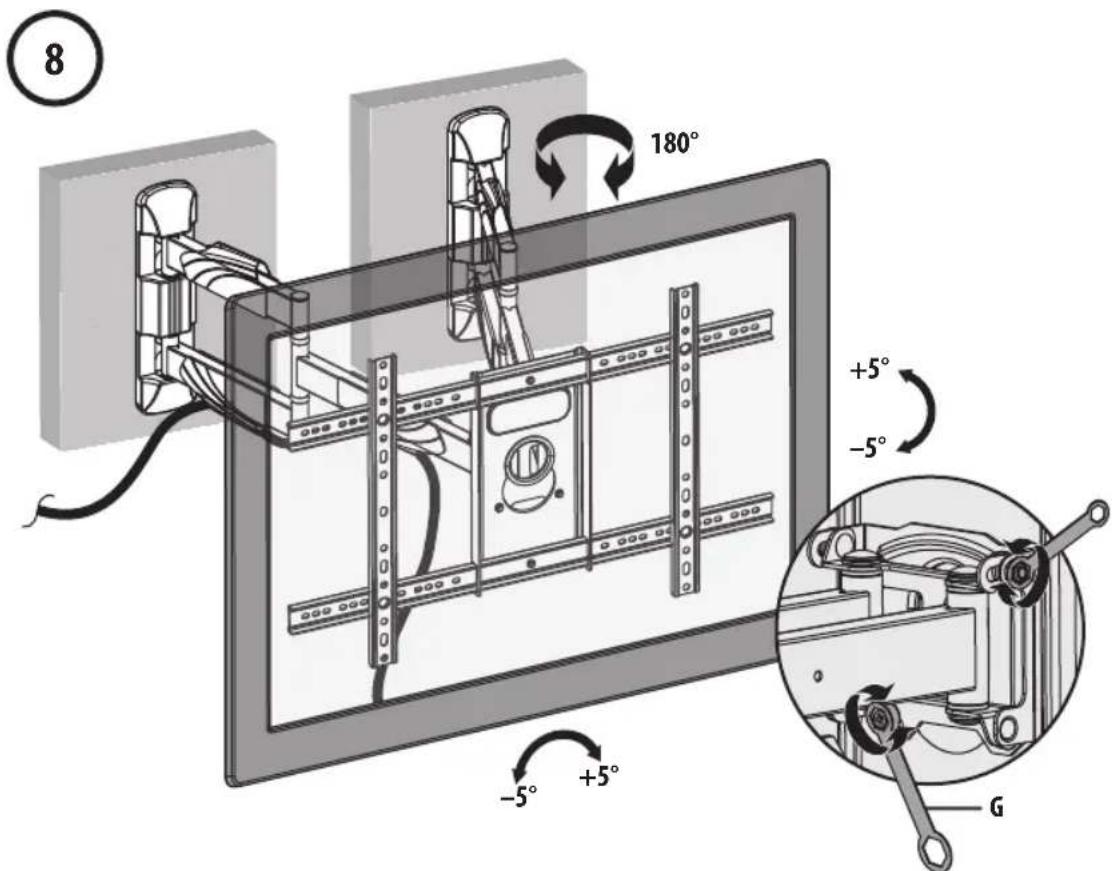

Popraok c60pkn

06paTnBmcb 3a NOMOu bIO NNI BOCNb3OBaBmcb MEXaHueckM NObbeMHbIM O6pyoBaHMe, 3aenuTe DnCnne C npKpEnHbIM K HEmy IepExoHbIM KpoHHTeHa 3a BepxHnn Kpa KpOHHTeHa dna KpEnHn K cTeHe. nIa fHKcaun yCTpoCTBa 3aTaNHE THXHN 6oNT KPOHHTeHa dna KpENHeN K cTeHe.

Popraok c60pkn

yxo3a n3eennem

• Perynphno (he pexke, yem pa3 B trp Mecaa) npOBepaTe HaedxHoctb KpePHeHna KpoHsTeHa m 6e3oNaChOCTb erO uCNoIb3OBAHHa.
  B clyae Bo3nKHOeHna KaHX-16o BonpocOB nocetnte cpaHny www.triplite.com/support.

Pnayukh Bhoiouc KIRKTHCTB.

1111 W. 35th Street, Chicago, IL 60609 USA - www.triplite.com/support
