Core 60S - Smartphone ARCHOS - Free user manual and instructions

Product type	Smartphone
Brand	Archos
Model	Core 60S
Dimensions	161.8 x 77 x 8.9 mm
Weight	186 g
Display	6-inch IPS, 2.5D curved and laminated
Operating System	Android 7.0 Nougat
Graphics processor	Mali-T820
RAM	1 GB
Internal Storage	16 GB
Expandable Storage	Micro SD up to 128 GB
Battery	3000 mAh removable
Rear Camera	13 MP autofocus + 2 MP + flash
Front Camera	5 MP
Video Recording	1080p at 30 fps
Mobile Network	4G (800/1800/2600 MHz), 3G, 2G
SIM Cards	Dual Nano SIM
Wireless Connectivity	WiFi b/g/n, Bluetooth 4.0, GPS, FM Radio
Ports	Micro USB, 3.5 mm headphone jack
Sensors	Proximity, accelerometer, G-sensor
Power Supply	Wall charger (recommended 5V/1A)
Care and Cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Spare parts and repairability	Removable battery. For other parts, contact Archos support.
General Information	Warranty: see booklet. Made by Archos SA, France.

Frequently Asked Questions - Core 60S ARCHOS

How to insert the SIM card and microSD card?

Use the provided tool to open the tray located on the side of the phone. Insert the Nano SIM card (or two) and the microSD card according to the indicated diagram. Make sure not to force it to avoid damaging the connectors.

How to extend battery life?

Reduce screen brightness, disable unused Bluetooth/WiFi/GPS, close background apps, and activate power saving mode in settings. The 3000 mAh battery is removable: you can replace it if necessary.

How to reset the phone to factory settings?

Go to Settings > Backup & reset > Factory data reset. Confirm. Warning: this erases all your personal data. Backup your files beforehand.

What is the maximum memory card capacity?

The Archos Core 60S supports microSD cards up to 128 GB.

Is the phone waterproof?

No, the Archos Core 60S is not waterproof certified. Avoid contact with water and humidity.

How to update the Android system?

Go to Settings > About phone > System update. The phone will check for available updates. Make sure you are connected to a stable WiFi network and have sufficient battery.

Does the camera have a flash?

Yes, the 13 MP rear sensor is accompanied by a LED flash and a secondary 2 MP depth sensor.

How to transfer files to a computer?

Connect the phone to a PC via the Micro USB cable. Select 'File transfer' (MTP) mode in the notifications. You can then copy your photos, videos, and other documents.

Where to find the complete user manual?

You can download the PDF manual from notice-facile.com or on the official Archos website (www.archos.com).

How to use the FM radio?

Plug in headphones (acting as antenna). Open the FM Radio app. Scan available stations. You can then listen to the radio without internet connection.

USER MANUAL Core 60S ARCHOS

X www.archos.com, click Support > After-sales support

www.archos.com, cliquez Support > Tetecharges Declaration de conformité

4G/3G/2G SIM 1
4G/3G/2G SIM 2
Micro-SD card 3

Matériel

Proceseur, Spreadtrum 9850 Quad Core 1.3GHz

Résolution HD+, 1440x720; 18/9 ratio

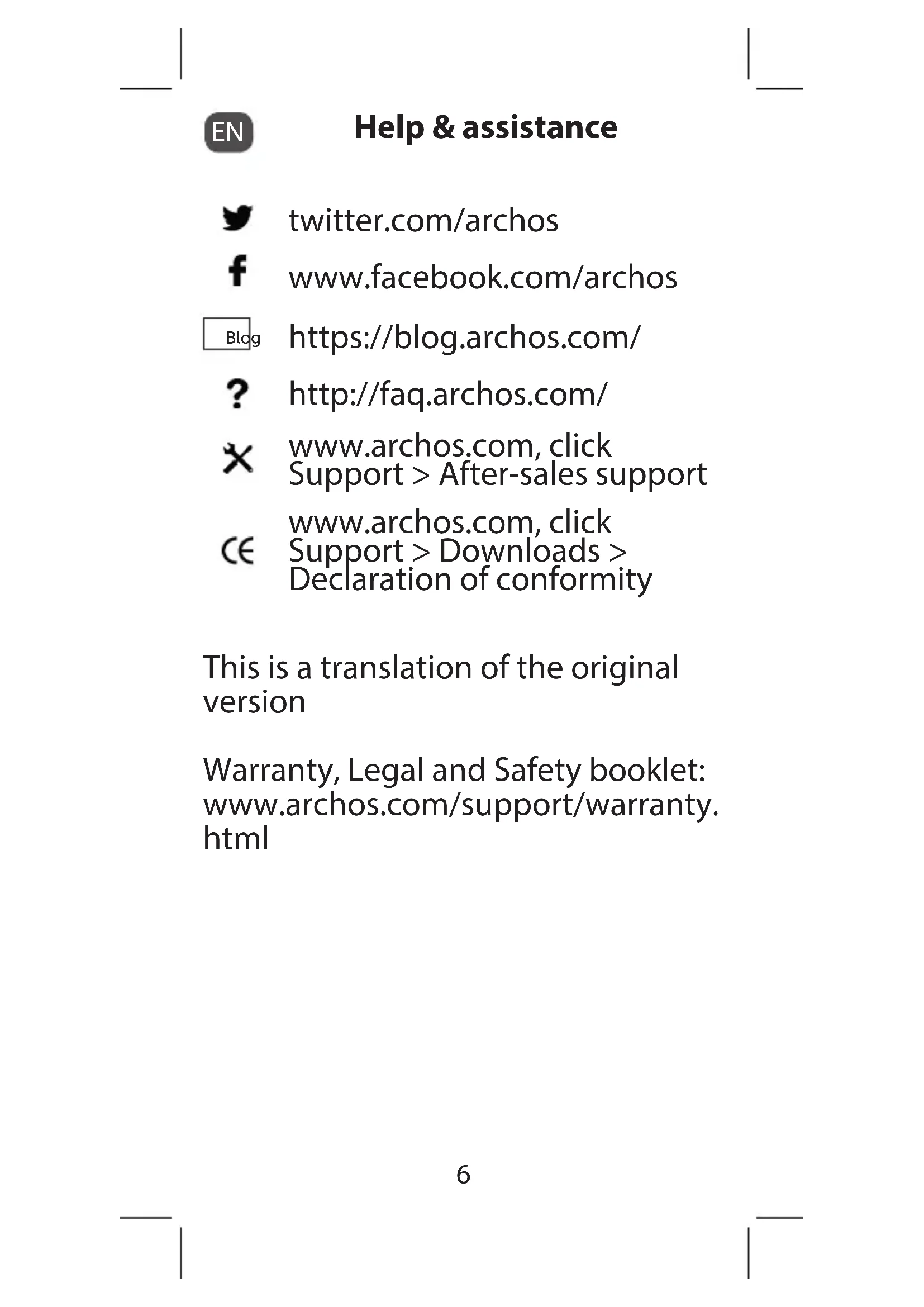

www.archos.com, click Support > Downloads Declaration of conformity

This is a translation of the original version

Warranty, Legal and Safety booklet: www.archos.com/support/warranty. html

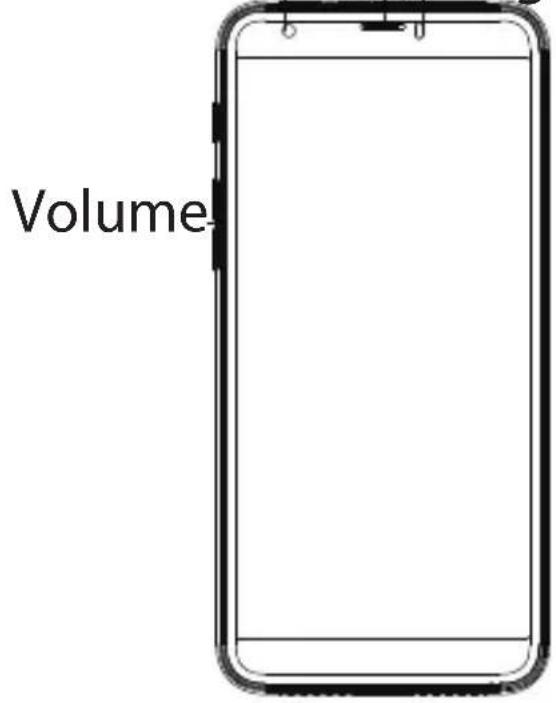

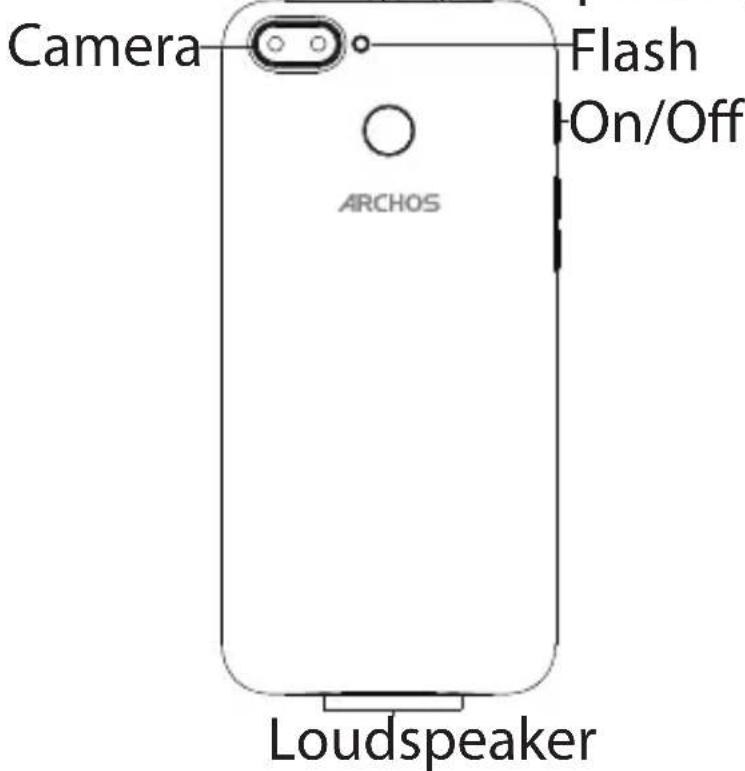

Describing your device EN

Receiver Front camera Light sensor

Micro USB port 1 Headphone jack

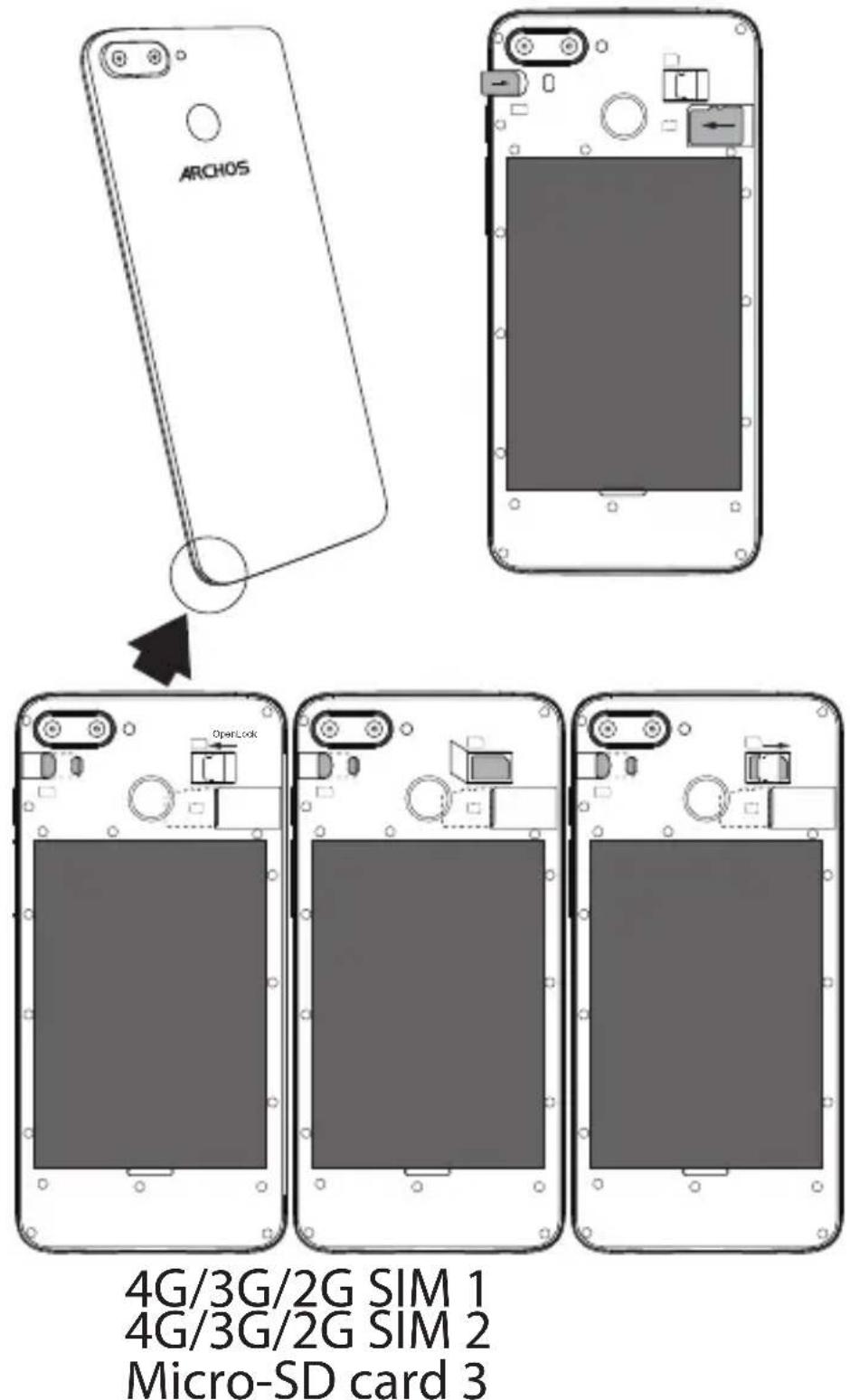

Getting started

When inserting your SIM card or micro-SD card, make sure to follow the illustration, otherwise you may damage the slot or the card.

Willkommen

twitter.com/archos

f www.facebook.com/archos

B

? http://faq.archos.com/

4G/3G/2G SIM 1
4G/3G/2G SIM 2
Micro-SD card 3

Benvenuto

twitter.com/archos

f www.facebook.com/archos

B

? http://faq.archos.com/

4G/3G/2G SIM 1
4G/3G/2G SIM 2
Micro-SD card 3

Kom erbij!

twitter.com/archos

f www.facebook.com/archos

https://blog.archos.com/

? http://faq.archos.com/

X www.archos.com, klik op Support > After-sales support

www.archos.com, click Support > Downloads Declaration of conformity [Conformiteitsverklaring]

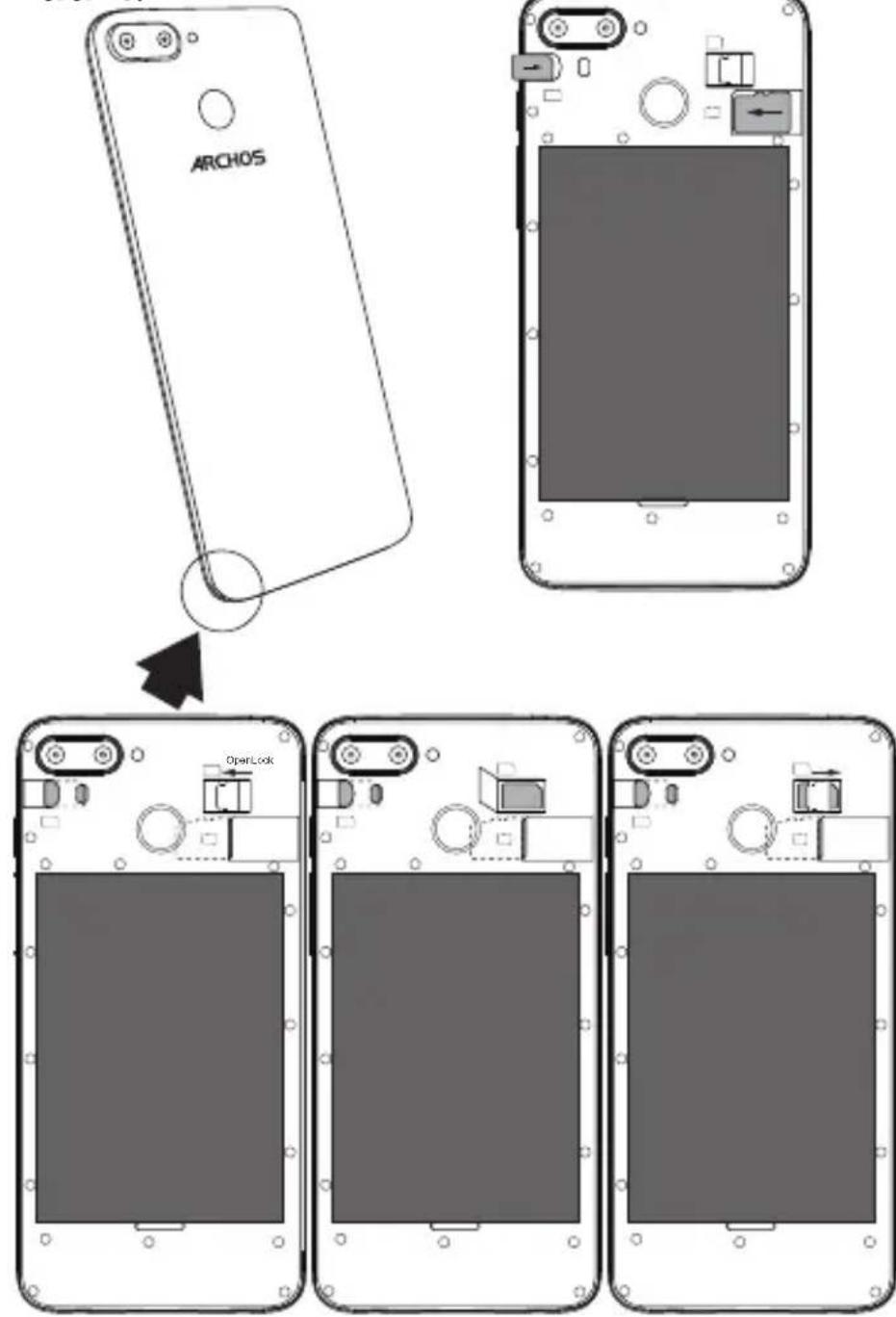

4G/3G/2G SIM 1
4G/3G/2G SIM 2
Micro-SD card 3
20

Junte-se a nós

PT

twitter.com/archos
f www.facebook.com/archos
Bog https://blog.archos.com/
? http://faq.archos.com/
X www.archos.com, clique em Suporte > Suporte pos-venda
www.archos.com, clique em Suporte > TransFERenciais > Declaracao de conformidade

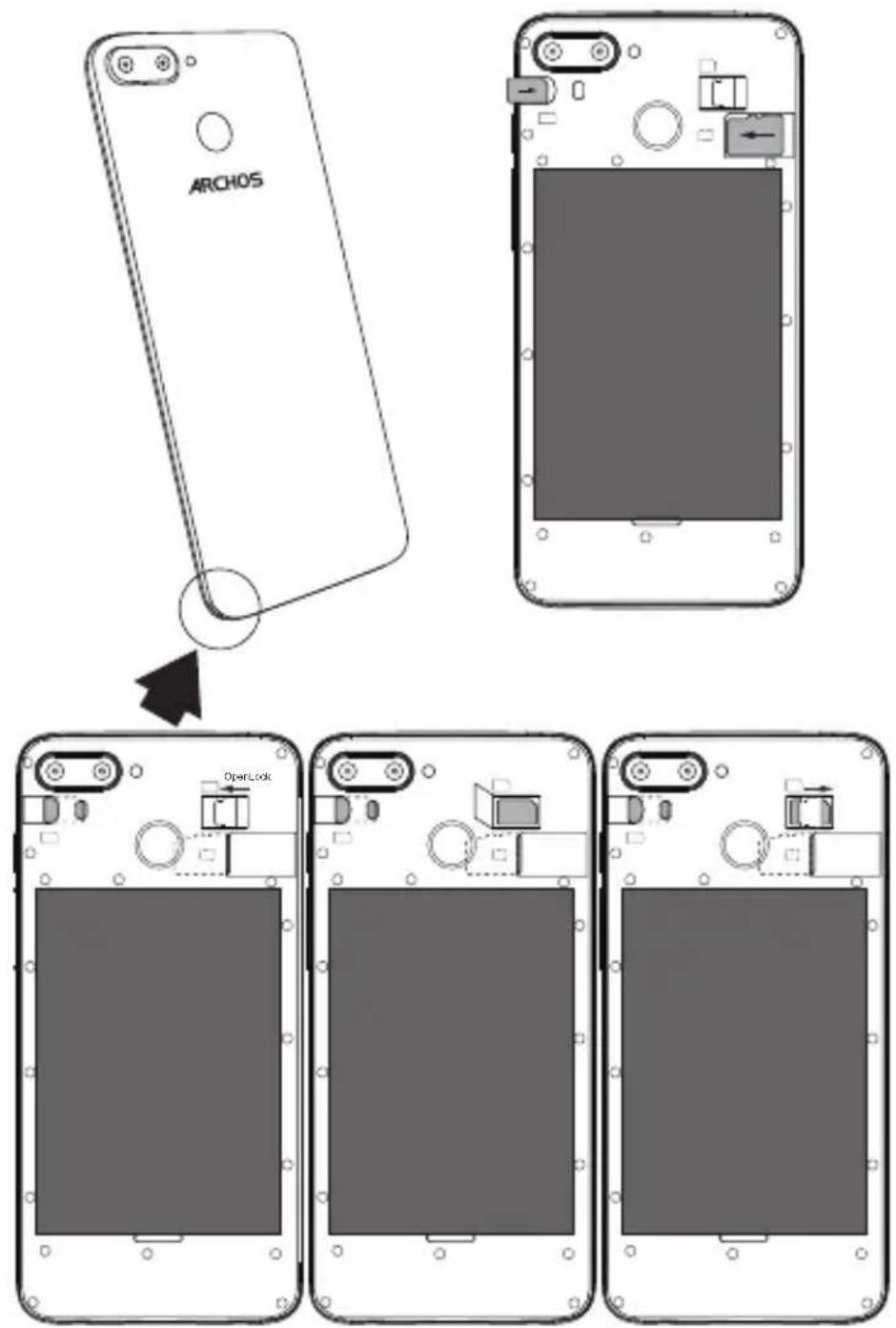

4G/3G/2G SIM 1
4G/3G/2G SIM 2
Micro-SD card 3
29

4G/3G/2G SIM 1
4G/3G/2G SIM 2
Micro-SD card 3

Pomoc a podpora

SK

twitter.com/archos

f www.facebook.com/archos

https://blog.archos.com/

? http://faq.archos.com/

X www.archos.com, kliknite na položku Podpora > Popredajná podpora

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 2014/53/EU) without any limitation except for the countries mentioned below:

Country Restriction ReasonRemark

Bulgaria None General authorization

	required for outdoor use and public service
France Outdoor use limited to 10mW e.i.r.p. within the band2454-2483.5 MHz	Military Radiolocationuse. Refarming of the2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy None If used outside of own	premises, general authorization is required.
Luxembourg None General authorization	required for network and service supply (not for spectrum)
Norway Implemented This subsection does	not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian Federation None Only for indoor	applications
Note: Frequencies 2454-2483.5MHZ are restricted to indoor use in France.

SAR

After the laboratory measurements, when it is kept 0.5cm from your body

the SAR values for this mobile are :

-Head Max:0.470W/Kg (10g)
- Body Max:1.302W/Kg (10g)

Archos company (Contact address : ARCHOS SA 12

Rue Ampère 91430 Igny France) declares that this smartphone ARCHOS Core 60S is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU:

https://www.archos.com/products/conformity.html Par la presente, ARCHOS (adresse de contact :

WMAN
Frequency band	Maximum output power
GSM B2/B3	26~32dBm
GSM B5/B8	29~34dBm
UMTS B1/B8	21~26dBm
FDD LTE B1/B3/B7/B20	21~26dBm
WLAN
Standard	Frequency	Avg. Power [dBm]
802.11b	2.412~2.472GHz	13.61~16.87dBm
802.11g	2.412~2.472GHz	12.93~16.33dBm
802.11n	2.412~2.472GHz	10.58~14.56dBm
Bluetooth
Bluetooth Version	Frequency Range	Avg. Power [dBm]
EDR	2.402~2.480GHz	7.95~8.27dBm
BLE	2.402~2.480GHz	-1.79~0.19dBm

Declaration of Conformity

We, the undersigned (BIManufacturer / The manufacturers authorized representative established within EEA)

Company	ARCHOS S.A.
Address	12 rue Ampere 91430 ligny
Country	France
Telephone number	+(33)1 69 33 16 90
Telefax number	+(33)1 69 33 16 99
E-mail	[e-mail]
Certify and declare under our responsibility that the following product:
Product Description	4G Smart Phone
Manufacturer	ARCHOS S.A.
Brand Name	ARCHOS
ModelType	AC80CRS, Core 608
Is tested to and conforms with the essential test suites included in the following standards, which are in force within the EEA:
Standard		Issue date		Reference to report /file
Draft ETSI EN 301 489-1 V2.2.0		2017-03		STR18018033E-8
Draft ETSI EN 301 489-17 V3.2.0		2017-03		STR18018033E-8
Draft ETSI EN 301 489-19 V2.1.0		2017-03		STR18018033E-8
Draft ETSI EN 301 489-52 V1.1.0		2016-11		STR18018033E-8
EN 55032		2015+AC 2016-07		STR18018033E-8
EN 55035		2017		STR18018033E-8
EN 61000-3-2		2014		STR18018033E-8
EN 61000-3-3		2013		STR18018033E-8
ETSI EN 300 328 V2.1.1 (BT)		2018-11		STR18018033E-5
ETSI EN 300 328 V2.1.1 (WM)		2016-11		STR18018033E-4
ETSI EN 303 413 V1.1.1 (GPS)		2017-06		STR18018033E-6
ETSI EN 301 511 V9.02 (GSM)		2003-03		STR18018033E-1
ETSI EN 301 908-1 V11.1.1 (WCDMA)		2016-07		STR18018033E-2
ETSI EN 301 908-2 V11.1.2 (WCDMA)		2017-08		STR18018033E-2
ETSI EN 301 908-13 V11.1.1 (LTE)		2017-07		STR18018033E-3
Final draft ETSI EN 300 346 V1.1.7 (FM)		2017-03		STR18018033E-7
EN 62470		2010		STR18018033H
EN 50380		2017		STR18018033H
EN 62209-1		2015		STR18018033H
EN 62209-2		2010		STR18018033H
EN 50566		2017		STR18018033H
EN 60950-1		2006+A11:2009+A1:2010+A12:2011+A2:2013		STR18018033H
EN 50332-1		2013		STR18018033H
EN 50332-2		2013		STR18018033H
And therefore complies with the essential requirements of the following directives:
Directive Name	Directive number			Further identification
RED Directive	2014/53/EU
EMC Directive	2014/30/EU
LVD Directive	2014/35/EU			Year of affixing the CE Marking: 2018
ERP Directive	2009/125/EC
RoHS Directive	2011/A65/EU
Battery Directive	2008/66/EC
The following Notified Bodies have been consulted in the Conformity Assessment procedure of RED Directive (whenever applicable):
Notified Body number	PHOENIX TESTLAB GmbH
PHOCENIX TESTLAB GmbHKonigswinkel 10D-32825 Blomberg, Germanyhttp://ec.europa.eu/growth/hooti-databases/nando/index.cfm?fuseaction=directive.nb&ref=cd=EPOS 44015
The technical documentation as required by the conformity assessment procedure is kept at the following address for a period ending at least 10 years after the last product has been manufactured at the disposal of the relevant national authorities of any Member State for inspection:
Company	ARCHOS S.A.
Address	12 rue Ampere 91430 ligny
Country	France
Telephone number	+(36)75583734678
Telefax number	+(36)75583734621
E-mail	[e-mail]
Product is CE-marked in	Europe
CE	Name of authorized officer	Jacky WU	Title of authorized officer		General Manager
	Drawn up in			2018.2.27
	Signature and Company Stamp
