| Product type | Smartphone |
| Brand and model | ARCHOS Core 55S Ultra |
| Dimensions | 150 x 71.5 x 9.45 mm |
| Weight | 169 g |
| Operating system | Android 7.0 Nougat |
| Processor | Spreadtrum SC9850 Quad Core 1.3 GHz |
| RAM memory | 2 GB |
| Internal storage | 32 GB |
| Expandable storage | Yes, microSD up to 128 GB |
| Screen size | 5.45 inches (diagonal) |
| Screen resolution | qHD 960 x 480 pixels |
| Screen technology | TN, 2.5D curved |
| Mobile networks | 2G (900/1800 MHz), 3G (900/2100 MHz), 4G (B1/B3/B7/B20) |
| Wi-Fi | 802.11 b/g/n, Wi-Fi Direct, Wi-Fi Display |
| Bluetooth | 4.0 |
| GPS | Yes |
| FM radio | Yes |
| Rear camera | 8 MP with autofocus |
| Front camera | 2 MP fixed |
| Video recording | 1080p at 30 fps |
| Battery | 2300 mAh removable lithium-ion |
| Charger | 5V 700 mA, micro USB |
| Audio jack | 3.5 mm mini-jack |
| Sensors | Proximity, G-sensor (accelerometer) |
| Warranty and compliance | Consult the online warranty booklet and declaration of conformity on the ARCHOS website |
Frequently Asked Questions - Core 55S Ultra ARCHOS
User questions about Core 55S Ultra ARCHOS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Smartphone in PDF format for free! Find your manual Core 55S Ultra - ARCHOS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Core 55S Ultra by ARCHOS.
USER MANUAL Core 55S Ultra ARCHOS
ARCHOS Core 55 ^S Ultra
Quick start guide
× www.archos.com, click Support > After-sales support


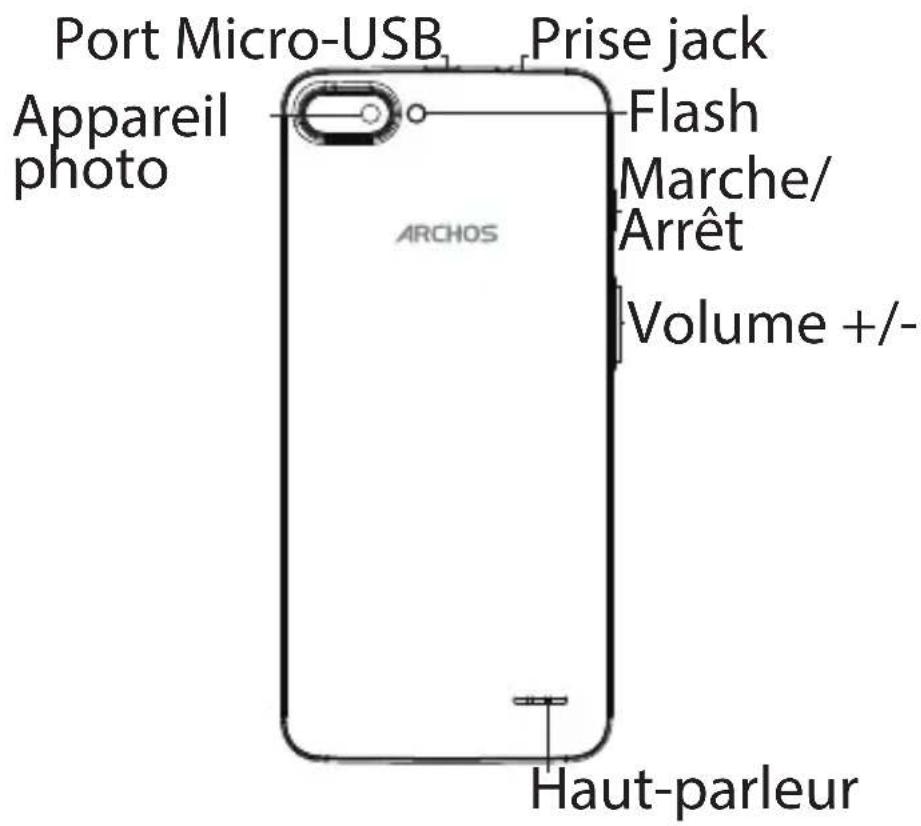

FR
Démarrage
4G Oui;800/1800/2600 MHz

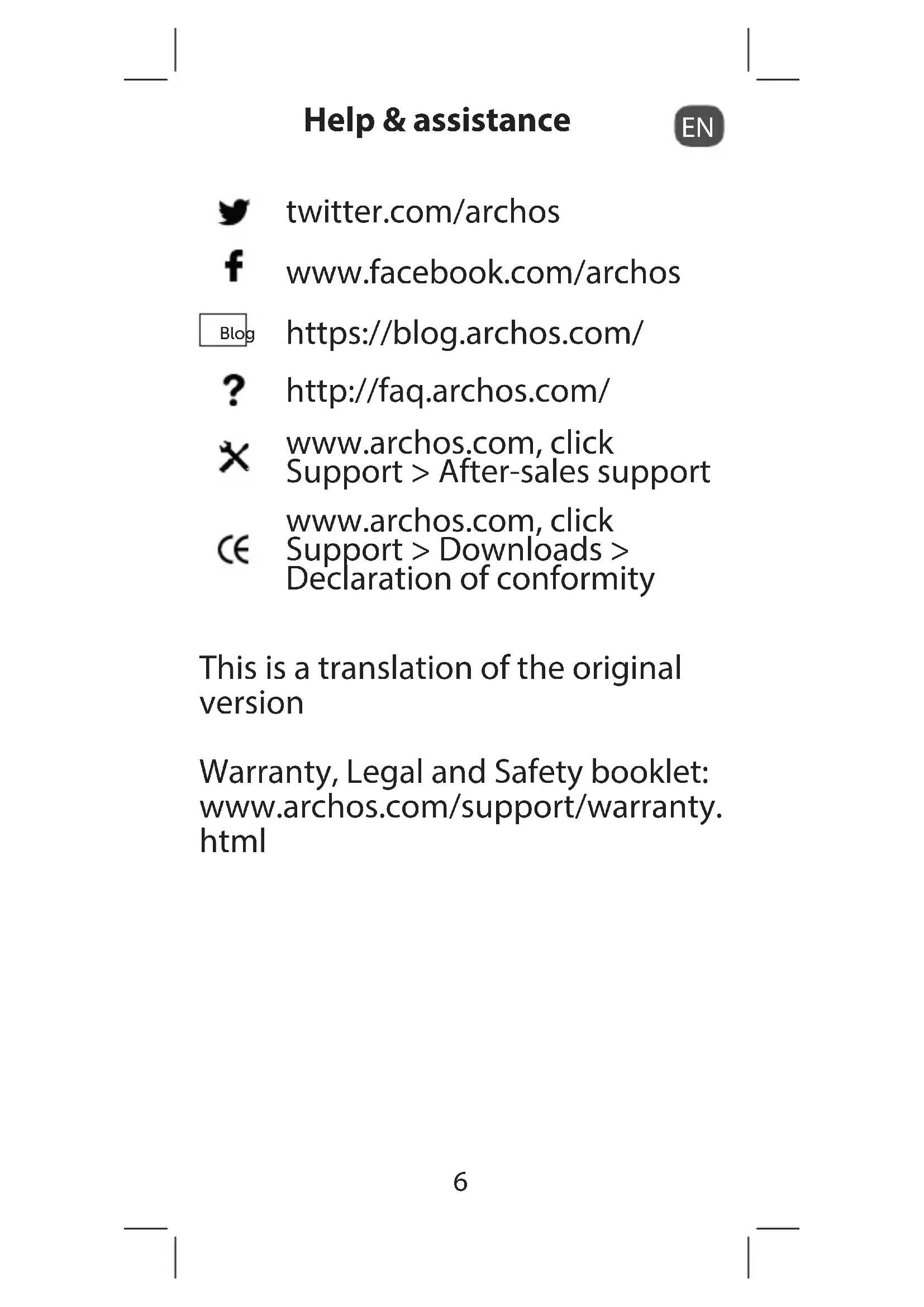

× www.archos.com, click Support > After-sales support
www.archos.com, click Support > Downloads > Declaration of conformity
This is a translation of the original version
Warranty, Legal and Safety booklet: www.archos.com/support/warranty.html

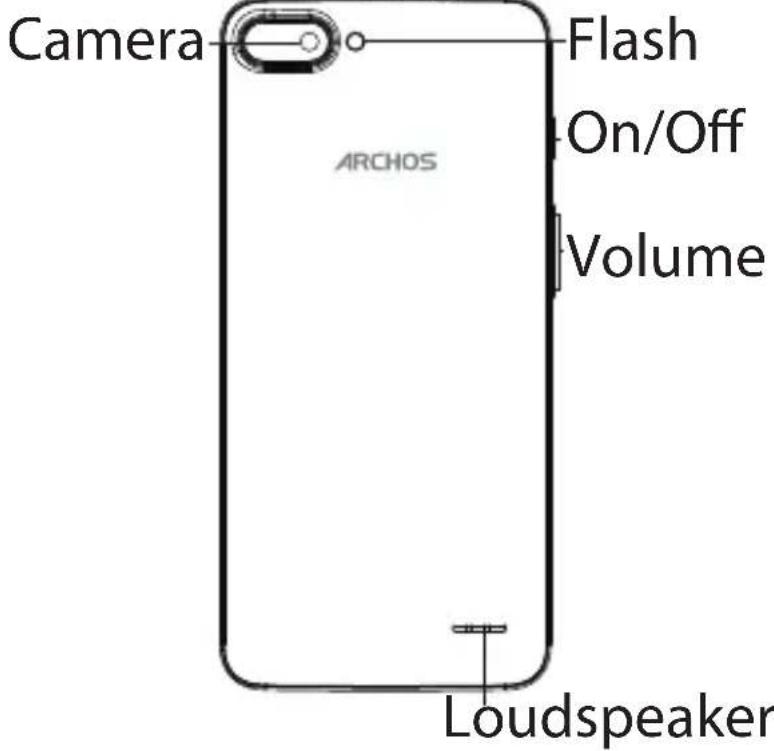

Describing your device
Receiver Front camera Light sensor
EN
Getting started

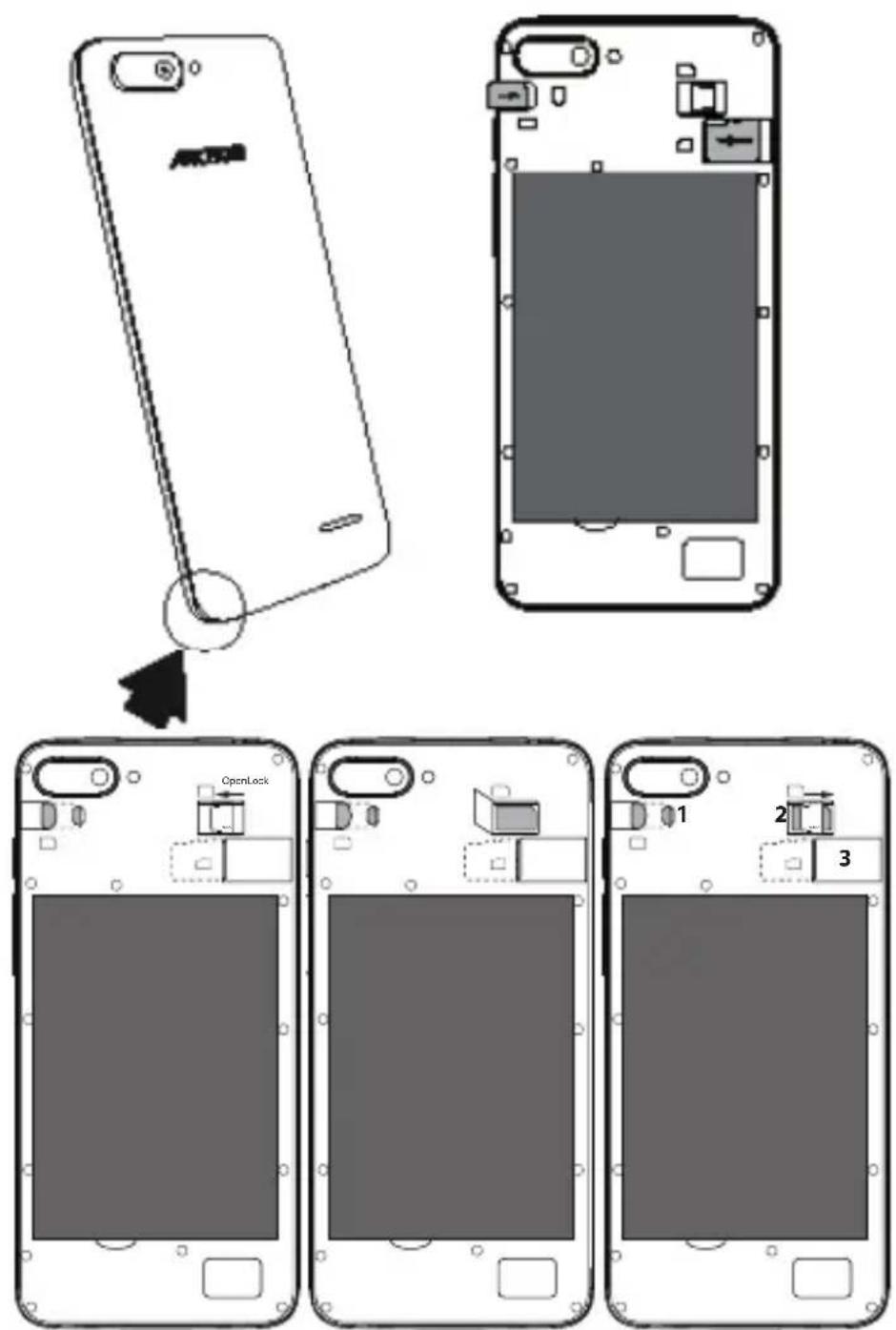

When inserting your SIM card or micro-SD card, make sure to follow the illustration, otherwise you may damage the slot or the card.
| 4G/3G/2G SIM | 1 |
| 4G/3G/2G SIM | 2 |
| Micro-SD card | 3 |
DE

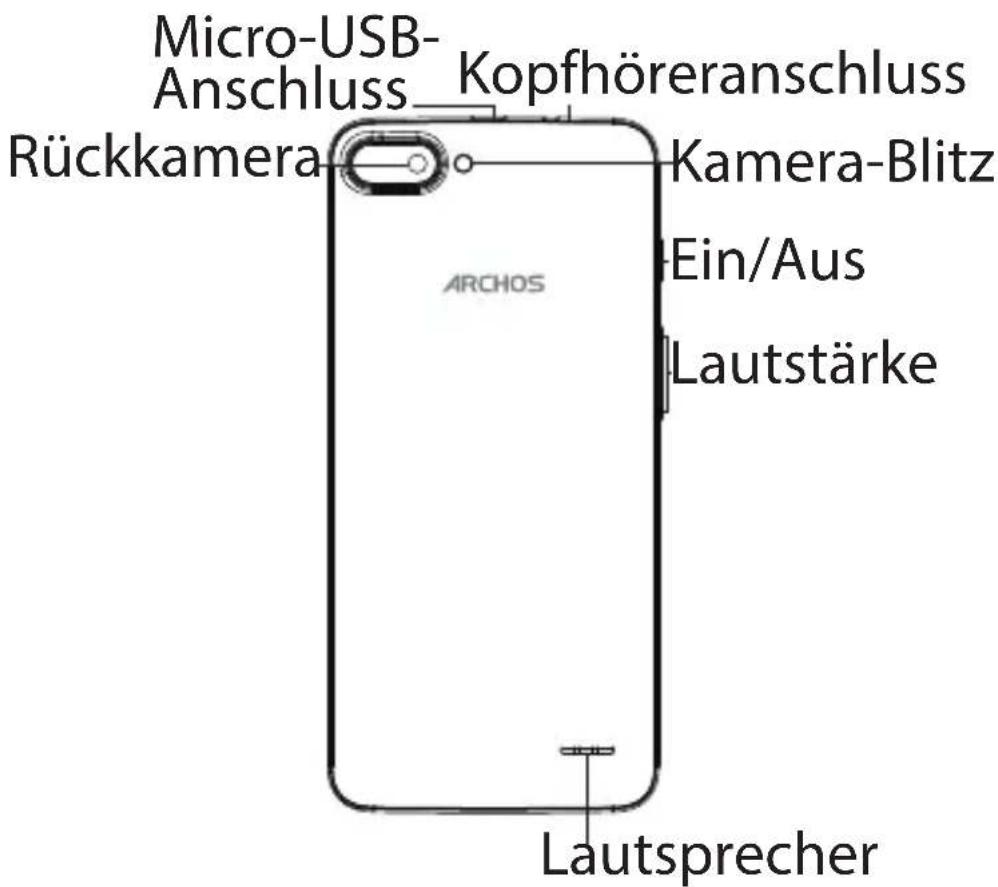

Willkommen
twitter.com/archos
f www.facebook.com/archos
Blog https://blog.archos.com/
? http://faq.archos.com/
| 4G/3G/2G SIM 1 | |
| 4G/3G/2G SIM 2 | |
| Micro-SD card 3 |
ES

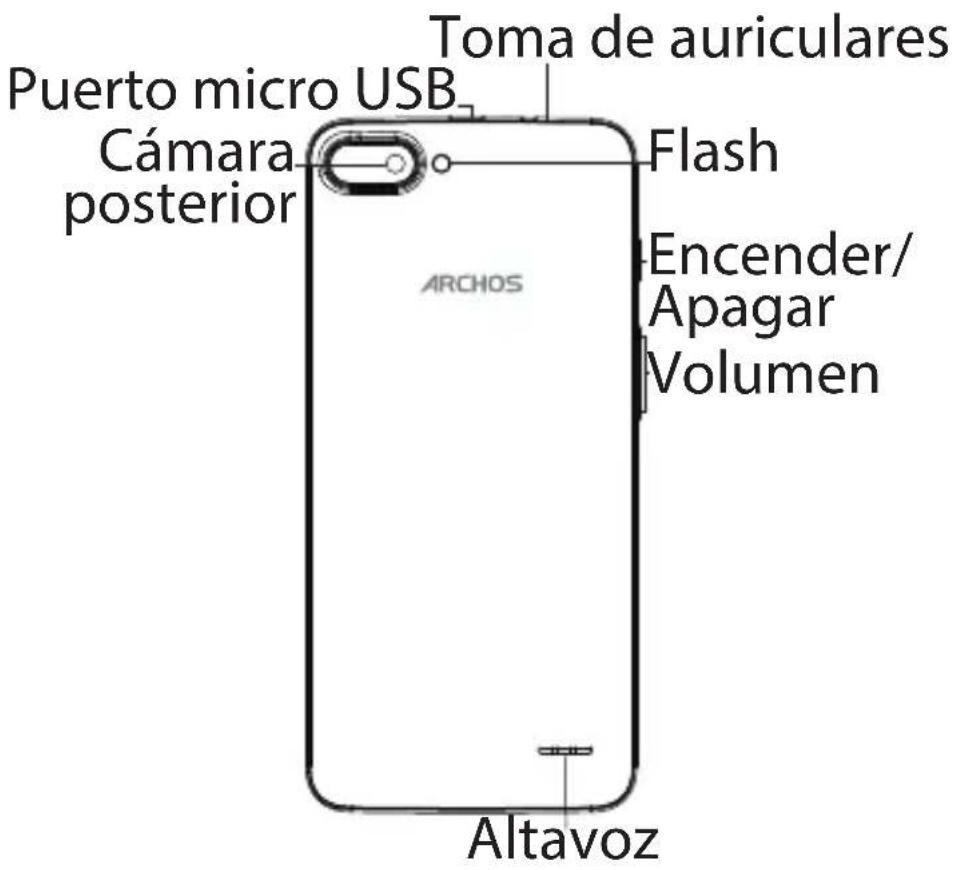

Nuestra comunidad
twitter.com/archos f www.facebook.com/archos
Blog https://blog.archos.com/
| 4G/3G/2G SIM | 1 |
| 4G/3G/2G SIM | 2 |
| Micro-SD card | 3 |

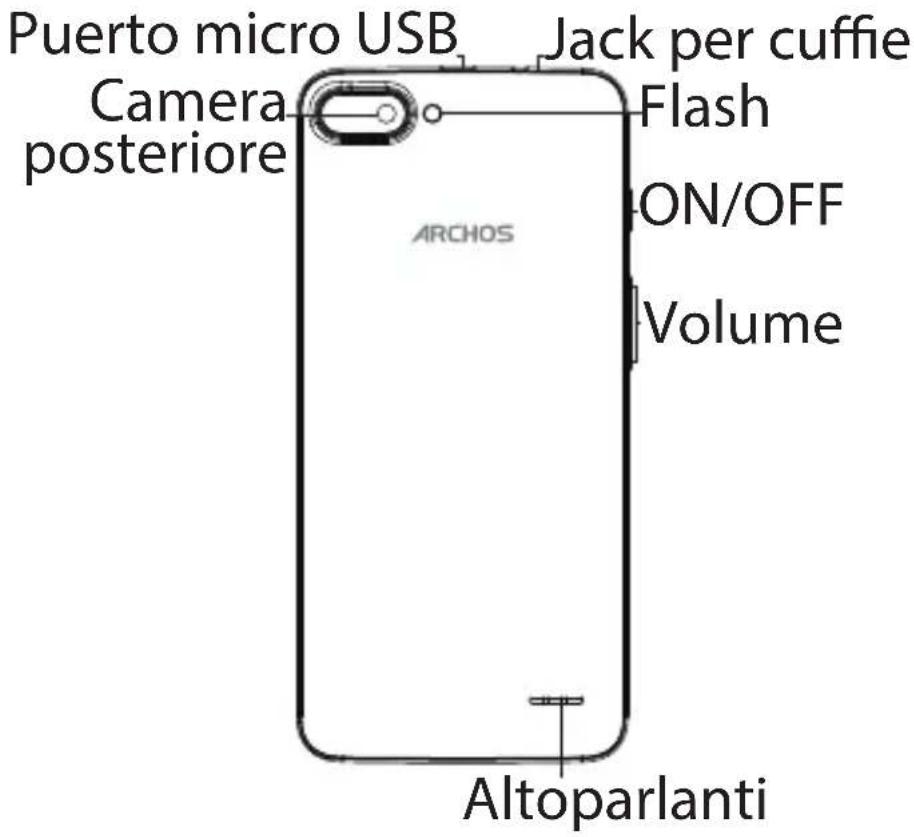

Benvenuto
IT
twitter.com/archos
f www.facebook.com/archos
Blog https://blog.archos.com/
? http://faq.archos.com/
www.archos.com, fai clic su Assistenza > Supporto post vendita
www.archos.com, fai clic Assistenza > Download > Dichiarazione di conformità
Primeros pasos
| 4G/3G/2G SIM | 1 |
| 4G/3G/2G SIM | 2 |
| Micro-SD card | 3 |
NL
Kom erbij!
twitter.com/archos
f www.facebook.com/archos
Blog https://blog.archos.com/
? http://faq.archos.com/
× www.archos.com, klik op Support > After-sales support
www.archos.com, click Support > Downloads > Declaration of conformity [Conformiteitsverklaring]
| 4G/3G/2G SIM 2 |
| Micro-SD card 3 |

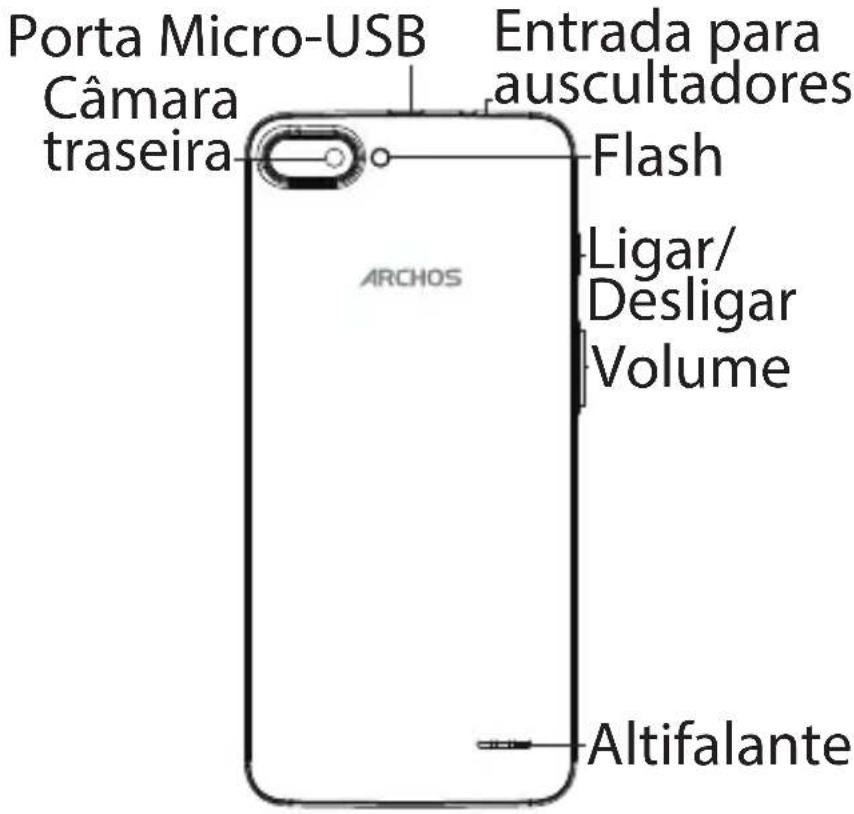

Junte-se a nós
twitter.com/archos
f www.facebook.com/archos
Blog https://blog.archos.com/
? http://faq.archos.com/
| 4G/3G/2G SIM | 1 |
| 4G/3G/2G SIM | 2 |
| Micro-SD card | 3 |

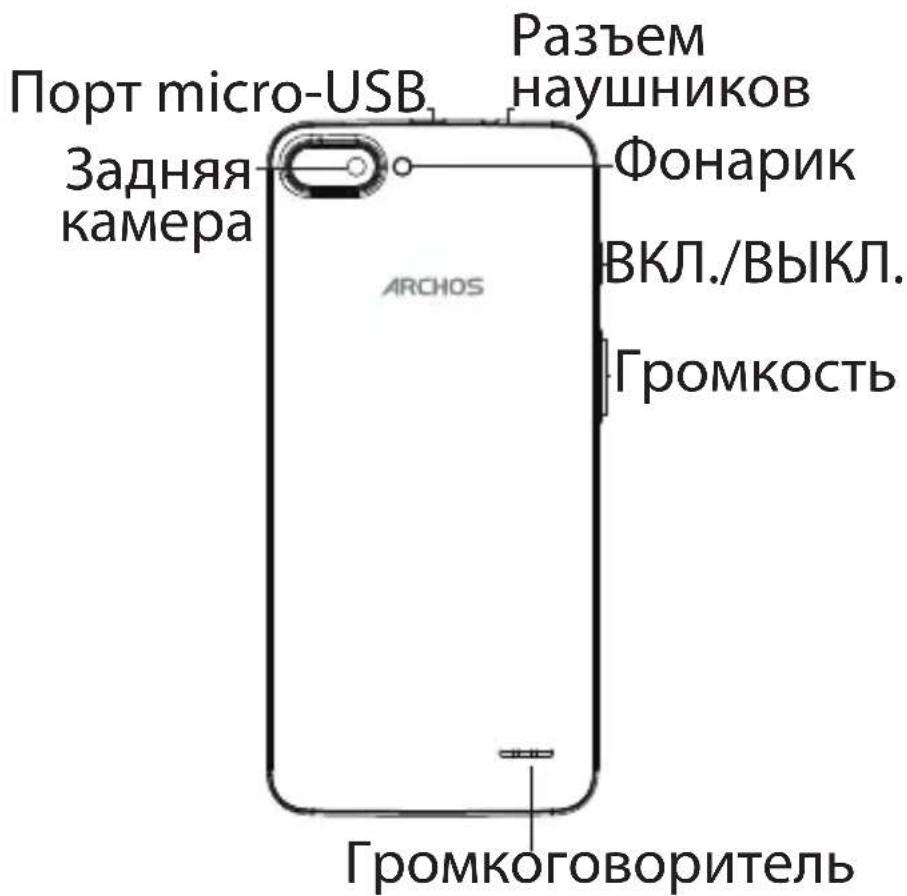

RU
| 4G/3G/2G SIM | 1 |
| 4G/3G/2G SIM | 2 |
| Micro-SD card | 3 |

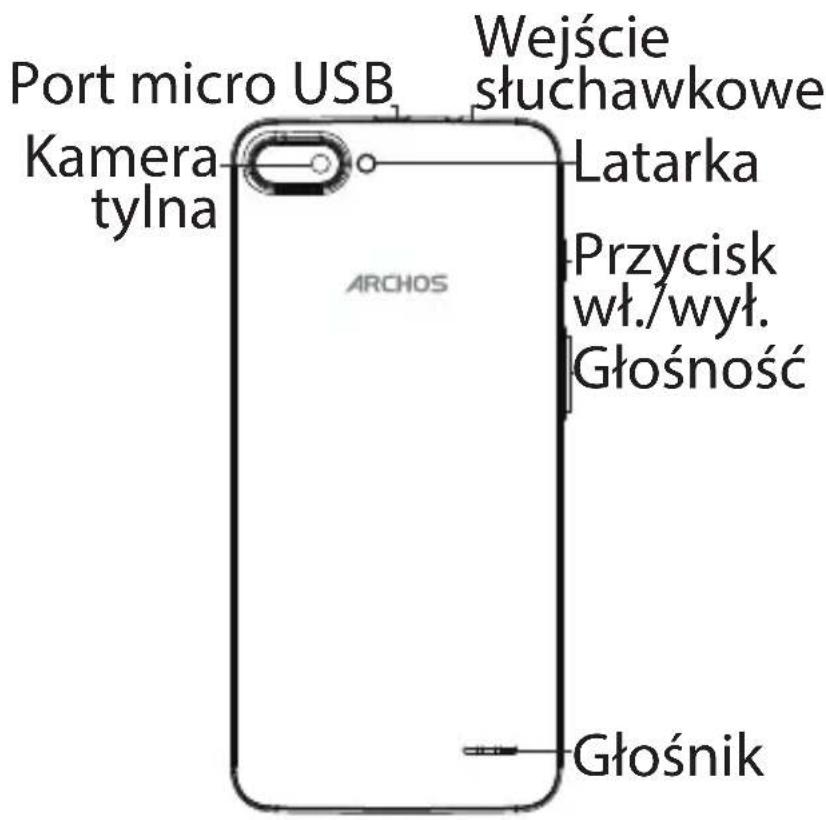

Dołącz do nas
twitter.com/archos f www.facebook.com/archos
Blog https://blog.archos.com/
? http://faq.archos.com/
✗ www.archos.com, kliknij Support > After-sales support
www.archos.com, kliknij
CE Support > Downloads > Declaration of conformity
| 4G/3G/2G SIM 1 |
| 4G/3G/2G SIM 2 |
| Micro-SD card 3 |
| 4G/3G/2G SIM | 2 |
| Micro-SD card | 3 |
CZ

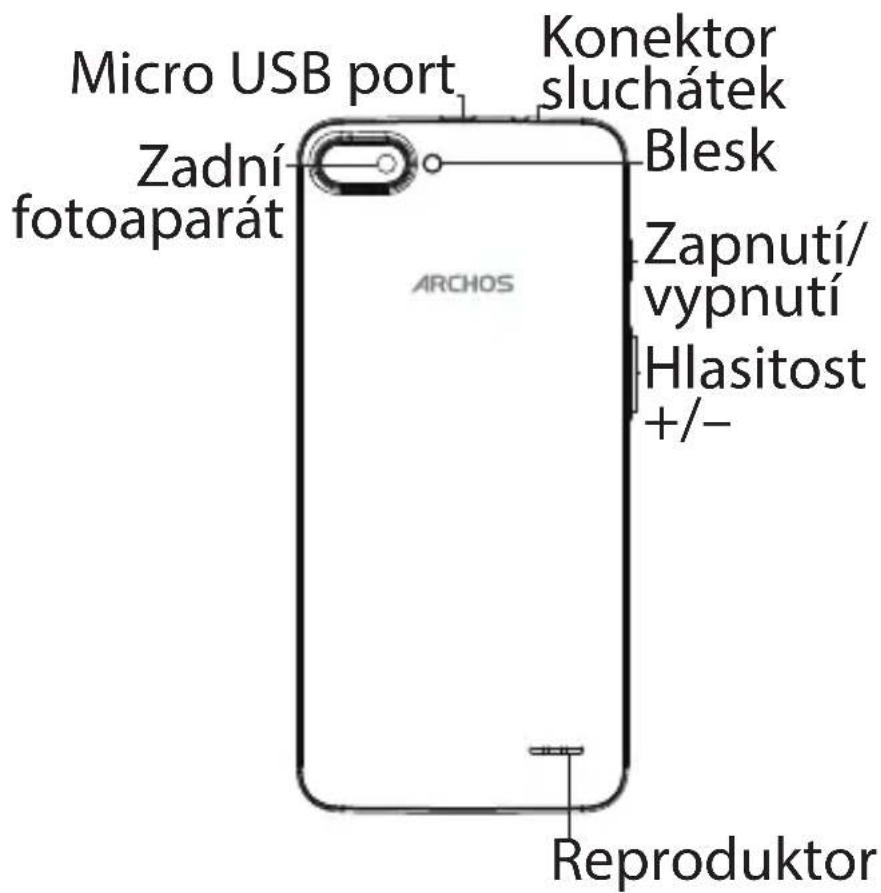

Návod k použití
twitter.com/archos
f www.facebook.com/archos
Blog https://blog.archos.com/
? http://faq.archos.com/
| 4G/3G/2G SIM | 1 |
| 4G/3G/2G SIM | 2 |
| Micro-SD card | 3 |

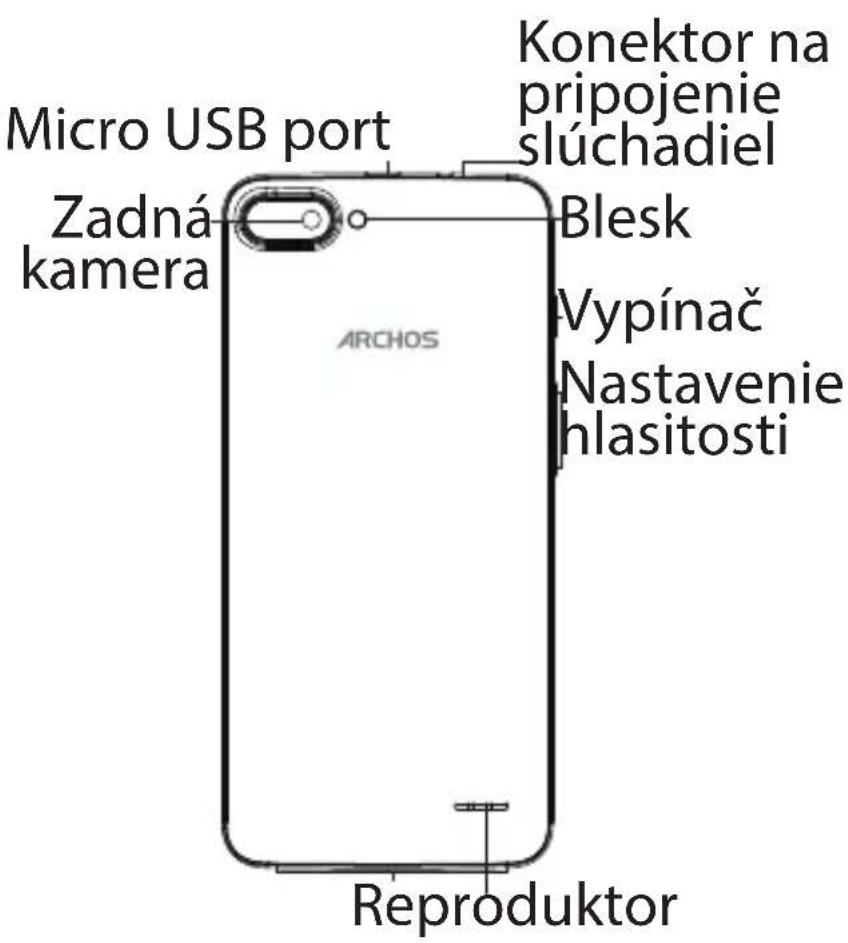

Pomoc a podpora
twitter.com/archos f www.facebook.com/archos
Blog https://blog.archos.com/
Zloženie
National restrictions
This device is intended for home and office use in all EU countries (and other countries following the EU directive 2014/53/EU) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None General authorization
| France Outdoor use limited to 10mW e.i.r.p. within the band2454-2483.5 MHz | required for outdoor use and public service Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 |
| Italy None If used outside of own | premises, general authorization is required. |
| Luxembourg None General authorization | required for network and service supply (not for spectrum) |
| Norway Implemented This subsection does | not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund |
| Russian Federation None Only for indoor | applications |
| Note: Frequencies 2454-2483.5MHZ are restricted to indoor use in France. | |
SAR
After the laboratory measurements, when it is kept 0.5cm from your body the SAR values for this mobile are :
- Head Max:0.426W/Kg (10g)
- Body Max:1.344W/Kg (10g)
Archos company (Contact address : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that this smartphone ARCHOS Core 55S Ultra is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU:
Declaration of Conformity
We, the undersigned (Manufacturer / □ The manufacturers authorized representative established within EEA):
| Company | ARCHOS S.A | |
| Address | 12 rue Ampere 91430 Igny | |
| Country | France | |
| Telephone number | +(33)1 69 33 16 90 | |
| Telefax number | +(33)1 69 33 16 99 | |
| wu@archos.com | ||
| Certify and declare under our responsibility that the following product: | ||
| Product Description | 4G Smart Phone | |
| Manufacturer | ARCHOS S.A. | |
| Brand Name | ARCHOS | |
| Model/Type | AC55CRS, Core 55S , Core 55S Ultra | |
| Is tested to and conforms with the essential test suites included in the following standards, which are in force within the EEA: | ||
| Standard | Issue date | Reference to report /file |
| Draft ETSI EN 301 489-1 V2.2.0 | 2017-03 | STR18018227E-8 |
| Draft ETSI EN 301 489-17 V3.2.0 | 2017-03 | STR18018227E-8 |
| Draft ETSI EN 301 489-19 V2.1.0 | 2017-03 | STR18018227E-8 |
| Draft ETSI EN 301 489-52 V1.1.0 | 2016-11 | STR18018227E-8 |
| EN 55032 | 2015+AC: 2016-07 | STR18018227E-8 |
| EN 55035 | 2017 | STR18018227E-8 |
| EN 61000-3-2 | 2014 | STR18018227E-8 |
| EN 61000-3-3 | 2013 | STR18018227E-8 |
| ETSI EN 300 328 V2.1.1 (BT) | 2016-11 | STR18018227E-5 |
| ETSI EN 300 328 V2.1.1 (Wi) | 2016-11 | STR18018227E-4 |
| ETSI EN 303 413 V1.1.1 (GPS) | 2017-06 | STR18018227E-6 |
| ETSI EN 301 511 V9.0.2 (GSM) | 2003-03 | STR18018227E-1 |
| ETSI EN 301 908-1 V11.1.1 (WCDMA) | 2016-07 | STR18018227E-2 |
| ETSI EN 301 908-2 V11.1.2 (WCDMA) | 2017-06 | STR18018227E-2 |
| ETSI EN 301 908-13 V11.1.1 (LTE) | 2017-07 | STR18018227E-3 |
| Final draft ETSI EN 303 345 V1.1.7 (FM) | 2017-03 | STR18018227E-7 |
| EN 62479 | 2010 | STR18018227H |
| EN 50960 | 2017 | STR18018227H |
| EN 62209-1 | 2016 | STR18018227H |
| EN 62209-2 | 2010 | STR18018227H |
| EN 50568 | 2017 | STR18018227H |
| EN 60960-1 | 2006+A11:2009+A1:2010+A12:2011+A2:2013 | STR18018227S |
| EN 50332-1 | 2013 | STR18018227S |
| EN 50332-2 | 2013 | STR18018227S |
| And therefore complies with the essential requirements of the following directives: | ||
| Directive Name | Directive number | Further identification |
| RED Directive | 2014/53/EU | |
| EMC Directive | 2014/30/EU | |
| LVD Directive | 2014/35/EU | Year of affixing the CE Marking: 2018 |
| ERP Directive | 2009/125/EC | |
| RoHS Directive | 2011/66/EU | |
| Battery Directive | 2006/66/EC | |
| The following Notified Bodies have been consulted in the Conformity Assessment procedure of RED Directive (whenever applicable): | ||
| Notified Body number | PHOENIX TESTLAB GmbH | |||
| PHOENIX TESTLAB GmbHKonigswinkel 10D-32825 Blomberg, Germanyhttp://ec.europa.eu/growth/tools-databases/nando/index.cfm?fuseaction=directive.nb&refe_cd=EPOS_44015 | ||||
| The technical documentation as required by the conformity assessment procedure is kept at the following address for a period ending at least 10 years after the last product has been manufactured at the disposal of the relevant national authorities of any Member State for inspection: | ||||
| Company | ARCHOS S.A. | |||
| Address | 12,rue Ampere 91430 Igny | |||
| Country | France | |||
| Telephone number | +(88)75583734678 | |||
| Telefax number | +(88)75583734821 | |||
| wu@archos.com | ||||
| Product is CE-marked in | Europe | |||
 | Name of authorized officer: | Jacky WU | Title of authorized officer | General Manager |
| Drawn up in | ||||
| Date | 2018.3.12 | |||
| ### | ||||
| Signature and Company Stamp | ||||
