USER MANUAL 50b Cobalt Lite ARCHOS

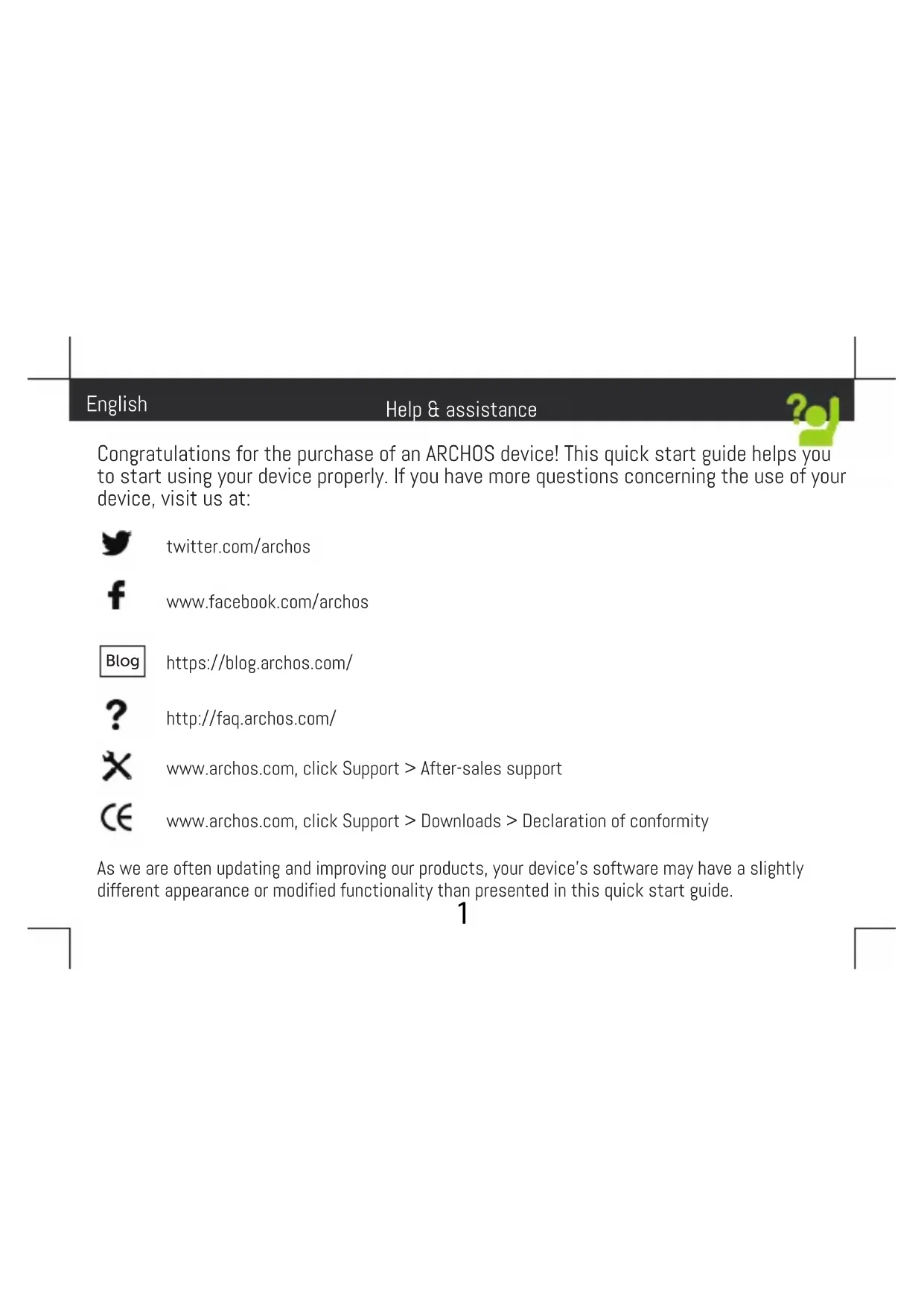

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:
twitter.com/archos
www.facebook.com/archos
Blog
https://blog.archos.com/
http://faq.archos.com/
www.archos.com, click Support > After-sales support
www.archos.com, click Support > Downloads > Declaration of conformity
As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.
Unboxing
Quick start guide
Warranty, legal and safety notice
ARCHOS 50b Cobalt Lite
Charger adapter
Charging cable

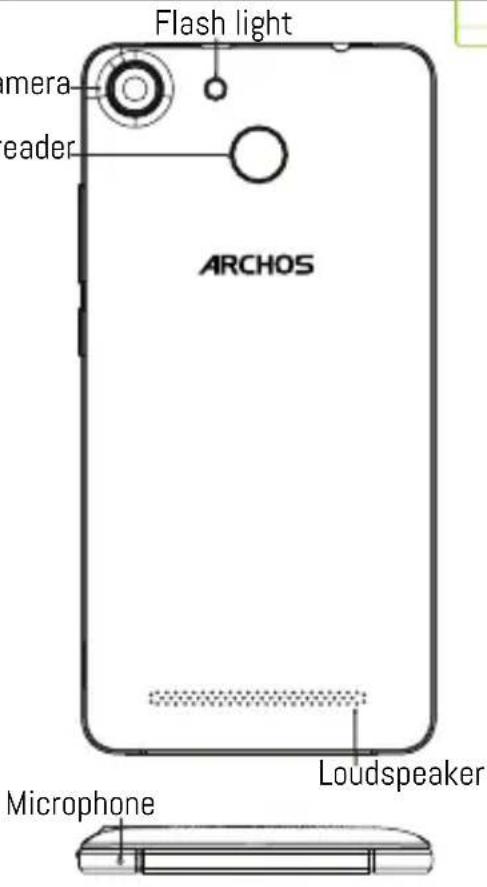

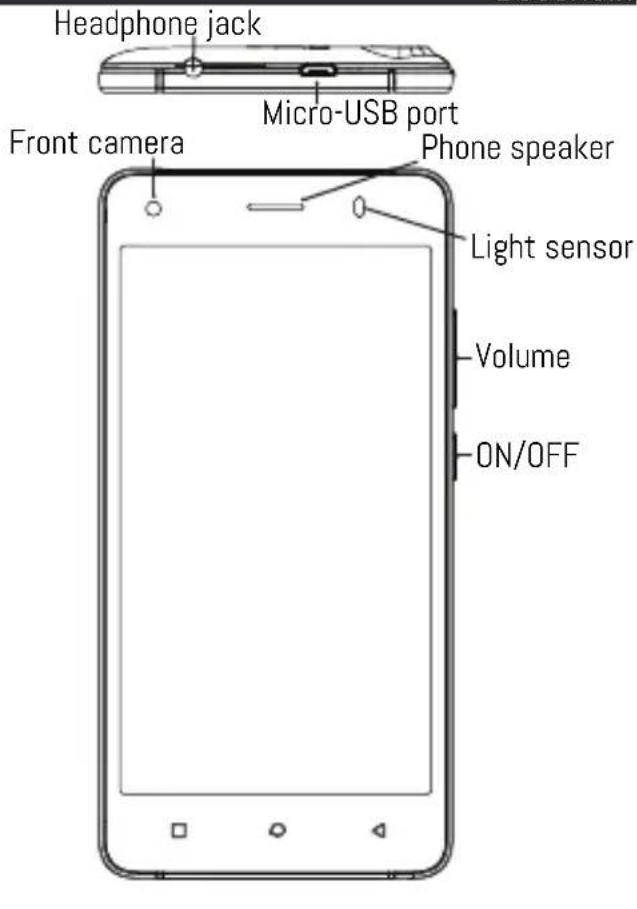

Describing your device
3

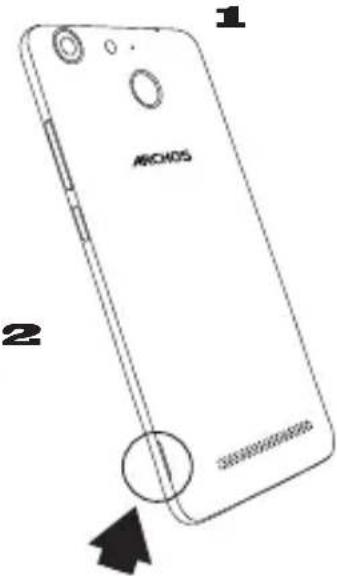

Assembling
After you have unpacked your mobile phone box:
- Remove the device's back cover using the notch.
- Insert your SIM card or Memory card in the corresponding slot.
- Insert the device's battery.
- Replace the back cover.
| Card type Slot Format | |
| 4G slot 1 Micro-SIM | |
| 4G slot 2 Micro-SIM | |
| Memory card slot 3 Micro-SD |
When inserting your SIM card or micro-SD card, make sure to follow the illustration, otherwise you may damage the slot or the card.
Charging your battery completely
Plug the charging cable in the micro USB port and the adapter in a power outlet.
Leave the device until the battery is fully charged. Turning ON
- Press and hold the ON/OFF button to turn on the device.
- Follow the instructions to set up your device. Activating mobile date connection (4G)
- Touch and pull down the status bar to display it.
- Touch again the bar to reveal the quick settings.
- Select the Settings icon.
- In Wireless & networks, select Data usage, then the SIM card tab.
- Slide the Mobile data switch to turn on/off. Activating WiFi connection
- Touch and pull down the status bar to display it.
- Touch again the bar to reveal the quick settings.
- Select the WiFi icon to activate the WiFi
connection .
- Select "WiFi" below the WiFi icon.
- Touch the name of network you want to connect to.
Private networks are shown with a lock icon and will require you to enter your password.
Fingerprint reader
Use the fingerprint option to secure your device.
- Select Settings>Security, then Fingerprint.
- Select Continue.
- Select a pattern as an alternative in case of being not able to use the fingerprint option.
- Follow the onscreen instructions.
- Record your finger in different positions for a better detection.
- You can add up to 5 fingerprints.
Troubleshooting
- My SIM card is not detected: make sure to have a valid SIM card. Insert the SIM card according to the process shown in the Assembling page. Try to contact your provider to renew the card if it is faulty.
- My device is frozen: press the ON/OFF button for more than 10 seconds or remove the battery and replace it.
- My device encounters dysfunctions: go to Settings > About phone > Check for update system to check for updates. If your device is up-to-date, try to reset the device from Settings > Factory data reset > Backup & restore. We recommend to save your files before resetting.
- My WiFi reception is too low: make sure you are not far from the WiFi hotspot. Update the firmware of the device: http://www.archos.com/support. Reset and redefine your connection parameters. Contact your WiFi connection provider.
- My device bootlogo is playing in a loop: you need to completely reset your device. Go to faq.archos.com and select your device. In Backup & Recovery, select How to reinitialize my ARCHOS.
- My device doesn't recognize my password or PIN: when setting a lock screen, select a code easy to remember. In some cases, you need to enter your email or to reset totally your device. See our FAQs.
FOR MORE ANSWERS ABOUT YOUR TECHNICAL DIFFICULTIES, DO NOT HESITATE TO VISIT: FAQ.ARCHOS. COM
François
Contactez-nous
www.archos.com, click Support > After-sales support
www.archos.com, cliquez Support > Telechargesments > Déclaration de conformité
LA PAGE:FAQ.ARCHOS.COM
Deutsch
Willkommen
TapaHTnN nHCTpyKcNnNo 6e3oNaCHOCTN
KpaTkoe pyKOBOdCTBO
AanTep 3apHOro yctpoiCTBa
Ka6eIb 3apAnHoro yctpoiCTBa

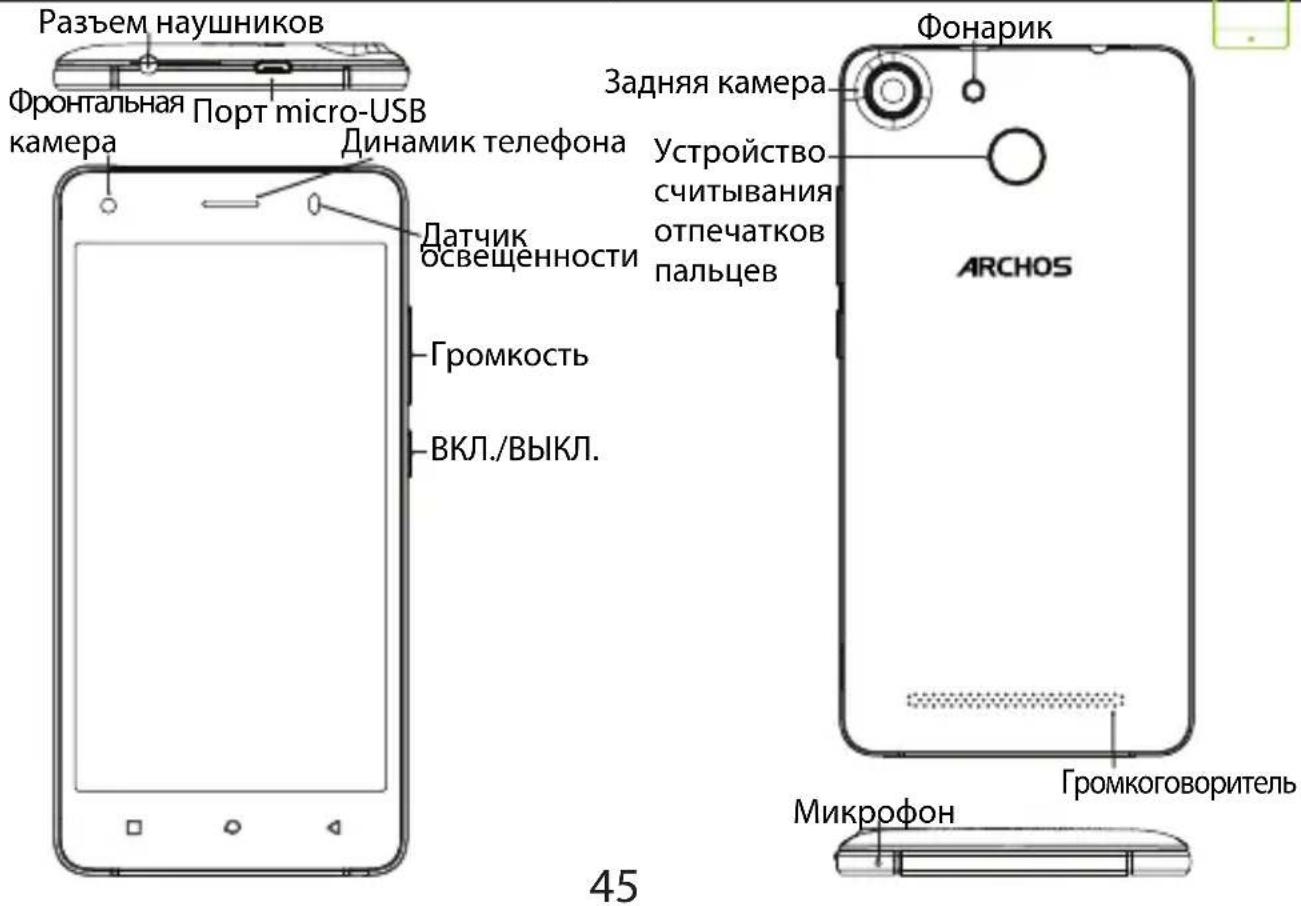

Oncanhe yctpoiCTBa
C6opka
Iocne n3BleueHnMo6nIbHOro TepeOHa n3 Kopo6Kn:
- Chmnte 3aHIOU KpbIuKy yCTpoNCTBa c NOMOuNo na3a.
- BCTaBbTe SIM-KapTy B COOTBeTCTByIOuee rHe3do.
- BCTaBbTe aKKymyIaTOp bYcTpoIcTBO.
- YctaHOBNTe Ha MeCTO 3aHIO KpbIiKy.
- Whc shumulat urucetizn
4.Zah2klapketylna
| Typ karty Otovor Hornat | |
| 4G 1 Micro-SIM | |
| 4G 2 Micro-SIM | |
| Karta paimieti 3 Micro-SD | |
Karte SMI: karte micro-SD narez wiklady dokhadnak taki, jek jolpakana na ilustracji,aby sie uskozdak gnilazda an karty.
52
Uruchomienie
Ladowanie
Open Source Software Offer
The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.
For the open source files contained herein, please access "Open source license" section located at: Settings\About phone\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.
Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.
This offer is valid to anyone in receipt of this information.
National restrictions
This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction ReasonRemark
Bulgaria None General authorization required for outdoor use and public service
France Outdoor use limited to Military Radiolocation use. Refarming of the 2.4 GHz band 10 mW e.i.r.p. within the has been ongoing in recent years to allow current relaxed band 2454-2483.5 MHz regulation. Full implementation planned 2012
Italy None If used outside of own premises, general authorization is required.
Luxembourg None General authorization required for network and service supply (not for spectrum)
Norway Implemented This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian None Only for indoor applications Federation
Note: Frequencies 2454-2483.5MHZ are restricted to indoor use in France.
SAR
After the laboratory measurements, the SAR values for this mobile are:
0.348W/Kg 10g Head Tissue
1.620W/Kg 10g Body Tissue(Trunk SAR of distance 5mm)
Archos company (Contact address : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that
this device is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC: http://www.archos.com/support/download/conformity/CE_DOC_AC50BCOL.
http://www.archos.com/support/download/conformity/CE_DOC_AC50BCOL.pdf
C€1313
