Quick Installation Guide Wireless Router TP-Link Technologies Co., Ltd. South Building(oors 1,3,4,5) and 28(oors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, ChinaTP-Link Deutschland GmbH Robert-Bosch-Straße 9, 65719 Hofheim am Taunus, GermanyTP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardi Road, Reading, RG1 8EWTP-Link Italia S.r.l. Via Gobetti 2/A 20063 Cernusco sul Naviglio (MI)TP-Link France SARL Bâtiment Equateur, 16-18 avenue Morane Saulnier, 78140 Vélizy-Villacoublay, FranceTP-Link IBERIA,S.L. Calle Quintanavides 17, 3º E, 28050 Madrid, SpainTP-Link Netherlands B.V. Archimedesbaan 18, 3439 ME NieuwegeinTP-Link (Nordic) AB Forumvägen 14, Plan 13, 131 53, Nacka, SwedenTP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, GreeceNWS.TP-Link Portugal, Unipessoal, Lda. Avenida da Liberdade, n°245, 7°E,1250-143 Lisboa, Portugal www.tp-link.com 7106508530 REV2.2.0 Specications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2019 TP-Link Technologies Co., Ltd. All rights reserved.

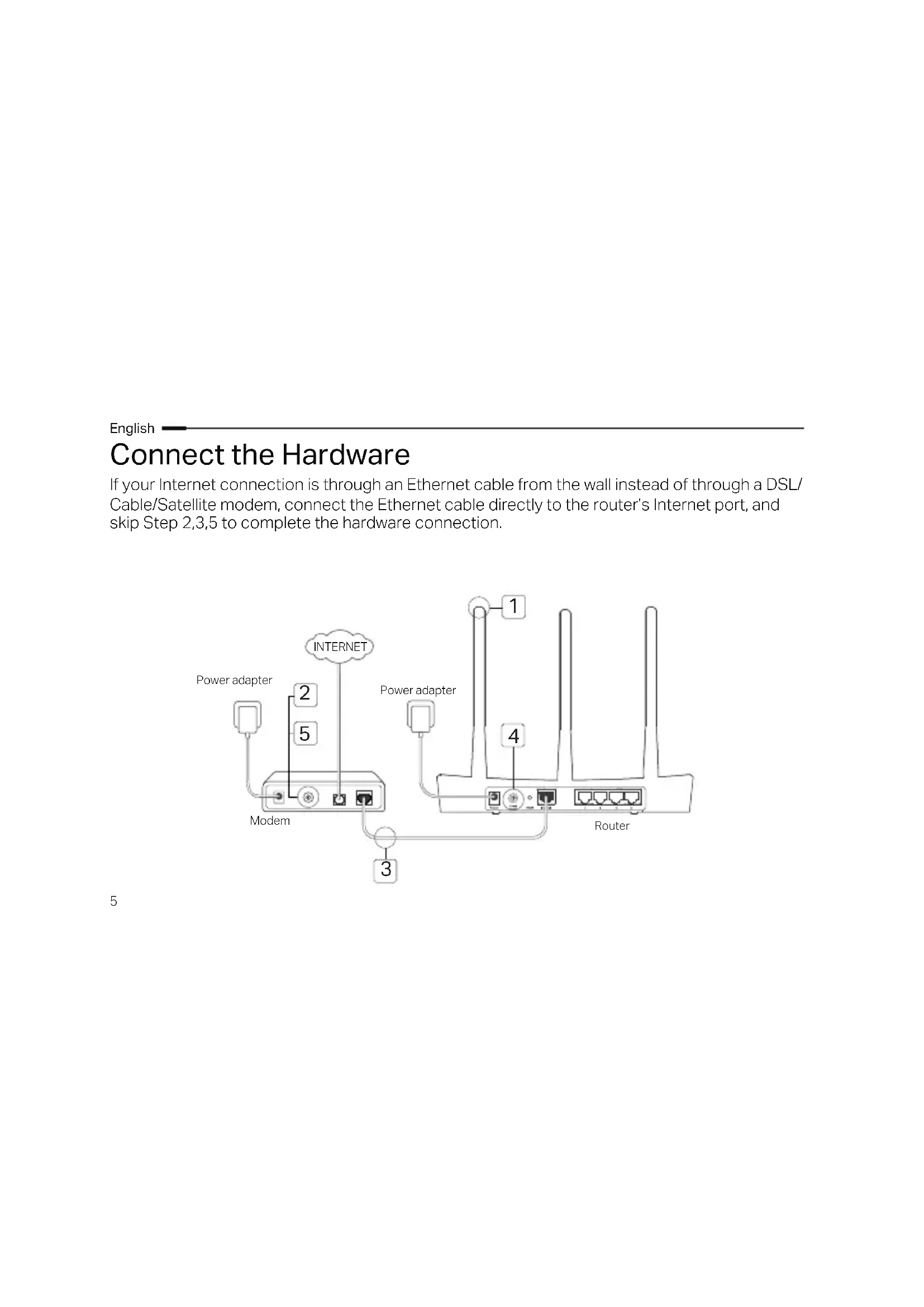

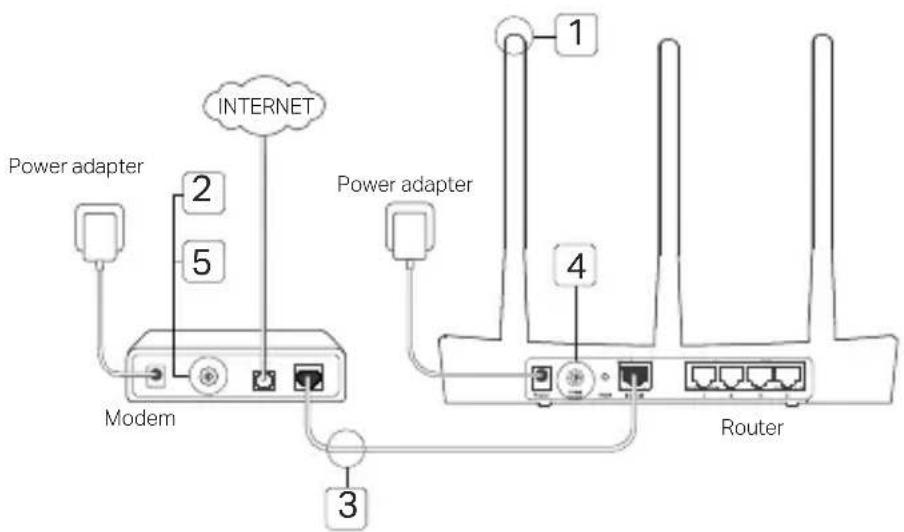

Install the antennas. If the antennas are already fixed, move to the next step.

Turn off the modem, and remove the backup battery if it has one.

Connect the modem to the Internet (or WAN) port on your router with an Ethernet cable.

Turn on the router, and wait for it to start.

Connect your computer to the router (Wired or Wireless). Wired: Turn off the Wi-Fi on your computer and connect your computer to the router’s LAN (1/2/3/4) port using an Ethernet cable. Wireless: Connect your computer to the router wirelessly. The SSID and Wireless Password are on the router’s label.

Enter http://tplinkwifi.net or http://192.168.0.1 in the address bar of a web browser. Create a password for future login attempts, or use admin for both username and password for some routers. Note: If the login window does not appear, please refer to FAQ > Q1.

Go to Quick Setup page, and follow the step- by-step instructions to complete the initial configuration. Enjoy! Now your wired and wireless devices can connect to the internet ! Note: If you have changed the SSID and wireless password GXULQJWKHFRQƮJXUDWLRQXVHWKHQHZ66,'DQGZLUHOHVVpassword to join the wireless network.7 English Tether App The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can

EORFNXQZHOFRPHGHYLFHVVHWXS3DUHQWDO&RQWUROVFRQƮJXUH\RXUZLUHOHVVVHWWLQJVDQGPRUH

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.

)$4)UHTXHQWO\$VNHG4XHVWLRQV

Q1. What can I do if the login window does not appear?

• Use another web browser and try again.

• Reboot your router and try again.

• Disable and enable the the network adapter in use again. Q2. What can I do if I cannot access the internet?

• Check if the Internet is working properly by connecting a computer directly to the modem via an Ethernet. If it is not, contact your Internet Service Provider.8 English

• Open a web browser, enter KWWSWSOLQNZLƮQHW or http://192.168.0.1 and run the Quick Setup again.

• Reboot your router and try again.

• )RUFDEOHPRGHPXVHUVUHERRWWKHPRGHPƮUVW,IWKHSUREOHPVWLOOH[LVWVORJLQWRWKH:HE0DQDJHPHQWSDJH of the router to clone MAC address. Q3. How do I restore the router to its factory default settings?

• With the router powered on, press and hold the Reset button on the router until all the LEDs turn on momentarily.

• Log in to the web management page of the router to restore the router to factory settings. Q4. What can I do if I forgot my web management password?

• Refer to FAQ >Q3 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers. Q5. What can I do if I forgot my wireless network password?

• If you have not changed the default Wireless Password, it can be found on the product label of the router.

• Do not attempt to disassemble, repair, or modify the device.

• Do not use damaged charger or USB cable to charge the device.• Do not use any other chargers than those recommended.

• Do not use the device where wireless devices are not allowed.

• Adapter shall be installed near the equipment and shall be easily accessible. Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk. TP-Link Three Years Limited Product Warranty For TP-Link Branded Products Only. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE). TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS. TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link’s guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser. Español Información de Seguridad
