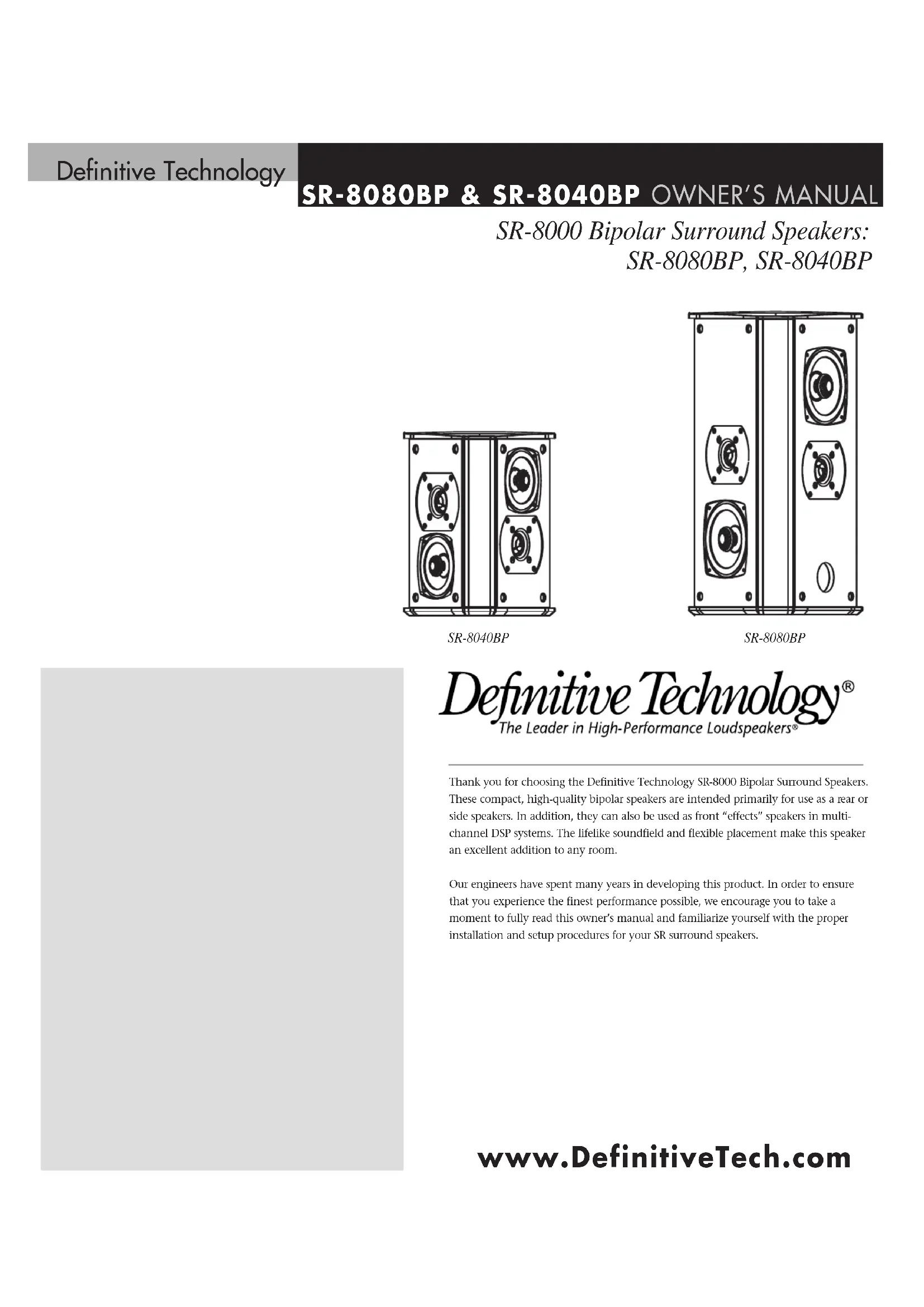

USER MANUAL SR8080BP DEFINITIVE TECHNOLOGY

Technical line drawing of a dual-tiered speaker or audio unit with four circular speakers (no text or symbols)

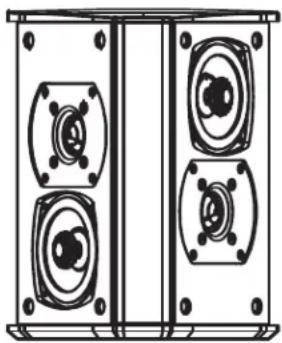

SR-8040BP

Technical line drawing of a dual-tiered speaker or audio unit with four circular speakers and mounting holes (no text or symbols)

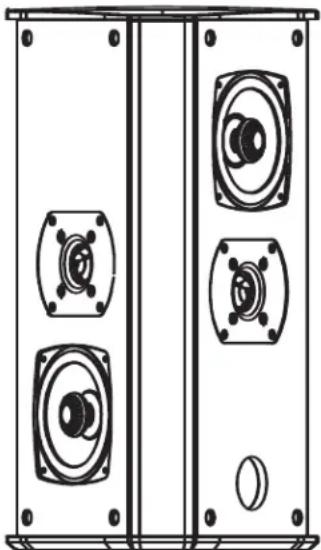

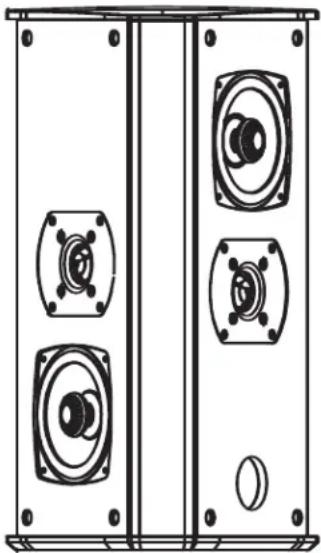

SR-8080BP

Definitive Technology®

The Leader in High-Performance Loudspeakers®

Thank you for choosing the Definitive Technology SR-8000 Bipolar Surround Speakers. These compact, high-quality bipolar speakers are intended primarily for use as a rear or side speakers. In addition, they can also be used as front “effects” speakers in multi-channel DSP systems. The lifelike soundfield and flexible placement make this speaker an excellent addition to any room.

Our engineers have spent many years in developing this product. In order to ensure that you experience the finest performance possible, we encourage you to take a moment to fully read this owner's manual and familiarize yourself with the proper installation and setup procedures for your SR surround speakers.

Definitive Technology

SR-8080BP & SR-8040BP

OWNER'S MANUAL

Positioning Your SR-8000 Surround Speakers

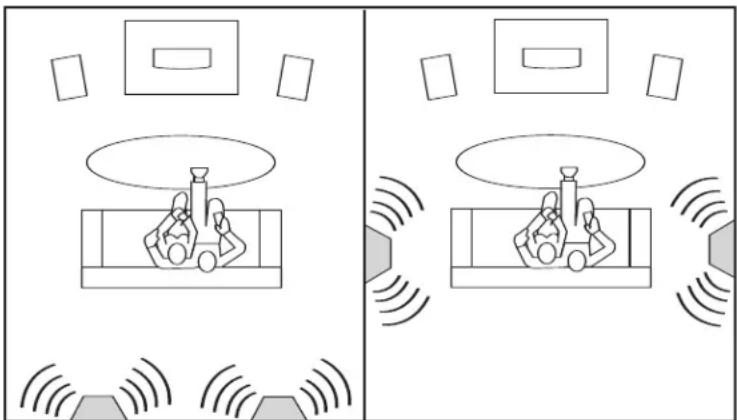

Figure 1 - Rear and Side Surround Placement

Two identical diagrams showing a person in a TV setup with sound waves, no text or symbols present.

For use as rear surround speakers, position the speakers approximately 6' (2 m) high and 6' (2 m) apart directly behind the listening area.

For use as side surround speakers, position the speakers approximately 6' (2 m) high and directly beside or 1-2' (30-60 cm) behind the listening area.

Connecting Your Loudspeakers

Figure 2 - Wiring and Polarity

Close-up of two black and gray electrical wires (no text or symbols visible)

Strip 1/4" (6mm) wire.

Diagram of a black and gray electrical cable with polarity indicators (no text or symbols)

Identify markings on wire and assign +/-

Two 3D mechanical parts with rotational arrows, no text or symbols present

1. Unscrew binding post and insert wire.
2. Tighten until wire is secure.

Receiver/Amplifier

Ensure that the speaker is always connected to the receiver or amplifier + to + and - to -.

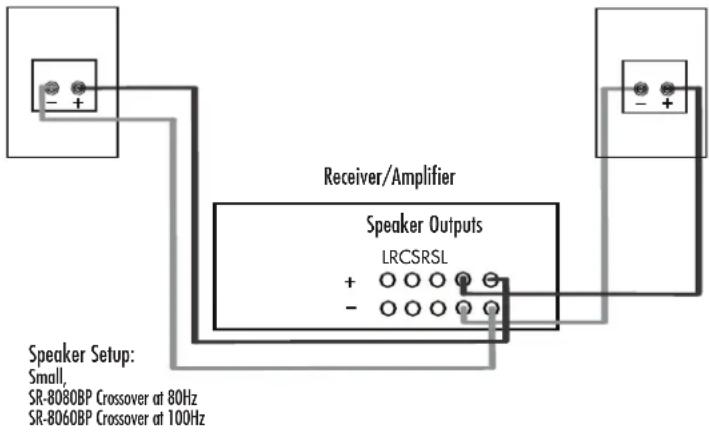

Figure 3 - Connecting Speaker to Amplifier

Receiver/Amplifier Speaker Outputs LRCSRSL + - Speaker Setup: Small, SR-8080BP Crossover at 80Hz SR-8060BP Crossover at 100Hz

VERY IMPORTANT:

Do not use your receiver's auto setup function!!! The bipolar nature of this speaker will often confuse the receiver's auto setup.

Dolby Digital and DTS multi-channel systems have critical channel balance and speaker setup procedures which must be followed if the system is to perform properly. Consult your receiver's or processor's manual to learn how to access your system setup menus. Set speaker setup to "small" and crossover to 80Hz for the SR-8080BP and 100Hz for the SR-8040BP.

Troubleshooting

If you experience any difficulties with your SR Series loudspeakers, try the suggestions below. If you still have problems, contact your Definitive Technology Authorized Dealer for assistance.

1. Audible distortion when the speakers are playing at loud levels is caused by driving (turning up) your receiver or amplifier louder than it or the speakers are capable of playing. Most receivers and amplifiers put out their full-rated power well before the volume control is turned all the way up, so the position of the volume control is a poor indicator of its power limit. If your speakers distort when you play them loud, turn the volume down!
2. If you experience a lack of bass, it is likely that one speaker is out of phase with the other and needs to be rewired paying closer attention to connect positive to positive and negative to negative on both channels. Most speaker wire has some indicator (such as color-coding, ribbing or writing) on one of the two conductors to help you maintain consistency. It is essential to connect both speakers to the amplifier in the same way (in phase).
3. Make sure all your system interconnects are solidly in place.
4. Check that no foreign objects or liquid has entered the speaker cabinet.

Technical Assistance

It is our pleasure to offer assistance if you have any questions regarding your Center Channel or its setup, please contact your nearest Definitive Technology dealer or call us directly at [phone] (US & Canada), 01 [phone] (all other countries) or e-mail [e-mail]. Technical support is offered in English only.

Definitive Technology Offices

11433 Cronridge Drive, Owings Mills, Maryland 21117

Phone: [phone] (US & Canada),

01 [phone] (all other countries)

Service

Service and warranty work on your Definitive loudspeakers will normally be performed by your local Definitive Technology dealer. If, however, you wish to return the speaker to us, please contact us first, describing the problem and requesting authorization as well as the location of the nearest factory service center. Please note that the address given in this booklet is the address of our offices only. Under no circumstances should loudspeakers be shipped to our offices or returned without contacting us first and obtaining return authorization.

Notes

	SR-8080BP	SR-8040BP
Performance Specifications
Overall Frequency Response 40 Hz – 30 kHz	Hz 50 Hz – 30 kHz
Sensitivity 92 dB 92 dB
Nominal Impedance 8 ohms 8 ohms
Recommended Associated Amplifier Power	20 – 200w 20 – 150w
Dimensions
Height 15 5/8" (39.69 cm) 9 1/2" (24.12 cm)
Width 9" (22.76 cm) 7 13/16" (19.8 cm)
Depth	6 1/16" (15.5 cm)	5 3/8" (13.5 cm)
Speaker Complement
Bass/Midrange Driver Quantity	2	2
Bass/Midrange Diameter	4 1/2" (11.43 cm)	3 1/2" (8.89 cm)
Tweeter Quantity	2	2
Tweeter Diameter	1" (2.54 cm)	1" (2.54 cm)

Limited Warranty: 5 Years for Drivers and Cabinets, 3 Years for Electronic Components

DFI Sales Co., dha Definitive Technology (herein "Definitive") warrants to the original retail purchaser only that this Definitive loudspeaker product (the "Product") will be free from defects in material and workmanship for a period of five (5) years covering the drivers and cabinets, and three (3) years for the electronic components from the date of the original purchase from a Definitive Authorized Dealer. If the Product is defective in material or workmanship, Definitive or its Authorized Dealer will, at its option, repair or replace the warranted product at no additional charge, except as set forth below. All replaced parts and Product(s) become the property of Definitive. Product that is repaired or replaced under this warranty will be returned to you, within a reasonable time, freight collect. This warranty is non-transferrable and is automatically void if the original purchaser sells or otherwise transfers the Product to any other party.

This Warranty does not include service or parts to repair damage caused by accident, misuse, abuse, negligence, inadequate packing or shipping procedures, commercial use, voltage in excess of the rated maximum of the unit, cosmetic appearance of cabinetry not directly attributable to defects in material or workmanship. This warranty does not cover the elimination of externally generated static or noise, or the correction of antenna problems or weak reception. This warranty does not cover labor costs or damage to the Product caused by installation or removal of the Product. Definitive Technology makes no warranty with respect to its products purchased from dealers or outlets other than Definitive Technology Authorized Dealer.

THE WARRANTY IS AUTOMATICALLY VOID IF:

1) The product has been damaged, altered in any way, mishandled during transportation, or tampered with.

2) The product is damaged due to accident, fire, flood, unreasonable use, misuse, abuse, customer

applied cleaners, failure to observe manufacturers warnings, neglect or related events.

3) Repair or modification of the Product has not been made or authorized by Definitive Technology.

4) The product has been improperly installed or used.

Product must be returned (insured and prepaid), together with the original dated proof of purchase to the Authorized

Dealer from whom the Product was purchased, or to the nearest Definitive factory service center. Product must be shipped in the original shipping container or its equivalent. Definitive is not responsible or liable for loss or damage to Product in transit.

THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY THAT APPLIES TO YOUR PRODUCT. DEFINITIVE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH YOUR PRODUCT OR THIS WARRANTY. ALL OTIHER WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS. IMPLIED,WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE E XPRESSLY EXCLUDED AND DISCLAIMED TO THE MAXIMUM EXTENT ALLOWED BY LAW. ALL IMPLIED WARRANTIES ON PRODUCT ARE LIMITED TO THE DURATION OF THIS EXPRESSED WARRANTY. DEFINITIVE HAS NO LIABILITY FOR ACTS OF THIRD PARTIES. DEFINITIVE'S LIABILITY, WHETHER BASED ON CONTRACT, TORT, STRICT LIABILITY, OR ANY OTHER THEORY, SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT FOR WHICH A CLAIM HAS BEEN MADE. UNDER NO CIRCUMSTANCE WILL DEFINITIVE BEAR ANY LIABILITY FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. THE CONSUMER AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND DEFINITIVE SHALL BE RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN SAN DIEGO COUNTY, CALIFORNIA. DEFINITIVE RESERVES THE RIGHT TO MODIFY THIS WARRANTY STATEMENT AT ANY TIME.

Some states do not allow the exclusion or limitation of consequential or incidental damages, or implied warranties, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

©2009 DEI Sales Co. All rights reserved.
