USER MANUAL PlasmaSync 50XP10 NEC

Plasma Monitor
Remote control and AA Batteries
Power cord
Users Manual (CD-ROM)
Start Up Guide (Paper / CD-ROM)
Main Power Switch cover and screw
Cable clamps

Important Safety Instructions....English-1

Important Information ....English-2

Safety Precautions and Maintenance....English-3

Recommended Use....English-4

Installation

Using Optional Stands/Mounts......English-6

Mounting Location....English-6

Mounting on Ceiling ....English-7

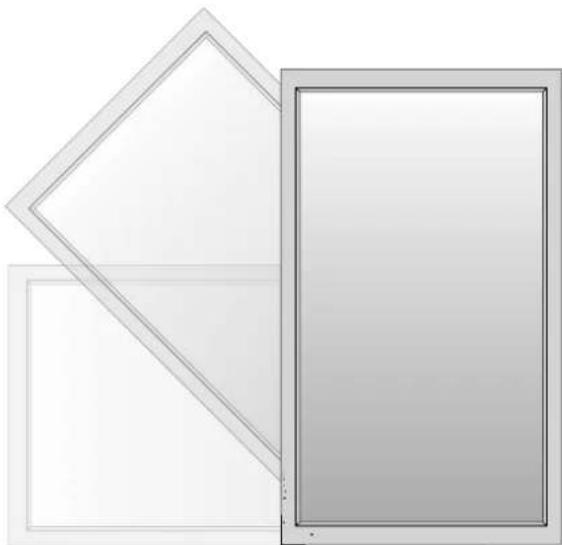

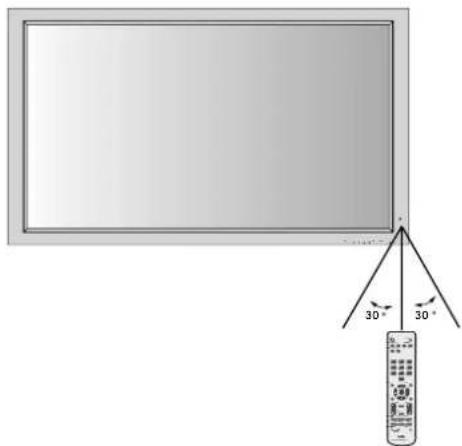

Maintenance, Orientation, Cable Management ....English-7 Using the Remote ....English-8

Part Names and Functions

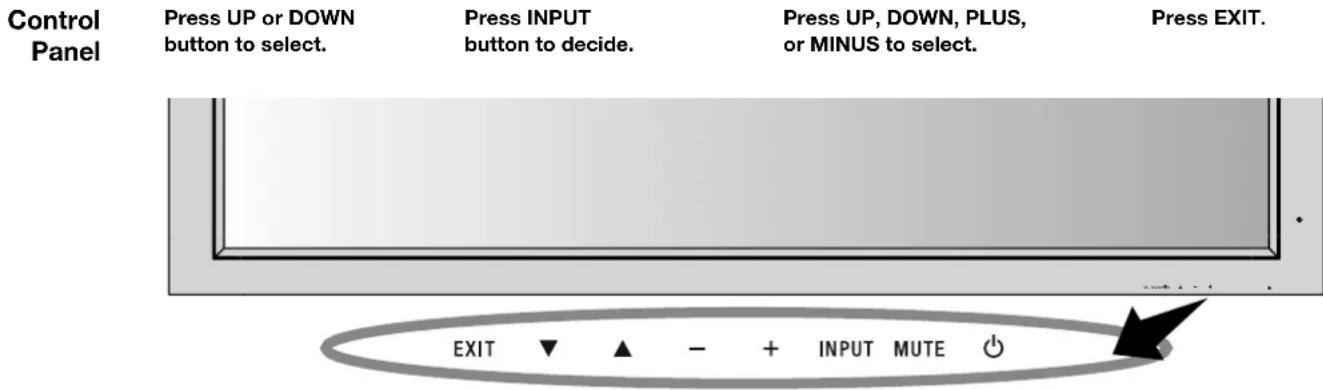

Control Panel....English-9

Terminal Panel....English-10

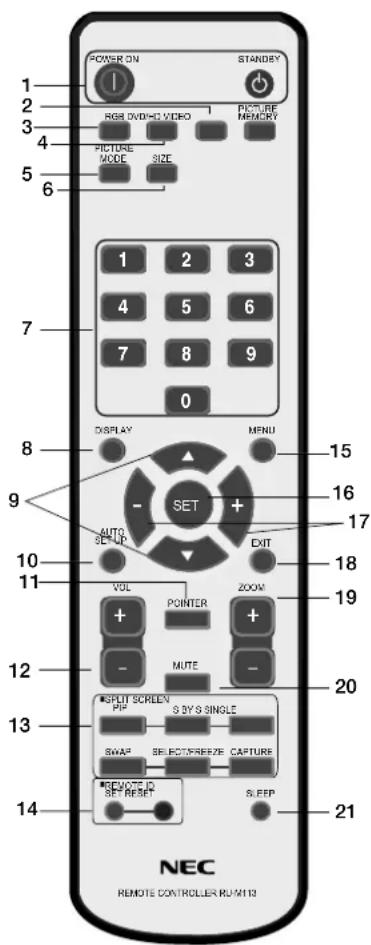

Remote Control Functions....English-11

Power, Display, Digital Zoom, Pointer, Main Power Switch Cover ....English-12 Remote Control ID ....English-13

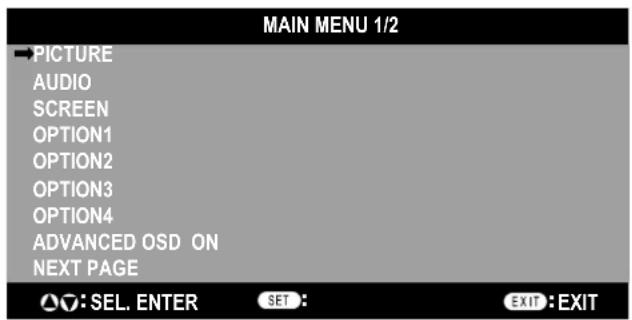

On-Screen Display (OSD)

Using the OSD....English-14

OSD....English-15

Troubleshooting....English-19

Specifications

P42XP10....English-20

P50XP10....English-21

P60XP10....English-22

Supported Resolutions

P42XP10 ....English-23

P50XP10....English-25

P60XP10....English-27

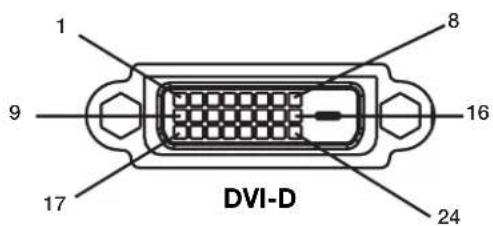

Pin Assignment....English-29

NEC PlasmaSync 50XP10 - Table of Contents - 1

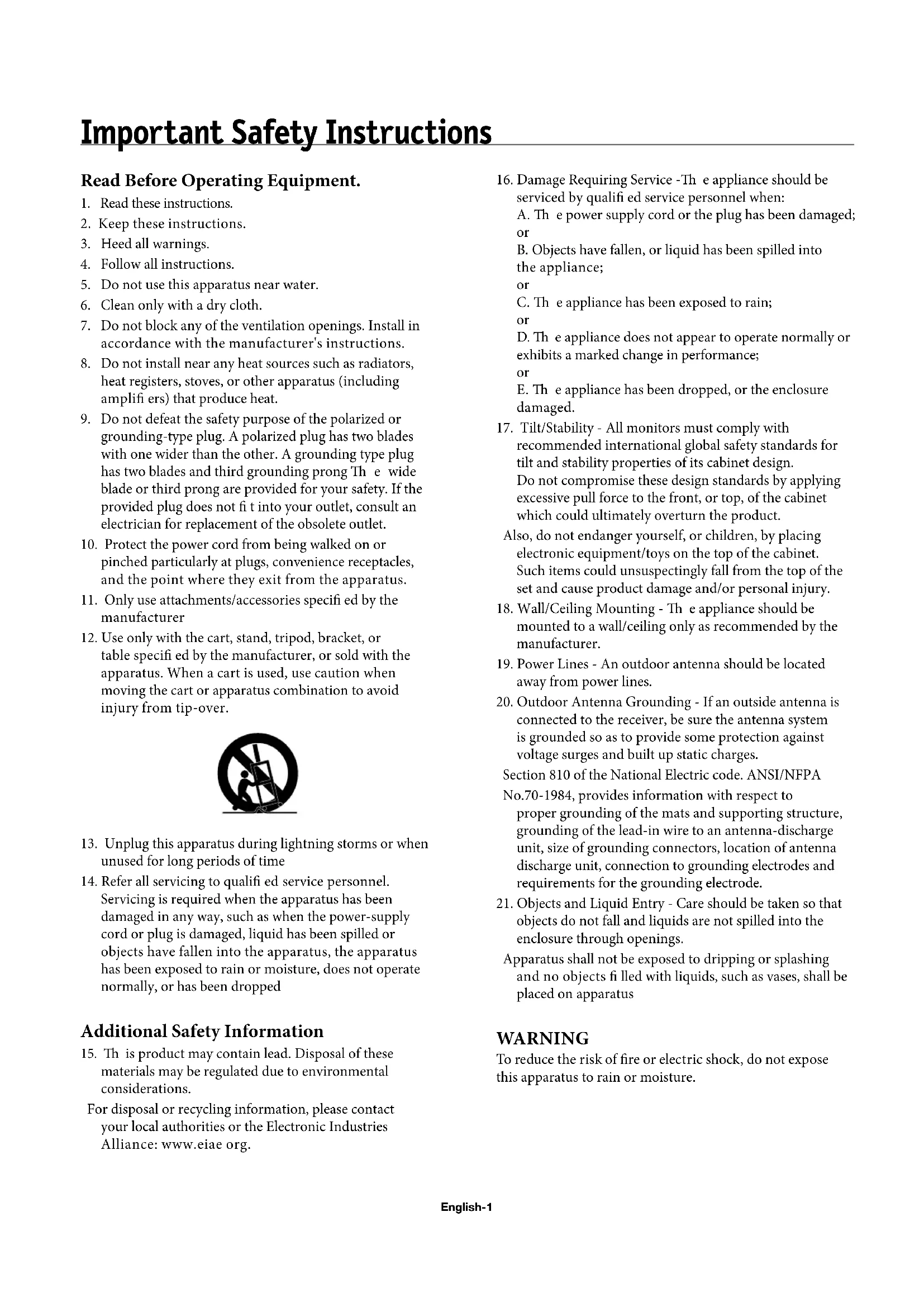

Important Safety Instructions

Read Before Operating Equipment.

Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong The wide blade or third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart or apparatus combination to avoid injury from tip-over.

NEC PlasmaSync 50XP10 - Read Before Operating Equipment. - 1

Unplug this apparatus during lightning storms or when unused for long periods of time
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped

Additional Safety Information

Th is product may contain lead. Disposal of these materials may be regulated due to environmental considerations.

For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or

B. Objects have fallen, or liquid has been spilled into the appliance;

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits a marked change in performance;

E. The appliance has been dropped, or the enclosure damaged.

Tilt/Stability - All monitors must comply with recommended international global safety standards for tilt and stability properties of its cabinet design.

Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

Wall/Ceiling Mounting - The appliance should be mounted to a wall/ceiling only as recommended by the manufacturer.
Power Lines - An outdoor antenna should be located away from power lines.
Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric code. ANSI/NFPA

No.70-1984, provides information with respect to proper grounding of the mats and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on apparatus

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING

NEC PlasmaSync 50XP10 - WARNING - 1

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

NEC PlasmaSync 50XP10 - WARNING - 2

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION:	TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

	This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. 'Th erefore, it is dangerous to make any kind of contact with any part inside this unit.
	This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Th erefore, it should be read carefully in order to avoid any problems.

CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is not supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

Plug Type	North America	European Continental	U.K.	Chinese	Japanese
Plug Shape
Country	U.S.A./Canada	EU (except U.K.)	U.K.	China	Japan
Voltage	120*	230	230	220	100

*When operating the PlasmaSync monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used.

Canadian Department of Communications Compliance Statement

DOC: This is Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UI: Bears the C-UI. Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.

FCC Information

Use the attached specified cables with the P426Y0(P42XP10), P506Y1(P50XP10), or P606Y2(P60XP10) color monitor so as not to interfere with radio and television reception.

(1) Please use the supplied power cord or equivalent to ensure FCC compliance.

(2) Please use shielded video signal cable, 15-pin mini D-SUB to 15-pin mini D-SUB with ferrite cores on both ends (not included).

Th is equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MONITOR:

The plasma display's panel is made up of fine picture elements (cells), of which more than 99.99 percent are active cells. Some cells may not produce light or remain constantly lit. For safe operation and to avoid damaging the unit, read carefully and observe the following instructions.

DO NOT OPEN THE MONITOR. There are no user-serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all servicing to qualified service personnel.
Do not spill any liquids into the cabinet or use your monitor near water.
Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
Do not bend, crimp or otherwise damage the power cord. Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
Do not use in a moving vehicle, as the unit could drop or topple over and cause injuries.
The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet that is easily accessible.
This equipment shall be connected to a MAIN outlet with a protective earth-ground connection. Do not place any objects onto the monitor and do not use the monitor outdoors.
Do not use this unit's polarized plug with an extension cord or with outlets unless the prongs can be inserted fully.
The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F 3G 1mm^2 should be used in Europe)
In UK, use a BS-approved power cord with molded plug having a black (13A) fuse installed for use with this monitor.
Use only with 100 V to 240 V 50 Hz/60 Hz AC power supply. Continued operation at line voltages greater than 100 V to 240 V AC will shorten the life of the unit, and might even cause a fi re hazard.
Unplug the power cord during electrical storms or when the unit will not be in use for a long period.
Do not use monitor in high temperature, humid, dusty, or oily areas.
Do not cover vent on monitor.
Clean plasma ventilation areas using a vacuum cleaner with a soft brush nozzle attachment.
To ensure proper ventilation, cleaning the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.
Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
Handle with care when transporting. Save packaging for transporting.
As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.
To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.

NEC PlasmaSync 50XP10 - FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MONITOR: - 1

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

When the power supply cord or plug is damaged.
If liquid has been spilled on, or objects have fallen into the monitor.
If the monitor has been exposed to rain or water.
If the monitor has been dropped or the cabinet damaged.
If the monitor does not operate normally by following operating instructions.

CAUTION

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN POSITIONING THE MONITOR:

For optimum performance, allow 20 minutes for warm-up.
Rest your eyes periodically by focusing on an object at least 5 feet away. Blink oft en.
Position the monitor at a 90 degree angle to windows and other light sources to minimize glare and reflections.
Clean the monitor surface with a lint-free, nonabrasive cloth. Avoid using any cleaning solution or glass cleaner.
Adjust the monitor's brightness and contrast controls to enhance readability.
• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomic benefits, we recommend the following:

Use the preset Size and Position controls with standard signals.
Use the preset Color Setting.
Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue due to insufficient contrast.
Th is equipment is not for use at video display work station according to Bildscharb V.

For more detailed information on setting up a healthy work environment, refer to the following document:

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Published by:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Cleaning the Panel

When the panel becomes dusty or dirty, wipe gently with soft cloth.
Do not rub the panel with coarse material.
Do not apply pressure to the surface.
Do not use OA cleaner. OA cleaner will cause deterioration or discolor the surface.

Cleaning the Cabinet

Unplug the power supply.
• Gently wipe the cabinet with a soft cloth.
To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.

NOTE: The surface of the cabinet is composed of many types of plastic.

DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time. These types of fluids and materials can cause the paint to deteriorate, crack or peel.

CLEANING THE VENT HOLES

Clean plasma ventilation areas using a vacuum cleaner with a soft brush nozzle attachment.
To ensure proper ventilation, cleaning the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.

To avoid or minimize image retention:

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to image retention under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in image retention if proper precautions are not taken. To protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image retention:

Always enable and use your computer's screen saver function during use with a computer input source.
Display a moving image whenever possible.
Change the position of the menu display from time to time.
Always power down the monitor when you are finished using it.

To reduce the likelihood of image retention from long-term use:

Lower the Brightness and Contrast levels as much as possible without impairing image readability.
Display an image with many colors and color gradations (i.e. photographic or photo-realistic images).
Create image content with minimal contrast between light and dark areas. Use complementary or pastel colors whenever possible.
Avoid displaying images with few colors and distinct, sharply defined borders between colors.

Plasma monitor driving sound

- The panel of the Plasma monitor is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may cause you to hear a buzz or electrical hum coming from the Plasma monitor. Also note that the rotation speed of the cooling fan motor increases when the ambient temperature of the Plasma monitor becomes high. You may hear the sound of the motor at that time.

NOTE: The following items are not covered by the warranty.

Image retention
Panel generated sound. Examples: Fan motor and electrical noises circuit humming /glass panel buzzing.

OPERATING ENVIRONMENT

Operating environment temperature and humidity: 0 °C to +40 °C (+32 °F to +104 °F); less than 80%RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

WARNING

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment ANSI/NFPA 75.

NOTE: Please use shielded video signal cable, 15-pin mini D-SUB to 15-pin mini D-SUB with ferrite cores on both ends (not included).

Using Optional Stand/Mounts

An optional stand or mounting apparatus can be installed.

When stand or mounting apparatus is to be installed while the unit is face-down (Figure 1), be sure to lay the protective sheet (the foam sheet that the unit was wrapped in) underneath the unit on order to prevent damage to the screen.

Th is unit must be used with a stand or some type of mounting apparatus. Th is unit is not designed for use without additional support.

For correct Installation and Mounting it is recommended to use a trained, authorized dealer.
Failure to follow correct mounting procedures could result in dame to the unit or to the installer.
Product warranty does not cover damage caused by improper installation.

CAUTION:

To install, follow those instructions included with the stand or mounting apparatus. Use only those devices recommended by the manufacturer.
Make sure to install stand or mounting apparatus to the unit while on a surface that is strong and stable enough to support the weight of the unit, such as a floor or sturdy table.
Use the specified clasps for installation.
• Take necessary steps to prevent the unit from tipping or falling.

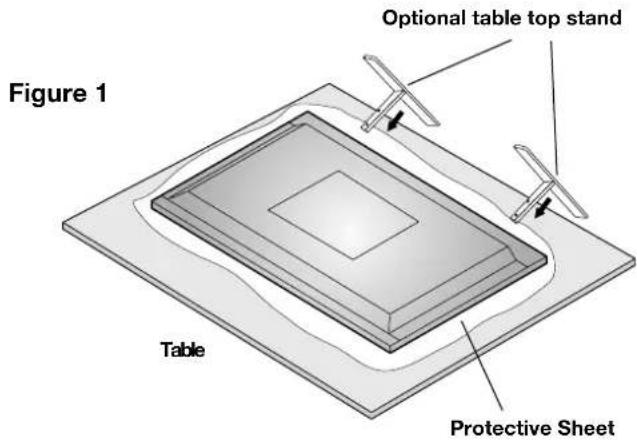

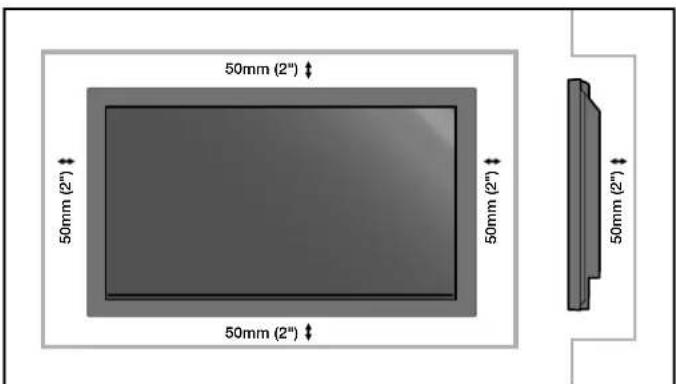

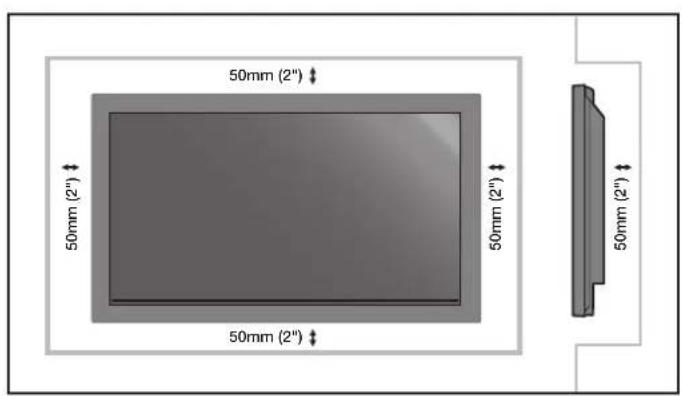

Mounting Location

The ceiling and wall must be strong enough to support the monitor and mounting accessories.

DO NOT install in locations where a door or gate can hit the unit.
DO NOT install in areas where the unit will be subjected to strong vibrations and dust.
DO NOT install near where the main power supply enters the building.
DO NOT install in where people can easily grab and hang onto the unit or the mounting apparatus.
When mounting in an enclosure or in a recessed area, as in a wall, leave at least 2 inches (50mm) of space between the monitor and the wall for proper ventilation (Figure 2).
Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and mounting apparatus.

NEC PlasmaSync 50XP10 - Mounting Location - 1

Figure 2
NEC PlasmaSync 50XP10 - Mounting Location - 2

Mounting on Ceiling

- Ensure that the ceiling is sturdy enough to support the weight of the unit and the mounting apparatus over time, against earthquakes, unexpected vibrations, and other external forces.

- Be sure the unit is mounted to a solid structure within the ceiling, such as a support beam. Secure the monitor using bolts, spring lock washers, washer and nut.

- DO NOT mount to areas that have no supporting internal structure. DO NOT use wood screws or anchor screws for mounting. DO NOT mount the unit to trim or to hanging fixtures.

Maintenance

- Periodically check for loose screws, gaps, distortions, or other problems that may occur with the mounting apparatus. If a problem is detected, please refer to qualified personnel for service.

- Regularly check the mounting location for signs of damage or weakness that may occur over time.

Please note the following when mounting on wall or ceiling.

- When using mounting accessories other than those that are NEC approved, they must comply with the VESA-compatible (FDMlv1) mounting method.

- NEC strongly recommends using size M8 screws (16mm + thickness of bracket in length). If using screws longer than 16mm, check the depth of the hole.(Recommended Fasten Force: 1125 - 1375N·cm) NEC recommends mounting interfaces that comply with UL1678 standard in North America.

NEC PlasmaSync 50XP10 - Please note the following when mounting on wall or ceiling. - 1

Screw length should equal depth of hole (16mm) + the thickness of mounting bracket.

Orientation

When using the display in the portrait position, the monitor should be rotated clockwise so that the left side is moved to the top and the LED indicator light is on the bottom. This will allow for proper ventilation and will extend the lifetime of the monitor. Improper ventilation may shorten the lifetime of the monitor.

When using the display in the portrait position, please turn the Cooling Fan "ON" in the OPTION2 OSD menu.

NEC PlasmaSync 50XP10 - Orientation - 1

Cable Management

To conveniently manage cables, use the cable clamps provided to bundle the power cord together with the signal and audio cables at the back of the display.

To attach cable clamps:

Attach the cable clamps to the display. Insert the anchor of the clamp into the hole on the back of the display. There are 4 cable clamps and 4 clamp holes on the unit.
After the cable clamp is positioned on the display, wrap the end around the cables. Place the end of the clamp into the slot near the anchor. Pull until cables are snug.

Clamps are designed to stay in place. Once in position, they will be difficult to remove.

Cables can be routed to the right or left of the clamp. Use the beaded bands to secure the cables together along their length. Make sure the cables are fully supported.

To detach clamps:

Using pliers, twist the clamp 90 degrees and pull outward. It is possible that the clamp can weaken over time and removing it may cause damage to the clamp.

NEC PlasmaSync 50XP10 - Cable Management - 1

NEC PlasmaSync 50XP10 - Cable Management - 2

Using the Remote:

Install the remote control batteries.

The remote control is powered by AA batteries. To install or replace batteries:

NEC PlasmaSync 50XP10 - Install the remote control batteries. - 1

A. Press and slide to open the cover.
B. Align the batteries according to the (+) and (-) indications inside the case.
C. Replace the cover.

CAUTION: Incorrect usage of batteries can result in leaks or bursting. NEC recommends the following battery use:

Place "AA" size batteries matching the (+) and (-) signs on each battery to the (+) and (-) signs of the battery compartment.
Do not mix battery brands.
Do not combine new and old batteries, or mix brands. Th is can shorten battery life or cause liquid leakage of batteries.
Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.
Do not touch exposed battery acid, it may injure skin.
Do not drop or mishandle the remote.
Do not get the remote control wet. If the remote does get wet, wipe dry immediately.
Avoid excessive heat and humidity.
Do not dispose of batteries in fi re.
Please follow government regulations or public environmental rules that apply in your country/area when disposing of used batteries.
When replacing, use only conventional non-rechargeable alkaline or manganese batteries.
There is a risk of explosion if batteries are replaced incorrectly.

Operating Range for the Remote Control

Point the top of the remote control toward the monitor's remote sensor while pressing buttons. The remote control can be used from the front of the monitor at a maximum distance of 7 m/23 ft. from the front of the Plasma monitor's remote control sensor. The maximum horizontal and vertical angle for use of the remote is 30 degree within a distance of 3.5 m/11.5 ft.

CAUTION

The remote control may not function when direct sunlight or strong illumination strikes the remote control sensor of the Plasma monitor, or when there is an object in the path of the sensor.

Handling the Remote Control

Do not open the remote control other than to install batteries. Do not allow water or other liquid to splash onto the remote control. If the remote control gets wet, wipe it dry immediately.

Avoid exposure to heat and steam.

NOTE: If you do not intend to use the Remote Control for a long period of time, remove the batteries.

NEC PlasmaSync 50XP10 - Handling the Remote Control - 1

Part Names and Functions

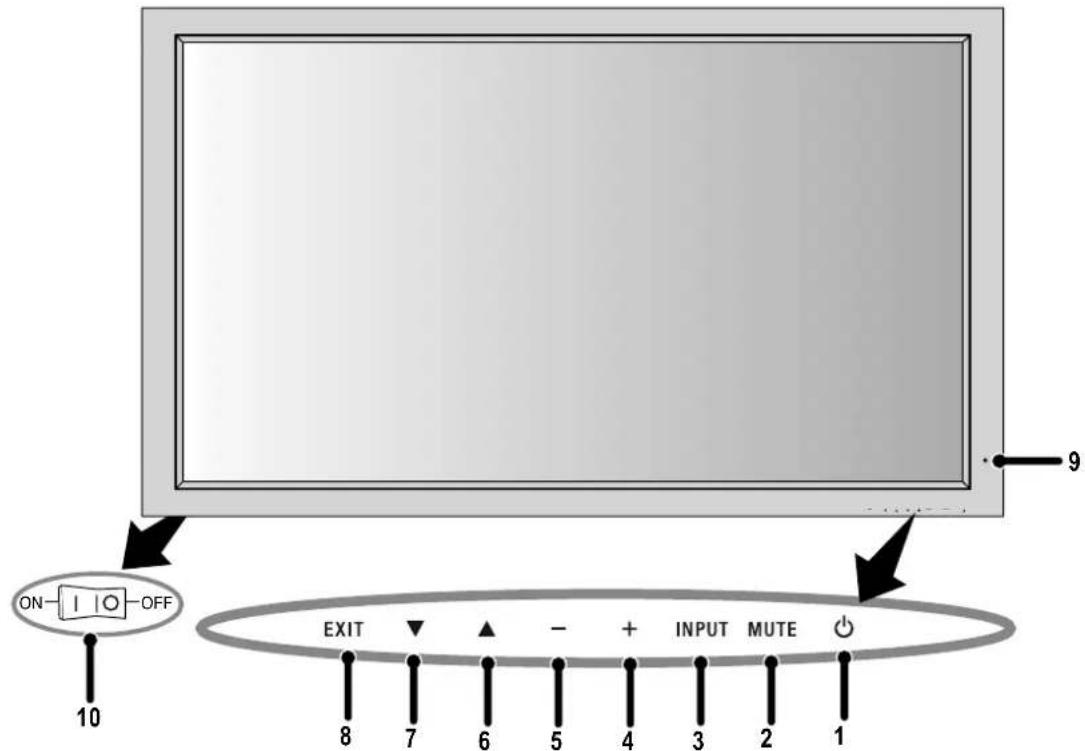

Control Panel

NEC PlasmaSync 50XP10 - Part Names and Functions - 1

1) POWER

Switches the power on/standby.

2) MUTE

Switches the audio mute ON/OFF.

3) INPUT

Switches between input sources.

Acts as SET button within the OSD menu.

4) PLUS (+)

Increases the setting adjustment within OSD menu.

5) MINUS (-)

Decreases the setting adjustment within OSD menu.

6) UP ▲

Increases the volume level when the OSD is off.

Moves area up to select which setting to is to be adjusted within OSD menu.

7) DOWN ▼

Decreases the volume level when the OSD is off.

Moves down to select which setting is to be adjusted within OSD menu.

8) EXIT

Activates the OSD menu when the OSD menu is off. Exits from the current menu being displayed to the previous menu within the OSD.

9) Remote control sensor and Power indicator

Receives the signal when using the wireless remote control. Glows green when the monitor is active. Glows red when the monitor is in Standby mode. Glows Amber when the monitor is in POWER SAVE mode.

A red blinking Power indicator means that the monitor has detected a failure. Contact qualified personnel in case of failure.

10) Main Power Switch

Seesaw switch to turn the main power on/off.

Mode Status	indicator light
Power On Green
Standby Red
Power save Amber
Diagnosis(Detecting failure)	Red blinking

NOTE:

The POWER button does not completely turn off the display. Use the Main Power Switch to completely turn off the display.

Part Names and Functions

NEC PlasmaSync 50XP10 - Part Names and Functions - 1


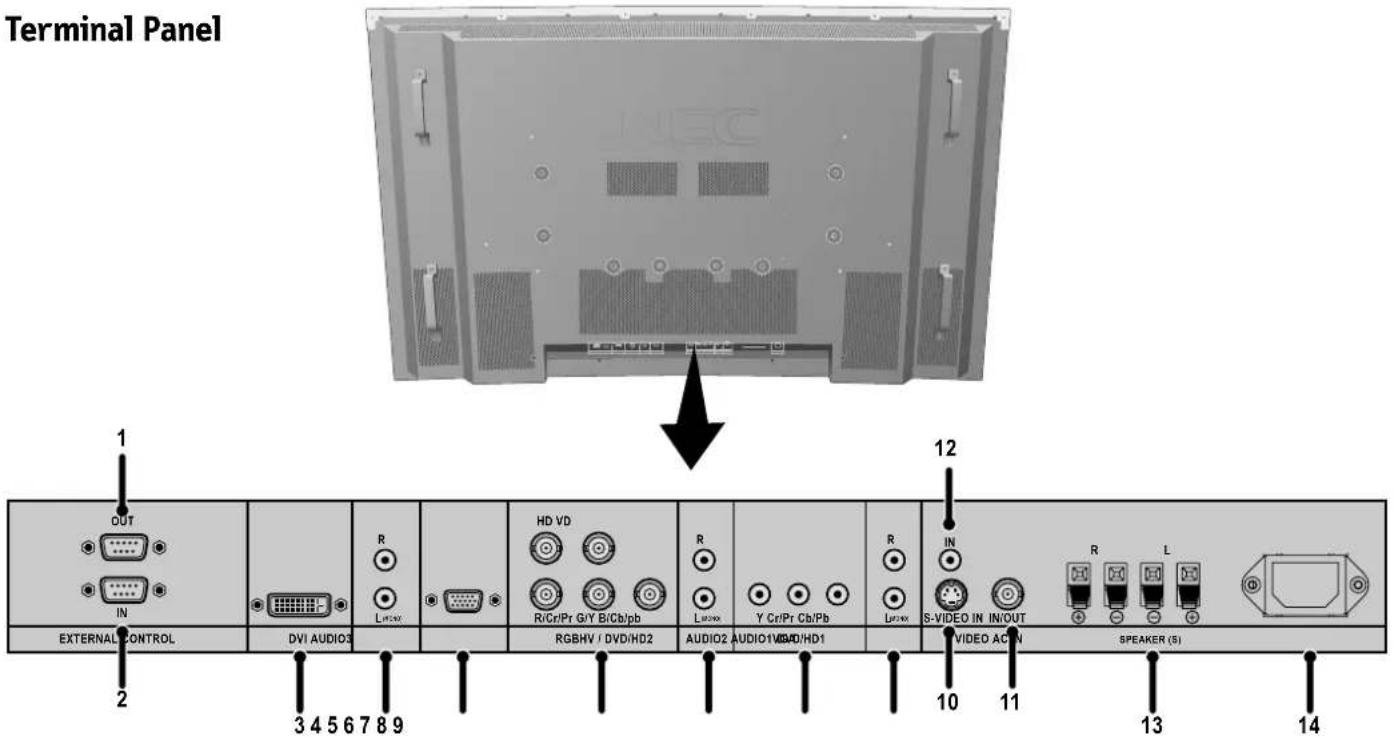

Terminal Panel 1 OUT IN EXTERNAL CONTROL 2 DVI AUDIO3 R LH30V HD VD R/Cr/Pr G/Y B/Cb/pb RGBHV / DVD/HD2 R LH30V AUDIO2 AUDIO1/HD/DVD/HD1 R LH30V S-VIDEO IN IN/OUT 12 IN R L VIDEO ACN 10 11 13 SPEAKER (5) 14

1) EXTERNAL CONTROL OUT (D-Sub 9 pin) Connect RS-232C output to a second monitor.

2) EXTERNAL CONTROL (D-Sub 9 pin) Connect RS-232C input to external equipment such as a PC in order to control RS-232C functions.

3) DVI Input digital RGB signals from a computer or HDTV device having a digital RGB output.

4) AUDIO3 Input the audio signal from external equipment such as a computer, VCR or DVD player.

5) VGA (Mini D-Sub 15 pin) Analog computer input or output. For proper operation select "D-SUB INPUT" in the OPTION1 OSD menu.

6) RGBHV/DVD/HD2 RGBHV: Input RGB signals from RGB equipment. A Sync-on-Green signal can be connected using the G connector.

DVD/HD2: Connect equipment such as a DVD player, HDTV device, or set-top box. This input can be used with an RGB or component source. For proper operation select "BNC INPUT" in the OPTION1 OSD menu.

7) AUDIO2 Input the audio signal from external equipment such as a computer, VCR or DVD player.

8) DVD/HD1 Connect equipment such as a DVD player, HDTV device, or set-top box.

9) AUDIO1 Input the audio signal from external equipment such as a computer, VCR or DVD player.

10) S-VIDEO in Input S-video.

11) VIDEO1 Composite video input or output.

12) VIDEO2 Composite video input.

13) EXTERNAL SPEAKER (L and R) connector Connects to optional speakers. Output the audio signal from AUDIO 1, 2, and 3 to external speakers. NOTE: Speaker Terminal is for 8W + 8W (8 ohm).

14) AC IN Connects with the supplied power cord.

Information: For Y/Cb/Cr connections, use the DVD/HD1 or DVD/HD2 terminals.

For SCART connections there are 3 ways to connect: SCART1: Connect R/G/B to the DVD/HD2 terminals and composite sync. to the HD terminal. SCART2: Connect R/G/B to the DVD/HD2 terminals and composite sync. to the VIDEO1 terminal. SCART3: Connect R/G/B + composite sync. to the VGA terminal.

Remote Control Functions

NEC PlasmaSync 50XP10 - Remote Control Functions - 1

1) POWER ON/STANDBY

Switches the power on/standby.

*If the Power Indicator on the display is not glowing, then no controls will work.

2) VIDEO

Switches the input signal to the VIDEO source.

3) RGB

Switches the input signal to the RGB source.

4) DVD/HD

Switches the input signal to the DVD/HD source.

5) PICTURE MODE

Selects Picture Mode: [STANDARD], [BRIGHT], [CINEMA1], [CINEMA2], [DEFAULT].

STANDARD: for viewing in a bright room BRIGHT: brighter picture than STANDARD

CINEMA1, 2: for viewing in a dark room, good for movies

DEFAULT: factory default settings

6) SIZE

Set the aspect ratio of the image.

7) KEYPAD

Set REMOTE ID.

8) DISPLAY

Turn on/off the Information OSD.

9)

NEC PlasmaSync 50XP10 - 9) - 1

Move selection up or down

10) AUTO SETUP

Adjusts the CLOCK PHASE, CLOCK, and POSITION settings automatically. (Analog RGB signal input only)

11) POINTER

Turn on/off the pointer.

12)VOLUME

Increases/Decreases sound level.

13)SPLITSCREEN

PIP: Picture-in-Picture mode.

S BY S: Side-by-side mode.

SINGLE: Returns to normal mode.

SWAP: Swaps the Split Screen images.

When the QUICK SWAP function (see OSD OPTION4) is ON, SWAP can be used to change signal input. (Single screen mode)

SELECT/FREEZE: Selects which input is active when in split screen mode.

When the PIC FREEZE function (see OSD Option4) is operating, SELECT/FREEZE can be used to display still pictures on the sub screen.

CAPTURE : Captures still picture.

14) REMOTEID

Activates REMOTE ID function.

15)MENU

Turns ON/OFF menu mode.

16)SET

Makes selection.

17)-,+

Increases or decreases amount of adjustment.

18) EXIT

Goes to the previous menu.

19)ZOOM

Enlarges or reduces the picture.

20)MUTE

Mutes audio output.

21)SLEEP

Sleep timer.

NOTE: Any buttons without a corresponding explanation will not work with the Plasmasync display.

POWER

To turn the unit ON and OFF:

Plug the power cord into an AC outlet.
Press the Power button (on the unit).
The monitor's ON/STANDBY indicator turns red and the unit will be in STANDBY mode.
Press the POWER ON button on the remote control. The ON/STANDBY indicator will turn green when the unit is active.
Press the STANDBY button (on the remote) or the Power button (on the unit) to turn off the monitor.

DISPLAY

To check display settings press the DISPLAY button on the remote. The screen changes each time the DISPLAY button is pressed. Display information will disappear after 3 seconds.

DIGITAL ZOOM

Digital zoom can change the picture position or enlarge the image on the screen.

Be sure ZOOM NAV function is off. Press the ZOOM button (+ or -) to display the magnifying glass.

Press the ZOOM + button to enlarge the image.

Press the ZOOM - button to reduce the image.

Press the UP and DOWN or PLUS and MINUS buttons to reposition the picture.

Press the POINTER button to hide the pointer.

POINTER

Use the Pointer to point to a specific area on the screen.

Press the UP and DOWN or PLUS and MINUS buttons to reposition the Pointer.

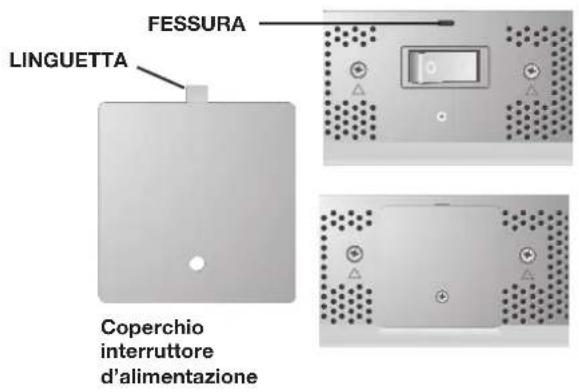

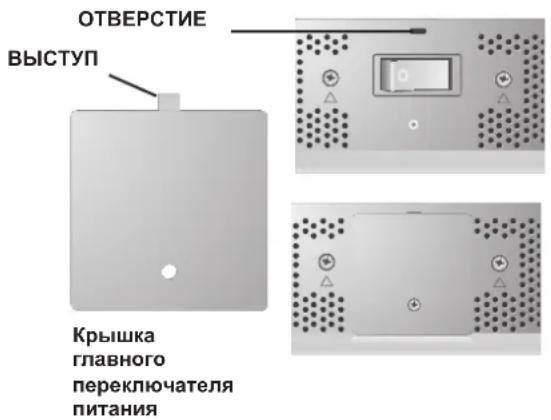

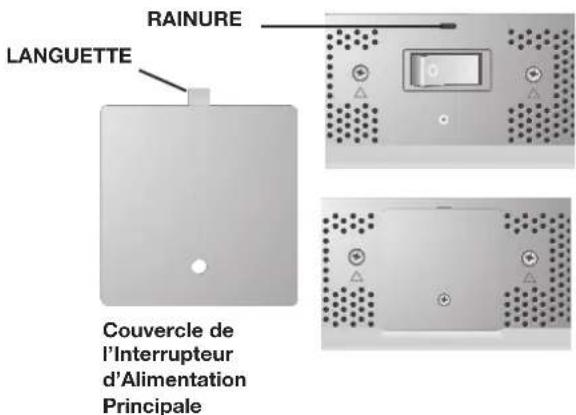

Main Power Switch Cover

Included with the display is a cover for the Main Power Switch. Use this cover to prevent the unit from being inadvertently powered off.

Place the tab on the cable cover into the rectangular slot on the display.

Then using the screw provided, secure the cover to the display.

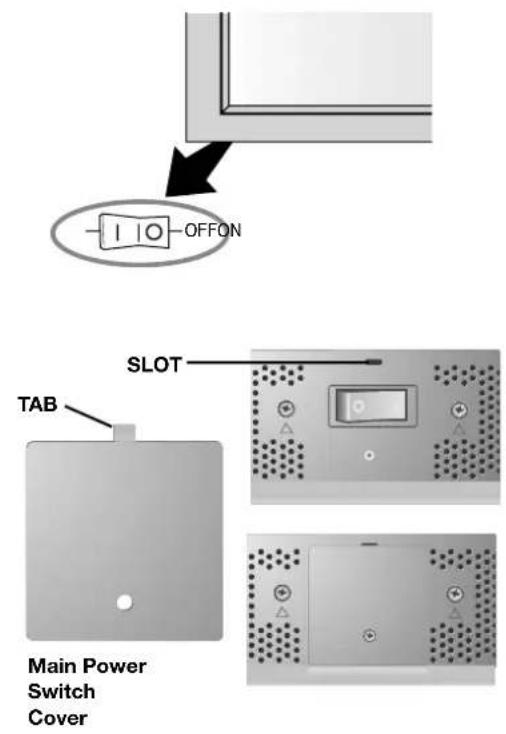

NEC PlasmaSync 50XP10 - Main Power Switch Cover - 1

REMOTE CONTROL ID

The remote control included with the display can be used to control up to 26 individual monitors using what is called the REMOTE CONTROL ID mode. The REMOTE CONTROL ID mode works in conjunction with the Monitor ID, allowing control of up to 26 individual monitors. For example: if there are many monitors being used in the same area, a remote control in normal mode would send signals to every monitor at the same time Figure 1. Using the remote in REMOTE CONTROL ID mode will only operate one specific monitor within the group Figure 2.

TO SET REMOTE CONTROL ID:

While holding down the REMOTE ID SET button on the remote control, use the KEYPAD to input the Monitor ID (1-26) of the display to be controlled via remote. The remote can then be used to operate the monitor having that specific Monitor ID number.

When 0 is selected or when the remote control is in normal mode, all monitors will be operated.

TO USE REMOTE CONTROL ID MODE

ID Mode - To enter ID Mode press the REMOTE ID SET button and hold down for 2 seconds.

Normal Mode - To return to Normal Mode press the REMOTE ID RESET button and hold down for 2 seconds.

In order for this feature to work properly, the display must be assigned a Monitor ID number. The Monitor ID number can be assigned under the OPTION3 menu in the OSD (See page 17).

If monitor ID is set to "ALL", monitor is controlled by remote control not depend on remote ID.

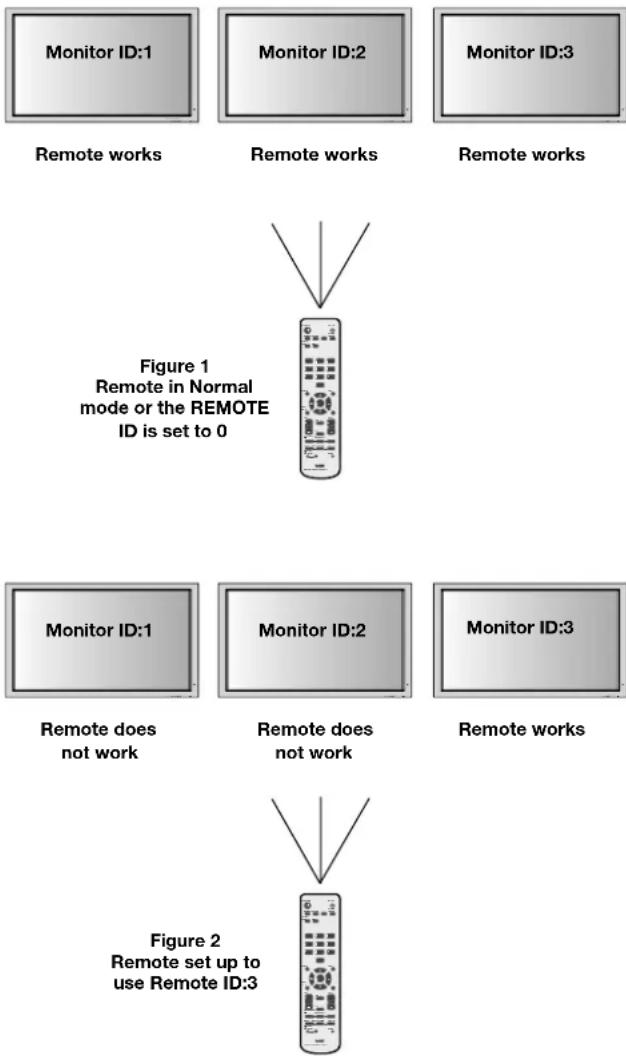

Remote Control ID Function
NEC PlasmaSync 50XP10 - TO USE REMOTE CONTROL ID MODE - 1

On-Screen Display (OSD)

Using the OSD

Use the Remote Control or the control panel on the front of the unit to enter the on-screen display menu to adjust settings.

Press the MENU button on the remote or the EXIT button on the Control Panel.
Use the up and down buttons to select the desired menu.
Press the SET button to select a sub-menu or item for adjustment.
Change the setting or adjustment by pressing the + and - buttons on the Control Panel or the Remote Control.
Press the EXIT button on the Remote Control, on the Control Panel to return to the previous menu.

NOTE: Not all menu functions may be available. To access all functions the Advanced OSD option must be turned on in the ADVANCED OSD menu.

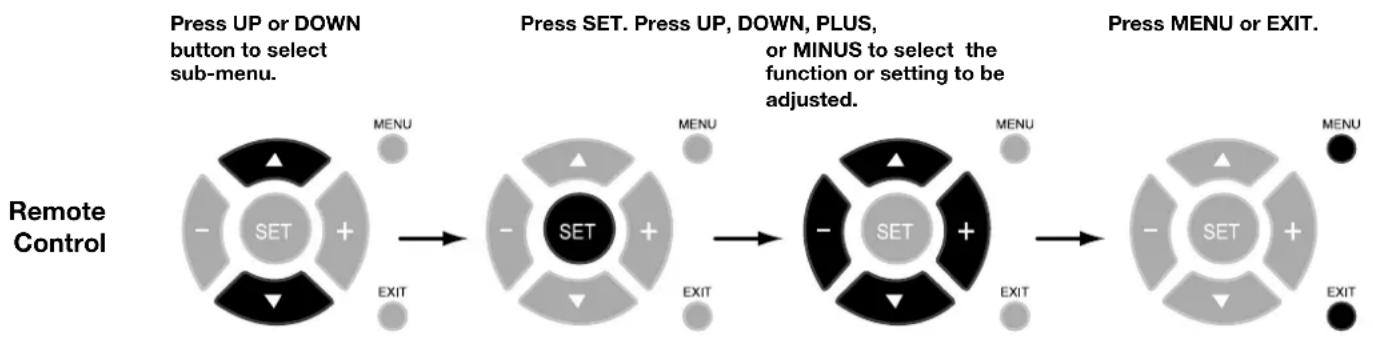

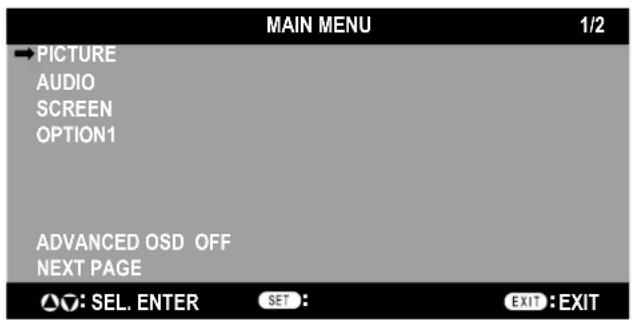

NEC PlasmaSync 50XP10 - Using the OSD - 1

NEC PlasmaSync 50XP10 - Using the OSD - 2

OSD Screen
NEC PlasmaSync 50XP10 - Using the OSD - 3

ADVANCED OSD is OFF. Not all OSD functions will be available when the ADVANCED OSD is off.

NEC PlasmaSync 50XP10 - Using the OSD - 4

Advanced OSD is ON. All OSD functions are shown, but some OSD functions may not be available.

On-Screen Display (OSD)

Main Menu Sub	Menu Sub Menu2 Sub	Menu3 Explanation	Default Reset
PICTURE CONTR	RAST Adjusts the image brightness in relationship to the white level. Press + or - to adjust.				50 YES
	BRIGHTNESS Adjusts the image brightness in relationship to the background. Press + or - to adjust.				50 YES
	SHARPNESS Adjusts the crispness of the image. Press + or - to adjust. 50 YES
	COLOR Adjusts the color depth of the screen. Press + or - to adjust.				50 YES
	TINT			Adjusts the tint of the screen. Press + or - to adjust.	50	YES
	PICTURE MODE			Selects picture mode, [BRIGHT], [STANDARD], [CINEMA1], [CINEMA2], [DEFAULT].STANDARD: For watching in a bright room.CINEMA1, 2: For watching in a dark room, especially good for movies.BRIGHT: Brighter picture than STANDARD.DEFAULT: Restores factory default settings.	STANDARD	YES
	NR			Adjusts the amount of noise reduction. Press + or - to adjust.	OFF	YES
	COLOR TEMP.			Adjusts the color temperature of the entire screen. A low color temperature will make the screen reddish. A high color temperature will make the screen bluish.	MID	YES
	WHITE BALANCE Available only when the Advanced OSD function is enabled.	GAIN RED		The "WHITE BALANCE" appears when the SET button is pressed on the "COLOR TEMP." OSD menu.GAIN RED/GREEN/BLUE: Adjusts the white level of the white balance.	50 YES
		GAIN GREEN			50 YES
		GAIN BLUE			50 YES
		RESET		Resets the factory default settings. Select "ON", then press the SET button to reset.	OFF	YES
	GAMMA Available only when the Advanced OSD function is enabled.			Select a display gamma for best picture quality.2.1, 2.2, 2.3, 2.4: The picture becomes darker as the number increases.S: Special gamma for certain types of movies. Raises the dark parts and lowers the light parts of the image.(S-Curve)These values are approximate.	2.2	YES
	COLOR CONTROL Available only when the Advanced OSD function is enabled.	RED		Adjusts the levels of the Red, Green, Blue, Yellow, Magenta and Cyan.VIDEO and DVD/HD input only.	50 YES
		GREEN			50 YES
		BLUE			50 YES
		YELLOW			50 YES
		MAGENTA			50 YES
		CYAN			50 YES
		RESET		Resets the factory default settings. Select "ON", then press the SET button to reset.	OFF	YES
AUDIO	BASS			Adjusts the low frequency sound. Press + or - to adjust.	0	YES
	TREBLE			Adjusts the high frequency sound. Press + or - to adjust.	0	YES
	BALANCE			Adjusts the balance of L/R volume. Press + or - to adjust.	0	YES
	AUDIO INPUT1			Select which audio input to use with the video source.	VIDEO1	YES
	AUDIO INPUT2				DVD/HD1 YES
	AUDIO INPUT3				VGA	YES

On-Screen Display (OSD)

Main Menu Sub	Menu Sub Menu2 Sub	Menu3 Explanation Default Reset
SCREEN ASPECT	MODE Selects aspect	ratio of the displayed image. Press + or- to select.
	V-POSITION Controls	the vertical position of the image within the Display area of the PDP.Press + to move up. Press - to move down.		0	YES
	H-POSITION Controls	the horizontal position of the image within the Display area of the PDP.Press + to move right. Press - to move left.		0	YES
	V-HEIGHT		Adjusts the vertical size of the image.	0	YES
	H-WIDTH		Adjusts the horizontal size of the image.	0	YES
	AUTO PICTURE		ON: H-Position, V-Position, Clock and Clock Phase are adjusted automatically.OFF: H-Position, V-Position, Clock and Clock Phase are adjusted manually.VGA and RGBHV input only.	OFF	NO
	CLOCK PHASE		Adjusts the visual “noise” on the image.VGA and RGBHV input only.	0	YES
	CLOCK		Press + to expand the width of the image on the right of the screen.Press - to narrow the width of the image on the left.VGA and RGBHV input only.	0	YES
	UNDER SCAN Available only when the Advanced OSD function is enabled.		ON: UNDERSCAN is selectable in the ASPECT MODE menu.OFF: UNDERSCAN item is not selectable in the ASPECT MODE menu.Video signal input only.	OFF	YES
OPTION1	OSD	DISPLAY OSD	ON: Information about inputs, screen size, etc. is shown.OFF: No information is shown.	ON	YES
		OSD POSITION	Change the position of the menu between 1 and 6. Press + or - to adjust.	1	YES
		OSD ORBITER	ON: The menu position intermittently shifts eight dots while the OSD is being displayed.OFF: The menu position does not shift.	OFF	YES
		OSD TRANSP.	Adjusts the transparency level of the OSD.Press + or - to adjust.	70%	YES
	BNC INPUT		Selects the input type when using 5BNC connectors.RGB: For RGB input.COMP.: For Component input (3BNC connectors).SCART1: For SCART input (4BNC connectors).SCART2: For SCART input (3BNC connectors and VIDEO1 input).SCART1, SCART2 available for Europe and World-Wide models only.	RGB	YES
	D-SUB INPUT		Selects the input type when using a mini D-SUB connector.RGB: For RGB input.SCART3: for SCART input.SCART3 available for Europe and World-Wide models only.	RGB	YES
	RGB SELECT		If there is a problem with signal detection, this function forces the monitor to display the signal at the desired resolution.If no problem is detected, the only available option will be “AUTO”.VGA and RGBHV input only.	AUTO	YES
	HD SELECT		Manually selects signal output when similar 1080I signal are detected.1080B: Standard digital broadcasts.1080A: Special digital broadcasts (ex. DTC100).	1080B	NO
	INPUT SKIP		Skips to next input if present input signal is not detected.This function is valid only for INPUT key on the display.	OFF	YES
	ALL RESET		Resets settings back to factory default values.	OFF

On-Screen Display (OSD)

Main Menu Sub	Menu Sub Menu2 Sub	Menu3 Explanation	Default Reset
OPTION2Available onlywhen theAdvanced OSDfunction isenabled.	POWER SAVE Sets how long the monifor waits beforegoing into powersave mode after a signal is lost.VGA, RGBHV, and DVI input and Separate HV Sync. only.				OFF YES
	FILM MODE Selects Film mode. ON YES
	SCREEN SAVER Use SCREEN SAVER functions to reduce the risk of image retention.
					PLE: The brightness is decreased in order of Lock mode.(the higher number is darker)	AUTO	YES
					ORBITER: The screen image moves and is slightly squeezed or expanded.	AUTO1	YES
					INVERSE: The screen image is displayed alternately between positive image and negative image, or the screen image is displayed full white.	OFF YES
	COOLING FAN			Cooling fan reduces the temperature of the display.	AUTO	NO
	SIDE MASK			Adjusts the color of the side mask when a 4:3 image is displayed.Press + button, the bar will become lighter.Press - button, the bar will become darker.	3	YES
	PICTURE SIZE			When it is set to "OFF", TRUE of picture size appears only RGB signals.	ON	YES
	DVI MODE	PLUG/PLAY		Choose the DVI mode based on the input device connected via DVI connector and set the black level.When a PC or similar equipment is connected, the PLUG/PLAY setting should be "DVI-PC" and the BLACK LEVEL setting should be "LOW".When a DVD player or similar equipment is connected, PLUG/PLAY setting should be "DVI-HD" and the BLACK LEVEL setting should be "HIGH".	DVI-PC	NO
	DVI MODE	BLACK LEVEL			LOW	NO
	PROTOCOL SET			Sets protocol setting for use with RS-232C connection.OFF: When NEC protocol is used (normal).ON: When special protocol is used.Consult dealer for details of protocol.	OFF YES
	CLOSED CAPTIONU.S. models only			Choose the closed caption setting.	OFF	YES
	CAPTION CONTU.S. models only			Chooses the brightness of the closed captions.	NORMAL	YES
OPTION3Available onlywhen theAdvanced OSDfunction is enabled.	TIMER	PRESENTTIME	DAYLIGHTSAVINGTIME	Sets the date, time, and daylight saving region.Day & time must be set in order for the "TIMER" function to operate.	OFF	NO
		PRESENTTIME	DAY/HOUR/MINUTE			NO
		TIMER		Creates a working schedule for the monitor to use. See page 24 for instructions.	OFF YES
	INPUT DETECT	INPUT		Sets the input mode and the sound volume when the power is turned on.LAST: Uses the input that was last selected when the power was turned off.MULTI to DVI: Fixed input mode.AUTO: Automatically searches for the input signal.PRIORITY: Sets which input has priority when using the AUTO setting.	LAST	YES
	INPUT DETECT	VOLUME			LAST	YES
	CONTROL LOCK			This function completely locks out access to all Control Key functions. When this item is set to "ON", the front panel is disabled as soon as the on-screen menu goes off.	OFF YES
	IR REMOTE			When "OFF", prevents the monitor from being controlled by wireless remote controller. The remote becomes ineffective disabled as soon as the on-screen menu goes off. To return to normal operation, press the "DISPLAY" button on the remote controller for 5 seconds.	ON	YES
	LOOP OUT			Change the loop out setting.	OFF YES
	MONITOR ID			Sets the Monitor ID to a number from 1-26 and or to ALL.	ALL	YES
	RS232C CONTROL			Selects the mode of the monitor when using the RS-232C daisy chain.	NORMAL	YES
Main Menu Sub	Menu Sub Menu2 Sub	Menu3 Explanation Default Reset
OPTION3 (continued)	VIDEO WALL Sets the	confi guration of	video wall.
		DIVIDER Sets the	video wall. OFF	YES
		POSITION Sets the position of each display.
		DISP. MODE Sets the mode of seam processing for each display. SPLIT YES
		SCREEN	ASPECT MODE	Adjusts detail position.
			V-POSITION		0	YES
			H-POSITION		0	YES
			V-HEIGHT		0	YES
			H-WIDTH		0	YES
			AUTO PICTURE		OFF	YES
			CLOCK PHASE		0	YES
			CLOCK		0	YES
			UNDER SCAN		OFF	YES
		P.ON DELAY Adjusts the delay time between being in "standby" mode and entering "power on" mode.			OFF	YES
OPTION4 Available only when the Advanced OSD function is enabled.	SUB PICTURE			Automatically detects if there is an input signal for the sub screen. This feature is available only picture-in-picture mode.
		SUB P. DETECT		Automatically detects sub screen.	AUTO	YES
		DISPLAY		Sets the appearance of the sub screen.	NORMAL	YES
		SUB P. RATE		Sets the transparency of the sub screen.	100%	YES
	ZOOM NAV			Sets the position of the zoom navigation image.	BTM LFT	YES
	PIC FREEZE			Sets the position of the captured still picture.	S BY S1	YES
	QUICK SWAP			Enables quick swapping of input. Sets which input terminals are used.	OFF	YES
		SELECT1			VIDEO1	YES
		SELECT2			VGA	YES
	TEXT INSERT			Allows text insertion within main screen.	OFF	YES
		INPUT		Sets the input of text image of the VGA, RGBHV, and DVI.	VGA	YES
		SUB P. DETECT		Automatically detects sub screen.	AUTO	YES
		DISPLAY		Sets the appearance of the sub screen.	NORMAL	YES
		SUB P. RATE		Sets the transparency of the sub screen.	100%	YES
ADVANCED OSM				ON: All menu items are shown for advanced users. OFF: Some of the advanced menu items are not shown.	OFF	YES
LANGUAGE				Select the language used by the OSD.	ENGLISH NO
COLOR SYSTEM				The Color System that is used depends on the video format of the input signal. VIDEO input only.	AUTO	NO
SOURCE INFORMATION				Display information about the display: frequencies, polarities, etc.

No picture

The signal cable should be properly connected to the display card/computer.
The display card should be properly seated in its slot.
Front Power Switch and computer power switch should be in the ON position.
Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)
Check the monitor and your display card with respect to compatibility and recommended settings.
Check the signal cable connector for bent or pushed-in pins.

Power Button does not respond

- Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

Image persistence

- Please be aware that Plasma Technology may experience a phenomena known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, Plasma monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Image is unstable, unfocused or

swimming is apparent

Signal cable should be properly attached to the Plasma monitor, computer, or other input device.
Use the OSD screen controls to focus and adjust display by increasing or decreasing the clock phase total. When the display mode is changed, the OSD Image Adjust settings may need to be readjusted.
Check the monitor and your display card with respect to compatibility and recommended signal timings.

Image of component signal is greenish

- Check to see if the DVD/HD input connector is selected.

LED on monitor is not lit

(no green or red color can be seen)

- Main Power Switch should be in the ON position and power cord should be connected.

Red LED on monitor is blinking

- A certain failure might have occurred, please contact your nearest authorized NEC DISPLAY SOLUTIONS service facility.

Display image is not sized properly

Use the OSD screen controls to increase or decrease the clock total.
Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

Selected resolution is not displayed properly

- Use OSD information to enter Information menu and confirm that the appropriate resolution has been selected. If not, select appropriate resolution.

No Sound

Check to see if speaker cable is properly connected.
Check to see if mute is activated.
Check to see if volume is set at minimum.
NOTE: It is possible to play audio from a source that is different from the video source.

RS-232C does not work

- Check the PROTOCOL SET in the OPTION2 menu.

Remote Control does not work

• Make sure the batteries are inserted properly.
- Test the batteries for strength/life.
- Make sure to point the remote directly at the sensor on the monitor.
- Check if the remote is in Remote ID mode.
- The remote control may not function when in direct sunlight or when there is strong illumination on the remote sensor of the monitor.
- Check the IR REMOTE setting in the OPTION3 menu.

Specifications P42XP10

PDP Module Diagonal: 42"/1058 mm
	Pixel Pitch 0.900 mm (W)/0.676 mm (II)
	Resolution 1024 x 768
Frequency Horizontal ANALOG: 15.625/15.734kHz, 31.0kHz - 108.5kHz
						DIGITAL: 15.625/15.734kHz, 31.0kHz - 91.1kHz
					Vertical 24Hz to 120.4Hz
Panel Display Size 922 mm (W) x 519 mm (II)36.3 in (W) x 20.4 in (II)
Input Signals DVI DVI-D 24pin Digital RGB DVI (HIDCP)
				VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, 1920X1080
				0.7V p-p, Input Impedance 75 ohm
				VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
			Sync	Separate: TTL level (Pos./Neg.)
				Composite sync on Green Video: 0.3Vp-p Neg
				0.7V p-p, Input Impedance 75 ohm
				GA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
			Sync	Separate: TTL level (Pos./Neg.)
				Composite sync on Green Video: 0.3Vp-p Neg.
				Y: 1.0Vp-p/75ohm, Cb/Cr (Pb/Pr): 0.7Vp-p/75 ohm
				HDTV/DVD:1080p, 1080i, 720p@50Hz/60Hz,576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz
				1.0V p-p Input Impedance 75 ohm
				NTSC/PAL(B, G, M, N)/SECAM/4.43NTSC/PAL60
				1.0V p-p Input Impedance 75 ohm
				NTSC/PAL(B, G, M, N)/SECAM/4.43NTSC/PAL60
				NTSC/PAL(B, G, M, N)/SECAM/4.43NTSC/PAL60
Output Signal (VIDEO1 and VGA can also be used as OUTPUT terminals)	VGA	15pin Mini D-sub	Analog RGB	Analog RGB Video: 0.7V p-p with 75 ohm terminatedSeparate HV sync: TTL level (Pos / Neg)
	VIDEO1	BNC	Composite	Composite 1.0V p-p with 75 ohm terminated
Audio	AUDIO Input	RCA (L/R) X3	Analog Audio	Sterco L/R 0.5Vrms
Speaker Output External Speaker Jack 8W + 8W (8 ohm)
External Control	RS-232C: IN	9 Pin D-sub
	RS-232C: OUT	9 Pin D-sub (daisy chain)
Power Supply	4.4-1.8A@100-240V AC, 50/60Hz
Operational Environment	Temperature	0° to 40°C / 32°F to 104°F
	Humidity	20% to 80% (without condensation)
Storage Environment	Temperature	-10°C to 50°C / 14°F to 122°F
	Humidity	10 - 90% (without condensation)/ 90% - 2% x (Temp - 40°C) regarding over 40°C
Dimensions	Net	1036mm(W) x 644mm(H) x 127mm(D) / 40.8"(W) x 25.4"(H) x 5.0"(D)
	Gross	1220mm(W) x 900mm(H) x 360mm(D) / 48.0"(W) x 35.4"(H) x 14.2"(D)
Weight (without speaker and stand)	Net	33.5 kg / 73.9 lbs
	Gross	41.5 kg / 91.5 lbs
VESA compatible arm mounting interface	700mm x 300mm 4 11oles (screw M8 Depth 16mm)
Complied Regulatory and Guidelines	UL 60950-1/CSA C22.2 No.60950-1/EN60950-1/IEC60950-1FCC-B/DOC-B/EN55022-B/EN55024/EN61000-3-2/EN61000-3-3/CE/C-Tick
Power Management	VESA DPM (Separate HV Sync. only)
Plug & Play	VESA DDC2B
Accessories	Remote control, AA Batteries, Power cord, Users Manual (CD-ROM),Start Up Guide (Paper / CD-ROM), Main Power Switch cover and screw; Cable clamps
*Compressed Image

Specifications P50XP10

PDP Module Diagonal: 50"/1	269 mm
	Pixel Pitch 0.81 mm (W)/0.81 mm (II)
	Resolution 1365 x 768
Frequency Horizontal ANALOG: 15.625/15.734Hz, 31.0kHz - 108.5kHz
					DIGITAL: 15.625/15.734kHz, 31.0kHz - 91.1kHz
				Vertical 24Hz to 120.4Hz
Panel Display Size 1106 mm (W) x 622 mm (II)43.5 in (W) x 24.5 in (II)
Input Signals DVI DVI-D 24pin Digital RGB DWI (HDCP)
			VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, 1920X1080
			Input Impedance 75 ohm
			VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
		Sync Separate: TTL level (Pos./Neg.)

Specifications P60XP10

PDP Module Diagonal: 60'/1514 mm
	Pixel Pitch 0.966 mm (W)/0.966 mm (II)
	Resolution 1366 x 768
Frequency Horizontal ANALOG: 15.625/15.734kHz, 31.0kHz - 108.5kHz
						DIGITAL: 15.625/15.734kHz, 31.0kHz - 91.1kHz
					Vertical 24Hz to 120.4Hz
Panel Display Size 1320 mm (W) x 742 mm (II)51.9 in (W) x 29.2 in (II)
Input Signals DVI DVI-D 24pin Digital RGB DVI (HDCP)
				VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, 1920X1080
				VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
			Sync Separate: TTL level (Pos./Neg.)
					Composite sync on Green Video: 0.3Vp-p Neg
					0.7V p-p, Input Impedance 75 ohm
					VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
			Sync Separate: TTL level (Pos./Neg.)
					Composite sync on Green Video: 0.3Vp-p Neg.
					Y: 1.0Vp-p/75ohm, Cb/Cr (Pb/Pr): 0.7Vp-p/75 ohm
					HDTV/DVD:1080p, 1080i, 720p@50Hz/60Hz,576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz
					1.0V p-p Input Impedance 75 ohm
					NTSC/PAL(B, G, M, N)/SECAM/4.43NTSC/PAL60
					1.0V p-p Input Impedance 75 ohm
					NTSC/PAL(B, G, M, N)/SECAM/4.43NTSC/PAL60
					NTSC/PAL(B, G, M, N)/SECAM/4.43NTSC/PAL60
Output Signal (VIDEO1 and VGA can also be used as OUTPUT terminals)	VGA	15pin Mini D-sub	Analog RGB	Analog RGB Video: 0.7V p-p with 75 ohm terminatedSeparate HV sync: TTL level (Pos / Neg)
	VIDEO1	BNC	Composite	Composite 1.0V p-p with 75 ohm terminated
Audio	AUDIO Input	RCA (L/R) X3	Analog Audio	Sterco L/R 0.5Vrms
Speaker Output External Speaker Jack 8W + 8W (8 ohm)
External Control	RS-232C: IN	9 Pin D-sub
	RS-232C: OUT	9 Pin D-sub (daisy chain)
Power Supply	7.8-3.2A@100-240V AC, 50/60Hz
Operational Environment	Temperature	0° to 40°C / 32°F to 104°F
	Humidity	20% to 80% (without condensation)
Storage Environment	Temperature	-10°C to 50°C / 14°F to 122°F
	Humidity	10 - 90% (without condensation)/ 90% - 2% x (Temp - 40°C) regarding over 40°C
Dimensions	Net	1447(W)mm x 871mm(H) x 127mm(D) / 57.0"(W) x 34.3"(H) x 5.0"(D)
	Gross	1620mm(W) x 1100mm(H) x 360mm(D) / 63.8"(W) x 43.3"(H) x 14.2"(D)
Weight (without speaker and stand)	Net	68.5 kg / 151.0 lbs
	Gross	81.0 kg / 178.6 lbs
VESA compatible arm mounting interface	700mm x 300mm 4 11oles (screw M8 Depth 16mm)
Complied Regulatory and Guidelines	UL 60950-1/CSA C22.2 No.60950-1/EN60950-1/IEC60950-1FCC-B/DOC-B/EN55022-B/EN55024/EN61000-3-2/EN61000-3-3/CE/C-Tick
Power Management	VESA DPM (Separate HV Sync. only)
Plug & Play	VESA DDC2B
Accessories	Remote control, AA Batteries, Power cord, Users Manual (CD-ROM),Start Up Guide (Paper / CD-ROM), Main Power Switch cover and screw; Cable clamps
*Compressed Image

P42XP10 Supported Resolutions (PC)

A gan Digital TEXT INSERT

Sig. no. m

Resolut H X V

Specification of the signal

INPUT z) m/dt

SIZE

INPUT terminal

SIZE

TOP1-3/MID HIGH/ MID LOW/BOTTOM1-3

Left/Right

Hexpi (HZ)

Hfreq. (kHz)

NORMAL (4:3)

FULL (16:9)

ZOOM

TRUE (REAL)

NORMAL (4:3)

FULL (16:9)

ZOOM

TRUE (REAL)

Sync polarity

RGB select

Gr. No.

Ite

IBM PC/AT Compatible Computers

640 X 400

400line

70.1

31.5

VGA RGBHV

Yes

DVI (DVI-PC)

Yes

Neg.

640X400

720 X 400

400line

70.1

31.5

Yes

Neg.

720X400

37.9

Yes

Neg.

Pos.

720 X 350

350line

70.1

31.5

Yes

Neg.

720X350

640 X 480

VGA

59.9

31.5

Yes

Neg.

640X480

72.8

37.9

Yes

Neg.

37.5

Yes

Neg.

43.3

Yes

Y se

Yes

Y se

Yes

Neg.

100.4

51.1

Yes

Neg.

120.4

61.3

Yes

Neg.

848 X 480

Wide-VGA

Yes

Pos.

848X480

852 X 480

Wide-VGA

31.7

Yes

Neg.

852X480

800 X 600

SVGA

56.3

35.2

Yes

Pos.

60.3

37.9

Yes

Pos.

72.2

48.1

Yes

Y se

Yes

Y se

Yes

Pos.

696

Yes

Pos.

85.1

93.7

Yes

Pos.

99.8

Yes

seY

Yes

Y se

Yes

Pos.

75.7

Yes s

Yes

Y se

Yes

Pos.

1024 X 768

XGA

48.4

Yes

Neg.

1024X768

70.1

58.5

seY

Yes

Neg.

1024X768

1.8

759

Yes

Neg.

1024X768

Yes

Y se

Yes

Y se

Yes

Pos.

68.7

Yes

Y se

Yes

Pos.

001.6

095

Yes

Y se

Yes

Neg.

1.91.4

586

Y se

Yo s

No s

Yes

Neg.

1152 X 864

XGA

53.7

Yes

Pos.

Neg.

64.9

Yes

Pos.

Neg.

67.5

Yes

Y se

Yes

Pos.

1280 X 768

Wide-XGA

56.2

45.1

No s

Yes

Pos.

59.8

Yes s

Yes

Pos.

Neg.

1280X768-1

59.9

47.8

seY s

No s

Yes

Neg.

Pos.

1280X768-2

69.8

Yes s

Yes

Neg.

Pos.

1280X768

57.8

Yes s

Yes

Neg.

Pos.

1280X768

1280 X 800

Wide-XGA

59.8

947

Yes s

Yes

Neg.

Pos.

1280X800

1280 X 854

Wide-XGA

53.1

Yes s

Yes

Neg.

1280 X 950

Wide-XGA

soY s

No s

Yes s

Y se

Yes s

Yes

Pos.

Yes '2 s

Yes s

Pos.

1360 X 768

Wide-XGA

47.7

Yes s

Y se s

Yes s

Pos.

1360X768

1376 X 768

Wide-XGA

59.9

48.3

Y se s

Yes s

Neg.

Pos.

1376X768

1280 X 1024

SXGA

Yes '1 s

Yes s

Yes '1 s

Yes s

Pos.

1280X1024

Yes '1 s

Yes s

Y se s

Y se s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s's s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s" s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s ́s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' S' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' c' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' t's s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' S's s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' c's s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' o's s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' e's s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' s' a's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e'se's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's ́s's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's f's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's g's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's o's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's a's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e'S a's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e' a's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's ́a's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's e's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c's c'sc.'s 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' 's' "s" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 'S" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's} 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" "s" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" "S" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 'S' 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" ‘s" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 's" 'o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "O" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o", "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" “o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" " o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o” "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o" "o"

	NORMAL (4:3)	FULL(18:9)	(*1)	(*2)
Not Supported	760 pixels x 760 lines	1024 pixels x 760 lines	Aspect ratio is 5:4 (720x768)	Rough Sampling

Analog Digital

		Sig.no.	ResolutionH X V	Signal Type	Specification of the signal		INPUTterminal	SIZE							INPUTterminal	SIZE
		Sig.no.	ResolutionH X V	Signal Type	V freq.(Hz)	H freq.(kHz)	INPUTterminal	NORMAL(4:3)	FULL(16:9)	DYNAMC(non-linear)	ZOOM	14:9	2.35:1	UNDERSCAN	INPUTterminal	NORMAL(4:3)	FULL(16:9)	DYNAMIC(non-linear)	ZOOM	14:9	2.35:1	UNDERSCAN	RGB select		HD select
VideoComposite / S		101	3.58NTSC		59.9	15.8	Video1Video2S-Video	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3	3	--	--	--	--	--	--	--	--	--	--
		102	4.43NTSC		59.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		103	PAL		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		104	PAL60		59.9	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Y es*		--	--	--	--	--	--	--	--	--	--
		105	PAL-N		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Ye *		--	--	--	--	--	--	--	--	--	--
		106	PAL-M		59.9	1 8.5		Yes	Yes	Yes	Yes	Yes	Yes	Ye *		--	--	--	--	--	--	--	--	--	--
		107	SECAM		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Ye *		--	--	--	--	--	--	--	--	--	--
Y,Pb(Cb),Pr(Cr)	SD	111	480I		59.9	15.8	DVD/HD1DVD/HD2	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		112	576I		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		113	480P		59.9	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--		--	--	--	--	--	--	--	--
		114	576P			05 3.13		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
	HD	115	720P		50	37.5		--	Yes	Yes	--	--	Yes	Yes *3		-	-	--	--	--	--	--	--	--	--
		116	720P		60	45		--	Yes	Yes	--	--	Yes	Yes *			--	--	--	--	--	--	-	-	--
		117	1080I		50	29.1		--	Yes	Yes	--	--	Yes	Yes *3		--		--	--	--	--		--	--	--
		118	1080I		6 0	336		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--		--	--
		119	1080P		50			--	Yes	Yes	--	--	Yes	Yes *3		--		--	--	--	--	--	--		--
		120	1080P			06 5.76		--	Yes	Yes	--	--	Yes	Y es*		--	--	--		--	--	-	--	--	--
		121	1080P		03	33.8		--	Yes	Y se	--	--	Yes	Y es*		--	--	--	--	--	--	--	--	--	--
		122	1080P		42	72		--	Yes	Y se	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		123	1080P		25	2 8		--	Ye s Ye		--	--	Yes	Ye *		--	--	--	--	--	--	--	--	--	--
RGB(Video signal)	SD	131	480I *4		59.9	15.8	VGARGHBV(SCART1-3)	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		132	576I *4		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		133	480P		59.9	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	2	480P
		134	576P		50	31.3		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
	HD	135	720P		50	3 5.7		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		136	720P		60	4 5		--	Yes	Y se	--	--	Yes	Yes *3
		137	1080I		50	29. 1		--	Yes	Yes	--	--	Yes	Yes *3		--
		138	1080I		06	39.8		--	Yes	Yes	--	--	Yes	Yes *3
		139	1080P		50	56.3		--	Yes	Yes	--	--	Yes	Yes *3
		140	1080P		6 0	26		--	Yes	Ye	--	--	Yes	Ye *
		141	1080P		30	33.8
		142	1080P			42 72
		143	1080P		25	28
		144	1080A/540P	RCA STB	60	33.8
Digital(EIA/CEA-861)	SD	161	640 X 480P		59.9 /60.0	31.5 /31.5		03	--	--	--	--	--	--	DVI(DVI-HD)	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3
		162	720 (1440) X 480I		59.9 /60.0	15.7 /15.8										Yes	Yes	Yes	Yes	Yes	Yes *3
		163	720 X 480P		59.9 /60.0	31.5 /31.5										Yes	Yes	Yes	Yes	Yes	Yes *3
		164	720 (1440) X 576I		50	156										Yes	Yes	Yes	Yes	Yes	Yes *3
		165	720 X 576P		50	31.3										Yes	Yes	Yes	Yes	Yes	Yes Y es*
	HD	166	1280 X 720P		59.9 /60.0	45.0 /45.0
		167	1920 X 1080I		59.9 /60.0	33.7 /33.8
		168	1920 X 1080P		59.9 /60.0	67.4 /67.5
		169	1280 X 720P		50	37.5
		170	1920 X 1080I		50	29.1
		171	1920 X 1080P		50	56.3
		172	1920 X 1080P		30	33.8
		173	1920 X 1080P		24	2 7
		174	1920 X 1080P			52 82
	NativeResolution	191	1366 X 768		50	47.3
		192	1024 X 768		60	47.3
		193	853 X 480			06

--	NORMAL(4:3)	FULL(18:9)	(*3)	(*4)
Not Supported	768 pixels x 768 lines	1024 pixels x 768 lines	Displayed by Underscan mode (100%)	SCART Input available

P50XP10 Supported Resolutions (PC)

Sig. no.

Reso ciniul H X V

Specification of the signal

INPUT terminal

Size

INPUT terminal

Size

TOP1-3/MID HIGH/ MID LOW/BOTTOM1-3)

Left/Right

Sync polarity

RGB select

V freq. (HZ)

H freq. (kHz)

NORMAL (4.3)

FULL (16.9)

ZOOM

TRUE (REAL)

NORMAL (4.3)

FULL (16.9)

ZOOM

TRUE (REAL)

Gr. No.

Item

IBM PC/AT

640 X 400

400line

70.1

31.5

VGA RGBHV

Yes

DVI (DVI-PC)

Yes

Neg.

640X400

Compatible

720 X 400

400line

70.1

31.5

Yes

Neg.

720X400

Computers

37.9

Yes

Neg.

Pos.

720 X 350

350line

70.1

31.5

Yes

Neg.

720X350

640 X 480

VGA

59.9

31.5

Yes

Neg.

640X480

72.8

Yes

Neg.

7.5

735

Yes

Neg.

8.5

343

Yes

Neg.

100.4

51.1

Y OS

Yo S

Yes

Neg.

#21

61.3

Yes

Y es

Yes

Neg.

848 X 480

Wide-VGA

Yes

Pos.

848X480

852 X 480

Wide-VGA

137

Yes

Neg.

852X480

800 X 600

SVGA

56.3

35.2

Yes

Pos.

60.3

37.9

Yes

Y se

Yes

Pos.

27.2

Yes

Pos.

648

Yes

Y se

Yes

Pos.

53.7

Ye S

eY S

eY eY

Yes

Pos.

99.8

Ye S

eY Y

Yes

Y se

Yes

Pos.

021

Ye S

eY Y

Yes

Y se

Yes

Pos.

1024 X 768

XGA

48.4

Yes

Neg.

1024X768

70.1

Ye es

eY Y se

Yes

Neg.

1024X768

71.9

57.9

Yes

Neg.

1024X768

Yes

Pos.

68.7

Yes

Pos.

100.6

80.5

Yes

Neg.

119.4

95.5

Yes

Neg.

1152 X 864

XGA

53.7

Yes

Pos.

Neg.

64.9

Yes

Pos.

Neg.

67.5

Yes

Pos.

1280 X 768

Wide-XGA

56.2

45.1

-- seY --

Yes

Pos.

58.8

Yes --

Yes

Pos.

Neg.

1280X768-1

59.9

47.8

Yes --

Yes

Neg.

Pos.

1280X768-2

69.8

Yes --

Ye s --

Yes

Neg.

Pos.

1280X768

57.8

Yes --

Yes

Neg.

Pos.

1280X768

1280 X 800

Wide-XGA

59.8

94.7

eY --

Yes

Neg.

Pos.

1260X800

1280 X 854

Wide-XGA

53.1

Yes --

seY --

Yes

Neg.

1280 X 960

Wide-XGA

Ye s eY Ye s --

Yes

Yes Yes --

Yes

Pos.

85.9

Yes '2 Yes '2 Yes '2 --

Yes Yes Yes --

Yes --

Yes

Pos.

1360 X 768

Wide-XGA

47.7

eY --

-- Y se --

Yes

Pos.

1360X768

1375 X 768

Wide-XGA

95.9

848

eY --

-- eY --

Yes Yes

Yes

Neg.

Pos.

1375X768

1280 X 1024

SXGA+

Yes '1 Yes Yes --

Yes Yes

Yes Pos.

Pos.

1280X1024

Yes '1 Yes Yes --

Yes --

Yes Pos.

Pos.

81.1

Yes '1 '2 Yes '2 Yes '2 --

Yes '1 Yes Yes --

Yes --

Yes Pos.

Pos.

100.1

108.5

Yes '1 '2 Yes '2 Yes '2 --

-- -- -- -- --

Yes --

Pos.

1400 X 1050

SXGA+

Yes Yes Yes Yes --

Yes --

Neg. Pos. Pos. G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync onG Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Syncon G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on G Sync on

--	NORMAL (4:3)	FULL (16:3)	('1)	('2)
Not Supported	1024 pixels x 769 lines	1365 pixels x 768 lines	Aspect ratio is 5:4 (860x768)	Rough Sampling

P50XP10 Supported Resolutions (Video)

Analog Digital

		Sig. t no.	Bel ndi H X V	Signal Type	Specification of the signal		INPUT terminal	SIZE							INPUT terminal	SIZE						RGB select		HD selec
		Sig. t no.	Bel ndi H X V	Signal Type	V freq. (Hz)	H freq. (kHz)	INPUT terminal	NORMAL (4:3)	FULL (16:9)	DYNAMIC (non-linear)	ZOOM	14:9	2.35:1	UNDER SCAN	INPUT terminal	NORMAL (4:3)	FULL (16:9)	DYNAMIC (non-linear)	ZOOM	14:9	2.35:1	UNDER SCAN	Gr. No.	Item	Item
Video Composite / S		101	3.58NTSC		59.9	15.8	Video1 Video2 S-Video	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		102	4.43NTSC		59.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		103	PAL		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		104	PAL50		59.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		105	PAL-N		50	1 6.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		106	PAL-M		59.9	15.8		Yes	Yes	eY	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		107	SECAM		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
Y,Pb(Cb),Pr(Cr)	SD	111	480I		59.9	15.8	DVD/HD1 DVD/HD2	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		112	576I		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		113	480P		59.9	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		114	576P		50	31.3		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
	HD	115	720P		50	5.73		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		116	720P		05	54		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		117	1080I		50	28.1		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		118	1080I		60	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		119	1080P		50	56.3		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		120	1080P		6 0	56		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		121	1080P			03 8.33		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		122	1080P		24	27		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		123	1080P		25	28		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
RGB(Video signal)	SD	131	480I *4		59.9	15.8	VGA RGBHV (SCART1-3)	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		132	576I *4		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		133	480P		59.9	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	2	480P	--
		134	576P		50	31.3		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--
	HD	135	720P		50	37.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		136	720P		60	45		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		137	1080I		50	1.82		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--
		138	1080I		60	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	1 B080
		139	1080P		60	3.65		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--
		140	1080P		06	67.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--
		141	1080P		03	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--
		142	1080P		24	27		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--
		143	1080P		25	26		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--
		144	1080A/540P	RCA STB	06	30		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	1080A
Digital (EIA/CEA-861)	SD	161	640 X 480P		59.9 / 60.0	31.5 / 31.5		--	--	--	--	--	--	--	DVI (DVI-HD)	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	--	--
		162	720 (1440) X 480I		59.9 / 60.0	15.7 / 15.8		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--
		163	720 X 480P		59.9 / 60.0	31.5 / 31.5		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--
		164	720 (1440) X 576I			C5 6.51		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--
		165	720 X 576P		50	31.3		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--
	HD	166	1280 X 720P		59.9 / 60.0	45.0 / 45.0		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes	Yes *3	--
		167	1920 X 1080I		59.9 / 60.0	33.7 / 33.8		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes	Yes *3	--
		168	1920 X 1080P		59.9 / 60.0	67.4 / 67.5		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes	Yes *3	--
		169	1280 X 720P		50			--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes	Yes *3	--
		170	1920 X 1080I		50			--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes	Yes *3	--
		171	1920 X 1080P
		172	1920 X 1080P
		173	1920 X 1080P
		174	1920 X 1080P

--	NORMAL (4:3)	FULL (16:9)	(*3)	(*4)
Not Supported	1024 pixels x 768 lines	1365 pixels x 768 lines	Displayed by Undercan mode (100%)	SCART Input available

P6oXP10 Supported Resolutions (PC)

	Sig. no.	Resolution H X V	Specification of the signal		Ana go					Di gāl					TEXT INSERT
			V freq.(Hz)	H freq(kHz )	INPUT terminal	SIZE				INPUT terminal	SIZE				TOP1-3/MID HIGH/MID LOW/BOTTOM1-3A	Left/Right	Sync polarity		RGB select
			V freq.(Hz)	H freq(kHz )	INPUT terminal	NORMAL(4:3)	FULL(16:9)	ZOOM	TRUE(REAL)	INPUT terminal	NORMAL(4:3)	FULL(16:9)	ZOOM	TRUE(RE)	TOP1-3/MID HIGH/MID LOW/BOTTOM1-3A	Left/Right	H	V	Gr.No.	Item
IBM PC/AT	1	640 X 400	70.1	31.5	VGA RGBHV	--	Yes	--	--	DVI(DVI-PC)	--	--	--	--	Yes	Yes	Neg.	Neg.	1	640X400
Compatible	2	720 X 400	70.1	31.5		--	Yes	--	Yes		--	Yes	--	Yes	Yes	Yes	Neg.	Neg.	1	720X400
Computers	3		85	37.9		--	Yes	--	Yes		--	Yes	--	Yes	Yes	Yes	Neg.	Pos.	--	--
	4	720 X 350	70.1	31.5		--	Yes	--	Yes		--	Yes	--	Yes	Yes	Yes	Neg.	Neg.	1	720X350
	5	640 X 480	59.9	31.5		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Neg.	Neg.	2	640X480
	6		72.8	37.9		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Neg.	Neg.	--	--
	7		75	37.5		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Neg.	Neg.	--	--
	8		85	43.3		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Neg.	Neg.	--	--
	9		100.4	51.1		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Neg.	Neg.	--	--
	10		120.4	61.3		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Neg.	Neg.	--	--
	11	848 X 480	60	31		--	Yes	--	Yes		--	Yes	--	Yes	Yes	Yes	Pos.	Pos.	2	840X480
	12	852 X 480	60	31.7		--	Yes	--	Yes		--	Yes	--	Yes	Yes	Yes	Neg.	Neg.	2	852X480
	13	800 X 600	56.3	35.2		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Pos.	Pos.	--	--
	14		60.3	37.9		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Pos.	Pos.	--	--
	15		72.2	48.1		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Pos.	Pos.	--	--
	16		75	46.9		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Pos.	Pos.	--	--
	17		85.1	53.7		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Pos.	Pos.	--	--
	18		99.8	63		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Pos.	Pos.	--	--
	19		120	75.7		Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Pos.	Pos.	--	--
	20	1024 X 768	60	48.4		Yes	Yes	Yes	--		Yes	Yes	Yes	--	Yes	Yes	Neg.	Neg.	3	1024X768
	21		70.1	56.5		Yes	Yes	Y es	--		Yes	Yes	Yes	--	Yes	Yes	Neg.	Neg.	5	1024X768
	22		71.9	57.9		Yes	Yes	Yes	--		Yes	Yes	Yes	--	Yes	Yes	Neg.	Neg.	6	1024X768
	23		75	60		Yes	Yes	Yes	--		Yes	Yes	Yes	--	Yes	Yes	Pos.	Pos.	--	--
	24		85	68.7		Yes	Yes	Yes	--		Yes	Yes	Yes	--	Yes	Yes	Pos.	Pos.	--	--
	25		100.8	80.5		Yes	Yes	Y es	--		Yes	Yes	Yes	--	Yes	--	Neg.	Neg.	--	--
	26		119.4	95.5		Yes	Yes	Yes	--		Yes	Yes	Yes	--	Yes	--	Neg.	Neg.	--	--
	27	1152 X 864	60	53.7		Yes	Yes	Yes	--		Yes	Yes	Yes	--	Yes	Yes	Pos.	Neg.	--	--
	28		72	64.9		Yes	Yes	Yes	--		Yes	Yes	Yes	--	Yes	Yes	Pos.	Neg.	--	--
	29		75	67.5		Yes	Yes	Y es	--		Yes	Yes	Yes	--	Yes	Yes	Pos.	Pos.	--	--
	30	1280 X 768	56.2	45.1		--	Yes	--	--		--	--	--	--	Yes	Yes	Pos.	Pos.	--	--
	31		59.8	48		--	Yes	--	--		--	Yes	--	--	Yes	Yes	Pos.	Neg.	3	1280X768-1
	32		59.9	47.8		--	Yes	--	--		--	Yes	--	--	Yes	Yes	Neg.	Pos.	3	1280X768-2
	33		80.8	56		--	Yes	--	--		--	Yes	--	--	Yes	Yes	Neg.	Pos.	5	1280X768
	34		72	57.6		--	Yes	--	--		--	Yes	--	--	Yes	Yes	Neg.	Pos.	6	1280X768
	35	1280 X 800	59.8	49.7		--	Yes	--	--		--	Yes	--	--	Yes	Yes	Neg.	Pos.	4	1280X800
	36	1280 X 854	60	53.1		--	Yes	--	--		--	Yes	--	--	Yes	Yes	Neg.	Neg.	--	--
	37	1280 X 960	60	60		Yes	Yes	Yes	--		Yes	Yes	Yes	--	Yes	Yes	Pos.	Pos.	--	--
	38	1280 X 960	85	85.9		Yes '2	Yes '2	Yes '2	--		Yes	Yes	Y es	--	Yes	--	Pos.	Pos.	--	--
	39	1360 X 768	60	47.7		--	Yes	--	--		--	Yes	--	--	Yes	Yes	Pos.	Pos.	3	1360X768
	40	1376 X 768	59.9	48.3		--	Yes	--	--		--	Yes	--	--	Yes	Yes	Neg.	Pos.	3	1376X768
	41	1280 X 1024	60	64		Yes '1	Yes	Yes	--		Yes '1	Yes	Yes	--	Yes	Yes	Pos.	Pos.	9	1280X1024
	42		75	80		Yes '1'	Yes	Yes	--		Yes '1'	Yes	Yes	--	Yes	--	Pos.	Pos.	--	--
	43		85	91.1		Y es' '2'	Yes '2'	Yes '2'	--		Yes '1'	Yes	Yes	--	Yes	--	Pos.	Pos.	--	--
	44		100.1	108.5		Y es' '2'	Yes '2'	Yes '2'	--		--	--	--	--	Yes	--	Pos.	Pos.	--	--
	45	1400 X 1050	60	64		Yes	Yes	Yes	--		Yes	Yes	Yes	--	Yes	--	Neg.	Pos.	9	1400X1050
	46		60	65.3		Yes	Yes	Yes	--		Yes	Yes	Y es	--	Yes	--	Neg.	Pos.	7	1400X1050
	47		74.9	82.3		Yes '2'	Yes '2'	Yes '2'	--		Yes	Yes	Yes	--	Yes	--	Neg.	Pos.	--	--
	48		85	93.9		Yes '2'	Yes '2'	Yes '2'	--		--	--	--	--	Yes	--	Neg.	Pos.	--	--
	49	1680 X 1050	60	65.3		--	Yes	--	--		--	Yes	--	--	Yes	--	Neg.	Pos.	7	1680X1050
	50	1600 X 1200	60	75		Yes '2'	Yes '2'	Yes '2'	--		Yes	Yes	Yes	--	Yes	--	Pos.	Pos.	8	1600X1200
	51		85	81.3		Yes '2'	Yes '2'	Yes '2'	--		--	--	--	--	Yes	--	Pos.	Pos.	--	--
	52		70	87.5		Yes '2'	Yes '2'	Yes '2'	--		--	--	--	--	Yes	--	Pos.	Pos.	--	--
	53		75	93.5		Yes '2'	Yes '2'	Yes '2'	--		--	--	--	--	Yes	--	Pos.	Pos.	--	--
	54		85	106.3		Yes '2'	Yes '2'	Yes '2'	--		--	--	--	--	Yes	--	Pos.	Pos.	--	--
	55	1920 X 1080

..	NORMAL (4:3)	FULL (16:9)	('1)	('2)
Not Supported	1024 pixels x 768 lines	1368 pixels x 768 lines	Aspect ratio is 5:4 (960x769)	Rough Sampling

P6oXP10 Supported Resolutions (Video)

Analog Digital

		Sig. No.	Resolution H X V	Signal Type	Specification of the signal		INPUT terminal	SIZE							PMI@ terminal	SIZE							RGB select		HD select
		Sig. No.	Resolution H X V	Signal Type	V freq (Hz)	H freq. (kHz)	INPUT terminal	NORMAL (4:3)	FULL (16:9)	DYNAMIC (non-linear)	ZOOM	14:9	2.35:1	U SCAN	PMI@ terminal	NORMAL (4:3)	FUL (16:9)	AMKOL (non-linear)	ZOOM	14:9	2.35:1	UNDER SCAN	Gr. No.	Item	Item
Video Composite / S		101	3.58NTSC		59.9	15.8	Video1 Video2 S-Video	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		102	4.43NTSC		59.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		103	PAL		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		104	PAL60		58.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		105	PAL-N		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		106	PAL-M		50.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		107	SECAM		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
Y,Pb(Cb),Pr(Cr)	SD	111	480I		59.9	15.8	DVD/HD1 DVD/HD2	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		112	576I		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		113	480P		59.9	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		114	576P		50	31.3		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
	HD	115	720P		50	37.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		116	720P		60	45		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		117	1080I		50	28.1		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		118	1080I		60	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		119	1080P		50	56.3		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		120	1080P		60	67.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		121	1080P		30	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		122	1080P		24	27		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		123	1080P		25	28		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
RGB(Video signal)	SD	131	480I *4		59.9	15.8	VGA RGBHV (SCART1-3)	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		132	576I *4		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		133	480P		59.9	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	2	480P*	--
		134	576P		50	31.3		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
	HD	135	720P		50	37.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		136	720P		60	45		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		137	1080I		50	28.1		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	1080B
		138	1080I		60	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		139	1080P		50	56.3		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		140	1080P		60	67.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		141	1080P		30	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		142	1080P		24	27		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		143	1080P		25	28		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		144	1080A/540P	RCA STB	60	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	1080A
Digital (EIA/CEA-861)	SD	161	640 X 480P		59.9 / 60.0	31.5 / 31.5		--	--	--	--	--	--	--	DVI (DVI-HD)	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	--	--	--
		162	720 (1440) X 480I		59.9 / 60.0	15.7 / 15.8		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--	--
		163	720 X 480P		59.9 / 60.0	31.5 / 31.5		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--	--
		164	720 (1440) X 576I		50	15.6		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--	--
		165	720 X 576P		50	31.3		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--	--
	HD	166	1280 X 720P		58.9 / 60.0	45.0 / 45.0		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 * 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 33 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 *3 .
		167	1920 X 1080I		59.9 / 60.0	33.7 / 33.8		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 33 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 33 3 3 3 3 3 3 3 3 3 3 3 3 33 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 *3 .
		168	1920 X 1080P		59.9 / 60.0	67.4 / 67.5		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
		169	1280 X 720P		50	37.5		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 33 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 * 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
		170	1920 X 1080I		50	28.1		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
		171	1920 X 1080P		50	56.3		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 222222222222222222222222222222222222222222222222222x22222222222222222222222222222222222222222222222222a2222222222222222222222222222222222222222222222222

--	NORMAL (4:3)	FULL (16:3)	('3)	('4)
Not Supported	1024 pixels x 768 lines	1368 pixels x 768 lines	Displayed by Underscan mode (100%)	SCART input available

Pin Assignment

1) Analog RGB Input (Mini D-SUB 15P) VGA

Pin No.	Name
1	Video Signal Red
2	Video Signal Green
3	Video Signal Blue
4	GND
5	DDC-GND
6	Red-GND
7	Green-GND
8	Blue-GND
9	+5V (DDC)
10	SYNC-GND
11	GND
12	DDC-SDA
13	H-SYNC
14	V-SYNC
15	DDC-SCL

NEC PlasmaSync 50XP10 - Pin Assignment - 1

Mini D-SUB 15P

3) RS-232C Input (D-SUB 9P)

Pin No.	Name
1	Connected to 7 & 8
2	RXD
3	TXD
4	Connected to 6
5	GND
6	Connected to 4
7	Connected to 1 & 8
8	Connected to 1 & 7
9	NC

NEC PlasmaSync 50XP10 - Pin Assignment - 2

D-SUB 9P

2) Digital RGB Input (DVI-D) DVI

1	TX2- 9 TX1- 17 TX0-
2	TX2+ 10 TX1+ 18 TX0+
3	Shield (TX2/TX4) 11	Shield (TX1/TX3) 19	Shield (TXP/TX5)
4	N C 1 2 N C	2 0 N C
5	N C 1 3 N C	2 1 N C
6	DDC-Serial Clock 14	+5 power	22	Shield (TXC)
7	DDC-Serial Data	15 Ground (+5V)	23	TXC+
8	NC	16 Hot Plug Detect	24	TXC-

NEC PlasmaSync 50XP10 - Pin Assignment - 3

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Veröffentlicht vom:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Kabelverwaltung

Canadian Department of Communications Compliance Statement

American National Standard for Human Factors Engineering of Visual Display Terminal WorkstationsANSI-HFS Standard No. 100-1988

Δημοσιεύθηκε από: The Human Factors and Ergonomics SocietyP.O. Box 1369, Santa Monica, California 90406.

Προστατευτικό Φύλλο

Σχήμα 2
NEC PlasmaSync 50XP10 - Canadian Department of Communications Compliance Statement - 1

Ανάρτηση στο ταβάνι

Διαχείριση καλωδίων

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Publicado por:

The Human Factors and Ergonomics Society C.P. 1369, Santa Monica, California 90406.

Limpiar el Panel

Montaje en Techo

Supports/Montures Optionnels...... Français-6

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Publié par:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Montage au Plafond

Active/désactive l'OSD.

9) ▲ ▼

NEC PlasmaSync 50XP10 - 9) ▲ ▼ - 1

IPoctionTHTelecommande

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Pubblicato da:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Gestione dei cavi

NEC PlasmaSync 50XP10 - Gestione dei cavi - 1

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS No 100-1988

Опубликовано:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Очистка панели

Укладка кабелей

NEC PlasmaSync 50XP10 - Укладка кабелей - 1

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Yayınlayan:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Temizlik ve Panel

Tavana Montaj

Kablo Yönetimi

WEEE Mark (European Directive 2002/96/EC)

Within the European Union

NEC PlasmaSync 50XP10 - Within the European Union - 1

EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself and NEC. The mark on electrical and electronic products only applies to the current European Union Member States.

The mark on electrical and electronic products only applies to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

Declaration of the Manufacturer

We hereby certify that the color monitor P426Y0, P506Y1 or P606Y2 is in compliance with Council Directive 73/23/EEC:

- EN 60950-1

and marked with

NEC PlasmaSync 50XP10 - Declaration of the Manufacturer - 1

Council Directive 89/336/EEC:

— EN 55022
— EN 61000-3-2
— EN 61000-3-3
— EN 55024

NEC Display Solutions Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

DECLARATION OF CONFORMITY

Th is device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc.

Address: 500 Park Blvd. Suite 1100

Itasca, IL 60143

Tel. No.: (630)467-3000

Type of Product: Computer Monitor

Equipment

Classifi cation: Class B Peripheral

Model: PlasmaSync 42XP10 (P426Y0)

PlasmaSync 50XP10 (P506Y1)

PlasmaSync 60XP10 (P606Y2)

NEC PlasmaSync 50XP10 - DECLARATION OF CONFORMITY - 1

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. All other brands and product names are trademarks or registered trademarks of their respective owners.
