Product Type	LCD Widescreen Monitor
Brand	Westinghouse
Model	LCM22w3
Screen Size	22 inches (diagonal)
Native Resolution	1680 x 1050 (WSXGA+)
Response Time	5 ms (gray to gray)
Contrast Ratio	700:1
Brightness	280 cd/m² (typical)
Viewing Angles	170° horizontal / 160° vertical
Built-in Speakers	2 x 2.5 watts
Video Inputs	1x VGA (HD-15), 1x DVI-D
Audio Input	1x Mini Stereo 3.5 mm
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	Normal: < 50 W, Standby: < 2 W
Dimensions (unit)	511 x 410 x 206 mm
Weight (unit)	4.8 kg
Dimensions (box)	580 x 490 x 140 mm
Operating Conditions	0°C to 35°C, humidity 20% to 90%
Certifications	FCC-B, UL, CUL, CCC
Special Features	Energy saving, Plug & Play, Kensington lock, Turbo modes (Economy, Text, Image)
Screen Maintenance	Soft, dry cloth; alcohol-free and ammonia-free glass cleaner if necessary
Casing Maintenance	Soft, dry cloth; mild non-abrasive detergent if necessary
Safety	Do not open the casing, avoid moisture, do not obstruct ventilation
Lamp Life	40,000 hours

Frequently Asked Questions - LCM22w3 WESTINGHOUSE

What to do if the screen stays black and the power light is off?

Check that the power cable is properly connected to the back of the monitor and to the wall outlet. Test the outlet with another device. If the light is orange, the monitor is in standby; move the mouse or press a key on the keyboard.

How to connect a computer to the monitor?

Use the supplied VGA cable (or an optional DVI-D cable). Connect one end to the monitor and the other to the computer. Ensure both devices are turned off before connecting.

Why is the image blurry?

Set your computer's resolution to the monitor's native resolution: 1680 x 1050 at 60 Hz. Use the monitor's Auto Adjustment function by pressing the Auto button.

How to clean the screen without damaging it?

Wipe the screen with a clean, soft, lint-free cloth. If necessary, lightly dampen the cloth with an alcohol-free and ammonia-free glass cleaner. Never use abrasive cleaners or apply liquids directly to the screen.

What does the orange light mean?

The orange light indicates that the monitor is in Energy Saving mode (standby). To wake it up, move the mouse or press a key on the keyboard. The light turns green when a signal is detected.

How to quickly adjust brightness and contrast?

Press the ☀ (brightness) or ⚙ (contrast) button directly without opening the OSD menu. An adjustment scale appears on the screen.

Sound doesn't work, what to do?

Check the audio connection: the mini-stereo cable must be connected to both the monitor and the PC's audio output. In the OSD Audio menu, make sure the volume is not at 0 and the Mute function is disabled.

How to switch between Turbo display modes?

Press the Turbo button (▲) when the OSD menu is not displayed. Each press cycles through the modes: Economy, Text, and Image. Economy mode reduces brightness, Text mode is intermediate, and Image mode offers maximum brightness.

What to do if the 'Out of Range' message appears?

This message appears if the resolution or refresh rate exceeds the monitor's capabilities. Set the computer's resolution to 1680 x 1050 at 60 Hz, which is the native and maximum resolution.

How to reset the monitor to factory settings?

Open the OSD menu by pressing the Menu button. Navigate to the Miscellaneous menu, select Reset and confirm. All settings will be restored to default values.

USER MANUAL LCM22w3 WESTINGHOUSE

Line drawing of a flat-screen computer monitor with no text or symbols on the screen

CONTENTS

IMPORTANT PRODUCT SAFETY INSTRUCTIONS ......2

SAFETY GUIDELINES....3

FCC COMPLIANCE STATEMENT ....3

CLEANING THE LCD MONITOR....4

FEATURES 5

POWER SAVER....5

PLUG & PLAY....5

INSTALLATION....6

PACKAGE CONTENTS....6

1. ATTACHING THE BASE STAND TO THE LCD MONITOR....6

2. CONNECT INPUTS....7

3. CONNECT POWER CABLE....8

4. TURN THE POWER ON....8

CONTROL PANEL BUTTONS 9

OSD MENU FUNCTIONS ....10

IMAGE MENU 11

AUDIO MENU 12

COLOR MENU....13

MISCELLANEOUS MENU 14

INFO MENU....15

QUICK ADJUSTMENTS 16

DISPLAY MODES 17

APPENDIX ....18

SPECIFICATIONS....18

TROUBLESHOOTING....19

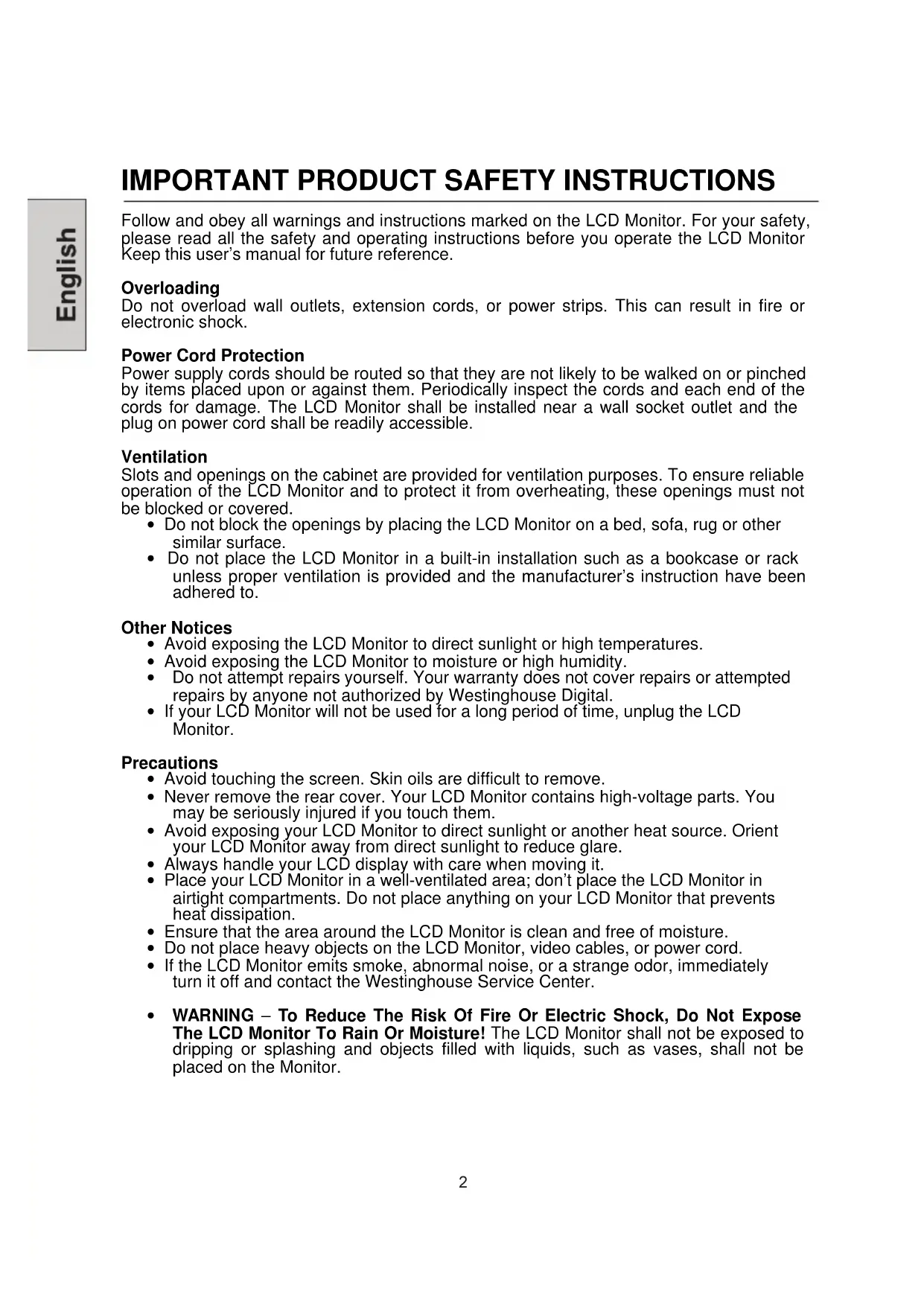

IMPORTANT PRODUCT SAFETY INSTRUCTIONS

Follow and obey all warnings and instructions marked on the LCD Monitor. For your safety, please read all the safety and operating instructions before you operate the LCD Monitor. Keep this user's manual for future reference.

Overloading

Do not overload wall outlets, extension cords, or power strips. This can result in fire or electronic shock.

Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Periodically inspect the cords and each end of the cords for damage. The LCD Monitor shall be installed near a wall socket outlet and the plug on power cord shall be readily accessible.

Ventilation

Slots and openings on the cabinet are provided for ventilation purposes. To ensure reliable operation of the LCD Monitor and to protect it from overheating, these openings must not be blocked or covered.

• Do not block the openings by placing the LCD Monitor on a bed, sofa, rug or other similar surface.
• Do not place the LCD Monitor in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instruction have been adhered to.

Other Notices

• Avoid exposing the LCD Monitor to direct sunlight or high temperatures.
• Avoid exposing the LCD Monitor to moisture or high humidity.
• Do not attempt repairs yourself. Your warranty does not cover repairs or attempted repairs by anyone not authorized by Westinghouse Digital.
• If your LCD Monitor will not be used for a long period of time, unplug the LCD Monitor.

Precautions

• Avoid touching the screen. Skin oils are difficult to remove.
• Never remove the rear cover. Your LCD Monitor contains high-voltage parts. You may be seriously injured if you touch them.
• Avoid exposing your LCD Monitor to direct sunlight or another heat source. Orient your LCD Monitor away from direct sunlight to reduce glare.
• Always handle your LCD display with care when moving it.
• Place your LCD Monitor in a well-ventilated area; don't place the LCD Monitor in airtight compartments. Do not place anything on your LCD Monitor that prevents heat dissipation.
• Ensure that the area around the LCD Monitor is clean and free of moisture.
• Do not place heavy objects on the LCD Monitor, video cables, or power cord.
• If the LCD Monitor emits smoke, abnormal noise, or a strange odor, immediately turn it off and contact the Westinghouse Service Center.

- WARNING – To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose The LCD Monitor To Rain Or Moisture! The LCD Monitor shall not be exposed to dripping or splashing and objects filled with liquids, such as vases, shall not be placed on the Monitor.

Safety Guidelines

CAUTION: The power supply outlet should be located near the LCD Monitor and should be easily accessible. Always use the appropriate AC cord that is certified for your specific country. Some examples are listed below:

USA......UL

Switzerland .....SEV

Canada......CSA

Britain ......BASE/BS

Germany......VDE

Japan ......Electric Appliance Control Act

IMPORTANT NOTICE CONCERNING POWER CORD SELECTION

The specific power cord for this LCD Monitor is enclosed and has been selected according to the country of destination and must be used to prevent electric shock. Use the following guidelines if it is necessary to replace the original cord set, or if the cord set is not enclosed. The female receptacle of the cord set must meet IEC-60320 requirements and should look like Figure A1 below:

Figure A1 Figure A2

For the United States and Canada

In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA Labeled. For LCD Monitors that are placed on a desk or table, type SVT or SJT cord sets may be used. For LCD Monitors placed directly on the floor, only SJT type cord sets may be used. The cord set must be selected according to the current rating for the LCD Monitor. Please consult the table below for the selection criteria for power cords used in the United States and Canada.

Cord Type Size of Conductors in Cord Maximum Current Rating of Unit
SJT	18 AWG	10 Amps
	16 AWG	12 Amps
	14 AWG	12 Amps
SVT	18 AWG	10 Amps
	17 AWG	12 Amps

FCC Compliance Statement

This equipment has been tested and complies with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the LCD Monitor and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the Westinghouse Service Center or an experienced radio/Monitor technician for assistance.

FCC Warning

To assure continued FCC compliance, the user must use a grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. If a BNC cable used, use only a shielded BNC (5) cable. Also, any unauthorized changes or modifications not expressly approved by Westinghouse Digital will void the user's authority to operate this device.

CLEANING THE LCD MONITOR

•MAKEASURE THE LCD MONITOR IS TURNED OFF

- NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE

To clean the screen:

1. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
2. If it still is not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.

To clean the case:

1. Use a soft, dry cloth.
2. If it still is not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

Disclaimer

Westinghouse Digital does not recommend the use of any ammonia or alcohol-based cleaners on the LCD Monitor screen or case. Some chemical cleaners have been reported to damage the screen and/or LCD Monitor case. Westinghouse Digital will not be liable for damage resulting from the use of any ammonia or alcohol-based cleaners.

• HD-Grade resolution at 1680 x 1050 native
- Ultra Bright Display Image
- Wide Viewing Angles
• Super Fast Response Time
• Built-in Stereo Speakers
• VESA Wall Mountable
- Power Saver
- Plug & Play
• Kensington Compatible Security Lock

Power Saver

A power control system, Power Saver, is installed inside the LCD monitor. If the LCD monitor has not been used for a certain period of time, the system will turn the LCD monitor to low voltage mode to save electrical power. Slight movement of the mouse or pressing any key on the keyboard will return the original screen image. You can use your PC to set the function.

Plug & Play

VESA Plug and Play eliminates the complicated and time-consuming installation process. Your computer system will identify and automatically adjust the LCD monitor. The LCD monitor uses Display Data Channel (DDC) to send Extended Display Identification Data (EDID) to the computer system, so the computer system can automatically adjust the LCD monitor.

INSTALLATION

Congratulations on your purchase of a Westinghouse 22" widescreen LCD Monitor. Sleek and practical, this lightweight LCD monitor delivers a bright and clear display optimized for 1680 x 1050 display resolution from your PC or notebook

Package Contents

Your product package includes:

• 22" Westinghouse widescreen LCD Monitor
• Detachable Base Stand
• AC Power Cord
  • VGA Male – Male Cable
  • 3.5 mm Mini-Stereo Cable
• User's Manual
• Warranty Card

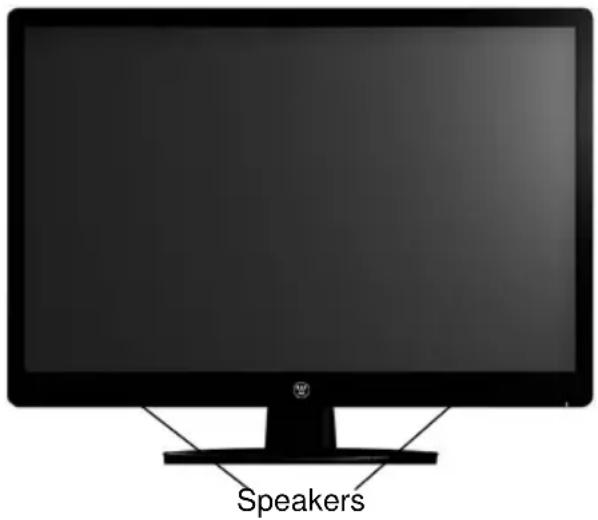

1. Attaching the Base Stand to the LCD Monitor

Attach the base stand to this LCD monitor stand neck by aligning the holes and tabs. Press in and snap the base into place. To remove the base stand, press the tabs on the bottom of the stand neck and remove the base.

Speakers

2. Connect Inputs

Connect one of the following into the back of this multifunctional LCD Monitor:

IMPORTANT: Before beginning, make sure this monitor and your PC that connects to is turned off.

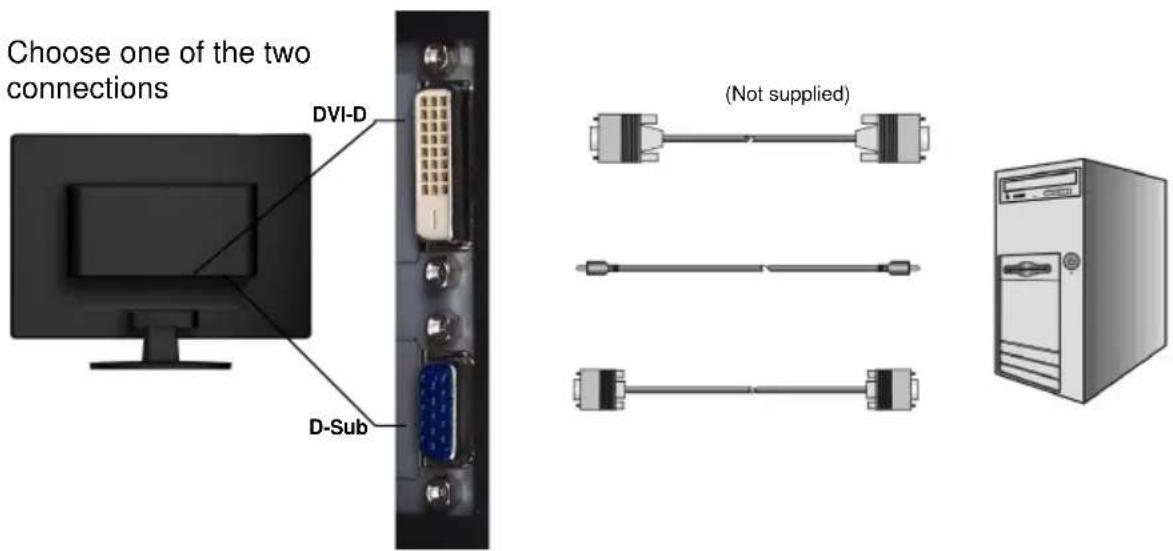

PC Inputs (at back)

Choose one of the two connections DVI-D D-Sub (Not supplied)

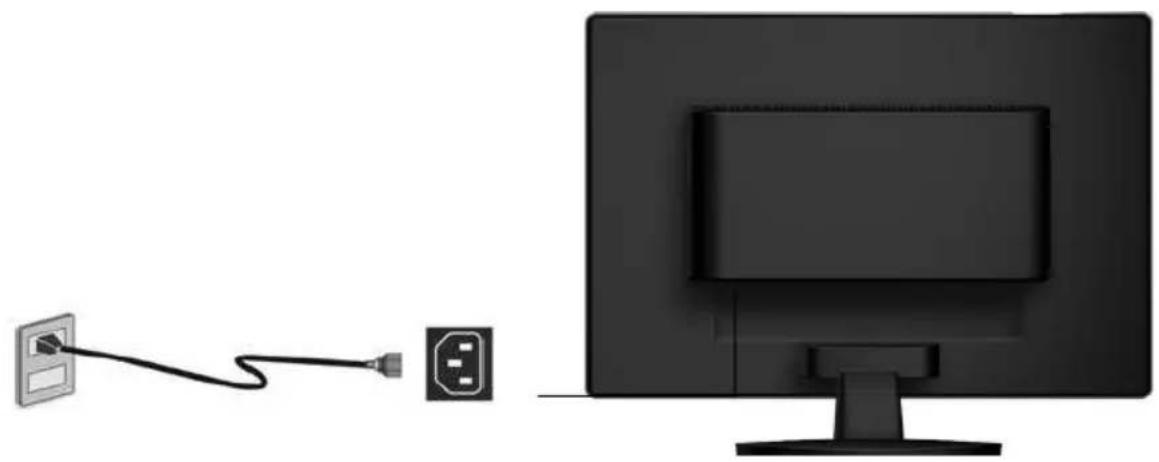

3. Connect Power Cable

Connect the AC power cord to the LCD Monitor (to the connector labeled "AC-IN") and then connect the cord into a properly grounded AC outlet.

Illustration of a wall-mounted power outlet connected to a plug next to a computer monitor (no text or symbols)

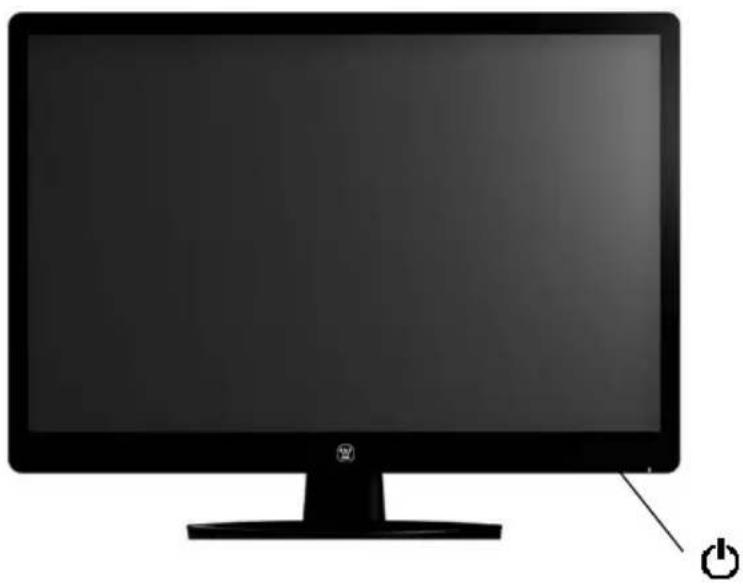

4. Turn the Power On

Press the power button at the front of the LCD monitor first, and then power on your PC or notebook. The LED light will turn green if a signal input is detected or it will be orange if no input is detected.

NOTE: If your desktop image looks fuzzy, adjust the computer's resolution to 1680 x 1050. To do that, you may need to download, install the latest drivers of your graphic card and reboot your computer.

Front view of a black desktop computer monitor with a power button indicator (no text or symbols on the screen)

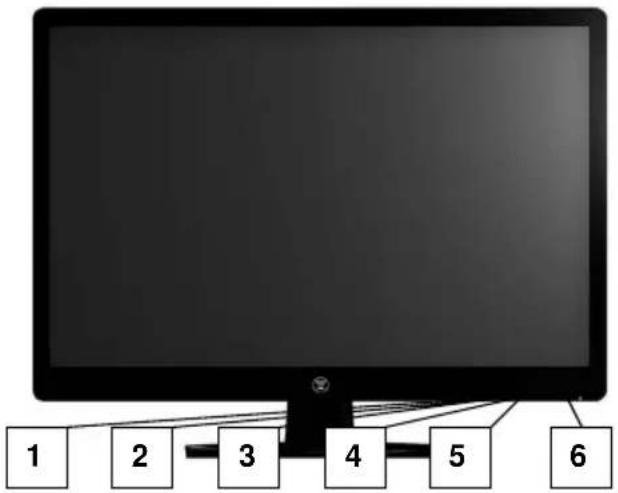

Control Panel Buttons

Use the control buttons in the front of the LCD Monitor to display the On Screen Display (OSD) menu. Below is a list of the control button functions. The OSD controls are defined in "OSD Functions" on page 10.

1.Turbo/▲	Switch between picture, text and economy modes.Scroll up the OSD sub-menu list when the OSD is displayed.
2.Auto/▼	Select to automatically fine tune the screen imageScroll down the OSD sub-menu list when the OSD is displayed.
3.	Quick contrast adjustmentMove a selection left when the OSD is displayed.
4.	Quick brightness adjustment.Move a selection right when the OSD is displayed.
5.	Press this button to enter or exit the OSD menu
6.	Power On and Off buttonLED Power Indicator LightGreen: NormalOrange: Power SavingOff: Power Off

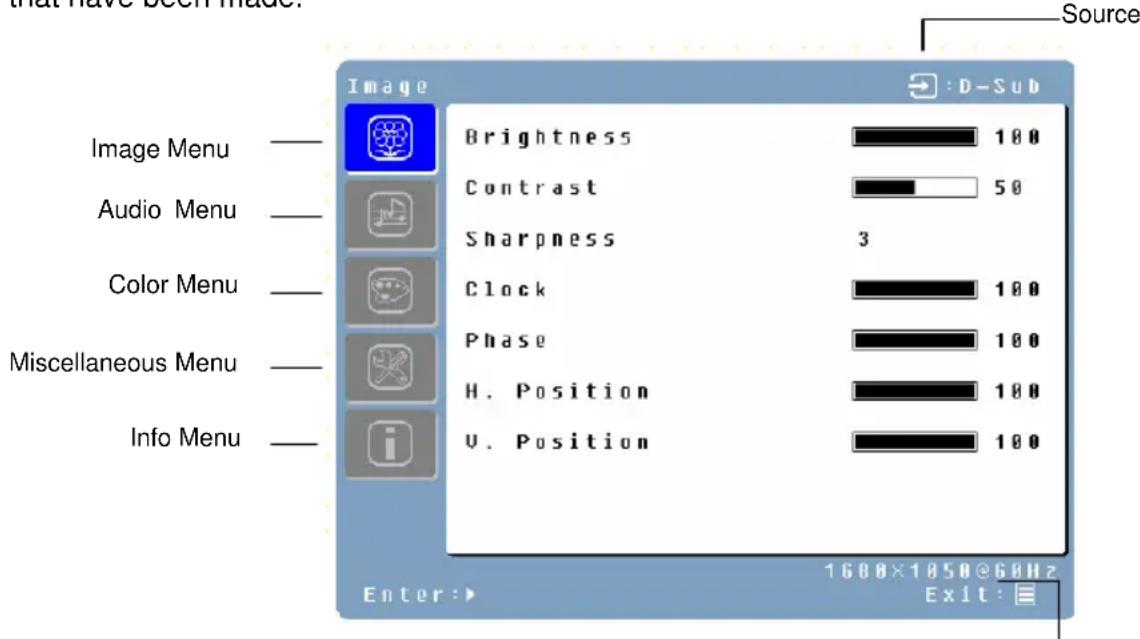

OSD Menu Functions

All the function settings for this LCD monitor are controlled via the control keys located on the side of the monitor. To display the OSD main menu, press the "Menu" ☐ keypad button on the control panel. (Note: The OSD menu display will disappear automatically after approximately 10 seconds, if no action is taken.)

This LCD monitor has been adjusted to optimal settings before shipment. If needed, adjustments to the monitor settings can also be made using the OSD menu.

• Press the "Menu" ☐ button to display the OSD.
• Press the Turbo or Auto/▼ button to scroll through the sub-menus (Image, Audio, Color, Miscellaneous, and Information Sub-Menus).
• Press the/▶ button to enter the sub-menu.
• Press the Turbo/r Auto/▼ button to select the function to be adjusted.
• Press the ◀/◄ or ⚙/► buttons to change the current setting of the sub-function.
• To go back to the previous menu, press the ☐ button. Changes are saved automatically.
• To exit the OSD menu press "Menu" ☐ again. It automatically will save any changes that have been made.

that have been made! Source Image Image Menu —— Audio Menu —— Color Menu —— Miscellaneous Menu —— Info Menu —— Image Brightness 100 Contrast 50 Sharpness 3 Clock 100 Phase 100 H. Position 100 U. Position 100 Enter: 1688x1850@68Hz Exit: 1688x1850@68Hz

Resolution & Frequency

NOTES:

• Any changes are automatically saved in memory when the OSD turns off. Turning off the power should be avoided while using the OSD menu.
• Adjustments for clock, phase, and positions are saved for each individual signal timing. Except for these adjustments, all other adjustments have only one setting, which applies to all signal timings.
• The icon color will change from gray to blue when a sub-menu is selected.

The following is a list of the OSD sub-menus for this LCD monitor:

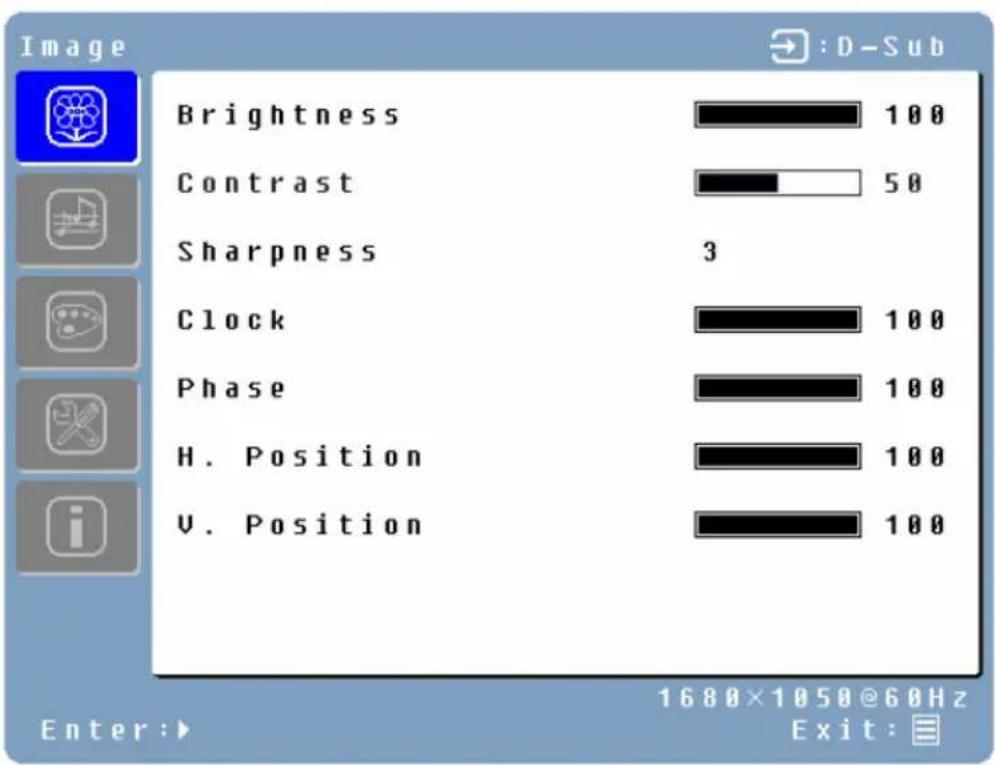

Image Menu

Image Brightness 100 Contrast 50 Sharpness 3 Clock 100 Phase 100 H. Position 100 V. Position 100 Enter: 1688×1050@60Hz Exit:

Enter:

1680×1050@60Hz

Exit:

Function	Description
Brightness	Adjust the black level of the image.
Contrast	Adjust the contrast of the image.
Sharpness	Soften or sharpen the image
Clock	Adjust the LCD monitor clock. (VGA only)
Phase	Adjust the LCD monitor phase. (VGA only)
H. Position	Move the image left or right on the screen. (VGA only)
V. Position	Move the image up or down on the screen. (VGA only)

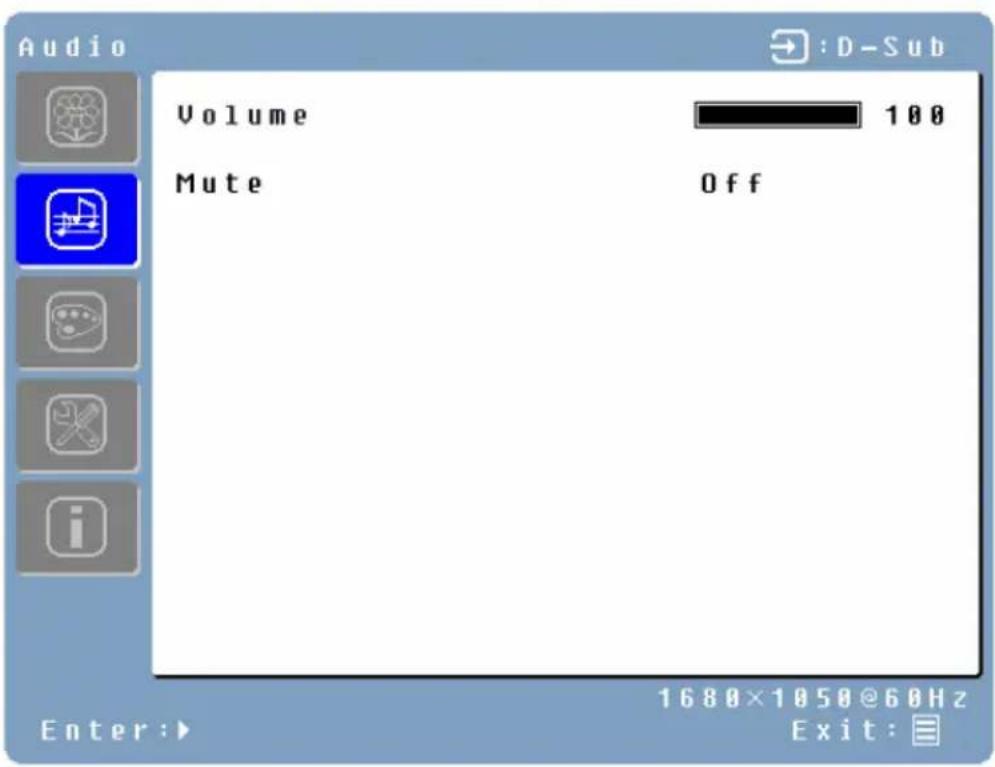

Audio Menu

Audio Volume 100 Mute Off Enter: 1688×1050@60Hz Exit:

Function	Description
Volume	Turn volume up and down
Mute	Turn volume off and on

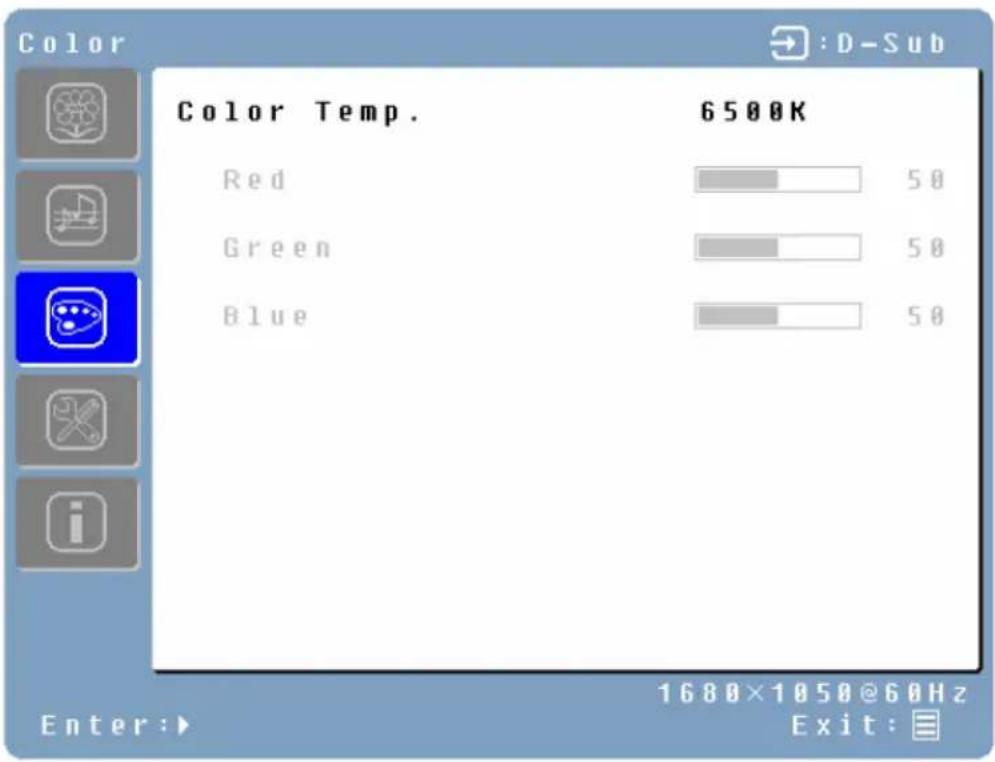

Color Menu

Color Temp. 6500K Red 50 Green 50 Blue 50 Enter:► 1688×1850@60Hz Exit:

Function	Description
Color temp	Select between User/sRBG/9300K/7500K/6500K
Red	Adjust the intensity of red color in User mode.
Green	Adjust the intensity of green color in User mode.
Blue	Adjust the intensity of blue color in User mode.

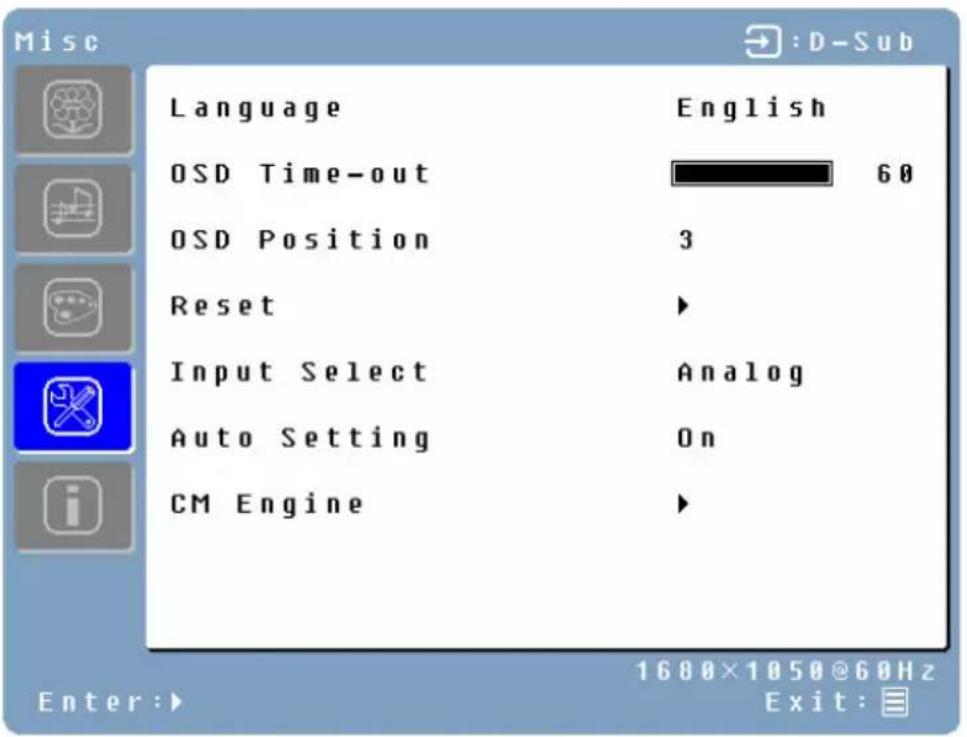

Miscellaneous Menu

Misc Language English OSD Time-out 60 OSD Position 3 Reset Input Select Analog Auto Setting On CM Engine

Function	Description
Language	Select OSD languages between English, Français, Italiano, Deutsch, Español, 日本語, 簡体中文, 繁體中文, Русский, and 한국어
OSD time-out	Adjust OSD display time.
OSD position	Move OSD display position to any one of the following 5 positions within the overall screen.
Reset	Restore this LCD monitor to its factory default settings.
Input Select	Choose to switch between D-Sub and DVI-D inputs
Auto Setting	Set to automatically perform Auto-Config function when a new timing is detected.
CM Engine	Start with Color Management Engine

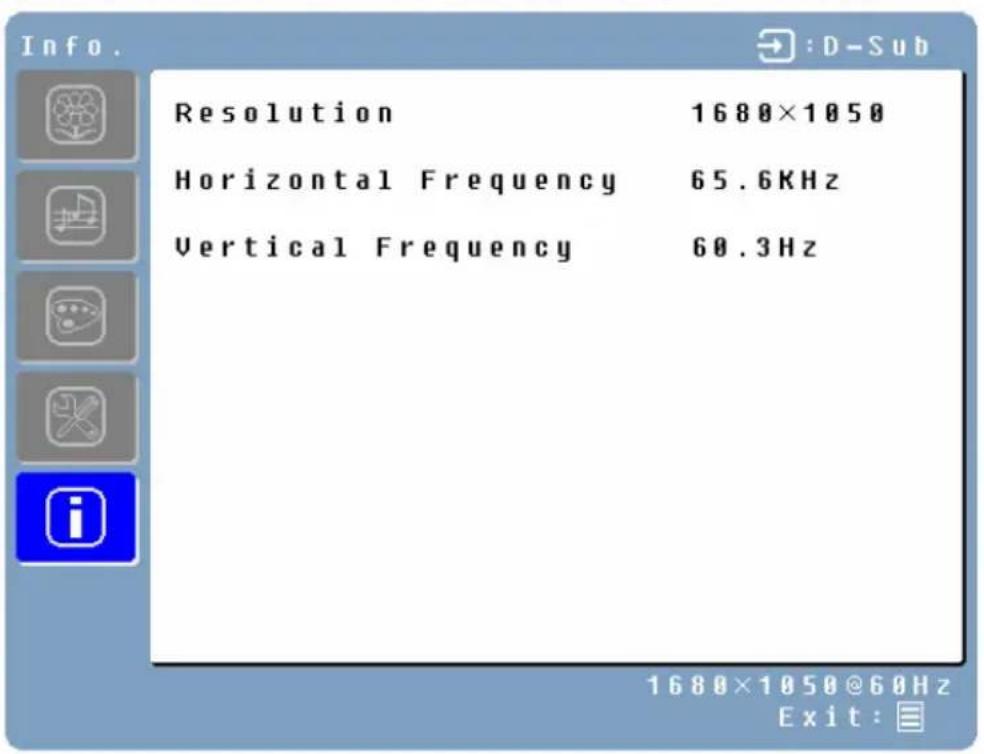

INFO Menu

Resolution 1680×1050 Horizontal Frequency 65.6KHz Vertical Frequency 60.3Hz

Function	Description
Resolution	Displays resolution.
Horizontal frequency	Displays horizontal frequency.
Vertical frequency	Displays vertical frequency.

Quick Adjustments

You can skip the Menu pages and display an adjustment scale directly by using the following button operations:

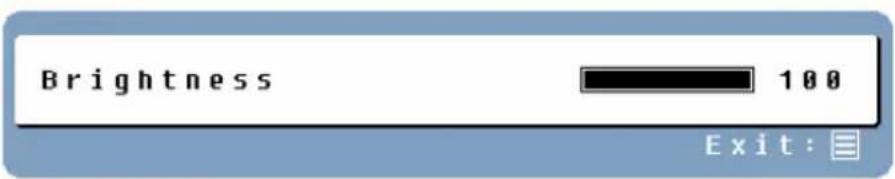

- Brightness: Press the

Brightness button when the Menu is not displayed.

Brightness 100 Exit:

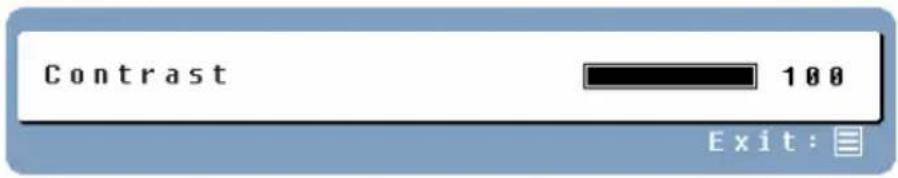

- Contrast: Press the

- Contrast button when the Menu is not displayed.

Contrast 100 Exit:

• Auto Setting: Press the Auto button when the Menu is not displayed.

Auto Adjust...

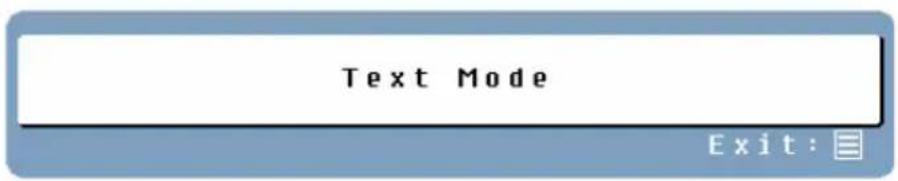

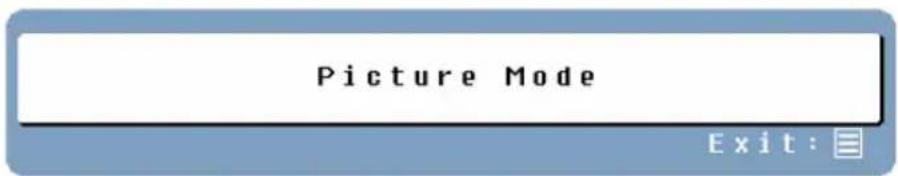

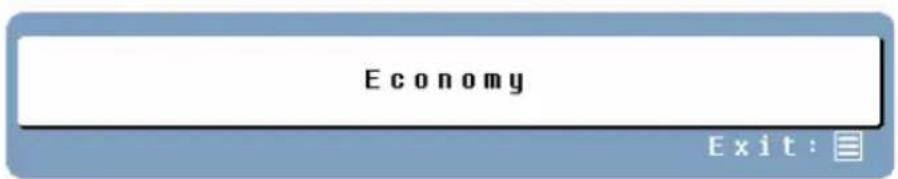

- Turbo: Press the Turbo button when the Menu is not displayed to switch between picture modes.

The monitor backlighting can be controlled by using the Turbo button on the control keypad. There are 3 modes: Economy, Text, and Picture. To toggle between these modes, press the Turbo key until the mode you desire is selected. These modes automatically change the backlighting levels between bright, brighter, and brightest.

1. Economy Mode – Reduced brightness

E conomy Exit:

1. Text Mode – Normal

Text Mode Exit:

1. Picture Mode – High brightness

Picture Mode Exit:

NOTES:

• Changing to a lower brightness mode can lessen eye fatigue.
• Change from Picture Mode to Text Mode when working with text.
• Change from Text Mode to Economy Modes when viewing the screen for long periods.

Appendix

Specifications

Item		Specification
Panel Size	Type	22" (diagonal) Color TFT Active Matrix LCD. Anti-static and hard coated.
Optimum Resolution	1680 x 1050	(native)
Response Time	5 ms (gray to gray)
Contrast Ratio		700:1
Brightness	280 Nits typical.
Viewing Angles	170° (H) / 1	60° (V)
Wall Mount		VESA® 100mm
PC Compatibility		VGA, SVGA, XGA, SXGA, WSXGA+(1680 x 1050 preferred)
Audio Features	Built-in speakers at 2.5 watts x 2
Input connections	PC	1x HD-15 pin D-Sub (VGA connector)1x DVI-D
	Audio	1 x Mini Stereo
Power	Voltage	100-240 VAC, 50/60 Hz (auto switch)50 W (typ.)
Operating Conditions	Temperature	32°F to +95°F (0°C to +35°C)
	Humidity 20% to 90% (no condensation)
	Altitude Up to 3,000 meters
Storage Conditions	Temperature	-4°F to +140°F (-20°C to +60°C)
	Humidity 10% to 90% (no condensation)
	Altitude Up to 12,000 meters
Dimensions	Unit	20.1 (w) x 16.2 (h) x 8.1 (d) in511 (w) x 410 (h) x 206 (d) mm
	Carton	22.8" (w) x 19.3" (h) x 5.5" (d) in580 (w) x 490 (h) x 140 (d) mm
Weight	Unit 10.6 lbs	/ 4.8 Kgs
Regulations	FCC-B, UL,	CUL, CCC, & Plug & Play
Power consumption	AC On <50W	(Green LED)
	AC Off <2W	(Orange LED)
Lamp Life		40,000 hours

Troubleshooting

No Power

• Make sure the AC cord is plugged into the back of the LCD monitor.
• Make sure the AC power cord is securely connected to an AC outlet.
• Plug another electrical device (like a radio) to the power outlet to verify that the outlet is supplying the proper voltage.

No Screen Image

• Make sure monitor is turned on.
• Make sure the video cable is securely connected to both the monitor and PC or Notebook
• Make sure you have selected the correct input source
• Adjust the brightness and contrast levels.

Fuzzy Image

• Set desktop resolution on your PC to 1680 x 1050 at 60 Hz.
  • Perform Auto Adjust on the monitor

"Out Of Range"

Out of Range

- Set screen resolution to panel native at 1680 x 1050 at 60 Hz

Cannot find 1680 x 1050 under screen resolution on my Display Properties _GG

• You may need to download and install the latest video card driver for your PC. Listed below are websites for major video card manufacturers:
  Nvidia: http://www.nvidia.com/content/drivers/drivers.asp
  Intel: http://downloadfinder.intel.com/scripts-df/support_intel.asp
  ATI: https://support.ati.com/ics/support/default.asp?deptID=894

Image Too Bright or Too Dark

• Adjust the brightness and contrast levels under the OSD menu.
• Make sure the video cable is securely connected to both the monitor and PC or Notebook

Distorted Image

• Reset the LCD monitor by performing the "Reset" function using the OSD.
• Remove extra accessories (such as a VGA extension cord).

Image is Not Centered (size is not scaled correctly)

• Perform Auto Adjust
• Adjust the horizontal and/or vertical position using the OSD.
• Check image size setting.

Colors are Incorrect

• Make sure the video cable is securely connected to both the monitor and PC or Notebook
• Adjust the color setting using the OSD.

No sound

• Check your audio connection.
• Check your audio settings; make sure Mute is off.
• Press the /▶ key on volume bar

Additional Questions

• See our website at www.westinghousedigital.com.
- Contact Westinghouse Digital Customer Service at [phone] or write us at [e-mail]

INSTRUCTIONS IMPORTANTES DE SÉCURITÉ DU PRODUIT......2

DIRECTIVES DE SECURITE ....3

DECLARATION DE CONFORMITE FCC 3

NETTOYAGE DU MONITEUR LCD ....4

CARACTÉRISTIQUES......5

ÉCONOMIE D'ENERGIE....5

PLUG & PLAY 5

INSTALLATION....6

CONTENU DE L'EMBALLAGE....6

1. ATTACHER LA STATION DE BASE AU MONITEUR LCD 6

2. CONNECTER LES ENTREES....7

3. CONNECTER LE CABLE D'ALIMENTATION ....7

4. MISE SOUS TENSION....8

BOUTONS DU PANNEAU DE COMMANDE....9

FONCTIONS DU MENU OSD ....10

MENU IMAGE....11

MENU AUDIO....12

MENU COULEURS....13

MENU DIVERS....14

MENU INFO 15

AJUSTEMENTS RAPIDES 16

MODES AFFICHAGE 17

APPENDICE....18

SPECIFICATIONS....18

DEPANNAGE....19

INSTRUCTIONS IMPORTANTES DE SÉCURITÉ DU PRODUIT

Illustration of a wall-mounted power outlet connected to a plug next to a computer monitor (no text or symbols)

Front view of a black desktop computer monitor with a power button indicator (no text or symbols on the screen)

Misc Language English OSD Time-out 60 OSD Position 3 Reset Input Select Analog Auto Setting On CM Engine

Resolution 1680×1050 Horizontal Frequency 65.6KHz Vertical Frequency 60.3Hz

Brightness 100 Exit:

E conomy Exit:

1. Mode Texte – Normal

Text Mode Exit:

Out of Range

Illustration of a wall-mounted power outlet connected to a plug next to a computer monitor (no text or symbols)

4. Prendido

Front view of a black desktop computer monitor with a power button icon at the bottom right corner (no text or symbols on the screen)

Misc Language English OSD Time-out 60 OSD Position 3 Reset Input Select Analog Auto Setting On CM Engine

Brightness 100 Exit:

E conomy Exit :

1. Modo Texto – Normal

Text Mode Exit:

Out of Range
