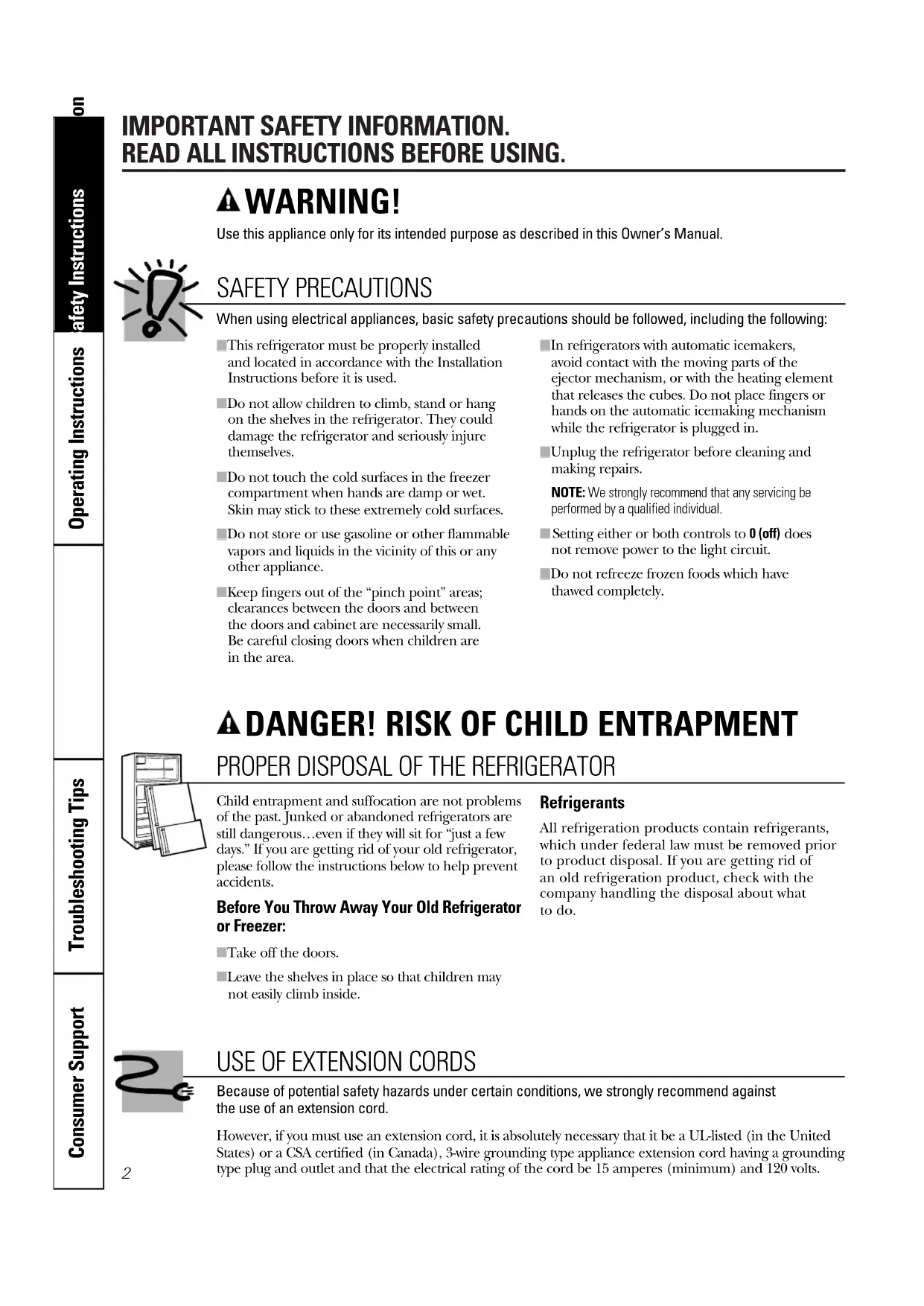

USER MANUAL PFS22SBSSS GE

■ This refrigerator must be properly installed and located in accordance with the InstallationInstructions before it is used. ■ Do not allow children to climb, stand or hang on the shelves in the refrigerator. They coulddamage the refrigerator and seriously injurethemselves. ■ Do not touch the cold surfaces in the freezercompartment when hands are damp or wet. Skin may stick to these extremely cold surfaces. ■ Do not store or use gasoline or other flammablevapors and liquids in the vicinity of this or anyother appliance. ■ Keep fingers out of the “pinch point” areas;clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area. ■ In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating elementthat releases the cubes. Do not place fingers orhands on the automatic icemaking mechanismwhile the refrigerator is plugged in. ■ Unplug the refrigerator before cleaning andmaking repairs.NOTE: We strongly recommend that any servicing beperformed by a qualified individual.

■ Setting either or both controls to 0 (off) does not remove power to the light circuit. ■ Do not refreeze frozen foods which have thawed completely.

PROPER DISPOSAL OF THE REFRIGERATOR

Child entrapment and suffocation are not problemsof the past. Junked or abandoned refrigerators arestill dangerous…even if they will sit for “just a fewdays.” If you are getting rid of your old refrigerator,please follow the instructions below to help preventaccidents. Before You Throw Away Your Old Refrigerator or Freezer: ■ Take off the doors.■ Leave the shelves in place so that children maynot easily climb inside. Refrigerants All refrigeration products contain refrigerants,which under federal law must be removed priorto product disposal. If you are getting rid of an old refrigeration product, check with thecompany handling the disposal about what to do.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord. However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the UnitedStates) or a CSA certified (in Canada), 3-wire grounding type appliance extension cord having a groundingtype plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

DANGER! RISK OF CHILD ENTRAPMENT

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet tominimize the possibility of electric shock hazardfrom this appliance.Have the wall outlet and circuit checked by aqualified electrician to make sure the outlet isproperly grounded.Where a standard 2-prong wall outlet isencountered, it is your personal responsibility andobligation to have it replaced with a properlygrounded 3-prong wall outlet.The refrigerator should always be plugged into itsown individual electrical outlet which has a voltagerating that matches the rating plate.This provides the best performance and alsoprevents overloading house wiring circuits whichcould cause a fire hazard from overheated wires.Never unplug your refrigerator by pulling on thepower cord. Always grip plug firmly and pullstraight out from the outlet.Repair or replace immediately all power cords thathave become frayed or otherwise damaged. Do notuse a cord that shows cracks or abrasion damagealong its length or at either end.When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord. READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS4

About the controls with temperature settings. (for other models, see next page) The temperature controls are preset in the factory at 37°F for the refrigerator compartment and 0°F for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings. The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment. Setting either or both controls to OFF stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator. To change the temperature, press and release the WARMER or COLDER pad. The SET light will come on and the display will show the set temperature. To change the temperature, tap either theWARMER or COLDER pad until the desiredtemperature is displayed. Refrigerator temperaturescan be adjusted between 34°F and 47°F and thefreezer temperatures can be adjusted between –6°F and +8°F.Once the desired temperature has been set, the temperature display will return to the actualrefrigerator and freezer temperatures after 5seconds. Several adjustments may be required. Each time you adjust controls, allow 24 hours for therefrigerator to reach the temperature you have set. To turn the cooling system off, tap the WARMER pad for either the refrigerator or the freezer until the display shows OFF. To turn the unit back on, press the COLDER pad for either the refrigerator or freezer.The SET light will illuminate on the side youselected. Then press the COLDER pad again (on theside where the SET light is illuminated) and it willgo to the preset points of 0°F for the freezer and37°F for the refrigerator. Setting either or bothcontrols to OFF stops cooling in both the freezerand refrigerator compartments, but does not shut off electrical power to the refrigerator. Performance Air Flow System Changing the Temperature The Performance Air Flow System is designed tomaximize temperature control in the refrigeratorand freezer compartments. This unique specialfeature consists of the Air Tower along the back wall of the refrigerator and the Air Tunnel on thebottom portion of the freezer rear wall. Placingfood in front of the louvers on these components will not affect performance. NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now. Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsConsumer Support Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

(on some models) ge.com How it Works TurboCool rapidly cools the refrigeratorcompartment in order to more quickly cool foods. Use TurboCool when adding alarge amount of food to the refrigeratorcompartment, putting away foods after theyhave been sitting out at room temperatureor when putting away warm leftovers. It canalso be used if the refrigerator has beenwithout power for an extended period.Once activated, the compressor will turn onimmediately and the fans will cycle on andoff at high speed as needed for eight hours.The compressor will continue to run untilthe refrigerator compartment cools toapproximately 34°F (1°C), then it will cycleon and off to maintain this setting. After 8hours, or if TurboCool is pressed again, therefrigerator compartment will return to the original setting.How to UsePress TurboCool. The refrigeratortemperature display will show .After TurboCool is complete, the refrigerator compartment will return to the original setting.NOTES: The refrigerator temperaturecannot be changed duringTurboCool.The freezer temperature is notaffected during TurboCool.When opening the refrigeratordoor during TurboCool, the fans will continue to run if they havecycled on. About Door Alarm (on some models) The door alarm will sound if either door is open for more than 2 minutes. The beeping stops when you close the door.Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions About the controls with numbered settings. Initially, set the refrigerator control at 5 and the freezer control at 5 and allow 24 hours for the temperature to stabilize. Several adjustments may be required. Adjust the controls one increment at a time, and allow 24 hours after each adjustment for the refrigerator to reach the temperature you have set. Setting either or both controls to 0 stops cooling in both the refrigerator and freezer compartments, but does not shut off electrical power to the refrigerator. NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now. Performance Air Flow System The Performance Air Flow System is designed to maximize temperature control in the refrigerator and freezer compartments. This unique special feature consists of the Air Tower along the back wall of the refrigerator and the Air Tunnel on the bottom portion of the freezer rear wall. Placing food in front of the louvers on these components will not affect performance. 6Water Filter Cartridge The water filter cartridge is located in the back upper right corner of the refrigerator compartment. When to Replace the Filter There is a replacement indicator light for the water filter cartridge on the temperature display. This light will turn orange to tell you that you need to replace the filter soon. The filter cartridge should be replaced when the replacement indicator light turns red or if the flow of water to the dispenser or icemaker decreases. Installing the Filter Cartridge If you are replacing the cartridge, first remove the old one. Open the cartridge cover by pressing in on the tab at the front and pulling down. Remove the cartridge by slowly rotating it counterclockwise. A small amount of water may drip down. CAUTION: If air has been trapped in the system, the filter cartridge may be ejected as it is removed. Use caution when removing. Remove the protective foil from the end of the cartridge. Lining up the arrow on the cartridge and the cartridge holder, slowly rotate the cartridge clockwise until it stops. When the cartridge is properly installed, you will feel it “click” as it locks into place. The blade on the end of the cartridge should be positioned vertically. Do not overtighten. Close the cartridge cover. Run water from the dispenser for 3 minutes (about 1

⁄2 gallons) to clear the system and prevent sputtering. See To Use the Dispenser section. Press and hold the RESET WATER FILTER pad for 3 seconds. NOTE: A newly-installed water filter cartridge may cause water to spurt from the dispenser. Filter Bypass Plug You must use the filter bypass plug when a replacement filter cartridge is not available. The icemaker will not operate without the filter or filter bypass plug. Replacement Filters: To order additional filter cartridges in the United States, visit our Website, ge.com, or call GE Parts and Accessories,

Filter Model GSWF Customers in Canada should consult the yellow pages for the nearest Camco Service Center. About the water filter. (on some models) ge.com

Consumer Support Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions (on some models)Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Rearranging the Shelves To remove: Tilt the shelf up at the front. Lift the shelf up at the back and bring the shelf out. To replace: While tilting the shelf up, insert the top hook at the back of the shelf in a slot on the track. Lower the front of the shelf until the bottom of the shelf locks into place. Spillproof Shelves (on some models) Spillproof shelves have special edges to help prevent spills from dripping to lower shelves. To remove or replace the shelves, see Rearranging the Shelves. About the shelves and bins. Not all features are on all models. Some models have wire shelves thatcan be adjusted in the same manner. Shelves in the refrigerator compartment are adjustable. Refrigerator Compartment Slide-Out Spillproof Shelf (on some models) The slide-out spillproof shelf allows you to reach items stored behind others. The special edges are designed to help prevent spills from dripping to lower shelves. To remove: Remove all items from shelf. Slide the shelf out until it stops. Lift the front edge of the shelf until the central tabs are above the front bar. Continue pulling the shelf forward until it can be removed. To replace: Place the rear shelf tabs just in front of the central notches on the shelf frame. Slide the shelf in until the central tabs are slightly behind the front bar. Lower the shelf into place until it is horizontal and slide the shelf in. Make sure that the shelf sits flat after reinstallation and doesn’t move freely from side to side. Make sure you push the shelves all the way in before you close the door.Non-Adjustable Shelves on the Door To remove: Lift the shelf straight up, then pull out. To replace: Engage the shelf in the molded supports on the door and push down. It will lock in place. Adjustable Bins on the Door Adjustable bins can easily be carried from refrigerator to work area. To remove: Lift bin straight up, then pull out. To replace or relocate: Engage the bin in the molded supports of the door, and push in. Bin will lock in place. The snugger helps prevent tipping, spilling or sliding of small items stored on the door shelf. Grip the finger hold near the rear of the snugger and move it to fit your needs. SnuggerFinger hold About the additional features. Not all features are on all models. Shelf Saver Rack (on some models) Slide-out beverage rack holds twelve cans of soda or two wine/water bottles (lengthwise). It can be removed for cleaning. To remove, slide the rack out to the stop position, lift the rack up and past the stop position and lift it out. ge.com

Consumer Support Troubleshooting TipsOperating InstructionsSafety Instructions Installation InstructionsConsumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions About the crispers and pans. Not all features are on all models. Fruit and Vegetable Crisper Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry. Adjustable Humidity Crisper (on some models) Slide the control all the way to the HIGH setting to provide high humidity recommended for most vegetables. Slide the control all the way to the LOW setting to provide lower humidity levels recommended for most fruits. LOW HIGH LOW HIGH Snack Pan (on some models) This pan can be moved to the most useful location for your family’s needs. To remove, slide the pan out to the stop position, lift the pan up and past the stop position and lift it out. Adjustable Temperature Deli Pan (on some models) When the pan is placed in the 7th slot from the bottom of the track and the lever is set at COLDEST, air from the freezer is forced around the pan to keep it very cold. You can move the pan to any location if you don’t want the extra cold storage. The settings can be adjusted anywhere between cold and coldest . When set at cold, the pan will stay at the normal refrigerator temperature. The coldest setting provides the coldest storage area.

Crisper Removal To Remove: These drawers can be removed easily by lifting up slightly while pulling the drawer past the stop location. When the door cannot be fully opened, remove the drawer farthest from the door first. Make sure the drawer closest to the door is fully closed. There is a latch at the front of the center slide rail. Push down on the latch and slide the center slide rail, to which the drawer is attached, away from the door. Remove the drawer.Freezer Shelves and Baskets Depending on your model, your freezer may feature: A deep full-width basket A shallow full-width basket A half-width basket A full-width wire shelf A shelf above the ice storage bin Basket/Shelf Removal To remove the deep full-width baskets on freezer door models, the shallow full-width basket and the full-width wire shelf: Pull the basket/shelf out to the stop location. Lift the front up and over the stop location. Lift the basket/shelf up and out. To remove the deep full-width basket on freezer drawer models: Open the freezer drawer until it stops. The freezer basket rests on a frame inside the freezer drawer. Lift the basket up at the back. Lift the front up and lift the entire basket up and out of the drawer. To remove the half-width basket: Pull the basket out to the stop location. Lift the basket up at the front to release it from the slides. Lift the back up and out of the slide. When replacing the basket, make sure that the wire tabs and wire hooks on the sides of the basket go into the slots in the top of the upper basket slides. NOTE: Always be sure to fully close this basket. You will know it is fully closed when you feel it “click” into place. To remove the shelf above the ice bin: Pull the shelf straight out. About the freezer. ge.com Not all features are on all models.

Consumer Support Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions Appearance and features may varyAppearance may varyAppearance may varyAppearance may varyShelfIce Bin

Hook TabAbout the automatic icemaker.

Automatic Icemaker (on some models) The icemaker will produce seven cubes per cycle—approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions. See below for how to access ice and reach the power switch. If the refrigerator is operated before the water connection is made to the icemaker, set the power switch in the O (off) position. The icemaker power light will turn green when the freezer light switch is pressed in or when the freezer door is closed. When the refrigerator has been connected to the water supply, set the power switch to the l (on) position. The icemaker will fill with water when it cools to 15°F (–10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes. You will hear a buzzing sound each time the icemaker fills with water. Throw away the first few batches of ice to allow the water line to clear. Be sure nothing interferes with the sweep of the feeler arm. When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together. If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink. NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice. A newly installed refrigerator may take 12 to 24 hours to begin making ice. IcemakerFeeler ArmPowerSwitchGreenPower Light Accessing Ice and Reaching the Power Switch To reach the icemaker power switch, pull the shelf above the ice bin straight out. Always be sure to replace the shelf. To access ice, simply pull the bin forward. To access ice.ShelfIce BinTo reach the power switch.ShelfIce Bin Icemaker Accessory Kit If your refrigerator did not come already equipped with an automatic icemaker, an icemaker accessory kit is available at extra cost. Check the back of the refrigerator for the specific icemaker kit needed for your model. Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions To Use the Dispenser (on some models) The water dispenser is located on the left wall inside the refrigerator compartment. To dispense water: Hold the glass against the recess. Push the water dispenser button. Hold the glass underneath the dispenser for 2–3 seconds after releasing the dispenser button. Water may continue to dispense after the button is released. If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser button for at least 2 minutes to remove trapped air from the water line and to fill the water system. During this process, the dispenser noise may be loud as the air is purged from the water line system. To flush out impurities in the water line, throw away the first 6 glassfuls of water. NOTE: To avoid water deposits, the dispenser should be cleaned periodically by wiping with a clean cloth or sponge.Consumer Support Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions Care and cleaning of the refrigerator. ge.com

Cleaning the Outside The door handles and trim. Clean with a cloth dampened with soapy water. Dry with a soft cloth. Do not use wax on the door handles and trim. Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth. Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish. The stainless steel panels and door handles. Stainless steel (on some models) can be cleaned with a commercially available stainless steel cleaner. A spray-on stainless steel cleaner works best. Do not use appliance wax or polish on the stainless steel. Cleaning the Inside To help prevent odors, leave an open box of baking soda in the refrigerator and freezer compartments. Unplug the refrigerator before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls. Use an appliance wax polish on the inside surface between the doors. Use warm water and baking soda solution— about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry. After cleaning the door gaskets, apply a thin layer of petroleum jelly to the door gaskets at the hinge side. This helps keep the gaskets from sticking and bending out of shape. Avoid cleaning cold glass shelves with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter. Do not wash any plastic refrigerator parts in the dishwasher.14 Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions For long vacations or absences, remove food and unplug the refrigerator. Move the freezer control to the 0 (off) position, and clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open. Set the icemaker power switch to the O (off) position and shut off the water supply to the refrigerator. If the temperature can drop below freezing, have a qualified servicer drain the water supply system (on some models) to prevent serious property damage due to flooding. Care and cleaning of the refrigerator. Behind the Refrigerator Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces. Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator. When pushing the refrigerator back, make sure you don’t roll over the power cord or icemaker supply line (on some models). Preparing for Vacation Preparing to Move Secure all loose items such as base grille, shelves and drawers by taping them securely in place to prevent damage. When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator. Be sure the refrigerator stays in an upright position during moving.Refrigerator Lights CAUTION: Light bulbs may be hot. Unplug the refrigerator. The bulbs are located at the top of the refrigerator compartment behind the controls. To remove the light shield, grasp the shield at the back and pull out to release the tabs at the back. Rotate the shield down and then forward to release the tabs at the front of the shield. After replacing with an appliance bulb of the same or lower wattage, replace the shield. Plug the refrigerator back in. Freezer Light Replacing the light bulbs. ge.com Turning the control to the 0 (off) position does not remove power to the light circuit.

Consumer Support Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions Appearance may vary CAUTION: Light bulbs may be hot. Unplug the refrigerator. The bulb is located at the top of the freezer inside a light shield. To remove the shield, grasp the shield at the back and pull out to release the tabs at the back. Rotate the shield down and then forward to release the tabs at the front of the shield. After replacing with an appliance bulb of the same or lower wattage, replace the shield. Plug the refrigerator back in.Installation Refrigerator Instructions Models 20 and 22 Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com In Canada, call 1.800.361.3400 or Visit our Website at: www.geappliances.ca

Read these instructions completely and carefully.

IMPORTANT — Observe all governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Completion time – Refrigerator Installation 20 minutes Water Line Installation 30 minutes

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty. PREPARATION

MOVING THE REFRIGERATOR INDOORS

If the refrigerator will not fit through a doorway, the refrigerator door and freezer drawer or door (depending on model) can be removed.

• To remove the refrigerator door, see Step 1 in the Reversing the Door Swing section.

• To remove the freezer drawer, see the Removing the Freezer Drawer section.

• To remove the freezer door, see Steps 2 and 3 in the Reversing the Door Swing section. PREPARATION (cont.)

WATER SUPPLY TO THE ICEMAKER AND

DISPENSER (ON SOME MODELS) If the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your dealer, by visiting our Website at ge.com (in Canada at www.geappliances.ca) or from Parts and Accessories, 800.626.2002 (In Canada 1.888.261.3055).

Adjustable Wrench1/4″ Outer DiameterCompression Nut and Ferrule (sleeve)(icemaker models only)Phillips Head Screwdriver 3/8″ and 10 mm SocketRatchet/Driver3/32″ Allen wrenchsupplied for use onStainless steelrefrigerator handles(on some models)1/4″ Allen wrench suppliedfor changing handlefasteners location(on some models)Installation Instructions

• Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures.

• Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly.

• Install it on a floor strong enough to support it fully loaded. CLEARANCES Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections. Sides 1/8″ (4 mm) Top 1″ (25 mm) Back 1″ (25 mm)

(icemaker and dispenser models) A cold water supply is required for automatic icemaker operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section. NOTES:

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.

• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using GE SmartConnect

Refrigerator Tubing Kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.

REMOVE TOP CAP (cont.) (on some models)

REINSTALL DOORS, DRAWERS AND TOP CAP

Carefully lower the door onto the center hinge. Reinstall top hinge. NOTE: Ensure the door is properly aligned to the case top to avoid readjustment of the door during top cap reinstallation. Place cap over the top of the refrigerator. Reinstall the original screws in the top and back of the cap. Reinstall the bottom freezer drawer. Refer to “Replacing the Freezer Drawer” section.

• IMPORTANT NOTE: This refrigerator is 34-1/2″ deep. Doors and passageways leading to the installation location must be at least 36″ wide in order to leave the doors and handles attached to the refrigerator while transporting it into the installation location. If passageways are less than 36″, the refrigerator doors and handles can easily be scratched and damaged. The top cap and doors can be removed to allow the refrigerator to be safely moved indoors. Start with Step A.

• If it is not necessary to remove doors, skip Step A. Leave tape and all packaging on doors until the refrigerator is in the final location.

• SKID REMOVAL: Tilt refrigerator to each side to remove skid.

• NOTE: Use a padded hand truck to move this refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that TWO PEOPLE move and complete this installation. Locate and remove the two Phillips head screws on the top of the refrigerator. Remove the two screws on each side at the rear of the top cap. Lift off and remove top cap. Remove the fresh-food door. Refer to Steps 1 through 3 of “Reversing the Door Swing” section. Remove the bottom freezer drawer. Refer to “Removing Freezer Drawer” section. Move refrigerator to the installation location.

(cont.) If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply. If you are using the GE SmartConnect

tubing, the nuts are already assembled to the tubing. If you are using copper tubing, insert the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting. If you are using GE SmartConnect

tubing, insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Overtightening may cause leaks. Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp. One of the illustrations below will look like the connection on your refrigerator. Icemaker-Ready models Icemaker-Installed Models

Installation Instructions

TURN ON THE WATER SUPPLY

(icemaker and dispenser models) Turn the water on at the shutoff valve (house water supply) and check for any leaks.

On models with an icemaker, before plugging in the refrigerator, make sure the icemaker power switch is set to the O (off) position. See the grounding information attached to the power cord.

IN PLACE Move the refrigerator to its final location.

REMOVE THE FRESH FOOD

DOOR HANDLE (For placement in the installation location or reversal of the handles – on some models) Stainless steel (on some models): REMOVING THE DOOR HANDLE: Loosen the set screws with the 3/32″ Allen wrench and remove the handle. NOTE: For Double Door models follow the same procedure on the opposite door. REVERSING THE DOOR HANDLE:

• Remove the handle mounting fasteners with a 1/4″ Allen wrench and transfer the handle mounting fasteners to the right side.

• Remove and transfer the plug button and logo badge to the left side of the fresh food door. NOTE: Use a flat plastic edge to prevent damaging the door. Remove any adhesive on the door with a mild detergent. Remove the paper covering on the adhesive backing on the logo badge prior to carefully attaching the badge to the door. Plastic handle (on some models): REMOVING THE DOOR HANDLE: Slide the handle up on the handle mounting fasteners and remove the handle. REVERSING THE DOOR HANDLE:

• Remove the handle mounting fasteners with a 3/8″ or 10 mm socket wrench and transfer the handle mounting fasteners to the right side.

• Remove and transfer the plug button and logo badge to the left side of the fresh food door. NOTE: Use a flat plastic edge to prevent damaging the door. Remove any adhesive on the door with a mild detergent. Remove the paper covering on the adhesive backing on the logo badge prior to carefully attaching the badge to the door.

After removing the handle: Move the small plug button from the top right side of the door top and insert it into the hole on the opposite side. Small Plug Button

MountingFastenersMounting Fasteners Plug Button Plug Button(appearance may vary)BadgeBadge(appearance may vary)(appearance may vary)

REMOVE THE FREEZER DOOR

HANDLE Stainless steel handle: Loosen the set screws located on the underside of the handle with the 3/32″ Allen wrench and remove the handle. NOTE: If the handle mounting fasteners need to be tightened or removed use a 1/4″ Allen wrench. Plastic handle: Slide the handle to the right on the handle mounting fasteners and remove the handle. NOTE: If the handle mounting fasteners need to be tightened or removed use a 3/8″ or 10 mm socket wrench.

MountingfastenersSlots on backof handle(appearance may vary)

HANDLE Stainless steel handle: Attach the handle firmly to the mounting fasteners and tighten the set screws on the bottom of the handle with a 3/32″ Allen wrench. Plastic handle: Attach the handle to the mounting fasteners by aligning the slots with the mounting fasteners. Slide it to the left until it is firmly locked into position. NOTE: A properly locked handle will be centered on the freezer.

Installation Instructions

DOOR HANDLE Stainless steel handle: Attach the handle to the handle mounting fasteners and tighten the set screws with a 3/32″ Allen wrench. NOTE: For Double Door models follow the same procedure on the opposite door. Plastic handle: Attach the handle to the handle mounting fasteners by aligning the slots with the handle mounting fasteners. Slide it down until it is firmly locked into position.

MountingFasteners Plug ButtonBadge(appearance may vary)(appearance may vary)MountingfastenersSlots on back ofhandle

MountingfastenersSlots on backof handle(appearance may vary)

(appearance may vary)LEVEL THE REFRIGERATOR The leveling legs have 3 purposes:

1) Leveling legs adjust so the door closes

easily when opened about halfway. (Front of the refrigerator should be 1/4″ [6 mm] higher than the rear of the refrigerator).

2) Leveling legs adjust so the refrigerator

is firmly positioned on the floor and does not wobble.

3) Leveling legs serve as a stabilizing

brake to hold the refrigerator securely in position during operation and cleaning. Turn the leveling legs clockwise to raise the refrigerator, counterclockwise to lower it. CAUTION: To avoid possible personal injury or property damage, the leveling legs must be firmly touching the floor. Install the base grille by aligning the prongs on the back of the grille with the holes in the cabinet. Push forward until the grille snaps into place.

Installation Instructions

Set the controls to the recommended setting.

REMOVE PACKAGING START ICEMAKER (icemaker models) A) Remove all tape, foam and protective packing from shelves and drawers. B) Remove the tie downs from the freezer baskets. C) Place half width basket onto drawer slides. See About the freezer section for instructions. Set the icemaker power switch to the I (on) position. The icemaker will not begin to operate until it reaches its operating temperature of 15°F (–9°C) or below. It will then begin operation automatically. It will take 2–3 days to fill the ice bin. NOTE: In lower water pressure conditions, the water valve may turn on up to 3 times to deliver enough water to the icemaker.

Open the freezer drawer until it stops. The freezer basket rests on a frame inside the freezer drawer. Lift the basket up at the back. Lift the front up and lift the entire basket up and out of the drawer.

(if needed) If, after removing the freezer drawer and refrigerator door, the refrigerator will still not fit through a doorway, the base grille can be removed. Remove the base grille by grasping it at the bottom and pulling it straight out.

The freezer drawer can be removed, if needed, to fit through tight areas. Read these instructions completely and carefully.

Remove the Phillips head screw on each side of the railing. DO NOT remove the hex head screws from the rail assemblies.

(cont.) Lift up on both sides of the freezer drawer handle to separate the drawer railings from the rail assemblies. Set the drawer front on a non- scratching surface. Push the rail assemblies back into locking position.

Rail Assembly Drawer Assembly

A23 Installation Instructions

Pull out the rail assemblies to the full length on each side of the cabinet. Locate the slots on the inside of the rail assemblies near the back. Insert the hooks at the back of the drawer railings into the slots on the rail assemblies. Lower the front of the drawer, making sure the tabs on the sides of the railings fit into the front slots in the rail assemblies.

Replace the lower freezer basket by lowering it into the frame.

Two people may be required to complete this procedure.

(cont.) Replace the Phillips head screws on both rail assemblies.

Phillips ScrewTOOLS YOU WILL NEED Installation Instructions

REVERSING THE DOOR SWING

(Single Door Refrigerator Models only) IMPORTANT NOTES When reversing the door swing: NOTE: Door swing is not reversible on some stainless steel models.

• Read the instructions all the way through before starting.

• Handle parts carefully to avoid scratching paint.

• Set screws down by their related parts to avoid using them in the wrong places.

• Provide a non-scratching work surface for the doors. IMPORTANT: Once you begin, do not move the cabinet until door-swing reversal is completed. These instructions are for changing the hinges from the right side to the left side—if you ever want to change the hinges back to the right side, follow these same instructions and reverse all references to left and right.

• Once door swing is finalized, ensure the logo badge is properly aligned and permanently secured to the door by removing the adhesive cover on the back side. NOTE: If necessary call Customer Service for a replacement badge. Unplug the refrigerator from its electrical outlet. Empty all door shelves, including the dairy compartment. Putty Knife or Thin-blade Screwdriver Masking Tape Adjustable Wrench 3/8″ and 10 mm Socket Ratchet/Driver REMOVE THE REFRIGERATOR DOOR Tape the door shut with masking tape. Remove the hinge cover on top of the refrigerator door by squeezing it and pulling it up. Using a 3/8″ or 10 mm socket ratchet/driver, remove the bolts securing the top hinge to the cabinet. Then lift the hinge straight up to free the hinge pin from the socket in the top of the door. Remove the tape and tilt the door away from the cabinet. Lift the door off the center hinge pin. Ensure that the white hinge pin thimble remains on the hinge pin or inside door hinge pin hole located in the bottom of the door. Set the door on a non-scratching surface with the inside up.

Hinge Cover Top Hinge Phillips Screwdriver 24Installation Instructions

REMOVE THE CENTER HINGE PIN

On models with a freezer door, tape the door shut with masking tape. Using an adjustable wrench, remove the center hinge pin.

(freezer door models) Remove the tape and tilt the door away from the cabinet. Lift the door off the bottom hinge pin. NOTE: There is a plastic washer between the hinge and the top of the freezer door. Do not lose. Set the door on a non-scratching surface with the inside up.

Using a 3/8″ or 10 mm socket ratchet/driver and Phillips head screwdriver, remove the bolts and screws securing the center hinge to the cabinet. Set hinge, bolts, screws, washer (on freezer door models) and hinge pin aside. On models with a freezer drawer, skip to Step 7.

BRACKET (freezer door models) Remove the base grille by grasping it at the bottom and pulling it straight out. Using a 3/8″ or 10 mm socket ratchet/driver, remove the screws securing the bottom hinge bracket to the cabinet. Using an adjustable wrench, remove the hinge pin and washer(s) from the right side of the bracket and install on the left.

BRACKET (freezer door models, cont.) Install the bottom hinge bracket on the left side of the cabinet. Replace the base grille by aligning the prongs on the back of the grille with the holes in the cabinet. Push forward until the grille snaps into place.

(freezer door models) Remove the door stop on right side of the bottom of the freezer door by removing the two screws. Move the plastic hinge hole thimble to the opposite hole. Install the door stop on the left side.

Bottom of Freezer Door (Right Side) Bottom of Freezer Door (Left Side)

Transfer the plug button and screws in the hinge holes on the left side to the right side. Install the center hinge on the left side.

(freezer door models) Lower the freezer door onto the bottom hinge pin, then shut the door, making sure to align the door with the cabinet. Make sure the gasket on the door is flush against the cabinet.

Installation Instructions

INSTALL CENTER HINGE PIN

Install the center hinge pin. NOTE: On models with a freezer door, be sure to put the washer between the top of the freezer door and the bottom of the center hinge.

Freezer Door Models Freezer Drawer Models TRANSFER REFRIGERATOR DOOR STOP Remove the door stop on right side of the bottom of the refrigerator door by removing the two screws. Move the plastic hinge hole thimble to the opposite hole. Install the door stop on the left side, making sure to line up the screw holes in the door stop with the holes in the bottom of the door.

Refer to Remove the Fresh Food Door Handle and Attach the Fresh Food Door Handle sections for instructions.

Lower the refrigerator door onto the center hinge pin. Ensure that the white hinge pin thimble is on the center hinge pin or inside door hinge pin hole located in the bottom of the door. Insert the top hinge pin into the hinge hole on top of the refrigerator door. Make sure the door is aligned with the cabinet. Attach the hinge to the top of the cabinet loosely with the bolts. Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side and make sure the door is straight and the gap between the doors is even across the front. While holding the door in place, tighten the top hinge bolts. Replace the hinge cover.

CTOOLS YOU WILL NEED

Installation Instructions

(Double Door Refrigerator Models only) IMPORTANT NOTES NOTE: Door swing is not reversible.

• Read the instructions all the way through before starting.

• Handle parts carefully to avoid scratching paint.

• Set screws down by their related parts to avoid using them in the wrong places.

• Provide a non-scratching work surface for the doors. IMPORTANT: Once you begin, do not move the cabinet. These instructions are for removing the doors. Unplug the refrigerator from its electrical outlet. Empty all door shelves, including the dairy compartment. Putty Knife or Thin-blade Screwdriver Masking Tape Adjustable Wrench 3/8″ and 10 mm Socket Ratchet/Driver REMOVE THE REFRIGERATOR DOORS Tape the doors shut with masking tape. Remove the screw securing each hinge cover, lift the hinge cover and place to the side on top of the refrigerator. Carefully disconnect the wire connector and remove the screw securing the ground wire. Using a 3/8″ or 10 mm socket ratchet/driver, remove the bolts securing the top hinge to the cabinet. Then lift the hinge straight up to free the hinge pin from the hinge pin hole in the top of the door. Carefully remove the wires from the hinge pin through the slot. Remove the tape and tilt the door away from the cabinet. Lift the door off the center hinge pin. Ensure that the white hinge pin thimble remains on the center hinge pin or inside door hinge pin hole located in the bottom of the door. Set the door on a non-scratching surface with the inside up.

Top Hinge Phillips Screwdriver

Hinge Cover Wire Connector Ground Wire

Hinge Pin Slot Hinge Pin Thimble PARTS INCLUDED C Spacer (on some models) (appearance may vary) (appearance may vary)Installation Instructions

Using a 3/8″ or 10 mm socket ratchet/driver and Phillips head screwdriver, remove the bolts and screw securing the center hinge to the cabinet. Set hinge, bolts, and screw aside.

Follow the same procedure on the opposite door.

Refer to the Removing the Freezer Drawer section for instructions. 4Installation Instructions

(Double Door Refrigerator Models only)

Lower the refrigerator door onto the center hinge pin. Ensure that the white hinge pin thimble is on the center hinge pin or inside door hinge pin hole located in the bottom of the door. Securely tape the door shut with masking tape or have a second person support the door. Route wires through top hinge pin slot. Insert the top hinge pin into the hinge hole on top of the refrigerator door. Make sure the door is aligned with the cabinet and opposite door. Attach the hinge to the top of the cabinet loosely with the bolts. Reconnect the wire connector and reconnect the ground wire using the screw removed earlier. Ensure that the wire connector is fully engaged. IMPORTANT: The ground wire must be reinstalled to ensure a proper ground.

REHANG REFRIGERATOR DOORS (CONT.) Make sure the gasket on the door is flush against the cabinet and is not folded. Make sure the door is straight and the gap between the doors is even across the front. While holding the aligned door in place, tighten the top hinge bolts. Replace the hinge cover and screw.

If the top of the doors are uneven, first try to raise the lowest door by turning the leveling leg on the same side as the door until the doors are even. If the unit rocks, re-adjust the leveling legs to the extent that the unit is stable. If the doors remain uneven, use a C spacer to align the doors. While lifting the door on the hinge side with one hand, insert a C spacer with pliers. Continue to add C spacers until the doors are even. C Spacer

REPLACE FREEZER DRAWER

Refer to the Replacing the Freezer Drawer section for instructions.

REPLACE OPPOSITE DOOR

Follow the same procedure on the opposite door. (appearance may vary) (appearance may vary)

INSTALLING THE WATER LINE (ICEMAKER MODELS) Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are GE SmartConnect

Refrigerator Tubing (WX08X10002, WX08X10006, WX08X10015 and WX08X10025). When connecting your refrigerator to a GE Reverse Osmosis Water System, the only approved installation is with a GE RVKit. For other reverse osmosis water systems, follow the manufacturer’s recommendations. If the water supply to the refrigerator is from a Reverse Osmosis Water Filtration System AND the refrigerator also has a water filter, use the refrigerator’s filter bypass plug. Using the refrigerator’s water filtration cartridge in conjunction with the RO filter can result in hollow ice cubes. This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator. To prevent burns and product damage, do not hook up the water line to the hot water line. If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the O (off) position. Do not install the icemaker tubing in areas where temperatures fall below freezing. When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered. All installations must be in accordance with local plumbing code requirements.

Refrigerator Tubing kit,1/4″ outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square. To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then add 8′ (2.4 m). Be sure there is sufficient extra tubing (about 8′ [2.4 m] coiled into 3 turns of about 10″ [25 cm] diameter) to allow the refrigerator to move out from the wall after installation. GE SmartConnect

Refrigerator Tubing Kits are available in the following lengths: 2′ (0.6 m) – WX08X10002 6′ (1.8 m) – WX08X10006 15′ (4.6 m) – WX08X10015 25′ (7.6 m) – WX08X10025 Be sure that the kit you select allows at least 8′ (2.4 m) as described above.INSTALLING THE WATER LINE (CONT.) NOTE: The only GE approved plastic tubing is that supplied in GE SmartConnect

Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 800.626.2002 (in Canada 1.888.261.3055).

• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4–8.1 bar).

• 1/2″ or adjustable wrench.

• Straight and Phillips blade screwdriver.

• Two 1/4 ″ outer diameter compression nuts and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve.

• If you are using a GE SmartConnect

Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

• If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from GE SmartConnect

• Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32″ at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. WHAT YOU WILL NEED (CONT.)

SHUT OFF THE MAIN WATER

SUPPLY Turn on the nearest faucet long enough to clear the line of water. Install the shutoff valve on the nearest frequently used drinking water line.

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

Drill a 1/4″ hole in the water pipe (even if using a self-piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1/4″ hole may result in reduced ice production or smaller cubes. Installation Instructions 32Installation Instructions Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely. For plastic tubing from a GE SmartConnect

Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Saddle-Type Shutoff Valve Compression Nut Packing Nut Outlet Valve Ferrule (sleeve) Turn the main water supply on and flush out the tubing until the water is clear. Shut the water off at the water valve after about one quart (1 liter) of water has been flushed through the tubing.

Tubing Fasten the shutoff valve to the cold water pipe with the pipe clamp. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Tighten the clamp screws until the sealing washer begins to swell. NOTE: Do not overtighten or you may crush the tubing.

Pipe Clamp Vertical Cold Water Pipe Saddle-Type Shutoff Valve Washer Inlet End Pipe Clamp Clamp Screw Route the tubing between the cold water line and the refrigerator. Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible. NOTE: Be sure there is sufficient extra tubing (about 8

[2.4 m] coiled into 3 turns of about 10″ [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.

To complete the installation of the refrigerator, go back to Step 1 in Installing the Refrigerator. 33Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions Normal operating sounds. Before you call for service… Troubleshooting Tips Save time and money! Review the charts on the followingpages first and you may not need to call for service.Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology. HUMMM... WHOOSH...

The new high efficiency compressor may run faster and longerthan your old refrigerator and you may hear a high-pitchedhum or pulsating sound while it is operating. You may hear a whooshing sound when the doors close. This isdue to pressure equalizing within the refrigerator. You may hear the fans spinning at high speeds. This happenswhen the refrigerator is first plugged in, when the doors areopened frequently or when a large amount of food is added tothe refrigerator or freezer compartments. The fans are helpingto maintain the correct temperatures. The fans change speeds in order to provide optimal coolingand energy savings. CLICKS, POPS, CRACKS and SNAPS

You may hear cracking or popping sounds when therefrigerator is first plugged in. This happens as the refrigeratorcools to the correct temperature. The freezer control will click when starting or stopping thecompressor. Defrost timer snapping in and out of the defrost cycle. Expansion and contraction of cooling coils during and afterdefrost can cause a cracking or popping sound. On models with an icemaker, after an icemaking cycle, youmay hear the ice cubes dropping into the ice bucket. On models with a dispenser, during water dispense, you may hear the water lines move at initial dispense and afterdispenser button is released. WATER SOUNDS

The flow of refrigerant through the freezer cooling coils maymake a gurgling noise like boiling water. Water dropping on the defrost heater can cause a sizzling,popping or buzzing sound during the defrost cycle. A water dripping noise may occur during the defrost cycle asice melts from the evaporator and flows into the drain pan. Closing the door may cause a gurgling sound due to pressureequalization. Do you hear what I hear? These sounds are normal. Problem Possible Causes What To Do Refrigerator does not Refrigerator in defrost cycle. • Wait about 30 minutes for defrost cycle to end. operate Control in 0 (off) position. • Move the control to a temperature setting. Refrigerator is unplugged. • Push the plug completely into the outlet. The fuse is blown/circuit • Replace fuse or reset the breaker. breaker is tripped. Vibration or rattling Leveling legs need adjusting. • See Level the Refrigerator. (slight vibration is normal)For additional information on normalicemaker operating sounds, see the About the automatic icemaker section. 34ge.com Consumer Support Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions Problem Possible Causes What To Do Motor operates for Normal when refrigerator • Wait 24 hours for the refrigerator to completely long periods or cycles is first plugged in. cool down. on and off frequently. Often occurs when large • This is normal. (Modern refrigerators amounts of food are with more storage placed in refrigerator. space and a larger Door left open. • Check to see if package is holding door open. freezer require more Hot weather or frequent • This is normal. operating time. They door openings. start and stop often Temperature control • See About the controls. to maintain even set at the coldest setting. Grille and condenser need •See Care and cleaning. cleaning. TurboCool function has been •This is normal when the TurboCool function is activated. activated. See About TurboCool for more information. Refrigerator or freezer Temperature controls not set • See About the controls. compartment too warm cold enough. Warm weather or frequent •Set the temperature control one step colder. door openings. See About the controls. Door left open. • Check to see if package is holding door open. Frost or ice crystals Door left open. • Check to see if package is holding door open. on frozen food Too frequent or too long (frost within package door openings. is normal) Frequent “buzzing” Icemaker power switch is in • Set the power switch to the 0 (off) position. Keeping it sound the I (on) position, but the in the I (on) position will damage the water valve. water supply to the refrigerator has not been connected. Small or hollow cubes Water filter clogged. • Replace filter cartridge with new cartridge or with plug. Automatic icemaker Icemaker power switch is •Set the power switch to the I (on) position. (on some models) not on. The icemaker power light will turn green when the does not work freezer light switch is pressed in or when the freezer door is closed. Water supply turned off or •See Installing the water line. not connected. Freezer compartment •Wait 24 hours for the refrigerator to completely too warm. cool down. Piled up cubes in the storage •Level cubes by hand. bin cause the icemaker to shut off. Ice cubes stuck in icemaker. •Turn off the icemaker, remove cubes and turn the (Green power light on icemaker back on. icemaker blinking.) Icemaker light is not lit. •This is normal when the freezer door is open. The icemaker power light will turn green when the freezer light switch is pressed in or when the freezer door is closed. temperatures.)

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions Before you call for service… Troubleshooting Tips Problem Possible Causes What To Do Ice cubes have Food transmitting odor/taste • Wrap foods well. odor/taste to ice cubes. Interior of refrigerator •See Care and cleaning. needs cleaning. Slow ice cube freezing Door left open. • Check to see if package is holding door open. Freezer control not set • See About the controls. cold enough. Refrigerator has odor Foods transmitting • Foods with strong odors should be tightly wrapped. odor to refrigerator.

• Keep an open box of baking soda in the refrigerator; replace every three months. Interior needs cleaning. • See Care and cleaning. Moisture forms on Not unusual during • Wipe surface dry and reset the refrigerator control outside of refrigerator periods of high humidity. one setting colder. Moisture collects inside Too frequent or too (in humid weather, air long door openings. carries moisture into refrigerator when doors are opened) Refrigerator or freezer No power at outlet. •Replace fuse or reset the breaker. compartment light does Light bulb burned out or loose. •See Replacing the light bulbs. not work Door/drawer does not Leveling legs need adjusting. •See Installing the Refrigerator. close by itself Freezer door/drawer This is normal if, after popping • This indicates that there is a good seal on the freezer pops open when open, the freezer door/drawer door/drawer. If the freezer door/drawer does not refrigerator door closed on its own. automatically close after popping open, then see the is closed Problem: Door/drawer does not close by itself, above. Hot air from bottom Normal air flow cooling of refrigerator motor. In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings will discolor at these normal and safe temperatures. Food freezing in Food too close to the air vent • Move the food away from the air vent (near the the refrigerator at the back of the refrigerator. controls). Refrigerator control is set •Move the refrigerator control to a warmer too cold. temperature setting one increment at a time. Orange glow Defrost heater is on. • This is normal. in the freezer37 ge.com Consumer Support Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions Problem Possible Causes What To Do Water has poor Water dispenser has not been • Dispense water until all water in system is taste/odor used for a long time. replenished. Water in first glass Normal when refrigerator • Wait 24 hours for the refrigerator to completely is warm is first installed. cool down. Water dispenser has not been • Dispense water until all water is system is used for a long time. replenished. Water system has been drained. • Allow several hours for replenished supply to chill. Water dispenser Water supply line turned off •See Installing the water line. does not work or not connected. Water filter clogged. •Replace filter cartridge or remove filter and install plug. Air may be trapped in •Press the dispenser arm for at least 2 minutes. the water system. Water spurting from Newly-installed filter cartridge. •Run water from the dispenser for 3 minutes dispenser (about 1

⁄2 gallons). Water is not dispensed Water in reservoir is frozen •Set the refrigerator control to a warmer setting and but icemaker is working because the controls are wait 24 hours. If water does not dispense after 24 hours, set too cold. call for service. No water or ice cube Supply line or shutoff valve •Call a plumber. production is clogged. Water filter clogged. •Replace filter cartridge or remove filter and install plug. Filter cartridge not • Remove and reinstall filter cartridge, being certain that properly installed. it locks into place. The blade on the end of the cartridge should be positioned vertically. Water is leaking from Glass not being held under • Hold the glass underneath the dispenser for 2–3 seconds dispenser the dispenser long enough after releasing the dispenser button. Water may continue after button is released. to dispense after the button is released. Air may be present in the • Dispense water for at least 2 minutes to remove air water line system, causing from system. water to drip after being dispensed.38 Before you call for service… Troubleshooting Tips Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions Problem Possible Causes What To Do My display is showing TurboCool function is activated. • See About TurboCool for more information. Water filter indicator light This is normal. • See About the water filter for more information. changed color Water filter indicator light Water filter indicator must •Press and hold the RESET WATER FILTER pad for 3 remains red even after be reset. seconds. See About the water filter for more information. replacing the water filter Water filter indicator This is normal. This light will •See About the water filter for more information. light is not lit turn orange to tell you that you need to replace the filter soon. The filter cartridge should be replaced when the replacement indicator light turns red. Handle is loose / handle Handle needs adjusting. •See Attach the Fresh Food handle and Attach the has a gap Freezer handle sections for detailed instructions. Refrigerator beeping This is the door alarm. •Close door. Control setting is not lit On some models, the light •If the control settings do not light up, check to see if the bulbs at the top of the refrigerator light bulbs are burned out, and replace if necessary. compartment light up the temperature control settings. Refrigerator doors are Doors need realigning. •See Align Double Doors section located under not even (on Double Door Replacing the Door (Double Door Refrigerator Models only). models only)39 General Electric Company Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150 GE Service Protection Plus

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus —comprehensive protection on all your appliances—No Matter What Brand!Benefits Include:• Backed by GE• All brands covered• Unlimited service calls• All parts and labor costs included• No out-of-pocket expenses• No hidden deductibles• One 800 number to callYou will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It’s that simple. Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemakercoverage and food spoilage protection is offered. You can rest easy, knowing that all your valuablehousehold products are protected against expensive repairs.Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224for more information.*All brands covered, up to 20 years old, in the continental U.S. We’ll Cover Any Appliance. Anywhere. Anytime.* Please place in envelope and mail to:

Cut hereConsumer Product Ownership Registration

GE Consumer & Industrial Appliances General Electric Company Louisville, KY 40225ge.com First Name Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■ StreetAddress City StateDate PlacedIn UseMonth Day Year Zip Code Apt. # Last Name PhoneNumber

Consumer Product Ownership Registration Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer! Follow these three steps to protect your new appliance investment: Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at ge.com.

Cut here Complete and mail your Consumer Product Ownership Registration today. Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification. After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is 800 GE CARES (800.432.2737). Read your Owner’s Manual carefully. It will help you operate your new appliance properly. Model Number Serial Number E-mail Address*

• Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important communications from GE Appliances (GEA). ■■ Check here if you do not want to receive communications from GEA’s carefully selected partners. FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS. For information about GEA’s privacy and data usage policy, go to ge.com and click on “Privacy Policy” or call 800.626.2224.41 OWNERSHIP REGISTRATION

MISSISSAUGA, ONTARIO L4Y 4G1 (FOR CANADIAN CONSUMERS ONLY) Please place in envelope and mail to: Veuillez mettre dans une enveloppe et envoyez à :4243 TERMS AND CONDITIONS: This warranty applies only for single family domestic use in Canada when the Refrigerator has been properly installed according to the instructions supplied by Camco and is connected to an adequate and proper utility service. Damage due to abuse, accident, commercial use, and alteration or defacing of the serial plate cancels all obligations of this warranty. Service during this warranty period must be performed by an Authorized Camco Service Agent. Neither Camco nor the Dealer is liable for any claims or damages resulting from failure of the Refrigerator or from service delays beyond their reasonable control. To obtain warranty service, purchaser must present the original Bill of Sale. Components repaired or replaced are warranted through the remainder of the original warranty period only. This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by Camco to provide. This warranty is in addition to any statutory warranty. WHAT IS NOT COVERED:

• Owner is responsible to pay for service calls related to product installation and/or teaching how to use the product.

• Damage to finish must be reported within 48 hours following the delivery of the appliance.

• Damage to finish after delivery.

• Improper installation—proper installation includes adequate air circulation to the refrigeration system, adequate electrical, plumbing and other connecting facilities.

• Replacement of house fuses or resetting of circuit breakers.

• Replacement of light bulbs.

• Damage to product caused by accident, fire, floods or acts of God.

• Loss of food due to spoilage.

• Proper use and care of product as listed in the owner’s manual, proper setting of controls.

• Product not accessible to provide required service.

• WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES. IMPORTANT Keep this warranty and your bill of sale as proof of original purchase and purchase date. Please have serial number and model number available when calling for service. Camco Service is available coast to coast. If further help is needed concerning this warranty, contact: Manager, Consumer Relations Camco Inc., Consumer Service 1 Factory Lane, Suite 310 Moncton, New Brunswick E1C 9M3

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. What is covered How Long Warranted Parts Labour (From Date of Sale) Repair or Replace at Camco’s Option Compressor GE Profile: Ten (10) Years GE Profile: Ten (10) Years GE Profile: Five (5) Years GE and All Other GE and All Other GE and All Other Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year Sealed System (including GE Profile: Five (5) Years GE Profile: Five (5) Years GE Profile: Five (5) Years evaporator, condenser GE and All Other GE and All Other GE and All Other tubing and refrigerant) Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year All Other Parts One (1) Year One (1) Year One (1) Year CUSTOMER WARRANTY (for customers in Canada) Your refrigerator is warranted to be free of defects in material and workmanship. EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.Refrigerator Warranty. (For customers in the United States) All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, on-line, 24 hours a day, visit us at ge.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service. For The Period Of: GE Will Replace: GE and GE PROFILE MODELS: One Year Any part of the refrigerator which fails due to a defect in materials or workmanship. From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and original purchase related service to replace the defective part. Thirty Days Any part of the water filter cartridge which fails due to a defect in materials or workmanship. (Water filter, if included) During this limited thirty-day warranty, GE will also provide, free of charge, a replacement water From the original filter cartridge. purchase date of the refrigerator GE PROFILE MODELS ONLY: Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator (GE Profile models only) and all connecting tubing) which fails due to a defect in materials or workmanship. From the date of the During this limited five-year sealed refrigerating system warranty, GE will also provide, original purchase free of charge, all labor and related service to replace the defective part in the sealed refrigerating system. ■ Service trips to your home to teach you how to use the product. ■ Improper installation, delivery or maintenance. ■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. ■ Loss of food due to spoilage. ■ Replacement of house fuses or resetting of circuit breakers. ■ Damage caused after delivery. ■ Replacement of the water filter cartridge, if included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply. ■ Replacement of the light bulbs, if included, or water filter cartridge, if included, other than as noted above. ■ Damage to the product caused by accident, fire, floods or acts of God. ■ Incidental or consequential damage caused by possible defects with this appliance. ■ Product not accessible to provide required service. What GE Will Not Cover: This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. Louisville, KY 40225 Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions45 Manufactured for: General Electric Company, Louisville, KY 40225 Performance Data Sheet SmartWater Filtration System GSWF Cartridge This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42/53.* (100% safety factors built in for unmetered usage) Standard No. 42: Aesthetic Effects Parameter USEPA Influent Influent Challenge Effluent % Reduction Min. Required MCL Average Concentration Average Maximum Average Minimum Reduction Chlorine — 1.845 mg/L 2.0 mg/L+10% < 0.05 mg/L 0.05 mg/L > 97.29% 96.43% > 50% T & O — — — — — — — — Particulate** — 143,333 #/mL at least 10,000 particles/mL

• Tested using a flow rate of 0.5 gpm; pressure of 60 psig; pH of 7.5 ± 0.5; temp. of 68° ± 5°F (20° ± 3°C) ** Measurement in Particles/ml. Particles used were 0.5-1 microns *** NTU=Nephelometric Turbidity units Operating Specifications Capacity: certified for up to 750 gallons (2,838 l); up to six months Pressure requirement: 40–120 psi (2.8–8.2 bar) Temperature: 33–100ºF (0.6–38ºC) Flow rate: 0.5 gpm (1.9 lpm) General Installation/Operation/Maintenance Requirements Flush new cartridge at full flow for 3 minutes to purge out trapped air. Replace cartridge when flow becomes too slow. Special Notices Installation instructions, parts and service availability, and standard warranty are included with the product when shipped. This drinking water system must be maintained according to manufacturer’s instructions, including replacement of filter cartridges. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water. Check for compliance with the state and local laws and regulations. Note that while the testing was performed under standard laboratory conditions, actual performance may vary. Systems must be installed and operated in accordance with manufacturer’s recommended procedures and guidelines. NSF

System tested and certified by NSF International against Standard 42 for the reduction of chlorine, taste and odor, particulate Class I and Standard 53 for the reduction of cyst, lead, Lindane, Atrazine and turbidity.46 State of California Department of Health Services Water Treatment Device Certificate Number Date Issued: April 28, 2003 Trademark/Model Designation Replacement Elements 155903 -

Refrigerator Tubing.

” your questions, and so much more... In Canada: www.geappliances.ca Schedule Service In the U.S.: ge.com Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.361.3400 Real Life Design Studio In the U.S.: ge.com GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). In Canada, contact: Manager, Consumer Relations, Camco, Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 Extended Warranties In the U.S.: ge.com Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133 Parts and Accessories In the U.S.: ge.com Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Customers in Canada should consult the yellow pages for the nearest Camco service center, or call 1.888.261.3055. Contact Us In the U.S.: ge.com If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225 In Canada: www.geappliances.ca, or write to: Director, Consumer Relations, Camco, Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 Register Your Appliance In the U.S.: ge.com Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.geappliances.ca Printed in Mexico
