MWTK27FGUD - Microwave Oven FRIGIDAIRE - Free user manual and instructions

Brand	Frigidaire
Model	MWTK27FGUD
Product Type	Built-in Microwave Oven
Cutout Dimensions (H x W x D)	42.5 - 43.2 cm x 62.9 - 63.5 cm x 50.8 cm max
Weight	Approximately 45 kg (100 lb)
Power Supply	120 V, 60 Hz, 1500 W (estimated)
Main Functions	Microwave, integration with trim kit, possibility of installation above a wall oven
Included Kit	Front frame, exhaust duct, mounting rails, screws
Care and Cleaning	Clean with a damp cloth and mild detergent. Do not use abrasive cleaners.
Safety	Unplug before installation. Follow local codes and ordinances. Use only with specified models.
Spare Parts and Repairability	Trim kit available. Contact customer service for replacement parts.
General Information	1-year warranty (estimated). Customer service: 1-800-944-9044 (US), 1-800-265-8352 (Canada).

Frequently Asked Questions - MWTK27FGUD FRIGIDAIRE

What are the cutout dimensions for the Frigidaire MWTK27FGUD?

The required cutout dimensions are: height between 42.5 and 43.2 cm, width between 62.9 and 63.5 cm, maximum depth of 50.8 cm.

Can I install this microwave above a wall oven?

Yes, the integrated kit allows installation above an electric wall oven, provided there is a clearance of at least 3 inches (7.6 cm) between the two appliances.

What is the weight of the MWTK27FGUD microwave?

The weight is approximately 45 kg (100 lb). Ensure the installation surface is strong enough to support this load.

What components are provided in the integrated kit?

The kit includes: a front frame, an exhaust duct, two lower mounting rails, screws A (11+3 extra) and screws B (4+2 extra).

What is the required electrical voltage?

The microwave operates on a standard power supply of 120 V, 60 Hz. The power is estimated at 1500 W. Check the exact specifications on the rating plate.

How to clean the built-in microwave?

Use a damp cloth with a mild detergent. Avoid abrasive cleaners that could damage the surface.

Can I install the microwave alone, without a wall oven?

Yes, the trim kit allows installation of the microwave alone in a cabinet or wall, according to the indicated cutout dimensions.

What are the safety precautions during installation?

First, turn off power at the service panel and lock it. Unplug the microwave. Handle metal parts carefully to avoid injury.

Is this microwave compatible with other brands?

No, this integrated kit is designed exclusively for the Electrolux microwave ovens specified in the instructions. Do not use it with other brands.

Where can I find customer service for this product?

For the United States, call 1-800-944-9044. In Canada, dial 1-800-265-8352 (English) or 1-800-668-4606 ext. 8199 (French). Also visit www.frigidaire.com.

USER MANUAL MWTK27FGUD FRIGIDAIRE

Installation Instructions

Built-in Trim Kit

Model # MWTK27FGUF MWTK30FGUD MWTK30FPUF MWTK30FGUF MWTK27FGUD

BEFORE YOU BEGIN

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinaces.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills.

Read these instructions completely and carefully.

• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

FOR YOUR SAFETY:

WARNING – Before beginning the installation, switch power off at service panel and lock out to prevent being switched on accidentally. When the service cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH ELECTROLUX MICROWAVE OVENS SPECIFYING BUILT-IN KIT

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level.

The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-800-944-9044

For customers in Canada call: 1-800-265-8352 (English)

1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN: A06823511

June 2018

Installation Instructions

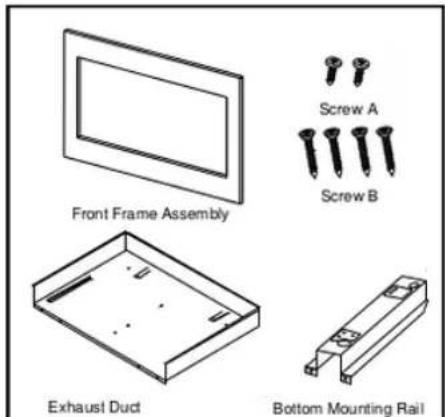

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly- QTY 1
2. Exhaust Duct - QTY 1

Bottom Mounting Rail – QTY 2

1. Screw A - QTY 11+3 extra
2. Screw B - QTY 4 + 2 extra

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven*.

Microwave Models:

FGMO226NUF FGMO226NUD FPMO227NUF

CGMO226NUF CPMO227NUF

See Illustration 1 for proper location and when building in above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the clearance between the wall oven and the microwave oven is a minimum of 3 inches. See illustration 2.

*NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non self-clean single cavity wall oven.

CARINET OR WALL CUTOUT

Illustration 1

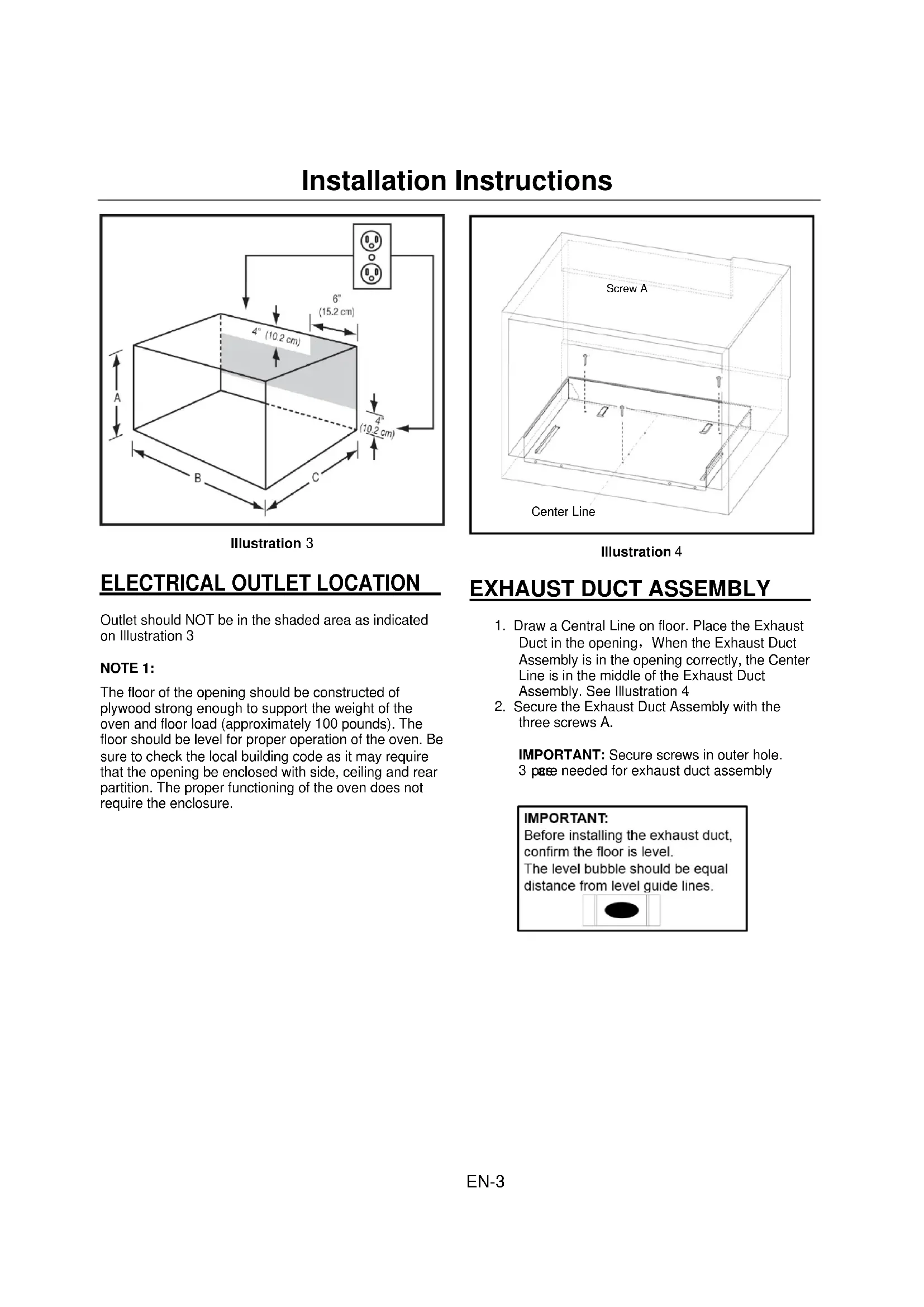

Installation Instructions

Illustration 3

Illustration 4

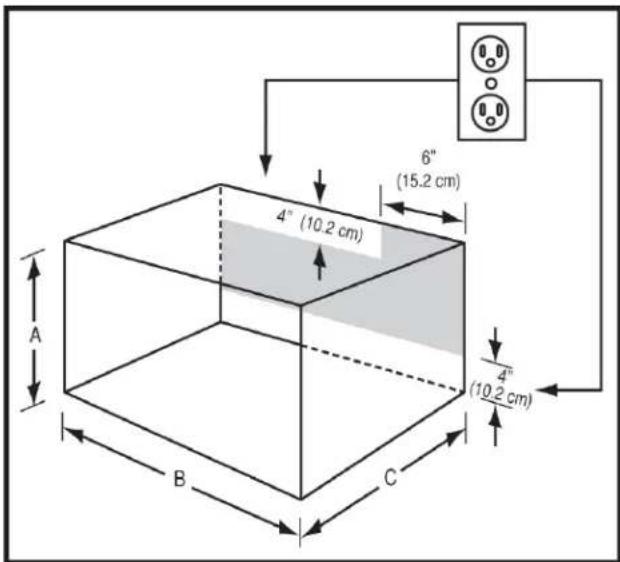

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

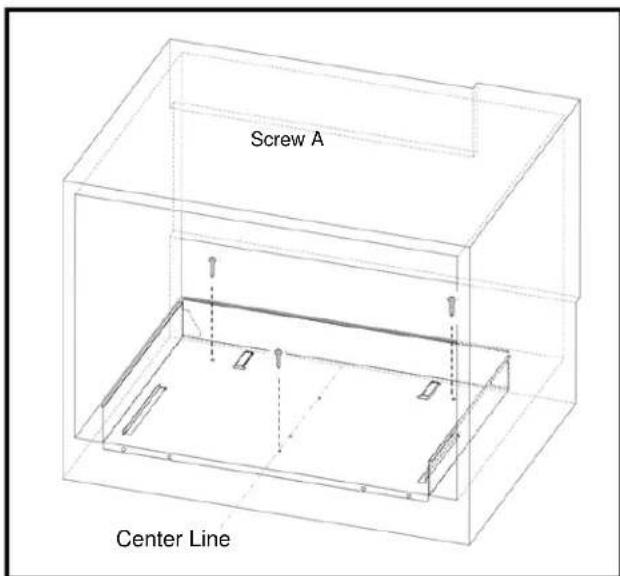

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening. When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 pere needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level.

The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

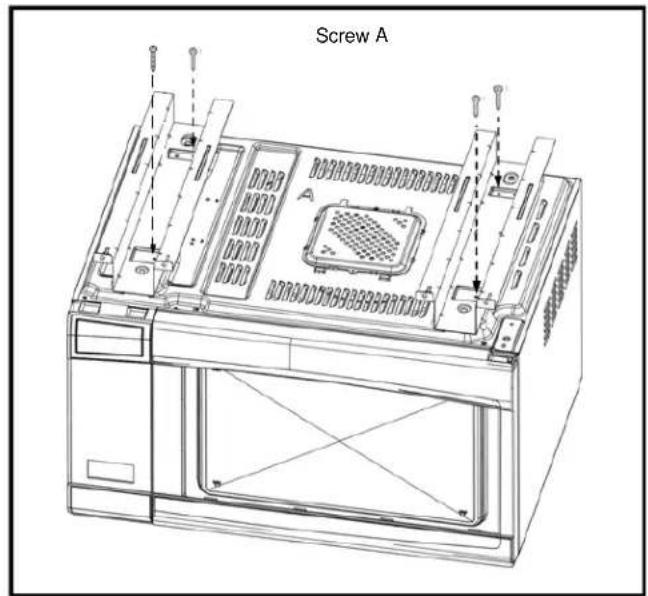

Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four SCREWS A. See Illustration 5.

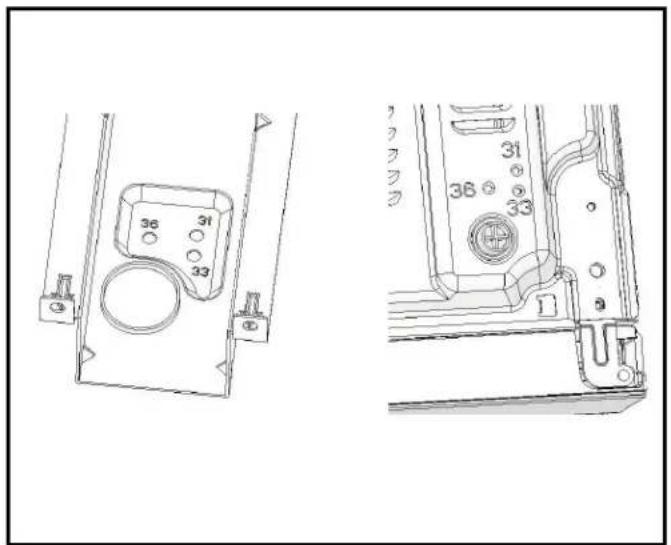

NOTE: Please make sure to align the holes(marked with "36") of bottom mounting rail and the holes(marked with "36") of microwave oven's bottom plate.

Illustration 5

OVEN INSTALLATION

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet.

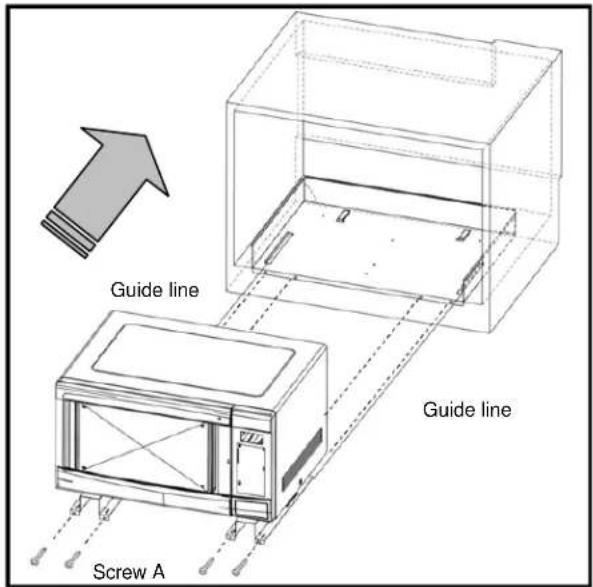

2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6
3. Secure the Exhaust Duct Assembly with the four screws A.

Illustration 6

Technical line drawings of mechanical components with numbered parts (no text or symbols)

Installation Instructions

FRAME INSTALLATION

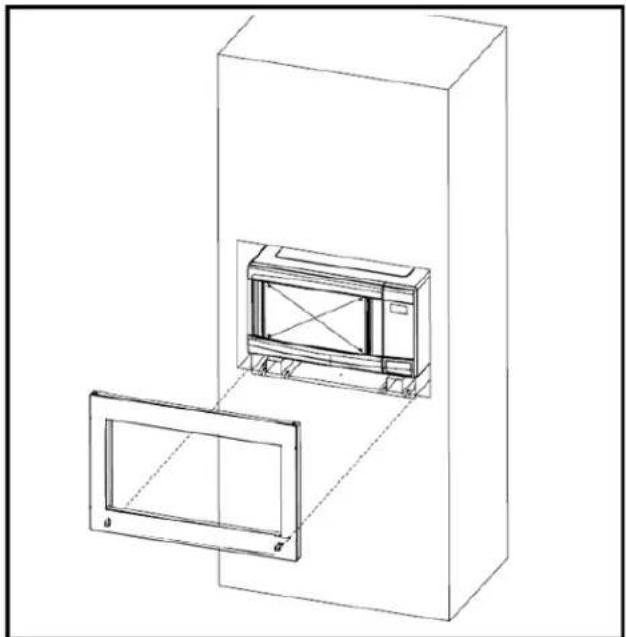

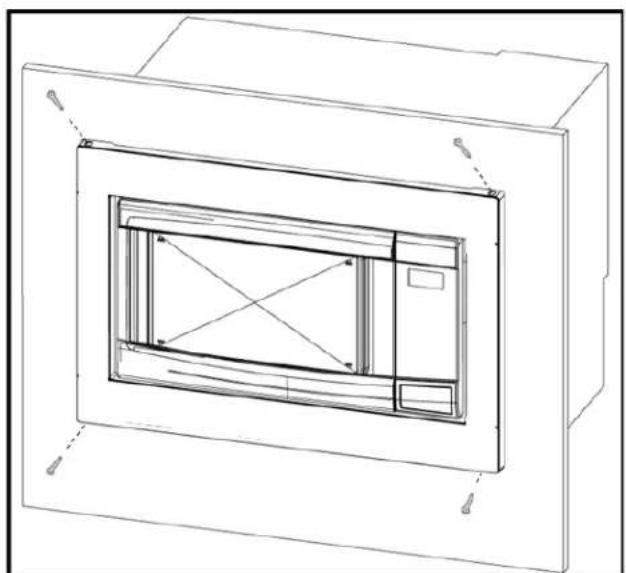

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.

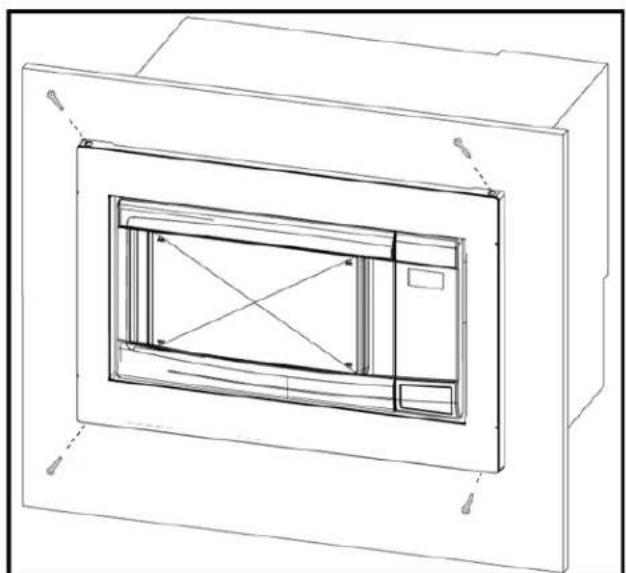

2. Check that it is level and then secure with two SCREWS B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining SCREWS B. See Illustration 8.

Technical line drawing of a microwave oven mounted on a rectangular base, with no visible text or symbols.

Illustration 7

Technical line drawing of a cabinet or enclosure with internal frame and mounting brackets (no text or symbols)

Illustration 8

FGM0226NUF FGM0226NUD FPM0227NUF

CGM0226NUF CPM0227NUF

Simple line drawing of a rectangular frame with no text or symbols

Tornillo A

Tornillo B

Isometric line drawing of a rectangular tray or enclosure with internal compartments and mounting holes (no text or symbols)

Ilustración 3

Technical line drawings of a mechanical component with numbered parts (no text or symbols)

Technical line drawing of a microwave oven mounted on a rectangular base, with no visible text or symbols.

Ilustración 7

Technical line drawing of a cabinet or enclosure with internal frame and mounting holes (no text or symbols)

Ilustración 8

PIÈCES INCLUDES DANS LE KIT

FGM0226NUF FGM0226NUD FPM0227NUF

CGM0226NUF CPM0227NUF

Simple line drawing of a rectangular frame with no text or symbols

Vis A

Vis B

Isometric line drawing of a rectangular tray or enclosure with internal slots and mounting holes (no text or symbols)

Illustration 3

SORTIE ÉLECTRIQUE

INSTALLATION DU FOUR

Technical line drawing of a microwave oven mounted on a rectangular base, with no visible text or symbols.

Illustration 7

Technical line drawing of a 3D cabinet or enclosure with internal frame structure (no text or symbols)

Illustration 8
