USER MANUAL GT32WPP LG

Please read carefully the manual instruction and safety caution before operating your refrigerator and retain it for future reference

CONTENTS

IMPORTANT SAFETY INFORMATION .. 3

INSTALLATION 10

FEATURE CHART 11

OPERATION 13

Starting

Before Setting The Temperature

Temperature Control

Hygiene Fresh (Optional)

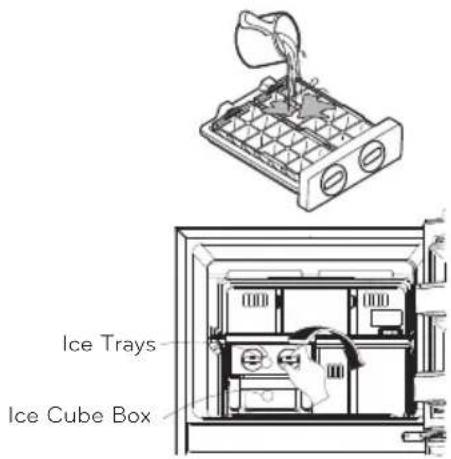

Ice Making

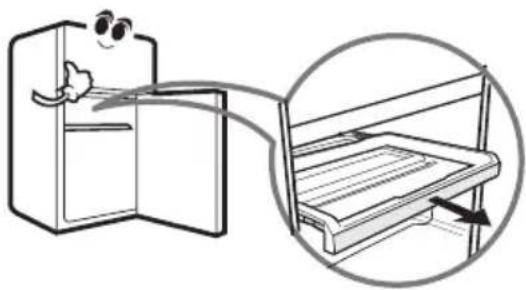

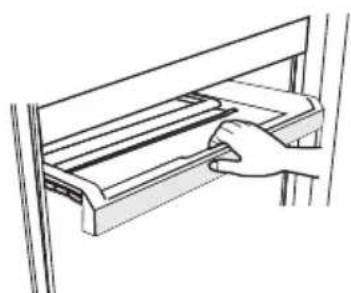

Pull Out Tray (Optional)

Defrosting

Deodorizer (Optional)

Water Dispenser (Optional)

SUGGESTIONS ON FOOD STORAGE..... 17

CLEANING 18

GENERAL INFORMATION ......19

LAMP REPLACEMENT 2.0

IMPORTANT WARNINGS 20

BEFORE CALLING FOR SERVICE ...... 21

SMART DIAGNOSIS....23

Cartoon illustration of a smiling rectangular box character with arms and legs, waving (no text or symbols)

WARNING

⚠️ Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartment of the appliance, unless they are of the type recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When disposal, please consult with services agent or a similarly qualified person.

This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. if a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1 m^2 in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance. Never start up an appliance showing any signs of damage. if in doubt, consult your dealer.

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazard that can hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word WARNING, or CAUTION. These words mean:

WARNING

You will be hurt or seriously injured if you don't follow instructions.

CAUTION

indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

Do not use many power outlets.

• Using several devices at one outlet may cause fire.

• The electric leakage breaker may damage food and the dispenser may be leaked.

Diagram of a rope knot with two crossed loops (no text or symbols)

Do not allow the power plug to face upward

or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Illustration of a refrigerator with a sad face and two crossed arms, connected by a door (no text or symbols)

Do not allow the power cord bent or pressed

by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Cartoon illustration of a refrigerator with a 'NO' sign and a phone, no text or symbols present

Do not extend or modify the length of the

power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

Cartoon illustration of a smiling rectangular character and a person holding a phone, no text or symbols present

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Unplug the power plug when cleaning or handling the refrigerator.

- It may cause electric shock or injury.

Illustration of a child standing beside a smiling refrigerator (no text or symbols)

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Illustration of two children interacting with a bandage, showing stress or pain (no text or symbols)

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Illustration of a hand holding a tool near a cloth (no text or symbols)

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

Ground Wire Copper Flat More than 30 inches

When the power cord or the power plug is

damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

2. When using the refrigerator

Do not place the heavy object or the dangerous object

(container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Cartoon illustration of a child holding a large box with a cross mark on top, next to a woman (no text or symbols)

Do not cling to the door or the shelves of the door or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

NO

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

NO I II

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas,

spray or cosmetics

near or in the

refrigerator.

It may cause explosion or fire.

Cartoon illustration showing a sad book character and a crossed-out 'Elder' label with 'Thulose'

Do not place the lit candle within the refrigerator to deodorize.

It may cause explosion or fire.

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a crossed-out X (no text or symbols on the refrigerator itself)

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

NO Don't know about it Don't know about it

Do not use the combustible spray near the refrigerator.

It may cause fire.

NO

Avoid the heating devices.

It may cause fire.

Cartoon illustration of a refrigerator with a frowning face and a steaming bag, next to a gift box (no text or symbols)

Do not place flower vase, cup, cosmetics, medicine or any container

with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

Cartoon illustration of a gift box character with arms and facial features, holding a 'NO' sign (no text or symbols on the character itself)

Do not use the submerged refrigerator directly, kindly checked by the technician.

It may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator with a person walking away (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Cartoon illustration of a smiling hard book character and a girl holding a book, with no visible text or symbols.

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of a girl running with a backpack and holding a 'NO' sign next to a smiling refrigerator (no text or symbols on the main subjects)

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

Cartoon illustration of a child opening a refrigerator with a smiling face (no text or symbols)

When gas is leaked, do not touch the refrigerator or the air outlet and ventilate the room immediately.

• The explosion by spark may cause fire or burn.
• Because this refrigerator uses natural gas as the environment-friendly refrigerant, even as small amount is combustible. When the gas is leaked by the severe damage during delivering, installing or using the refrigerator, any spark may cause fire or burn.

Cartoon illustration of a smiling refrigerator and a girl running away from a doorway (no text or symbols)

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center. It may cause fire.

Service center

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling rectangular character with arms and legs, crossed out by a 'X' symbol (no text or symbols present)

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a refrigerator with a sad face and a crossed-out X (no text or symbols)

Do not put hands or other things in the air holes, under the cover,

into the holes at the back of the refrigerator.

It may cause electric shock or injury.

Cartoon illustration showing two anthropomorphic refrigerators with 'NO' signs and a person holding a crossed-out device.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Always prevent children from entering the product.

It may endanger the life of a child if the child enters the refrigerator.

Cartoon illustration of a person inside a refrigerator with a 'NO!' sign, showing discomfort or shock (no text or symbols on the diagram itself)

When you want to dispose the refrigerator, contact to the down-block office.

When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local down-block office.

Down black office!

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the

freezer with wet hands.

It may cause frostbite

Cartoon illustration of a child holding a crossed-out X-shaped sign next to an open refrigerator with a waving hand (no text or symbols)

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

NO After 5minutes

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Warning symbol with crossed-out bottle and glass, indicating chemical hazard or toxicity

Pull out the power plug not by grasping the cord but the plug of its end.

It may cause electric shock or short circuit to fire.

IMPORTANT SAFETY INFORMATION

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not install the refrigerator in the wet place or the place which water or rain

splashes.

Deterioration of insulation of electric parts may cause electric leakage.

NO

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a distressed book character with arms crossed, surrounded by steam and clouds (no text or symbols)

Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear.

Otherwise, your hands may be slipped to cause injury.

Illustration of three workers in hard hats pulling a large banner (no text or symbols)

Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

Cartoon illustration of a distressed refrigerator with a 'NO' sign and a child sitting on the floor (no text or symbols)

Do not put any living animal in the refrigerator.

It may cause the animal died.

NO

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance

Do not use the carbonated water. The gas

pressure may cause leakage.

Carbonated Water Water Tank

Use only water. If any other liquid is used, the operation of the system may be deteriorated. If a problem occurs by using

any liquid other than water, the manufacturer will not be responsible.

Only water Water Tank

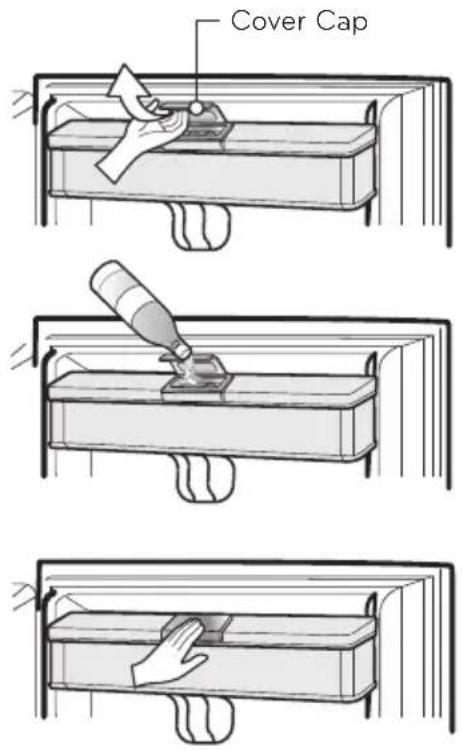

Clean the water tank according to the instruction before using the Water Dispenser

Water Tank

WARNING

Fill with potable water only.

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH ITS PERFORMANCE AND RELIABILITY.

BEFORE USING YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY.

IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION, AND

MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

INSTALLATION

1. Place your refrigerator where it is easy to use.
2. Avoid placing the refrigerator near heat sources, direct sunlight or moisture.
3. Air must circulate properly around your refrigerator to ensure efficient operation. If your refrigerator is placed in a recessed area in the wall, allow at least 10 inches (25 cm) or greater clearance above the refrigerator and 2 inches (5 cm) or more from the wall. The refrigerator should be elevated 1 inch (2.5 cm) from the floor, especially if the floor is carpeted.
4. To avoid vibrations, the refrigerator must be level. If necessary, adjust the leveling screw(s) to compensate for unevenness of the floor. To close the doors easily, the front should be slightly higher than the rear. Leveling screw(s) can be turned easily by tipping the cabinet slightly. Turn the leveling screw(s) clockwise to raise the refrigerator, counterclockwise to lower it.

NEXT

1. Wipe off all dust accumulated during shipping and clean your refrigerator thoroughly.
2. Install accessories such as the ice cube box, evaporating tray cover, etc., in their proper places. They are packed together to prevent possible damage during shipping.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4. Prior to use, let the refrigerator run for 2-3 hours. Check the flow of cold air in the freezer compartment to ensure proper cooling has taken place. Your refrigerator is now ready for use.

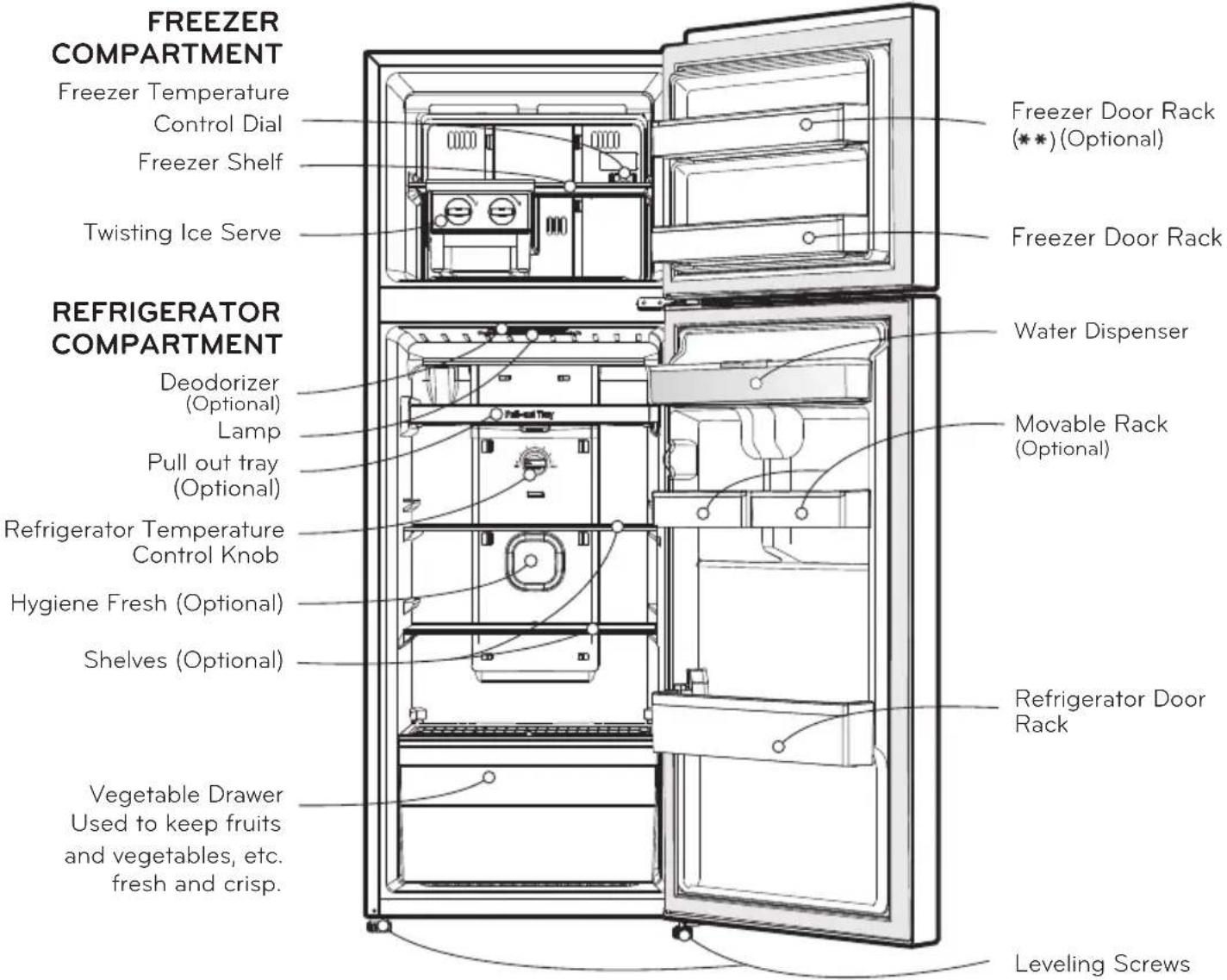

FEATURE CHART

□ DISPENSER MODEL

FREEZER COMPARTMENT Freezer Temperature Control Dial Freezer Shelf Twisting Ice Serve REFRIGERATOR COMPARTMENT Deodorizer (Optional) Lamp Pull out tray (Optional) Refrigerator Temperature Control Knob Hygiene Fresh (Optional) Shelves (Optional) Vegetable Drawer Used to keep fruits and vegetables, etc. fresh and crisp. Freezer Door Rack (**) (Optional) Freezer Door Rack Water Dispenser Movable Rack (Optional) Refrigerator Door Rack Leveling Screws

•This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

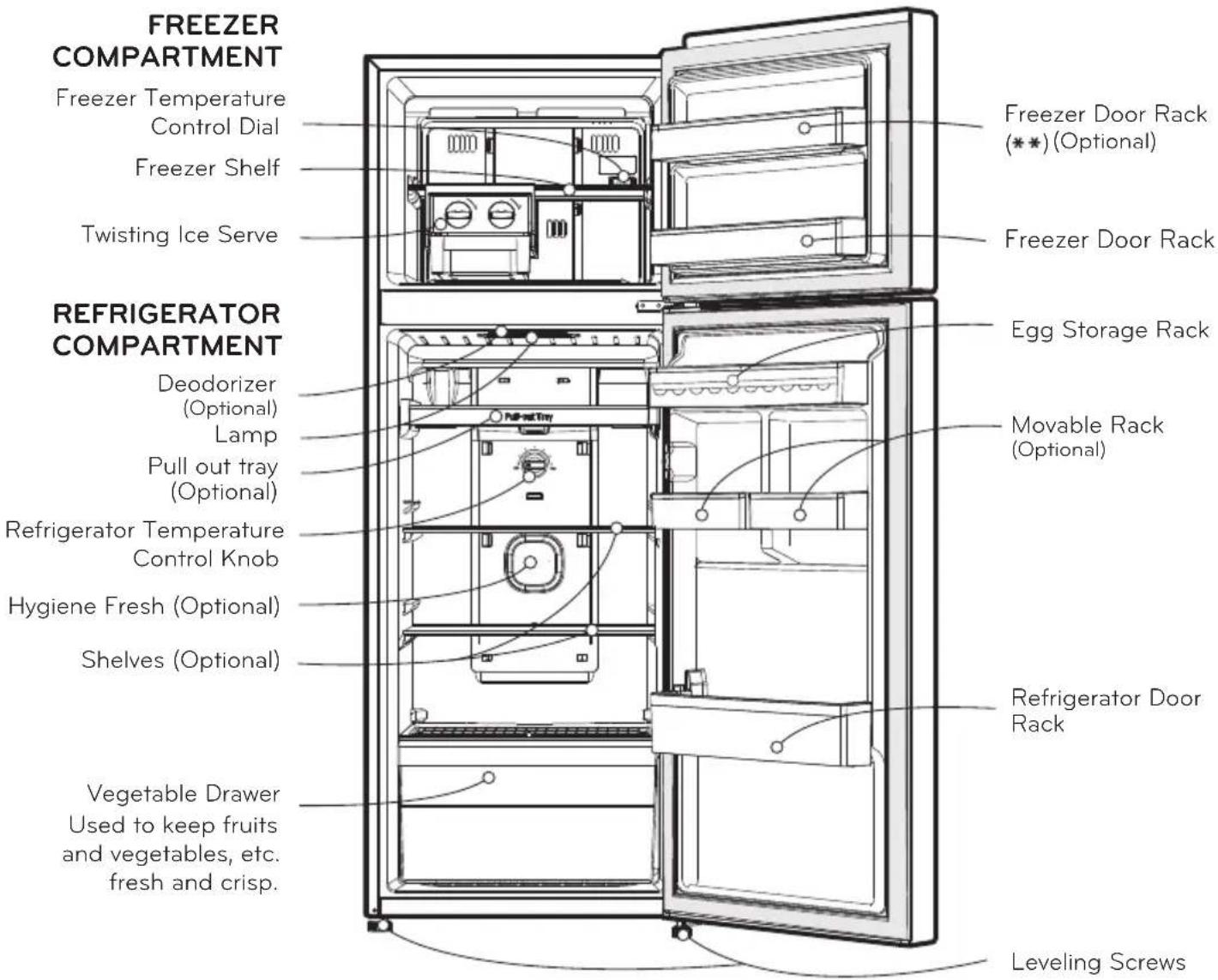

FEATURE CHART

□ NON DISPENSER MODEL

FREEZER COMPARTMENT Freezer Temperature Control Dial Freezer Shelf Twisting Ice Serve Refrigerator COMPARTMENT Deodorizer (Optional) Lamp Pull out tray (Optional) Refrigerator Temperature Control Knob Hygiene Fresh (Optional) Shelves (Optional) Vegetable Drawer Used to keep fruits and vegetables, etc. fresh and crisp. Freezer Door Rack (**) (Optional) Freezer Door Rack Egg Storage Rack Movable Rack (Optional) Refrigerator Door Rack Leveling Screws

•This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

OPERATIONS

STARTING

When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, allow 5 minutes delay before restarting.

BEFORE SETTING THE TEMPERATURE

● This refrigerator has one temperature control knob for the refrigerator compartment and one temperature control dial for the freezer compartment.
- The default setting of the temperature control knob for the refrigerator compartment is '4'.
- The default setting of the temperature control dial for the freezer compartment is '3'.

TEMPERATURE CONTROL

□CONTROLS FOR REFRIGERATOR COMPARTMENT

1 Min 2 3 4 5 6 7 Max

- For colder temperatures, adjust the control knob to MAX, and for warmer temperatures, adjust the control knob to MIN position

□ CONTROLS FOR FREEZER COMPARTMENT

※ Depend on your product

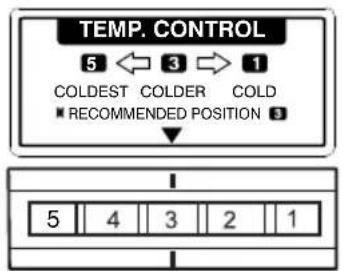

TEMP. CONTROL 5 ← 3 → 1 COLDEST COLDER COLD ■ RECOMMENDED POSITION 3 5 4 3 2 1

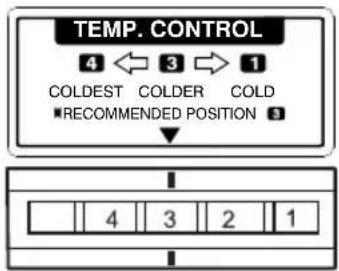

TEMP. CONTROL 4 ← 3 → 1 COLDEST COLDER COLD ■RECOMMENDED POSITION 3 1 4 3 2 1

• The higher the number the Freezer setting is set to, the lower the temperature of the freezer compartment will become.
• Since the temperature of the refrigerator and freezer compartments is controlled with a fixed amount of cooled air, the refrigerator compartment will be warmer if the freezer compartment becomes colder.
• When the freezer compartment is not cold enough in summer, adjust the control in the freezer to High (4\~5) for type A or (3\~4) for type B.
• Setting the Freezer dial at (4\~5) for type A or (3\~4) for type B will maintain a low temperature in the freezer. But the Refrigerator's cooling speed will be reduced. When set to (4\~5) for type A or (3\~4) for type B during hotter climates, it may also be necessary to adjust the refrigerator compartment temperature to a cooler temperature (6\~7).
• Knob 5 \~ 7 for type B is for quick freezing in the freezer compartment. The refrigerator can be operated continuously or the refrigerator compartment can be warmer. When the quick freezing is finished, please return to set the Knob at Normal (optional).

OPERATION

HYGIENE FRESH (OPTIONAL)

CAUTION

Before installing or using the product, make sure to read the owner's manual carefully to use the product accurately as intended. This HYGIENE FRESH filter has the antibacterial function of removing the virus or bacteria inside the refrigerator and the deodorizer function to remove the scent.

The function has tested and has been certificated by authorized institution

Intertek

ICE MAKING

Twisting Ice Serve Type

• To make ice cubes, fill the ice tray with water and insert in its position.
• To remove ice cubes, hold the knob of the tray and turn gently. Then, ice cubes drop in the ice cube box.
• You can remove the Twisting Ice Serve to make the freezer compartment larger.
• You should remove the ice Trays and Ice Cube Box first, then pull the frame out toward the right side.

Ice Trays Ice Cube Box

PULL OUT TRAY(OPTIONAL)

The pull out tray offers easy access to the rear of the food drawer by sliding the tray out.

Illustration of a refrigerator with a cartoon character pointing at its door, alongside an inset showing the interior bench (no text or symbols)

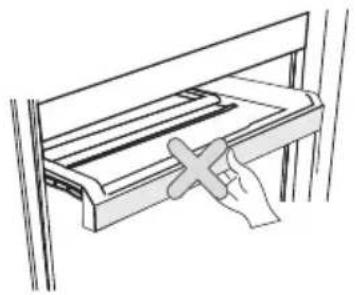

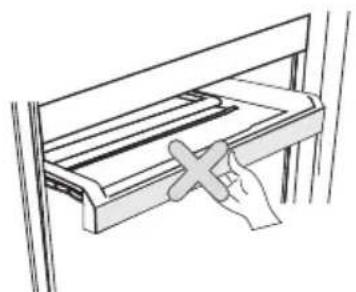

Please do not hold the bottom of the tray when slide the tray in, as it could catch your hand.

Line drawing of a hand inserting a card into a rack (no text or symbols)

Line drawing of a hand holding a cross-shaped object over a rectangular frame (no text or symbols)

OPERATION

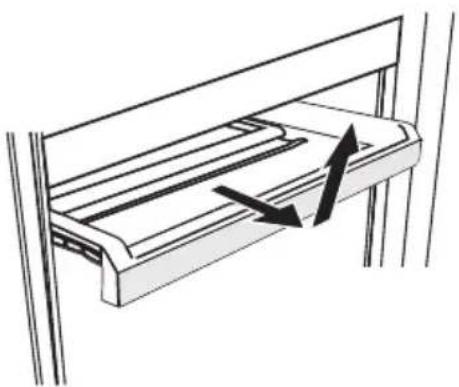

How to remove the Pull Out Tray

Fully extend the Pull-Out-Tray and lift the front then pull it out slowly.

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

DEFROSTING

Defrosting takes place automatically.

The defrosted water flows down to the evaporating tray which is located in the lower back side of the refrigerator and is evaporated automatically.

DEODORIZER (OPTIONAL)

By using a catalyst, deodorizing performance is guaranteed.

Unpleasant odor of food in the fresh food compartment is deodorized with no harm to you and the food.

How to use

• As the catalyst is located in cooling air outlet for circulating air in fresh food compartment, there is no need to touch it.
• Do not prick the deodorizer with a sharp tip because the deodorizing catalyst may be damaged.
• When storing food with a strong odor, wrap it or store it in a container with a lid because the odor may be passed on to other foods.
• To remove the deodorizer, take down while pulling it forward after inserting
• type driver into the inside hole as shown in the figure at right.

OPERATIONS

WATER DISPENSER (OPTIONAL)

• Put water after the water tank being in position. Necessarily separate the water tank to clean it or not use it.
• When the water tank is not position after filling it with water, water can leak out by the valve pushed.

- Putting water in the water tank

1. Open the cover cap and pour water into the water tank.

2. Close the cover cap.

Cover Cap

Caution

Do not use anything other than water including. Hot water needs to be cooled before being put in the water tank.

- Drinking

1. Press the dispenser pad with cup.
2. The water is released when the dispenser pad is pressed. The pad returns to its original position when the cup is removed and the water stops its flow.

Simple line drawing of a hand placing a glass into a container inside a window frame (no text or symbols)

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food and lead to higher electric bills!
• When storing, cover food with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, causing temperatures to rise.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This deteriorates taste and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• Avoid storing any food close to the bottom area of the freezer shelf to keep efficient air circulation.
• It is recommended to load food at least 25mm for type A or 15mm for type B against back of freezer wall, it will keep good air circulation in the freezer compartment (see page 13).
• Freezer Door Basket, marked ( ^** ) is -12^ C compartment, that is suitable for short term storage of frozen food (optional).

REFRIGERATOR COMPARTMENT

• Avoid placing moist food deep inside refrigerator shelves, it could freeze upon direct contact with chilled air.
• Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean to prevent adjacent food from spoiling.
• When storing eggs in their storage rack, ensure that they are fresh. Always store them in a upright position, which keeps them fresh longer.

CLEANING

WATER DISPENSER (OPTIONAL)

Grille -

Wipe with a wet cloth, and dry with a dry cloth.

Line drawing of a hand holding a rectangular object with a handle, no text or symbols present

Water Tank -

1. Putting the Water

Is not necessary to remove the water tank in order to supply it (it could be filled like shows fig. 1 pulling the tank gate).

NOTE

• Before closing door, close the cap and clamp tightly.

• Do not use liquids containing sugar or carbonated drinks like soda

• Disassembly

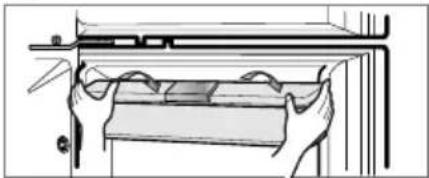

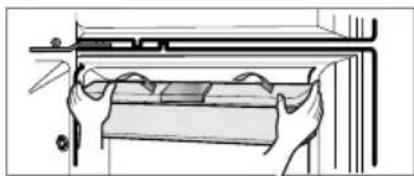

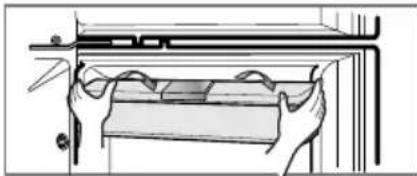

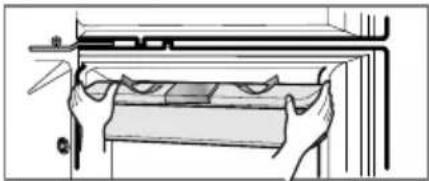

Lift the water tank, gripping a side and bottom of water tank.

NOTE

When disassemble Water Tank, use all waterinside dispenser first.

1. Assembly

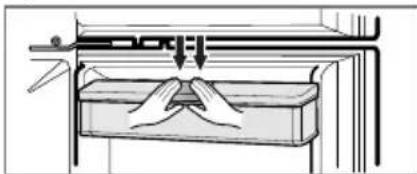

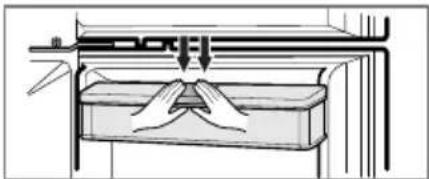

If by some cause removes the water tank, place again the water tank on its original position. Verify that the valve assembly correctly in the hole of the door (fig. 3,4). Once assembled push down and check the tank position with line.

Diagram of hands cleaning a wall-mounted device (no text or symbols visible)

fig. 1

Diagram of hands holding a rectangular object with curved lines, no visible text or symbols

fig. 2

Diagram of a mechanical device with a cutting tool and internal components (no text or symbols)

fig. 3

Technical line drawing of a mechanical assembly with no visible text or symbols

fig. 4

Water Tank -

1. Remove the tank cover.

Line drawing of a hand holding a cylindrical object (no text or symbols)

1. Clean the inside and outside of the water tank with diswashing detergent and rinse throughly under running water. Dry the water with a cloth.

Illustration showing a faucet being compressed into a rectangular basin, with a hand holding the handle (no text or symbols present)

1. Clean the inside and outside of the cap with diswashing detergent and rinse throughly under running water. Dry the water with a cloth.

Illustration showing a faucet spraying water onto a surface and a hand holding a rolled-up sheet of material (no text or symbols)

Caution

1. Use lukewarm water when cleaning.
2. Do not use anything other than water. If it is used with soft drinks, put water in the water tank and discharge three or four cups of water shortly.

CLEANING

It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners, or strong alkaline solutions on any surface.

Before you clean, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

For products with a stainless steel exterior, use a cleas sponge or soft cloth and a mild Detergent in warm w Do not use abrasive or harsh cleaners. Dry thorough with a Soft cloth. Do not use appliance wax, bleach, other products containing chlorine on stainless steel

INTERIOR - Regular cleaning of the interior and interior parts is recommended. If you have the No

Frost model which defrosts automatically, leave both doors open during the entire cleaning process.

Disconnect the power supply, and remove food and all compartment shelves, storage trays etc.

Wash all compartments with a baking soda solution. Rinse and dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays, and magnetic door seals etc. with the baking soda solution or a mild detergent and warm water. Rinse and dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical vials (lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or

cloth to prevent water or liquid from getting into any electrical part and causing a electric shock. Do not use flammable or toxic cleaning liquids.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation.

Place freezable items in freezer for longer life.

When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

DRY ICE WARNING

When using dry ice, provide adequate ventilation. Dry ice is frozen carbon dioxide (CO).

When it vaporizes, it can displace oxygen, causing dizziness, light-headedness, unconsciousness, and death by suffocation.

Open a window and do not breathe the vapors.

IF YOU MOVE

If you move, empty the refrigerator (freezer) completely and wash a mild solution of baking soda and water. (2 TBS soda to 1 quart water)

Be sure the soda is completely dissolved to avoid scratching the inside of the refrigerator (freezer). Secure any loose items, such as racks, bins, ice trays, etc. Do not try to move a loaded refrigerator.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may

sometimes get warm, especially just after installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent sweating on the outer cabinet wall.

Anti-Condensation Pipe

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments.
• Farm houses and by clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.
• Catering and similar non-retail applications.

LAMP REPLACEMENT

- This product applies LED Lamp which can not be replaced by the user. Please contact authorized service centre for the lamp replacement.

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

Use this appliance on a dedicated circuit; that is, an outlet that is the only outlet on the circuit.

Overloading a circuit causes low voltage, malfunction, possible damage to the equipment, and poor cooling capacity.

Check your local electric code or consult a qualified electrician if you have questions.

ACCESSIBILITY SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection if an accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or replacement or a similarly qualified person in order to avoid a hazard.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH

It will cause electric shock or fire.

TH No

This appliance must be grounded (earthed).

DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives or chemicals in the refrigerator.

WARNING

This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

DISPOSAL OF THE OLD APPLIANCE

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM	POSSIBLE	CAUSES
REFRIGERATOR DOES NOT OPERATE	Has a house fuse blown or circuit breaker tripped?Has the power cord plug been removed or loosened from the electrical wall outlet?
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed behind the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

EARTH/GROUNDING CONSTRUCTION (OPTIONAL)

It is recommended to install the earth wire to prevent electric shock in case of electricity leakage.

Diagram showing electrical connections with a battery and switch, alongside a cartoon-style device with a smiling face.

How to connect the earth wire:

- Connect the earth wire's metal ring end to the earth screw on the back of the refrigerator.

- Peel off the cable sheath/insulation at the other end of the earth wire. Attach the peeled wire to a metal screw/nail and then drive it through the wall or ground.

Do not connect the earth wire to the following locations.

- Gas pipe

It could produce sparks which lead to fire and explosion.

• Telephone earth wire and lightning rod

It is dangerous during lightning.

• Water pipe and water tap

The earth wire connection will not work when the middle of the water pipe is made of plastic. If it is connected to a metal water pipe, it could cause someone to be electrocuted.

When installing the product in a humid or wet location, you must install the earth wire.

Ex) • Unfloored or dirt floored room (Room with dirt and no floor), concrete floor

• Location where it can get wet such as near the sink
• Location where water can leak or is humid such as basement
  • Other wet or humid location

Especially, for locations where it always get wet such as near the restaurant sink, you are obligated by the law to install a circuit breaker in addition to the earth wire.

After consulting with your retailer or electric construction company, you must do the earth wire construction (Type 3 earth construction). Please note that earth construction could incur extra fees.

SMART DIAGNOSIS (Only for applied models)

Smart diagnosis function is...

Use this function when calling the Customer Call Centre and receive precise diagnosis when the refrigerator malfunctions or fails. Use it only when advised by the consultant and not otherwise.

How to use the function

First, call to the LG service center. Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent.

1. Open all the doors of the refrigerator.

- SDS can be input even Test Mode and Error status.

1 Min 2 3 4 5 6 7 Max

Middle Notch (Mid)

1 Min 2 3 4 5 6 7 Max

Warm Notch (Min)

1 Mn 2 3 4 5 6 7 Max

Cold Notch (Max)

1 Min 2 3 4 5 6 7 Max

Middle Notch (Mid)

1. T urn knob to Middle notch.
2. Turn knob to Warm notch and keep that status for 2se c.
3. T urn knob to Cold notch within 3sec and keep that status 2se c.
4. Turn knob to Middle notch within 3sec and keep that statistic 2se c.
5. Place the phone near the speaker hole in the top right hand side door hinge

Ensure the microphone of the telephone is toward the speaker hole.

Diagram showing a computer monitor connected to a bracket with an inset magnified view (no text or symbols)

Do not take away the telephone while data is being transmitted.

During the data transmission for smart diagnosis, hold the telephone 10cm away from the speaker hole and avoid any background noises.

CAUTION

The transmission sound may be irritating. Do not take away the telephone until the sound stops.

1. When SDS is input, buzzer let you know by ringing 4 times.

0.2sec Off/ 0.2sec On 4times)(Frequency of SDS Buzzer is 2000Hz,

1. After inputting SDS, SDS buzzer will ring.
2. After the completion of the data transmission, the consultant will explain the result of the smart diagnosis and advise accordingly.

When the data transmission is completed, the refrigerator will be automatically turned off and on a few seconds later.

Be aware!

■ Differences of regional call qualities may have influence on the function.
■ If you use a home phone, better communication performance will enable much better service.
■ Smart diagnosis data transmission may not be successful if the call is made from a mobile phone with poor cell reception

LG

Life's Good

REEMPLACEMENT DES AMPOULES ..... 44

AVERTISSEMENTS IMPORTANTS ..... 44

AVANT D'APPELER L'ASSISTANCE ..... 45

RACCORDEMENT À LA PRISE DE TERRE (OPTIONNEL).... 46

DIAGNOSTIC INTELLIGENT 47

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

RENSEIGNEMENTS IMPORTANTS POUR VOTRE SÉCURITÉ

Prudence

Pure diagram of a rope knot tied around a central block (no text or symbols)

Cartoon illustration of a refrigerator with a surprised expression and a fan holding a phone nearby (no text or symbols)

Illustration of a cartoon refrigerator with a sad face and a broken handle, connected to a broken door (no text or symbols)

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a person holding a phone (no text or symbols on the refrigerator itself)

RENSEIGNEMENTS IMPORTANTS POUR VOTRE SÉCURITÉ

Illustration of a child standing beside a smiling refrigerator (no text or symbols)

Illustration of two children interacting with a large X-shaped object, no text or symbols present

Illustration of a hand using a tool to clean or remove a cloth (no text or symbols)

Cartoon illustration of a child cleaning a refrigerator with a cross mark (no text or symbols)

Cartoon illustration of a book character with a sad expression and a 'NO' sign, accompanied by a distressed face and a broken box (no text or symbols on the main image)

Cartoon illustration of a smiling rectangular character and a crossed-out battery labeled 'Dilifi' (no text or symbols on the character itself)

Cartoon illustration of a smiling refrigerator with a 'NO' sign and X-shaped door, showing no text or symbols on the refrigerator itself.

Cartoon illustration of a smiling refrigerator with a sad face and a crossed-out hand gesture, accompanied by a small character (no text or symbols)

Cartoon illustration of a refrigerator and a box with steam rising (no text or symbols)

Cartoon illustration of a smiling gift box character with arms and a 'NO' sign, no text or symbols present.

Cartoon illustration of a smiling refrigerator with a worker holding a book (no text or symbols)

RENSEIGNEMENTS IMPORTANTS POUR VOTRE SÉCURITÉ

Cartoon illustration of a smiling book character and a girl holding a sign with Chinese characters (no text or symbols on the figures themselves)

Cartoon illustration of a girl running with a stethoscope next to a smiling book character (no text or symbols present)

Cartoon illustration of a smiling refrigerator with a child holding a broom (no text or symbols)

Cartoon illustration of a smiling refrigerator with steam clouds and a girl running away from the door (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs crossed out, surrounded by hands (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms crossed and steam lines around it (no text or symbols)

Cartoon illustration of a distressed refrigerator with a 'NO' sign, no text or symbols present

Warning symbol with crossed-out bottle and glass, indicating incorrect safety or toxicity

Illustration of three workers in hard hats pulling a large rectangular object (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Réservoir d'eau

Cartoon illustration of a smiling book character with arms crossed, accompanied by a distressed child (no text or symbols present)

MANUEL. IL RENFERME LES INSTRUCTIONS PRECISES RELATIVES A L'INSTALLATION,

AU FONCTIONNEMENT A LENTRETIEN DE VOTRE APPAREIL. IL VOUS FOURNIT

QUELQUES ASTUCES UTILES.

INSTALLATION

CHOISISSEZ L'EMPLACEMENT

HYGIENE FRESH (OPTIONNEL)

AVERTISSEMENT

Illustration of a refrigerator with a cartoon character inside, connected to an inset image of the refrigerator with a handle (no text or symbols)

Line drawing of a hand inserting a rectangular object into a rack (no text or symbols)

Line drawing of a hand using a tool to adjust or install a metal bracket (no text or symbols present)

FONCTIONNEMENT

Pour retirer la tablette coulissante

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

DÉGIVRAGE

Simple line drawing of a hand pouring liquid into a glass inside a container (no text or symbols)

SUGGESTIONS POUR LA CONSERVATION DES ALIMENTS

CONSER VATION DES ALIMENTS

Illustration of hands installing or adjusting a component on a cabinet (no text or symbols visible)

fig. 1

Illustration of hands installing or adjusting a mechanical component (no text or symbols visible)

fig. 2

Diagram of a mechanical press or clamping device with hands pressing down on a tray (no text or symbols visible)

fig. 3

Technical line drawing of a mechanical assembly with no visible text or symbols

fig. 4

Réservoir d'eau -

Line drawing of a hand holding a cylindrical object (no text or symbols)

Simple line drawing of a faucet spraying water onto a rectangular base (no text or symbols)

Line drawing of a hand pressing down on a rectangular object (no text or symbols)

Illustration showing a faucet spraying water onto a wooden plank and a hand holding a tool, both without any text or symbols.

Attention

Tuyau Anti-Condensation

REPLACEMENT DES AMPOULES

REEMPLACEMENT DU CORDON D'ALIMENTATION

Diagram showing electrical connections with a battery, switch, and a cartoon character pointing to a device.

Diagram showing a laptop interacting with a device, enclosed in an oval (no text or symbols present)

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

Diagram of a mechanical or electrical component with intersecting wires and a central block (no text or symbols)

Illustration of a refrigerator with a cartoon face and two crossed arms, connected by directional arrows (no text or symbols)

Cartoon illustration of a refrigerator with a 'NO' sign and a fan beside it (no text or symbols on the refrigerator itself)

Cartoon illustration of a smiling refrigerator with a person holding a 'NO' sign (no text or symbols on the refrigerator itself)

Illustration of a child standing beside a refrigerator with a smiling face (no text or symbols)

Illustration of two children interacting with a large X-shaped object, no text or symbols present

Illustration of a hand using a tool to clean or brush the cloth (no text or symbols)

Cartoon illustration of a child holding a large box with a cross above their head, next to a smiling face (no text or symbols)

Cartoon illustration of a person inside a refrigerator with a 'NO' sign, showing a distressed expression (no text or symbols on the diagram itself)

Cartoon illustration of a smiling rectangular block character and a broken box labeled 'Bened' (no text or symbols on the main elements)

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a 'X' symbol, no text or symbols present.

Cartoon illustration of a refrigerator and a box with steam rising (no text or symbols)

Cartoon illustration of a gift box character with arms and facial features, holding a 'NO' sign (no text or symbols on the character itself)

Cartoon illustration of a smiling refrigerator with a person holding a book (no text or symbols)

Cartoon illustration of a smiling refrigerator and a girl holding a book (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, standing on a cross symbol (no text or symbols present)

Cartoon illustration of a smiling refrigerator with a child holding a broom (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms crossed out, no text or symbols present

Cartoon illustration showing a person using a refrigerator to stop while another holds a 'NO' sign, with crossed-out X marks indicating no change.

Cartoon illustration of a distressed refrigerator with a 'NO.' sign, showing no text or symbols on the refrigerator itself.

Warning symbol with crossed-out bottle and explosion effect, indicating chemical hazard or toxicity

Cartoon illustration of a distressed refrigerator with a sad face and a person lying on the floor (no text or symbols)

Illustration of three workers in hard hats pulling a large rectangular object (no text or symbols)

Cartoon illustration of a distressed refrigerator with a 'NO' sign and a girl sitting on the floor (no text or symbols on the refrigerator itself)

Diagram showing a faucet pressing into a rectangular container with an arrow indicating force (no text or symbols present)

Depósito de agua

Ice Trays Ice Cube Box

PULL OUT TRAY/ BANDEJA EXTRAÍBLE (OPCIONAL)

Illustration of a refrigerator with a hand inserting a cable into its side, showing internal structure and airflow direction (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

DESCONGELACIÓN

Simple line drawing of a hand placing a glass into a container inside a window frame (no text or symbols)

SUGERENCIAS PARA GUARDAR LOS ALIMENTOS

Line drawing of a hand holding a rectangular object with a lid, no text or symbols present

Depósito de agua –

Illustration of hands installing or adjusting a component on a mechanical assembly (no text or symbols visible)

fig. 1

Illustration of hands installing or adjusting a rectangular object on a shelf (no text or symbols visible)

fig. 2

Diagram of a mechanical press or clamping device with hands operating a component (no text or symbols visible)

fig. 3

Technical line drawing of a mechanical assembly with no visible text or symbols

fig. 4

Depósito de agua -

Line drawing of a hand holding a rectangular object (no text or symbols)

Illustration showing a faucet being inserted into a water tank and then being held by a hand (no text or symbols present)

Illustration showing a faucet spraying water onto a surface and a hand holding a rolled document or board (no text or symbols present)

Precaución

Safety warning illustration showing a hand holding a 'no' symbol above an electric shock device next to a refrigerator.

Diagram showing electrical connections with a battery and switch, alongside a cartoon device with a smiling face.

Illustration of a laptop interacting with a computer monitor (no text or symbols visible)
