Product Type	Styler / Steam Defroster
Brand	LG
Model	S3MFBN

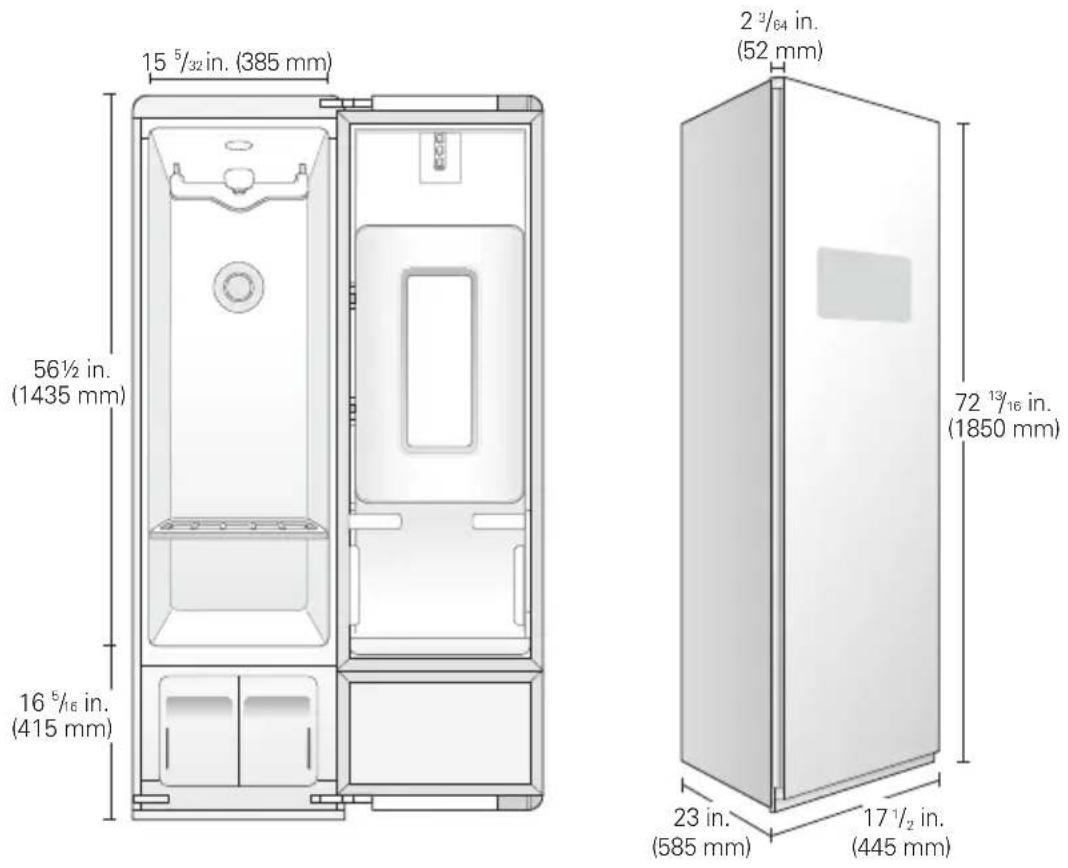

Dimensions (W x D x H)	445 mm x 585 mm x 1850 mm
Net Weight	83 kg
Power Supply	120 V, 60 Hz, 15 A (grounded outlet)
Power Consumption	1500 W
Maximum Capacity	4 items
Water Supply Tank	Sufficient capacity for about 4 cycles (tap or bottled water)
Drain Tank	To be emptied after about 3 cycles
Main Cycles	Refreshing, Sanitary, Gentle Dry, Special Care (with downloadable cycles)
Special Functions	TrueSteam, vibrating mobile hanger (180 oscillations/min), trouser press, shelf, Smart Diagnosis, Wi-Fi (LG SmartThinQ), delay start, night cycle
Filters	Lint filter (clean before each cycle), aroma filter (for softener sheets)
Levelling	Adjustable front and rear feet, with carpet tips included
Anti-tilt Device	Included, must be installed
Door Opening Direction	Reversible (by a professional)
Door Material	Tempered glass
Operating Ambient Temperature	10 °C to 35 °C
Included Accessories	Shelf, 2 hangers, trouser hanger, drip tray, non-slip pads, key, hinge covers, anti-tilt kit
Warranty	2 years parts and labor, 10 years compressor (Canada)

Frequently Asked Questions - S3MFBN LG

What type of water to use in the tank?

Use clear tap water or bottled water. Do not use distilled water and do not reuse water from the drain tank. Avoid any additives such as detergent or softener.

How to clean the lint filter?

Open the front grille, remove the filter and brush it with a soft brush or vacuum cleaner. Replace it before each cycle. A clogged filter increases cycle time.

Can I use ordinary hangers?

Yes, any plastic or metal hanger with a hook thickness less than 4 mm can be used. Make sure it fits well into the indentations of the mobile hanger.

What to do if the screen displays 'Fill Water'?

The water supply tank is empty or missing. Fill it with tap water and reinstall it correctly. The Styler does not work without water.

Which clothes are not suitable for the Styler?

Avoid items made of foam rubber, vinyl, electric blankets, shoes, starched clothing, and those containing adhesives. Check care labels.

How to use the trouser press?

Open the crease care device, hang the trousers on the provided hanger, align the creases, and close the device. Preferably use the downloaded 'Trouser Press' cycle.

The Styler makes noise during the cycle, is this normal?

A slight vibration noise is normal (the mobile hanger vibrates 180 times/min). If the noise is excessive, check that the hangers are properly attached and that the appliance is level.

How to download additional cycles?

Use the LG SmartThinQ app on your smartphone. Connect the Styler via Wi-Fi, then download new cycles such as 'Fresh Air' or 'Silent Mode'.

What to do in case of water leakage?

Immediately unplug the appliance. Check that the tanks are properly installed and that the drip tray is in place. Contact LG customer service if the leak persists.

How to activate the control lock?

Press and hold the 'Special Care' button for 3 seconds. The lock icon appears. Repeat the operation to deactivate.

USER MANUAL S3MFBN LG

1. Material, printing and exterior size are refer to work tables.
2. Printing, text size and line are based on LG design film.
3. Exterier size on the drawing is cutting line.
4. Before product controlled by criteria sample.
5. The part should not contain prohibited substances(Pb,Cd,Hg,Cr+6,PBB, PBDE) and details should comply with LG standard of LG(63)-A-5501-34

			DATE: 2015-03-24
REV. NO.	REVISION DESCRIPTION	SEP. 2015	DATE	PRETAX ($)	APPROVED BY
###	###	###	###	###	###

PDFILLUSTRATOR	DR COMPLETED도면 DR 완료
	완료일:

TRIG.		UNIT SCALn		1/1	TITLE	MANUAL,OWNER'S
MODELING		REVIEWED	RESIGNED APPROVED
	신주은 17.04.04		김철규 17.04.04	김현석 17.04.04		STYLER(Butterfly)-PJT	1/1
LG 전자 (주) LG Electronics Inc.			RELATED DWG.		CWG. No.	MFL66101237

OWNER'S MANUAL STYLER

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

S3*F**

TABLE OF CONTENTS

3 PRODUCT FEATURES

4 IMPORTANT SAFETY INSTRUCTIONS

4 Safety Instructions for Installation
5 Safety Instructions for Connecting Electricity
6 Basic Safety Precautions
7 Grounding Instructions

8 PRODUCT OVERVIEW

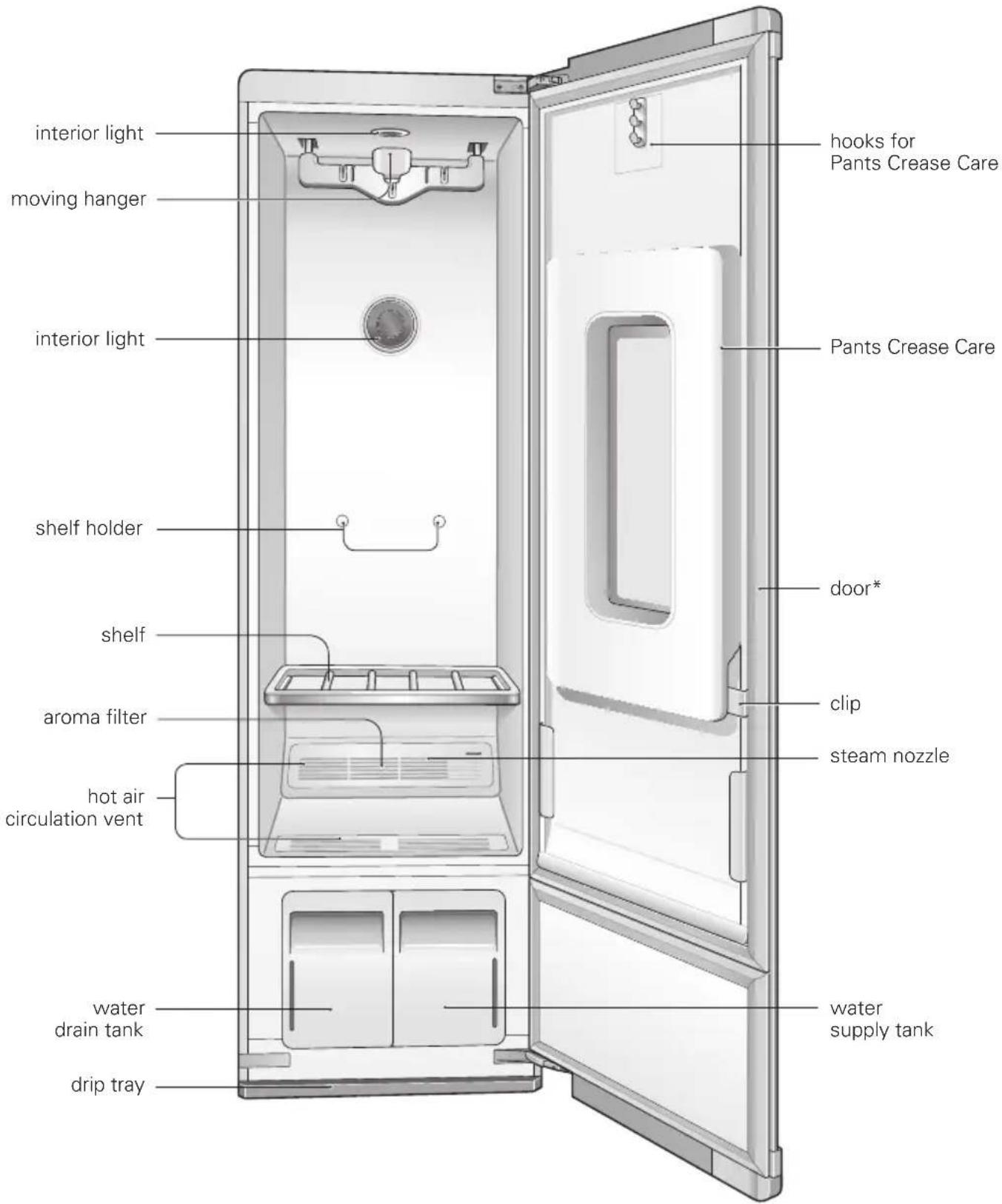

8 Parts
9 Accessories
10 The Moving Hanger

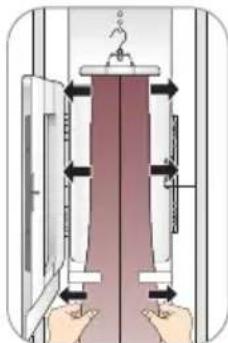

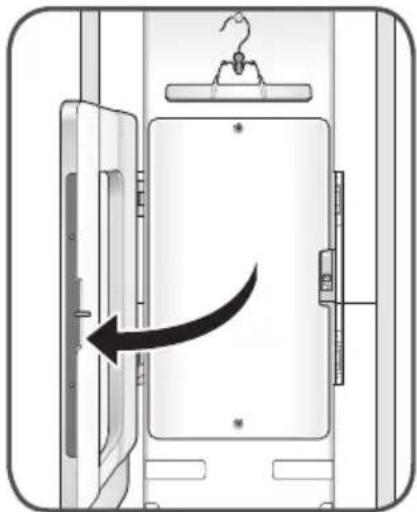

10 The Pants Crease Care
11 The Shelf
11 Choosing Styler Features

12INSTALLATION

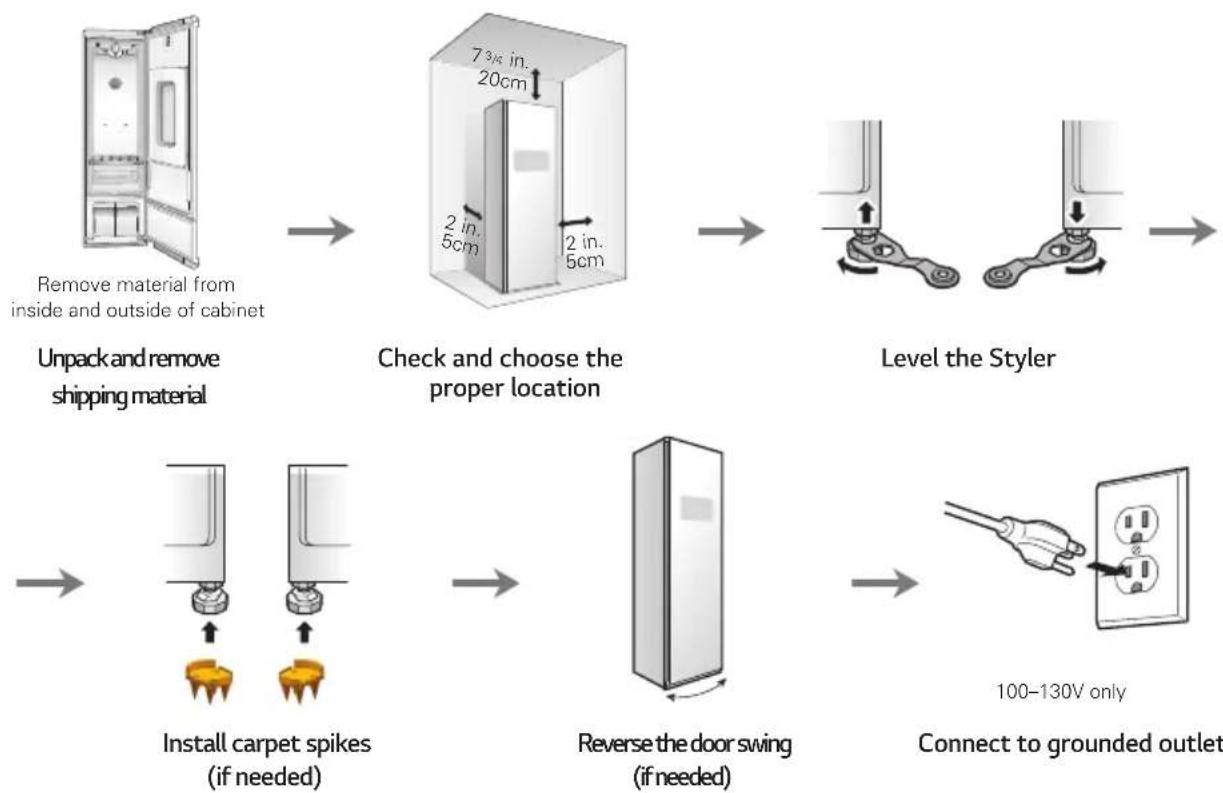

12 Installation Overview
12 Product Specifications
13 Unpacking the Styler
13 Choosing the Proper Location
14 Installation Location Requirements

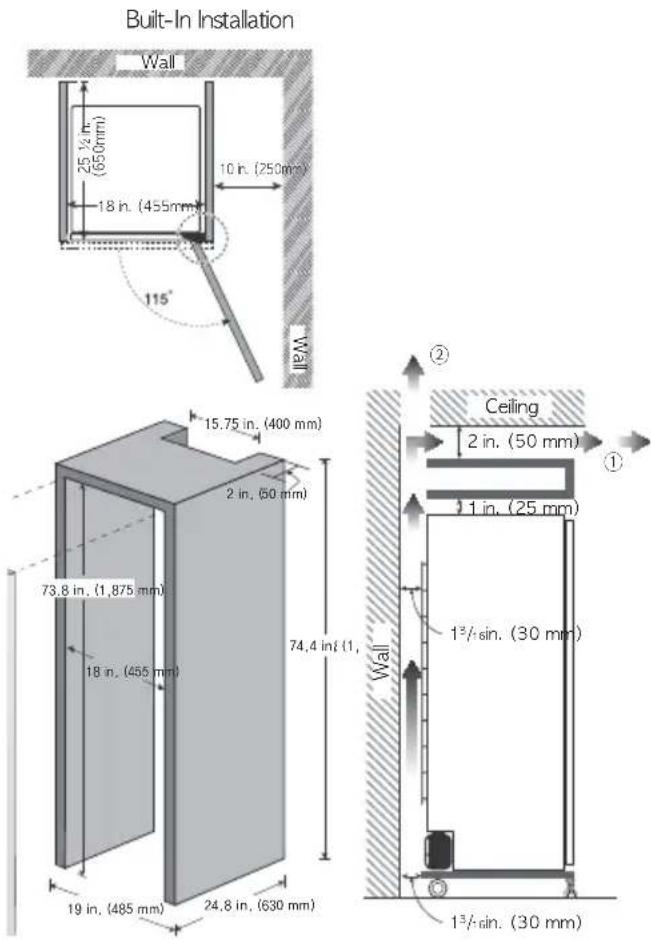

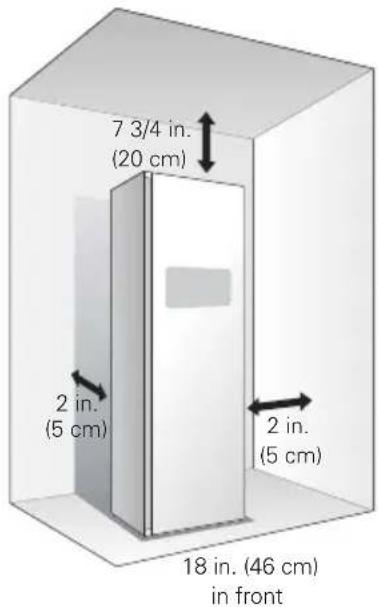

14Clearances

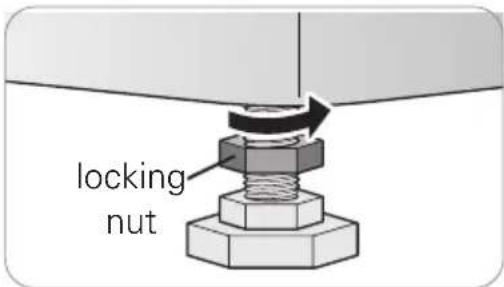

16 Leveling the Styler
17 Reversing the Door
17 Installing on Carpeting
18 Installing the Anti-Tip Device
18 Assembling the Drip Tray
18 Installing Cap Covers
18 Installing Hinge Covers

19OPERATION

19BeforeUse
20 Using the Styler

21 SortingLoads

Fabric Care Labels

Grouping Similar Items

Choosing Styler-Safe Clothing

22 Fabric Care Guide

24 Checking the Filters Before Every Load

Checking the Lint Filter

Changing the Aroma Sheet

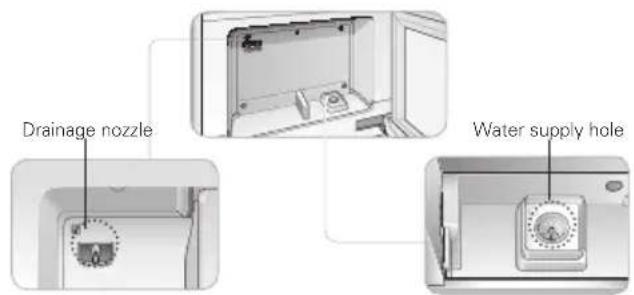

25 Checking the Water Tanks

25 Loading the Styler
Hangers
Using the Moving Hanger

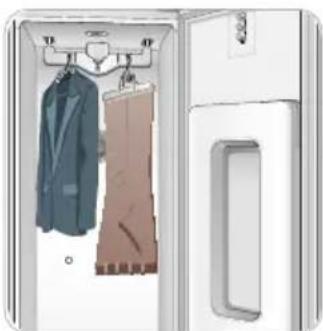

Pants Hanger or Pants Crease Care
Shelf

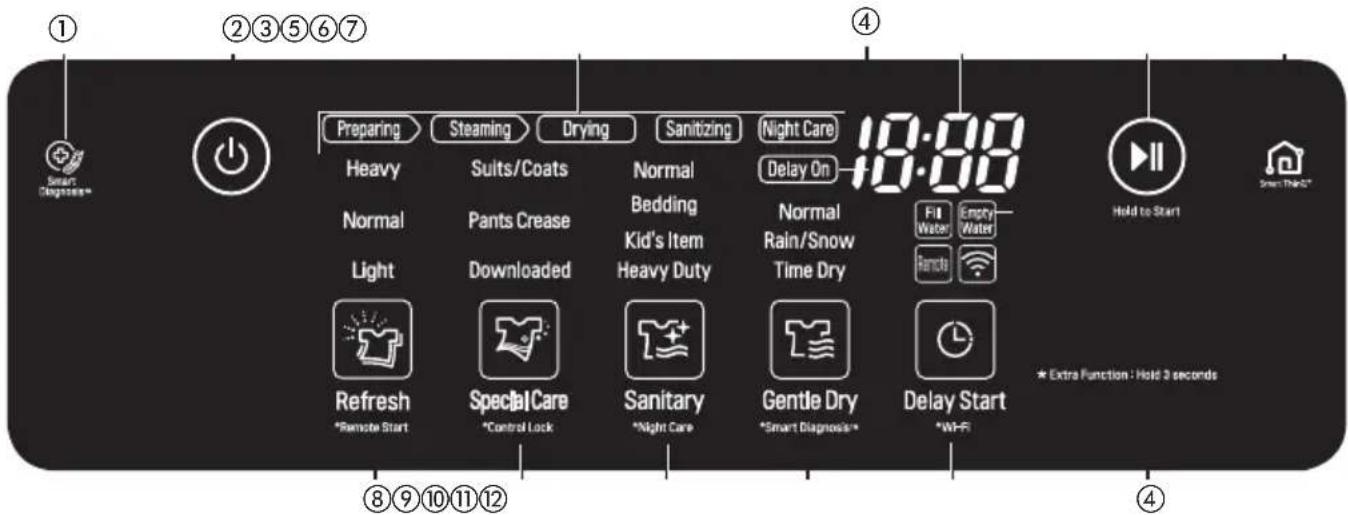

29ControlPanel

Control Panel Features

31 CycleGuide

Cycle Processes

32 Choosing a Cycle

33Cycle Settings and Options

34EXTRA Functions

Locking the Controls

Setting a Delayed Start Time

Smart Diagnosis™

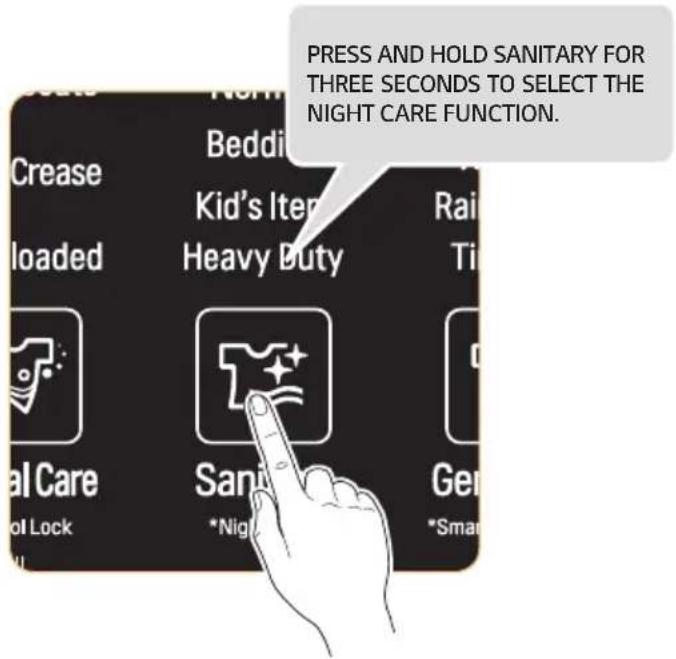

Night Care

36SMART FUNCTIONS

36 LG SmartThinQ Application
38 Smart Diagnosis™ Function

39MAINTENANCE

39RegularCleaning
Cleaning the Interior and Exterior
Cleaning the Lint Filter
Cleaning the Aroma Filter
Cleaning the Water Tanks

41 TROUBLESHOOTING

41FAQs
42 Before Calling for Service
44ErrorCodes

45 WARRANTY

PRODUCT FEATURES

Refresh *Remote Start

REMOVE ODORS

Use the Styler's Refresh cycle to quickly and easily remove odors from clothes.

REFRESH CLOTHING OR ADD AN AROMA

Infuse items with the aroma from your favorite dryer fabric softener sheets to keep clothes and accessories looking, feeling, and smelling refreshed.

REDUCE WRINKLES

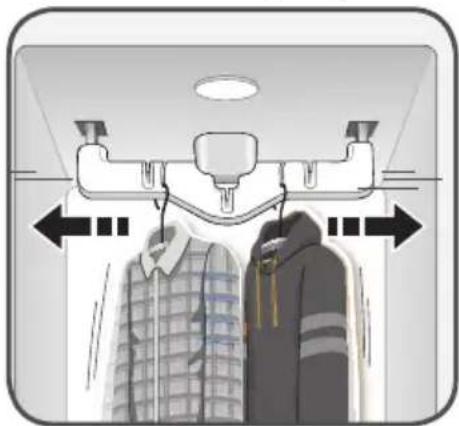

The Refresh cycle also uses steam and a moving hanger that vibrates approximately 180 times per minute to reduce the wrinkles in clothing. Performance may vary depending on fabric type.

SHARPEN CREASES IN PANTS

Hang dress trousers flat in the Styler's Pants Crease Care feature. It will crease the pants legs and reduce wrinkles elsewhere.

Gentle Dry *Smart Diagnosis**

GENTLY AND EFFECTIVELY DRY

The heat pump drying technology of the Gentle Dry cycle provides low-heat drying which draws moisture from clothes without the shrinking or damage associated with hot-air drying. Gently and safely dry alpaca, camelhair and other non-washable fabrics that have become damp from rain or snow, and wool sweaters, hand-washable knits, and other dry-flat items after washing.

Sanitary *Night Care

SANITIZE AND REDUCE ALLERGENS

The Styler's Sanitary cycle uses TrueSteam™ to destroy bacteria and other microorganisms without damaging clothes. It maintains the optimal temperature necessary to sanitize each garment, destroying bacteria that persist even when clothes are dried in sunlight.

Smart Diagnosis™

SMART DIAGNOSISTM

Should you experience any technical difficulty with the Styler, it has the capability of transmitting data by phone to the Customer Information Center. The call center agent records the data transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis. (Refer to page 38.)

Special Care *Control Lock

Wi-Fi CYCLE DOWNLOAD

Download additional Styler cycles to meet individual needs. Download one new cycle at a time.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

There are many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in product damage, property damage, or serious bodily harm or death.

The safety alert symbol will be followed by either the hazard signal word WARNING or CAUTION. These words mean:

WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage.

WARNING

To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or death when using this appliance, follow basic safety precautions, including the following:

SAFETY INSTRUCTIONS FOR INSTALLATION

• Contact an authorized service center before installing or relocating the Styler to avoid injury or product damage when moving the product.
• When moving the Styler away from the wall, be careful not to roll over or damage the power cord.
• The appliance is heavy. Two or more people are necessary to move and install the appliance to prevent damage or injury.
• Prior to use, ensure that you are connecting this product to a dedicated grounded electrical outlet rated for use with this product. It is the user's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.
• Before use, the appliance must be properly installed as described in this manual.
  Electric shock can result if the appliance is not properly grounded.

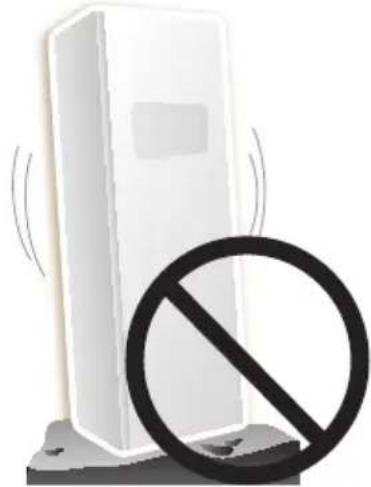

• Do not install the Styler where there may be a danger of the unit falling. The product is not designed for use on ships or airplanes. Check with an authorized LG service center for use under other special circumstances.
• Do not tamper with controls.

• Install the product where the floor is firm and level. The product may vibrate excessively and eventually fall if installed on an unstable surface, causing damage or injury.
- Keep the front side protected when transporting the appliance. Do not truck from the front. The tempered glass panel on the front of the appliance may break, causing damage or injury.
- Properly ground the appliance to conform with all governing codes and ordinances. Follow the details in the installation instructions. Electric shock can result if the appliance is not properly grounded.
- Install and store the appliance where it will not be exposed to temperatures below freezing or exposed to the weather. Allow the product to warm to room temperature before use if it was delivered in winter or at sub-sero temperature.
- Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric shock, or to prevent property damage, injury to persons, or death.

SAFETY INSTRUCTIONS FOR INSTALLATION

• To reduce the risk of electric shock, do not install the appliance in humid spaces such as a bathroom. Failure to follow this warning can cause death, serious injury, fire, electric shock, or product deformation or malfunction.
• Remove all packing items and dispose of all shipping materials properly. Failure to do so can result in burns, fire, explosion, or death.

• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Improper power circuits can melt, creating electric shock and/or fire hazard.

• Keep all packaging from children. Packaging material can be dangerous for children. There is a risk of suffocation.

• Do not install near another heat source such as a stove, oven or heater. Failure to follow this warning can cause product deformation, smoke, or fire.
• Do not place candles, smoking materials, or other flammables on top of the product. Dripping wax, smoke, or fire can result.
• Remove all protective vinyl film from the product. Failure to do so can cause product damage, smoke, or fire.

SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY

• Do not, under any circumstances, cut or remove the ground prong from the power cord. To prevent personal injury or damage to the appliance, the electrical power cord must be plugged into a properly grounded outlet.
• This appliance must be plugged into a 120-VAC, 60-Hz grounded outlet protected by a 15-ampere fuse or circuit breaker. Failure to follow these instructions can result in fire, explosion, or death.
• This appliance must be plugged into a properly grounded outlet. Electrical shock can result if the appliance is not properly grounded. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow these instructions can create an electric shock hazard and/or a fire hazard.
  • Install the appliance where the plug is easily accessible. Unplug the appliance when not in use to avoid risk of fire or electric shock.
• Unplug the appliance before disassembly or repair to avoid risk of electric shock.

• The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

• Do not use an extension cord to connect to an outlet. Doing so could result in a fire or electric shock.

• Never unplug your appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. The power cord can be damaged, resulting in a risk of fire and electric shock.
• Contact LG or a qualified repair person immediately to repair or replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. The power cord can melt, creating electric shock and/or fire hazard.
• When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord. This will prevent injury and damage to the appliance from fire and electric shock.
• Do not use a multi socket outlet which is not properly grounded (portable). Upon using a properly-grounded multi socket outlet (portable), use a product with the current capacity of 15A or higher alone. Failure to do so may result in electric shock or fire due to the heat of multi socket outlet. The power may be shut off when the circuit breaker is operated.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

WARNING

To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or death when using this appliance, follow basic safety precautions, including the following:

USE

• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Do not climb, stand, or hang on the Styler door or on the shelf or anywhere inside the appliance. The appliance could fall over or be damaged, or other damage or injury could occur.
• Do not step on the doors to the water tanks. The Styler could fall and cause damage and injury.
• Do not place heavy or dangerous objects on top of the Styler.
• Do not put live animals inside the Styler.
• Do not allow children to climb into the product when it is in use.
• In the event of a gas leak (propane/LPG), ensure adequate ventilation and contact an authorized service center before resuming use. Do not touch or disassemble the electrical outlet of the Styler.
• Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the Styler or store them inside the Styler. Do not place the Styler in the vicinity of flammable gas.
• Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke coming from the appliance.
• In the event of a flood: Do not go near the product when its base is submerged under water. Contact the service center. There is a risk of electric shock or fire.

• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

• Do not place hands or body near steam nozzle during operation. The steam is hot and could cause an injury.

• Do not insert objects into the steam nozzle. Excessive noise and fire could result.
• Do not drink the water from the water supply or drain tanks.
• Do not disassemble or modify the Styler.
• Do not put hands, feet, or metal objects below the Styler.
• Do not operate the Styler or touch the power cord with wet hands.
• Keep fingers out of pinch point areas; clearances between the door and cabinet are necessarily small. Be careful closing door when children are nearby.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Do not place items exposed to cooking oils in the Styler. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
• Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

WARNING

To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or death when using this appliance, follow basic safety precautions, including the following:

• Do not open door during operation. The performance of the product may be adversely affected. If the product is installed on or near carpet, condensation from escaping hot air or steam may stain or damage the carpet.
• Do not use the product for other than the intended purposes. Damage incurred by using the product for purposes other than those specified in this user manual are not covered by the warranty.

MAINTENANCE AND DISPOSAL

• Wipe foreign objects (such as dust and water) off the prongs of the power plug and contact areas regularly. Do not use a wet or damp cloth when cleaning the plug.
• Do not use an appliance to dry the interior. Do not light a candle to remove interior odors.
• Do not spray water onto the product directly when cleaning. A fire or electric shock may occur.
• Wipe the interior with a dry cloth after use.
• Clean the lint screen before or after each load.

GROUNDING INSTRUCTIONS

• This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
• This appliance must be equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

• Do not modify the plug. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

• Do not use a bleaching agent such as oxygen or chlorine-based bleaches on the exterior of the product. Clorox or OxiClean may cause discoloration when applied to the surface of the product.

• Do not use sharp objects when cleaning or operating the controls. An electric shock may occur.
• Avoid hitting the front glass panel with heavy objects. Although it is made of tempered glass, the panel may break in the event of a strong impact and cause injury.
• Keep product free from rodents, insects, and other foreign objects. They may damage wires, causing fire or electric shock.
• Before the appliance is removed from service or discarded, remove the door to the drying compartment. Cut off the power plug and destroy the button section to prevent reuse.

WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Wash hands after handling. (US Only)

- This appliance must be connected to a grounded metal, permanent wiring system or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance. Electric shock can result if the appliance is not properly grounded.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt that the appliance is properly grounded.

PRODUCT OVERVIEW PARTS

* The door swing can be reversed by the installer to fit the installation location.

ACCESSORIES

Included Accessories

Isometric view of a rectangular metal tray with horizontal slats (no text or symbols)

shelf drip tray

3D rendering of a rectangular tray with rounded ends and horizontal lines (no text or symbols)

Illustration of two plastic hangers with curved handles (no text or symbols)

2 hangers* pants hanger*

2 rear leveling feet

4 carpet install spikes

2 non-skid pads

2 rear cap covers

anti-tip kit

wrench

2 hinge covers

*An ordinary metal/plastic hanger can be used if the hook is less than 5/32 in. (4 mm) thick. The hook must fit in the indentation in the moving hanger snugly. If the fit is too loose, it may result in vibration, noise, and damage to clothing.

NOTE

• Contact the store where the product was purchased or LG customer service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are damaged or missing. Accessories can be purchased separately online at http://www.lg.com/us
• For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized components or parts.
• The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes.

THE MOVING HANGER

Hang clothes on the moving hanger using the hangers provided with the Styler, or use any plastic or metal hanger that hooks snugly into the indentations in the moving hanger.

Illustration of two clothes hanging on a wardrobe with directional arrows indicating movement (no text or symbols)

• Use the moving hanger for suits, coats, jackets, blouses, dresses, skirts, and pants that don't require a crease. Use the Pants Crease Care to crease pants.
• Anything that can be securely placed on a hanger and steamed or dried without retaining hanger marks or other damage can be placed on the moving hanger.
• Dry sweaters or knits on the shelf to avoid hanger marks.
• Clothing should be securely fastened, with zippers and buttons closed, so that it does not fall off the moving hanger during the cycle.
• Arrange clothing so it does not touch the sides or rear of the cabinet, if possible. Condensation may form on the interior surface of the cabinet, and items in contact with the surface may remain damp at the end of the cycle. Hang larger items on the diagonal indentations on the moving hanger.

CAUTION

- Do not lean or pull on the moving hanger. Do not allow children play with or hang onto the moving hanger. The unit could tip, resulting in damage or injury.

THE PANTS CREASE CARE

Hang clothes in the Pants Crease Care using the pants hanger provided with the Styler or any pants hanger that fits into the hooks above the door to the Pants Crease Care.

- Open the door to the Pants Crease Care by pressing the icon on the front.

Diagram of a door lock mechanism with an arrow indicating clockwise motion (no text or symbols present)

• The Pants Crease Care keeps pants legs creased while reducing wrinkles elsewhere.
• Pants can be pressed while refreshing other items in the same cycle.
• For optimum results, use the Extra Pants Care cycle which is designed for use with the Pants Crease Care feature. This cycle can be downloaded using the LG SmartThinQ app and used as the Downloaded cycle. For instructions, see Smart Functions, page 36, and the instructions in the application.

NOTE

To avoid double creases, run a steam cycle using the moving hanger to reduce any existing knife pleats, and then use the pants press.

CAUTION

• Do not lean on or hang heavy items on the door of the Pants Crease Care. The unit may tip, resulting in damage or injury.
• Do not allow children to play with or hang onto the door of the Pants Crease Care. The unit may tip, resulting in damage or injury.
• Keep fingers out of pinch point areas when closing the door of the Pants Crease Care. Supervise nearby children to prevent injuries.

THE SHELF

Use the shelf when styling clothes or other items that are difficult to hang or that may be damaged by hang drying.

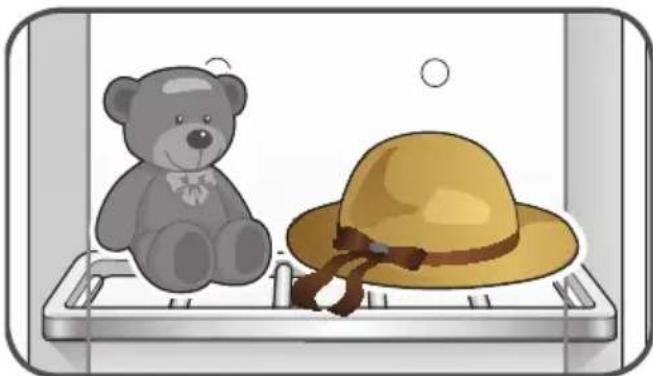

Illustration of a teddy bear and a hat on a tray, no text or symbols present

• Use the shelf for stuffed toys, pillows, hats, and other accessories.
• Use the shelf for sweaters, knits, lingerie, or delicate blouses that can show hanger marks, stretching, or other damage if dried on a hanger.
• For best drying performance, do not stack items on the shelf. Dry single items or place items side by side with space between.

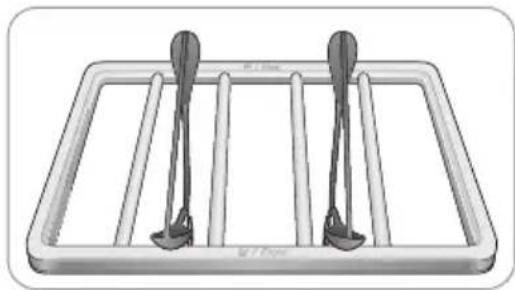

• When not in use, store the shelf on the shelf holder knobs in the back of the cabinet.
• For instructions on installing the shelf, see Assembling the Shelf, page 28. Do not use the shelf for storing heavy items.
• Arrange items on the shelf so they do not touch the sides or rear of the cabinet, if possible. Condensation may form on the interior surface of the cabinet, and items in contact with the surface may remain damp at the end of the cycle.

CAUTION

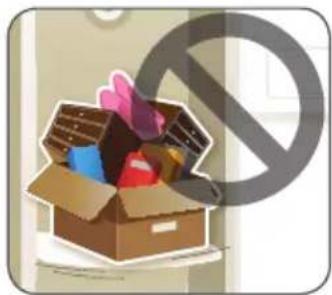

- Do not use the shelf to store heavy items. The shelf may fall, resulting in damage or injury.

- Do not step or sit on the shelf. The shelf may fall or the unit may tip, resulting in damage or injury.

CHOOSING STYLER FEATURES

item how to style it
suit coat, blazer	moving hanger
coat, jacket (short)

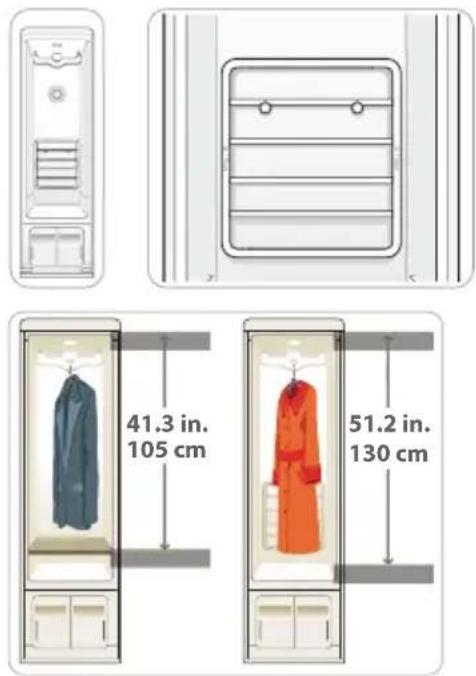

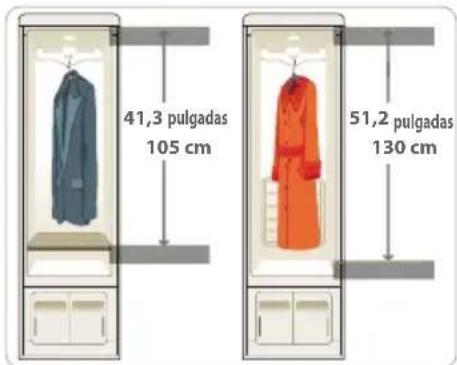

coat (long)	moving hanger (remove shelf)
dress (short) moving hanger
dress (long)	moving hanger (remove shelf)
skirt	moving hanger
lightweight blanket, throw
baby blanket
pants (not creased)
shorts
children's clothes
scarf	moving hanger or shelf
tie
shawl
lingerie	moving hanger or shelf (if delicate)
shirt, blouse
pants (creased)	Pants Crease Care
cap, hat	shelf
stuffed toys
pillow
sweater
knitwear
infant clothes

INSTALLATION INSTALLATION OVERVIEW

Please read the following installation instructions first after purchasing this product or transporting it to another location.

PRODUCT SPECIFICATIONS

The appearance and specifications listed in this manual may vary due to constant product improvements.

steam clothing care	S3*F**
description	electric machine for maintaining clothing
electrical requirements	please refer to the rating label regarding detailed information
dimensions	17 1⁄2 in. (W) X 23 in. (D) X 72 ^13/_16 in. (H), 39 3⁄4 in. (D with door open)445 mm (W) X 585 mm (D) X 1850 mm (H), 1010 mm (D with door open)
net weight	183 lb (83 kg)
maximum capacity	4 items
power consumption	1500 W
safety device	double overheating safety device, thermal fuse, programming

UNPACKING THE STYLER

WARNING

• Use two or more people to move and install the Styler. Failure to do so can result in back injury or other injury.
• The Styler is heavy. Use the wheels at the bottom of the product to move it. Push the Styler slowly from about halfway down the front side.
• Keep the Styler upright when moving it. If you lay the Styler on its side, refrigerant may leak and cause the appliance to malfunction.
• Keep flammable materials and vapors, such as gasoline, away from the Styler.

Failure to do so can result in fire, explosion, or death.

- Remove tape and any temporary labels from the Styler before using.

Do not remove any warning labels, the model and serial number label, or the Tech Sheet that is located under the front of the Styler.

- To remove any remaining tape or glue, rub the area briskly with your thumb.

Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

- Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue.

These products can damage the surface of the Styler.

Electricity	Install where an outlet is easily accessible.Use an individual, grounded outlet:120 Volts, 60 Hz, AC, 15 Amps minimum.WARNING: Do not plug in multiple appliances in the same outlet with the Styler. Overloading house wiring can cause a fire hazard.To reduce the risk of electric shock, do not install the Styler in a wet or damp area.
Floor	Floor must be level and solid enough to support 183 lb (83 kg).Adjust the leveling legs to compensate for any unevenness in the floor.Do not install on a platform or a weakly supported structure. If installing on carpeting, seeInstalling on Carpeting, page 17.
Ambient temperature	Temperature must be between 50°F (10°C) and 95°F (35°C).If the ambient temperature is too low or high, performance may be affected.Do not install in direct sunlight or where the temperature may fall below 32°F (0°C).
Clearances	Allow at least 18 in. (46 cm) in front to open the door.Allow at least 2 in. (5 cm) on both sides and between the back of the Styler and the wall. Allow at least 7 3/4 in. (20 cm) between the top of the Styler and any overhanging shelves or cabinets.If the Styler is too close to adjacent items, performance may decrease and electricity consumption may increase.

INSTALLATION LOCATION REQUIREMENTS

WARNING Read all installation instructions completely before installing and operating the

Styler. It is important to review this entire manual before installing and using the Styler.

The installation requires:

- A grounded electrical outlet located within 2 ft. (61 cm) of either side of the appliance.

- A sturdy floor to support the total appliance weight of 183 lbs (83 kg). The combined weight of any other laundry appliances should also be considered.

WARNING

- Do not install or store the Styler in an area where it will be exposed to water and/or weather. Failure to follow this warning could result in risk of electric shock, injury, or product damage or malfunction.

Clearances

CAUTION

• The floor must be level, with a maximum slope of 1 inch (2.5 cm) under the Styler. If the slope is greater than 1 inch (2.5 cm), the appliance cannot be leveled properly.
• Do not install the Styler on a hollow or flexible platform Doing so may cause excessive noise and vibration and result in damage or injury if the product tips over.

Recommended Installation Spacing

The following clearances are recommended for the Styler. Although the Styler has been tested for clearances of 1316 inch (3 cm) on the sides and rear, recommended clearances should be considered for the following reasons:

• Additional space should be considered for ease of installation and servicing.
• Additional space might be required for wall, door and floor moldings.
• Additional space should be considered on all sides of the Styler to reduce noise transfer.
• Additional laundry appliance spacing should also be considered.

Installation Spacing for Recessed Area or Closet Installation

There should be at least a little space around the Styler (or any other appliance) to avoid contact with walls, furniture, or other appliances during operation. Allow a minimum of 1 316 inch (3 cm) on all sides of the Styler to avoid increased noise or damage.

- For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.

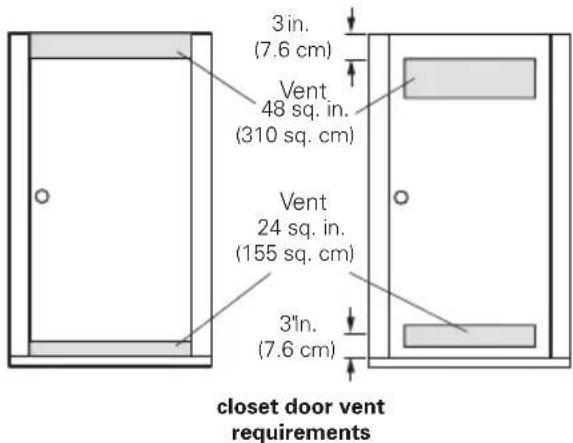

Closet Ventilation Requirements

Closets with doors must have both an upper and lower vent to prevent heat and moisture buildup in the closet. One upper vent opening with a minimum opening of 48 sq. in. (310 cm ^2 ) must be installed no lower than 6 feet above the floor. One lower vent opening with a minimum opening of 24 sq. in. (155 cm ^2 ) must be installed no more than one foot above the floor. One example shown uses vent grilles in the door.

- Minimum vent opening for built-in installation is 31 12 sq. in. (200 cm ^2 ).

LEVELING THE STYLER

WARNING

- To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the use of long-sleeved gloves and safety glasses. Failure to follow this warning can cause serious injury or death.

- The appliance is heavy. Two or more people are required when installing the Styler. Failure to follow this warning can cause serious injury or death. - To ensure that the Styler provides optimal performance, it must be level. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface.

Illustration of a white electronic device with a black prohibition symbol below it, indicating no protection or prohibition against the device (no text present)

NOTE

Adjust the leveling feet only as far as necessary to level the Styler. Extending the leveling feet more than necessary can cause the Styler to vibrate.

1 Position the Styler in the final location. Check to make sure it is level. If installing on carpet, see Installing on Carpeting first.

- All leveling feet must rest solidly on the floor. Gently push on the corners of the Styler to make sure that it does not rock from corner to corner. Make sure there are no gaps between the front leveling feet and the floor.

WARNING

- The Styler is heavy. Use two or more people if installing the rear leveling feet. Failure to do so can result in back injury or other injury. - Keep the Styler upright when moving and installing it. If you lay the Styler on its side, refrigerant may leak and cause the appliance to malfunction.

2 Use the wrench (packaged with the manual) to turn the leveling feet.

Unscrew the front feet to raise the Styler or screw in the feet to lower it. If unable to level the unit using only the front feet, install the two rear leveling feet by tipping the unit. Do not lay the unit down to install the leveling feet.

Mechanical linkage diagram showing two vertical arms with directional arrows indicating movement (no text or symbols)

Raise or lower the unit using the leveling feet until the Styler is level from side to side and front to back.

CAUTION

Make sure that all leveling feet are in firm contact with the floor. If the Styler is used without leveling, it may fall, causing injury, damage, or product malfunction.

3 When the Styler is completely stable and all leveling feet are resting solidly on the floor, tighten the locking nuts.

INSTALLING ON CARPETING

If installing the Styler on carpeting, follow these instructions.

WARNING

• The Styler is heavy. Use two or more people to install the rear leveling feet and carpet spikes. Failure to do so can result in back injury or other injury.
• Keep the Styler upright when moving and installing it. If you lay the Styler on its side, refrigerant may leak and cause the appliance to malfunction.

1 Move the unit into its final location using the back rollers.
2 Install the two rear leveling feet.

Tip the unit, do not lay it down, to install the leveling feet.

Simple line drawing of a mechanical platform with a cylindrical component and vertical supports (no text or symbols)

3 Level the unit following the instructions in Leveling the Styler.

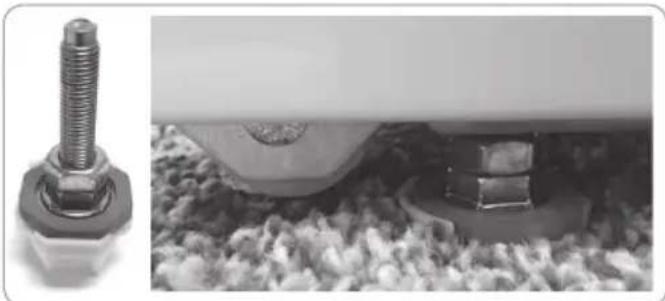

4 Install the four carpet spikes on the ends of the leveling feet, with the shorter, octagonal faces toward the front.

5 After the spikes have been installed, the Styler may need to be leveled again.

If the carpet has very deep pile or padding, the front feet may need to be extended slightly to install the drip tray.

WARNING

• Take care when handling the carpet spikes. They are designed to pierce through the carpet backing and pad and are very sharp.
- Keep fingers and hands out from under the spikes when setting the unit in place to avoid personal injury or product damage.

• Be sure to check and empty the drip tray often.
• Do not open the unit during operation to avoid condensation forming on carpet surface, which may result in surface mold or mildew.

Close-up of a mechanical assembly with a bolt and clamped components, no visible text or symbols

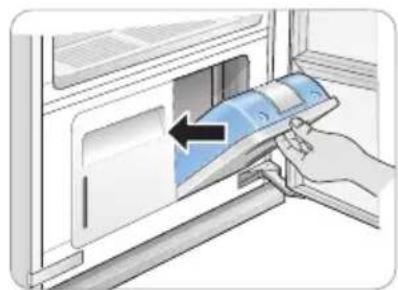

- Keep the bottom of the cabinet dry when filling or emptying water tanks. Keep the outside of the water tanks clean and dry to discourage growth of mold or mildew.

USING NON-SKID PADS (OPTIONAL)

Non-skid pads prevent the product from shaking or shifting when opening or closing the door.

1 Clean the floor to attach the non-skid pads. Use a dry rag to remove and clean foreign objects or moisture. If moisture remains, the non-skid pads may slip.

2 Adjust the level after placing the Styler in the installation area.

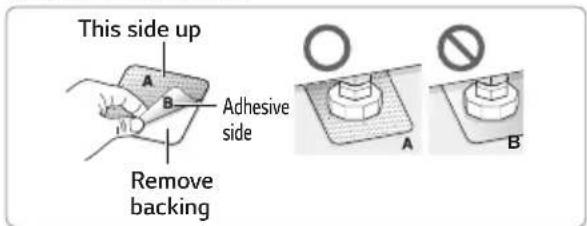

3 Place the adhesive side of the non-skid pad on the floor.

4 Recheck the Styler's levelness.

Push or rock the edges of the appliance gently to make sure that the Styler does not rock. If the Styler rocks, level the appliance again.

- The pads may leave a sticky residue when they are removed. The residue can be removed with alcohol.

INSTALLING THE ANTI-TIP DEVICE

- Appliances can tip, resulting in damage or injuries. Do not operate the unit without the anti-tip device in place and engaged.

If an anti-tip device is not properly installed, the appliance could be unexpectedly tipped by a child or adult standing, sitting, leaning, or placing excessive weight on an open door or the interior parts.

• Install the anti-tip device packed with the Styler to reduce the risk of tipping.

Refer to the instructions provided with the anti-tip kit for proper anti-tip device installation.

- Check that the anti-tip device is properly installed.

With the appliance in its final location, make sure that the slide adjuster on the cord is adjusted until there is about one inch of slack in the cord.

- The use of the anti-tip device does not preclude tipping of the appliance when it is not properly installed.

ASSEMBLING THE DRIP TRAY

Before using the Styler, insert the drip tray onto the bottom of the cabinet.

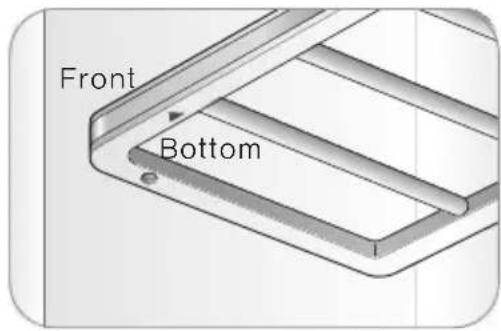

1 Hold the tray so the arrow and letter on the front of the tray face up.

2 Insert one side of the tray first, then the other. Push the tray until it slides completely in.

3 To detach, pull one side out then the other. If the tray collects water, detach it and empty the water. After emptying it, re-assemble the tray.

Two technical diagrams showing a door frame installation with a horizontal rail and a base, no text or symbols present.

- Do not operate the Styler without installing the drip tray. Doing so could lead to water damage caused by leaking.

INSTALLING CAP COVERS

1 Line up the nubs on the cap cover with the holes in the top corner of the cabinet.

2 Snap the cap cover into place. Repeat with the remaining cap cover on the other corner.

INSTALLING HINGE COVERS

1 Open the Styler door.

2 Snap the hinge cover onto the lower hinge assembly with the bent edge on the far side from the hinge.

Two technical diagrams showing a mechanical assembly with no visible text or symbols

3 Repeat with the remaining hinge cover on the upper hinge assembly.

Two technical diagrams showing mechanical assembly or assembly steps, with no visible text, numbers, or symbols.

Clean the Styler thoroughly and wipe off all dust that accumulated during shipping. See Maintenance, page 38. Do not plug in or operate the appliance until the interior and exterior have thoroughly dried.

CAUTION

• Do not scratch the Styler with a sharp object or use a detergent that contains alcohol, bleach, a flammable liquid or an abrasive when removing any tape or adhesive from the Styler,.
• Do not peel off the model or serial number label or the technical information on the rear surface of the Styler.

NOTE

Remove adhesive residue by wiping it off with your thumb or dish detergent.

Unpack accessories.

Unpack the shelf and hangers. For instructions on installing or using accessories, see Loading the Styler, pages 25-28. Accessories can be purchased separately from the LG Customer Information Center. Call 1-800-243-0000 (USA) or 1-888-542-2623 (Canada).

Assemble the drip tray.

Insert the drip tray at the bottom of the cabinet. See Assembling the Drip Tray page 18.

Connect the power supply.

Check if the power supply is connected before use.

Wash dirty clothes if necessary before putting them in the Styler.

The Styler does not have a washing function. Stains and loose dirt from one item may transfer to others during a cycle. Wash or brush off dust and dirt, or spot-clean items, to avoid setting stains or transferring dirt or odors.

USING THE STYLER

Illustration of a gray coat with double button design, displayed on a hanger (no text or symbols)

Illustration of a griddle being brushed with smoke, no text or symbols present

Illustration of two hands pouring liquid from a water bottle into a container (no text or symbols)

Illustration of a woman opening a refrigerator with a bag on the door (no text or symbols visible)

1 PREPARE ITEMS

• Wash clothes first, if needed.
• No heat-sensitive items or items that can be damaged by exposure to water. See Choosing Styler-Safe Clothing, page 21.
• Place items on hangers or the shelf.
• Fasten buttons and close zippers to keep items on moving hangers and prevent damage.

2 CLEAN LINT FILTER, CHANGE SHEET IN AROMA FILTER

Lift out filter and remove lint from last load for faster and more efficient performance. Reinstall filter, checking alignment when closing grill. Do not operate the Styler without the lint filter in place. See Checking the Lint Filter, page 24. If using a fabric softener sheet in the aroma filter, change it after every use. See Changing the Aroma Sheet, page 24.

3 CHECK WATER TANKS

Fill water supply tank if needed. Empty water drain tank if needed. Use clean tap water in the supply tank for better product performance and lifespan. Do not use distilled water or reuse water from the drain tank. See Checking the Water Tanks page 25.

4 LOAD STYLER

Pay attention to fabric care labels and cycle choice. If clothing is not appropriate for the cycle selected, it may shrink or be seriously damaged. See Loading the Styler, page 25. Remove all empty hangers to avoid noise, friction, and damage to clothing.

5 TURN ON STYLER

Touch Power to turn on the Styler.

6 SELECT CYCLE

Touch icons to select desired cycle and settings. See the Cycle Guide, page 31.

7 BEGIN CYCLE

Touch and hold Start/Pause to begin cycle. Pause cycle at any time by touching Start/Pause again. Restart cycle within four minutes of pausing it, or the Styler shuts off and settings are lost. Do not open door during cycle. If steam or hot air escape from open door, condensation may collect on floor or walls, resulting in damage or mold.

8 END OF CYCLE

Remove items when cycle finishes. Leave door open to let hot air escape. Interior light shuts off after 4 minutes if door is left open.

SORTING LOADS

Fabric Care Labels

Most articles of clothing feature fabric care labels that include instructions for proper care. Below are some of the symbols that are relevant to choosing appropriate items for the Styler.

fabric care labels that can be used with the
category label meaning Styler
(YWS3) washing labels	(AW5C)	hand wash	(T5XA)
	(X02H)	machine wash, normal cycle	(A0BX)
	(37YS)	perm press/wrinkle resistant	(6TTC)
	(ZAZS)	gentle/delicate	(KZHH)
	(TC25)	do not wash	(C332)
drying labels	(6W48)	normal	(05KS)
	(T242)	permanent press/ wrinkle resistant	(ZDSX)
	(KDTW)	gentle/delicate	(T7AA)
	(GXW6)	do not tumble dry	(KX30)
	(538D)	do not dry	(TW83)
	(074D)	line/hang dry	(HHKC)
	(83KK)	drip dry	(ZYAH)
	(XHTK)	dry flat	(6HKT)
dryer heat setting labels	(32X6)	high	(72D6)
	(47AA)	medium	(D2CD)
	(HTXX)	low	(57D8)
	(Y23Z)	no heat/air dry	(YW04)

*Some items such as fur and leather which are labeled as do not wash can be used with the Styler. See the Fabric Care Guide on pages 22–23.

Grouping Similar Items

• For best fabric care results, always treat fabrics with similar care requirements together.
• Different fabrics have different care requirements, and some fabrics cannot be treated in certain Styler cycles or should be treated separately.

Choosing Styler-Safe Clothing

Some items are not appropriate for use with this product.

- Do not put the following items in the Styler.

category non-Stylable items
clothes starched clothes, vinyl
bedding/blankets	electric blankets, heavy blankets (double layer or over 3.3 lb [1.5 kg])
other shoes, items made with sponge rubber, items with adhesives

• Follow fabric care labels.
- Don't put items that are sensitive to heat or are not suitable for washing with water in Styler cycles that use steam. Use the Gentle Dry cycle only.
- Fur, leather (only 100% natural leather), and silk items should only be treated with the Air Fresh cycle. This cycle is a downloadable cycle. See Downloading Cycles, page 32.
- Using the wrong cycle for items can result in damage to fabrics.
- Wash heavily soiled or stained clothes before putting them in the Styler. The Styler does not have a washing function. Loose soil or stains can be transferred between garments during cycles.
- Treat items with an unpleasant odor in a separate load. Odors can be transferred between items during cycles.
• Some odors can be difficult to remove.

Odors from oily substances may be difficult for the steam to penetrate. Odors from extended storage may also be difficult to remove.

- Wrinkles may remain in some items.

Wrinkles caused by extended storage may be difficult to reduce. Wrinkles in cotton or linen may not be reduced completely.

FABRIC CARE GUIDE

fabric clothes				Refresh cycle		Sanitarycycle	GentleDrycycle	comments
				reducingwrinkles	removingodors
natural fibers	vegetable fibers	cotton	towels, socks, underwear, jeans, sportswear, t-shirts, blankets		●●●			Wrinkles may remain in 100% cotton fabrics. Iron after cycle, if desired.
		linen, hemp, ramie	summer clothes, tablecloths		●●●			Some wrinkles may remain. Make sure fabrics are washable/hand washable if using Refresh/Sanitary cycles. Lay clothes on shelf if delicate. Do not style starched clothes.
	animal fibers	alpaca, camel hair, cashmere	coats, suits	§ § §			●	Lay knits on the shelf. Alpaca and camel hair shrink in hot water.
			scarves, knitwear		§		●
		fur, leather	coats, scarves				●*	*Only usedownloaded Air Fresh cycle (low temperature drying). But, leather is only 100% Natural leather (No artificial leather)
		silk	silk neckties, ribbons, scarves, blouses, silk velvet/plush					*Only usedownloaded Air Fresh cycle (low temperature drying).
		wool	sweaters, knitwear		§		●	Lay knits on shelf. Some wool shrinks when washed in hot water. Make sure fabrics are washable/hand washable if using Refresh/Sanitary cycles. Gentle Dry cycle is safe for most.
			winter coats, suits, sportswear, uniforms	●●●●

FABRIC CARE GUIDE (CONTINUED)

fabric clothes						● = yes§ = check label
		refresh cycle		Sanitarycycle	GentleDrycycle	comments
		reducingwrinkles	removingodors
man-made fibers	acetate	suit lining,blouses, neckties,pajamas
	acrylic	thermalunderwear,knitwear				Lay clothes on shelf
	nylon	stockings,lingerie				Lay clothes on shelf
		sportswear,curtains
	polyure-thane	stretchableclothing(containing lessthan 5%)				If the item containsmore than 5%polyurethane(swimwear), checklabel for care
	rayon	suit lining

• Fabrics come in a wide variety of weights and finishes and can have different care requirements for each variety. It is difficult to cover them adequately in this manual. Before using the Styler with any item, check the care label before proceeding. Do not put items that are not colorfast, are heat-sensitive, or are not suitable for washing with water in the Refresh or Sanitary cycles. Do a water blot test on a small, inconspicuous spot (an inside seam) to determine if the fabric is colorfast. For further assistance, consult the clothing manufacturer, a dry cleaning professional, or a more detailed fabric care guide.
• Using the Styler with items that are very wet or are not colorfast may result in damage to the items and staining from fabric dyes on the interior of the cabinet. These stains will not affect the operation of the Styler. Use toothpaste to remove stains from interior of cabinet.
• The Styler does not have a washing function. Wash soiled items before use.

CHECKING THE FILTERS BEFORE EVERY LOAD

Checking the Lint Filter

Always make sure the lint filter is clean before starting a new load; a clogged lint filter will increase drying times.

1 Open the front grill and take out the lint filter.

Three-step diagram showing a hand pressing down an air conditioner into a grid, then to clean the interior panel (no text or symbols present)

2 Brush the filter with a soft brush or clean it with a vacuum cleaner.

If the lint filter is torn or damaged, replace it with a new filter.

Illustration of hands using a tool to adjust or install a rectangular object (no text or symbols visible)

3 Reinstall the filter.

CAUTION

- Check that the sides are aligned correctly when inserting the grill.

Changing the Aroma Sheet

Use a dryer fabric softener sheet to add a refreshing aroma to items. Replace the fabric softener sheet after every use.

1 Remove the aroma filter from the Styler.

Illustration of a hand pressing down on an air conditioner cover (no text or symbols visible)

Illustration of a hand performing a medical or therapeutic procedure on a wrist, with a red arrow indicating a specific point (no text or symbols present)

2 Open the aroma filter and insert a dryer fabric softener sheet into it.

3 Close the aroma filter and insert it back in the Styler.

Insert the aroma filter in the direction of the arrow. You can adjust the opening of the perfume filter using the adjustment lever.

The more open the aroma filter is, the richer the aroma gets.

Illustration of a hand pressing down on a striped panel with a downward arrow (no text or symbols)

Front view of a white air conditioner unit with ventilation grilles and a handle (no text or symbols visible)

Illustration of a rectangular electronic device with ventilation slots and a handle (no text or symbols)

Closed

Diagram of a vehicle or air conditioner unit with vent slots and a directional arrow (no text or symbols)

Open

4 When the cycle is complete, remove the aroma filter and discard the fabric softener sheet.

Tip : To use your favorite perfume, spray it 4-5 times on a cotton pad and place the pad in the aroma filter. The strength of the resulting fragrance may vary depending on the scent used.

CHECKING THE WATER TANKS

Check the water in the water tanks before use. The water supply tank must be filled with water before using the Styler. The Styler does not work without water. The water drain tank should be emptied before each use.

1 Pull the handle of each tank forward to remove the tank and check the level of water.

2 Make sure the water supply tank is filled with water.

The full water supply tank can be used approximately four times, depending on the cycles used. Use clean tap water or bottled water for best performance and longer product life. Do not use distilled water or reuse the water from the drain tank.

The first time the Styler is used, 2/3 of the water in the fully filled water supply tank is used. Less water is used in following cycles.

CAUTION

• Only use water when filling the water supply tank. Any other substance, such as detergent or fabric softener, may damage the Styler.
• Use only clean tap water or bottled water. Foreign materials in the water may shorten the lifespan of the Styler.
• Do not use distilled water. The water sensor may not work.
• Do not reuse the water in the drain tank to fill the water supply tank.

3 Make sure the water drain tank is empty.

The drain tank will be filled after about three uses. The tank fills more quickly during drying cycles. The Styler does not work if the drain tank is full.

- Some discoloration of the water drain tank may occur over time. This is normal and will not affect product performance.

LOADING THE STYLER

CAUTION

• Check all pockets to make sure that they are empty. Items such as clips, pens, coins, and keys can damage both the Styler and your clothes. Flammable objects such as lighters or matches could ignite, causing a fire. Failure to do so can result in fire, explosion, or death.

• Never dry clothes that have been exposed to oil, gasoline, or other flammable substances. Washing clothes will not completely remove oil residues. Failure to obey this warning can result in fire, explosion, or death.

• Remove empty hangers from the moving hanger and place them on the shelf before starting the cycle. Empty hangers may cause unnecessary noise, friction, and damage to fabrics. See Storing Hangers, page 28.

• Hang hangers in the same direction on the moving hanger to prevent collisions.

accessory items to use it with
hangers	shirts, dresses, suits, coats, skirts, pants without creases or too large for pants press, or any item that can use a hanger
Pants Crease Care	pants when creases are desired
shelf	sweaters, wool, knitwear, lingerie, shoes, hats, toys, and other clothing or items that cannot use hangers

Hangers

The hangers that come with the Styler are for use with the Styler only. Any plastic or metal hanger that has a hook less than 5/32 in. (4 mm) thick and hooks snugly into the indentations in the moving hanger can be used in the Styler.

• Do not use hangers with wool, knitwear, or delicate lingerie. The garments may stretch or be left with hanger marks.
• Wrinkles may appear at the back of the collar on some garments.
• Use the diagonal hanger grooves in the moving hanger for large or bulky items.
• Remove empty hangers or store them in the shelf during operation. See Storing Hangers, page 28.

1 Select an appropriate hanger.

Choose the Styler hanger that fits the item you are hanging up.

2 Fasten the buttons and zippers on all garments and hang them on hangers.

Doing so helps keep the garments from falling or becoming more wrinkled during the cycle. If a garment has no buttons or zipper, fasten it with a cotton string around the collar area.

Illustration of two gray coat hangers with different designs, one open showing a zipper, the other closed with a handle (no text or symbols)

3 Place the hangers into the slots of the moving hanger

Using the Moving Hanger

1 Insert hangers into slots and pull down to secure the hook snugly.

Hooks should fit down in the slots snugly to prevent noise, vibration, or damage to items during operation.

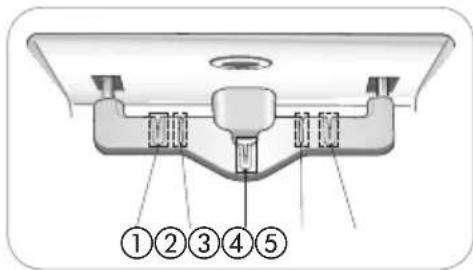

2 Use the diagonal slots (2 and 4) for bulky items.

Do not use diagonal slots and standard slots during the same cycle. The hangers may knock into each other and damage clothing.

3 Do not overcrowd items.

The fewer items, the better the drying performance. Items that touch the sides of the cabinet may pick up condensation from the cabinet and fail to dry completely.

Pants Hanger or Pants Crease Care

Place pants either on the moving hanger or in the Pants Crease Care, depending on whether maintaining the creases on the pants legs is desired.

• Hanging pants on the moving hanger may reduce the creases on pants legs.
• To maintain the creases on pants legs, use the Pants Crease Care.
• The Pants Crease Care is not designed to work with pants that are wider than 38 in. (96 cm) or longer than 43 5/16 in. (110 cm). Check the size of the pants before using the Pants Crease Care. If pants are too large, use the moving hanger.
• The fabric content of the garments affects how well wrinkles are reduced.
• Use the default downloaded Extra Pants Care cycle for the most effective wrinkle reduction for pants. See Downloading Cycles, page 32.

Opening and Closing the Pants Hanger

1 To open, fold the hook down toward the hanger blades to unlock and separate the blades.

2 Once pants are inserted, bring the blades together and rotate the hook up and away from the blades to lock them in place.

Two diagrams showing a mechanical setup with a hook and rotating arrows, no text or symbols present.

Hanging Pants On the Pants Hanger

1 Remove all objects from pants pockets and button the back pockets.

2 Fold pants along crease lines (or where crease lines would be), and attach the pants hanger at the ends of the pants legs.

Diagram of a vertical structure with a hanging hook and internal color gradient, no text or symbols present

3 Tug gently on the sides of the pants legs. Make sure pants are stretched tight within the hanger, with no wrinkles, and will not fall out of the hanger during the cycle.

Diagram of a mechanical device with a hook attached to a vertical plate (no text or symbols visible)

4 Place the pants hanger on the moving hanger or in the Pants Crease Care.

Illustration of a white wardrobe with two hanging clothes inside (no text or symbols)

Using the Pants Crease Care

1 Open the Pants Crease Care by pressing on the icon on the side.

Diagram of a door with an arrow indicating direction, showing internal components and a hanging hook (no text or symbols)

2 Hang the pants hanger on the hook above the Pants Crease Care that best fits the length of the pants being pressed.

If the pants are longer, use the higher hooks to keep the pants from hitting the floor of the

cabinet.

Simple line drawing of a hook attached to a base, with three circular elements above (no text or symbols)

The Pants Crease Care is not designed to work with pants that are wider than 38 in. (96 cm) or longer than 43 5/16 in. (110 cm). Check the size of the pants before using the Pants Crease Care. If pants are too large, use the moving hanger.

3 Make sure the pants are hanging straight.

Check the creases on the legs to make sure they are lined up. Fix the pants with 2 clips before closing the Pants Crease Care. If the pants legs are not aligned properly or the pants are not hanging straight, double lines may appear at the pants' edges, or the pants may be wrinkled.

4 Close the Pants Crease Care, then straighten the pants once more.

Gently tug the edges of the pants to smooth out any wrinkles. Make sure the pants are hanging straight in the Pants Crease Care.

Diagram of a cylindrical device with internal components and directional arrows, no visible text or symbols

Shelf

Use the shelf for clothes and items that cannot be placed on hangers. Do not stack items on the shelf. For best drying performance, use the shelf for a single item or smaller items with space between.

Assembling the Shelf

1 Hold the shelf so that the gray trim is toward the front.

2 Insert the left shelf groove into the left shelf support, then lower the right shelf groove onto the right shelf support.

3D diagram of a rectangular structure with internal components and an upward arrow, no text or symbols present

3D diagram of a rectangular frame with two arrows indicating direction, labeled 'Right' (no text or symbols on the frame itself)

3 To disassemble, lift up the right side of the shelf, then pull out the left side of the shelf from the shelf support.

CAUTION

• The shelf cannot be assembled by sliding it into the cabinet. It will fall if not assembled properly.
• Do not place heavy objects on the shelf or use it to store objects. Doing so can cause the product to malfunction.
• Do not allow children to climb on or hang on the shelf. They could be injured.

- Hang the shelf on the shelf holder when treating long clothes such as coats or dresses.

Storing Hangers

Remove unused hangers from the moving hanger and store them in the shelf during operation. This prevents noise and damage to clothing.

1 Insert the hangers between the rails of the shelf.

Illustration of two metal grilles with handles, arranged in a rectangular frame (no text or symbols)

2 When styling long clothes, if the shelf is stored on the shelf holder, store the hangers outside the unit during operation.

3 Do not use the shelf to store heavy items.

Illustration of an open cardboard box filled with colorful items, with a large no-smoking symbol in the background (no text or symbols on the box itself)

CONTROL PANEL

The control panel responds to touch using static electricity. A light touch is enough to operate it. Use a cloth when cleaning the controls to avoid contacting and activating the keys. Foreign substances on the control, wearing gloves, or touching the keys through cloth may prevent the keys from activating.

Control Panel Features

Depending on the model, some of the following functions may not be available.

① SMART DIAGNOSISTM ICON

Place the phone over this icon when diagnosing problems with Smart Diagnosis. See Using Smart Diagnosis page 38.

② POWER ON/OFF

Touch Power to turn the Styler ON/OFF. Once the cycle is complete, the Styler automatically turns off after a few seconds if no keys are touched.

NOTE: Touching Power during a cycle will cancel that cycle and the cycle settings will be lost.

③ CYCLE COMPLETION INDICATOR

This portion of the display shows which stage of the styling cycle is currently underway (Preparing, Steaming, Drying, Sanitizing, or Night Care).

④ OPTION AND ALERT INDICATORS

Delay On: lights when the Delay Start feature is set.

Fill Water: lights when the water supply tank is missing or empty.

Empty Water: lights when the water drain tank is missing or full.

Night Care: lights when the Night Care feature is set.

Remote: lights when the Remote Start function is set.

Wi-Fi: lights when the Wi-Fi function is set.

⑤ TIME DISPLAY

The display shows the estimated time remaining and error messages for the Styler. The cycle time may vary by usage conditions.

⑥ START/PAUSE

Touch and hold to START the selected cycle. If the Styler is running, touch to PAUSE the cycle without losing the current settings.

NOTE: If you do not touch Start/Pause to resume a cycle within an hour of pausing it, the Styler turns off automatically.

⑦ SmartThinQ

Search for the LG SmartThinQ application from the Google Play Store or Apple App Store on a smart phone. See Smart Functions, page 36.

⑧ REFRESH / \*Remote Start

Touch the icon to select a Refresh cycle. Touch repeatedly to toggle through the settings. See the Cycle Guide, page 31.

Press and hold for three seconds to activate the Remote function. See Smart Functions, page 36.

⑨ SPECIAL CARE / \*Control Lock

Touch the icon to select a Special Care cycle. Touch repeatedly to toggle through the settings. The default Downloaded cycle is Ready to Go. Download a new cycle using the LG SmartThinQ application on a smartphone. See Smart Functions, page 36.

Touch and hold the icon for three seconds to activate/deactivate the Control Lock function. See Locking the Controls, page 34.

⑩ SANITARY / \*Night Care

Touch the icon to select a Sanitary cycle. Touch repeatedly to toggle through the settings. See the Cycle Guide, page 31.

Touch and hold the icon for three seconds to activate/deactivate the Night Care function. See Night Care, page 35.

⑪ GENTLE DRY / \*Smart Diagnosis™

Touch the icon to select a Gentle Dry cycle. Touch repeatedly to toggle through the settings.

⑫ DELAY START/ \*WI-FI

Set a delayed start time for the cycle. See Setting a Delayed Start Time page 34. Delay Start cannot be selected with the Night Care cycle.

Press and hold for three seconds to activate the Wi-Fi function. See Smart Functions, page 36.

CYCLE GUIDE

				Cycle Processes
Cycle Setting Clothing / Fabric Type			Est. time in Hr.: Min.	Prepare	Steam Sanitize Dry
REFRESH CYCLE	Normal	suit, coat, school uniform, scarf, washable wool and knitwear, knitwear, outdoor/performance clothing, towels, underwear, t-shirts, socks, jeans, jean jackets, lingerie, sportswear, tablecloths	48	○○○
	Light 20			○○○
	Heavy 1:07	washable wool, polyester, rayon, urethane, gabardine, Gore-Tex, cotton, nylon, ramie, hemp		○○○
SPECIAL CARE CYCLE	Suits/Coats	Specially designed to quickly remove odors from suits and coats.	35	○○○
	Pants Crease	Use with Pants Crease Care. Designed to intensively straighten wrinkles and accentuate the creases in pants.	1:07	○○○
	Downloaded	Ready to Go (default) is a cold weather warmup for clothes and outerwear. For other options, see Downloaded, page 32.	10
SANITARY CYCLE	Normal	Same as Refresh cycle, excluding wool and knitwear. Check Fabric Care Guide, pages 22-23, and fabric care labels in garments before use. Natural fibers must be marked washable/hand-washable and tumble dry, to avoid shrinkage. Do not use with items containing rubber, foam, or adhesive.	1:28	○○○○
	Bedding 1:43			○○○○
	Kid's Item 1:43			○○○○
	Heavy Duty 2:13			○○○○
GENTLE DRY CYCLE	Normal	Same as Refresh Cycle. Gentle Dry is also safe for many non-washable garments such as silk ties, blouses, and other garments made from natural fibers such as 100% wool, cashmere, camelhair, and alpaca. See Choosing Styler-Safe Clothing, and 20 Days check garment labels before using.	2:00				○
	Rain/Snow 58						○
	Time Dry 30						○

Cycle Processes

• Preparing heats the water in the tank in preparation for supplying steam.

• Steaming sprays steam on the clothes.

• Sanitizing removes germs from the clothes.

• Drying removes moisture in the clothes.

CHOOSING A CYCLE

Styler cycles are designed to fit a variety of situations. Select the cycle and setting that best match the load contents and desired results for maximum performance and fabric care. For best results, pay attention to garment care labels and choose a cycle that is appropriate for the fabric content of the items. See the Fabric Care Guide on pages 22-23. For a guide to the symbols used on fabric care labels, see the chart on page 21. Touch the cycle selector icon to select the desired cycle. Press the icon repeatedly to select the desired setting. When you select a cycle, the light for the default setting will turn on. See Using the Styler, page 20, for more details on operating methods.

Refresh Cycle

Use the Refresh cycle to reduce odors and wrinkles and to dry items. This cycle uses steam and should only be used with washable items. The cycle is safe for washable wool and knitwear.

Sanitary Cycle

Use the Sanitary cycle to reduce germs and to dry items. Choose this cycle for clothing, bedding, and children's clothing and soft toys. Quilts or blankets should be a single layer and weigh 3.3 lb (1.5 kg) or less. Do not use this cycle for wool or knitwear, because the high temperatures and steam can cause shrinkage.

Gentle Dry Cycle

Use the Gentle Dry cycle to reduce odors and wrinkles and to dry items. Choose this cycle for non-washable fabrics like cashmere. There is also a downloadable dry cycle called Air Fresh for use with fur and leather items. See Smart Functions, page 36, and the list of available cycles in the LG SmartThinQ application.

Rain/Snow

Select this setting to refresh and gently dry damp clothing.

Time Dry

Use the Time Dry cycle to manually select the drying time, from 30 to 150 minutes, in 30-minute increments. Or use Time Dry to add drying time at the end of another cycle.

Downloaded

Download one cycle and use it to treat special fabrics like fur and leather, reduce noise, or remove static.

The default downloaded cycle is Ready to Go, a ten minute cycle which takes the chill out of clothes and outerwear. Perfect for winter weather.

To download a different cycle, see Smart Functions, page 36, and the instructions in the LG SmartThinQ application.

Downloadable Cycles

Cycle	Est. time in Hr.: Min.	Description
Ready to Go 10		(default) see Cycle Guide and above
Athletic Uniform /Equipment	1:54	gently removes odors from uniforms and gear
Air Fresh 30		gently removes moisture and dust from fur, leather, and silk without damaging fabrics and restores volume to fur or fabric flattened by everyday activities
Shawls /Neckties	23	gently removes odors from frequently used shawls, scarves or neckties
Silent Mode 2:03	quieter refresh cycle
Warm Up 30		warms up blankets and comforters
Static Removal 1		removes static using TrueSteamTM

CYCLE SETTINGS AND OPTIONS

Cycle Selector Icons

To change the settings during the cycle, touch Start/Pause to pause the cycle, then touch the relevant cycle selector icon to change settings.

- Touch the Start/Pause button to activate the control panel.

The cycle selected and the Start/Pause button start blinking.

Selecting a Cycle

	Downloaded
		Heavy Duty	Time Dry
	[2077]
	*Control Lock

1 Touch Power
2 Touch the cycle selector icon repeatedly until the desired cycle and setting is illuminated.
3 Touch Start/Pause.

Changing Settings During a Cycle

1 Touch Start/Pause to pause the cycle.
2 Touch the relevant cycle selector icon to change settings.

• During the Refresh and Sanitary cycles, the machine will make a boiling and hissing sound as water is boiled to make steam and steam is sprayed on clothes. This is normal.
• The moving hanger will move even when only the shelf is being used.
• Cycle times may vary depending on the usage environment, including water temperature.

• Cycle time for the Gentle Dry cycle may be longer for wet clothes that are not spin dried.

• Very thick clothing may not be as uniformly dry at the end of the Gentle Dry cycle.

• If the Sanitary cycle is changed to a Refresh or Gentle Dry cycle during operation, the sanitize process is not performed.

CAUTION

• Do not open the door during operation. There is a risk of burns or injury from escaping hot air or steam.
• Do not allow steam or hot air to escape the cabinet during operation. Opening the door during operation also affects performance, lengthens drying time, and results in water condensing and collecting on the floor.
• Do not put very wet items in the Styler to dry. Shake off or wring out excess water before putting items in the cabinet to dry. If a large amount of water pools in the cabinet, drying performance may suffer or the product may be damaged.
• Remove or store the shelf when hanging longer items so items won't get wrinkled.
• Fasten buttons and zippers on hanging clothes to prevent them from falling off hangers during operation. Fasten the neck area with cotton string if there is no button or zipper.

Selecting the Downloaded Cycle

1 Touch Power
2 Touch the Special Care cycle selector icon to select the Downloaded cycle.
3 Touch Start/Pause.

• Download and use the LG SmartThinQ app on a smart phone to confirm the current downloaded cycle or to download another cycle.
• Only one Downloaded Cycle can be saved and changed at a time. See Smart Functions, page 36.

EXTRA FUNCTIONS

Some buttons also activate special functions, including Remote Start, Control Lock, Night Care, Smart Diagnosis, Delay Start, and Wi-Fi. See Smart Functions, page 36, for information on using Remote Start and Wi-Fi.

Locking the Controls

Use Control Lock to prevent unwanted use of the Styler or to keep cycle settings from being changed while the Styler is operating.

1 Touch and hold the Special Care icon for three seconds to activate or deactivate the Control Lock function.
2 "CL" appears in the display, and all controls are disabled except the Power button.

• Control Lock does not lock the door.
- The Control Lock setting is retained even if there is a power outage.
- Once set, Control Lock remains active until it is manually deactivated. Control Lock must be deactivated to run another cycle.

Setting a Delayed Start Time

Use the Delay Start function to delay the start time of the cycle.

1 Touch Power
2 Touch the cycle selector icon for the desired cycle.
3 Touch Delay Start to set the start time of the cycle.

The default delay time is three hours. Each time you touch the button, the time increases by an hour, up to 19 hours.

- Touch and hold the button to increase the delay time more quickly.

CAUTION

• Do not open the door during operation. There is a risk of burns or injury from escaping hot air or steam.
• Do not allow steam or hot air to escape the cabinet during operation. Opening the door during operation also affects performance, lengthens drying time, and results in water condensing and collecting on the floor.

Smart Diagnosis™

Use this function with the LG SmartThinQ application on a smart phone or when contacting the LG Customer Information Center to help diagnose problems with the Styler. See Using Smart Diagnosis™, page 38.

Night Care

Use the Night Care function to store items overnight or anytime items can't be removed soon after a cycle ends. Night Care periodically produces warm air to prevent condensation, keeping items warm and dry until they are removed.

• Once set, the Night Care function starts after the selected cycle ends.
• The Night Care function can't be set to follow a Gentle Dry cycle.
• Night Care settings are lost if the Power button is pressed.
  • Night Care runs for a maximum of 24 hours.
• It is safe to open the door at any time during the Night Care function, even when the air is blowing.
• It is normal for the Night Care function to make noise periodically as it produces warm air.

※ This image is for illustration purposes only. The location of the SANITARY button varies by model. (Refer to pages 29-30.)

Setting the Night Care Function

1 Place clothes into the Styler.
2 Touch cycle selector icon repeatedly until desired cycle setting is selected.
3 Press and hold SANITARY for three seconds to illuminate the LED and activate Night Care.
4 Touch Start/Pause.
5 To cancel Night Care, touch another cycle selector icon.

SMART FUNCTIONS

LG SmartThinQ Application

The LG SmartThinQ application allows you to communicate with the appliance using a smartphone.

Installing LG SmartThinQ Application

Search for the LG SmartThinQ application from the Google Play Store or Apple App Store on a smart phone. Follow instructions to download and install the application.

LG SmartThinQ Application Features

- For appliances with the

Download Cycle

Download new and specialized cycles that are not included in the standard cycles on the appliance. Appliances that have been successfully registered can download a variety of specialty cycles specific to the appliance. Only one cycle can be stored on the appliance at a time. Once Download Cycle is completed in the appliance, the product keeps the downloaded cycle until a new cycle is downloaded.

NOTE

- You must first register the appliance and connect to a gateway in order to use the Download cycle function.

Push Alerts (Smart Messages)

When the cycle is complete or the appliance has problems, you have the option of receiving push notifications on a smart phone.

NOTE

- You must first register the appliance and connect to a gateway in order to use the Push Alerts function.

Smart Diagnosis™

This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

NOTE

- You must first register the appliance and connect to a gateway in order to use the Smart Diagnosis function.

NOTE

• To verify the Wi-Fi connection, check that Wi-Fi (WiFi) icon on the control panel is lit.
• LG SmartThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
• The machine supports 2.4 GHz Wi-Fi networks only.
• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not connect or may be interrupted because of the local network environment.
• The network connection may not work properly depending on the internet service provider.
• The surrounding wireless environment can make the wireless network service run slowly.
• This information is current at the time of publication.
• The application is subject to change for appliance improvement purposes without notice to users.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

Wireless LAN module Specifications
Model LCW-004
Frequency Range 24	12 to 2462 MHz
Output Power (max.)	IEEE 802.11 b : 22.44 dBmIEEE 802.11 g : 24.68 dBmIEEE 802.11 n : 24.11 dBm

FCC Notice (For transmitter module contained in this product)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Industry Canada Statement (For transmitter module contained in this product

This device complies with Industry Canada's applicable licence-exempt RSSs. Operation is subject to the following two conditions:

1 This device may not cause interference; and
2 This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body.

NOTE

- THE MANUFAC TURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Smart Diagnosis™ Function

Should you experience any problems with the appliance, it has the capability of transmitting data via your telephone to the LG Customer Information Center. NFC or Wi-Fi equipped models can also transmit data to a smartphone using the LG SmartThinQ application.

Smart Diagnosis™ through the Customer Information Center

- For appliances with the

1 Call the LG Electronics Customer Information Center at:
(LG U.S.A.) 1-800-243-0000
(LG Canada) 1-888-542-2623

2 When instructed to do so by the call center, place the mouthpiece of the phone close to the Smart Diagnosis™ icon. Do not press any other buttons.

3 Press and hold the Gentle Dry icon for 3 seconds.

4 Keep the phone in place until the tone transmission has finished.

5 Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you using the information transmitted for analysis.

NOTE

• Smart Diagnosis™ cannot be activated unless the appliance can be turned on using the Power button. If the appliance cannot be turned on, troubleshooting must be done without using Smart Diagnosis™.
• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.
• The Smart Diagnosis™ function depends on the local call quality.
• Bad call quality may result in poor data transmission from your phone to the call center, which could cause Smart Diagnosis™ to malfunction.

LG SmartThinQ Smart Diagnosis™

- For appliances with the

Use the Smart Diagnosis feature in the LG SmartThinQ application for help diagnosing issues with the appliance without the assistance of the LG Customer Information Center.

Follow the instructions in the LG SmartThinQ application to perform a Smart Diagnosis using your smartphone.

NOTE

- Smart Diagnosis™ cannot be activated unless the appliance can be turned on using the Power button. If the appliance cannot be turned on, troubleshooting must be done without using Smart Diagnosis™.

MAINTENANCE REGULAR CLEANING

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Unplug the Styler before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• Never use harsh chemicals, abrasive cleaners, or solvents to clean the Styler. They will damage the finish.

Cleaning the Interior and Exterior

Proper care of your Styler can extend its life.

1 Clean the inside and outside of the machine with a damp cloth. Glass cleaner can be used to clean the front glass panel, but spray it on a cloth and wipe rather than spraying it directly on the panel.
2 Buff the door dry with a clean, dry cloth to prevent any water stains.
3 Allow the interior and exterior to dry completely before plugging in and operating the product.

CAUTION

• Do not spray water directly on the product.
• Do not use detergent, methylated spirits, solvents, or any volatile liquids to clean the exterior of the product.
• Never use steel wool or abrasive cleansers; they can damage the surface.
• Keep sharp objects away from the exterior of the product. The touch panel may not work if damaged.

Cleaning the Lint Filter

Always remove the lint from the filter after every cycle. See Checking the Lint Filter, page 24.

If the lint filter has become very dirty or clogged, wash the lint filter in warm, soapy water and allow to dry thoroughly before reinstalling.

• Never operate the Styler without the lint filter.
  • Never operate the Styler with a wet lint filter.

Cleaning the Aroma Filter

For best results, wash the aroma filter using hot water and dish soap. After cleaning, wipe the filter with a clean cloth and allow it to dry thoroughly before reinstalling it.

The aroma filter can also be cleaned in the top rack of the dishwasher.

• Never operate the Styler without the aroma filter.
• Never operate the Styler with a wet aroma filter.

Cleaning the Water Tanks

The water in the water supply tank contacts the clothing and items treated in the Styler directly. Clean both tanks periodically and keep them clean at all times. If the tanks are not properly cleaned, they may start to smell or need to be replaced.

• Some discoloration of the water drain tank may occur over time. This is normal and will not affect product performance.
• Use only clean tap water in the supply tank for best performance and to prolong the life of the product. Do not use distilled water.
• Do not reuse the water from the water drain tank in the water supply tank.

1 Clean the exterior of the tanks with a wet cloth.
2 Use a cleaning brush or detergent made exclusively for water tanks to clean the inside of the water tanks.

These can be found online or at a local RV and camping store. Rinse tanks thoroughly after cleaning with detergent to remove any residue.

Illustration of hands holding a blue plastic container with a tool, no text or symbols present

3 Make sure the drainage nozzle connected to the water drain tank and the water supply hole connected to the water supply tank are not clogged.

4 Allow the outsides of the tanks to dry completely before reinstalling the tanks.

Illustration of a hand inserting a blue object into a white panel, with an arrow indicating direction (no text or symbols present)

TROUBLESHOOTING

FAQS: FREQUENTLY ASKED QUESTIONS

Q: What are aroma sheets and how do I use them?

A: You can use your favorite brand of dryer fabric softener sheets in the aroma filter to infuse items with a refreshing aroma. The sheets will not soften garments or reduce static. To use the aroma filter, add a softener sheet before running a cycle. Dispose of the softener sheet at the end of the cycle. For best performance, clean the aroma filter after every 5-7 uses. See Changing the Aroma Sheet, page 24 and Cleaning the Aroma Filter, page 39.

Q: Can I put fur, leather, or silk items in the Styler?

A: Download the Air Fresh cycle for use with fur, leather, or silk items in the Styler. For instructions on downloading new cycles for the Styler, see Smart Functions, page 36, and the instructions in the LG SmartThinQ smartphone application.

Q: Why is the cycle time longer than estimated for the Gentle Dry cycle?

A: The Styler uses a sensor to sense the dryness of fabrics. If clothing or other items are not dried properly, the cycle time is extended automatically (except for Time Dry cycles).

Q: Can I install the Styler on carpeting?

A: If installing on carpeting (especially on padded or deep pile carpets), stabilize the unit by installing the rear leveling legs and the four carpet spikes. For instructions, see Installing on Carpeting, page 17.

Extra care must be taken to keep the area around the machine clean and dry. Do not open the cabinet during operation. There is a risk of burns or injury, and condensation from escaping hot air or steam could result in damage to carpeting.

BEFORE CALLING FOR SERVICE

Your appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your appliance does not function properly or does not function at all, check the following before you call for service.

Operation

Problem Possible Cause Solutions
Smoke comes out when the door is opened	Door is opened during operation	It is normal for steam or hot air to escape if the door is opened during operation.
Full water supply tank is empty after just one use	Appliance is being used for the first time	A larger amount of water is needed the first time the appliance is used to fill the empty reservoir.
Appliance makes a loud vibrating noise on startup	Moving hanger is balancing load before operation	This is normal at the beginning of the cycle. If the noise increases or continues for a long time, call for service.
[Drying times are taking longer than estimated?]	Clothes were extremely wet when loaded	Drying times may be longer for very wet or bulky clothing. Damp dry clothes before putting them in the Styler. The Styler stops automatically when clothes are dry.
Appliance is moving from left to right while operating	Floor under appliance is not level or is not sturdy enough to support the weight of the appliance without flexing	Install the appliance where the floor is level and sturdy. Compensate for any slight unevenness in the floor with the leveling legs. SeeLeveling the Styler, page 16.
Sound of motor whirring	Compressor is running during drying	This is normal.
Sound of water running, boiling, or hissing	Steam being generated and sprayed onto clothes	This is normal.
Steam or hot air leaks out when the door is closed	An item is caught in the door, keeping it slightly open	Make sure all items are completely inside the cabinet and nothing is caught in the door, blocking it from closing completely.
The appliance won't operate	Control panel has powered off due to inactivity	This is normal. Press the Power button to turn the appliance on.
	Cord is unplugged	Make sure cord is plugged securely into a working outlet.
	Circuit breaker/fuse is tripped/blown	Check house circuit breakers/fuses. Replace fuses or reset breaker. The appliance should be on a dedicated branch circuit.
	Appliance not connected to 120 V socket	Make sure the cord is plugged into a grounded socket rated for this appliance. See theProduct Specifications, page 12.

Operation

Problem Possible Cause Solutions
Control panel won’t respond	Control panel or button has dirt on it	Dirt or foreign objects on the control panel will interfere with the operation of the buttons. Clean the control panel.
	Control panel is locked Disable	the Control Lock function. SeeLocking the Controls, page 34.
The cycle won’t start Start/Pause was not touched after the cycle was set.		Touch Start.
		cycle is producing steam There may be a period of inactivity while steam is produced.
		Control panel is locked Disable	the Control Lock function and touch Start. SeeLocking the Controls, page 34.

Performance

Problem Possible Cause Solutions
Clothes are wet at the end of the cycle	Filter is clogged or grill is upside down	Clean the lint filter. Insert the grill with the holes on the right side.
	Door gasket is damaged If the rubber door gasket is damaged, it leaves a gap in the door seal, affecting performance of the appliance. Call for service.
	Clothes caught in door Make sure all items are completely in the cabinet and not stuck in the door, blocking it from closing completely. Run the cycle again.
Odor is not removed at end of cycle	Clothes were stored for a long period of time or are stained with a strong-smelling substance	Odors can be particularly difficult to remove from clothes that have been stored for long periods or have strong-smelling, oily stains. Wash the clothes first, before using the Styler.
Wrinkles are not reduced at end of cycle	Clothes were stored for a long period of time	Wrinkles may be very difficult to reduce if set for a long time, especially in cotton and linen fabrics. Iron clothes that have been stored for a long period of time before treating them with the Styler, to reduce wrinkles more effectively.
Clothes have an unpleasant odor at end of cycle	Appliance has not been used for a long time or water tanks and filters have not been cleaned	Check for dirt or foreign objects in the water supply and water drain tanks. Clean the filters and water tanks.
Functions are not operating properly	Detergent or fabric softener put in water supply tank	Do not use anything but clean water in the water supply tank.

Performance

Problem Possible Cause Solutions
Wrinkles at back of neck after cycle	Item too large for hanger or fabric too delicate	Use the right size hanger for the item so the fabric won't bunch up and cause wrinkles. Some fabrics are delicate and will bunch around the hanger no matter what you do. Use the shelf for lingerie and other delicate items.
Creases are gone from pants after cycle	Pants were hung on the moving hanger, not in the pants press	Hang pants in the pants press to maintain creases at edge of pants legs.
Clothing has water spots after cycle, color has faded or run	Fabric is not washable, or is not colorfast	Check fabric care labels before treating items. See Sorting Loads, page 21 and the Cycle Guide, page 31.

Error Codes

Problem Possible Cause Solutions
Fill Water icon is blinking	Water supply tank is empty or tank is missing	Fill the water supply tank and reinstall it.
Empty Water icon is blinking	Water drain tank is full or tank is missing	Empty the water drain tank and reinstall it.
dE Error is blinking	Door is not completely closed	Check that items are completely inside the cabinet and that the door is tightly closed.
AE, LE, LE2, E1, E4, TE1, TE2, TE3, TE5 shows on the display.	System error Unplug the appliance and call for service.

LG STYLER LIMITED WARRANTY (USA)

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.NTY:

WARRANTY:

LG Electronics U.S.A., Inc. ("LG") warrants your LG Styler ("product") against defect in materials or workmanship under normal household use, during the warranty period set forth below, LG will, at its option, repair or replace the product. This limited warranty is valid only to the original retail purchaser of the product, is not assignable or transferrable to any subsequent purchaser or user, and applies only when the product is purchased through an LG authorized dealer or distributor and used within the United States ("U.S.") including U.S. Territories.

Note: Replacement products and repair parts may be new or factory-remanufactured and are warranted for the remaining portion of the original unit's warranty period or ninety (90) days, whichever is longer. Please retain dated receipt or delivery ticket as evidence of the Date of Purchase for proof of warranty (you may be required to submit a copy to LG or authorized representative).

Period Two (2) year from date of original retail purchase:		Ten (10) years from date of original retail purchase:
Scope of Warranty Any internal /functional parts and labor		Inverter Compressor
Remark	LG will provide parts and labor to repair or replace defective parts.	Parts only. Customer will be responsible for any labor or in-home service to replace defective parts.

HOW SERVICE IS HANDLED: In-Home Service

In-home service will be provided, as available, during the warranty period subject to servicer availability within the U.S. To receive in-home service, the product must be unobstructed and accessible to service personnel. If the in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home service is unavailable, LG may elect, at its option, to provide for transportation of the product to and from an LG authorized service center.

THIS LIMITED WARRANTY DOES NOT COVER:

1 Service trips to deliver, pick up, or install the product or for instruction on product use.
2 Replacing house fuses or resetting of circuit breakers, correction of house wiring or plumbing, or correction of product installation.
3 Damage or failure caused by leaky/ broken/ frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
4 Damage or failure caused by accidents, pests and vermin, lightning, wind, fire, floods or acts of God.
5 Damage or failure resulting from misuse, abuse, improper installation, repair or maintenance. Improper repair includes use of parts not approved or specified by LG.
6 Damage or failure caused by unauthorized modification or alteration to the product.
7 Damage or failure caused by incorrect electrical current, voltage, or plumbing codes.
8 Cosmetic damage, including scratches, dents, chips or other damage to the finish of the product, unless such damage results from defects in materials or workmanship and is reported to LG within seven (7) calendar days from the date of delivery.
9 Damage or missing items to any display, open box, discounted, or refurbished product.
10 Product where the original factory serial numbers have been removed, defaced or changed in any way.
11 Repairs when product is used in other than normal and usual household use (e.g. rental, commercial use, offices, or recreational facilities) or contrary to the instructions outlined in the owner's manual.
12 The removal and reinstallation of the Product if it is installed in an inaccessible location.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING AND WITHOUT LIMITATION TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, THIS WARRANTY IS LIMITED IN DURATION TO THE TERM PERIOD EXPRESSED ABOVE. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CUSTOMER. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING AND WITHOUT LIMITATION TO, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

HOW TO OBTAIN WARRANTY SERVICE & ADDITIONAL INFORMATION:

Call 1-800-243-0000

Visit our website at www.lg.com

Mail LG Customer Information Center

(ATTN: CIC)

201 James Record Road

Huntsville, AL 35824

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

PROCEDURE FOR RESOLVING DISPUTES:

ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 1000 Sylvan Ave, Englewood Cliffs 07632. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association ("AAA") and will be conducted before a single arbitrator under the AAA's Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the "AAA Rules") and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 1000 Sylvan Avenue Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds \25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either: (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on "Find My Model & Serial Number").

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

LG STYLER LIMITED WARRANTY (CANADA)

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

WARRANTY:

Should your LG Styler ("Product") fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada. Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.

Period	Two (2) year from the date of original retail purchase	Ten (10) years from the date of original retail purchase
Scope of Warranty P	Parts and Labor (internal/functional parts only) Inverter Compressor
Remark Styler		Extended Component Warranty (Parts Only)(Consumer will be charged for Labor after Two (2) year from the date of purchase)

▶Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

▶Replacement products and parts may be new or remanufactured.

▶Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

LG Canada's sole liability is limited to the warranty set out above. Except as expressly provided above, LG Canada makes no and hereby disclaims all other warranties and conditions respecting the product, whether express or implied, including, but not limited to, any implied warranty or condition of merchantability or fitness for a particular purpose, and no representations shall be binding on LG Canada. LG Canada does not authorize any person to create or assume for it any other warranty obligation or liability in connection with the product. To the extent that any warranty or condition is implied by law, it is limited to the express warranty period above. LG Canada, the manufacturer or distributor shall not be liable for any incidental, consequential, special, direct or indirect damages, loss of goodwill, lost profits, punitive or exemplary damages or any other damage, whether arising directly or indirectly from any contractual breach, fundamental or otherwise, or from any acts or omissions, tort, or otherwise.

This warranty gives you specific legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws.

Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty's terms.

This limited warranty does not cover:

1 Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or correction of wiring, or correction of unauthorized repairs/installation.
2 Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3 Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
4 Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner's manual.
5 Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6 Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not approved or specified by LG Canada.
7 Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation.
8 Damage or Product failure caused by incorrect electrical current, voltage, commercial or industrial use, or use of accessories, components, or cleaning products that are not approved by LG Canada.
9 Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10 Damage or missing items to any display, open box, discounted, or refurbished Product.
11 Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.
12 Increases in utility costs and additional utility expenses.
13 Replacement of light bulbs, filters, or any consumable parts.
14 Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in offices or recreational facilities) or contrary to the instructions outlined in the Product owner's manual.
15 Costs associated with removal of the Product from your home for repairs.
16 The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the Product owner's and installation manuals.
17 Accessories to the Product such as lid bins, drawers, handles, shelves, etc. Also excluded are parts besides those that were originally included with the Product.

All costs associated with the above excluded circumstances shall be borne by the consumer.

For complete warranty details and customer

assistance, please call or visit our website:

Call 1-888-542-2623 (7 A.M to 12 A.M., 365 days a year) and select the appropriate option from the menu,

or visit our website at http://www.lg.com

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

PROCEDURE FOR RESOLVING DISPUTES(FOR CANADIAN PRODUCTS):

EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG's receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds \25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.

Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out;" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and

(d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/support/repair-service/schedule-repair and clicking on "Find My Model & Serial Number").

In the event that you "Opt Out", the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement ("EUL A") in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

MANUEL DU PROPRIÉTAIRE STYLER

CARACTÉRISTIQUES DU PRODUIT

Refresh

*Remote Start

ÉLIMINER LES ODEURS

Isometric view of a rectangular metal tray with horizontal slats (no text or symbols)

3D rendering of a rectangular tray with rounded ends and a central slot (no text or symbols)

Two grayscale clothing hangers with curved handles and side slots (no text or symbols visible)

Illustration of two clothes hanging from a wardrobe, showing front and back views with directional arrows (no text or symbols)

Diagram of a door with an arrow indicating a directional change, showing no text or symbols present.

Illustration of a teddy bear and a yellow hat on a tray, no text or symbols present

Mechanical diagram showing two connected lever mechanisms with directional arrows indicating motion (no text or symbols)

Nivelez le Styler.

Diagram showing two mechanical components with arrows indicating movement or assembly (no text or symbols)

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

CARACTÉRISTIQUES DU PRODUIT

Illustration of a white rectangular device with a large black prohibition symbol below, indicating no restrictions or prohibition against the device (no text present)

REMARQUE

Mechanical linkage diagram showing two vertical arms with directional arrows indicating movement (no text or symbols)

Simple line drawing of a vertical ladder and horizontal platform with wheels (no text or symbols)

Close-up of a car's front wheel and side seat on textured fabric (no visible text or symbols)

Diagram of a door frame with a metal bracket and an arrow pointing to the side (no text or symbols)

Illustration of a hand pressing down on a door panel (no text or symbols visible)

Diagram of a device with an open lid and a button, no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Pure mechanical component diagram without any text, numbers, or symbols

FONCTIONNEMENT

AVANT L'UTILISATION

Nettoyez le Styler.

Illustration of a beige coat with double button design, displayed on a hanger (no text or symbols)

Illustration of a cleaning board with a brush applying mist (no text or symbols)

1 PRÉPAREZ LES ARTICLES

Illustration of two hands pouring liquid from a water bottle into a container (no text or symbols)

Illustration of a girl opening a refrigerator with clothes hanging (no text or symbols)

3 VÉRIFIEZ LES RÉSERVOIRS D'EAU

Illustration of hands using a tool to apply or install a rectangular object (no text or symbols visible)

Illustration of a hand using a tool to press down an air conditioner cover (no text or symbols visible)

Illustration of a hand holding a small object with a red arrow pointing to it, no text or symbols present.

Illustration of a hand pressing down on a ventilation grille (no text or symbols)

Front view of a white rectangular air conditioner unit with ventilation grilles and a handle (no text or symbols visible)

Illustration of a rectangular electronic device with ventilation slots and a handle (no text or symbols)

Fermé

Diagram of a device casing with internal compartments and a directional arrow (no text or symbols)

Ouvert

Illustration of two gray coat hangers with different designs and buttons, shown side by side (no text or symbols)

Two diagrams showing a hanger mechanism with rotation arrows, no text or symbols present

Diagram of a vertical structure with a hanging hook and internal color gradient, no text or symbols present

Diagram of a crane lifting a box, showing mechanical components and directional arrows (no text or symbols)

Interior view of a modern wardrobe with two clothes hanging, one open and one closed (no text or symbols visible)

Diagram of a door with an arrow indicating direction, showing internal components and a hook symbol (no text or labels)

Illustration of a hand holding a vertical object with arrows indicating movement or force, no text or symbols present.

Diagram of a cylindrical device with internal components and directional arrows, no visible text or symbols

Étagère

3D diagram of a rectangular frame with internal partitions and an upward arrow, no text or symbols present

Illustration of two kitchen utensils on a rectangular plate (no text or symbols)

Illustration of an open box filled with colorful items, symbolizing food delivery or storage (no text or symbols present)

PANNEAU DE CONTRÔLE

① ICÔNE SMART DIAGNOSIS ^MC

② MISE SOUS/HORS TENSION

	Downloaded	Heavy Duty	Time Dry

When the cycle is complete or the appliance has problems, you have the option of receiving push notifications on a smart phone.

Smart Diagnosis ^MC

Illustration of hands holding a blue plastic container with a tool, no text or symbols present

Illustration of a hand inserting a blue plastic bag into a white rack inside a computer (no text or symbols visible)

DÉPANNAGE

FOIRE AUX QUESTIONS

Isometric view of a rectangular metal tray with horizontal slats (no text or symbols)

3D rendering of a rectangular tray with rounded ends and horizontal lines (no text or symbols)

Illustration of two pairs of hairless hangers with clips (no text or symbols)

2 colgadores* Colgadores de pantalones*

Illustration of two clothes hanging from a wardrobe, showing front and back views with directional arrows (no text or symbols)

Diagram of a door lock mechanism with an arrow indicating clockwise motion (no text or symbols present)

Illustration of a teddy bear and a hat on a tray, no text or symbols present

Illustration of a building with a large 'no' symbol and motion lines, no text or symbols present.

NOTA

Mechanical linkage diagram showing two vertical arms with directional arrows indicating movement (no text or symbols)

Simple line drawing of a mechanical platform with wheels and vertical supports (no text or symbols)

Close-up of a bolt and screw assembly on textured fabric (no visible text or symbols)

Two technical diagrams showing a door frame installation with a ladder and a stair (no text or symbols present)

Two identical white rectangular panels with rounded corners and a small protrusion, no text or symbols visible.

Two technical diagrams showing a mechanical assembly with no visible text or symbols

Two technical diagrams showing structural components with no visible text or symbols

Illustration of a beige coat with double button design, displayed on a hanger (no text or symbols)

Illustration of a tiled floor with a sponge and cloud above it, no text or symbols present.

Illustration of two hands pouring liquid from a water bottle into a container (no text or symbols)

Illustration of a girl opening a refrigerator with a jacket (no text or symbols visible)

Three-panel illustration showing a hand holding a rack, a grid of air filters, and a rectangular panel (no text or symbols)

Illustration of hands using a tool to adjust or install a rectangular object (no text or symbols visible)

Illustration of a hand pressing down on an air conditioner cover (no text or symbols visible)

Illustration of a hand holding a small object with a red arrow pointing to it, no text or symbols present.

Hand pressing down on a ventilation grille (no text or symbols visible)

Front view of a white air conditioner unit with ventilation grilles and a handle (no text or symbols visible)

Illustration of a rectangular electronic device with ventilation slots and a handle (no text or symbols)

Diagram of a device with a handle and internal compartments, no text or symbols present

CerradoAbierto

Illustration of two gray men's coat hangers with different designs and pockets, one holding a hanger and the other with a crossed-out pocket (no text or symbols)

Two diagrams showing a mechanical or structural change, one with rotational arrows and another with a hook (no text or symbols)

Diagram of a vertical structure with a hanging hook and internal components, no visible text or symbols

Diagram of a mechanical assembly with a hook and directional arrows (no text or symbols)

Illustration of a pair of clothes hanging from an open refrigerator door (no text or symbols visible)

Diagram of a door with an arrow indicating direction, showing internal components and a small figure on top (no text or symbols)

Simple line drawing of a hook attached to a base, with no text or symbols present.

Illustration of a hand holding a spring scale inside a cabinet, with arrows indicating measurement or force direction (no text or symbols present)

Diagram of a mechanical device with internal components and mounting bracket (no text or symbols)

Estante

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a front panel and side panel (no text or symbols)

Illustration of two fork-like objects placed on a rectangular plate (no text or symbols)

Illustration of an open box filled with colorful items and a large 'no' symbol in the background (no text or symbols on the box itself)

PANEL DE CONTROL

① ICONO DE SMART DIAGNOSISTM

Illustration of hands holding a blue plastic container with a tool, no text or symbols present

Illustration of a hand inserting a blue plastic bag into a white rack (no text or symbols visible)

201 James Record Road

Huntsville, AL 35824

For inquiries or comments, visit www.lg.com or call:

1-800-243-0000

USA, Consumer User

1-888-865-3026

USA, Commercial User

1-888-542-2623

CANADA

Register your product Online!

www.lg.com
