JUB24FLECX - Fridge JENN-AIR - Free user manual and instructions

Product Type	Beverage Refrigerator / Wine Cellar
Brand	JENN-AIR
Model	JUB24FLECX
Dimensions (H x W x D)	1214 mm x 606 mm x 606 mm (with decorative panel)
Depth with door open at 90°	664 mm
Capacity	Two independent temperature compartments
Upper temperature range	From 33°F to 40°F (from 0°C to 4°C)
Lower temperature range	From 42°F to 64°F (from 5°C to 17°C)
Temperature presets	Beverage, Assorted, Red Wine, White Wine, Champagne, Sweet Wine
Electrical supply	115 V, 60 Hz, 15 A or 20 A, grounded
Power cord length	1.52 m (60 inches)
Interior lighting	Automatic LED with motion sensor
Special features	Sabbath mode, door open alarm, temperature overtemperature alarm, lock mode
Exterior material	Stainless steel (compatible with custom decorative panel)
Installation	Built-in, adjustable leveling feet, decorative panel kit included
Maintenance	Monthly interior cleaning, condenser cleaning every 2 months
Warranty	2 years parts and labor, 3-5 years on sealed system (depending on conditions)

Frequently Asked Questions - JUB24FLECX JENN-AIR

How to adjust the temperature of my JENN-AIR JUB24FLECX refrigerator?

Use the + and - buttons on the touch control panel. The upper compartment adjusts from 33°F to 40°F (0°C to 4°C), the lower compartment from 42°F to 64°F (5°C to 17°C). Wait at least 24 hours between adjustments.

What should I do if my refrigerator does not start?

Check that the cord is plugged into a grounded 3-prong outlet. Ensure the circuit breaker has not tripped and that Cool Off mode is not activated. Press COOL ON for 3 seconds to start.

How to install a custom decorative panel?

Remove the door seal from the door corners, then the screws. Attach the panel using the provided M4 x 14 wood screws (8 screws). Replace the seal. The panel must weigh less than 4.54 kg (10 lb) and have a thickness of 19 mm (3/4 in).

Are the noises from the appliance normal?

Yes. Gurgling, clicking, vibration, or compressor sounds are normal. The refrigerator may run longer to maintain temperature. Refer to the Normal Sounds section in the manual.

How to clean the interior of the refrigerator?

Unplug the appliance. Remove the trays and wash them in warm soapy water. For the interior, use a solution of warm water and baking soda (2 tablespoons per 1 liter of water). Do not use abrasive cleaners.

What does Sabbath mode mean?

Sabbath mode disables the control panel lights, interior lights, and audible signals while maintaining temperature. To activate, press SABBATH for 3 seconds. To deactivate, repeat the same operation.

How to adjust the leveling foot?

Turn the leveling feet to the right to lower the appliance, to the left to raise it. Adjust the tilt so the door closes easily. Use two people to move the appliance.

Why is there humidity inside?

Humidity may come from frequent door opening or high ambient humidity. Try to limit openings and check that the door closes properly. This is normal in a humid room.

How to activate lock mode?

Press LOCK for 3 seconds. All options except Cool On, Cool Off, and Lock will be disabled. To unlock, repeat the same operation.

Where to find the serial and model numbers?

The serial and model numbers are on the rating plate inside the refrigerator, usually on the side wall or behind the base grille. Keep them handy for service.

USER MANUAL JUB24FLECX JENN-AIR

JENN-AIR® BEVERAGE CENTER/

REFRIGERADOR PARA BEBIDAS/

RÉFRIGÉRATEUR POUR BOISSONS

For questions about features, operation/performance, parts, accessories, or service, call:

1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

In Canada, call: 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.ca.

MANUAL DE USO Y CUIDADO

Location Requirements....4

Product Dimensions....4

Custom Overlay Panel 5

Custom Handle (optional) 6

Electrical Requirements 6

INSTALLATION INSTRUCTIONS....6

Unpack the Beverage Center....6

Install Custom Overlay Panel....7

Door Closing....8

BEVERAGE CENTER USE....9

Normal Sounds....9

Using the Controls....9

Beverage/Wine Racks....11

Stocking the Beverage Center....11

BEVERAGE CENTER CARE ....11

Base Grille ....11

Cleaning....12

Vacation and Moving Care....12

TROUBLESHOOTING ....13

ASSISTANCE OR SERVICE....14

In the U.S.A. 14

In Canada 14

WARRANTY 15

ÍNDICE

ASSISTANCE OU SERVICE....43

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your beverage center, follow these basic precautions:

■ Plug into a grounded 3 prong outlet.
■ Do not remove ground prong.
■ Do not use an adapter.
■ Do not use an extension cord.
■ Disconnect power before servicing.
■ Replace all parts and panels before operating.

■ Remove door or drawer(s) from your old refrigerated appliance.
■ Use nonflammable cleaner.
- Keep flammable materials and vapors, such as gasoline, away from beverage center.
■ Use two or more people to move and install beverage center.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

Proper Disposal of Your Old Refrigerated Appliance

WARNING

Suffocation Hazard

Remove door or drawer(s) from your old refrigerated appliance.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned beverage centers are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old beverage center, please follow these instructions to help prevent accidents.

Before You Throw Away Your Old Refrigerated Appliance:

■ Take off the door.
■ Leave the racks and shelves in place so that children may not easily climb inside.

Illustration of a stack of documents or folders with one sheet open, no visible text or symbols

Important information to know about disposal of refrigerants:

Dispose of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation

Tools Needed

■ Phillips screwdriver

Parts Needed

■ Custom Overlay Door Panel—See “Overlay Panel—Rear View.”

■ Hardware (Optional)

Parts Supplied

■ M4 x 14 wood screws (8)

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from beverage center.

Failure to do so can result in death, explosion, or fire.

NOTES:

■ For the beverage center to be flush with the front of the base cabinets, remove any baseboards or moldings from the rear of the opening. See “Product Dimensions” and later in this section “Opening Dimensions.”
■ It is recommended that you do not install the beverage center near an oven, radiator, or other heat source.
■ Do not install in a location where the temperature will fall below 55^ F ( 13^ C). For best performance, do not install the beverage center behind a cabinet door or block the base grille.

1/4" (6.35 mm) 2½" (63.5 mm)

Opening Dimensions

■ Height dimensions are shown with the leveling legs extended to the minimum height.
NOTE: When leveling legs are fully extended, add 58 " (15 mm) to the height dimensions. See "Product Dimensions."
■ If the floor of the opening is not level with the kitchen floor, shim the opening to make it level with the kitchen floor.

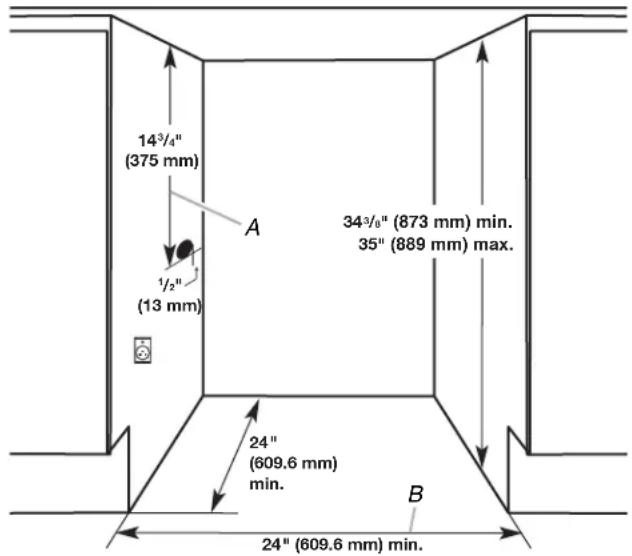

14³/⁴" (375 mm) A 34³/⁸" (873 mm) min. 35" (889 mm) max. 1½" (13 mm) 24" (609.6 mm) min. 24" (609.6 mm) min. B

Critical Dimensions:
A.14 34 " (375 mm) utility opening
B.24" (609.6 mm) minimum opening width

Product Dimensions

■ Height dimensions are shown with the leveling legs NOT extended.
■ The power cord is 60" (1.52 m) long.

Front View

30½" (766 mm) 34½" (868 mm) 34³/₈" (874 mm)

Side View (door open 90°)

47³/⁴" (1214 mm) 26 ¹/⁸" (664 mm)

Top View

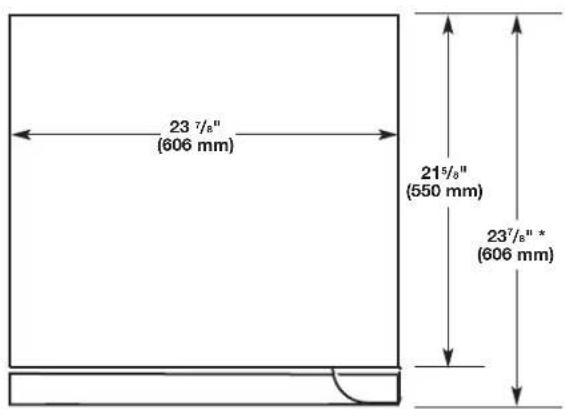

23 7/8" (606 mm) 215/8" (550 mm) 237/8" * (606 mm)

*Dimension includes 3/4'' (19 mm) thick custom door panel

Custom Overlay Panel

If you plan to install a custom overlay panel, you will need to create the panel yourself or consult a qualified cabinetmaker or carpenter. See dimension drawings for panel specifications.

IMPORTANT:

■ The thickness of the overlay panel must be 34 " (19 mm).
■ Overlay panel must not weigh more than 10 lbs (4.54 kg).
■ Overlay panels weighing more than recommended may cause damage to your appliance.

Overlay Panel—Rear View

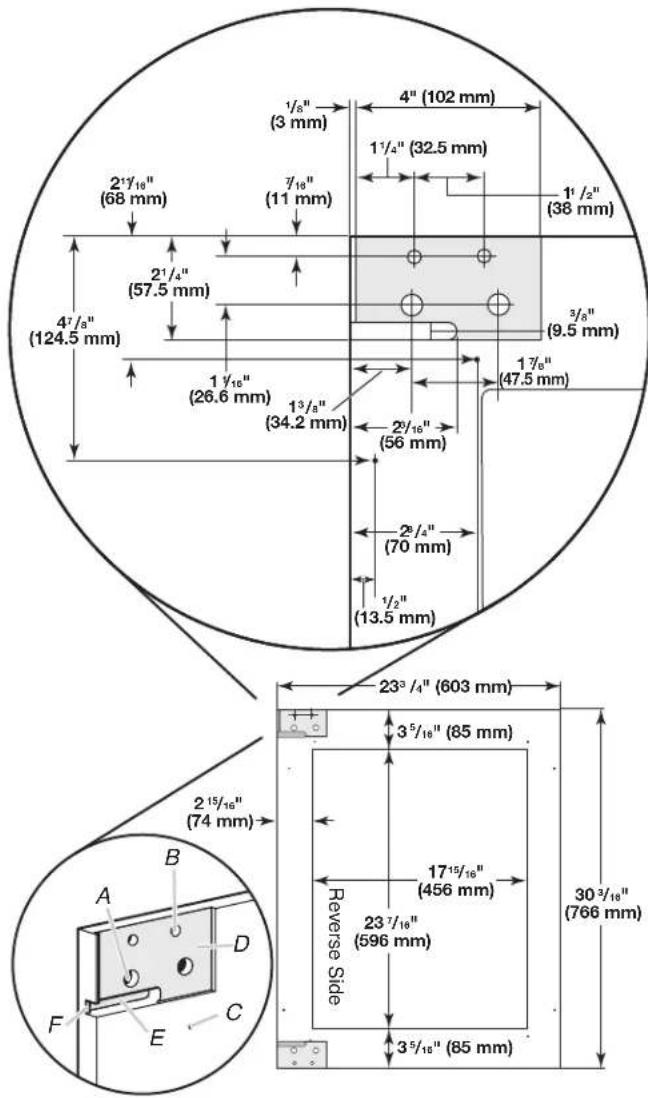

Create the custom overlay panel using the dimensions shown.

IMPORTANT: The following graphic shows a custom panel for a door with the hinges installed on the right-hand side. If your beverage center has the hinges installed on the left-hand side, rotate the custom frame 180° so the hinge markings will be on the left.

2½/16" (68 mm) 4½/8" (124.5 mm) 2½/4" (57.5 mm) 1½/16" (26.6 mm) 1³/8" (34.2 mm) 2½/16" (56 mm) 2½/4" (70 mm) 1½/2" (13.5 mm) 4" (102 mm) 1½/4" (32.5 mm) 1½/2" (38 mm) 3/8" (9.5 mm) 1½/8" (47.5 mm) 23³/4" (603 mm) 3⁵/16" (85 mm) 2½/16" (74 mm) 17¹⁵/16" (456 mm) Reverse Side 23²/16" (596 mm) 3⁵/16" (85 mm) 30³/16" (766 mm)

A. Drill holes using 13 " (12 mm) drill bit to a depth of 12 " (13 mm) before routing (4 holes total).
B. Drill holes using a 516 " (8 mm) drill bit to a depth of 12 " (13 mm) before routing (4 holes total).
C. Drill holes using a 18 " (2.8 mm) drill bit to a depth of 12 " (13 mm) before routing (8 holes total).
D. Rout shaded areas to a 316 " (4.3 mm) depth.
E. Rout shaded areas to a 316 " (15 mm) depth.
F. Rout these small areas to a 716 (11 mm) depth.

Custom Handle (optional)

Custom handles are typically attached to the custom overlay door panel only. There are two custom handle locations provided on the beverage center where the handle may be attached through the custom overlay door panel and to the inside of the beverage center door for enhanced stability. The two locations provided accommodate popular kitchen cabinet pull/handle sizes of 8" (203 mm) and 6¼" (160 mm).

1. Follow the instructions to make the custom overlay panel.
2. See the following dimension drawings for custom handle specifications.
3. Drill custom handle holes to match the size of your custom handle—8" (203 mm) or 6 ^1/4 " (160 mm).
4. Install custom handle before installing overlay panel on beverage center door.

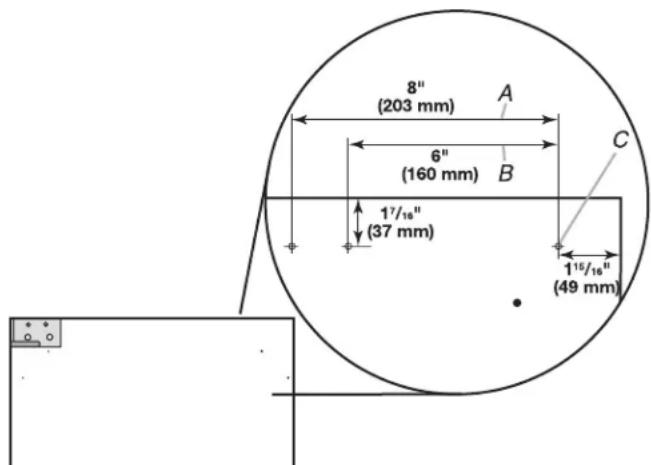

8" (203 mm) 6" (160 mm) 17/16" (37 mm) 115/16" (49 mm)

A. 8" (203 mm) handle holes

B. 6" (160 mm) handle holes

C. Drill holes using a 316 " (4.5 mm) drill bit (2 holes)

NOTE: Custom handles that are placed in a different location (see preceding drawing) or are not the recommended size (8" [203 mm] or 6¼" [160 mm]) need to be installed on the door panel with countersunk holes, and installed before the custom overlay door panel has been installed on the beverage center door.

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Before you move your beverage center into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 volt, 60 Hz., AC only, 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your beverage center be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, unplug beverage center or disconnect power.

INSTALLATION INSTRUCTIONS

Unpack the Beverage Center

WARNING

Excessive Weight Hazard

Use two or more people to move and install beverage center.

Failure to do so can result in back or other injury.

Remove the Packaging

■ Remove tape and glue residue from surfaces before turning on the beverage center. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
- Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your beverage center. For more information, see “Beverage Center Safety.”

■ Dispose of/recycle all packaging materials.

When Moving Your Beverage Center:

Your beverage center is heavy. When moving the appliance for cleaning and service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the appliance straight out when moving it. Do not wiggle or "walk" the appliance when trying to move it, as floor damage could occur.

Clean Before Using

After you remove all of the package materials, clean the inside of your beverage center before using it. See the cleaning instructions in "Beverage Center Care."

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

Install Custom Overlay Panel

IMPORTANT:

■ Create custom overlay panel according to the specifications in the "Custom Overlay Panel" section.
■ Jenn-Air ^® is not responsible for the removal or addition of molding or decorative panels that would not allow access to the beverage center for service.

Install Custom Panel

1. Open the door completely to 90°.

Technical line drawing of a structural frame with 90-degree angle标注 (no text or symbols beyond measurement)

1. Remove the gasket from the corners of the door, pulling gently until the two screws in each corner of the door can be seen.

NOTE: The gasket does not have to be removed from the door, only the corners.

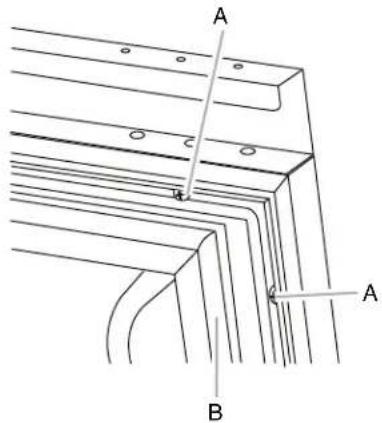

A A B

A. Screws
B. Gasket

Technical line drawing of a structural panel with mounting holes and bolted joints (no text or symbols)

1. Remove the four pairs of screws from the door.
2. Using two people, hold the custom overlay panel so that the holes in the back of the panel align with the holes on the door.

Diagram showing two views of a door frame with arrows indicating direction (no text or symbols)

NOTE: Custom handles that are placed in a different location (see the "Custom Handle (optional)" section) or are not the recommended size (8" [203 mm] or 6¼" [160 mm]) need to be installed on the door panel with countersunk holes, and installed before the custom overlay door panel has been installed on the beverage center door.

1. Fasten the custom panel to the door using two wood screws (provided in installation kit) at each corner.

NOTE: Do not use the same screws that were previously removed.

Technical diagram of a mechanical component with labeled parts A and a magnified inset showing detailed detail.

A. M4 x 14 wood screws (provided in installation kit)

1. Press the gasket firmly back into its original position.

Technical line drawing of a structural panel with multiple beams and holes, showing a black arrow pointing to a specific section (no text or symbols present)

1. For 8" (203 mm) or 6¼" (160 mm) custom handles, install the custom handle from the inside/back of the beverage center door using screws provided with the handle.

Technical line drawing of a mechanical bracket assembly with two bolts and a handle (no text or symbols)

Door Closing

Door Closing

Your beverage center has four leveling legs. If your beverage center seems unsteady or you want the door to close more easily, adjust the beverage center's tilt using the instructions below.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

WARNING

Excessive Weight Hazard

Use two or more people to move and install beverage center.

Failure to do so can result in back or other injury.

1. Move the beverage center into its final location.

2. Turn the leveling legs to the right to lower the beverage center or turn the leveling legs to the left to raise it. It may take several turns of the leveling legs to adjust the tilt of the beverage center.

NOTE: Having someone push against the top of the beverage center takes some weight off the leveling legs. This makes it easier to adjust the leveling legs.

Pure mechanical diagram showing a cylindrical component with rotational arrows, no text or symbols present

1. Open the door again to make sure that it closes as easily as you like. If not, tilt the beverage center slightly more to the rear by turning both front leveling screws to the left. It may take several more turns, and you should turn both leveling legs the same amount.

BEVERAGE CENTER USE

Normal Sounds

Your new beverage center may make sounds that your old one didn't make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, such as the flooring and surrounding structures, can make the sounds seem louder. The following describes the kinds of sounds and what may be making them.

■ Your beverage center is designed to run more efficiently to keep your food items at the desired temperatures and to minimize energy usage. The high efficiency compressor and fans may cause your beverage center to run longer than your old one. You may also hear a pulsating or high-pitched sound from the compressor or fans adjusting to optimize performance.
■ Rattling noises may come from the flow of refrigerant or items stored inside the beverage center.
■ As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your beverage center.
■ You may hear water running into the drain pan when the beverage center is defrosting.
■ You may hear clicking sounds when the beverage center starts or stops running.

Using the Controls

The control panel for the wine cellar is located on the middle separator (mullion) of the wine cellar. The control of the wine cellar has no mechanical parts or buttons. When disconnected, the control panel displays nothing and may be difficult to locate.

Technical line drawing of a front-mounted server unit with ventilation grilles and indicator lights (no text or symbols)

Turning Control On/Off

■ The first time that the beverage center is plugged in, the control will be in Cool Off mode. Cool On and Cool Off will be the only options that display.

■ Press COOL ON for 3 seconds to turn on the beverage center. All menus and recommended temperature settings will be displayed.

Cool On Light Light Lock Temperature ° 37 °C 50 °C Load Off Champagne Sweet White He/All See Richness

■ The left temperature and preset touch pads control the temperature of the upper compartment.
■ The right temperature and preset touch pads control the temperature of the lower compartment.

Viewing Celsius Temperatures

■ Press the F/C touch pad to toggle between displaying the temperature in degrees Fahrenheit and degrees Celsius. The corresponding indicator will illuminate.

+ 37 °F - UPPER °C F/C A

A.F/C touch pad

Adjusting the Control

When the beverage center is turned On for the first time, the temperature defaults to the recommended setting. There are two adjustable temperature controls, with one for each compartment.

+ 37 °F - °C UPPER F/C

■ To adjust set point temperatures, press “+” (plus) or “-” (minus) until the desired temperature setting is reached.

NOTE: The set point for the beverage center is 37^ F ( 3^ C) for the upper compartment and 50^ F ( 10^ C) for the lower compartment. The set point range for the upper compartment is 33^ F to 40^ F ( 0^ C to 4^ C) and 42^ F to 64^ F ( 5^ C to 17^ C) for the lower compartment.

The control is set correctly when your beverages are as cold as you like them.

NOTE: Wait at least 24 hours between adjustments for the beverage center to acclimate. Recheck the temperatures before making further adjustments.

Using Presets

For your convenience, your beverage center also has controls that are preset to recommended storage temperatures for specific beverages.

Beverage + 37 °F Party - UPPER °C F/C 50 + Red Wine White Wine - LOWER - Champaign Sweet Wine

Pressing any preset option will set the temperature to the recommended temperature for the specified beverages:

■ Beverage: 34°F (1°C)
■ Party: 37° (3°C)

■ Red Wine: 64°F (17°C)
■ White Wine: 50°F (10°C)
■ Champagne: 46°F (7°C)
■ Sweet Wine: 42°F (5°C)

Auto Light

The beverage Center has a sensor that will that will turn on the interior display light automatically when someone walks by. When motion is no longer detected, the interior display light will go off after 2 minutes.

■ Press the Auto Light option to activate this feature.

Cool On Auto Light Lock Cool Off

■ When the Auto Light is not activated, the interior display light will only turn on when the door is opened.

NOTE:

■ Leaving the light on for an extended period of time will slightly increase the temperature of the beverage center.
■ The light is an LED, which does not need to be replaced. However, if the LED does not illuminate when the door is opened, call Service to check the problem and replace if necessary. See “Assistance or Service” for contact information.

Sabbath Mode

Sabbath Mode is designed for the traveler or for those whose religious observances require turning off the lights. By selecting this feature, the temperature set points remain unchanged but the control panel lights, interior lights, and control audio turn off. For most efficient beverage center operation, it is recommended to exit the Sabbath Mode when it is no longer required.

Red Wine White Wine Hold 3 Sec Sabbath Champagne Sweet Wine

■ Press and hold SABBATH for 3 seconds to turn on the feature. After the 3-second countdown, the feature will activate and all other displays will turn Off.
■ Press and hold SABBATH for 3 seconds to turn off the feature and turn on the display.

Door Open

If the door is open longer than 5 minutes, an alarm will sound every 2 minutes until the door is closed or any control is pressed.

Over Temp Alarm

The Over Temperature feature is designed to let you know when the beverage center temperature rises above 70^ F ( 21^ C) for 4 hours or longer. The audio alarm will shut off automatically when the temperature returns to normal. To let you know an Over Temperature condition occurred, the indicator light will continue to flash until the Reset Alarm touch pad is pressed.

Hold 3 Sec Over Temp Sabbath Reset Alarm

If the over temperature condition is still present when an Over Temp reset is performed, the indicator light will continue to reactivate every 4 hours until the beverage center temperature is below 70^ F ( 21^ C).

NOTE: These features will not appear on your control unless your beverage center is over temperature and the alarm requires a reset.

Lock Mode

The Lock mode deactivates all other options to avoid any changes being made to your desired temperature settings.

Cool On Auto Light Lock Cool Off

■ To activate Lock mode, press and hold LOCK for 3 seconds. After the countdown, all other displays will turn off and become unavailable except Cool On, Cool Off and Lock.

Showroom Mode

This mode is used only when the beverage center is on display in a retail store. If you unintentionally turn on Showroom mode, Cool Off will light up on the display and the controls will appear to work. Exit Showroom mode by pressing and holding COOL ON and SABBATH at the same time for 3 seconds.

Beverage/Wine Racks

Remove and Replace Racks

NOTE: When storing large bottles or magnums, remove the rack directly above.

1. Pull the rack forward until it stops.
2. Lift up on the left-hand lever while pressing down on the right-hand lever to release the rack. Pull the rack forward and lift it up and out of the rack supports.

Technical diagram showing mechanical assembly with labeled component A and directional arrows indicating movement or force

A. Lever

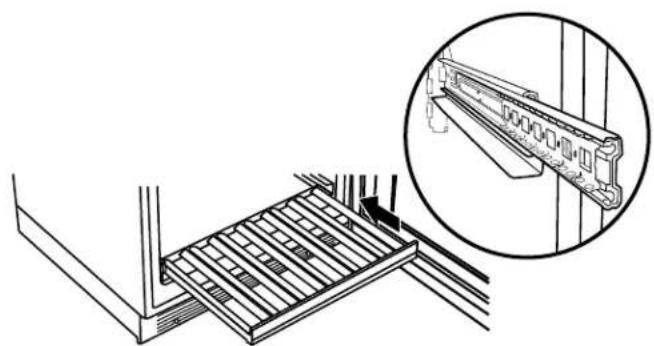

1. Replace the rack by inserting the rack into the supports and sliding it toward the rear of the beverage center.

Technical line drawing of a mechanical assembly with an inset showing a detailed view of a bracket (no text or symbols present)

Stocking the Beverage Center

NOTES:

■ For optimum wine storage, place white wines on the upper rack of the beverage center and place red wines on the lower rack of the beverage center.
■ The wine racks can be stocked with the bottles facing either direction, however, to optimize storage adjacent bottles should be facing in opposite directions.

To Stock the Beverage Center:

1. Starting on the left-hand side of the bottom rack, place the first bottle with the neck of the bottle facing the front of the beverage center.
2. Place the next bottle on the rack with the neck of the bottle facing the back of the beverage center. Alternate the direction of the bottles, in this manner, until the display rack is full.

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

1. Slide the bottom rack into place and pull the next rack forward. Stock the remaining rack as described in the previous steps.
2. Place juices, sodas or other canned beverages on the glass shelves.

BEVERAGE CENTER CARE

Base Grille

You must remove the base grille to access the condenser coils for cleaning.

To Remove the Base Grille:

1. Open the beverage center door.
2. Using a Phillips screwdriver, remove the two screws.
3. Push both tabs in toward the center to release the base grille from the cabinet and remove.

Technical line drawing of a ventilation duct with mounting brackets and a triangular support (no text or symbols)

A. Tabs B. Screws

To Replace the Base Grille:

1. Open the beverage center door.
2. Position the base grille so that both tabs align and the base grille snaps into place. Replace the two screws. Tighten the screws.

Cleaning

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Clean the beverage center about once a month to avoid buildup of odors. Wipe up spills immediately.

To Clean Your Beverage Center:

1. Unplug beverage center or disconnect power.
2. Remove all racks and shelves from inside the beverage center.
3. Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.

■ To avoid damaging wooden tines and trim pieces, wipe them off with a clean sponge or soft cloth and warm water. Do not use detergent or immerse the entire rack into water when cleaning.
■ Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools. These can scratch or damage materials.
■ To help remove odors, you can wash interior walls with a mixture of warm water and baking soda (2 tbs to 1 qt [26 g to 0.95 L] of water).

1. Wash stainless steel and painted metal exteriors with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners, or cleaners containing chlorine. These can scratch or damage materials. Dry thoroughly with a soft cloth.

NOTE: To keep your stainless steel beverage center looking like new and to remove minor scuffs or marks, it is suggested that you use the manufacturer's approved Stainless Steel Cleaner and Polish. To order the cleaner, see "Accessories."

IMPORTANT: This cleaner is for stainless steel parts only!

Do not allow the Stainless Steel Cleaner and Polish to come into contact with any plastic parts such as the trim pieces, dispenser covers or door gaskets. If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth.

1. Replace the racks and shelves.
2. Clean the condenser coils regularly. They are located behind the base grille. Coils may need to be cleaned as often as every other month. This may help save energy.

■ Remove the base grille. See "Base Grille."
■ Use a vacuum cleaner with an extended attachment to clean the condenser coils when they are dusty or dirty.
■ Replace the base grille.

1. Plug in beverage center or reconnect power.

Vacation and Moving Care

Vacations

If you choose to turn the beverage center off before you leave, follow these steps.

1. Remove all wine bottles from the beverage center.
2. Unplug the beverage center.
3. Clean the beverage center. See "Cleaning."
4. Tape a rubber or wood block to the top of the door to prop it open far enough for air to get in. This stops odor and mold from building up.

Moving

When you are moving your beverage center to a new home, follow these steps to prepare it for the move.

1. Remove all wine bottles from the beverage center.
2. Unplug the beverage center.
3. Clean, wipe, and dry it thoroughly.
4. Take out all removable parts, wrap them well, and tape them together so they don't shift and rattle during the move.
5. Tape the doors shut and tape the power cord to the beverage center.

When you get to your new home, put everything back and refer to the "Installation Instructions" section for preparation instructions.

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Your beverage center will not operate

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■ Is the power supply cord unplugged? Plug into a grounded 3 prong outlet.
■ Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit.
■ Is the Beverage Center Control in Control Off mode? See "Using the Controls."

The motor seems to run too much

Is the temperature outside hotter than normal? Expect the motor to run longer under warm conditions. At normal temperatures, expect your motor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more of the time.
Is the door opened often? Expect the motor to run longer when this occurs. In order to conserve energy, try to get everything you need out of the beverage center at once, keep wine bottles positioned label side up so that they are easy to find, and close the door as soon as the wine is removed.
■ Is the control set correctly for the surrounding conditions? See "Using the Controls."
Is the door closed completely? Push the door firmly shut. If it will not shut all the way, see "The door will not close completely" later in this section.
■ Are the condenser coils dirty? This obstructs air transfer and makes the motor work harder. Clean the condenser coils. See “Cleaning.”

Temperature is too warm

Is the door opened often? Be aware that the beverage center will warm when this occurs. In order to keep the beverage center cool, try to get everything you need out of the beverage center at once, keep wine bottles positioned label side up so that they are easy to find, and close the door as soon as the wine is removed.
■ Is the control set correctly for the surrounding conditions? See "Using the Controls."

Is the base grille blocked? For best performance, do not install the beverage center behind a cabinet door or block the base grille.

There is interior moisture buildup

Is the door opened often? To avoid humidity buildup, try to get everything you need out of the beverage center at once, keep wine bottles positioned label side up so that they are easy to find, and close the door as soon as the wine is removed. When the door is opened, humidity from the room air enters the beverage center. The more often the door is opened, the faster humidity builds up, especially when the room itself is very humid.
■ Is it humid? It is normal for moisture to build up inside the beverage center when the air is humid.
Is the control set correctly for the surrounding conditions? See "Using the Controls."

The door is difficult to open

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Is the gasket dirty or sticky? Clean the gasket and the surface that it touches. Rub a thin coat of paraffin wax on the gasket following cleaning.

The door will not close completely

Are the racks or shelves out of position? Put the racks or shelves back into their correct positions. See “Beverage Center Use” for more information.

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Is the gasket sticking? Clean the gasket and the surface that it touches. Rub a thin coat of paraffin wax on the gasket following cleaning.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check

“Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If You Need Replacement Parts

If you need to order replacement parts, we recommend that you only use factory specified replacement parts. Factory specified replacement parts will fit right and work right because they are made with the same precision used to build every new Jenn-Air® appliance.

To locate factory specified replacement parts in your area, call us or your nearest designated service center.

In the U.S.A.

Call the Jenn-Air Customer eXperience Center toll free: 1-800-JENNAIR (1-800-536-6247).

Our Consultants Provide Assistance With:

■ Features and specifications on our full line of appliances.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
■ Referrals to local dealers, repair parts distributors, and service companies. Jenn-Air designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States.

To locate the Jenn-Air designated service company in your area, you can also look in your telephone directory Yellow Pages.

For Further Assistance

If you need further assistance, you can write to Jenn-Air with any questions or concerns at:

Jenn-Air Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Jenn-Air Canada Customer eXperience Centre toll free: 1-800-JENNAIR (1-800-536-6247).

Our Consultants Provide Assistance With:

■ Features and specifications on our full line of appliances.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Referrals to local dealers, repair parts distributors, and services companies. Jenn-Air Canada designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For Further Assistance

If you need further assistance, you can write to Jenn-Air Canada with any questions or concerns at:

Jenn-Air Canada

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

JENN-AIR® REFRIGERATION LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■ Name, address and telephone number
■ Model number and serial number
■ A clear, detailed description of the problem
■ Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit https://jennair.custhelp.com.
2. All warranty service is provided exclusively by our authorized Jenn-Air Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Jenn-Air Customer eXperience Center

1-800-JENNAIR (1-800-536-6247)

https://jennair.custhelp.com

If outside the 50 United States or Canada, contact your authorized Jenn-Air dealer to determine whether another warranty applies.

FIVE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

TWO YEAR LIMITED WARRANTY

For two years from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Jenn-Air brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “Jenn-Air”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.

THIRD THROUGH FIFTH YEAR LIMITED WARRANTY ON CAVITY LINER AND SEALED REFRIGERATION SYSTEM

In the third through fifth years from the date of purchase, when this major appliance is installed, operated and maintained according to the instructions attached to or furnished with the product, Jenn-Air brand will pay for factory specified replacement parts and repair labor for the following components to correct non-cosmetic defects in materials and workmanship in this part that prevent function of the refrigerator and that existed when this major appliance was purchased:

■ Refrigerator/freezer cavity liner if the part cracks due to defective materials or workmanship.
■ Sealed Refrigeration system (includes compressor, evaporator, condenser, dryer and connecting tubing).

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Jenn-Air designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential or multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home Instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).
5. Defects or damage caused by the use of non-genuine Jenn-Air parts or accessories.
6. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Jenn-Air.
7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
8. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes unless such damage results from defects in materials and workmanship and is reported to Jenn-Air within 30 days.
9. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
10. Food or medicine loss due to product failure.
11. Pick-up or delivery. This product is intended for in-home repair.
12. Travel or transportation expenses for service in remote locations where an authorized Jenn-Air servicer is not available.
13. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
14. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Jenn-Air makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Jenn-Air or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. JENN-AIR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

12/14

Line drawing of a refrigerator with open lid and stacked shelves (no text or symbols)

30' /8" (766 mm) 34' /8" (868 mm) 343/8" (874 mm)

237/8" (606 mm) 215/8" (550 mm) 237/8"* (606 mm)

Technical line drawing of a structural panel with mounting holes and bolted joints (no text or symbols)

Diagram showing two views of a door frame with a black arrow indicating direction (no text or symbols)

Technical diagram of a door frame with labeled components and an inset magnified view showing detail details.

Technical line drawing of a structural panel with multiple notches and holes, showing a black arrow pointing to a specific section (no text or symbols present)

Technical line drawing of a mechanical bracket assembly with two bolts and a handle (no text or symbols)

Cierre de la puerta

Cierre de la puerta

Pure mechanical diagram showing a cylindrical component with rotational arrows indicating motion (no text or symbols)

Technical line drawing of a dual-chamber refrigerator unit with ventilation grilles (no text or symbols)

Control On/Off (Encendido/Apagado)

Technical diagram showing mechanical assembly with labeled component A and directional arrows indicating movement or force

A. Palanca

Technical line drawing of a structural ladder assembly with an inset showing a mechanical component (no text or symbols present)

Line drawing of an open refrigerator with multiple compartments and doors (no text or symbols)

Technical line drawing of a vehicle air duct system with no text or symbols

A. Lengüetas
B. Tornillos

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

https://jennair.custhelp.com

Illustration of a closed storage cabinet with a lid removed (no text or symbols)

30' /8" (766 mm) 34' /8" (868 mm) 343/8" (874 mm)

Technical line drawing of a structural frame with 90-degree angle标注 (no text or symbols beyond the angle marker)

Technical line drawing of a structural panel with mounting holes and bolted joints (no text or symbols)

Diagram showing two views of a door frame with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical frame assembly with an inset close-up view (no text or symbols)

Technical line drawing of a structural panel with multiple notches and holes, showing a black arrow pointing to a specific section (no text or symbols present)

Technical line drawing of a mechanical bracket assembly with no visible text or symbols

Pure diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Line drawing of a server rack unit with ventilation grilles and control panel (no text or symbols)

Technical diagram showing mechanical assembly with labeled component A and directional arrow

A. Manette

Technical line drawing of a structural panel assembly with an inset showing a mechanical component (no text or symbols present)

Line drawing of an open refrigerator with multiple shelves and doors (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

A. Onglets B. Vis

ASSISTANCE OU SERVICE

http://www.jennair.ca
