USER MANUAL Series 7000 S7910 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

S7000 series

Question? Contact Philips

Black-and-white photo of a Philips Series 7000 electric shaver with three rotary dials and power button (no text or symbols on body)

PHILIPS

Exploded diagram of a hairdryer with numbered parts for identification and assembly reference.

ENGLISH 4

DANSK 36

DEUTSCH 67

ΕΛΛΗΝΙΚΑ 101

ESPAÑOL 139

SUOMI 173

FRANÇAIS 205

ITALIANO 238

NEDERLANDS 272

NORSK 306

PORTUGUÊS 338

SVENSKA 372

TÜRKÇE 404

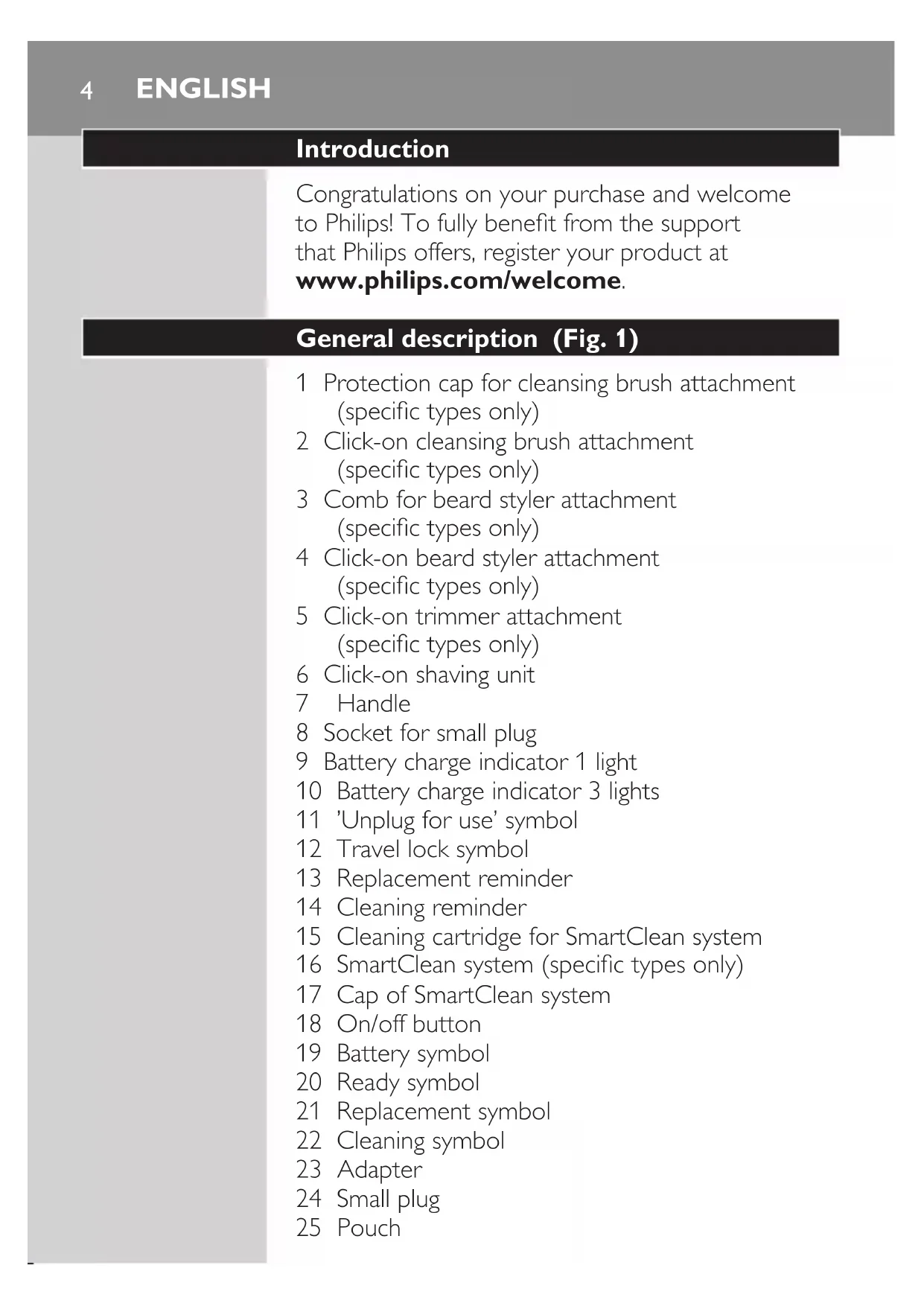

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

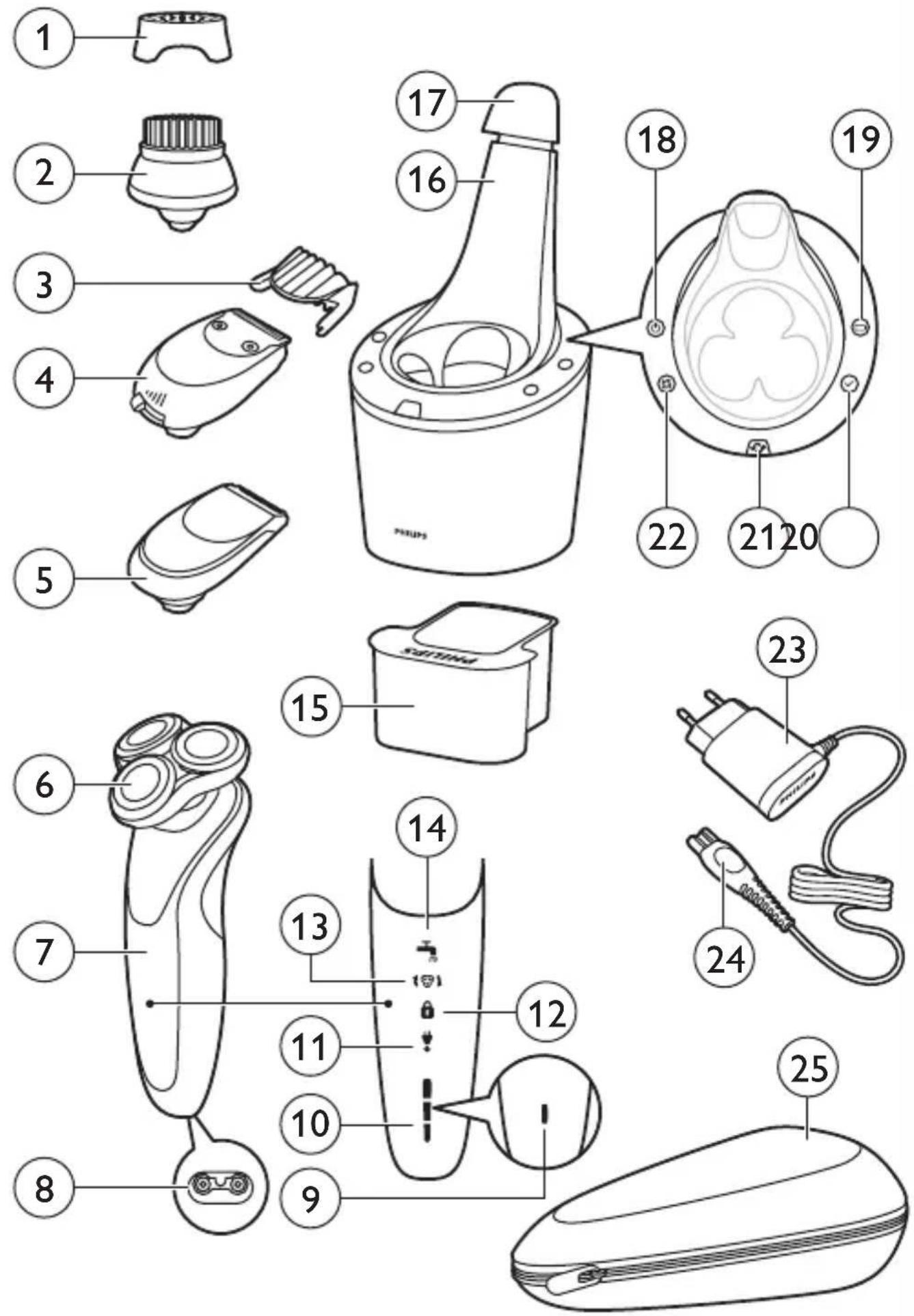

General description (Fig. 1)

1 Protection cap for cleansing brush attachment (specific types only)
2 Click-on cleansing brush attachment (specific types only)
3 Comb for beard styler attachment (specific types only)
4 Click-on beard stylister attachment (specific types only)
5 Click-on trimmer attachment (specific types only)
6 Click-on shaving unit
7 Handle
8 Socket for small plug
9 Battery charge indicator 1 light
10 Battery charge indicator 3 lights
11 'Unplug for use' symbol
12 Travel lock symbol
13 Replacement reminder
14 Cleaning reminder
15 Cleaning cartridge for SmartClean system
16 SmartClean system (specific types only)
17 Cap of SmartClean system
18 On/off button
19 Battery symbol
20 Ready symbol
21 Replacement symbol
22 Cleaning symbol
23 Adapter
24 Small plug
25 Pouch

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Always unplug the shaver before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Caution

• Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.
• Never use water hotter than 80^ C to rinse the shaver.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).
• Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.
• If your cleaning system uses a cleaning cartridge, always make sure that the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.
• When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.
• Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter.
• Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Electromagnetic fields (EMF)

- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.
• The appliance is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.
• Maximum noise level: Lc = 69dB(A)

The display

Charging

Battery charge indicator with 3 lights

• Charging takes approx. 1 hour.
• Quick charge: When the appliance is connected to the mains, the lights of the battery charge indicator light up one after the other continuously. When the appliance contains enough energy for one shave, the bottom light of the battery charge indicator starts flashing slowly.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, first the bottom light flashes and then lights up continuously. Then the second light flashes and then lights up continuously, and so on until the appliance is fully charged.

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object (no text or symbols present)

Diagram of a biological structure with a labeled point '0' and a starburst symbol (no text or symbols present)

Battery charge indicator with 1 light

• Charging takes approx. 1 hour.
• Quick charge: When the appliance does not contain enough energy for one shave, the battery charge indicator flashes fast. When the battery charge indicator starts to flash slowly, the appliance contains enough energy for one shave.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, the battery charge indicator flashes slowly.

Battery fully charged

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Note: This appliance can only be used without a cord.

Note: When the battery is full, the display switches off automatically after 30 minutes. If you press the on/off button during charging, the ‘unplug for use’ symbol flashes white to remind you that you have to disconnect the appliance from the mains.

When the battery is fully charged, all lights of the battery charge indicator light up continuously.

- Battery charge indicator with 3 lights

Diagram showing a biological or anatomical structure with a labeled point '0' pointing to a region within a larger oval.

- Battery charge indicator with 1 light

Battery low

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a small object, with no visible text or symbols.

When the battery is almost empty, the bottom light flashes orange.

- Battery charge indicator with 3 lights

Diagram showing a droplet inside a tube with a labeled point '0' and an arrow pointing to the droplet's center.

- Battery charge indicator with 1 light

Remaining battery capacity

Diagram of a medical or laboratory procedure showing a pointed tool inserted into a U-shaped tube with a magnified inset (no text or labels)

Battery charge indicator with 3 lights

- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously.

'Unplug for use' reminder

Diagram showing a plug symbol with a magnified view of the plug, likely indicating electrical hazard or electrical hazard.

- The appliance is equipped with an ‘unplug for use’ reminder. The ‘unplug for use’ starts to flash to remind you that you have to disconnect the appliance from the adapter before you can switch it on.

Cleaning reminder

For optimal shaving performance, we advise you to clean the shaver after every use.

- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

Medical diagram showing a surgical procedure with labeled component 'AIA' and a droplet symbol

Travel lock

3 sec.

You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

Diagram showing a human torso with a padlock icon and a starburst symbol, likely indicating a medical or health context.

Activating the travel lock

1 Press the on/off button for 3 seconds to enter the travel lock mode.

- While you activate the travel lock, the travel lock symbol lights up continuously. When the travel lock is activated, the travel lock symbol flashes.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

- The travel lock symbol flashes and then lights up continuously.

The shaver is now ready for use again.

Replacing shaving heads

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

For maximum shaving performance, we advise you to replace the shaving heads every two years.

- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up continuously.

Note: After replacing the shaving heads, you need to reset the replacement reminder by pressing the on/off button for 7 seconds.

Charging

Charging takes approx. 1 hour.

Note: This appliance can only be used without cord. Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging with the adapter

Diagram showing a plug connected to a device with labeled parts and directional arrows indicating connection points.

1 Insert the small plug into the appliance and put the adapter in the wall socket.

Charging in the SmartClean system (specific types only)

1 Put the small plug in the SmartClean system.
2 Put the adapter in the wall socket.

ENGLISH12

Diagram illustrating a mechanical or fluidic process with arrows indicating flow and a magnified inset showing a cross-section of a device or component.

3 Press down the top cap to be able to place the shaver in the holder ('click').

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

4 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Diagram illustrating foot movement and safety changes on a shoe, labeled with arrows and numbered parts

5 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate the shaver is charging.

Using the shaver

Switching the appliance on and off

Diagram showing a hand pressing a button labeled 'Power' with an arrow pointing to it, likely indicating a button or trigger.

1 To switch on the appliance, press the on/off button once.

2 To switch off the appliance, press the on/off button once.

- Battery charge indicator with 3 lights: The display lights up for a few seconds to show the remaining battery status.

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system.

We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.

Note: This appliance can only be used without cord.

Illustration of a person applying makeup to their ear (no text or symbols)

1 Switch on the appliance.
2 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

3 Clean the shaver after use (see chapter 'Cleaning and maintenance').

Wet shaving

You can also use this shaver in the shower or on a wet face with shaving foam or shaving gel.

To shave with shaving foam or shaving gel, follow the steps below:

Line drawing of a person's face with a hand touching the cheek area (no text or symbols)

1 Apply some water to your skin.
2 Apply shaving foam or shaving gel to your skin.

Illustration of a person applying a product to their ear (no text or symbols)

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

Illustration of a hand using a tool to lift a small object, no text or symbols present

4 Switch on the appliance.

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

5 Move the shaving heads over your skin in circular movements.
Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.
6 Dry your face and thoroughly clean the shaver after use (see chapter ‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

Using the click-on attachments

Diagram showing a hand holding a device with a circular top and a cross symbol, no text or labels present

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Removing or attaching the click-on attachments

1 Make sure that the appliance is switched off.

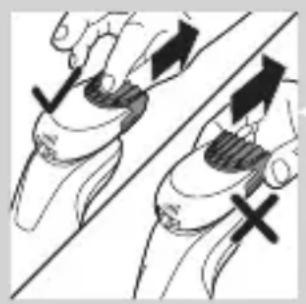

2 Pull the attachment straight off the appliance.

Note: Do not twist the attachment while you pull it off the appliance.

3 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Illustration of a funnel pouring liquid into a curved pipe, with an inset showing a magnified view of the tip (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a gear-like object (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Diagram showing a device emitting light onto a curved surface, with an inset close-up of its component (no text or symbols)

Line drawing of a hairbrush cutting into a circular cutter (no text or symbols)

Using the trimmer attachment

You can use the trimmer attachment to groom your sideburns and moustache.

1 Make sure the appliance is switched off.
2 Insert the lug of the trimmer attachment into the slot in the top of the appliance. Then press down the trimmer attachment to attach it to the appliance ('click').
3 Switch on the appliance.

4 You can now start trimming.

5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Using the beard styler attachment

1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the beard styler attachment with comb

You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. You can use it also to pre-trim any long hairs before shaving to have a more comfortable shave.

The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

1 Slide the comb straight into the guiding grooves on both sides of the attachment ('click').

Diagram showing two labeled parts (1 and 2) of a mechanical or fluid system with directional arrows indicating flow or movement.

2 Press the length selector and then push it to the left or right to select the desired hair length setting.
3 Switch on the appliance.
4 You can now start styling your beard by moving the attachment upwards with gentle pressure making sure the front of the comb is in full contact with the skin.
5 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Using the beard styler attachment without comb

You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline to a length of 0.5mm.

Illustration of a man with a beard eating a spoon (no text or symbols)

1 Pull the comb off the attachment.

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

Illustration of two hand positions with arrows indicating movement or force direction (no text or symbols)

2 Switch on the appliance.
3 You can now start contouring your beard, moustache, sideburns or neckline by moving the styler downwards with gentle pressure while holding it perpendicular to the skin.
4 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Illustration of a pipette dispensing liquid into a container with an inset showing a hand holding a small object (no text or symbols present)

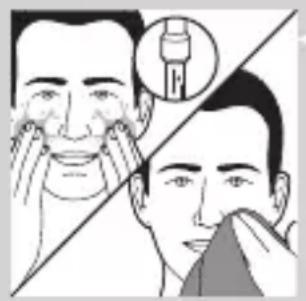

Using the cleansing brush attachment

Use the rotating cleansing brush attachment with your daily cleansing cream. The cleansing brush attachment removes oil and dirt, contributing to a healthy and oil-free skin.

1 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

2 Moisten the attachment with water. Do not use the appliance with a dry brush head, as this can irritate the skin.

Tip: Use the attachment before shaving for easier shaving and a more hygienic shaving result.

3 Moisten your face with water and apply a cleanser to your face.

4 Place the attachment on your right cheek.

5 Switch on the appliance.

6 Gently move the attachment across your skin from the nose towards the ear. Do not push the attachment too hard onto the skin to make sure the treatment remains comfortable.

7 After approx. 20 seconds you can move the appliance to your left cheek and start cleansing this part of your face.

Caution: Do not clean the sensitive area around your eyes.

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying makeup to their face with a tool, no text or symbols present

20 sec.

20 sec.

20 sec.

8 After approx. 20 seconds you can move the attachment to your forehead and start cleansing this part of your face. Gently move the brush head from left to right.

Note: We advise you to not overdo the cleansing and to not cleanse any zone longer than 20 seconds.

Illustration showing facial massage technique with magnified inset of a tool on the cheek

9 After the treatment, rinse and dry your face. Your face is now ready for the next step of your daily skincare routine.
10 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Cleaning and maintenance

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Cleaning the shaver in the SmartClean system (specific types only)

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Do not tilt the SmartClean system to prevent leakage.

Note: Hold the SmartClean system while you prepare it for use.

Note: If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Preparing the SmartClean system for use

1 Put the small plug in the back of the SmartClean system.
2 Put the adapter in the wall socket.
3 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.

Simple line drawing of a container with an upward arrow, no text or symbols present

4 Pull the seal off the cleaning cartridge.

Diagram of a blender with a black arrow indicating a process or action (no text or symbols present)

5 Place the cleaning cartridge in the SmartClean system.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Close-up of a mechanical component with a downward arrow and a prohibition symbol (no text or labels)

Using the SmartClean system

Always make sure to shake excess water off the shaver before you place it in the SmartClean system.

Diagram illustrating a mechanical or fluidic process with arrows indicating flow direction and a magnified inset showing a cross-section of a device.

1 Press down the top cap to be able to place the shaver in the holder ('click').

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

2 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Diagram illustrating foot movement and safety changes on a shoe, labeled with arrows and numbered sections

3 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate that the shaver is charging.

Hand holding two circular buttons with a power symbol, next to a device (no text or labels visible)

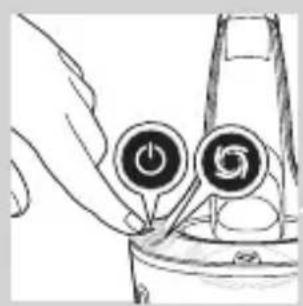

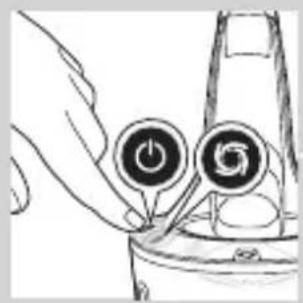

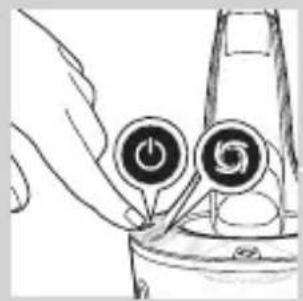

4 Press the on/off button on the SmartClean system to start the cleaning program.

- During the cleaning program (which takes approx. 10 minutes), the cleaning symbol flashes.

Illustration of a funnel-shaped container with two circular indicators showing check and no text (no readable symbols or text)

- When the cleaning program has been completed, the ready symbol lights up continuously. - The battery symbol lights up continuously to indicate that the shaver is fully charged. This takes approx. 1 hour.

Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts. In this case, the cleaning symbol stops flashing.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Ilo

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.

Note: 30 minutes after the cleaning program and charging have been completed, the SmartClean switches off automatically.

5 To let the shaver dry, you can leave it in the SmartClean system until your next shave. You can also remove the shaver from the SmartClean system, shake off excess water, open the shaving unit and let the shaver air dry.

Replacing the cartridge of the SmartClean System

Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the cleaning result. If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

1 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.

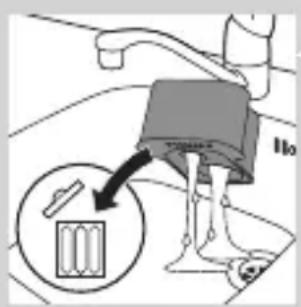

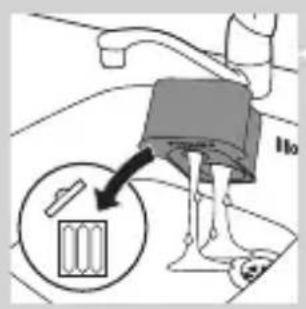

2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge.

You can simply pour the cleaning fluid down the sink.

3 Throw away the empty cleaning cartridge.
4 Unpack the new cleaning cartridge and pull the seal off the cartridge.

ENGLISH22

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

5 Place the new cleaning cartridge in the SmartClean system.

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal shaving performance.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

Illustration of a hand washing a small object with a tool, no text or symbols present

1 Rinse the shaving unit under a warm tap for some time.

Illustration of a hand holding a circular object with an arrow pointing to a three-pin connector (no text or symbols)

2 Pull the shaving head holder off the bottom part of the shaving unit.

Illustration of a hand pouring liquid into a container with a dropper (no text or symbols)

3 Rinse the shaving head holder under a warm tap for 30 seconds.

4 Carefully shake off excess water and let the shaving head holder dry.

Illustration of a hand holding a circular object with a downward arrow, next to a mechanical component (no text or symbols)

5 Reattach the shaving head holder to the bottom part of the shaving unit ('click').

Thorough cleaning method

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Make sure the appliance is switched off.

1 Pull the shaving head holder off the bottom part of the shaving unit.

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

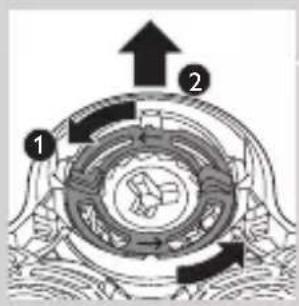

2 Turn the retaining rings anticlockwise and remove them.

Diagram showing a mechanical component with three circular parts and an arrow indicating rotation or movement (no text or symbols)

3 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

ENGLISH24

Diagram showing two mechanical components with fluid flow, no text or symbols present

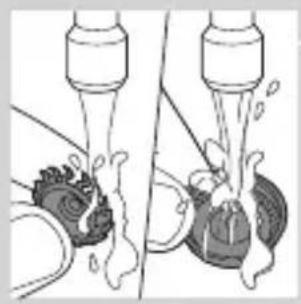

4 Clean the cutter and guard under the tap.

Mechanical gear assembly diagram showing a rotating shaft and gear teeth (no text or labels)

5 After cleaning, place the cutter back into the guard.

6 Put the shaving heads back into the shaving head holder.

Diagram showing a circular object being lifted by a downward arrow into a ring-like structure (no text or symbols)

Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving-head holder.

Technical diagram showing a mechanical or electrical component with labeled parts 1 and 2, indicating directional flow or movement.

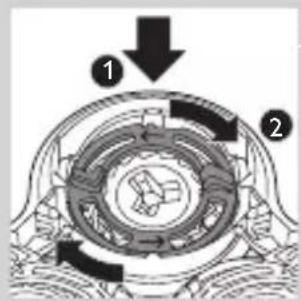

7 Place the retaining rings back onto the shaving head holder and turn them clockwise.

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

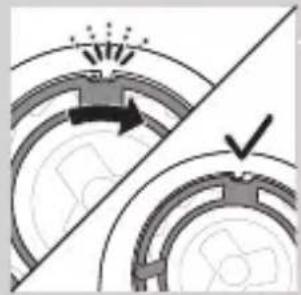

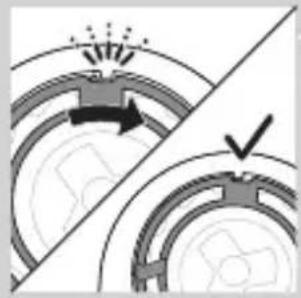

- Each retaining ring has two recesses that fit exactly in the projections of the shaving head holder. Turn the ring clockwise until your hear ‘click’ and the ring is fixed.

Diagram illustrating a process with a magnified view of a cloud icon and a downward arrow, possibly indicating a warning or rejection.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

8 Reattach the shaving head holder to the bottom part of the shaving unit.

Cleaning the click-on attachments

Never dry the trimmer or beard styler attachments with a towel or tissue, as this may damage the trimming teeth.

Cleaning the beard styler attachment

Clean the beard styler attachment every time you have used it.

Illustration of two hand positions with arrows indicating movement or force direction (no text or symbols)

1 Pull the comb off the beard stylist attachment.

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

2 Switch on the appliance.

3 Rinse the beard styler attachment and the comb separately under a hot tap for some time.

4 After cleaning, switch off the appliance.

Illustration of two hands pouring liquid from a bottle onto a plate and then into a bag (no text or symbols)

Illustration of two cartoon fish separated by a diagonal line, one emitting snow and the other with waves (no text or symbols)

Illustration of a shoe being dispensed with a cloth, showing hair being poured into a bottle (no text or symbols)

Illustration of a hand holding a tool with motion lines, and a magnified inset showing a rock face with a cross symbol (no text or labels)

Diagram of a mechanical component with a top cylindrical part and an arrow indicating upward motion (no text or symbols)

Two identical diagrams showing a container being inverted over a diagonal line, with no text or symbols present.

5 Carefully shake off excess water and let the beard styler attachment and comb dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the trimmer attachment

Clean the trimmer attachment every time you have used it.

1 Switch on the appliance with the trimmer attachment attached.
2 Rinse the trimmer attachment under a hot tap for some time.
3 After cleaning, switch off the appliance.
4 Carefully shake off excess water and let the trimmer attachment dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the cleansing brush attachment

Clean the cleansing brush attachment every time you have used it.

1 Make sure the appliance is switched off.

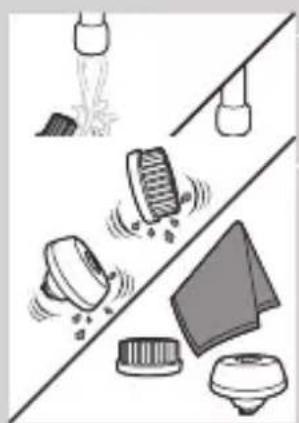

2 Detach the brush head from the brush base.
3 Clean both parts thoroughly with warm water and mild soap.

Illustration of mechanical components including a knob, drum, and base (no text or symbols)

4 Dry the cleansing brush attachment with a towel.

Storage

Illustration of a mechanical component with an arrow indicating downward motion (no text or symbols)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Note: We advise you to let the appliance and its attachments dry before you put the protection caps on the attachments and store the shaver in the pouch.

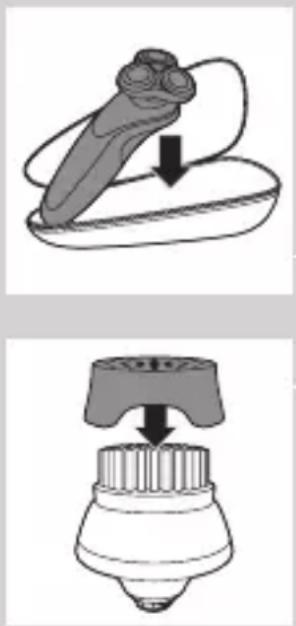

- Store the shaver in the pouch supplied.

Simple line drawing of a dropper with a cap and bulb (no text or symbols)

- Put the protection cap on the cleansing brush attachment to protect it from dirt accumulation.

Replacement

Replacing the cleansing brush head

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

- The cleansing brush head attachment should be replaced every 3 months or earlier if the filaments are deformed or damaged.

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving unit symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads immediately. Only replace the shaving heads with original Philips shaving heads as specified in chapter 'Ordering accessories'.

Diagram showing a biological structure with a speech bubble containing a skull icon and directional arrows, likely indicating a warning or notification.

Illustration of a hand holding a circular object with an upward arrow, next to a mechanical component (no text or symbols)

1 The shaving unit symbol lights up continuously when you switch off the shaver to indicate that the shaving heads need to be replaced.

2 Pull the shaving head holder off the bottom part of the shaving unit.

Technical diagram of a mechanical assembly with labeled components and directional arrows

Diagram showing a hand holding three circular objects with arrows pointing to them, separated by a diagonal line (no text or symbols)

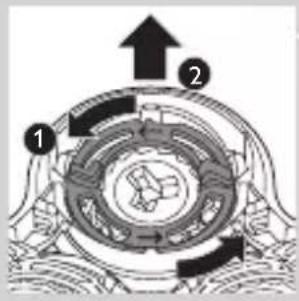

3 Turn the retaining rings anticlockwise and remove them.

4 Remove the shaving heads from the shaving head holder and throw them away.

5 Place new shaving heads in the holder.

Diagram showing a circular object being lifted by a black arrow into a ring structure (no text or symbols)

Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving-head holder.

Technical diagram of a mechanical assembly with labeled components and directional arrows

6 Place the retaining rings back onto the shaving heads and turn them clockwise.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

- The retaining ring has two recesses that fit exactly in the projections of the shaving head holder. Turn the ring clockwise until you hear ‘click’ and the ring is fixed.

Diagram illustrating a process with a magnified view showing a brain icon and directional arrow, likely related to cognitive or medical intervention.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

Illustration of a hand holding a circular object with a downward arrow, alongside a close-up of a mechanical component (no text or symbols)

7 Reattach the shaving head holder to the bottom part of the shaving unit.

7 sec.

8 To reset the replacement reminder, press and hold the on/off button for approx. 7 seconds.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

The following parts are available:

• HQ8505 adapter
• SH70 Philips shaving heads
• HQ110 Philips Shaving Head Cleaning Spray
• RQ111 Philips beard styler attachment
• SH575 Philips cleansing brush attachment
• SH560 Philips cleansing brush replacement head
• JC301, JC302, JC303, JC304, JC305 cleaning cartridge

Note: Availability of the accessories may differ per country.

2yrs

Shaving heads

- We advise you to replace your shaving heads every two year. Always replace the shaving heads with original SH70 Philips shaving heads.

Recycling

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery. - Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

ENGLISH32

Illustration of a hand holding a tool over a curved object, with no visible text or symbols

1 Remove the screw in the back panel with a screwdriver. Then remove the back panel.

Illustration of two skis, one with directional arrows indicating motion or movement (no text or symbols)

2 Bend the hooks aside and remove the power unit.

Two views of a mechanical component with a diagonal line and an arrow indicating motion (no text or symbols)

3 Break the snap hooks and remove the front panel of the power unit.

Illustration of two hands using a tool to adjust or install a component, with no visible text or symbols.

4 Take out the battery holder and cut the battery tags with a pair of cutting pliers.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Hairs or dirt obstruct the shaving heads.	Clean the shaving heads by following the steps of the thorough cleaning method (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The shaver is still attached to the mains. For safety reasons, the shaver can only be used without cord.	Disconnect the shaver from the mains and press the on/off button to switch on the shaver (see section ‘Unplug for use reminder’).
	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’).
	The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
	The shaving unit is soiled or damaged to such an extent that the motor cannot run.	Clean the shaving heads or replace them (see chapters ‘Cleaning and maintenance’ and ‘Replacement’).

Problem Possible cause Solution

The shaver is not entirely clean after I clean it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver.	Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.
	The cleaning cartridge is empty. The replacement symbol flashes to indicate you have to replace the cleaning cartridge.	Place a new cleaning cartridge in the SmartClean system (see chapter 'Cleaning and maintenance').
	You have used another cleaning fluid than the original Philips cleaning cartridge.	Only use the original Philips cleaning cartridges.
Water is leaking from the bottom of the shaver.	During cleaning, water may collect between the inner body and the outer shell of the shaver.	This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
The SmartClean system does not work when I press the on/off button.	The SmartClean system is not connected to the mains.	Put the small plug in SmartClean system and put the adapter in the wall socket.

Problem Possible cause Solution

The shaver is not fully charged after I charge it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly.	Make sure you press the shaver in the SmartClean system until it locks into place.
I replaced the shaving heads, but the replacement reminder symbol is still showing.	You have not reset the shaver.	Reset the shaver by pressing the on/off button for approx. 7 seconds (see chapter ‘Replacement’).
A shaving head symbol has suddenly appeared on the display.	This symbol is a replacement reminder.	Replace the shaving heads (see chapter ‘Replacement’).

Introduktion

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

No smoking sign with faucet symbol (no text or numbers)

Forsigtig

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Elektromagnetiske felter (EMF)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object (no text or symbols present)

Diagram of a biological structure with a labeled point '0' and a starburst symbol (no text or symbols present)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological structure with a labeled point '0' and an arrow pointing to a circular feature (no text or symbols beyond the label)

Diagram of a biological or medical structure with an arrow pointing to a star-shaped feature, no text or symbols present.

Diagram showing a droplet inside a tube with a star-shaped annotation labeled '0' pointing to the droplet's center.

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a curved structure, with an inset magnified view (no text or symbols)

Diagram showing a plug symbol with a downward arrow pointing to a star-shaped object, likely indicating a warning or hazard.

Medical diagram showing a surgical procedure with a labeled arrow and 'AIA' symbol pointing to a shaded area on the human body.

Diagram showing a human torso with a lock icon and a star symbol, likely indicating a medical or health context.

Diagram showing a person's abdomen with a lock icon and a speech bubble pointing to a location on the skin.

Udskiftning af skær

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Diagram showing a plug inserted into a device with labeled parts 1 and 2, indicating electrical or medical connection.

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a close-up of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and impact on a shoe, labeled with arrows and numbered parts

5 Sæt shaveren i holderen, vip shaveren bagud, og tryk ned på den øverste hætte for at tilslutte shaveren ("klik").

- Batterisymbolet blinker langsomt for at indikere, at shaveren oplades.

Brug af shaveren

Diagram showing a hand pressing a button labeled 'Power' with an arrow pointing to it, likely indicating a step or action.

1 Apparatet tændes ved at trykke én gang på on/off-knappen.
2 Apparatet slukkes ved at trykke én gang på on/off-knappen.

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a person applying makeup to their ear with a curling iron (no text or symbols)

Diagram showing a device with a bulb and a cross symbol, no text or labels present

Diagram of a funnel pouring liquid into a curved surface, with an inset showing a graduation cap (no text or symbols present)

Diagram showing a device emitting light onto a surface, with an inset close-up of its component (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a hand holding a device with an arrow indicating motion or force, and an inset showing a close-up of the device (no text or symbols present)

Line drawing of a hairbrush cutting into a circular shape with a downward arrow (no text or symbols)

Diagram showing two labeled arrows pointing to a curved object with shaded area, numbered 1 and 2.

Illustration of a man smoking a pipe with a beanie (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Diagram showing a dropper dispensing liquid into a container with an inset image of a small object (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no text or symbols present.

Illustration showing two facial expressions with a magnified inset of the first face (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Diagram of a mechanical component with numbered parts and directional arrows indicating assembly or flow.

Simple line drawing of a container with an upward arrow and label 'POT' (no text or symbols on the diagram itself)

5 Placer rengøringspatronen i SmartClean-systemet.

Diagram of a blender with an arrow pointing to its base (no text or symbols present)

Mechanical component diagram showing a lever with a downward arrow indicating motion (no text or symbols)

Illustration of a dropper tip with a downward arrow and a prohibition symbol (no text or labels)

Diagram illustrating a hair follicle with arrows indicating hair movement and magnified detail showing hair follicles and hair swabs.

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and safety changes in a shoe, labeled with numbered arrows and motion indicators.

3 Sæt shaveren i holderen, vip shaveren bagud, og tryk ned på den øverste hætte for at tilslutte shaveren ("klik").

- Batterisymbolet blinker langsomt for at indikere, at shaveren oplades.

Hand holding a device with two circular buttons on top (no text or symbols visible)

Diagram showing a funnel with two circular indicators: one marked '✓' and another labeled '□', likely indicating approval or rejection points.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a mechanical device with a magnified inset highlighting a component labeled '1' and 'IIo'

Diagram of a blender with a handle and base, showing mechanical components without any text or symbols.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand washing a cup with water spray (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a three-dot mechanical component (no text or symbols)

Illustration of a hand pouring liquid into a container with a dropper (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, next to a close-up of a mechanical component (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a three-pin connector (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a divided container with three circular components and an ascending arrow, no text or symbols present.

Diagram showing two mechanical components with fluid flow, no text or symbols present

Mechanical gear assembly diagram showing a central shaft and surrounding gears (no text or labels)

Diagram showing a circular object being lifted by a black arrow, with no visible text or symbols.

Technical diagram showing a mechanical assembly with labeled components and directional arrows

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with a magnified view of a cloud icon and directional arrow, likely related to cloud computing or system optimization.

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two cleaning steps: one pouring liquid into a bag, the other pouring liquid into a shoe (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Line drawing of a shoe being lifted by a tool, showing the blade and handle (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular section showing a hand holding a rock (no text or symbols)

Diagram of a mechanical component with a top cylindrical head and a base, showing an upward arrow (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of kitchen utensils and a tray on a diagonal line (no text or symbols)

Illustration of a stylized object with a downward arrow, possibly indicating a motion or change (no text or symbols present)

Simple line drawing of a mechanical component with a handle and base, no text or symbols present.

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Diagram showing a human body with a speech bubble containing a skull icon and directional arrows, likely indicating a medical or health concept.

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a device with three circular components and a magnified view of a battery (no text or symbols)

Diagram showing a circular object being lowered into a ring-shaped structure (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram illustrating a process with a hand holding coins and a magnifying glass highlighting a pile of bread and a cross symbol.

Illustration of a hand holding a circular object with a downward arrow, next to a three-tiered mechanical component (no text or symbols)

Symbol of a waste bin crossed with no text or numbers, representing environmental restriction (no text present)

Simple line drawing of a trash bin with crossed x-axes (no text or symbols)

Illustration of a hand holding a small object, with no visible text or symbols

Illustration of two skis with directional arrows indicating movement or motion (no text or symbols)

Two mechanical components with arrows indicating movement or assembly (no text or symbols)

Diagram showing two hands operating a tool with an arrow indicating direction (no text or symbols present)

Prohibition sign of a faucet without any text or symbols

No smoking sign with faucet symbol (no text)

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Diagram of a biological or medical structure with a magnified inset showing a droplet (no text or symbols present)

Diagram of a biological or mechanical structure with a labeled point '0' and an arrow pointing to a small feature (no text or symbols beyond the label)

DEUTSCH72

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram showing a biological or anatomical structure with a labeled point '0' pointing to a region inside a larger oval.

Diagram of a biological or medical structure with an arrow pointing to a star-shaped feature, no text or symbols present.

Diagram showing a droplet inside a tube with a labeled pointer and a starburst symbol, likely illustrating a biological or chemical process.

Diagram of a droplet inside a tube with an arrow pointing to a droplet (no text or labels)

Diagram showing a plug symbol with a downward arrow pointing to a star-shaped object, possibly indicating a warning or notification.

Medical diagram showing a surgical procedure with a labeled arrow and 'AIA' symbol pointing to a point on a shaded area.

Diagram showing a human torso with a padlock icon and a star symbol, likely indicating a medical or health context.

Diagram showing a person's torso with a padlock icon and a button, indicating a location or location of interest.

Simple line drawing of a human body with a highlighted circular region containing a skull icon (no text or symbols)

Diagram showing a plug connected to a device with labeled parts 1 and 2, indicating electrical or medical connection.

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a cross-section of a mechanical component (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot contact zones with numbered arrows indicating movement and safety instructions

Diagram showing a hand pressing a button labeled 'Power' with an arrow pointing to it, likely indicating a button or trigger.

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a cup with water spray (no text or symbols)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Diagram showing a device with a bulb and a cross symbol, no text or labels present

Diagram of a funnel pouring liquid into a curved pipe, with an inset showing a droplet (no text or symbols)

Illustration of a hand holding a device with an arrow pointing to it, and a magnified inset showing a device inside (no text or symbols)

Line drawing of a person using a hairpin to apply product (no text or symbols)

Illustration of a spray gun on a curved surface with an inset showing the same gun (no text or symbols present)

Line drawing of a hairbrush cutting into a square with a downward arrow indicating compression (no text or symbols)

Diagram showing two labeled parts (1 and 2) of a mechanical or electrical component with directional arrows indicating motion or flow.

Illustration of a man with a beard and a pipe, showing hand motion (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Illustration of a dropper dispensing liquid into a container with an inset showing a magnified view of the liquid (no text or symbols present)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no text or symbols present.

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Diagram illustrating a mechanical or fluidic process with arrows indicating flow direction and a magnified inset showing a cross-section of a device.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and safety changes on a shoe, labeled with arrows and numbered parts

Hand holding two circular buttons with a power symbol, next to a device (no text or labels visible)

Illustration of a funnel-shaped container with two circular indicators showing check and no text (no readable symbols or text)

Technical diagram showing mechanical component assembly with numbered parts and a magnified view of a device labeled '110'

Diagram of a blender with a black arrow pointing to its lid, showing mechanical components (no text or symbols)

Illustration of a hand washing a small object with a water dispenser (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Illustration of a hand pouring liquid into a container with a dropper (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, alongside a close-up of a mechanical component (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a three-pin connector (no text or symbols)

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a gear mechanism with three blades and directional arrows, no text or symbols present

Illustration of a mechanical device with two components, one emitting liquid and the other pouring liquid (no text or symbols)

Diagram of a mechanical gear assembly with a downward arrow indicating rotational motion (no text or symbols)

Diagram showing a circular object being lifted by a downward arrow into a ring-like structure (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Diagram illustrating a process with a magnified view of a cloud icon and directional arrow, likely related to cloud computing or data processing.

Illustration of two hands holding a tool with arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a shoe and boots, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a shoe being dispensed with a cloth, no text or symbols present

Illustration of a hand blowing bubbles with a magnified circular inset showing a hand holding a rock (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a top handle and internal structure, no text or symbols present

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a three-tiered mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Illustration of a hand holding three cups with arrows pointing to a circular object, alongside a magnified view of a cylindrical object (no text or symbols)

Diagram showing a circular object being lifted by a black arrow, forming a ring-like structure (no text or symbols)

Technical diagram of a mechanical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with a magnified view showing a pile of bread and a drop labeled 'X', likely indicating a waste or inspection step.

Illustration of a hand holding a circular object with a downward arrow, next to a mechanical component (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Symbol of a trash bin crossed with a wheel, representing waste sorting or disposal (no text or labels)

Illustration of a tool tip and a small boat on a diagonal line, no text or symbols present

Illustration of two skis with directional arrows indicating movement or motion (no text or symbols)

Two views of a mechanical component with an arrow indicating a change or transformation (no text or symbols present)

Diagram showing a robotic arm with a tool and directional arrow, no text or symbols present

No sign depicting a faucet with a diagonal line and a diagonal line, crossed out by a diagonal line (no text or symbols)

No smoking sign with faucet symbol (no text)

Simple line drawing of a showerhead spraying water into a container (no text or symbols)

Diagram of a medical or laboratory procedure showing a cross-section with an arrow pointing to a specific area (no text or symbols present)

Diagram showing a droplet inside a tube with a labeled pointer and a starburst symbol, likely illustrating a biological or chemical process.

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram showing a biological or anatomical structure with a labeled point '0' pointing to a circular feature.

Χαμηλή μπατ.

Diagram of a biological or medical procedure showing a pointed tool interacting with a star-shaped object (no text or symbols present)

Diagram showing a droplet inside a tube with a star-shaped annotation labeled '0' pointing to the tube.

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a circular component (no text or symbols present)

Diagram showing a plug symbol with a downward arrow pointing to a star-shaped object, possibly indicating a warning or hazard.

Medical diagram showing a surgical procedure with a faucet and label 'AIA' pointing to a highlighted area on the human body.

Simple line drawing of a human body with a speech bubble containing three icons (no text or symbols)

Diagram showing a plug inserted into a socket connected to a cable with labeled parts 1 and 2

Diagram illustrating a mechanical or fluidic process with directional arrows and a magnified inset showing a cross-section of a structure.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and impact on a shoe, labeled with numbered arrows and motion indicators

Diagram showing a hand pressing a button labeled 'Power' with an icon, likely illustrating a power switch or trigger mechanism.

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Illustration of a person's face with hand near ear area, no text or symbols present

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a small object with water spray (no text or symbols)

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Diagram showing a funnel with an arrow and a cross symbol, no text or labels present

Diagram of a funnel pouring liquid into a curved pipe, with an inset showing a droplet (no text or symbols)

Illustration of a robotic arm with motion lines and a magnified inset showing a mechanical component (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a hand holding a device with an inset showing a magnified view of the device (no text or symbols present)

Χρήση του τρίμερ

Line drawing of a hairbrush cutting into a toothbrush with motion arrows (no text or symbols)

Diagram showing two labeled parts (1 and 2) with directional arrows indicating movement or flow, possibly illustrating a mechanical or biological process.

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a tool with arrows indicating movement or force (no text or symbols)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Illustration of a dropper being inserted into a container with a magnified inset showing the tip (no text or symbols)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face with a tool, no text or symbols present

20 sec.

20 sec.

Illustration showing two men applying facial care to their face, one with a magnified inset of the eye (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Simple line drawing of a container with an upward arrow, no text or symbols present

Illustration of a blender with a black arrow indicating the process (no text or symbols present)

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Warning symbol for a fire extinguisher with a stop sign and no warning text

Diagram illustrating a hand turning a tool with arrows indicating motion, alongside a magnified view of the tool's cross-section.

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and safety changes on a shoe, labeled with numbered arrows and motion indicators.

Hand holding two circular buttons with 'Power' and spiral symbols, next to a device (no text or labels visible)

Technical diagram showing a mechanical component with two circular indicators labeled '✓' and 'D', likely indicating inspection or status.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

110

Diagram of a blender with a black arrow pointing to its lid, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand washing a small object with water flowing from a faucet (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a three-pin device (no text or symbols present)

Illustration of a hand pouring liquid into a container with a pipette (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, partially overlaid on a mechanical component (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a mechanical component with three circular features and directional arrows, intersected by a diagonal line (no text or symbols)

Diagram showing fluid flow around a mechanical component, with no visible text or symbols

Mechanical gear assembly diagram showing a rotating shaft with a downward arrow indicating motion (no text or symbols)

Diagram showing a circular object being lifted by a black arrow, forming a ring-like structure (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with labeled steps and a magnified view showing a circular object with a cross symbol.

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a shoe being lifted by a string, showing the blade and handle (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular inset showing a mountain silhouette (no text or symbols)

Simple line drawing of a mechanical component with a top component and an arrow indicating upward motion (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of cleaning tools including a brush, cloth, and bulb (no text or symbols)

Simple line drawing of a medical device with a downward arrow indicating force or movement (no text or symbols)

Simple line drawing of a spray bottle with a handle and spout (no text or symbols)

Αντικατάσταση

Diagram of a mechanical component with a top cylindrical part and an arrow indicating upward motion (no text or symbols)

Diagram showing a biological structure with a speech bubble containing a skull icon and directional arrows, likely indicating a process or signal.

Illustration of a hand holding a circular object with an arrow pointing to a three-pin connector (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing a device with three circular components and a magnified view of a battery (no text or symbols)

Diagram showing a circular object being lifted by a black arrow, with no visible text or symbols.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with coins, a magnifying glass, and a crossed-out symbol, likely related to financial or operational steps.

Illustration of a hand holding a circular object with a downward arrow, next to a mechanical component (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Simple line drawing of a trash bin with crossed x-axes (no text or symbols)

Illustration of a hand holding a screwdriver and a small object, both on a diagonal line (no text or symbols)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two identical mechanical components with a diagonal line and an upward arrow, no text or symbols present.

Diagram showing a hand operating a tool with an arrow indicating motion (no text or symbols present)

Prohibition sign of a faucet without any text or symbols

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Precaución

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a small object (no text or symbols present)

Diagram of a biological or anatomical structure with a labeled point '0' and an arrow pointing to a feature (no text or symbols beyond the label)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram showing a biological or anatomical structure with a labeled point '0' pointing to a region within a larger oval.

Diagram of a biological or medical structure with an arrow pointing to a star-shaped feature, no text or symbols present.

Diagram showing a droplet inside a tube with a labeled pointer and a starburst symbol, likely illustrating a biological or chemical process.

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a circular component (no text or labels)

Diagram showing a plug symbol with a downward arrow pointing to a star-shaped object, likely indicating a warning or hazard.

Medical diagram showing a surgical procedure with a labeled arrow and 'HA' symbol pointing to a surgical site.

Diagram showing a human torso with a lock icon and a star symbol, likely indicating a medical or health context.

Diagram showing a human torso with a lock icon and a speech bubble containing a lock symbol, likely indicating a medical or health context.

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Carga

Diagram showing a plug inserted into a socket connected to a device with labeled parts 1 and 2

Diagram showing a hand holding a small object with arrows indicating motion, and an inset magnified view of a mechanical component (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot contact zones with numbered arrows indicating movement and safety instructions

Diagram showing a hand pressing a button labeled with an 'Power' icon, likely indicating a button or trigger.

Illustration of a person applying facial contour to the ear with a tool (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

1 Humedézcase la piel.

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a small object with water spray (no text or symbols)

Illustration of a person applying a hair product to their ear (no text or symbols)

Diagram showing a device with a bulb and a cross symbol, no text or labels present

Illustration of a funnel pouring liquid into a curved pipe, with an inset showing a droplet (no text or symbols)

Illustration of a hand holding a device with an inset showing a magnified view of a device (no text or symbols present)

Line drawing of a person applying hair to their ear (no text or symbols)

Illustration of a robotic arm with a spray gun and a close-up inset showing the motion (no text or symbols)

Line drawing of a hairbrush cutting with a downward arrow indicating compression (no text or symbols)

Diagram showing two labeled parts (1 and 2) of a mechanical or fluid system with directional arrows indicating flow or movement.

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper being inserted into a container with a magnified inset showing the tip (no text or symbols)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face with a tool, no text or symbols present

Illustration showing two facial expressions with a magnified inset of the first face (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Simple line drawing of a container with an upward arrow and label 'SWEET' at the bottom (no other text or symbols)

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Warning symbol for a device with a downward arrow and prohibition sign

Diagram illustrating a hair follicle with arrows indicating hair movement and magnified view of the hair follicle structure.

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and safety changes on shoes, labeled with arrows and numbered parts

Hand inserting a power button into a device (no text or symbols visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Diagram showing a mechanical device with a magnified inset highlighting a component labeled 'No' and a circular arrow pointing to it.

Illustration of a blender with a black arrow pointing to its lid (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand washing a cup with water spray (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Illustration of a hand using a pipette to lift a small object into a dark container (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, above a mechanical component (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a magnified view of a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a hand holding three circular objects with arrows indicating rotation or movement (no text or symbols)

Diagram showing two mechanical components with fluid flow, no text or symbols present

Mechanical gear assembly diagram showing a rotating shaft and gear teeth (no text or labels)

Diagram showing a circular object being lifted by a downward arrow into a ring-like structure (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with a magnified view of a cloud icon and directional arrows, likely depicting a workflow or system.

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Illustration of two cartoon fish separated by a diagonal line, one emitting water and the other with waves (no text or symbols)

Illustration of a hand holding a shoe next to a bundle of fabric or fiber, with no visible text or symbols.

Illustration of a hand crushing debris with a magnified circular inset showing a broken rock (no text or symbols)

Diagram of a mechanical component with a top component and an arrow indicating upward motion (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of a mechanical component with springs and a bell, no text or symbols present

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a spray bottle with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a top and base, no text or symbols present.

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, next to a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with labeled parts and directional arrows

Illustration of a hand holding three cups with a magnified inset showing a magnified view of a device (no text or symbols present)

Diagram showing a circular object being lifted by a black arrow into a ring structure (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Diagram illustrating a financial or investment concept with coins, a magnifying glass, and a crossed-out symbol, suggesting a risk or rejection.

Illustration of a hand holding a circular object with a downward arrow, above a magnified view of a mechanical component (no text or symbols)

201 7 sec.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a trash bin with no text or symbols

Illustration of a sewing machine tool and a sewing machine base, showing mechanical components without any text or symbols.

Illustration of two speed skis under a diagonal guide, showing different motion directions (no text or symbols)

Two mechanical components with arrows indicating motion or assembly, no visible text or symbols

Diagram showing two hands operating a robotic arm with a tool, no text or symbols present

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Prohibition sign with a faucet symbol and diagonal line, indicating no pollution or leakage

Varoitus

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a small object, with no visible text or symbols.

Diagram showing a droplet inside a tube with a labeled point '0' and a starburst symbol in the corner.

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological or anatomical structure with a labeled point '0' and an arrow pointing to a circular feature (no text or symbols beyond the label)

Diagram of a biological or medical procedure showing a pointed tool interacting with a star-shaped object (no text or symbols present)

Diagram showing a droplet inside a tube with a labeled arrow and starburst symbol, likely illustrating a biological or chemical process.

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a circular component (no text or symbols present)

Diagram showing electrical plug symbol with a magnified view of the plug pointing to a star-shaped component

Medical diagram showing a surgical procedure with a faucet and a shaded area indicating a specific area of interest.

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Diagram showing a plug inserted into a socket connected to a device with labeled parts 1 and 2

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a circular view of two figures (no text or symbols present)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing two-step shoe repair process with directional arrows indicating movement and shading

Diagram showing a hand pressing a button labeled 'Power' with an arrow pointing to it, likely indicating a step or action.

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their neck area (no text or symbols)

Illustration of a hand washing a small object with motion lines indicating movement (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

Diagram showing a hand holding a device with a warning symbol (no text or labels)

Illustration of a funnel pouring liquid into a curved pipe, with an inset showing a graduation cap (no text or symbols)

Illustration of a hand holding a device with an inset showing a device emitting particles (no text or symbols)

Illustration of a person using a hairpin to apply product (no text or symbols present)

Illustration of a robotic arm with a spray gun and a close-up inset showing the hand holding a device (no text or symbols)

Line drawing of a hairbrush cutting into a pair of scissors (no text or symbols)

Diagram showing two labeled parts (1 and 2) with directional arrows indicating movement or flow, possibly illustrating a mechanical or fluid dynamics concept.

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a man applying a hair accessory to the ear (no text or symbols)

Diagram showing a dropper dispensing liquid into a container with an inset image of a graduation cap (no text or symbols present)

Illustration of a tool tip with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face with a tool, no text or symbols present

Illustration showing facial massage technique with a magnified inset of the eye area (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with a handle and base, showing mechanical components without any text or symbols.

Mechanical component diagram showing a lever mechanism with a downward arrow (no text or symbols)

Warning symbol for a droplet on a bottle, indicating no chemical hazard or toxicity.

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a close-up of a mushroom-like structure (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and safety changes on a shoe, labeled with numbered arrows and motion indicators.

Hand holding a device with two circular buttons and a power button, no visible text or symbols

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol inside (no text or labels)

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

110

Diagram of a blender with a black arrow pointing to its interior component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a hand washing a cup with water flowing from a faucet (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Illustration of a hand pouring liquid into a container with a dropper (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, alongside a magnified view of three circular objects (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a device with three circular components and an arrow indicating rotation or assembly (no text or symbols)

Diagram showing two mechanical components with fluid flow, no text or symbols present

Mechanical gear assembly diagram showing a downward arrow pointing to a circular component (no text or symbols)

Diagram showing a circular object being lifted by a black arrow, forming a ring-like structure (no text or symbols)

Technical diagram showing a mechanical or electrical component with labeled parts 1 and 2, indicating directional flow or movement.

Diagram showing two circular components with arrows indicating motion, separated by a diagonal line (no text or symbols)

Diagram illustrating a process with labeled components and a warning symbol, possibly related to financial or operational procedures.

Illustration of two hands holding a tool, with arrows indicating movement or force direction (no text or symbols)

Illustration of two cleaning steps: one pouring liquid into a container, the other pouring liquid into a bag (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand spraying water with a magnified circular inset showing a hand holding a rock (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of mechanical components including a drum, drum cap, and base mount (no text or symbols)

Säilytys

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a spray bottle with a handle and spout (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Diagram showing a biological structure with a speech bubble containing a skull icon and directional arrows, likely indicating movement or interaction.

Illustration of a hand holding a circular object with an upward arrow, next to a three-tiered mechanical component (no text or symbols)

Technical diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a device with a magnified view of its internal components (no text or symbols present)

Diagram showing a circular object being lowered into a ring-shaped structure (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram illustrating a process with coins, a magnifying glass highlighting a leaf symbol, and a downward arrow indicating reduction or action.

Illustration of a hand holding a circular object with a downward arrow, next to a magnified view of a three-cylinder object (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with crossed x-axes (no text or symbols)

Illustration of a hand holding a tool with a screwdriver, alongside a close-up of the blade and handle (no text or symbols)

1 Irrota takapaneelin ruuvi ruuvitaltalla. Irrota sitten takapaneeli.

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with arrows indicating movement or assembly (no text or symbols)

Diagram showing two hands operating a tool with an arrow indicating direction (no text or symbols present)

Prohibition sign with a faucet symbol and diagonal line, indicating no leakage or anti-leaching hazard.

No smoking sign with faucet symbol (no text or numbers)

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a small object (no text or symbols present)

Diagram of a biological or anatomical structure with a highlighted region and star-shaped annotation (no readable text or symbols)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological structure with a labeled point '0' and an arrow pointing to a circular feature (no text or symbols beyond the label)

Diagram of a biological or medical structure with a magnified inset showing a star-shaped feature (no text or symbols)

Diagram showing a droplet inside a tube with a labeled arrow and starburst symbol, likely illustrating a biological or chemical process.

Diagram of a medical or laboratory procedure showing a pointed tool inserted into a tube with an inset magnified view (no text or labels)

Diagram showing electrical plug symbol with a magnified view of the plug and its downward arrow, likely indicating a dislocation or dislocation process.

Medical diagram showing a surgical procedure with a labeled arrow and 'HA' symbol pointing to a point on a shaded area.

Diagram showing a person's torso with a padlock icon and a power button, indicating a location or location of interest.

Diagram showing a human torso with a padlock icon and a power button, indicating a location or location of interest.

Diagram of a human body with a speech bubble containing a skull icon and directional arrows, no text or symbols present.

Diagram showing a plug inserted into a device with labeled parts 1 and 2, indicating electrical or medical connection.

Diagram showing fluid flow around a container with arrows indicating direction (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot massage technique with numbered steps and directional arrows indicating motion

Diagram showing a hand pressing a button labeled 'Power' with an arrow pointing to it, likely indicating a step or action.

Illustration of a person applying a hairpin to their ear (no text or symbols present)

Line drawing of a person's head and neck with a hand near the ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Illustration of a hand holding a device with a bulb and a cross symbol, no text or labels present

Diagram of a funnel-shaped object with a magnified inset showing a small object (no text or symbols present)

Illustration of a robotic arm with motion arrows and a magnified inset showing a mechanical component (no text or symbols)

Illustration of a person using a hairpin to apply product (no text or symbols present)

Illustration of a hand holding a device with a magnified inset showing a device tip (no text or symbols)

Line drawing of a hairbrush cutting into a toothbrush with a downward arrow (no text or symbols)

Diagram showing a hand holding a device with labeled parts 1 and 2, indicating directional movement or process flow.

Illustration of a man with a beard and pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Diagram showing a dropper tip dispensing liquid into a container, with an inset magnified view of the dropper's internal structure (no text or symbols)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no visible text or symbols

20 sec.

20 sec.

20 sec.

Illustration showing facial massage technique with magnified inset of a brush and hand gesture

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with a black arrow pointing to its lid (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Warning symbol for a fire extinguisher with a prohibition sign and downward arrow indicating safety warning

Diagram illustrating a mechanical or fluidic process with arrows indicating flow direction and a magnified inset showing a cross-section of a device.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and safety changes on a shoe, labeled with arrows and numbered parts

Hand holding two circular buttons with power and spiral symbols, next to a device (no text or labels visible)

Illustration of a funnel with two circular indicators (one checked, one not checked) inside, no text or symbols present.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a mechanical device with a magnified inset highlighting a component labeled '10' and directional arrow.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Illustration of a hand pouring liquid into a container with a dropper (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, next to a close-up of a mechanical component (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a gear and a cam mechanism with directional arrows (no text or symbols)

Diagram showing two mechanical components with fluid flow, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a circular object being lifted by a downward arrow into a ring-like structure (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with a magnified view of a brain and a directional arrow, likely related to brain surgery or medical procedure.

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a shoe and a shoe, separated by a diagonal line (no text or symbols)

Illustration of two cartoon fish on a diagonal line, one blowing water and the other wading with waves (no text or symbols)

Illustration of a shoe being dispensed from a bottle onto a surface, showing hair and fabric (no text or symbols)

Illustration of a hand crushing debris with an inset showing a pile of material (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of mechanical components including a knob, drum, and bow (no text or symbols)

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a hairbrush with a handle and spout, showing no text or symbols

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Diagram showing a biological structure with a speech bubble containing a skull icon and directional arrows, likely indicating a process or signal.

Illustration of a hand holding a circular object with an upward arrow, next to a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Illustration of a hand holding three circular objects above a divided surface, with an inset showing a magnified view of a cylindrical object (no text or symbols present)

Diagram showing a circular object being lifted by a downward arrow into a ring-like structure (no text or symbols)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a hand using a coin to symbolize financial or market manipulation, with a magnified inset showing a crossed-out coin.

Illustration of a hand holding a circular object with a downward arrow, next to a three-cylinder object (no text or symbols)

Symbol of a waste bin with crossed lines and a blank rectangular base (no text or numbers)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Illustration of a hand operating a screwdriver on a flat surface, with no text or symbols present.

Two illustrations of a vehicle with directional arrows indicating motion or movement, no text or symbols present.

Two mechanical components with arrows indicating movement or assembly (no text or symbols)

Diagram of a robotic arm holding a tool, with an arrow indicating motion (no text or symbols present)

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text)

No smoking sign with faucet symbol (no text or numbers)

Simple line drawing of a showerhead spraying over water (no text or symbols)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a central object (no text or symbols present)

Diagram of a biological or mechanical structure with a highlighted region and a starburst symbol (no text or labels)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram showing a biological or anatomical structure with a labeled point '0' and an arrow pointing to a region.

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object (no text or symbols present)

Diagram showing a droplet inside a tube with a labeled star and number 0 in the tip

Diagram of a droplet inside a tube with an arrow pointing to a small circular feature, no text or symbols present.

Diagram showing a plug symbol with a downward arrow pointing to a star-shaped object, possibly indicating a warning or hazard.

Medical diagram showing a surgical procedure with a labeled arrow and a star-shaped object, likely indicating a surgical or diagnostic procedure.

Diagram showing a human torso with a padlock icon and a star symbol, likely indicating a medical or health context.

Diagram showing a person's torso with a padlock icon and a button, indicating a location or location of interest.

Diagram showing a biological structure with a speech bubble containing a skull icon and directional arrows, possibly indicating movement or interaction.

Diagram showing a plug inserted into a socket connected to a device with labeled parts 1 and 2

Diagram showing a hand holding a small object with arrows indicating motion or force, and an inset magnified view of a mechanical component (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot contact zones with numbered arrows indicating movement and safety instructions

Diagram showing a hand pressing a button labeled 'Power' with an icon, likely illustrating a power switch or electrical function.

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a small object with motion lines indicating movement (no text or symbols)

Illustration of a person applying a hair product to their ear (no text or symbols)

Illustration of a hand holding a device with a bulb and a cross symbol, no text or labels present

Diagram of a funnel-shaped object with a magnified inset showing a small object (no text or symbols present)

Illustration of a robotic arm with motion arrows and a magnified inset showing a mechanical component (no text or symbols)

Illustration of a person using a hairpin to apply product (no text or symbols present)

Illustration of a hand holding a device with a magnified inset showing internal components (no text or symbols)

Line drawing of a hairbrush cutting into a toothbrush with a downward arrow (no text or symbols)

Diagram showing a hairpin with labeled parts and directional arrows indicating motion or movement.

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a dropper dispensing liquid into a container with an inset showing a graduation cap (no text or symbols)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face with a tool, no text or symbols present

Illustration showing two people applying facial care to their face, with a magnified inset of the first eye (no text or symbols present)

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Simple line drawing of a container with an upward arrow and label 'SWE' (no text or symbols on the diagram itself)

ITALIANO254

Illustration of a blender with a black arrow pointing to its lid (no text or symbols)

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols)

Close-up of a mechanical component with a downward arrow and a prohibition symbol (no text or labels)

Diagram showing a hand pressing down on a surface with arrows indicating motion or force, and an inset magnified view of a mushroom-like structure (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and safety changes on a shoe, labeled with numbered arrows and directional arrows.

Hand inserting a power button into a device (no text or symbols visible)

Diagram showing a mechanical component with two circular indicators labeled '✓' and '0', likely indicating status or check points.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

110

Illustration of a blender with a black arrow pointing to its interior (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand washing a small object with a water dispenser (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a mechanical component (no text or symbols)

Illustration of a hand pouring liquid into a container with a dropper (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow pointing to a three-pin connector (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, above a three-cylinder mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a divided container with three circular cavities and an upward arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with fluid flow, no text or symbols present

Mechanical component diagram showing a gear-like top with a downward arrow and concentric rings (no text or symbols)

Diagram showing a circular object being lifted by a black arrow, forming a ring structure (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with a magnified view showing a cloud icon and a downward arrow, possibly indicating a decision or action.

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a shoe and a shoe (no text or symbols)

Illustration of two fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a hand cleaning a shoe with a bottle (no text or symbols)

Illustration of a hand crushing debris with a magnified inset showing a broken object (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of mechanical components and a gear mechanism (no text or symbols)

Conservazione

Illustration of a medical device with a downward arrow indicating force or movement (no text or symbols)

Diagram of a hairdryer with a cap and bulb, showing a downward arrow (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a three-pin connector (no text or symbols)

Technical diagram of a mechanical or electrical component with labeled parts and directional arrows indicating flow or movement.

Illustration of a hand holding three objects with arrows indicating direction, alongside a magnified inset showing a cylindrical object (no text or symbols)

Diagram showing a circular object being lifted by a downward arrow into a ring-like structure (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram illustrating a hand holding coins with a magnifying glass highlighting a brain icon and a downward arrow, symbolizing risk or solution.

Illustration of a hand holding a circular object with a downward arrow, partially overlaid on a separate view of a mechanical component (no text or symbols)

Symbol of a waste bin with crossed lines and a blank rectangular base (no text or numbers)

Symbol of a trash bin crossed with no text or labels

Illustration of a hand holding a tool over a slide, with no visible text or symbols

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two views of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a robotic arm gripping a tool, with no visible text or symbols

No sign depicting a faucet without any text or symbols

Prohibition sign showing a faucet with a diagonal line and a circular outline (no text or symbols)

Simple line drawing of a showerhead spraying over water (no text or symbols)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a central object, with an inset magnified view (no text or symbols)

Diagram of a biological or mechanical structure with a highlighted region and a starburst symbol (no text or labels)

Accu vol

Diagram of a biological structure with a highlighted cell nucleus (no text or labels)

Diagram showing a biological structure with a labeled region marked '0' and an arrow pointing to a specific area.

Diagram of a biological or medical structure with a magnified inset showing a star-shaped feature (no text or symbols)

Diagram showing a droplet inside a tube with a labeled point '0' and a starburst symbol in the corner.

Diagram of a droplet inside a tube with an arrow pointing to a small circular feature, no text or symbols present.

Diagram showing a plug symbol with a downward arrow pointing to a star-shaped object, possibly indicating a warning or hazard.

Medical diagram showing a surgical procedure with a labeled arrow and 'HA' symbol pointing to a point on the surgical site.

Diagram showing a human torso with a padlock icon and a star symbol, likely indicating a medical or health context.

Diagram showing a person's torso with a padlock icon and a button, indicating a location or location of interest.

De reisvergrendeling deactiveren

Diagram showing a biological structure with a speech bubble containing a skull icon and directional arrows, likely indicating a process or labeling.

Diagram showing a plug inserted into a socket connected to a device with labeled parts 1 and 2

Diagram showing a hand holding a small object with arrows indicating motion, and an inset magnified view of a mechanical component (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing two-step shoe repair or cleaning process with directional arrows and labeled parts 1 and 2

Diagram showing a hand pressing a button labeled with an 'Power' icon, likely indicating a button or trigger.

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person's face with a hand touching the cheek area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand using a tool to lift a cup (no text or symbols visible)

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Diagram showing a hand holding a device with a cross symbol and an upward arrow, no text or labels present.

Illustration of a funnel pouring liquid into a curved pipe, with an inset showing a graduation cap (no text or symbols)

Diagram showing a spray gun on a surface with an inset close-up of the spray (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a hand holding a device with an arrow indicating motion or force, and an inset showing a close-up of the device (no text or symbols present)

Line drawing of a hairbrush cutting into a button with a downward arrow (no text or symbols)

Diagram showing a hand holding a curved object with numbered arrows indicating motion or force direction, labeled 1 and 2.

Illustration of a man with beard and pipe, no text or symbols present

Illustration of two hands holding a tool, with arrows indicating movement or force direction (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a dropper dispensing liquid into a container with a magnified inset showing a graduation cap (no text or symbols)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing a person applying facial care to another person's face, with no visible text or symbols

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Simple line drawing of a container with an upward arrow and label 'SWEET' (no text or symbols on the diagram itself)

Illustration of a blender with a black arrow pointing to its lid (no text or symbols)

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols)

Illustration of a dropper tip with a downward arrow and a prohibition symbol (no text or labels)

Diagram showing a hand pressing down on a surface with arrows indicating motion or force direction, and an inset magnified view of a mushroom-like structure (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and shading technique with numbered arrows indicating movement direction

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Diagram showing a device with two circular indicators: one checked and one not checked, indicating status or status.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

110

Diagram of a blender with an arrow pointing to its base (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a hand washing a cup with water spray (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, next to a mechanical component (no text or symbols)

Illustration of a hand using a pipette to lift a small object into a dark container (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, next to a stylized mechanical component (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a divided container with three circular items and an upward arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with fluid flow, no text or symbols present

Mechanical gear assembly diagram showing a rotating shaft and gear teeth (no text or labels)

Diagram showing a circular object being lifted by a black arrow, forming a ring-like structure (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with a magnified view showing a brain icon and a downward arrow, possibly indicating a decision or action.

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand crushing debris with a magnified circular inset showing a pile of waste or debris (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Illustration of cleaning tools including spray bottle, brush, and cloth (no text or symbols)

Opbergen

Simple line drawing of a medical device with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a spray bottle with a handle and spout (no text or symbols)

Diagram of a mechanical component with a top cylindrical head and a base, showing an upward arrow (no text or symbols)

Diagram of a mechanical component with a circular top and downward arrow, no visible text or symbols

Technical diagram showing a mechanical or fluidic component with labeled parts 1 and 2, indicating directional flow or movement.

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

Diagram illustrating a hand holding coins with a magnifying glass highlighting a brain icon and a downward arrow, symbolizing financial or medical-related risk.

Illustration of a hand holding a circular object with a downward arrow pointing to a three-part mechanical component (no text or symbols)

Symbol of a waste bin with crossed lines and a blank rectangular base (no text or numbers)

Symbol of a trash bin crossed with no text or labels

Illustration of a hand holding a tool, partially cut off a device (no text or symbols visible)

Illustration of two mechanical components with directional arrows indicating motion (no text or symbols)

Two mechanical components with a diagonal line and an arrow indicating motion or assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Prohibition sign indicating a water tap with a diagonal line and raindrops, symbolizing no pollution or leakage.

Forsiktig

Simple line drawing of a showerhead spraying over water (no text or symbols)

- Det kan dryppe vann fra kontakten i bunnen av barbermaskinen når du skyller den. Dette er normalt og ikke farlig fordi all elektronikk er plassert i et forseglet drivverk inne i barbermaskinen.

Diagram of a biological or medical structure with a magnified inset showing a droplet (no text or symbols present)

Diagram showing a droplet inside a tube with an arrow pointing to a labeled point '0' and a starburst symbol.

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram showing a biological or anatomical structure with a labeled point '0' pointing to a region inside a larger oval.

Diagram of a biological or medical structure with an arrow pointing to a star-shaped feature, enclosed in a circle (no text or symbols present)

Når batteriet er nesten tomt, blinker den nederste lampen oransje.

Diagram showing a droplet inside a tube with a labeled point '0' and an arrow pointing to the droplet's center.

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a circular component (no text or labels)

Diagram showing a plug symbol with a downward arrow pointing to a star-shaped object, possibly indicating a warning or hazard.

Medical diagram showing a surgical procedure with a faucet and label 'HA' pointing to a highlighted area

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Ladingen tar ca. én time.

Diagram showing a plug connected to a device with labeled parts and directional arrows indicating connection points.

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a circular section with two figures (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

4 Hold barbermaskinen opp ned over holderen. Kontroller at forsiden av barbermaskinen vender mot SmartClean-systemet.

Diagram illustrating foot massage technique with numbered instructions and directional arrows

Diagram showing a hand pressing a button labeled with an 'Power' icon, likely indicating a button or trigger.

Illustration of a person applying makeup to their ear with a circular tool (no text or symbols)

Line drawing of a person's face with a hand touching the cheek area (no text or symbols)

2 Smør huden med barberskum eller barbergel.

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a faucet spraying water onto a surface with a circular object underneath (no text or symbols)

4 Slå på apparatet.

Illustration of a person applying facial contour or mask to the ear (no text or symbols present)

Diagram showing a funnel with an arrow and a cross symbol, no text or labels present

Illustration of a funnel pouring liquid into a curved pipe, with an inset showing a graduation cap (no text or symbols)

Diagram showing a tool interacting with a surface, with an inset close-up highlighting the process (no text or symbols present)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a hand holding a device with an arrow indicating motion, and an inset showing a magnified view of the device (no text or symbols present)

Illustration of a hairbrush cutting down a surface with a downward arrow indicating compression (no text or symbols)

Diagram showing two labeled parts (1 and 2) with directional arrows indicating movement or flow, possibly illustrating a physical or mechanical process.

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a tool with arrows indicating movement or force (no text or symbols present)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a small object (no text or symbols)

Illustration of a hand cleaning a tooth with water spray (no text or symbols)

Illustration of a person applying makeup to their face with a tool, no text or symbols present

Illustration showing a person applying facial care to another person's face, with no visible text or symbols

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Ikke vipp SmartClean-systemet. På den måten unngår du lekkasje.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Simple line drawing of a container with an upward arrow, no text or symbols present

Illustration of a blender with a black arrow pointing to its lid (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

6 Skyv den øvre delen av SmartClean-systemet tilbake ned (du skal høre et klikk).

Warning symbol for a device with a downward arrow and a prohibition sign

Bruke SmartClean-systemet

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a close-up of a mechanical component (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

2 Hold barbermaskinen opp ned over holderen. Kontroller at forsiden av barbermaskinen vender mot SmartClean-systemet.

Diagram illustrating foot movement and impact on a shoe, labeled with numbered arrows and motion indicators.

Hand holding two circular buttons with a power symbol, next to a device (no text or labels visible)

Technical diagram showing a mechanical component with two circular indicators labeled '✓' and '□', likely indicating inspection or status.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

110

Diagram of a blender with an arrow pointing to its interior component (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Skifte ut patronen i SmartClean-systemet

Illustration of a hand washing a small object with a water dispenser (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a three-pin connector (no text or symbols)

Illustration of a hand pouring liquid into a container with a dropper (no text or symbols)

3 Skyll skjærehodeholderen under varmt rennende vann i 30 sekunder.

Illustration of a hand holding a circular object with a downward arrow, next to a three-cylinder mechanical component (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a hand holding three circular objects with arrows indicating rotation or movement (no text or symbols)

Diagram showing two mechanical components with fluid flow, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a circular object being lifted by a downward arrow into a ring structure (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with a magnified view showing a cloud icon and a downward arrow, likely indicating a decision or action.

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon-style illustrations of a rocket and a soccer ball on a diagonal line, with no text or symbols present.

Illustration of a shoe being lifted by a bag, showing the ball being lifted (no text or symbols)

Illustration of a hand crushing debris with a magnified circular inset showing a pile of material (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of mechanical components and a gear mechanism (no text or symbols)

Oppbevaring

Two-step diagram showing a hairpin being inserted into a base, with no text or symbols present.

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a three-pin device (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Illustration of a hand holding three cups with arrows pointing to a circular object, separated by a diagonal line (no text or symbols)

Diagram showing a circular object being lifted by a downward arrow into a ring structure (no text or symbols)

Technical diagram showing a mechanical or electrical component with labeled parts 1 and 2, indicating directional flow or movement.

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Diagram illustrating a hand holding coins with a magnified view showing a brain icon and a downward arrow, likely illustrating a concept or concept related to financial or medical-related items.

Illustration of a hand holding a circular object with a downward arrow, alongside a close-up of a mechanical component (no text or symbols)

Symbol of a waste bin with crossed lines and a blank rectangular base (no text or numbers)

Symbol of a trash bin crossed with no text or labels

Illustration of a hand using a tool to lift a small object, with no visible text or symbols

Ta bare ut det oppladbare batteriet når du avhender barbermaskinen. Kontroller at batteriet er helt tomt når du tar det ut.

Illustration of two skis with directional arrows indicating movement or force (no text or symbols)

Two mechanical components with a diagonal line and an arrow indicating motion or assembly (no text or symbols)

Illustration of a hand holding a tool with a device, crossed out by a diagonal line (no text or symbols)

4 Ta ut batteriholderen, og klipp over batterifikene med en avbitertang.

Garanti og støtte

Hvis du trenger kundestøtte eller informasjon, kan du gå til www.philips.com/support eller lese i garantiheftet.

Begrensninger i garantien

Prohibition sign showing a faucet with a diagonal line and raindrops, no text present

Prohibition sign with a faucet symbol and diagonal line indicating no pollution or leakage

Simple line drawing of a showerhead spraying over water (no text or symbols)

Diagram of a medical or laboratory procedure showing a cross-section with an arrow pointing to a labeled point (no text or symbols present)

Diagram of a biological or anatomical structure with a highlighted region and a starburst symbol (no text or labels)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological structure with two circular regions and a pointer, no text or symbols present

- Indicador de carga da bateria com 1 luz

Bateria fraca

Diagram of a biological or medical procedure showing a pointed tool interacting with a star-shaped object (no text or symbols present)

Diagram of a biological structure with a star-shaped annotation and arrow pointing to a region (no text or symbols present)

- Indicador de carga da bateria com 1 luz

Diagram of a droplet inside a tube with an arrow pointing to a small circular feature, no text or symbols present.

Indicador de carga da bateria com 3 luzes

Diagram showing a plug symbol with a downward arrow pointing to a star-shaped object, likely indicating a warning or hazard.

Medical diagram showing a surgical procedure with a labeled arrow and a star-shaped object, likely indicating a surgical or diagnostic procedure.

Diagram showing a human torso with a padlock icon and a power button, indicating a location or location of interest.

Diagram showing a human torso with a padlock icon and a power button, indicating a location or location of interest.

Diagram showing a biological structure with a labeled circular diagram containing three stylized symbols: a mouth, a skull, and a bulb.

Diagram showing a plug connected to a device with labeled parts 1 and 2, indicating electrical or medical connection.

1 Introduza a ficha pequena no aparelho e coloque o adaptador na tomada eléctrica.

Carregamento no sistema SmartClean (apenas modelos específicos)

Diagram showing a hand pressing down on a surface with arrows indicating force direction, and a magnified inset showing two figures in a circular view (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a force or direction (no text or symbols visible)

Diagram illustrating foot massage technique with numbered instructions and directional arrows

Diagram showing a hand holding a button labeled 'Power' with a circular icon, likely illustrating a power switch or control mechanism.

Illustration of a person applying makeup to the ear with a circular tool (no text or symbols)

Illustration of a person's face with a hand touching the ear area (no text or symbols)

Barbear a pele húmida

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a small object with motion lines indicating movement (no text or symbols)

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a hand holding a mushroom-shaped object with an arrow indicating upward motion (no text or symbols)

Diagram of a funnel pouring liquid into a curved pipe, with an inset showing a droplet (no text or symbols)

Diagram showing a device emitting light onto a surface, with an inset close-up of its component (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a robotic arm with a brush and motion indicator, showing a close-up of the handle (no text or symbols)

Line drawing of a hairbrush cutting into a button with a downward arrow (no text or symbols)

Diagram showing a hand holding a device with labeled parts 1 and 2, indicating directional movement or process flow.

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Line drawing of a man's face with short hair and beard, holding a small object near his neck (no text or symbols)

Diagram showing a dropper dispensing liquid into a container with an inset image of a graduation cap (no text or symbols present)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing facial treatment technique with magnified inset of a brush and magnified side view

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow, no text or symbols present

4 Retire o selo da recarga de limpeza.

Diagram of a blender with a black arrow pointing to its lid (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow (no text or symbols)

Warning symbol for a device with a downward arrow and a prohibition sign, indicating no protection or absence of any text.

Utilizar o sistema SmartClean

Diagram illustrating a mechanical or fluidic process with arrows indicating flow direction and a magnified inset showing a cross-section of a device.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and safety changes on a shoe, labeled with arrows and numbered parts

Hand inserting a power button into a device (no text or symbols visible)

4 Prima o botão ligar/desligar no sistema SmartClean para iniciar o programa de limpeza.

- Durante o programa de limpeza (que demora aprox. 10 minutos), o símbolo de limpeza fica intermitente.

Illustration of a funnel with two circular indicators (one checked, one not checked) inside, no text or symbols present.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

110

Diagram of a blender with a black arrow pointing to its interior (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Limpeza da máquina de barbear à torneira

Illustration of a hand washing a small object with a water dispenser (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a mechanical component (no text or symbols)

PORTUGUÊS358

Illustration of a hand pouring liquid into a container with a dropper (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, partially overlaid on a mechanical component (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a divided mechanical component with three circular parts and an ascending arrow, no text or symbols present.

Diagram showing two mechanical components with fluid or material flow, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a circular object being lifted by a downward arrow into a ring-like structure (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Diagram illustrating a process with a magnified view of a cloud icon and directional arrow, likely related to cloud computing or data processing.

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Illustration of two fish separated by a diagonal line, one emitting water droplets (no text or symbols)

Illustration of a shoe being lifted by a tool, showing the ball being lifted (no text or symbols present)

Illustration of a hand holding a small object with motion lines, accompanied by a circular icon showing a rock or geological feature (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Two identical diagrams showing a brush and a foot with a cloth, connected by a diagonal line (no text or symbols)

Illustration of mechanical components including a drum, bell, and base (no text or symbols)

Illustration of a stylized object with a downward arrow, possibly indicating motion or change (no text or symbols present)

Diagram of a hairbrush with a handle and spout, showing no text or symbols

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Diagram showing a biological structure with a speech bubble containing a skull icon and directional arrows, possibly indicating movement or interaction.

Illustration of a hand holding a circular object with an arrow pointing to a three-pin connector (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a hand holding three circular objects above a divided line, with an inset illustrating a tool interacting with a cylindrical object (no text or symbols present)

Diagram showing a circular object being lifted by a black arrow, forming a ring structure (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with coins, a magnifying glass, and a hand holding a coin, featuring a crossed-out 'X' symbol.

Illustration of a hand holding a circular object with a downward arrow, partially overlaid on a mechanical component (no text or symbols)

Encomendar acessórios

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with crossed x-bracing (no text or symbols)

Illustration of a sewing machine tool interacting with a shoe (no text or symbols present)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with arrows indicating motion or assembly, no visible text or symbols

Illustration of hands using a tool to cut or adjust a mechanical component (no text or symbols visible)

No sign depicting a faucet with a diagonal line, crossed out by a diagonal line (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Försiktighet

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object (no text or symbols present)

Diagram showing a droplet inside a tube with a labeled pointer and a starburst symbol, likely illustrating a biological or chemical process.

Diagram of a biological structure with a magnified inset showing a single cell (no text or labels)

Diagram showing a biological or anatomical structure with a labeled point '0' pointing to a circular feature.

Diagram of a biological or medical structure with an arrow pointing to a star-shaped feature, no text or symbols present.

Diagram showing a droplet inside a tube with a labeled pointer and a starburst symbol, likely illustrating a biological or chemical process.

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a circular component (no text or symbols present)

Diagram showing a plug plug icon pointing to a star-shaped object with a downward arrow, likely indicating a warning or hazard.

Medical diagram showing a surgical procedure on human skin with a faucet symbol and a star-shaped area indicating a specific area.

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Diagram showing a plug inserted into a socket connected to a cable with labeled parts 1 and 2

Diagram illustrating a mechanical or fluidic process with arrows indicating flow and a magnified inset showing a cross-section of a device or component.

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot contact zones with numbered arrows and motion indicators, likely for safety or repair instructions.

Diagram showing a hand pressing a button labeled 'Power' with an icon, likely illustrating a power switch or electrical function.

Illustration of a person applying a hairpin to their face (no text or symbols present)

Line drawing of a person's face with hand near ear area, no text or symbols present

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a shoe with water spray (no text or symbols)

Illustration of a person applying a hairpin to their face (no text or symbols present)

Diagram showing a hand holding a device with a funnel and a cross symbol, no text or labels present

Illustration of a funnel pouring liquid into a curved pipe, with an inset showing a droplet on the pipe (no text or symbols)

Illustration of a robotic arm with motion lines and a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a person applying hair to their ear (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a device (no text or symbols)

Line drawing of a hairbrush cutting into a circular cutter (no text or symbols)

Diagram showing a hand holding a device with labeled parts 1 and 2, indicating directional movement or process flow.

Illustration of a man with a beard using a pipe to smoke or smoke (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a dropper dispensing liquid into a container with an inset showing a small object (no text or symbols)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face with a tool, no text or symbols present

20 sec.

20 sec.

Illustration showing facial massage technique with a magnified inset of the eye area (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Diagram illustrating a mechanical or fluidic process with directional arrows and a magnified inset showing internal components.

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and impact on a shoe, labeled with numbered arrows and motion indicators

Line drawing of a hand holding two circular buttons with power and spiral symbols, next to a device (no text or labels)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and no visible text or symbols.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

110

Diagram of a blender with a black arrow pointing to its lid, showing no text or symbols.

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a faucet spraying water onto a surface with no text or symbols

Illustration of a hand holding a circular object with an arrow pointing to it, alongside a separate view of a three-pin ring device (no text or symbols present)

Illustration of a hand pouring liquid into a container with a dropper (no text or symbols)

Illustration of a hand holding a circular component with a downward arrow pointing to a mechanical component (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a divided container with three circular components and an open lid with arrows indicating rotation (no text or symbols)

Illustration of a hand washing a tooth with water splashing out (no text or symbols)

Mechanical gear assembly diagram showing a rotating shaft with gear teeth and a central hub (no text or symbols)

Diagram showing a circular object being lifted by a downward arrow into a ring-like structure (no text or symbols)

Technical diagram of a mechanical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Diagram illustrating a process with a magnified view of a cloud and a 'X' symbol, showing a hand holding a ring and a gear mechanism.

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a shoe being dispensed from a bottle onto a textured surface (no text or symbols)

Illustration of a hand crushing debris with a magnified circular inset showing a broken surface (no text or symbols)

Diagram of a mechanical component with a top cylindrical head and a base, showing an upward arrow (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of mechanical components including a knob, drum, and bow (no text or symbols)

Illustration of a mechanical component with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with a handle and base (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Diagram showing a biological structure with a speech bubble containing a skull icon and directional arrows, likely indicating a process or labeling.

Illustration of a hand holding a circular object with an upward arrow, next to a three-tiered mechanical component (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a hand holding three circular objects above a divided line, with an inset illustrating the same object's shape (no text or symbols present)

Diagram showing a circular object being lowered into a ring-shaped structure (no text or symbols)

Technical diagram of a mechanical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Diagram illustrating a process with coins, a magnifying glass highlighting a leaf symbol, and a hand holding a coin with a downward arrow.

Illustration of a hand holding a circular object with a downward arrow, alongside a magnified view of a mechanical component (no text or symbols)

Prohibition symbol for a trash bin with crossed and unbroken cross lines, indicating no waste or disposal.

Illustration showing a hand holding a screwdriver and a foot with a knife, both on a diagonal line (no text or symbols)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with arrows indicating motion or assembly, no visible text or symbols

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Dikkat

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Elektromanyetik alanlar (EMF)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object (no text or symbols present)

Diagram of a biological or mechanical structure with a labeled point '0' and an arrow pointing to a small feature (no text or symbols beyond the label)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological or anatomical structure with a labeled point '0' and an arrow pointing to a circular feature (no text or symbols beyond the label)

Diagram of a biological or medical structure with an arrow pointing to a star-shaped feature, enclosed in a circle (no text or symbols present)

Diagram showing a droplet inside a tube with a labeled point '0' and a pointer arrow pointing to the droplet's center.

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a circular component (no text or symbols present)

Diagram showing a plug symbol with a downward arrow pointing to a star-shaped object, possibly indicating a warning or hazard.

Medical diagram showing a surgical procedure with a faucet and label 'HA' pointing to a highlighted area

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Diagram showing a plug inserted into a socket connected to a device with labeled parts 1 and 2

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a cross-section of a mechanical component (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot contact technique with numbered steps and directional arrows indicating movement

Diagram showing a hand pressing a button labeled with an 'Power' icon, likely indicating a switch or power button.

Illustration of a person applying makeup to their ear with a circular tool (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a water bottle with a faucet (no text or symbols)

4 Cihazı açın.

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Diagram showing a funnel with a cross symbol and an upward arrow, no text or labels present

Illustration of a funnel pouring liquid into a curved pipe, with an inset showing a graduation cap (no text or symbols)

Diagram showing a spray gun on a surface with an inset magnified view of the tip (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a hand holding a pen with an arrow indicating compression or force application (no text or symbols present)

Line drawing of a hairbrush cutting into a button (no text or symbols)

Diagram showing a hairpin with labeled parts and directional arrows indicating movement or force

Illustration of a man eating with a spoon and upward arrow (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Diagram showing a dropper dispensing liquid into a container with an inset image of a graduation cap (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing facial massage technique with magnified inset of a tool on the nose

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Simple line drawing of a container with an upward arrow and label 'BANANA' (no text or symbols on the diagram itself)

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Warning symbol for a device with a downward arrow and prohibition sign

SmartClean sistemini kullanma

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a magnified view of a device (no text or symbols present)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and impact on athletic shoes, labeled with arrows and numbered positions

Hand holding two circular buttons with 'Power' and spiral design, connected to a device (no text or symbols visible)

Diagram of a funnel-shaped container with two circular indicators labeled '✓' and 'D' (no text or symbols beyond icons)

Illustration of a hand washing a small object with a water dispenser (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a three-pin device (no text or symbols)

Illustration of a hand pouring liquid into a container with a dropper (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, next to a close-up of a mechanical component (no text or symbols)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a three-pin ring device (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing a hand holding three circular objects with arrows indicating rotation or movement (no text or symbols)

Diagram showing two mechanical components with fluid flow, no text or symbols present

Mechanical gear assembly diagram showing a rotating shaft and gear teeth (no text or labels)

Diagram showing a circular object being lifted by a downward arrow into a ring-like structure (no text or symbols)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with a magnified view of a brain lesion and directional arrows, likely related to brain injury or neural activity.

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two kitchen utensils with chopsticks, one on a diagonal line and the other on a horizontal line (no text or symbols)

Two cartoon fish separated by a diagonal line, one falling and the other running with motion lines (no text or symbols)

Illustration of a shoe being lifted by a bag, showing the ball being lifted (no text or symbols)

Illustration of a hand crushing debris with a magnified circular inset showing a broken surface (no text or symbols)

Diagram of a mechanical component with a top and base, showing an upward arrow (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of mechanical components including a drum, gear, and base (no text or symbols)

Saklama

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a spray bottle with a handle and spout (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Simple line drawing of a human body with a speech bubble containing a skull icon (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a three-pin device (no text or symbols)

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a hand holding three circular objects above a divided surface, with an inset illustrating the process of cleaning or cleaning (no text or symbols present)

Diagram showing a circular object being lifted by a black arrow, forming a ring-like structure (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows

Diagram showing two mechanical components with arrows indicating motion or force direction, no text or symbols present

Diagram showing a mechanical component with a magnified view of a gear and a cross symbol, possibly indicating a gear or gear assembly.

Illustration of a hand holding a circular object with a downward arrow, alongside a close-up of a mechanical component (no text or symbols)

7 sec. 201 OK LOCK OR ( )

Symbol of a waste bin with no text or labels

Illustration of a hand holding a pen and a foot, with no visible text or symbols

Illustration of two skis in motion, one moving and the other on a diagonal line (no text or symbols)

Two mechanical components with a diagonal line and an arrow indicating motion or assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.
