USER MANUAL Evoke H4a PURE

Evoke H4 Downloaded from www.vandenborre.beDownloaded from www.vandenborre.be1 Evoke H4 Thank you for choosing the Evoke H4. This user manual explains how to use the various features of your Evoke H4. If you need more help, you can view our help topics at support.pure.com. Source 123456+ Menu Volume Select

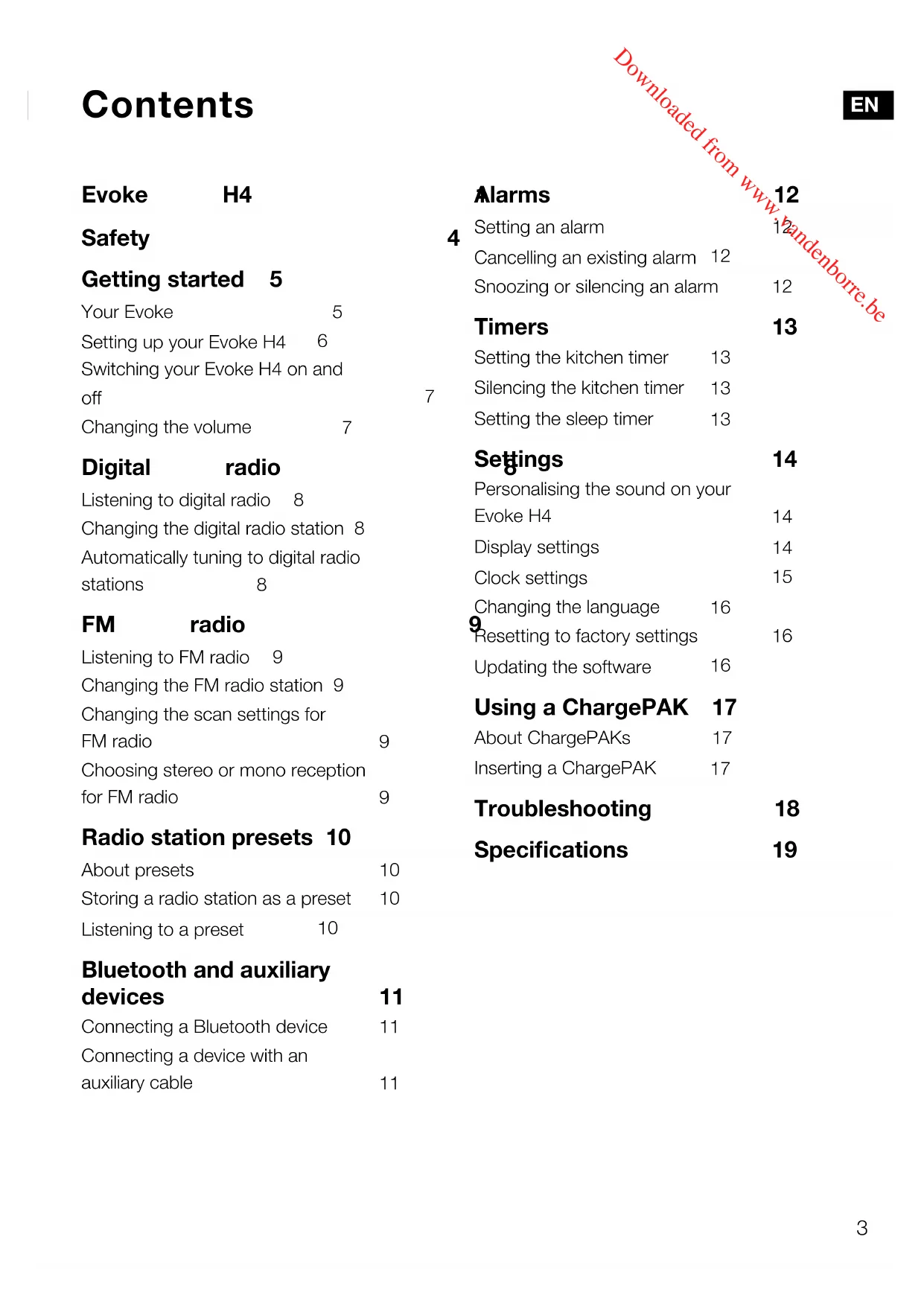

Downloaded from www.vandenborre.be2 Downloaded from www.vandenborre.be3 Contents Evoke H4 1 Safety 4 Getting started 5 Your Evoke 5 Setting up your Evoke H4

Switching your Evoke H4 on and off

Digital radio 8 Listening to digital radio 8 Changing the digital radio station 8 Automatically tuning to digital radio stations

FM radio 9 Listening to FM radio 9 Changing the FM radio station 9 Changing the scan settings for FM radio

Choosing stereo or mono reception for FM radio

Radio station presets 10 About presets 10 Storing a radio station as a preset 10 Listening to a preset

Bluetooth and auxiliary devices 11 Connecting a Bluetooth device 11 Connecting a device with an auxiliary cable

Snoozing or silencing an alarm 12 Timers 13 Setting the kitchen timer 13 Silencing the kitchen timer

Setting the sleep timer

Settings 14 Personalising the sound on your Evoke H4

Changing the language

Resetting to factory settings 16 Updating the software

Downloaded from www.vandenborre.be4 Safety 1. Read, heed and retain these instructions – All the safety and operating instructions should be read before this product is used and retained for future reference. All warnings on the appliance and in the operating instructions should be followed 2. Failure to install or use the product in accordance with these instructions may impair the safety of the product and invalid the warranty. 3. Use only power supply listed in these user manual/user instructions (supplied by Pure with model number ZD12D120120) to power the equipment and do not use the power supply for any other purpose.4. The direct plug-in adapter is used as a disconnect device, the disconnect device shall remain readily operable and accessible. 5. Do not immerse in water or use in a wet / moist environment, such as in the shower or bathroom if plugged into the mains supply. The power supply shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, placed above it.6. Do not remove screws from or open the product casing. 7. Keep the product away direct sunlight and from heat sources such as radiators, heaters or other appliances that produce heat. 8. Danger of explosion if the battery is incorrectly replaced (ensure correct polarity). Replace only with the same or equivalent type. The battery shall not be exposed to excessive heat such as sunshine, fire or similar. Attention is drawn to the environmental aspects of battery disposal.9. Do not expose the product to naked flame sources, such lighted candles which should not be placed on or near the product.10. Ventilation should not be impaired by covering the product or power supply.11. Clean only with a dry cloth.12. This product is intended for use in moderate climates.13. If the product is used in a manner not specified by the instructions, the product’s protection could be impaired.14. Do not use the product if any damage is noticed.15. Product repairs are only allowed to be carried out by competent and authorised personnel. Safety instructions and cautions Symbol DescriptionThis symbol is used on the product to indicate a caution and that instructions should be read before use.This symbol indicates DC voltage.This symbol indicates where the product is switched on or put into standby. Symbols used on this product Downloaded from www.vandenborre.be5 Getting started Your Evoke Front controls Source123456+ Menu Volume Select

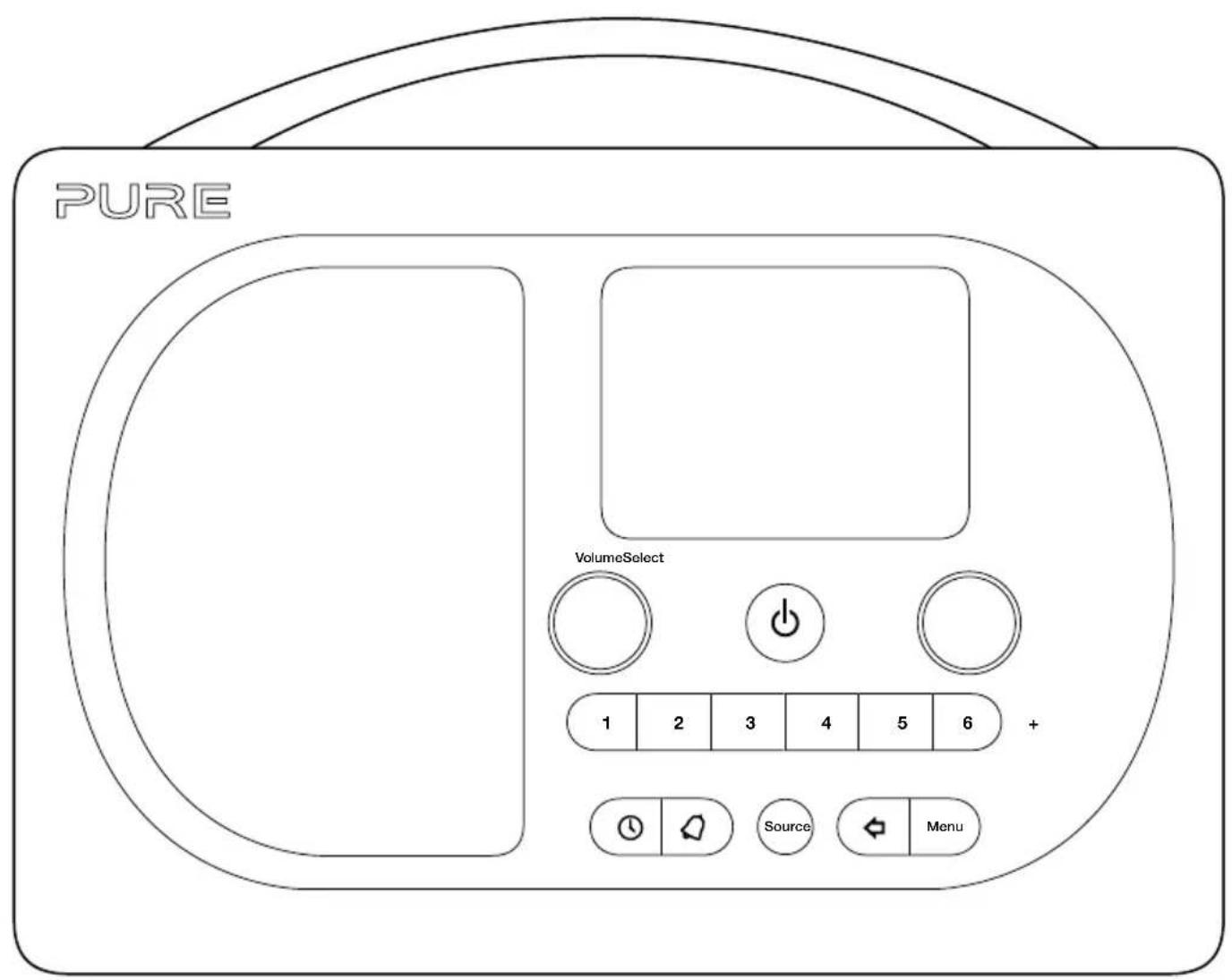

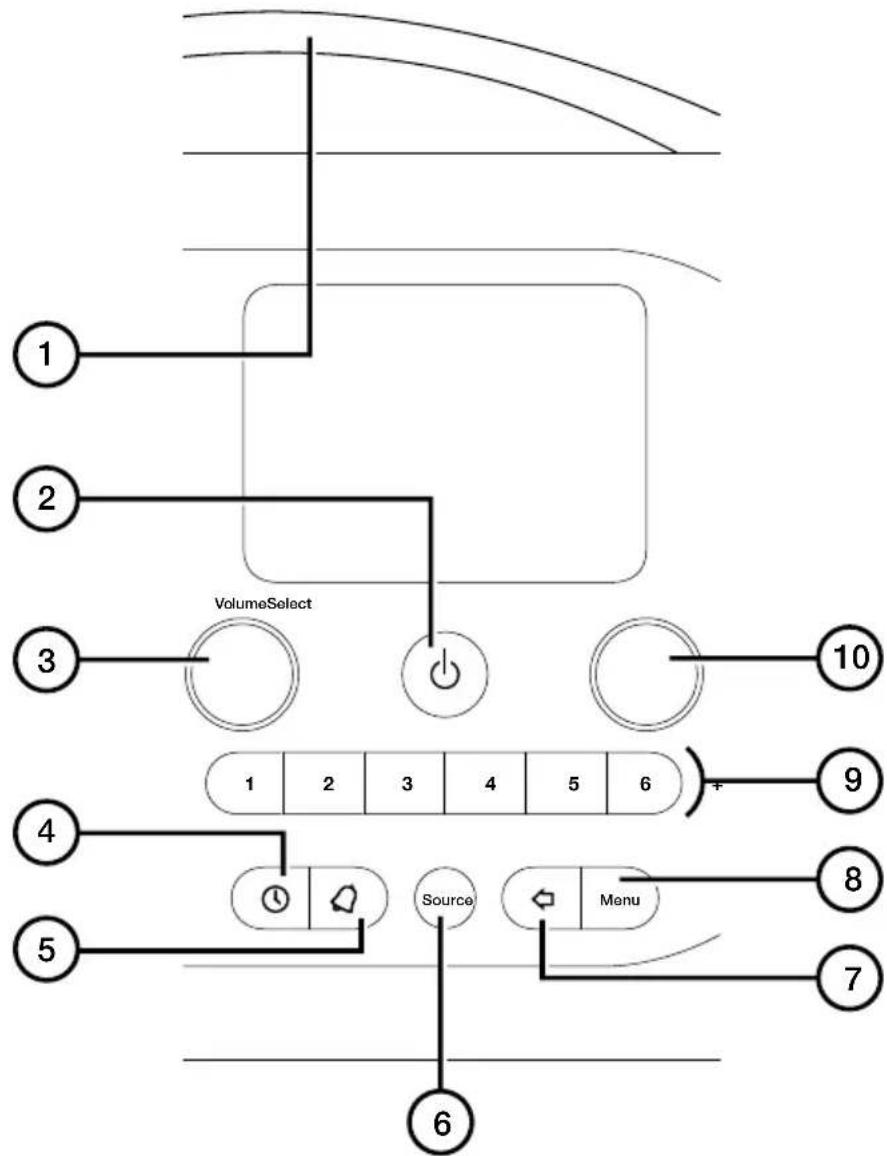

1 Snoozehandle Tap to snooze an alarm or brighten the screen when dimmed2 Standby Switch your Evoke H4 on and off, or put it in standby3 Volume Turn to change the volume, press to mute the volume4 Timer Press to set a sleep timer5 Alarm Press to set an alarm or a kitchen timer6 Source Press to change between digital radio, FM radio, Bluetooth, and auxiliary input7 Back Press when in the menu to go back to the previous screen8 Menu Press to change settings and options9 Presets Press to store and access your favourite radio stations 10 Select Turn and press to browse radio stations, or select settings and options

Downloaded from www.vandenborre.be6 Rear connections 12V DC 1.2A x inAu Input for supplied mains adapter only 3.5mm output for stereo headphones Analogue stereo input for auxiliary cables Micro USB connector for software updates Setting up your Evoke H4 To set up your Evoke H4:

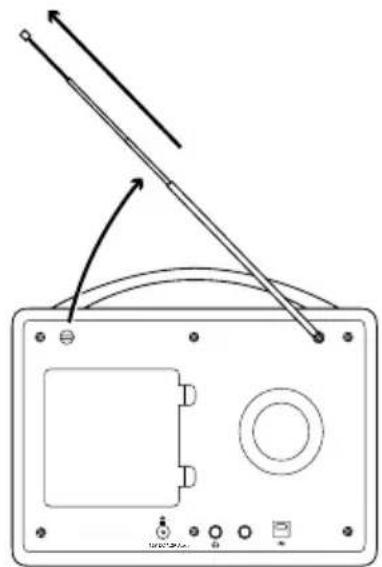

1. Unclip the aerial and fully extend it.

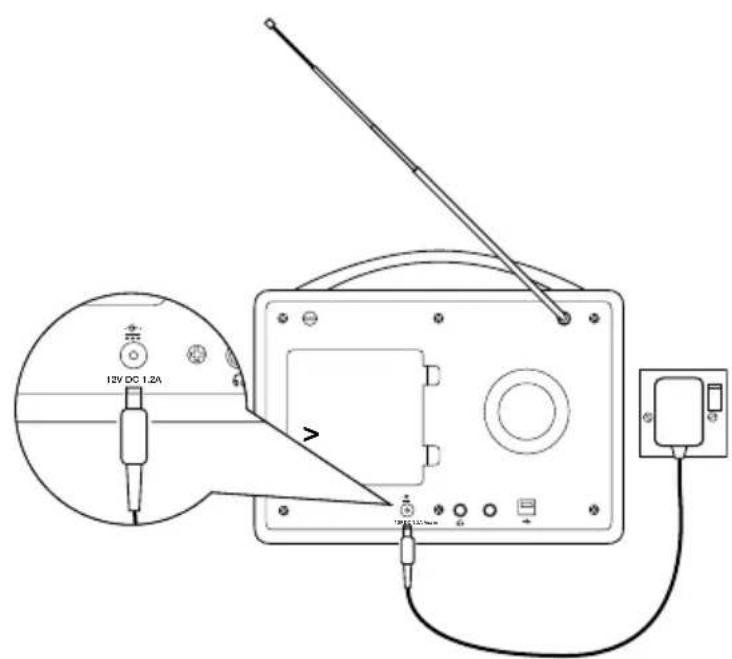

2. Connect the supplied mains adapter to the input on the back of your Evoke H4.

3. Plug the mains adapter into the mains supply.

12V DC 1.2A Aux in Downloaded from www.vandenborre.be7 Switching your Evoke H4 on and off If you have a ChargePAK rechargeable battery, insert it before you switch your Evoke H4 on. Read more about using a ChargePAK on page 17. To switch your Evoke H4 on:

Note: When you switch your Evoke H4 on for the first time, it starts tuning to digital radio stations. After the autotune is complete, you can start listening to digital radio. To switch your Evoke H4 off or put it in standby:

If your Evoke H4 is being powered by a ChargePAK, your Evoke H4 switches off. If your Evoke H4 is connected to a power socket, your Evoke H4 enters standby. In standby, your Evoke H4 uses a low amount of power and displays the time and date on the screen. Changing the volume To change the volume:

• To increase the volume, turn the Volume dial clockwise.

• To decrease the volume, turn the Volume dial anticlockwise. To mute the volume:

• Press the Volume dial. Volume Volume

• Press Source until ‘Digital Radio’ is displayed. Tip: Some digital radio stations also broadcast information and graphics, such as music album artwork or weather updates. Press the Select dial to change between slideshow, large slideshow and display modes. Changing the digital radio station To change the digital radio station:

1. Turn the Select dial left or right to browse through the available radio stations.

2. Press the Select dial to change radio station.

Tip: A ‘>>’ next to a radio station name means the station has a secondary service, which provides more content. The secondary service is listed below the radio station with a ‘<<’ next to the service name. Secondary services may only be available at certain times. A ‘?’ next to a radio station name means the station is inactive or unavailable. Automatically tuning to digital radio stations When you switch your Evoke H4 on for the first time, it automatically scans for digital radio stations. If you move your Evoke H4 to a new location, perform an autotune to update the list of radio stations. To automatically tune to digital radio stations:

Your Evoke H4 starts scanning for digital radio stations. Station ListBBC Radio 1BBC Radio 1XtraBBC Radio 2BBC Radio 3BBC Radio 4BBC Radio 4ExtraBBC Radio 5 Live Select Select Downloaded from www.vandenborre.be9 FM radio Listening to FM radio To listen to FM radio:

• Press Source until ‘FM’ is displayed. Changing the FM radio station To change the FM radio station:

• To scan to the previous or next radio station, turn the Select dial left or right and then press the Select dial.

• To manually tune to a radio station, turn the Select dial left or right. The frequency steps up or down by 0.05 MHz. Changing the scan settings for FM radio When you scan for FM radio stations, you can include all radio stations or only those with a strong signal. To change scan settings for FM radio:

2. Turn and press the Select dial to choose ‘Scan Setting’.

3. Turn and press the Select dial to choose ‘Strong Stations Only’ or ‘All Stations’.

Choosing stereo or mono reception for FM radio By default, your Evoke H4 uses stereo reception for FM radio. If your FM radio stations have a weak signal, try using mono reception to improve the signal strength. To choose stereo or mono reception:

2. Turn and press the Select dial to choose ‘Stereo’.

3. Turn and press the Select dial to choose ‘FM Stereo’ or ‘Forced Mono’.

Select Select Select

Downloaded from www.vandenborre.be10 Radio station presets About presets You can store your favourite radio stations as presets. You can use presets to quickly tune to your stored radio stations whenever you want. On the front of your Evoke H4, there are six preset buttons. Use

for quick access to your favourite radio stations. Use

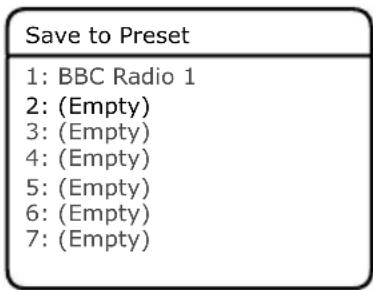

to open a list of all your presets. You can store up to 20 digital radio stations and up to 20 FM radio stations as presets. Storing a radio station as a preset To store a radio station to a preset from 1 to 5:

1. Tune to the radio station you want to store.

then press and hold it until a is displayed. Tip: If there is already a radio station stored to the preset you’ve selected, the new station replaces it. To store a radio station to the preset list:

1. Tune to the radio station you want to store.

until the preset list is displayed.

3. Turn and press the Select dial to choose a preset number. A

is displayed. Tip: If there is already a radio station stored to the preset you’ve selected, the new station replaces it.

Listening to a preset To listen to a preset from 1 to 5:

• Press a preset button from

. For example, to listen to the radio station stored as preset 2, press

To listen to any preset:

to open the preset list.

2. Turn and press the Select dial to choose a preset.

Downloaded from www.vandenborre.be11 Bluetooth and auxiliary devices Connecting a Bluetooth device You can use Bluetooth to wirelessly connect to a device, such as a mobile phone or tablet. You can then stream music from your mobile phone or tablet through your Evoke H4.The first time you connect a Bluetooth device to your Evoke H4, you need to pair them. After you’ve paired a device with your Evoke H4, your Evoke H4 remembers it for the next time. To connect a Bluetooth device:1. Press Source until ‘Bluetooth’ is displayed.2. Press Menu

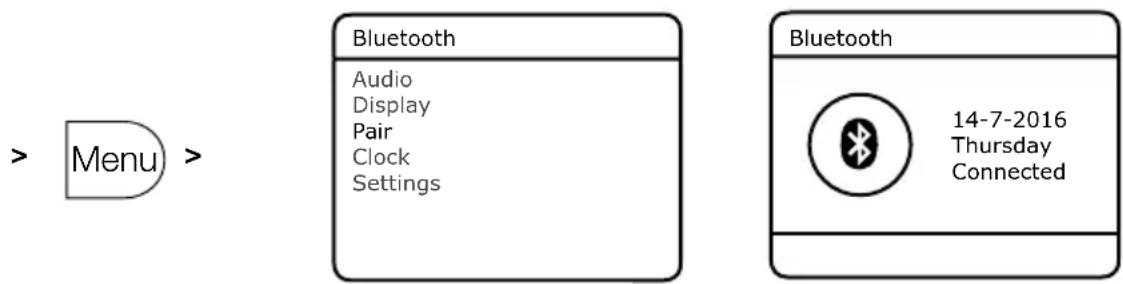

3. Turn and press the Select dial to choose ‘Pair’. Your Evoke H4 is now discoverable for 5 minutes, which means other Bluetooth devices can find it.4. On your Bluetooth device, switch Bluetooth on and connect to your Evoke H4. Note: For more information, see your Bluetooth device’s user manual. If you are asked to enter a passcode, enter 0000. When ‘Connected’ is displayed on your Evoke H4 screen, your Evoke H4 is ready to stream music. Tip: If you want to connect a different Bluetooth device to your Evoke H4, switch off Bluetooth on the connected device first. > > Connecting a device with an auxiliary cable You can use an auxiliary cable to connect a device, such as an MP3 player, to your Evoke H4. You can then enjoy music saved on the device through your Evoke H4.To connect a device with an auxiliary cable:1. Press Source until ‘Auxiliary Input’ is displayed.2. Insert an auxiliary cable into the Aux in socket on the back of your Evoke H4.3. Insert the other end of the auxiliary cable into the device you want to connect. Your Evoke H4 is now ready to play music from the connected device. Menu BluetoothAudioDisplayPairClockSettings Bluetooth14-7-2016ThursdayConnected

Downloaded from www.vandenborre.be12 Alarms To wake up to your favourite radio station, you can set up to two alarms on your Evoke H4. Note: You cannot set alarms when your Evoke H4 is being powered by a ChargePAK. Setting an alarm To set an alarm:

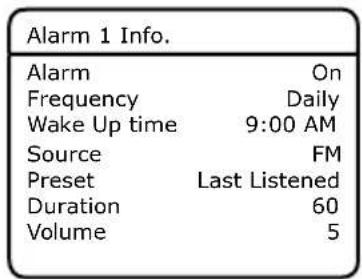

3. Turn and press the Select dial to change settings for the alarm.

‘Alarm’ Turn the alarm on or off ‘Frequency’ Choose how often you want the alarm to sound ‘Wake Up time’ Choose the time for the alarm ‘Source’ Choose to wake up to an FM or digital radio station, or a buzzer Tip: To choose FM or digital radio, you need to have stored a radio station as a preset. ‘Preset’ Choose a radio station to wake up to ‘Duration’ Choose how many minutes the alarm sounds for ‘Volume’ Choose the volume for the alarm

4. When you have made all of your changes, press

symbol is displayed at the bottom of the screen when an alarm is set.

3. Turn and press the Select dial to change the ‘Alarm’ setting to ‘Off’.

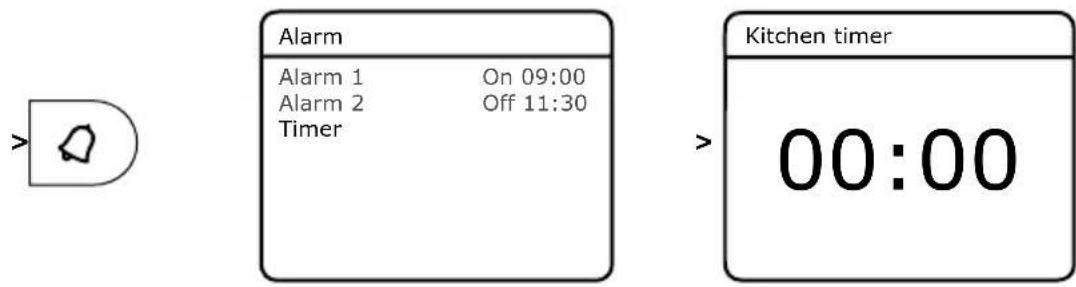

AlarmAlarm 1Alarm 2TimerOn 09:00Off 11:30 Downloaded from www.vandenborre.be13 Timers Setting the kitchen timer The kitchen timer counts down and then ends with an alarm tone.To set the kitchen timer:1. Press 2. Turn and press the Select dial to choose ‘Timer’.3. Turn the Select dial to choose the duration of the timer.4. Press the Select dial to start the timer. The symbol is displayed at the bottom of the screen when the timer is set. > > Silencing the kitchen timer To silence the kitchen timer:• Press . Setting the sleep timer The sleep timer puts your Evoke H4 in standby after a set amount of time.To set the sleep timer:1. Press 2. Turn the Select dial to choose the duration of the timer. Tip: You can choose between 15 and 90 minutes.3. Press the Select dial to start the timer. The symbol and remaining time is displayed at the bottom of the screen when the timer is set. >Kitchen timer 00:00 Set Sleep Timer15 minutesAlarmAlarm 1Alarm 2TimerOn 09:00Off 11:30

Downloaded from www.vandenborre.be14 Settings Personalising the sound on your Evoke H4 Use the equaliser and boost setting to get the most out of your music. There are several equaliser settings set up already. For example, to hear classical music at its best, change the equaliser setting to ‘Classic’. You can also customise the equaliser to change the treble, bass and loudness. To use the equaliser:

2. Turn and press the Select dial to choose ‘Audio’.

3. Turn and press the Select dial to choose ‘Equaliser’.

4. Choose an equaliser setting:

• To choose an equaliser setting, turn and press the Select dial.

• To use custom settings, turn and press the Select dial to choose ‘Custom’. Then turn and press the Select dial to change the treble, bass and loudness. To turn boost on or off:

2. Turn and press the Select dial to choose ‘Audio’.

3. Turn and press the Select dial to choose ‘Boost’.

4. Turn and press the Select dial to turn boost on or off.

Display settings Changing the information displayed on the screen You can change the information that is displayed on the screen when you are listening to the radio. For example, you can display scrolling information about the current radio station. To change the information displayed on the screen:

2. Turn and press the Select dial to choose ‘Display’.

3. Turn and press the Select dial to choose ‘Info’.

4. Turn and press the Select dial to choose the information to display.

Changing the screen brightness Your Evoke H4 has a light sensor, which adjusts the screen brightness based on your surroundings. You can also manually change the screen brightness. To help save energy, you can dim the screen after 10 seconds of inactivity. To change the brightness of the screen when switched on:

2. Turn and press the Select dial to choose ‘Display’.

4. Turn and press the Select dial to choose a brightness level. To make your screen brighter, choose a

higher number. To automatically set the screen brightness, choose ‘Auto’. To dim the screen after 10 seconds of inactivity:

2. Turn and press the Select dial to choose ‘Display’.

3. Turn and press the Select dial to choose ‘Duration’.

4. Turn and press the Select dial to choose ‘Timed’.

To change the brightness of the screen when dimmed:

2. Turn and press the Select dial to choose ‘Display’.

3. Turn and press the Select dial to choose ‘Dim Level’.

4. Turn and press the Select dial to choose a brightness level. To make your screen brighter, choose a

higher number. Clock settings Setting the time and date Your Evoke H4 can use FM and digital radio signals to set the time and date automatically. If the time and date do not update automatically, you can set them manually. To set the time and date automatically:

2. Turn and press the Select dial to choose ‘Clock’.

3. Turn and press the Select dial to choose ‘Auto Update’.

4. Turn and press the Select dial to choose how to set the time and date.

To set the time and date manually:

2. Turn and press the Select dial to choose ‘Clock’.

3. Turn and press the Select dial to choose ‘Set Time/Date’.

4. Turn and press the Select dial to set the date.

5. Turn and press the Select dial to set the time.

2. Turn and press the Select dial to choose ‘Clock’.

3. Turn and press the Select dial to choose ‘Set 12/24 Hour’.

4. Turn and press the Select dial to choose the time format.

2. Turn and press the Select dial to choose ‘Clock’.

3. Turn and press the Select dial to choose ‘Set Date Format’.

4. Turn and press the Select dial to choose the date format.

Changing the language You can change the language of menus and settings. To change the language:

2. Turn and press the Select dial to choose ‘Settings’.

3. Turn and press the Select dial to choose ‘Language’.

4. Turn and press the Select dial to choose a language.

Resetting to factory settings A factory reset removes all stored presets, alarms, timers and settings on your Evoke H4. Note: You cannot undo a factory reset. To reset to factory settings:

2. Turn and press the Select dial to choose ‘Settings’.

3. Turn and press the Select dial to choose ‘Factory Reset’.

4. Turn and press the Select dial to choose ‘Yes’.

Your Evoke H4 resets to factory settings and then restarts. Updating the software Pure may provide software updates to your Evoke H4. To check for available software updates, visit support.pure.com. Tip: To be contacted when software updates are available, you can register your product at pure.com/ register. To check the current software version:

2. Turn and press the Select dial to choose ‘Settings’.

3. Turn and press the Select dial to choose ‘Software Version’.

To update the software:

1. Use a Micro USB cable to connect your Evoke H4 to your computer.

2. Follow the instructions provided with the software update file.

Downloaded from www.vandenborre.be17 Using a ChargePAK About ChargePAKs A ChargePAK is a rechargeable battery pack that allows you to listen to your music anywhere. When your Evoke H4 is connected to a power outlet, it charges the ChargePAK. You can then disconnect your Evoke H4 from the power and take your music with you. Inserting a ChargePAK Note: Your Evoke H4 is only compatible with a Pure ChargePAK F1. Do not use any other batteries or ChargePAK models with your Evoke H4. To insert a ChargePAK:

1. Switch your Evoke H4 off and disconnect it from the power supply.

2. At the back of your Evoke H4, press the two clips on the battery cover to remove it.

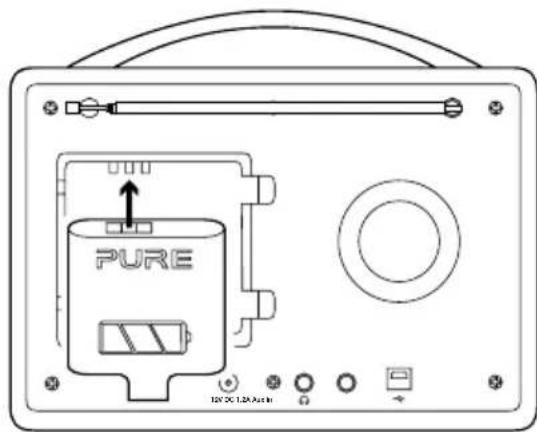

3. Insert the ChargePAK into the battery compartment, with the electrical contacts on the ChargePAK

facing down and the Pure label facing you.

4. Replace the battery cover.

5. Connect your Evoke H4 to the power supply.

The ChargePAK starts charging. If the ChargePAK is new or has not been used for a long time, we recommend you charge it for at least 24 hours. Note: When the ChargePAK is charging, it is normal for it to get warm. The efficiency of the ChargePAK may decrease over time.

12V DC 1.2A Aux in +–12V DC 1.2A Aux in

Downloaded from www.vandenborre.be18 Troubleshooting Problem Solution I can’t hear any sound Use the Volume dial to turn the volume up. For digital radio, perform an autotune. Read more on page 8. For Bluetooth or auxiliary devices, check a device is connected. Turn the volume up on the connected device. The screen is very dark Remove any obstructions from in front of the speaker. There is a light sensor behind the speaker grill. Turn up the screen brightness. Read more on page 14. I can’t find an FM or digital radio station Adjust your aerial and check it is fully extended. Move your radio to another location. For digital radio, perform an autotune. Read more on page 8. For FM radio, try using mono reception to improve the signal strength. Read more on page 9. Downloaded from www.vandenborre.be19 Specifications Radio Digital and FM radio Frequencies DAB/DAB+ FM radio 87.5-108MHz Bluetooth Bluetooth v4.1 A2DP support Speaker Audio output power Full range 3” driver unit 10 Watts RMS Inputs 12V DC power adapter socket (230V supplied) 3.5mm stereo Aux In for auxiliary devices USB connection (Micro USB) for software updates only Outputs 3.5mm stereo headphone Presets 20 digital radio and 20 FM radio presets Display 2.8” colour display Mains power adapter Adapter Input AC 100-240V~, 50/60 Hz, 0.8A Output DC 12V , 1200mA Main unit DC 12V , 1.2A ChargePAK Pure ChargePAK F1 rechargeable battery pack (available separately) Power consumption Standby: 0.8W Active: 4.5W Dimensions 180mm high x 221mm wide x 128mm deep Aerial Captive telescopic aerial Approvals CE marked. Compliant with R&TTE (RED 2014/53/EU after 13th June 2017) and RoHS Directives (1999/95/EC and 2011/65/EU). ETSI EN300 401 compliant. See pure.com for the full Declaration of Conformity.
