USER MANUAL Pureline Compact 6812 NOVY

Isometric technical drawing of a mechanical housing or enclosure with mounting brackets and internal components (no text or symbols)

Isometric technical drawing of a mechanical assembly with mounting base and internal components (no text or symbols)

NOVY

Novy Pure'line Compact

6810 - 6811 - 6812

6820 - 6821 - 6822

INHOUD

1 VOORSCHRIFTEN VOOR VEILIGHEID

EN GEBRUIK 3

2 BEDIENING EN FUNCTIES 5

Diagram showing three labeled buttons with arrows pointing to function keys, connected by lines and arrows.

2.6 InTouch

Diagram of a computer monitor with an open lid and internal components, showing no text or symbols

Reinigen vetfi Iter

Technical line drawing of a mechanical assembly with an inset showing a hand holding a tool (no text or symbols present)

Diagram illustrating a mechanical assembly with labeled components A, B, C and directional arrows indicating rotation or movement.

Diagram illustrating a mechanical or electrical system with labeled components A, B, and C, showing directional arrows and a rotating component.

Three-step diagram showing a mechanical component with a central hub and two side views, no text or symbols present.

Isometric technical drawing of a mechanical assembly with mounting base and internal components (no text or symbols)

NOVY

Novy Pure'line Compact

6810 - 6811 - 6812

6820 - 6821 - 6822

CONTENU

1 PRESCRIPTIONS DE SÉCURITÉ

ET D'UTILISATION 13

2 CONTRÔLES ET FONCTIONS 15

% < △ ⚪ ● ● ● > ⚠

Diagram of a device with a curved arrow indicating rotation or movement, enclosed in a closed panel (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Diagram illustrating a mechanical or electrical system with labeled components A, B, C and directional arrows indicating rotation or movement.

Diagram illustrating a mechanical or electrical system with labeled components A, B, and C, showing rotating components and a central component.

Three-step diagram showing a mechanical component with arrows indicating motion (no text or symbols)

Isometric technical drawing of a mechanical assembly with mounting base and internal components (no text or symbols)

NOVY

Novy Pure'line Compact

6810 - 6811 - 6812

6820 - 6821 - 6822

INHALT

1 SICHERHEITS- UND

% ◀ ↕ ● ● ● > ● ↑ pointing to

% ◀ ● ● ● ▲ ⚡

Diagram of a device with a curved arrow indicating rotation or movement, no text or symbols present

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows structural details (no text or symbols)

Diagram illustrating a mechanical or electrical system with labeled components A, B, C and directional arrows indicating rotation or movement.

Diagram illustrating a mechanical or electrical process with labeled components A, B, and C, showing directional arrows and a central component.

Three-step diagram showing a mechanical component with a cylindrical head and two circular features, connected by a rod (no text or symbols)

Isometric technical drawing of a mechanical assembly with mounting base and internal components (no text or symbols)

NOVY

Novy Pure'line Compact

6810 - 6811 - 6812

6820 - 6821 - 6822

CONTENT

1 INSTRUCTIONS FOR SAFETY AND USE 33

2 CONTROLS AND FUNCTIONS 35

2.1 Operating the device 35
2.2 Turning the extraction on and off 35
2.3 Lighting 36
2.4 Programming recirculation (optional) 36
2.5 Remote control 37
2.6 InTouch 37

3 CLEANING AND MAINTENANCE 38

3.1 General maintenance 38
3.2 Removing the bottom panel 38
3.3 Grease filter 38
3.4 Monoblock recirculation filter (optional) 39
3.5 Led lighting 39
3.6 Change the batteries 40
3.7 Faults 40

4 Quickguide 41

4.1 Settings 41
4.2 Indications 41

1 INSTRUCTIONS FOR SAFETY AND USE

Further information on Novy products, accessories and services may be found on the internet:

www.novy.co.uk

These are the directions for use for the appliance as shown on the front. The installation instructions are in a separate booklet supplied with the appliance.

These directions for use make use of a number of symbols. The meanings of the symbols are shown below.

SymbolMeaningAction
	Indication	Explanation of an indication on the device.
	Warning This symbol indicates an important tip or a dangerous situation.

Observe this instruction in order to prevent injury and damage to property.

Technical safety instructions

• This appliance complies with the applicable safety instructions. However, improper use may cause personal injury or damage to the appliance.
• Read the directions for use and the installation instructions before installing and using this appliance. You will find important information here for the assembly and use of the appliance.
• Safety is guaranteed only with expert installation in accordance with the installation manual. The installing technician is responsible for proper operation at the installation location.
• The appliance is intended exclusively for household use (preparation of food) and excludes all other domestic, commercial or industrial use. Do not use the appliance outside.
• Check the condition of the appliance and the installation fittings as soon as you remove them from the packaging. Remove the appliance from the packaging with care. Do not use sharp knives to open the packaging.
• Do not install the appliance if it is damaged, and in that case inform Novy.
• Keep good care of this manual and pass it on to any person who may use the appliance after you.
• Novy is not liable for damage resulting from incorrect assembly, incorrect connection, incorrect use or incorrect operation.
• Do not touch live components.
• Do not convert or alter the appliance.
• Remove labels and stickers on the appliance with tips for use or installation. The type sticker is to be found behind the grease filter in the appliance. Do not remove it.

Safety instructions with children in the house

• The appliance's packaging forms a hazard for children. Do not let children play with the packaging materials. Keep packaging materials away from children.
• Children from the age of 8 years and older may use this appliance only under the supervision of a person who is responsible for their safety, or if they have been taught how to use this piece of equipment under safe circumstances.
• Keep an eye on children in order to ensure that they do not play with the appliance.
• Children younger than 8 years should be kept away from the appliance and the connection cable.
• Cleaning and maintenance of the appliance may not be carried out by children.
• The appliance's lighting is extremely bright and may damage the eyes. In particular, ensure that babies do not look directly into the lights.
• Ensure that batteries are stored out of children's reach. Do not allow children to replace batteries without supervision.

Safety instructions when using the appliance

- People with restricted physical, sensory or intellectual capacities, or people lacking in knowledge or experience, may use this appliance only under the supervision of a person who is responsible for their safety, or if they have been taught how to use this piece of equipment under safe circumstances.

- Flambéing under the appliance is not allowed under any circumstances.

- Whenever you are frying, roasting, grilling or deep-frying, always stay close. Overheated oil and fat can rapidly catch alight and as a result damage the extractor hood.

- Clean the grease filter regularly in accordance with the instructions in these directions for use. Failure to follow the cleaning instructions will lead to grease deposits in the filter with a resultant fire hazard.

- Never use the appliance without the grease filters in order to prevent dirt and grease penetrating the appliance, which may impact the operation and functioning over time.

• In the event of fer, always switch the appliance off.
• Never douse burning fats with water, but cover the pan with a suitable lid or fire blanket.
• Note that certain parts of the appliance within each of the hands may become hot while cooking.
• Gas burners can build up a lot of heat while operating. Make sure that this heat cannot increase too much in the cooker hood. The cooker hood installed above the gas burners may become damaged or catch fire.

- Only operate the gas burners with cookware on them.

- Turn off the gas burner when you remove the cookware from the gas.

- When using several gas burners at the same time, set the cooker hood to position 2 or higher.

- Never operate large burners of more than 5 kW with the highest flame for longer than 15 minutes, e.g. a wok.

- Switch on the appliance a few minutes before starting to cook for effective extraction of the cooking vapours.

• Make use of the delay position if the appliance has one. The instructions for the delay position are set out in these directions for use.
• Avoid all draughts above the cooking surface.
• Position your cooking utensils in such a way that rising vapour is directed under the extraction surface of the hood.
• Cooking with induction: set the intensity of the ap pliance and hob as low as possible in order to limit excess vapour.
• If the appliance has a bottom panel, ensure that it is always properly closed. Take care that it is properly inserted into the clamps and cannot come free. When opening the bottom panel, do not put your hands on the side of the hinges in order to prevent being crushed.
• Do not place objects on top of the appliance, as these may fall and cause a dangerous situation.

However large the kitchen or the room with open kitchen is, only so much air can be extracted from the room as is supplied. Too little air supply could result in a yield loss of 50% and more.

[!] If the extraction is used at the same time as a combustion system (for example heaters fired by gas, oil, wood or coal, hot water boilers using gas, gas hobs and gas ovens), combustion gases may be sucked back in and lead to poisoning.

A combustion system uses air from the room as combustion air. Combustion gases arise as a result, which are removed to the outside by an extraction system.

The appliance sucks in air from the kitchen and adjacent rooms. Negative pressure occurs if the air supply is inadequate. The toxic gases are then sucked back from the chimney or extraction duct into the room.

With simultaneous use of the appliance and combustion appliances in the same room, the negative pressure may not exceed 4 Pa (=0.04 mBar). Negative pressure can be prevented by allowing sufficient air into the room through openings that cannot be closed (for example through windows or doors, in combination with a ventilation cabinet in the wall).

Have an expert assess the overall ventilation system in your home for a proposal on suitable measures in the area of air supply.

When using the appliance with an internal or external motor (unit) with air extraction to the outside, there must be adequate air supply in the room where the appliance has been installed / is positioned, so that fresh air can flow in. Fresh air can be provided by tilting a window, opening a door or installing an inlet grille.

With an appliance with recirculation, there must be a minimum of ventilation in the room where the appliance has been installed / is positioned. Ventilation can be provided by the overall ventilation in the home or by tilting a window or opening a door.

Certain appliances are fitted with a connection for a window contact switch (see the technical specifications for your appliance). If the appliance is to operate at the same time as a heating appliance that needs air from the room, and if the required supply can only take place through a single open window, there is the option of connecting the appliance to a window contact switch (not included). This ensures that the appliance operates only when the window is open. If the window is closed, the fan cannot be switched on.

Contact your technician for the correct accessories for your appliance.

utionary measures against damage

• The correct installation method is described in the installation instructions. Read these instructions through carefully.
• The installation and electrical connection of the appliance should be left to a recognised expert.
• NOVY cannot accept liability for any damage arising from incorrect installation or connection.
• Check the distance between the hob and the appliance. The minimum and maximum heights are shown in the installation instructions.

utionary measures in the event of a fault

- If a fault occurs, switch off the appliance and disconnect the power supply.

- Repairs should be carried out only by specialised personnel. Do not under any circumstances open the equipment yourself. Contact the Novy service department.

ENVIRONMENTAL PROTECTION

Tips for saving energy

The new appliance is exceptionally effi cient and economical with energy. Some tips follow below for making your appliance even more energy-effi cient.

• Switch the appliance on at the lowest speed when you start cooking to adjust the relative humidity and eliminate cooking odours.
• Only use the highest speed when absolutely necessary.
• Only increase the speed of the appliance when the quantity of vapour so requires.
• Keep the appliance fi lter/fi lters clean to optimise grease and odour fi ltering effi ciency.
• Switch to higher power in good time if much vapour is released. This is more efficient than using the appliance for a long time, and catching vapour already spread in the kitchen.
• Do not allow the appliance to unnecessarily ventilate after cooking.
• Switch the lighting off when leaving the kitchen or if the kitchen is already light enough.
• Ensure adequate air supply in the room, so that the appliance can operate efficiently and economically.
• Put lids on the pots to reduce cooking vapours and condensation.

Recycling the transport packaging and the old appliance

This appliance is protected against damage during transport by packaging. The materials used are not harmful to the environment and are suitable for recycling. Ensure environmentally-friendly disposal of the packaging. Your appliance also contains many materials that can be recycled.

For this reason, used appliances should be separated from other waste. Recycling of old appliances arranged by your manufacturer will in this way be carried out under the best circumstances. For recycling your appliance, we refer you to the recent European guidelines in force concerning electrical and electronic waste. Ask your municipality or your salesperson about the closest collection point for your old appliance.

Keep old appliances out of the reach of children.

Recycling batteries

Do not put batteries into the standard household refuse. Ask your municipality or your salesperson about the closest battery collection point. Keep batteries out of the reach of children.

2 CONTROLS AND FUNCTIONS

2.1 Operating the device

You can operate the cooker hood with the control buttons on the cooker hood or with the supplied remote control.

Operating on the cooker hood:

% ① ② ⑤ ⑥ ③ ④

1 Switch on / off
2 Decrease speed level
3 Increase speed level
4 Lighting
5 Indication lights green speed 1,2,3
6 Indication light red Power mode

2.2 Turning the extraction on and off

Turning the extraction on off

Press button 1 to turn on the extractor. The extractor always starts in the function last used (lighting and/or motor).

% ◀ • • • • ▶ #

Turning the extraction off with delay mode

To set delay mode press key 1 once.

The first indicator light fl ashes, the other indicator lights come on at the last position set. After 10 minutes the motor and lighting automatically switch off.

% <|^2 > * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

The delay time is set by default to 10 minutes in extraction mode. It is advised to always fully allow this function to work.

Switching extraction off without delay mode

Press key 1 twice.

% < △ • • • • ▶ 灯

Extractor power level

To increase the power level press key 3.

% < △ • • • • ▲ ⬤

To decrease the power level press key 2.

% <◀ • • • • ▶ ⬤

• Three green LEDs 5 show positions one to three.
• The red LED ^6 shows the Power position. The Power position is only used if there are strong odours, or a lot of smoke or vapour. Its use must be kept to a minimum because of the large extraction of air in this position.
• The Power position automatically goes back to speed three after 6 minutes.
• The motor has a thermal switch that switches the motor off with overheating. After cooling the motor will switch on again.

Determining the cause of overheating is required. This can be caused for example by a pan fi re, the impeller motor being blocked or an object getting in the exhaust opening and causing it to be partly or fully blocked.

Auto-Stop

To avoid the extractor hood from staying on, the motor is automatically switched off after 3 hours (only if in 3 hours operation has not been changed). The extractor hood lighting stays on.

2.3 Lighting

Turning the lighting on and off

To turn the lighting on or off press 4.

The light works independent of the motor.

% ◀ ● ● ● ▲ ⬤

The LED lighting has a soft on/soft off mode, which means that the lighting will evenly go on and off. When switching on the lighting, this will always light up with full power and it can also be used when the fan is off.

Dimming LED lighting

When the LED lighting has been switched on, it can be dimmed by keeping key 4 pressed.

Change in colour temperature with LED-lighting

You can change the colour temperature of the LED-lighting from 2.700 K (warm white) into 4.000 K (neutral white). The description for changing this can be found in section 3.4.

2.4 Programming recirculation (optional)

If recirculation is selected programming must take place once.

This programming function activates the replacement indicator of the monobloc recirculation filter and the delay time is changed.

Activating programming

• The motor must be switched off
• Press the ② and the ③ keys at the same time for 3 seconds until the red LED flashes 5 times.

% 3 sec

The following functions then operate:

• Replacement indicator of the monobloc fi liter is activated. After a set time a red indicator light on the appliance shows that the monobloc fi liter must be replaced.
• The delay time is set to 30 minutes (instead of the default 10 minutes).

Use the delay time of 30 minutes so the cooking odours can be properly removed in the monobloc filter.

Read paragraph 3.3 for more information about replacement of the monobloc recirculation filter.

Deactivating programming

• The motor must be switched off
• Press 2 and 3 at the same time for 3 seconds until the 3rd green LED fl ashes 3 times.

% 3 sec

The delay time is again set to 10 minutes (instead of 30 minutes) and cleaning indicator for recirculation is switched off.

2.5 Remote control

+ - NOVY ① ② ③ ④ ⑤

①Lighting

② Increase speed levels
③ Decrease speed levels
④ Switch on / off
⑤ Novy button: not applicable

The remote control for hood is preinstalled and ready for use.

Change the code on the remote control

If the set code disrupts other transmitters, another code can be selected using the remote control. There are 10 different codes.

Determine the code used

Simultaneously press and *. The lamp on the remote control fl ashes as many times as the selected code (there are 10 code options in total).

Change the code

• Simultaneously press and and .
• The green light on the remote control fl ashes as many times as the selected code. If another code is required repeat this step again (1x fl ashing is code 1, 2x fl ashing is code 2 etc. There are total of 10 codes).
• Simultaneously press on the cookerhood and until the second green Speed indicator lamp is blinking.
• Press the key on the remote control within 10 seconds to confirm the settings. The cooker hood and the remote control are now in line with each other.

Diagram showing three labeled buttons with arrows pointing to a vertical axis, likely illustrating a control or interface layout.

2.6 InTouch

The extraction hood has the InTouch function. If you have an induction hob from Novy with InTouch, you can operate the extraction hood from the hob. There is also the option that the extraction hood can be operated with a remote control.

Programming InTouch on the induction plate

The remote control must first work with the hood. If necessary, the remote control code can be changed, as described in Section 2.5

• Connect the plate to the mains supply.
• Touch simultaneously the keys find on the induction plate until you hear a beep signal (prox. 7 sec.).
• The cooker plate now searches automatically for the hood code.
• Wait until the cooker hood illumination begins to flashing OR you hear a "click" sound when you have an extractor hood without lighting (Be patient, this can betake a while).
• Does the light blink or you hear the "click" sound; press immediately on any InTouch key or 1 or 2 or 3 or 4 on the induction hob.
• You will hear a "beep" signal to indicate the link between the two devices.

Now you can operate the hood with the keys on the induction plate.

You can find more information about using the InTouch functions in the InTouch manual for the hob or remote control.

Turning the InTouch function on and off

The InTouch function is on by default. Turning off the InTouch function on the cooker hood results in the connection between cooker hood and Novy induction hob with InTouch and/or remote control is also disabled.

To switch the InTouch function off press the 1 and 2 keys at the same time for 3 seconds and the 2nd and 4th LEDs flash 3 times to confirm. (The appliance must be switched off).

% 3 sec

The function can be switched on by pressing the 1 and 3 keys at the same time for 3 seconds.

The 2nd and 3rd LEDs flash 3 times to confirm (the appliance must be switched off).

% 3 sec

3 CLEANING AND MAINTENANCE

Follow all instructions as described in the Conditions for Safety and Use section.

Follow the cleaning instructions below for a longer working life and optimal operation of the appliance.

The bottom panel, grease fi Iter and recirculation fi Iter can fall out when you are handling them. This can result in damage. Make sure you hold the bottom panel and the fi Iter(s) securely at all times when handling them.

WARNING! Risk of injury! Open and close the bottom panel slowly. Use a stable stepladder and pay attention to stability. Do not step on the hob or the worktop surface.

3.1 General maintenance

Allow the lighting to cool down sufficiently before you start cleaning the extractor hood.

Never use aggressive, abrasive or chlorinated products.

Do not use a high pressure or steam cleaner.

Stainless steel

Clean with a cleansing tissue with mild cleaning agent then dry with a soft cloth. Maintenance of the stainless steel can be performed with the Novy cleaner (906060).

Coated parts of the extractor hood

The extractor hood can be cleaned with a damp cleansing tissue and a mild cleaning agent.

Glass

Glass parts of the extractor hood can be cleaned with a soft cloth and a glass cleaner.

3.2 Removing the bottom panel

If the bottom panel is to be removed from the cooker hood for cleaning, proceed as follows:

• Grasp the bottom panel at the left and right ends.
• Slowly tilt the bottom panel downwards and continue to hold it in place.
• As soon as the bottom panel is at a 90^ angle downwards, the bottom panel can be slid to the right to remove it from the hinges. Here you will feel some resistance. Do this with caution to prevent damage to the cooker hood. Make sure you hold the bottom panel securely at all times.
• The bottom panel can then be cleaned by hand. The bottom panel is not suitable for cleaning in the dishwasher.
  – Before reinstalling the bottom panel, immediately clean the accessible parts on the inside of the cooker hood.
• To replace the bottom panel, grasp the bottom panel at the left and right ends and hold it in place. Make sure you hold the bottom panel securely at all times.
• Hold the bottom panel in a 90^ angle downwards and slide the bottom panel to the left over the hinges until you notice a click.
• The bottom panel cannot be closed if the bottom panel is not fully positioned over the hinges.
• The bottom panel can then be

3.3 Grease fi Iter

If the following instructions are not carried out, serious soiling can cause a fi re hazard.

Indication cleaning grease fi Iter

Indication: 4 fl ashing indicator lights

After 20 cooking hours 4 fl ashing indicator LEDs show that the grease filter must be cleaned.

Reset the cleaning indicator

When you replace the grease fi lter after cleaning, it is suffi cient to press the 2 key for 5 seconds to again set the indicator.

% 5 sec

If you do not do this the indicator light will continue to flash when switching on the extractor hood.

Accessing the grease fi Iter

Take hold of the right and left side of the bottom panel (A) and pull down simultaneously. Remove the filter (B) by taking hold of its hook and pulling down.

Pure technical line drawing of a mechanical component with no text or symbols

Cleaning the grease fi Iter

The metal grease filter can be cleaned by hand or in a dishwasher. We recommend cleaning the grease filter by hand.

Cleaning the fi Iter by hand:

• Immerse the filter in a solution of boiling water to which a degreasing detergent has been added.
• Use a brush for cleaning
• Then rinse the filters with warm water under a tap and allow them to dry.

Cleaning the filter in a dishwasher:

• Use a customary dishwasher detergent
• Do not put the saturated grease filters together with crockery in the dishwasher
• Select a programme with a low temperature
• After cleaning allow the filter to drain.

When cleaning in a dishwasher the fi Iter may discolour as a result of the salt content. This does not affect its operation.

Replacing the grease fi Iters

• Before replacing the grease filter, clean the edges of the part in the extractor hood in which the filter is placed.
• Grasp the fi Iter with 2 hands.
• Make sure that the lock or the lip on the filter is on the bottom side.
• Insert the back of the filter in the opening, press the filter upwards at the front and make sure it clicks tight.

You can obtain a new grease fi Iter from a dealer or the Novy website. Article number grease fi Iter: 6830.020(2x).

3.4 Monoblock recirculation fi Iter (optional)

When selecting recirculation, always set the recirculation programme on the extractor hood (see paragraph 2.4) If recirculation is chosen the appliance is connected to an outlet box with a monobloc recirculation fi Iter.

Replacement indicator monobloc recirculation fi Iter

Indication: red indicator light stays on

After a set time a red indicator light on the appliance shows that the monobloc fi Iter must be replaced.

Reset the replacement indicator

After replacing the monblock fi iter(s), carry out the following action. The motor of the cooker hood must be running. Simultaneously press 2 and 3 for 3 seconds until the red indicator led fl ashes 3 times for confirmation. If the cooker hood is not reset, it will automatically reset after the motor of the cooker hood has been switched on 10 times.

% 3 sec

Installing the monoblock fi Iter

Refer to your recirculation kit manual for removal and installation of the monoblock filter.

You can obtain a new monobloc fi iter from a dealer or the Novy website.

3.5 Led lighting

Replacing the led lighting

First, remove the power supply from the hood and allow the lighting to cool down sufficiently.

1. Carefully press the spotlight holder; next, remove the spotlight holder by means of a tilting movement.

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

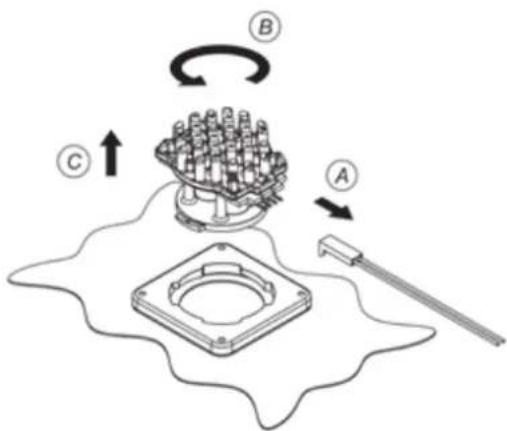

2. Removing the LED spotlight:

A. First disconnect the cable leading to the LED spotlight to be replaced. Disconnecting is done by releasing the lock by applying a light pressure and pulling it off at the same time.
B. Then remove the LED spotlight to be replaced by making a soft rotating movement counterclockwise.
C. Remove the LED spotlight to be replaced from the bayonet ring.

Diagram illustrating a mechanical assembly with labeled components A, B, C and directional arrows indicating rotation or movement.

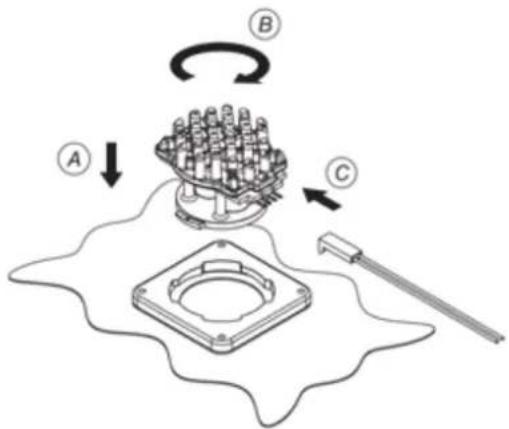

1. Mounting the new LED:

A. Place the new LED light into the locking ring.
B. Make a rotating movement to the right until the LED light is locked.
C. Connect the power cable.
D. Place the spotlight holder back in the cooker hood and reconnect the power.

Diagram illustrating a mechanical or electrical system with labeled components A, B, and C, showing rotating components and a central component.

Change in colour temperature with LED-lighting

First make sure that the power supply of the hood has been disconnected. Remove the plug from the hood or switch off the power group.

The colour of the LED-lighting has been set to 2.700 K (warm white) by default. If the colour is to be changed to 4.000 K (neutral white), follow the instruction given below:

• Open the bottom panel at the bottom of the hood.
• Press with two hands against the side of the inox lamp holder and carefully pull down simultaneously, so you get access to the lighting on the inside.
• The wiring has been connected to the LED-lamp with a connector.
• Disconnect the connector from the LED-lamp and move the wiring to the other free connection on the lamp.

Three-step diagram showing a mechanical component with arrows indicating motion (no text or symbols)

• Repeat this for all four LED-lamps.
• Then close the inox lamp holder again.

The colour of the LED-lighting has now been changed from 2.700 K to 4.000 K.

3.6 Change the batteries

• For changing the batteries unscrew the plastic cover, remove the old batteries and insert the new ones. Pay attention to the polarity marking given in the battery compartment.
• Empty batteries are not to be disposed of in the household refuse, but they are to be handed in as chemical waste.

Technical information

– Power supply: 2xAAA batteries
- Frequency: 433.92Mhz
- Numbre of codes: 10
- Worktemperature: 0-50°C
- Dimensions: 110 x 50 x 19mm

3.7 Faults

If there is a fault you can contact your (kitchen) supplier and/or Novy Customer Service.

Belgium Tel.: [phone]

France Tel.: [phone]

Germany Tel.: [phone]

The Netherlands Tel.: [phone]

Unite Kingdom Tel.: [phone]

Italy Tel.: [phone]

For all other countries: your local installer or

Novy in Belgium: [phone]

To be able to deal with the fault promptly and efficiently it is necessary that the Repaired Service knows which type of appliance you have.

You can find the type number on a sticker in the inside of the extractor hood. This becomes visible as soon as you take the filter out of the extractor hood.

You can note the type number here:

4 QUICKGUIDE

4.1 Settings

% 1 2 5 6 3 4

EXPOSED ACTION INDICATION NOTE PAG.
Switching on the engine	1			p 35
Switching off the motor with delay mode	1	Green LED fl ashes Engine stays on for 10 minutes		p 35
Switching off the motor without delay mode	2 x 1		Engine goes off immediately	p 35
Increase engine speed	3			p 35
Decrease engine speed	2			p 36
Lighting on	4			p 36
Dimming the lighting Continue to press p 36 4
Recirculation on	2 + 3 for 3 seconds	Red LED fl ashes 5x!	Motor must be switched off!	p 36
Recirculation off	2 + 3 for 3 seconds	Third green LED fl ashes 5x	! Motor must be switched on!	p 36
Reset cleaning indicator grease fi Iters	2 for 5 seconds.			p 38
Reset replacement indicator monoblock	2 + 3 for 3 seconds	Red LED fl ashes 3x!	Motor must be switched on!	p 39
InTouch on	1 + 3 for 3 seconds	2nd en 3th LED fl ashes	! Motor must be switched off!	p 37
InTouch off	1 + 2 for 3 seconds	2nd en 4th LED fl ashes	! Motor must be switched off!	p 37

4.2 Indications

INDICATION EXPOSED NOTE PAGE
Four fl ashing LEDs Grease fl ter must be cleaned	If the cleaning instructions are not followed, excessive contamination, risk of fi re and loss of effi ciency will result.	p 38
Red indication LED lights up	Time to replace the monobloc recirculation fi Iter used		p 39

BELGIË
