USER MANUAL KitchenSmith BELLA

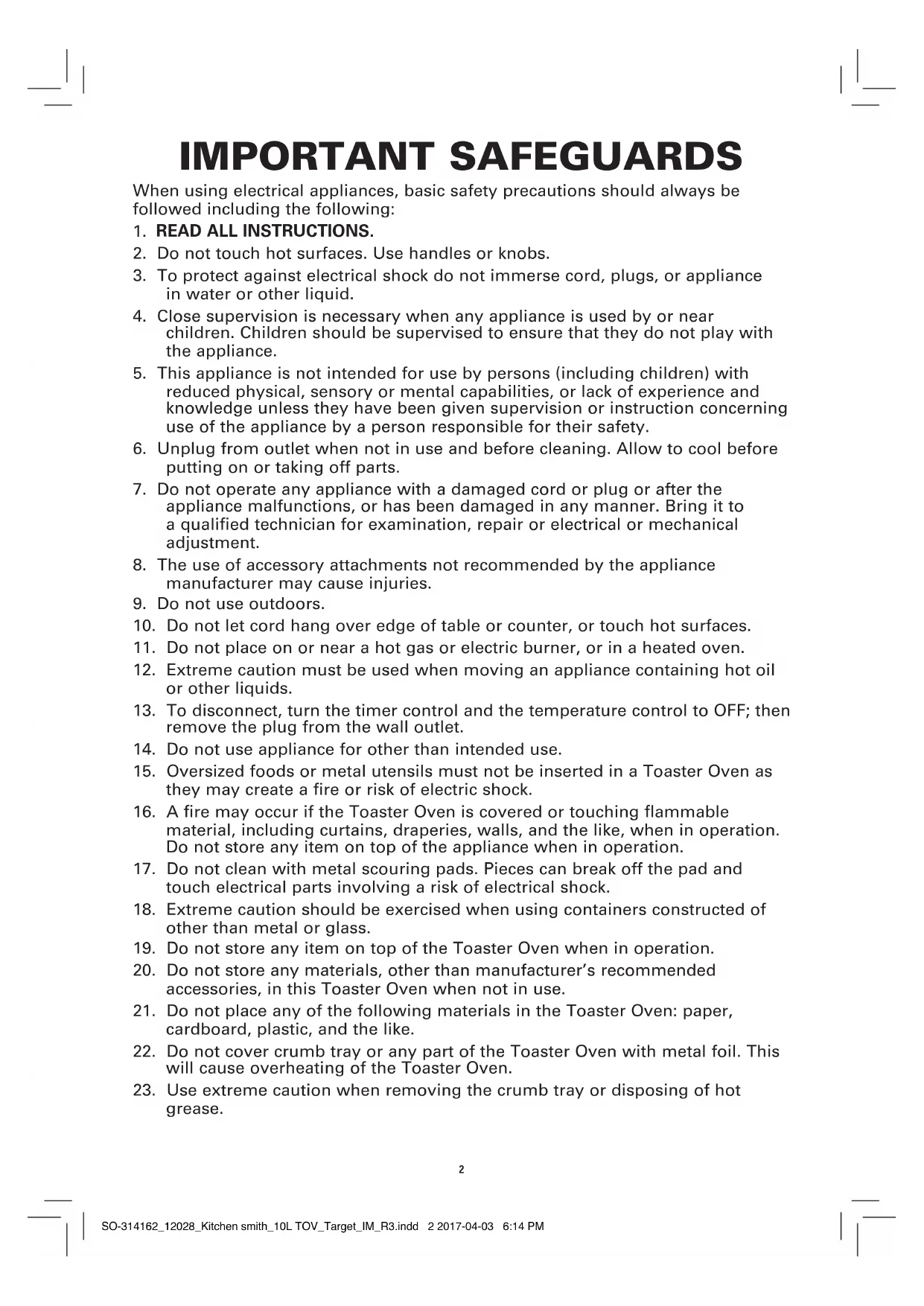

3. To protect against electrical shock do not immerse cord, plugs, or appliance

in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near

children. Children should be supervised to ensure that they do not play with the appliance.

5. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

6. Unplug from outlet when not in use and before cleaning. Allow to cool before

putting on or taking off parts.

7. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or has been damaged in any manner. Bring it to a qualied technician for examination, repair or electrical or mechanical adjustment.

8. The use of accessory attachments not recommended by the appliance

manufacturer may cause injuries.

9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter, or touch hot surfaces.

11. Do not place on or near a hot gas or electric burner, or in a heated oven.

12. Extreme caution must be used when moving an appliance containing hot oil

13. To disconnect, turn the timer control and the temperature control to OFF; then

remove the plug from the wall outlet.

14. Do not use appliance for other than intended use.

15. Oversized foods or metal utensils must not be inserted in a Toaster Oven as

they may create a re or risk of electric shock.

16. A re may occur if the Toaster Oven is covered or touching ammable

material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.

17. Do not clean with metal scouring pads. Pieces can break off the pad and

touch electrical parts involving a risk of electrical shock.

18. Extreme caution should be exercised when using containers constructed of

other than metal or glass.

19. Do not store any item on top of the Toaster Oven when in operation.

20. Do not store any materials, other than manufacturer’s recommended

accessories, in this Toaster Oven when not in use.

21. Do not place any of the following materials in the Toaster Oven: paper,

cardboard, plastic, and the like.

22. Do not cover crumb tray or any part of the Toaster Oven with metal foil. This

will cause overheating of the Toaster Oven.

23. Use extreme caution when removing the crumb tray or disposing of hot

grease. SO-314162_12028_Kitchen smith_10L TOV_Target_IM_R3.indd 2 2017-04-03 6:14 PM3 ADDITIONAL IMPORTANT SAFEGUARDS CAUTION HOT SURFACES: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, res, or other injury to persons or damage to property.

1. A person who has not read and understood all operating and safety

instructions is not qualied to operate this appliance. All users of this appliance must read and understand this owner’s manual before operating or cleaning this appliance.

2. If this appliance falls or accidentally becomes immersed in water, unplug it

from the wall outlet immediately. Do not reach into the water!

3. When using this appliance, provide adequate air space above and on all sides

for air circulation. Do not operate this appliance while it is touching or near curtains, wall coverings, clothing, dishtowels or other ammable materials.

4. To reduce the risk of re, do not leave this appliance unattended during use.

5. If this appliance begins to malfunction during use, immediately turn the timer

control and temperature control to OFF; remove the plug from the wall outlet. Do not use or attempt to repair a malfunctioning appliance!

6. The cord to this appliance should only be plugged into a 120V AC electrical

7. Do not use this appliance in an unstable position.

SAVE THESE INSTRUCTIONS

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will t in a polarized outlet only one way. If the plug does not t fully into the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Do not modify the plug in any way.

The provided short power-supply cord (or detachable power-supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product. PLASTICIZER WARNING CAUTION: To prevent Plasticizers from migrating to the nish of the counter top or table top or other furniture, place NON-PLASTIC coasters or place mats between the appliance and the nish of the counter top or table top. Failure to do so may cause the nish to darken; permanent blemishes may occur or stains can appear. ELECTRIC POWER If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances. SO-314162_12028_Kitchen smith_10L TOV_Target_IM_R3.indd 4 2017-04-03 6:14 PM5 Note: keep illustration callouts aligned Getting to Know Your Toaster Oven Product may vary slightly from illustration. Figure 1 Oven Vents Glass Door Door Handle Upper Heating Element Lower Heating Element Crumb Tray (not shown) Power Cord with Polarized Plug Bake/Broil Pan Wire Rack Accessories Temperature Control Timer Control with OFF Control Panel Power ON Light SO-314162_12028_Kitchen smith_10L TOV_Target_IM_R3.indd 5 2017-04-03 6:14 PM6 Wire Rack The wire rack must be used for all cooking functions. It must be inserted in the provided shelf in the toaster oven cavity. (See Figure 1.) Cooking Containers

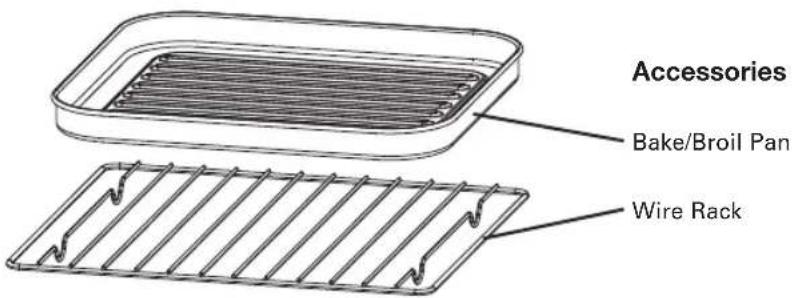

• The bake/broil pan included with the Toaster Oven is suitable for items such as cookies, rolls, biscuits, nachos and meats.

• A variety of standard baking dishes, such as an 8-inch round or 8-inch square cake pan, a 6-cup mufn pan and 1 quart round, square, or rectangular casserole dishes may be used for other foods.

• Choose bakeware made of either metal or glass/ceramic without lids.

• Dark or dull pans absorb heat faster; foods will bake more rapidly and crust will brown more easily than in shiny bake pans.

• Check package directions on the container or contact the ovenware manufacturer to determine the container’s suitability for use in a Toaster Oven.

• Do not use oven roasting bags in this Toaster Oven, as they may come in contact with the heating elements. CAUTION: Allow at least 1-inch air space between the top of the container and the upper heating elements. Never use glass lids on glass or metal bakeware. If a lid is necessary, cover tightly with heavy-duty aluminum foil. Before Using for the First Time CAUTION: To protect against electric shock, do not immerse the Toaster Oven or allow cord to come into contact with water or other liquids.

1. Carefully unpack the Toaster Oven and accessories, removing all packaging materials. Remove any

labels from the outer surfaces.

2. Use a clean damp cloth to wipe the inside and outside surfaces of the Toaster Oven. Wash the

wire rack and bake/broil pan in warm soapy water, rinse and dry thoroughly. Do not use abrasive cleaners.

3. To ensure that the Toaster Oven is free from oils used in manufacturing, turn the temperature

4. Set the timer control for 15 minutes. The power ON light will illuminate.

5. At the end of the 15 minutes, a signal will sound and the Toaster Oven will turn OFF automatically.

The Toaster Oven is ready for use. NOTE: When the Toaster Oven is heated for the rst time, it may emit slight smoke or odor. This is normal and should disappear after 1 or 2 uses. This does not affect the safety of the appliance. Operating Instructions

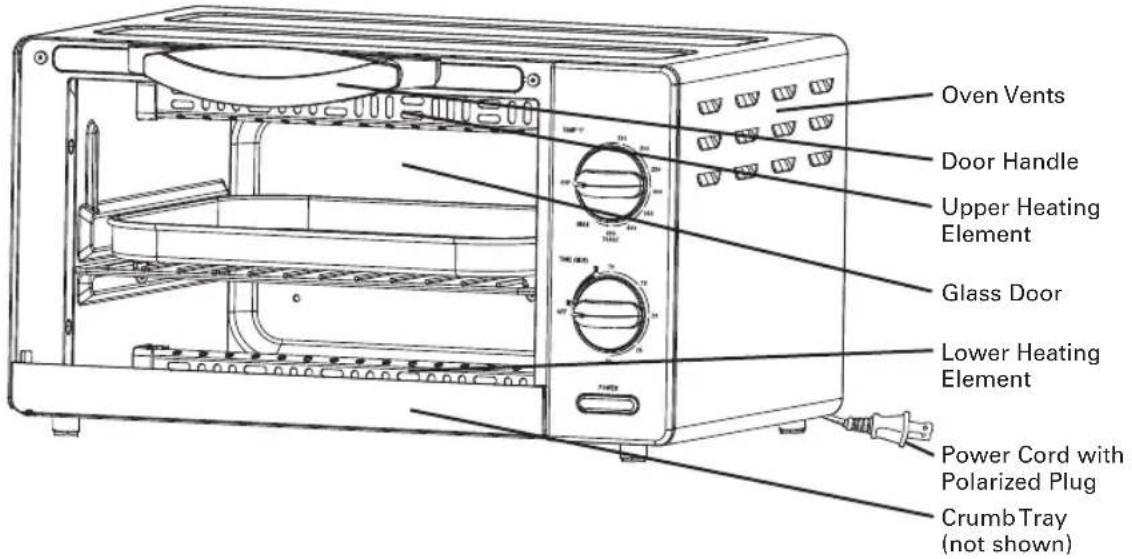

1. Place the Toaster Oven on a at, level surface.

2. Remove all protective wrappings from food before placing in Toaster Oven.

3. Make sure the crumb tray is inserted fully under the lower heating element in the bottom of the

4. Plug Toaster Oven into a 120V AC outlet.

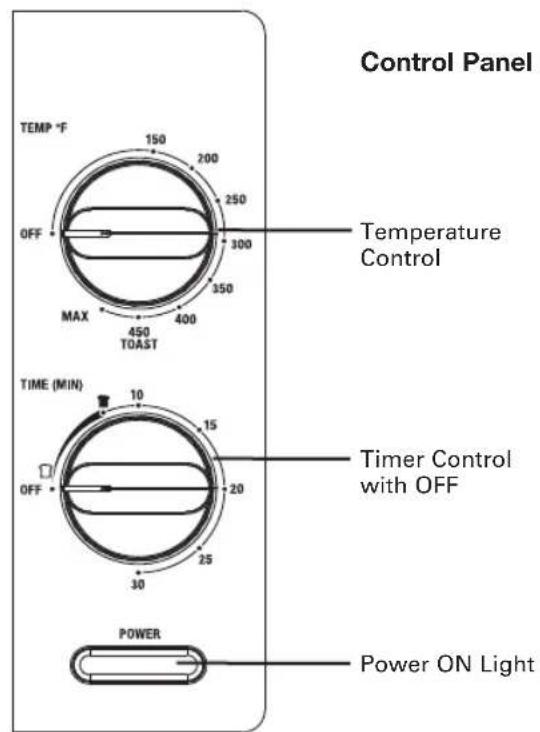

5. The timer control acts as the Toaster Oven’s ON and OFF switch. Turn the timer control clockwise to

select the appropriate cooking time (up to 30 minutes). The power ON light will illuminate. NOTE: When cooking less than 5 minutes, turn the timer control to 10 minutes and then back to desired cooking time. CAUTION: DO NOT LEAVE TOASTER OVEN UNATTENDED DURING USE.

6. When cooking time is complete, a signal will sound and the Toaster Oven will turn OFF

7. Unplug the Toaster Oven and allow to cool before cleaning.

SO-314162_12028_Kitchen smith_10L TOV_Target_IM_R3.indd 6 2017-04-03 6:14 PM7 Instructions for Toast

1. Insert the wire rack into the provided shelf in the Toaster Oven.

2. Your Toaster Oven will accommodate up to 4 slices of bread. Center bread or toaster food onto the

4. Set the timer control for desired toast color:

Light, Medium or Dark. The power ON light will illuminate. NOTE: When toasting, turn the timer control to 10 minutes and then to desired toast color.

5. When cooking time is complete, a signal will sound and the Toaster Oven will turn OFF

automatically. The power light will turn off. NOTE: Watch toast until desired color is achieved. Shut off manually by turning the timer control to the OFF position. The power light will turn off.

6. Turn the temperature control to OFF.

NOTE: Follow toaster food package directions. IMPORTANT: Frozen and heavy breads such as bagels or English Mufns require longer toasting times. Check frequently to avoid burning. Instructions for Bake

1. Make sure the crumb tray is inserted fully under the lower heating element in the bottom of the

2. Remove all protective wrappings from food before placing in Toaster Oven.

3. For best results, always preheat the Toaster Oven. Turn the temperature control to the recipe

cooking temperature. Turn the timer control to 10 to 15 minutes. The power ON light will illuminate. At the end of the preheat time, a signal will sound and the Toaster Oven will turn OFF automatically.

4. Insert the wire rack into the provided shelf in the Toaster Oven.

5. Center food in the bake/broil pan or baking container or center food directly on the wire rack.

NOTE: Do not cover the wire shelf completely; air ow is necessary for proper operation of your Toaster Oven.

7. Turn temperature control to the desired temperature.

8. Set the timer control according to package or recipe time. The power ON light will illuminate.

NOTE: If cooking less than 5 minutes, turn timer control to 10 minutes and then back to desired cooking time.

9. When cooking time is complete, a signal will sound and the Toaster Oven will turn OFF

automatically. The power light will turn off.

10. NOTE: Watch food until desired doneness is achieved. Shut off manually by turning the timer

control to the OFF position. The power light will turn off.

WARNING: Do not use any glass cover on any baking pan. If using a glass or glass-ceramic baking

container, make sure it is at least 1-1/2 inches away from the upper heating element. Hints for Bake

• To prevent heat loss, avoid opening door excessively.

• Foil may be used to cover top of baking container to reduce over browning. Tuck ends of foil closely against edge of pan.

• Place food toward the center of the oven for better browning.

• Food may cook faster than recipe or package time. Check for doneness prior to end of cook time.

• Rotate and turn food over (if applicable) for more even cooking halfway through the cooking process. SO-314162_12028_Kitchen smith_10L TOV_Target_IM_R3.indd 7 2017-04-03 6:14 PM8 Instructions for Frozen Pizza

1. Your Toaster Oven will accommodate a 9-inch frozen pizza. Always follow oven temperatures and

cooking times included with your frozen pizza.

2. Make sure the crumb tray is inserted fully under the lower heating element in the bottom of the

3. Remove all protective wrappings from frozen pizza before placing in Toaster Oven.

4. For best results, always preheat the Toaster Oven. Turn the temperature control to 400ºF. Turn the

timer control to 10 to 15 minutes. The power ON light will illuminate. At the end of the preheat time, a signal will sound and the Toaster Oven will turn OFF automatically.

5. Insert the wire rack into the provided shelf in the Toaster Oven.

6. Set the timer control to the minimum suggested cooking time (up to 30 minutes). The power ON

light will illuminate. NOTE: Add an additional 4 minutes cooking time when using a cooking stone.

7. When cooking time is complete, a signal will sound and the Toaster Oven will turn OFF

automatically. The power light will turn off.

8. Check to see that the crust is golden brown, and the cheese in the center is melted. If the pizza is not

satisfactorily cooked at this time, reset the timer control for an additional 4 to 5 minutes until it is done.

9. Wearing oven mitts, use a spatula to transfer the cooked pizza onto the round packing cardboard or

a cutting board; cut and serve.

10. Turn the temperature control to OFF.

Cooking Temperature Timetable This COOKING TIME CHART is provided for suggestions only. Temperatures may vary depending on the size and consistency of the food to be prepared FOOD TEMP. SETTING APPROX. AMOUNT TIME (MINS.) COMMENTS Bacon 450ºF 2-3 strips 5-10 Turn frequently. Sausage 450ºF 5-6 links 20-25 Turn 1/2 way through cooking. Steaks, ½” to 1” thick 450ºF 1-2 15-30 Turn 1/2 way through cooking. Hamburgers 450ºF 1-2 10-25 Turn 1/2 way through cooking. Hot dogs 450ºF 3-4 10-25 Turn frequently. Cook until done. Lamb Chops 450ºF 1-4 15-33 Turn 1/2 way through cooking. Pork Chops 450ºF 1-4 20-25 Turn 1/2 way through cooking. Chicken: Whole 350ºF 3 lbs. 1-2 hrs. Cook until done. On Bone 350ºF 3-4 lbs. 40-55 Cook until done. Boneless 350ºF 3 lbs. 30-40 Cook until done. Biscuits/Rolls 400ºF 2-8 12-20 Follow directions on pkg. French/Garlic Bread 400ºF 8” dia. 20-25 Follow directions on pkg. Frozen Dinner 400ºF 1-2 25-35 Follow directions on pkg. Pizza (frozen) 400ºF 9” dia. 15-20 Follow directions on pkg. Baked Potatoes 400ºF 1-5 60-80 Cook until done. French Fries (frozen) 400ºF 1-1.5 cups 15-25 Follow directions on pkg. Cookies 400ºF 5-8 15-20 Follow recipe. Pastries Warm 2-3 23-30 Follow directions on pkg. SO-314162_12028_Kitchen smith_10L TOV_Target_IM_R3.indd 8 2017-04-03 6:14 PM9 USDA Cooking Guidelines NOTE: The United States Department of Agriculture recommends that meat and poultry be cooked to the following internal temperatures to be sure any harmful bacteria has been killed. Ground turkey and chicken should be cooked to an internal temperature of 165˚F/74˚C and ground beef, veal, lamb and pork be cooked to an internal temperature 160˚F/71˚C. Whole chicken and turkey should be cooked to an internal temperature of 180˚F/82˚C; 170˚F/77˚C for the breast. Goose and duck should be cooked to an internal temperature of 180˚F/82˚C. Fresh beef, veal and lamb, etc., should be cooked to an internal temperature of at least 145˚F/63˚C. Fresh pork should be cooked to an internal temperature of at least 160˚F/71˚C. When re-heating meat and poultry products, they should also be cooked to an internal temperature of 165˚F/74˚C Instructions for Reheating Leftovers

1. Your Toaster Oven’s quartz heating elements ensure even, gentle heating, perfect for reheating leftovers.

2. To prevent reheated food from drying out, cover with aluminum foil.

3. Turn temperature control to 350ºF and check every 5 to 10 minutes until heated through.

• Pizza. Place in the bake/broil pan or directly on the wire rack for an extra crispy reheated crust. Check reheating progress frequently.

• Grilled sandwiches. Reheat leftover Panini or grilled cheese sandwiches quickly and easily. Sandwiches will be crisp on the outside and warmed through on the inside.

• Crusty breads. Reheat garlic bread, cheese bread for delicious results. Check every 5 minutes.

• Fried or breaded foods. Re-crisp leftovers at 350ºF to 400ºF and check every 5 minutes.

• Baked goods. Pies, mufns, tarts, and even stale cookies. Revive leftover baked goods by heating at 350ºF to 400ºF for 2 to 3 minutes.

• Cooked meats. Reheat BBQ chicken, and any leftover meats in the Toaster Oven. Tightly cover the bake/broil pan with aluminum foil. Check every 10 minutes until heated through. Instructions for Defrost

1. Make sure the crumb tray is inserted fully under the lower heating element in the bottom of the

2. Remove all protective wrappings from food before placing in Toaster Oven.

3. Turn temperature control to 150ºF.

CAUTION: Do not defrost at higher temperatures than recommended. Defrosting at hotter temperatures may cause incomplete thawing.

4. Set the timer control according to package, or up to 30 minutes. The power ON light will illuminate.

5. When defrosting time is complete, a signal will sound and the Toaster Oven will turn OFF

automatically. The power light will turn off. NOTE: Watch carefully until food is thawed. Shut off manually by turning the timer control to the OFF position. The power light will turn off.

6. Turn the temperature control to OFF.

IMPORTANT: To avoid contamination, thawed food should be fully cooked or refrigerated. User Maintenance Instructions This appliance requires little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Any servicing that requires disassembly other than cleaning must be performed by a qualied appliance repair technician. Care & Cleaning Instructions

1. Make sure both the temperature control and the timer control are in the OFF position.

2. Always unplug and allow to cool completely before cleaning or moving.

3. Pull the crumb tray up and out from under the lower heating element in the bottom of the Toaster Oven.

4. Clean the wire rack, bake/broil pan, and crumb tray after each use. Wash with a non-abrasive

cleaner, rinse and dry thoroughly. IMPORTANT: For best results, clean the crumb tray frequently.

5. Clean the interior of the Toaster Oven with a mild non-abrasive cleaner and a piece of cloth after

each use. Rinse and dry thoroughly. Do not rub too hard as the interior surface of the Toaster Oven can be scratched. Allow to dry before closing the glass door.

6. Clean the glass oven door and Toaster Oven exterior with glass cleaner or mild detergent and a damp

cloth or plastic scouring pad. Do not use an abrasive cleaner or pad as they might scratch the nish. SO-314162_12028_Kitchen smith_10L TOV_Target_IM_R3.indd 9 2017-04-03 6:14 PM10 Storage Instructions

1. Unplug unit, allow to cool, and clean before storing.

2. Make sure the crumb tray is correctly inserted fully under the lower heating element in the bottom

of the Toaster Oven.

3. Store Toaster Oven in its box in a clean, dry place.

4. Never store appliance while it is hot or still plugged in.

5. Never wrap cord tightly around the appliance. Do not put any stress on the cord where it enters the

unit, as it could cause the cord to fray and break. SO-314162_12028_Kitchen smith_10L TOV_Target_IM_R3.indd 10 2017-04-03 6:14 PMLimited TWO-YEAR Warranty SENSIO Inc. hereby warrants that for a period of TWO YEARS from the date of purchase, this product will be free from mechanical defects in material and workmanship, and for 90 days in respect to non-mechanical parts. At its sole discretion, SENSIO Inc. will either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. The warranty is only valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt, as proof of purchase is required to obtain warranty validation. Retail stores selling this product do not have the right to alter, modify, or in any way revise the terms and conditions of the warranty. EXCLUSIONS: The warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use of the product, use of improper voltage or current, improper routine maintenance, use contrary to the operating instructions, disassembly, repair, or alteration by anyone other than qualied SENSIO Inc. personnel. Also, the warranty does not cover Acts of God such as re, oods, hurricanes, or tornadoes. SENSIO Inc. shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Apart from the extent prohibited by applicable law, any implied warranty of merchantability or tness for a particular purpose is limited in time to the duration of the warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, and therefore, the above exclusions or limitations may not apply to you. The warranty covers specic legal rights which may vary by state, province and/or jurisdiction. HOW TO OBTAIN WARRANTY SERVICE: You must contact Customer Service at our toll-free number: 1-866-832-4843. A Customer Service Representative will attempt to resolve warranty issues over the phone. If the Customer Service Representative is unable to resolve the problem, you will be provided with a case number and asked to return the product to SENSIO Inc. Attach a tag to the product that includes: your name, address, daytime contact telephone number, case number, and description of the problem. Also, include a copy of the original sales receipt. Carefully package the tagged product with the sales receipt, and send it (with shipping and insurance prepaid) to SENSIO Inc.’s address. SENSIO Inc. shall bear no responsibility or liability for the returned product while in transit to SENSIO Inc.’s Customer Service Center.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will t in a polarized outlet only one way. If the plug does not t fully into the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Do not modify the plug in any way.
