Product type	Interactive whiteboard (interactive flat panel)
Brand	Optoma
Model	5651RK
Screen size	65 inches (165 cm) (75 and 86 inch versions available)
Native resolution	3840 x 2160 (4K UHD)
Panel type	LCD LED
Backlight	LED
Touch screen	Yes, multi-touch
Built-in speakers	2 x 16 W
Operating system	Custom Android 8.0
Connectivity	3 x HDMI 2.0, 1 x VGA, 3 x USB 3.0, 2 x USB 2.0, 1 x USB Touch, LAN RJ45, RS232, 3.5mm audio output, SPDIF, Wi-Fi (via dongle), Bluetooth
Power supply	AC 100-240 V, 50/60 Hz

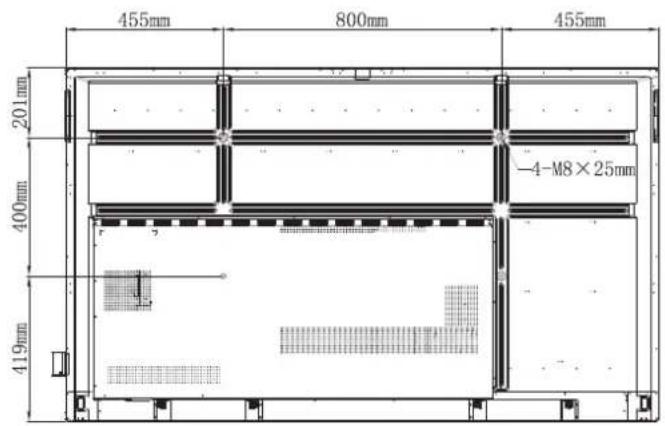

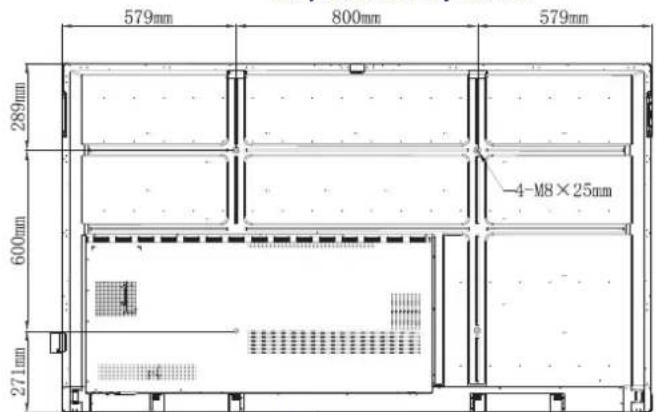

VESA compatibility	600 x 400 mm (65 inch)
Dimensions (W x H x D, without stand)	1488 x 897 x 88 mm (65 inch)
Weight (approximate)	45 kg (65 inch)
Main functions	Virtual whiteboard, annotation, screen sharing (TapCast Pro), collaboration (Team Share), screen recording, file manager, web browser, Joan integration
Security	PIN code lock, password for USB/Wi-Fi, control of unknown sources
Maintenance and cleaning	Clean the screen with a soft, dry cloth. Do not use abrasive products or solvents. Unplug before cleaning.
Spare parts and repairability	Parts: remote control, touch pen, wall mount, stand (optional). Repair by a certified technician only. Contact Optoma.
General information	ENERGY STAR certified. Compliant with European directives (EMC, low voltage). WEEE recycling.

Frequently Asked Questions - 5651RK OPTOMA

How to turn on the Optoma 5651RK screen?

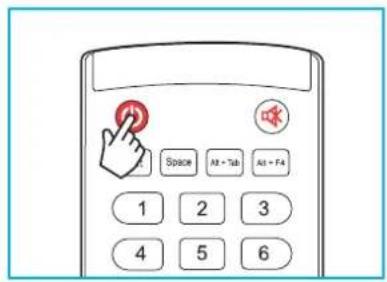

Press the Power button located at the bottom right of the screen or the Power (®) button on the remote control. The LED indicator turns blue. To turn off, hold down the Power button for 3 seconds then confirm.

How to connect a computer to the screen?

Use an HDMI or VGA cable to connect your computer to the screen. For the touch function, also connect a USB cable from the screen's USB Touch port to the computer. Then select the corresponding input source in the Setup menu.

How to use wireless screen sharing?

Make sure the screen and your device are on the same Wi-Fi network. Open the TapCast Pro app on the screen, then on your mobile or PC, launch the TapCast Pro app or Share Sender software. Enter the password displayed on the screen to project your content.

How to clean the touch screen?

First unplug the power. Use a soft, dry, lint-free cloth to gently wipe the screen. Never use water, spray cleaners, or abrasive products. For the front bezel, wipe with a dry cloth.

How to lock the screen to prevent unauthorized use?

Go to Advanced settings > Security > Password. Set a password for screen lock. You can also set a password for USB/Wi-Fi access using the key combination Enter + 5 + 9 + 8 + 0 on the remote control.

What to do if the touch screen stops responding?

Check that the screen is not exposed to direct intense light. Make sure the touch USB cable is properly connected to the USB Touch port on the screen and to the device. Restart the screen if necessary.

How to update the software (firmware)?

Go to Advanced settings > System > Update. You can enable OTA update (Internet) or use a USB flash drive with the decompressed update file (FAT32 format). Do not cut power during the update.

How to set up Wi-Fi on the screen?

Insert the Wi-Fi dongle into the slot on the back of the screen. Go to Advanced settings > Network > Wireless. Enable Wi-Fi, select your network, and enter the password if required.

How to use the annotation function?

Press the annotation icon in the side toolbar (or remove the pen from its holder). Use your fingers or the pen to write or draw. Press the eraser to erase. You can change the color and thickness of the pen.

Where to find the screen's serial number?

The serial number is indicated on the label at the back of the screen. You can also display it from the OSD menu: press Menu > Information > About device.

USER MANUAL 5651RK OPTOMA

Blank whiteboard with a blank gray background, no text or symbols visible.

TABLE DES MATIÈRES

SÉCURITÉ 5

Cloud Storage (Stockage Cloud)....76

This Class B digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3 (B).

Line drawing of a mechanical support structure with wheels and a vertical frame (no text or symbols on the diagram itself)

Technical line drawing of Dongle WiFi wireless device with two ports and a base unit (no text or symbols on the diagram itself)

INTRODUCTION

Technical line drawing of a dual-panel rack structure with no text or symbols

65 pouces 75 pouces

86 pouces

CONFIGURATION ET INSTALLATION

Technical diagram of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Diagram showing a cylindrical object with a ring attached to a wall, and a dashed rectangular box with a red arrow pointing to it (no text or symbols present)

Diagram of a vertical mechanical or electrical component with a blue arrow indicating direction, mounted on a wall (no text or symbols present)

Technical diagram of a mechanical assembly with an inset showing a close-up of a component labeled 'C' (no text or symbols present)

Remarque :

Technical diagram of a mechanical assembly with a magnified inset showing a screw inserted into a component labeled A (no text or symbols present)

Diagram showing a two-wheel platform with wheels and a close-up of its mounting bracket (no text or symbols present)

Technical line drawing of a vertical mechanical device with a blue arrow indicating rotation or movement (no text or symbols present)

CONFIGURATION ET INSTALLATION

Diagram of a device being inserted into a tray, showing a blue arrow indicating the process (no text or symbols present)

Diagram of a remote control panel with battery and indicator lights (no text or symbols)

Diagram of a smartphone with a blue arrow indicating rotation or change, showing the blade and handle (no text or symbols)

MISE EN GARDE

Technical line drawing of a mechanical component with a blue arrow indicating a directional change or movement (no text or symbols present)

Mechanical assembly diagram showing two parallel pipes mounted on a vertical support with a blue arrow indicating direction (no text or symbols present)

Diagram of a cable connector with a device and cable routing (no text or symbols visible)

Diagram of a device with a cable and plug inserted into a panel, showing wiring and a blue arrow indicating direction (no text or symbols present)

Illustration of a computer monitor with a hand pointing at the left button (no text or symbols present)

Mise hors tension

UTILISATION DE L'APPAREIL

OPÉRATIONS DE BASE

OPÉRATIONS DE BASE

OPÉRATIONS DE BASE

OPÉRATIONS DE BASE

OPÉRATIONS DE BASE

OPÉRATIONS DE BASE

e. Message

Simple icon set with a red dot, gear symbol, and cross (no text or labels)

Blue square icon with three circular icons: a white X, a green document icon, and a gray folder icon (no text or symbols)

UTILISATION DES APPLICATIONS

UTILISATION DES APPLICATIONS

UTILISATION DES APPLICATIONS

Close-up of a vibrant purple peony flower with green leaves, captured in a video editing interface (no text or symbols on the flower itself)

UTILISATION DES APPLICATIONS

UTILISATION DES APPLICATIONS

UTILISATION DES APPLICATIONS

UTILISATION DES APPLICATIONS

Visualiseur

Interior view of a modern meeting room with a large round table, white chairs, and bookshelves (no visible text or symbols)

Commande SET (DÉFINIR)

Type	Catégorie Paramètre		CMD Code hexa CMD			Réponse
						Succès Échec
DÉFINIR	Puissance	Mise hors tension	~xx00 n n	=0 7E 30 30	30 30 30 20 30 0d P F
		Redémarrer	~xx00 n n	=3 7E 30 30	30 30 30 20 33 0d P F
		Marche	~xx00 n n	=1 7E 30 30	30 30 30 20 31 0d P F
DÉFINIR	Mode puissance (Veille)	Eco.	~xx114 n n	=0 7E 30	30 31 31 34 20 30 0d P F
		Actif n=1 7E 30 30 31 31 34		20 31 0d P F
DÉFINIR	Aigu	0 ~ 100 ~xx95 n n	=0-100		7E 30 30 39 35 20 30 0dsur7E 30 30 39 35 20 31 30 30 0d	P	F
DÉFINIR	Basse	0 ~ 100	~xx96 n	n=0-100	7E 30 30 39 36 20 30 0dsur7E 30 30 39 36 20 31 30 30 0d	P	F
DÉFINIR	Balance	0 ~ 100	~xx99 n	n=0-100	7E 30 30 39 39 20 30 0dsur7E 30 30 39 39 20 31 30 30 0d	P	F
DÉFINIR	Contraste	0 ~ 100	~xx22 n	n=0-100	7E 30 30 32 32 20 30 0dsur7E 30 30 32 32 20 31 30 30 0d	P	F
DÉFINIR	Luminosité	0 ~ 100	~xx21 n	n=0-100	7E 30 30 32 31 20 30 0dsur7E 30 30 32 31 20 31 30 30 0d	P	F
DÉFINIR	Netteté	0 ~ 100 ~xx23 n n	=0-100		7E 30 30 32 33 20 30 0dsur7E 30 30 32 33 20 31 30 30 0d	P	F
DÉFINIR	Mode sonore	Standard	~xx252 n	n=1 7E	30 30 32 35 32 20 31 0d P F
		Réunion		n=4 7E	30 30 32 35 32 20 34 0d P F
		Utilisateur		n=2 7E	30 30 32 35 32 20 32 0d P F
		Salle de classe		n=3 7E	30 30 32 35 32 20 33 0d P F
		Film		n=5 7E	30 30 32 35 32 20 35 0d P F
DÉFINIR	Volume	0 ~ 100 ~xx81 n n	=0-100		7E 30 30 38 31 20 30 0dsur7E 30 30 38 31 20 31 30 30 0d	P	F
DÉFINIR	Vidéo coupée	Arrêt	~xx13 n	n=0 7E	30 30 31 33 20 30 0d P	F
		Marche		n=1	7E 30 30 31 33 20 31 0d	P	F
DÉFINIR	Muet	Arrêt	~xx80 n	n=0 7E	30 30 38 30 20 30 0d P	F
		Marche		n=1	7E 30 30 38 30 20 31 0d	P	F
DÉFINIR	Source d'Entrée	HDMI1	~xx12 n	n=1 7E	30 30 31 32 20 31 0d P	F
		HDMI2		n=15	7E 30 30 31 32 20 31 35 0d	P	F
		HDMI3		n=16	7E 30 30 31 32 20 31 36 0d	P	F
		VGA		n=5	7E 30 30 31 32 20 35 0d	P	F
		Emplacement dans PC		n=25	7E 30 30 31 32 20 32 35 0d	P	F
		Android		n=24	7E 30 30 31 32 20 32 34 0d	P	F
DÉFINIR	Ratio	4:3	~xx60 n	n=1 7E	30 30 36 30 20 31 0d P	F
		16:9		n=2	7E 30 30 36 30 20 32 0d	P	F
		PTP		n=14	7E 30 30 36 30 20 31 34 0d	P	F
DÉFINIR	Langue	Anglais	~xx70 n	n=1 7E	30 30 37 30 20 31 0d P	F
		Français		n=3	7E 30 30 37 30 20 33 0d	P	F

INFORMATIONS SUPPLÉMENTAIRES

Type	Catégorie Paramètre		CMD Code hexa CMD			Réponse
						Succès Échec
DéFINIR	Langue	Español	7E 30 30 37	n=5 7E	30 30 37 30 20 35 0d P F
		Chinois traditionnel		n=13 7E	30 30 37 30 20 31 33 0d P F
		Chinois simplifié		n=14 7E	30 30 37 30 20 31 34 0d P F
		Português n=6 7E 30 30 37	7E 30 30 37	30 20 36	0d P F
		Allemand n=2 7E 30 30 37	7E 30 30 37	30 20 32	0d P F
		Néerlandais n=8 7E 30 30	7E 30 30 37	37 30 20 38	0d P F
		Polish n=7 7E 30 30 37 30	30 30 37 30	20 37 0d P F
		Russie n=17 7E	~xx70 n 30 30 37	30 20 31 37	0d P F
		République Tchèque		n=19 7E	30 30 37 30 20 31 39 0d P F
		Danois		n=10 7E	30 30 37 30 20 31 30 0d P F
		Suédois		n=9 7E	30 30 37 30 20 39 0d P F
		Italien		n=4 7E	30 30 37 30 20 34 0d P F
		Turc		n=22 7E	30 30 37 30 20 32 32 0d P F
		Arabe		n=20 7E	30 30 37 30 20 32 30 0d P F
		Roumanie		n=27 7E	30 30 37 30 20 32 37 0d P F
DéFINIR	Mode image	Présentation	~xx20 n	n=1 7E	30 30 32 30 20 31 0d P F
		Lumineux		n=2 7E	30 30 32 30 20 32 0d P F
		Cinéma		n=3 7E	30 30 32 30 20 33 0d P F
		Utilisateur		n=5 7E	30 30 32 30 20 35 0d P F
		HDR		n=21 7E	30 30 32 30 20 32 31 0d P F
DéFINIR	Teinte	0 ~ 100	~xx44 n	n=0-100	7E 30 30 34 34 20 30 0dsur7E 30 30 34 34 20 31 30 30 0d	P	F
DéFINIR	Couleur	0 ~ 100	~xx45 n	n=0-100	7E 30 30 34 35 20 30 0dsur7E 30 30 34 35 20 31 30 30 0d	P	F
DéFINIR	Netteté	0 ~ 100	~xx23 n	n=0-100	7E 30 30 32 33 20 30 0dsur7E 30 30 32 33 20 31 30 30 0d	P	F
DéFINIR	Rétroéclairage	0 ~ 100	~xx251 n	n=0-100	7E 30 30 32 35 31 20 30 0dsur7E 30 30 32 35 31 20 31 30 30 0d	P	F
DéFINIR	Temp. Couleur	Froid	~xx36 n	n=2 7E	30 30 33 36 20 32 0d P F
		Standard		n=1 7E	30 30 33 36 20 31 0d P F
		Chaud		n=4 7E	30 30 33 36 20 34 0d P F
DéFINIR	Figer	Libérer	~xx04 n	n=0 7E	30 30 30 34 20 30 0d P F
		Figer		n=1 7E	30 30 30 34 20 31 0d P F

INFORMATIONS SUPPLÉMENTAIRES
