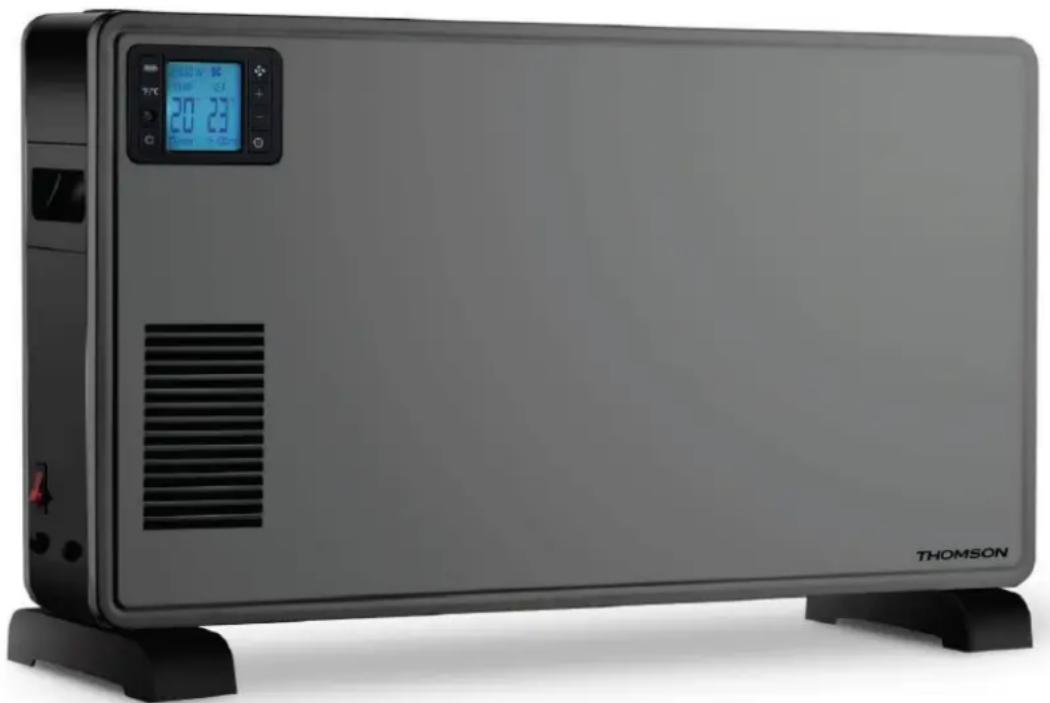

USER MANUAL THCVT2300DT THOMSON

MISE EN GARDE:NE PAS COUVRIR

CAREFULLY READ THESE INSTRUCTIONS

This product is only suitable for well insulated spaces or occasional use.

SAFETY RECOMMENDATIONS:

Caution! The heater should be switched on only when the foots are fully secured.

1. Read the instructions before using the appliance for the first time.
2. The appliance must be installed following national regulations for use.
3. It is necessary to be vigilant and supervise the appliance while children are close by.
4. This appliance is only designed for domestic and indoor use. Do not use outdoors. Use the heater only as indicated in the instructions. Any other use that does not conform to the supplier's instructions may cause material damage or personal injury
5. Any other use not in accordance with manufacturer's instructions may result in property damage or personal injury. Do not use this appliance for other purposes than intended by the manufacturer.
6. Use this appliance in a well aerated and ventilated room. Do not cover the appliance or air flow.

7. Never try to remove the control knobs, push objects into the ventilation. The manufacturer cannot be held responsible.

8. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely in the 'Off' position (O) and unplugged from the socket.

9. Great care must be taken when being used by or in the presence of children of older persons.
10. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.
11. Do not place the cable under a carpet or any heavy object, and do not cover.
12. To avoid accidents, keep away from areas where people may trip. Do not place on unstable surfaces
13. To avoid any risk of fire or electric shock, it is essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance contains electric parts that may electrocute or burn you.
14. Do not place this appliance close to flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this appliance in locations such as garages, warehouses etc. where dangerous or flammable

products are stored (paint, fuel, alcohol etc.).

1. The appliance must not be placed just underneath an electric socket.
2. This product is hot when it is on. To avoid any injuries or burns, do not touch it directly and use gloves or other means.
3. Do not use this heating appliance close to a bath, shower or swimming pool
4. Check that the voltage corresponds to that of the power supply (230v mains socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.
5. In the event that you need an extension cable, ensure that it is suitable for the appliance's power level.
6. While the appliance remains plugged into the socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.
7. The power socket must always be equipped with an earth connection. If your domestic electrical installation is not earthed, you should not connect the appliance.

8. WARNING: To avoid overheating, do not cover the heater.

9. Appliances are not designed to be used in conjunction with a separate timer or with a control system used at a distance.

10. This device can be used by children with at least 8 years old and people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly monitored (s) or given to them instructions for using the machine safely and if the risks were apprehended. Children should not play with the appliance. Cleaning and user maintenance should not be performed by children unattended.
11. Children of less than 3 years should be kept away unless continuously supervised.

12. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

13. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

14. For domestic & indoor use only. Do not use it outdoor. Use the heater as per the instruction manual. Any other use that does not comply with the supplier's instructions could result in property damage or personal injury.
15. WARNING: To avoid overheating, do not cover the heater.

This symbol means: WARNING: DO NOT COVER

1. Regarding detailed information on how to attach the feet to the heater, refer to the section "ASSEMBLY"
2. Regarding detailed information on how to clean and maintain the heater, refer to the section "CLEANING AND MAINTENANCE"

Warning: Plug the appliance in correctly and do not leave within reach of children without supervision.

EARTHING

This appliance must be earthed. This appliance is equipped with an earthed plug.

It must be plugged into a correctly installed and earthed wall socket.

WARNING: Incorrect use of the earth connection can lead to the risk of electric shock.

Notes: If you have any questions regarding earthing or connecting to a power supply, please consult a qualified person.

In the event of short-circuit, earthing reduces the risk of electric shock by enabling the current to escape through the earth cable.

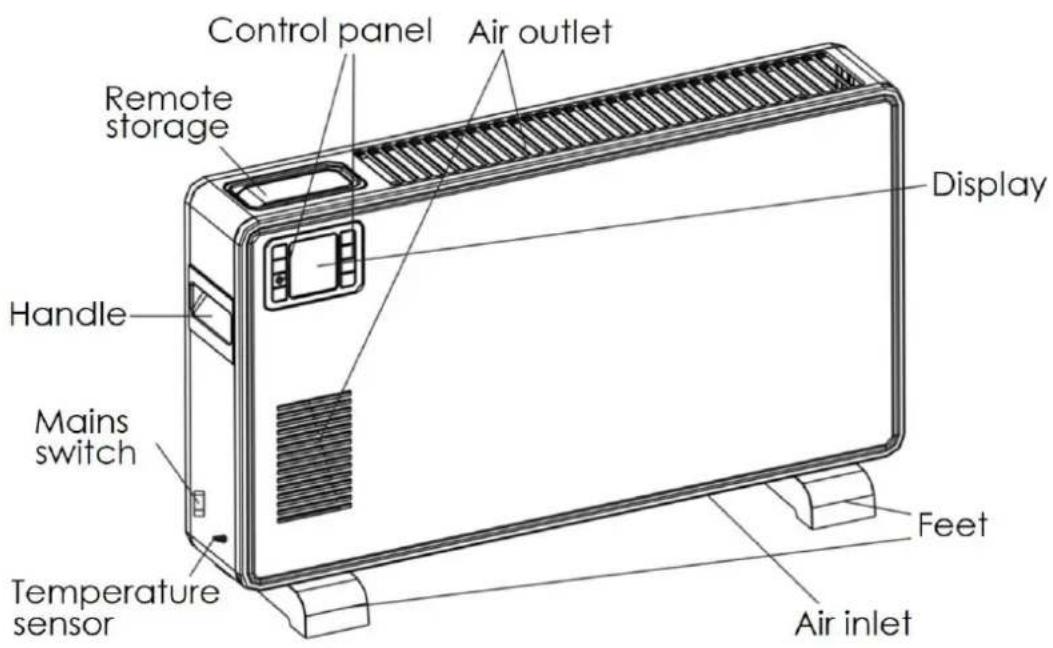

ASSEMBLY:

Unpack the convector and accessories.

Turn the convector upside-down.

Fit the 4 pads under each plastic feet.

Secure the feet under the base by inserting the screws inside the feet.

Then turn the convector to upright position.

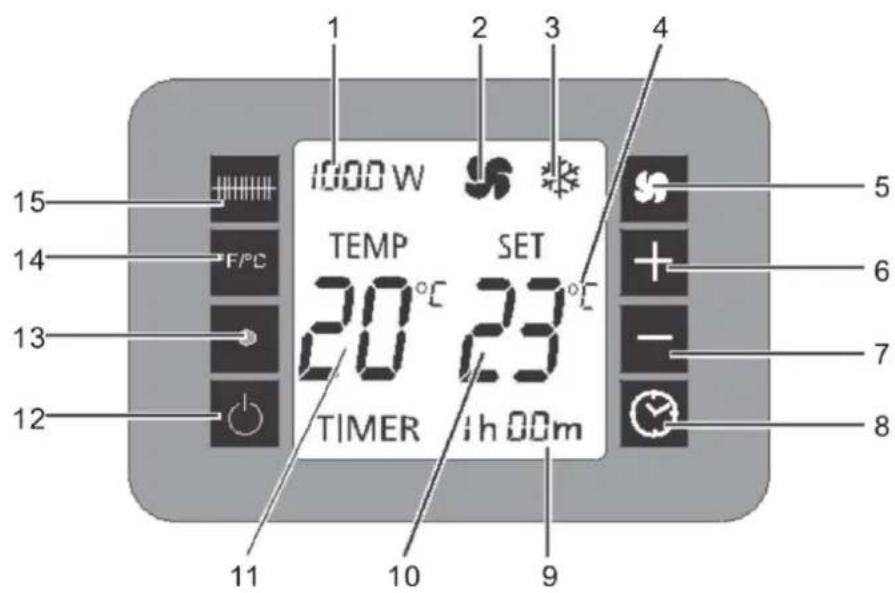

1. Display heating power
2. Display turbo function
3. Display frost protection mode
4. Display degree Celsius
5. Button turbo function
6. Button temperature increase
7. Button temperature decrease

8. Button timer and frost protection mode

9. Display timer

10. Display set temperature
11. Display room temperature
12. Button On / Standby
13. Remote receiver
14. Button selection ^ / ^

15. Button mode : selection of heating power

16. Button On/Standby

17. Button turbo function
18. Button temperature increase
19. Button timer 6 3 7 4
20. Button selection ^ F / ^ C

21. Button temperature decrease

22. Button mode : selection of heating power and frost protection mode

TECHNICAL SPECIFICATIONS :

Model N°:	THCVT2300DT	Low power	1000 W
Description :	Mobile turbo digital convector	Mid power	1300 W
Voltage :	220-240V~50-60Hz	High power	2300 W

CLASS 1

This product conforms to the requirements set by directives 2014/35/EC (repealing directive 73/23/EEC amended by directive 93/68/EEC) and 2014/30/EC (repealing directive 89/336/EEC)

OPERATING:

PRECAUTIONS FOR USE

1. Before using this appliance, ensure that it is placed on a flat, stable surface.
2. Never cover or put any product on the convector when it is heating.
3. Place the heater at least 90cm from the wall, furniture or curtains.
4. Check that the voltage corresponds to that of the power supply (230v mains socket)
5. Let the heater to cool and unplug it before moving it, and use the handle to move it.

USING THE HEATER

1. The power switch (on the side of the convector) must be on the OFF position, before connecting the convector to the socket.
2. Press the power switch, a beep sound. The heater is in standby mode displaying the room temperature (TEMP).

Turn on the radiator by pressing the button On/ Standby, the display also shows the target temperature (SET).

Press the mode button to select one of the 3 heating powers: 1000 /1300 /2300W, then press again to select the frost protection mode.

1. Press the "Turbo" button to activate ventilation.
   (Note: In frost protection mode, the turbo function is disabled)
2. The desired room temperature can be adjusted using the thermostat. Set the target temperature (SET) using the + or - buttons.
3. When the room temperature reaches the target temperature, the radiator stops heating. When the room temperature has decreased by 2^ compared to the target temperature. The convector starts heating again.
4. Button selection ^ F / ^ allows to change the display to Celsius or Fahrenheit.
5. Button allows you to choose a delay switch off between 1 to 24 hours.
6. The heater has a protection system against overheating.

If overheating occurs, a system limits the temperature inside the heater will automatically shut off the power supply to reduce the risk of fire.

Turn off the unit, unplug the unit from the AC outlet, and allow it to cool for at least 10 minutes. Then reconnect the plug to the power outlet and turn on the power again.

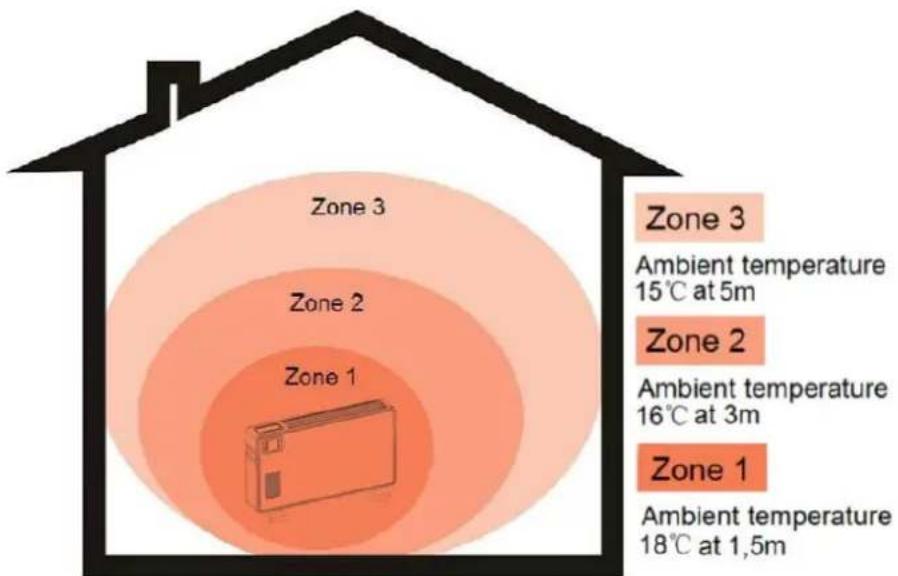

Note: The display shows the temperature of the area around the product (diagrams below). There may be a difference in the indication of temperature, between the heating zone and the room. This difference is reduced during continuous operation of the heater.

Note: The temperature display will not reflect the precise ambient temperature until the heater has been running for at least 30 minutes.

The heating system has an overheating protection. Should the appliance overheat, a temperature limiting system inside the appliance will automatically shut off the power supply to reduce the risk of fire. The unit can restart as soon as all conditions and temperature normal to its operation are restored. Identify the causes of this overheating to avoid future incidents

Note: When not using the heater, please switch off the appliance and unplug it from the wall outlet.

Remote control

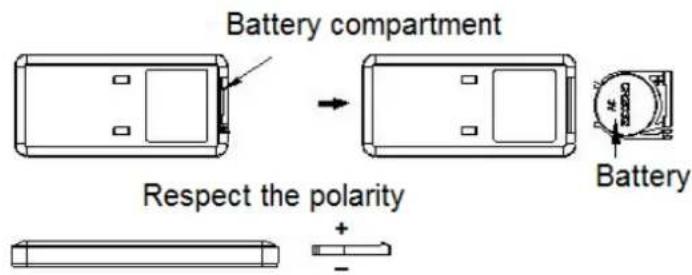

1. It works with 1 button cell battery CR2032, 3 volts. Used batteries should be disposed safely.

To drop in collection bins to protect the environment. (please ask your dealer)

1. Respect the polarity when inserting the battery.

2. Your remote control will repeat the functions listed on your heater's control panel.

WARNING: Danger of explosion if batteries are incorrectly installed. Replace the battery only with the same type of battery.

CLEANING AND MAINTENANCE:

1. Always unplug the appliance and keep it away from any socket before cleaning.
2. To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.
3. Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater. Do not use wax or products that create a shine as they can react to heat and cause discoloration.
4. When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store in its packaging for simple storage and later use. Clean your radiator as mentioned above.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances

must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects:
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer. The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

Information requirements for electric local space heaters

Model identifier: THCVT2300DT

Item	Symbol	Value	Unit		Item	Unit
	Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2.0-2.3	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output (indicative)	Pmin	1.0	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax,c	2.0-2.3	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output	no
At nominal heat output	eImax	N/A	kW		Type of heat output/room temperature control (select one)
At minimum heat output	eImin	N/A	kW		single stage heat output and no room temperature control	no
n standby mode	eIsB	N/A	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	yes
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details			SCHNEIDER CONSUMER GROUP 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

KEEP THESE INSTRUCTIONS

Imported by SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.
