Product type	LED ceramic column fan heater
Brand	Thomson
Model	THST21DE
Power supply	220-240 V~, 50 Hz
Power I	1200 W
Power II	2000 W
Dimensions (approx.)	Height: 60 cm, Width: 20 cm, Depth: 20 cm
Weight	Approximately 2.5 kg
Protection class	Class II
Heating type	Ceramic with fan
Adjustable thermostat	Yes, electronic
Timer	1 to 12 hours
Oscillation	Yes
Remote control	Yes (CR2025 battery included)
Digital display	Temperature and timer
Anti-tip safety	Yes, automatic shutdown if tipped over
Overheat protection	Yes, automatic cut-off
Maintenance	Clean with a damp cloth, dry before use. Do not use detergents.
Replaceable batteries	Remote control: CR2025 battery
Intended use	Domestic, indoor only

Frequently Asked Questions - THST21DE THOMSON

How to set the timer on the THST21DE?

Press the MINUT button several times to set the automatic shut-off from 1 to 12 hours. Each press increases the duration by one hour.

Why is my heater not heating?

Check that the power switch (6) at the back is turned on and that the On/Off button (7) is pressed. Make sure the desired temperature is higher than the room temperature. If the overheat protection has been triggered, unplug the device and let it cool down.

How to clean the THST21DE heater?

Always unplug the device before cleaning. Use a slightly damp cloth to clean the exterior, then dry with a soft, dry cloth. Never use detergents or chemical products. Do not let water enter the openings.

What type of battery does the remote control use?

The remote control uses a CR2025 button cell battery (3 V). Insert it respecting the polarities. Replace only with a battery of the same type.

The heater turns off by itself, what to do?

This may be due to the programmed timer or the anti-tip protection. Check that the device is on a stable surface. If the overheat protection has activated, wait for the device to cool down and identify the cause of overheating (e.g., grille obstruction).

Can I use the heater in a bathroom?

No, this heater is intended for domestic indoor use only and should not be used near a bathtub, shower, or swimming pool to avoid any risk of electric shock.

How to activate oscillation?

Press the OSCIL button (11) to activate or deactivate the lateral oscillation of the heater, allowing heat to be spread over a wider area.

What is the difference between power I and II?

Power I is 1200 W and power II is 2000 W. In automatic mode, the power is selected according to the difference between the desired temperature and the room temperature (if difference < 4°C, power I; if difference >= 4°C, power II). You can also manually select continuous power by pressing the I/II button.

Is the heater safe for use with children?

Yes, it has safety features such as automatic shutdown in case of tipping and overheat protection. However, some parts become very hot, so supervision is necessary. Do not leave children under 3 years unattended nearby.

What to do if the device does not turn on?

Check that the wall socket is working (230 V). Make sure the power switch (6) at the back is in the on position. If the problem persists, unplug the device and contact customer service. Do not attempt to repair it yourself.

USER MANUAL THST21DE THOMSON

SAFETY RECOMMENDATIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children, except their age are over 8 years old and with supervision.
3. Children under 3 years must be kept away unless constantly monitored.
4. Children aged between 3 and 8 years must only turn on or off the unit provided it has placed or installed in its normal operating position expected and were trained and supervised in instructions for using the machine safely and understand the potential hazards.
5. Children aged between 3 and 8 years must not connect, adjust or clean the heater or perform user maintenance.
6. WARNING - Some parts of this product may become hot and cause burns. Particular attention must pay in presence of children and vulnerable people.

7. Read the instructions before using the appliance for the first time.

8. The appliance must be installed following national regulations for use.

9. It is necessary to be vigilant and supervise the appliance while children are close by.
10. This appliance is only designed for domestic and indoor use. Do not use outdoors. Use the fan heater only as indicated in the instructions. Any other use not in accordance with manufacturer's instructions may result in property damage or personal injury.
11. Use this appliance in a well aerated and ventilated room. Do not cover the appliance or air flow.
12. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely in the 'Off' position (0) and unplugged from the socket.
13. Great care must be taken when being used by or in the presence of children of older persons.
14. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.
15. Do not place the cable under a carpet or any heavy object, and do not cover.

16. To avoid accidents, keep away from areas where people may trip. Do not place on unstable surfaces.

17. To avoid any risk of fire or electric shock, it is essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance contains electric parts that may electrocute or burn you.

18. Do not place this appliance close to flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this appliance in locations such as garages, warehouses etc. where dangerous or flammable products are stored (paint, fuel, alcohol etc.).
19. This product is hot when it is on. To avoid any injuries or burns, do not touch it directly and use gloves or other means.
20. Do not use this heating appliance close to a bath, shower or swimming pool.
21. Check that the voltage corresponds to that of the power supply (230v mains socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.
22. In the event that you need an extension cable, ensure that it is suitable for the appliance's power level.

23. If objects or liquids penetrate the inside of the appliance, unplug it and have it check by qualified persons.

24. While the appliance remains plugged into the socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.

25. The appliance must not be placed just underneath an electric socket.
26. WARNING: To avoid overheating, do not cover the fan heater.
27. This symbol means that you must not cover the appliance
28. It is advisable that you supervise children to ensure they do not play with the appliance.
29. Appliances are not designed to be used in conjunction with a separate timer or with a control system used at distance.
30. Do not put any item in the area next to the heater.
31. Allow enough space around the heater: 100cm top and sides and 120cm on the front.

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

TECHNICAL SPECIFICATIONS

Model No.	THST21DE
Item	LED ceramic tower fan heater	Power level (mode I)	1200 W
Voltage:	220-240V~ 50Hz	Power level (mode III)	2000 W

CLASS II

This product conforms to the requirements set by directives 2014/35/EC (repealing directive 73/23/EEC amended by directive 93/68/EEC) and 2014/30/EC (repealing directive 89/336/EEC)

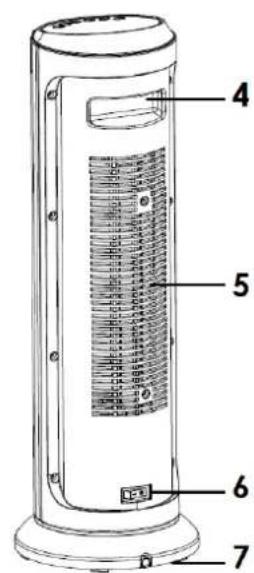

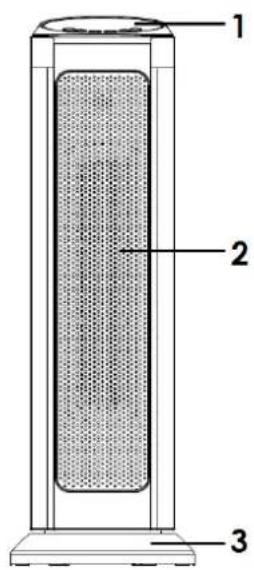

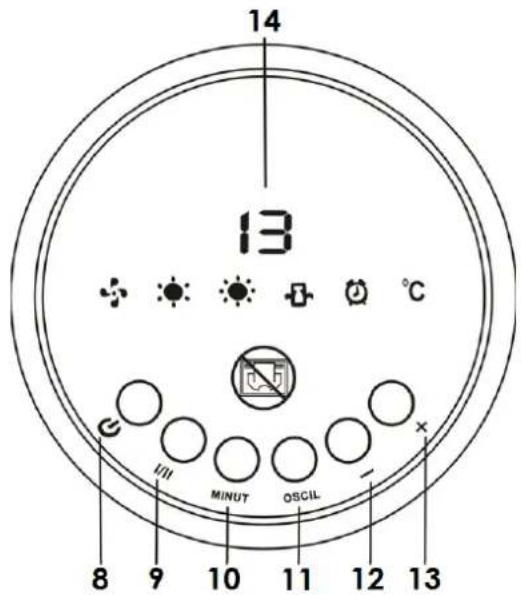

COMPOSITION:

1 - Control panel
2 - Front grill hot air outlet
3 - Base
4 - Handle
5 - Grill air inlet
6 - Power switch
7 - Tip over switch

8 - Button On / Off
9 - Button power I and II
10 - Button timer
11 - Button oscillation
12 - Button decrease
13 - Button increase
14 - Temperature / timer display

INSTALLATION:

Before using this appliance, ensure that it is placed on a flat, stable surface.

This appliance is equipped with an anti-tripping switch that switches the appliance off in the event that it tips over and is not placed on a stable surface.

Do not overload the electrical circuit. Avoid using the same socket for other appliance.

Before plugin the appliance into the mains socket, check that the main power supply corresponds to the value indicated on the rating label and that the mains power supply is adequate for the load.

USING THE HEATER:

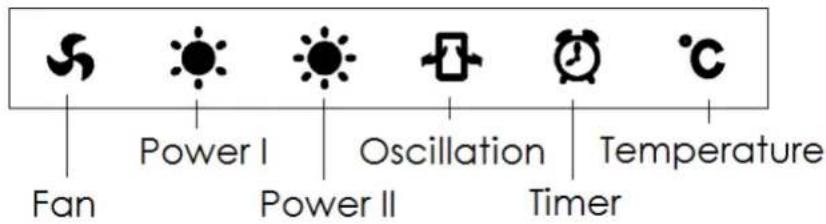

INDICATOR LIGHTS:

1. Plug into the mains socket on the wall.
2. Turn on the power switch (6) placed on the back of the appliance.
3. The display shows the temperature of the room with the indicator light
4. Press the On / Off button (7) to turn on the heater.
5. The indicator light is turned on and the unit works on fan mode.
6. For selecting the heating powers: Power 1 / Power 2: Press the I / II button (9)

Indicates power heating I = 1200W

Indicates power heating II = 2000W

The heating will run continuously in this mode.

1. You can set the desired temperature by pressing the + and - buttons (12 and 13).

2. When the desired temperature is higher than the ambient temperature, with a deviation of less than 4^ of temperature difference, the heating is automatically set to the heating power I.

3. When the desired temperature is at least 4^ C higher than the ambient temperature, the heating is automatically set to the heating power II.

Caution: If you press the heating power setting button again, the heating will operate in continuous mode without taking into account the desired temperature.

1. Press the MINUT (10) button to select the Auto Off timer.
2. Press the "TIME" button repeatedly to set the automatic shut-off time between 1-12 hours.

3. Each press of the "MINUT" key increases the duration by one hour.

4. Press the OSCIL button (11) to select the oscillation.

5. To turn off the unit, press the On / Off button (7) : The appliance will continue to operate automatically in cold ventilation mode (without heating power) for 30 seconds to cool the appliance before stopping completely.

Note: The display shows the temperature of the area around the product (diagrams below)

There may be a difference in the indication of temperature, between the heating zone and the room. This difference is reduced during continuous operation of the heating.

Note: The temperature display will not reflect the precise ambient temperature until the heater has been running for at least 30 minutes.

The heating system has an overheating protection. Should the appliance overheat, a temperature limiting system inside the appliance will automatically shut off the power supply to reduce the risk of fire. The unit can restart as soon as all conditions and temperature normal to its operation are restored. Identify the causes of this overheating to avoid future incidents

Note: When not using the heater, please switch off the appliance and unplug it from the wall outlet.

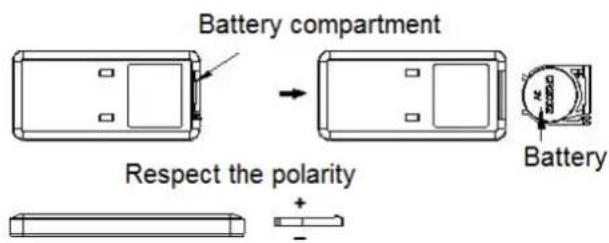

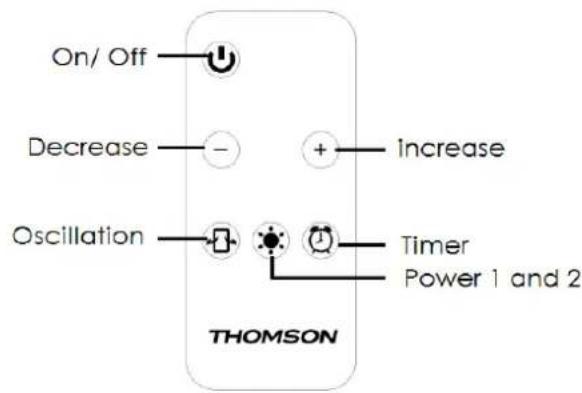

Remote control

1. It works with 1 button cell battery CR2025, 3 volts. Used batteries should be disposed of safely.

To drop in collection bins to protect the environment. (please ask your dealer)

1. Respect the polarity when inserting the battery.

2. Your remote control will repeat the functions listed on your heater's control panel.

WARNING: Danger of explosion if batteries are incorrectly installed. Replace the battery only with the same type of battery.

PRECAUTIONS FOR USE AND MAINTENANCE:

1. Always unplug the appliance and keep it away from any socket before cleaning. Remove the filter at the back of the heater and clean it regularly.

To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.

Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater.

1. When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store in its packaging for simple storage and later use.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they

contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or unauthorized repair
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

Information requirements for electric local space heaters

Model identifier : THST21DE
Item Symbol		Value	Unit		Item Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2,0	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output(indicative)	Pmin	0	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax, c	2,0	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output	no
At nominal heat output	eImax	NA	kW		Type of heat output/room temperature control (select one)
At minimum heat output	eImin	NA	kW		single stage heat output and no room temperature control	no
In standby mode el	SB	0,00	kW		Two or more manual stages, no room temperature control	no
					with mechatronic thermostat room temperature control	no
					with electronic room temperature control	yes
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
Other control options (multiple selections				possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	SCHNEIDER CONSUMER GROUP12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

KEEP THESE INSTRUCTIONS

Imported by SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.
