Product type	Bathroom fan heater
Brand	Thomson
Model	THSF027
Power (mode I)	1000 W
Power (mode II)	2000 W
Supply voltage	220-240 V ~ 50/60 Hz
Protection class	II
Protection rating	IP21
Available functions	Fan only, heat level 1, heat level 2, adjustable thermostat
Thermostat	Yes, mechanical adjustment
Anti-tip safety	Yes, automatic shut-off in case of tipping
Overheat protection	Yes, built-in temperature limiter
Usage	Indoor, well-ventilated room, outside bathroom volumes 0-2
Cleaning and maintenance	Unplug, clean with a damp cloth, dry before reuse
Color	White (typical)
Warranty	Consult the retailer
Country of origin	Imported by ADMEA, France

Frequently Asked Questions - THSF027 THOMSON

How to turn on the Thomson THSF027 heater?

Plug in the appliance, turn the thermostat knob to MAX, then turn the selection knob from 0 to I (warm) or II (very warm). For fan-only operation, turn to fan.

How to set the desired temperature?

Turn the thermostat knob clockwise to increase the temperature. Once the ambient temperature is reached, slowly turn the thermostat counterclockwise until the indicator light turns off; the temperature will then be maintained automatically.

What to do if the heater suddenly stops?

This may be due to overheating or tipping. Make sure the appliance is on a stable surface and not obstructed. Allow it to cool down, then it will restart automatically. If the problem persists, unplug it and contact a professional.

Can I use this heater in a bathroom?

Yes, but it must be installed outside volumes 0, 1, and 2 (more than 0.60 m from the bathtub or shower). Never use it near a bathtub, shower, or pool.

How to clean the Thomson THSF027 heater?

Always unplug the appliance before cleaning. Use a slightly damp cloth to wipe the exterior, then dry with a soft, dry cloth. Never use detergents or chemicals. Ensure no water enters the openings.

What is the maximum power of the THSF027?

The maximum power is 2000 W (mode II). In mode I, it is 1000 W. Make sure your electrical installation supports this power.

Can I cover the appliance?

No, it is strictly forbidden to cover the appliance (prohibition symbol). This could cause overheating and a fire risk.

Can the heater be used with an extension cord?

Yes, but use an extension cord suitable for the power (at least 2000 W) and fully unwound to avoid overheating.

How to store the appliance in summer?

Unplug it, clean it, then store it in its original packaging in a dry place out of reach of children.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger. Do not use the appliance until it is repaired.

USER MANUAL THSF027 THOMSON

White THOMSON electric heater with slatted grille and ventilation slots (no visible text or symbols on body)

LIRE ATTENTIVEMENT LES INSTRUCTIONS

CONSEILS DE SÉCURITÉ :

Two white circular components with black markings, one labeled 'I II' and the other showing a dotted outline (no text or symbols on the main objects)

UTILISATION :

White THOMSON electric heater with slatted grille and ventilation slots (no visible text or symbols on body)

CAREFULLY READ THESE INSTRUCTIONS

CE

SAFETY RECOMMENDATIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children, except their age are over 8 years old and with supervision.

3. Children under 3 years must be kept away unless constantly monitored.

4. Children aged between 3 and 8 years must only turn on or off the unit provided it has placed or installed in its normal operating position expected and were trained and supervised in instructions for using the machine safely and understand the potential hazards.

5. Children aged between 3 and 8 years must not connect, adjust or clean the heater or perform user maintenance.

6. WARNING - Some parts of this product may become hot and cause burns. Particular attention must pay in presence of children and vulnerable people.

7. Read the instructions before using the appliance for the first time.

8. The appliance must be installed following national regulations for use.

9. It is necessary to be vigilant and supervise the appliance while children are close by.

10. This appliance is only designed for domestic and indoor use. Do not use outdoors. Use the fan heater only as indicated in the instructions. Any other use not in accordance with manufacturer's instructions may result in property damage or personal injury.

11. Use this appliance in a well aerated and ventilated room. Do not cover the appliance or air flow.

12. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely in the 'Off' position (0) and unplugged from the socket.

13. Great care must be taken when being used by or in the presence of children of older persons.

14. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.

15. Do not place the cable under a carpet or any heavy object, and do not cover.

16. To avoid accidents, keep away from areas where people may trip. Do not place on unstable surfaces.

17. To avoid any risk of fire or electric shock, it is essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance contains electric parts that may electrocute or burn you.

18. Do not place this appliance close to flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this appliance in locations such as garages, warehouses etc. where dangerous or flammable products are stored (paint, fuel, alcohol etc.).

19. This product is hot when it is on. To avoid any injuries or burns, do not touch it directly and use gloves or other means.

20. Do not use this heating appliance close to a bath, shower or swimming pool.

21. Check that the voltage corresponds to that of the power supply (230v mains socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.

22. In the event that you need an extension cable, ensure that it is suitable for the appliance's power level.

23. If objects or liquids penetrate the inside of the appliance, unplug it and have it check by qualified persons.

24. While the appliance remains plugged into the socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.

25. The appliance must not be placed just underneath an electric socket.
26. WARNING: To avoid overheating, do not cover the fan heater.
27. This symbol means that you must not cover the appliance
28. It is advisable that you supervise children to ensure they do not play with the appliance.
29. Appliances are not designed to be used in conjunction with a separate timer or with a control system used at distance.
30. Do not put any item in the area next to the heater.

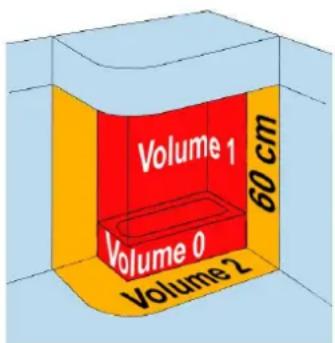

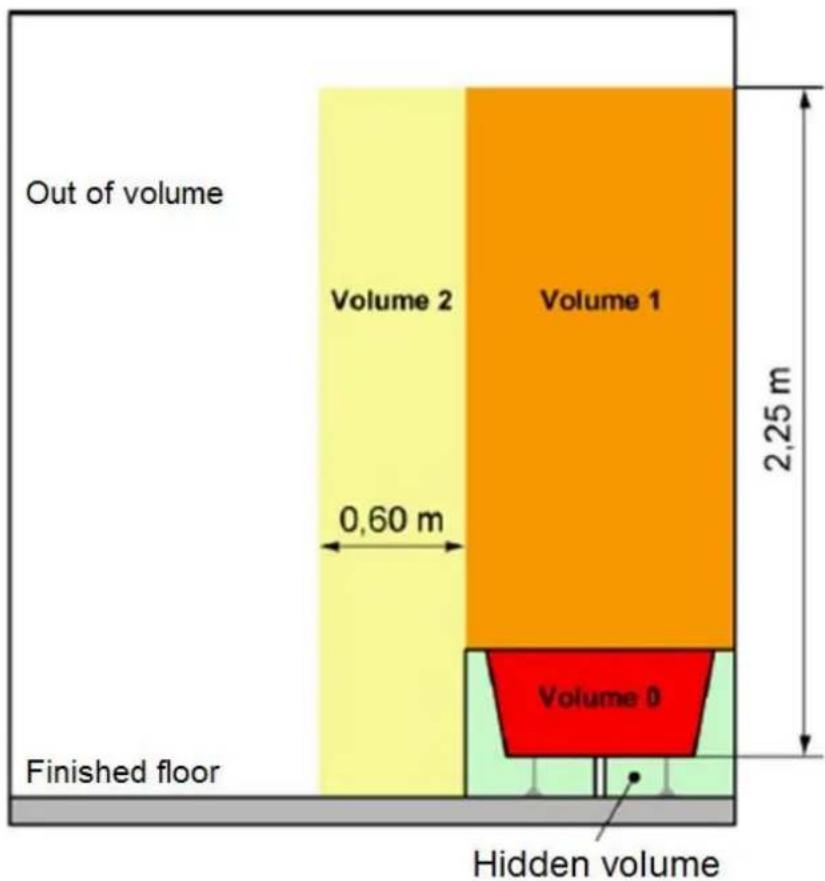

WARNING: In the bathroom, the heater can only be installed in Out of volume, means out of volumes 0, 1, 2, hidden volume according to the requirements of the French norm on the electrical

installation NFC 15-100.

Remark: The diagram below is only given as an example.

We suggest that you contact a qualified electrician for any help.

Warning: Plug in the appliance correctly and do not leave within reach of children without supervision.

TECHNICAL SPECIFICATIONS:

Model No.	THSF027
Item	Bathroom fan heater	Power level (mode I)	1000 W
Voltage:	220-240V~50/60Hz	Power level (mode II)	2000 W

CLASS II IP21

This product conforms to the requirements set by directives 2014/35/EC (repealing directive 73/23/EEC amended by directive 93/68/EEC) and 2014/30/EC (repealing directive 89/336/EEC)

COMPOSITION:

Control panel

Off / Fan /

Power 1 /

Power 2

Thermostat

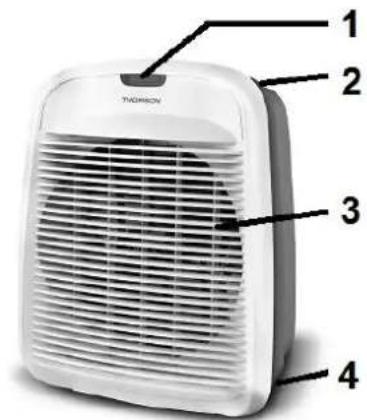

Two white circular industrial dials labeled I and II with a dotted outline, no text or symbols visible.

1) Indicator light

2) Control panel

3) Air outlet

4) Anti-tipping switch

USING THE HEATER:

1. Before using this appliance, ensure that it is placed on a flat, stable surface. This appliance is equipped with an anti-tripping switch that switches the appliance off in the event that it tips over and is not placed on a stable surface.
2. Check that the voltage corresponds to that of the power supply (230v mains socket) Once the appliance is plugged in, turn the thermostat dial and the light will switch on.
3. Turn the thermostat dial in a clockwise direction towards "MAX", then turn the "0" dial towards "to activate the ventilator motor. Check that everything fonctions correctly.
4. Turn the function setting switch from "I" to "II" to select your chosen temperature. To set the power, turn the dial from 0 towards I or II:

$$ \mathbf {0} = \text { Off } $$

$$ = \text { ventilation } \quad I = \text { hot } $$

$$ \mathbf {I I} = \text { very hot } $$

1. After reached the desired temperature, to maintain the temperature: turn the thermostat knob counterclockwise until the light turns off. The desired temperature will be kept constant by the thermostat function.
2. The heater comprises a protection device protecting against overheating. If the fan heater overheats, a temperature limiting system inside the appliance will automatically cut the power supply from the heating element while the ventilator continues to function to cool the appliance. The appliance can re-start as soon as the normal conditions and temperature needed for it to function are re-established. Identify the causes of this overheating to avoid any recurrences.
3. When not using this heater, return the 2 dials to their initial position: "0" and "MIN.", and then unplug it.

PRECAUTIONS FOR USE AND MAINTENANCE:

1. Always unplug the appliance and keep it away from any socket before cleaning. To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.
   Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater.

2. When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store in its packaging for simple storage and later use.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Information requirements for electric local space heaters

Model identifier(s): THSF027
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output(indicative)	P_min	0.9	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax,c	2	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output	no
At nominal heat output	eI_max	N/A	kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	N/A	kW		single stage heat output and no room temperature control	no
In standby mode	eI_SB	0	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	yes
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	ADMEA12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE
