THSF028 - Heating THOMSON - Free user manual and instructions

Brand	Thomson
Model	THSF028
Product Type	Fan heater for bathroom
Power (mode I)	1000 W
Power (mode II)	2000 W
Power Supply	220-240 V ~ 50/60 Hz
Protection Class	Class II
Protection Index	IP21
Dimensions (estimated)	20 x 15 x 10 cm
Weight (estimated)	1.5 kg
Available Functions	Off, ventilation only, warm (1000 W), very warm (2000 W), adjustable thermostat
Thermostat	Mechanical, continuous adjustment
Indicator Light	Indicates operation
Safety Switch	Tip-over protection (automatic shut-off in case of overturning)
Overheat Protection	Built-in thermal cut-off
Recommended Use	Well-insulated rooms, occasional use
Electrical Installation	Must be protected by a 30 mA RCD
Bathroom Location	Outside volumes 0, 1, 2 (standard NF C 15-100)
Cleaning	Soft, slightly damp cloth, no detergent
Spare Parts	Not specified by the manufacturer
Repairability	Replace by a professional if cable damaged
General Information	Imported by SCHNEIDER CONSUMER GROUP

Frequently Asked Questions - THSF028 THOMSON

Can I use this heater in a bathroom?

Yes, the THSF028 model is designed for bathroom use and has IP21 protection. It must be installed outside volumes 0, 1, and 2 in accordance with standard NF C 15-100.

How to clean the device?

Always unplug the device before cleaning. Use a soft, slightly damp cloth, then dry thoroughly. Never use detergents or chemicals.

What to do if the device turns off by itself?

This is likely due to overheat protection. Turn off the device, let it cool, then check that air inlets/outlets are not blocked. If the problem persists, contact a professional.

Can I cover the heater?

No, never cover the device. The 'do not cover' symbol is present on the device. Covering it can cause overheating and a fire risk.

What is the difference between modes I and II?

Mode I provides 1000 W (warm) and Mode II 2000 W (very warm). Use mode II for faster heating or in a larger room.

How to set the desired temperature?

Turn the thermostat knob clockwise towards MAX to heat. Once the temperature is reached, turn it gently counterclockwise until the indicator turns off: the temperature will be maintained.

Can the device be used with an extension cord?

Yes, but ensure the extension cord is rated for the power (2000 W) and fully unwound to avoid overheating.

What to do if the power cord is damaged?

Do not use the device. The cord must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any hazard.

Can I leave the device unattended?

No, it is not recommended to leave the device running unattended. When not in use, always set the buttons to OFF (0) and unplug it.

Where should I place the heater in the room?

Place it on a flat, stable surface, away from textiles, curtains, and other flammable materials. Maintain a safety distance of at least 1 meter in front and on the sides.

USER MANUAL THSF028 THOMSON

White THOMSON air conditioner unit with grid grille and ventilation slots (no text or symbols on device body)

LIRE ATTENTIVEMENT LES INSTRUCTIONS

Simple circular diagram with a plus sign and a minus sign, no text or symbols present.

UTILISATION :

White THOMSON air conditioner unit with ventilation grille and ventilation slots (no text or symbols on device body)

CAREFULLY READ THESE INSTRUCTIONS

This product is only suitable for well insulated spaces or occasional use

SAFETY RECOMMENDATIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children, except their age are over 8 years old and with supervision.
3. Children under 3 years must be kept away unless constantly monitored.
4. Children aged between 3 and 8 years must only turn on or off the unit provided it has placed or installed in its normal operating position expected and were trained and supervised in instructions for using the machine safely and understand the potential hazards.
5. Children aged between 3 and 8 years must not connect, adjust or clean the heater or perform user maintenance.
6. WARNING - Some parts of this product may become hot and cause burns. Particular attention must pay in presence of children and vulnerable people.

7. Read the instructions before using the appliance for the first time.

8. The appliance must be installed following national regulations for use.

9. It is necessary to be vigilant and supervise the appliance while children are close by.

10. This appliance is only designed for domestic and indoor use. Do not use outdoors. Use the fan heater only as indicated in the instructions. Any other use not in accordance with manufacturer's instructions may result in property damage or personal injury.

11. Use this appliance in a well aerated and ventilated room. Do not cover the appliance or air flow.

12. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely in the 'Off' position (0) and unplugged from the socket.

13. Great care must be taken when being used by or in the presence of children of older persons.

14. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.

15. Do not place the cable under a carpet or any heavy object, and do not cover.

16. To avoid accidents, keep away from areas where people may trip. Do not place on unstable surfaces.

17. To avoid any risk of fire or electric shock, it is essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance contains electric parts that may electrocute or burn you.

18. Do not place this appliance close to flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this appliance in locations such as garages, warehouses etc. where dangerous or flammable products are stored (paint, fuel, alcohol etc.).

19. This product is hot when it is on. To avoid any injuries or burns, do not touch it directly and use gloves or other means.

20. Do not use this heating appliance close to a bath, shower or swimming pool.

21. Check that the voltage corresponds to that of the power supply (230v mains socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.

22. In the event that you need an extension cable, ensure that it is suitable for the appliance's power level.

23. If objects or liquids penetrate the inside of the appliance, unplug it and have it check by qualified persons.

24. While the appliance remains plugged into the socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.

25. The appliance must not be placed just underneath an electric socket.
26. WARNING: To avoid overheating, do not cover the fan heater.
27. This symbol means that you must not cover the appliance
28. It is advisable that you supervise children to ensure they do not play with the appliance.
29. Appliances are not designed to be used in conjunction with a separate timer or with a control system used at distance.
30. Do not put any item in the area next to the heater.
31. User instructions should be provided with the device so that it can be used safely.
32. For cleaning and maintenance instruction, refer to page 8 of the corresponding section.

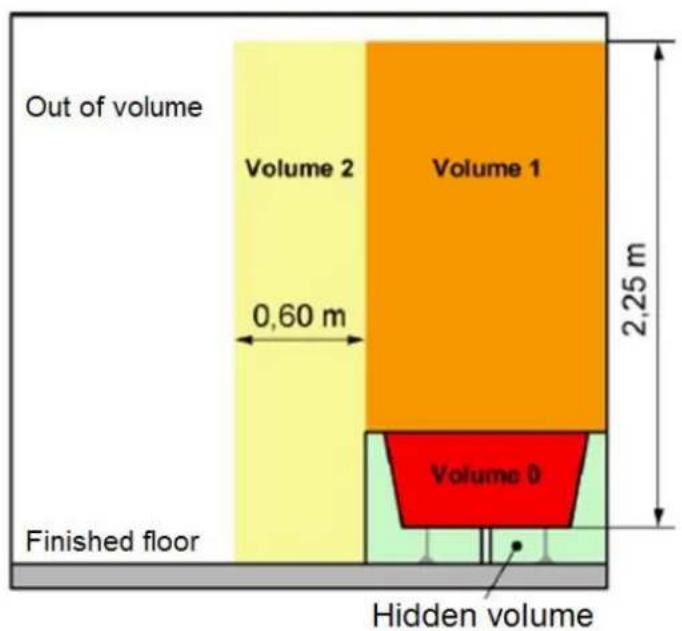

WARNING: In the bathroom, the heater can only be installed in Out of volume, means out of volumes 0, 1, 2, hidden volume according to the requirements of

the French norm on the electrical installation NFC 15-100.

The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA

Remark: The diagram below is only given as an example.

We suggest that you contact a qualified electrician for any help.

Warning: Plug in the appliance correctly and do not leave within reach of children without supervision.

TECHNICAL SPECIFICATIONS:

Model No.	THSF028
Item	Bathroom fan heater	Power level (mode I)	1000 W
Voltage:	220-240V~50/60Hz	Power level (mode II)	2000 W

CLASS II

IP21

This product conforms to the requirements set by directives 2014/35/EC (repealing directive 73/23/EEC amended by directive 93/68/EEC) and 2014/30/EC (repealing directive 89/336/EEC)

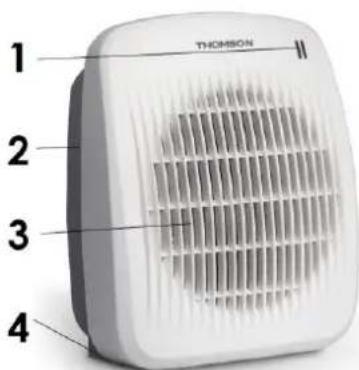

COMPOSITION:

1) Indicator light 3) Air outlet

2) Control panel 4) Anti-tipping switch

USING THE HEATER:

1. Before using this appliance, ensure that it is placed on a flat, stable surface. This appliance is equipped with an anti-tripping switch that switches the appliance off in the event that it tips over and is not placed on a stable surface.
2. Check that the voltage corresponds to that of the power supply (230v mains socket) Once the appliance is plugged in, turn the thermostat dial and the light will switch on.
3. Turn the thermostat dial in a clockwise direction towards "MAX", then turn the "0" dial towards "▶to activate the ventilator motor. Check everything fonctions correctly.
4. Turn the function setting switch from "I" to "II" to select your chosen temperature. To set the power, turn the dial from 0 towards I or II:

$$ \mathbf {0} = \text { Off } $$

$$ = \text { ventilation } $$

$$ \mathbf {I} = \text { h o t } $$

$$ \mathbf {I I} = \text { very hot } $$

1. After reached the desired temperature, to maintain the temperature: turn the thermostat knob counterclockwise until the light turns off. The desired temperature will be kept constant by the thermostat function.
2. The heater comprises a protection device protecting against overheating. If the fan heater overheats, a temperature limiting system inside the appliance will automatically cut the power supply from the heating element while the ventilator continues to function to cool the appliance. Switch off the heater. The appliance can re-start as soon as the normal conditions and temperature needed for it to function are re-established. Identify the causes of this overheating to avoid any recurrences.
3. When not using this heater, return the 2 dials to their initial position: "0" and "MIN.", and then unplug it.

Control panel

Off / Fan /

Power 1 /

Power 2

Thermostat

Simple circular diagram with a plus sign and a minus sign, no text or symbols present.

CLEANING AND MAINTENANCE:

1. Always unplug the appliance and keep it away from any socket before cleaning. To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.

Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater.

1. When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store in its packaging for simple storage and later use.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.
The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Information requirements for electric local space heaters

Model identifier(s): THSF028
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output(indicative)	P_min	0.9	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax,c	2	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output	no
At nominal heat output	eI_max	N/A	kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	N/A	kW		single stage heat output and no room temperature control	no
In standby mode	eI_SB	0	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	yes
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	SCHNEIDER CONSUMER GROUP12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

KEEP THESE INSTRUCTIONS

Imported by SCHNEIDER CONSUMER GROUP, 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.
