USER MANUAL AFU1705BW WHIRLPOOL

Upright Freezers Questions about your features? Please contact us with y our model and serial number: Maytag Services

est 4th Street North

• wton, Iowa 50208-0039 Ph# 1-800-843-0304 in U.S.A. 1-866-587-2002 au Canada Internet: http://www.amana.com Owners Manual Keep instructions for future reference. Keep this manual and your sales receipt together in a safe placein case warranty service is required. Contents Introduction p. 2
• Important Safety Information p. 3
• -4 Installation Instructions p. 4
• Temperature Control p. 5
• Custom Features p. 6
• Hints and Care p. 7
• -9Freezing Guidelines p. 10
• -12 roubleshooting p. 13
• -14Warranty p. 16
• Manuel du propriétaire p. 17

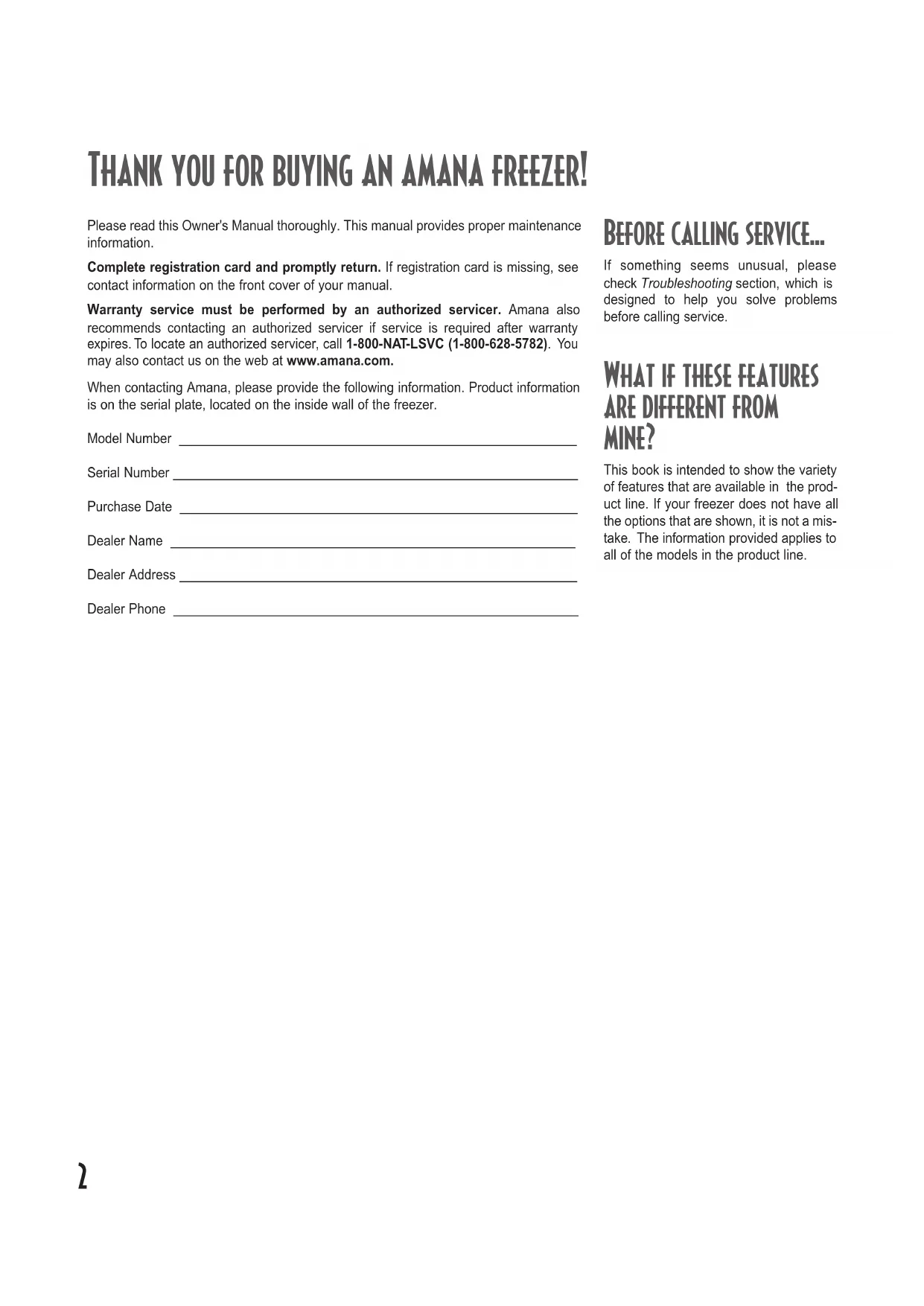

• Man ual del Usuario Thank you for buying an amana freezer! Please read this Owner's Manual thoroughly. This manual provides proper maintenance information. Complete registration card and promptly return. If registration card is missing, see contact information on the front cover of your manual. Warranty service must be performed by an authorized servicer. Amana also recommends contacting an authorized servicer if service is required after warranty expires. To locate an authorized servicer, call 1-800-NAT-LSVC (1-800-628-5782).You may also contact us on the web at www.amana.com. When contacting Amana, please provide the following information. Product information is on the serial plate, located on the inside wall of the freezer. Model Number ________________________________________________________ Serial Number _________________________________________________________ Purchase Date ________________________________________________________ Dealer Name _________________________________________________________ Dealer Address ________________________________________________________ Dealer Phone _________________________________________________________ Before calling service If something seems unusual, please check Troubleshooting section, which is designed to help you solve problems before calling service. What if these features are different from mine? This book is intended to show the variety of features that are available in the prod- uct line. If your freezer does not have all the options that are shown, it is not a mis- take. The information provided applies to all of the models in the product line.3 Important safety information What you need to know about safety instructions Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this freezer. Always contact your dealer, distributor, service agent, or manufacturer about problems or conditions you do not under- stand. Save these instructions DANGER – Immediate hazards which WILL result in severe personal injury or death. DANGER WARNING – Hazards or unsafe prac- tices which COULD result in severe personal injury or death. WARNING CAUTION – Hazards or unsafe prac- tices which COULD result in minor personal injury. CAUTION To reduce risk of injury or death, follow basic precautions, including the following: IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned freezers are still dangerous – even if they sit out for “just a few days.” If you are getting rid of your old freezer, please follow the instructions below to help prevent accidents. Before you throw away your old freezer: p. 332

• Leave the shelves in place so children may not easily climb inside. DANGER RECOGNIZE SAFETY SYMBOLS, WORDS, LABELS To reduce risk of fire, electric shock, serious injury or death when using your freezer, follow these basic precautions, including the following: WARNING

1. Read all instructions before using the freezer.

2. Observe all local codes and ordinances.

3. Be sure to follow grounding instructions.

4. Check with a qualified electrician if you are not sure this

appliance is properly grounded.

5. DO NOT ground to a gas line.

6. DO NOT ground to a cold-water pipe.

7. Freezer is designed to operate on a 115 Volt, 15 amp.,

60 cycle line . There should be a separate, grounded circuit serving this appliance only.

8. DO NOT modify plug on power cord. If plug does not fit

electrical outlet, have proper outlet installed by a qualified electr ician.

use a two-prong adapter, extension cord or power strip.

10. DO NOT remove warning tag from power cord.

11. DO NOT tamper with freezer controls.

12. DO NOT service or replace any part of freezer unless

specifically recommended in Owner’s Manual or published user-repair instr uctions. DO NO

attempt ser vice if instructions are not understood or if they are beyond personal skill level.

13. Always disconnect freezer from electrical supply before

attempting any service. Disconnect power cord by grasping the plug, not the cord.

14. Install freezer according to Installation Instructions. All

connections for water, electrical power and grounding must comply with local codes and be made by licensed personnel when required.

15. Keep your freezer in good condition. Bumping or dropping

freezer can damage freezer or cause freezer to malfunction or leak. If damage occurs, have freezer checked by quali- fied service technician.

16. Replace worn power cords and/or loose plugs.

17. Always read and follow manufacturer’s storage and ideal

environment instructions for items being stored in freezer.

Do not operate the freezer in the presence of explosive fumes.

20. Do not store flammable substances near or in this appliance.

21. After your freezer is in operation, do not touch the cold sur-

faces in the freezer compartment, particularly when hands are damp or w et. Skin may adhere to these extremely cold surfaces.

22. This freezer should not be recessed or built-in an enclosed

cabinet. It is designed for freestanding installation only.

23. Children should not climb, hang or stand on any part of the

Adjust the 2 front legs so that the front of the freez er is slightly higher than the back. When adjusted properly, the door will s wing shut from 10" open.

Installation instructions REMOVE PACKING MATERIALS: Remove materials, tape and labels before using the freezer. Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners. These can damage the material. Clean your freezer before using it:

1. Use a sponge, cloth or paper towel

and mild detergent in warm water to clean outside and inside of freezer, door liner and gasket.

2. Rinse and dry thoroughly.

CHOOSE FREEZER LOCATION:

1. Locate the freezer in a safe place,

indoors, away from direct sunlight or heat sources such as a range, dish- washer, laundry equipment, heat vents or radiator.

2. DO NOT store flammables such as

gasoline near the freezer.

3. Check the strength of the floor. It

should hold the weight of a fully loaded freezer.

4. Allow at least 3" (7.5 cm) between top

of freezer and the ceiling.

5. Allow at least 1" (2.5 cm) between

back of freezer and the wall.

6. Allow 3" (7.5 cm) on each side of the

freezer for ease of installation.

7. If the freezer is to be against a wall,

you might want to leave extra space on the hinge side so the door can be opened wider.

8. This freezer is designed to operate at

a household temperature of 55° to 110° F (12.8° to 43° C). Raise Lower Important safety information This appliance is equipped with a three- prong grounding plug for your protection against possible electrical shock hazards. It must be plugged into a grounding

eceptacle. Where a standard two-prong- wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it replaced with a properly grounded three-prong wall receptacle. Do not under any circum- stances, cut or remove the third (ground) prong from the power cord.Do not use an adapter plug. Power supply cord with three-prong grounding plug Grounding type wall receptacle5 NOTE: If the freezer is laid on its side during shipping or transport, place the freezer upright and wait 12 hours before plugging it in. This prevents damage to the freezer. The freezer control turns the cooling system on. Initial control setting:

1. Set the freezer control on 4.

2. Allow the freezer to cool 6 to 8 hours

before filling with frozen food. Let the freezer cool overnight before adding large amounts of unfrozen food. Never add more than 2 to 3 pounds of unfrozen food per cubic foot of freezer space.

3. 24 hours after adding food, adjust

control as desired. NOTE: When the freezer is first started, the compressor will run constantly until the cabinet is cooled. This may take up to 6-8 hours or longer, depending on room temperature and the number of times the freezer is opened. The outside of your freezer may feel warm. This is normal. The freezer’s design and main function is to remove the heat from packages and air space inside the freezer. This heat is transferred to the room air, so the outside of the freezer may feel warm. Temperature control Adjusting the control:

1. Set household thermometer snugly

between frozen packages or place thermometer in a glass of vegetable oil, placed in freezer (vegetable oil will not freeze).

• Thermometer should be designed for use with freezer.

• Thermometer should read tempera- tures ranging from -5° to 50° F (-21° to 10° C).

2. Wait 5 to 8 hours.

3. Check temperature.

• Temperature should read 0° F (-18° C) or slightly below.

4. If temperature is not in range, adjust

control only one number at a time.

• Turn the control to a higher number if a colder temperature is desired.

• Turn the control to a lower number if a less cold temperature is desired.

5. Wait an additional 24 hours and

recheck temperature.6 Custom features Free-o-frost™ frost control system (SELECT MODELS) The Amana Free-O-Frost™ system auto- matically defrosts the freezer so you don’t have to. This allows the freezer to run more efficiently and quietly, minimizes odors, and takes the hassle out of keep- ing a freezer clean. Fast freeze (SELECT MODELS) Fast Freeze is a convenient feature that enables quicker freezing of large amounts of food. During Fast Freeze, the freezer runs continuously, to drive the freezer temperature down to its coldest level. To use Fast Freeze, simply turn the con- trol knob to the Igloo symbol. Then place unfrozen foods in the freezer cavity, spreading them out as much as possible. Return freezer to its normal setting after 24 to 48 hours. Interior light (SELECT MODELS) The interior light works to light the freez- er in poor or dimly lit conditions. The light is designed and tested to provide illumi- nation while minimizing heat generated if the door is accidentally left ajar. To replace the interior light, see the Hints and Care section. Power light (SELECT MODELS) The power light normally will be “ON.” Its purpose is to warn you when there is a power absence. If for any reason the power to the freezer is interrupted (blown fuse, loose plug, etc.) the indicator light will be “OFF.” To prevent child entrapment keep key out of reach of children and away from freezer. WARNING Door lock (SELECT MODELS) To use the door lock:

1. Insert key into lock approximately

2. Turn key clockwise to lock freezer and

counterclockwise to unlock. Once locked or unlocked, the lock will push the key out, preventing the key from being kept in the lock. Temperature monitor alarm (SELECT MODELS) Some freezer models feature a tempera- ture monitor that provides an audible alarm. The temperature monitor alarm is located near the temperature control. The alarm sounds if the temperature in the freezer rises 10° F (12° C) or more above normal for selected setting. Alarm may sound if temperature control dial is turned to a much colder setting or if a large amount of unfrozen food is added at one time. Alarm is controlled by a three position switch.

• 0 = OFF prevents alarm from sounding when freezer is warm, such as during initial start-up or defrosting.

• = TEST sounds alarm regardless of temperature. Alarm system should be tested at least once a month.

• 1 = ON is proper setting for nor mal freezer use. Return switch to 1 after defrosting. The presence of the light does not indicate proper food temperatures, or proper operation of the refrigeration system. CAUTION7 Hints and care PART DO

• Use 4 tablespoons of baking soda dissolved in 1 quart warm soapy water.

• Rinse surfaces with clean warm water and dry immediately to avoid water spots.

• Use warm, soapy water and a soft, clean cloth or sponge.

• Rinse surfaces with clean warm water and dry immediately to avoid water spots.

• Allow items to adjust to room temperature.

• Dilute mild detergent with water and use a soft clean cloth or sponge for cleaning.

• Use a plastic bristle brush to get into crevices.

• Rinse surfaces with clean warm water.

• Abrasive or harsh cleaners

• Concentrated detergents or solvents

• Metal or plastic-textured scouring pads

• Abrasive or harsh cleaners

• Metal or plastic-textured scouring pads

• An automatic dishwasher Textured Doors and Exterior Cabinet Interior Door Gaskets Accessories Shelves, etc. To avoid personal injury or property damage, observe the following:

• Read and follow manufacturer’s directions for all cleaning products.

• DO NOT place shelves or accessories in dishwasher. Cracking or warping of accessories may result. CAUTION To avoid electrical shock which can cause severe personal injury or death, disconnect power to freezer before cleaning. After cleaning, reconnect power. WARNING How to clean your freezer8 Hints and care, cont. How to remove odors from freezer If odor is still present:

1. Move all food to another freezer.

2. Disconnect power to the freezer.

3. Pack freezer with crumpled sheets of

black and white newspaper.

4. Place plain charcoal briquettes in

freezer on newspaper.

5. Close the freezer door and let stand

newspapers. Clean according to directions provided in the first column.

7. Reconnect power to freezer and

allow it to cool back down.

8. Replace food in freezer in sealed, air-

tight containers to minimize odor con- tamination.

9. Placing a cotton swab soaked with

vanilla extract or an open box of baking soda in the freezer may help prevent odors from returning.

• To avoid electrical shock which can cause severe personal injury or death, disconnect power to freezer before cleaning. WARNING

1. Move all food to another freezer.

2. Disconnect power to the freezer.

3. Wash all interior surfaces including

door, floor and walls.

4. Clean corners, crevices and grooves

5. Wash all accessories and shelves by

6. Dry thoroughly with soft clean cloth.

7. Reconnect power to freezer and

allow it to cool back down.

8. Return food to freezer. Verify all food

is wrapped tightly or in sealed contain- ers to prevent further odor problems.

9. After 24 hours, check freezer to verify

odor was eliminated. If you are moving: Remove all frozen food and pack it in dry ice. Unplug the freezer and clean it thor- oughly. Tape the door shut and tape elec- trical cord to the cabinet. When you get to your new home, refer to pages 4 and 5 for information on installa- tion and setting controls. Energy saving ideas To conserve energy:

• Do not set controls colder than neces- sary to maintain a temperature range of 0° F (-18° C) or slightly below.

• Operate in normal room temperatures away from heat sources and direct sunlight.

• Keep door gaskets clean and pliable. Replace gaskets if worn.9 To avoid personal injury or property damage, observe the following:

• Allow light bulb to cool.

• Wear gloves when replacing light bulb. CAUTION To avoid electrical shock which can cause severe personal injury or death, disconnect power to freezer before replacing light bulb. After replacing light bulb, connect power. WARNING How to remove and replace light bulb (SELECT MODELS)

1. Disconnect freezer.

2. Pinch tabs on light cover and pull

1. Disconnect freezer.

NOTE: Replace bulb with same wattage appliance bulb.

5. Replace protective cover.

6. Reconnect power supply.

TE: Replace b ulb with same w attage appliance bulb. To avoid property damage, do not use sharp or pointed instruments to scrape frost from shelves or interior surfaces. CAUTION

• To avoid electrical shock which can cause severe personal injury or death, disconnect power to freezer before defrosting.

• Water damage due to improper defrosting or drainage may cause mold/mildew growth. WARNING Manual defrost freezers need to be defrosted when frost has accumulated to approximately

¼4" (6 mm) of thickness. Complete defrosting and cleaning should be done at least once a year. In high humidity areas, more frequent defrosting and cleaning may be necessary. The upper section of the freezer will generally have more frost accumulation than the lower. Frost should not be scraped or pulled out of the freezer, as damage may result. Amana Free-O-Frost™ (select models) freezers do not require defrosting. MANUAL DEFROST FREEZERS (SELECT MODELS)

1. Transfer food to another freezer or a

well insulated cooler.

2. Disconnect power to freezer.

3. Remove the toe grille (select models)

by pushing down and pulling it forward.

4. Reach underneath the freezer and pull

out the defrost drain tube. Place the tube in a shallow pan or in a nearby floor drain.

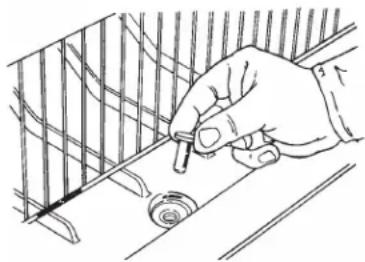

5. Remove defrost drain plug (select

models) from the bottom front of the freezer liner so the defrost water will flow into the drain tube.

• Empty pan as often as necessary during the defrost. NOTE: Some models do not have a drain plug and water collecting from the defrost will have to be removed manually.

6. To speed defrosting, pans of hot water

may be placed on shelves in the freezer.

• Do not bend, scrape or try to move shelves. Shelves are part of the sealed cooling system and can be damaged.

Once defrosted, clean the freezer according to guidelines in Hints and Care.

Clean defrost drain using a bottle brush. Flush the drain with clear water before replacing the drain tube and drain plug.

• Drain plug must be properly installed and tightly sealed for efficient operation of the freezer.

9. Restore power to the freezer.

Defrosting (SELECT MODELS) (SELECT MODELS)10 Freezing guidelines Freezer burn? Freezer burn occurs when air reaches the surface of the food.The cold, dry air in the freezer causes the foodstuff to dry out in spots and lose quality. While freezer burn may not taste good, it does not make the food unsafe. Freezer burned portions should be cut away either before or after cooking the food. Color changes Color changes can occur in frozen foods. This can cause ground beef to go from a bright, red to a darker, duller brown due to lack of oxygen. Freezing normally doesn’t cause color changes in poultry, but it will cause changes to the color near the bones resulting in ‘bone darkening’. These changes are only visual changes and do not indicate poor quality or unsafe food. freezing facts Amana provides this information as a guide to aid in food preservation. For spe- cific questions regarding food handling, cooking, or storage contact USDA Meat and Poultry Hotline at 1-800-535-4555.

• You can freeze almost any food, the main exceptions being eggs still in the shell and cans of foods.

• Frozen food kept at 0° F (-18° C) or slightly below will always be safe. Only the quality of food suffers over time.

• It is safe to freeze meat or poultry directly in supermarket wrapping. This wrapping is air permeable which allows freezer burn, so the meat should be used within one to two months.

• Freeze foods as quickly as possible. This prevents large ice crystals from forming which decreases food quality.

• Never stack packages to be frozen. Lay packages out in a single layer and then stack them after they are frozen.

• During a power outage, a full freezer will normally keep 2 days, a half full freezer about 1 day. Food should be stacked tightly to provide a nest of cold air–resisting thawing.

• As a general guideline, food 2" thick should freeze completely in about 2 hours. Defrosting foods There are basic methods to defrost food safely. Food should never be defrosted at room temperature. This allows unsafe bacteria to grow while the food is thawing. To defrost safely use:

• Refrigerator: this allows the food to thaw in an environment that controls bacterial growth. Most foods require a day or two to defrost, approximately one day for each 5 lbs. of weight.

• Cold water: place food in a leakproof bag and immerse it in cold water (If bag leaks, food will become contaminated by bacteria). Check water frequently to verify it stays cold. Change water every thirty minutes.After thawing, refrigerate the food until it is ready to use.

• Microwave: cook food immediately after using a microwave to defrost food. Microwave defrosting warms food and can partially cook it, allowing bacteria to grow as it defrosts. Food cannot be refrozen until it is cooked.11 Packaging Proper packaging helps prevent freezer burn, and helps limit odor transfer in the freezer. For short term storage, freeze meat or poultry directly in supermarket wrapping. This meat should be used within 1 to 2 months. For long term storage, follow these wrap- ping guidelines:

• Overwrap store wrapped packages with airtight heavy duty foil, plastic wrap, freezer paper or freezer bags.

• Freeze unopened vacuum wrapped packages as they are.

• Make sure lids are sealed tightly when using airtight freezer containers.

• Break down foods into smaller portions for faster freezing.

• Remove as much air as possible from packages before placing in the freezer.

• If a package has accidentally been torn or damaged while in the freezer, the food is still safe to eat. Just overwrap it or repackage it.

• It is not necessary to rinse meat or poultry before freezing. Cooking frozen foods Foods can be cooked or reheated directly from the frozen state. The cooking time will increase to almost one and a half times it would normally take. Remember when cooking poultry or meat to remove paper wrapping, giblet sacks, and any strings that might burn during cooking. Some meats, such as pre-stuffed whole birds, must be cooked from the frozen state to ensure food safety. Remember to read the USDA label on the meat. NOTE: Do not use a slow cooker for preparing foods from the frozen state. FREEZER STORAGE CHART* NOTE: Freezer storage time is for quality only. Frozen foods remain safe indefinitely. Foodstuff Months Bacon and Sausage 1 to 2 Casseroles 1 to 2 Egg whites or egg substitutes 12 Gravy, meat or poultry 2 to 3 Ham, Hot Dogs and Lunch Meats 1 to 2 Meat, uncooked roasts 9 Meat, uncooked steaks or chops 4 to 6 Meat, uncooked ground 3 to 4 Meat, cooked 2 to 3 Poultry, uncooked whole 12 Poultry, uncooked parts 9 Poultry, uncooked giblets 3 to 4 Poultry, cooked 3 to 4 Soups and Stews 2 to 3 Wild game, uncooked 8 to 12

• Provided by the USDA. Chart is based on food storage at 0° F (-18° C) or slightly below.12 The chart below is provided by the USDA and should be used as a guideline only. When in doubt about food safety, it is always bet- ter to throw questionable food out. Food or Food Type MEAT, POULTRY and SEAFOOD Beef, veal, lamb, pork and ground meats Poultry and ground poultry Variety meats (liver, kidney, heart, chitterlings) Fish, shellfish, breaded seafood products DAIRY Milk Eggs (out of shell) and egg products Ice cream, frozen yogurt Cheese (soft and semi-soft) Hard cheeses Shredded cheeses Casseroles containing milk, cream, eggs, soft cheeses Cheesecake FRUITS and VEGETABLES Juices—fruit Juices—vegetables Home, commercially packaged or blanched BREADS and PASTRIES Breads, rolls, muffins, cakes (without custard fillings) Cakes, pies, pastries with custard or cheese filling Pie crusts, commercial and homemade bread dough OTHER Casseroles—pasta or rice based Flour, cornmeal, nuts Breakfast items– waffles, pancakes, bagels Frozen meal, entrée, specialty items (pizza, sausage and biscuit, meat pie, and convenience foods) Still contains ice crystals and feels as cold as if refrigerated Refreeze Refreeze Refreeze Refreeze, however, there will be some texture and flavor loss. Refreeze, may lose some texture. Refreeze Discard Refreeze, may lose some texture. Refreeze Refreeze Refreeze Refreeze Refreeze Refreeze Refreeze, will change in texture and fla vor. Refreeze Refreeze Refreeze , some quality loss

Refreeze Refreeze Refreeze Refreeze Thawed. Held above 40° F for over 2 hours Discard Discard Discard Discard Discard Discard Discard Discard Refreeze Discard Discard Discard Refreeze, discard if mold, yeasty smell or sliminess develops Discard after held above 40° F (4° C) for 6 hours Discard after held above 40° F (4° C) for 6 hours or if mold, yeasty smell or sliminess develops Refreeze Discard Refreeze , quality loss is considerable. Discard Refreeze Refreeze Discard Freezing guidelines, cont.13 Troubleshooting You may save time and money by checking items below before calling for service. List includes common concerns that are not the result of defective workmanship or materials. If your question is not explained below, contact the Amana CAIR

Center at 1-800-843-0304 in the U.S.A., or 1-866-587-2002 in Canada. PROBLEM Appliance not working Freezer not cooling Freezer runs frequently Light fails to illuminate Door lock key will not stay in lock POSSIBLE CAUSES Power outage Circuit breaker has tripped Fuse has blown Temperature control Poor gasket seal Failed gasket Food added recently Normal Door open Temperature set too cold Poor gasket seal Poor clearance Bad bulb Switch not opening Bad switch Normal

Make sure appliance is plugged in. Verify that circuit breaker is not tripped. Replace fuse, but do not change fuse capacity. Change control setting to 4 or above. Clean gasket as described in Hints and Care. Apply light coating of petroleum jelly to gasket. Have gasket replaced Wait 5 to 8 hours for temperature to stabilize after the addition of large quantities of unfrozen food. Needs to run to maintain an even temperature. Close door. Adjust temperature control to maintain freezer temperature. Clean gasket as described in Hints and Care. Apply light coating of petroleum jelly to gasket. Confirm that freezer has proper clearance on each side and vents are unobstructed as specified in Installation Instructions. Replace bulb as described in Hints and Care section. Clean switch plunger to ensure proper operation. Have authorized servicer replace switch. Locks have “pop out key” function, preventing the key from being kept in the lock. This feature is to prevent child entrapment. Operation14 PROBLEM Clicks Gurgles and pops (like boiling water) Hum or pulsing sound POSSIBLE CAUSES Normal Normal Normal

Temperature control clicks when starting or stopping compressor. Refrigerant flow through evaporator coil. Compressor operation. Noise PROBLEM Water droplets on outside of freezer Water pooling in floor by freezer POSSIBLE CAUSES Poor gasket seal Poor or missing drain plug Defrost drain pan

Clean gasket as described in Hints and Care. Apply light coating of petroleum jelly to gasket. Verify that drain plug is properly in place and sealed. Replace drain plug if seal is poor. On Free-O-Frost™ models, confirm that the defrost drain pan is properly positioned. Appearance Troubleshooting, cont.15 Notes16 warranty & Service What is not covered by these warranties

1. Conditions and damages resulting from any of the following:

a. Improper installation, delivery, or maintenance.

. Any repair, modification, alteration, or adjustment not authorized by the manufacturer or an authorized servicer. c. Misuse, abuse, accidents, unreasonable use, or acts of God. d. Incorrect electric current, voltage, electrical and/or gas supply. e. Improper setting of any control.

2. Warranties are void if the original serial numbers have been removed,

altered or cannot be readily determined.

3. Light bulbs, water filters and air filters.

4. Products purchased for commercial or industrial use.

5. The cost of service or service call to:

a. Correct installation errors. For products requiring ventilation, rigid metal ducting must be used. b. Instruct the user on the proper use of the product. c. Transport the appliance to and from the servicer.

6. Any food loss due to refrigerator or freezer product failures.

7. Expenses for travel and transportation for product service in remote

8. Outside of the United States and Canada this warranty does not apply.

Contact your dealer to determine if another warranty applies.

9. Consequential or incidental damages sustained by any person as a

result of any breach of these warranties. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above exclusion may not apply. If You Need Service First see the Troubleshooting section in your Use and Care Guide or call the dealer from whom your appliance was purchased or call Maytag Services, LLC, Customer Assistance at 1-800-688-9900 USA and 1-800- 688-2002 Canada to locate an authorized servicer.

• Be sure to retain proof of purchase to verify warranty status. Refer to WARRANTY for further information on owner’s responsibilities for warr anty service.

• If the dealer or service company cannot resolve the problem, write to Maytag Services LLC, Attn: CAIR® Center, P.O. Box 370,Cleveland,TN 37320-2370, or call 1-800-688-9900 U.S.A. and 1-800-688-2002 Canada. U.S. customers using TTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.

• User’s guides, ser vice manuals and parts information are available from

Warranty Limited One Year Warranty - Parts and Labor For one (1) Year from the original retail purchase date, any part that fails in normal home use will be repaired or replaced free of charge. Canadian Residents The above warranties only cover an appliance installed in Canada that has been certified or listed by appropriate test agencies for a compliance to a National Standard of Canada unless the appliance was brought into Canada due to transfer of residence from the United States to Canada. The specific warranties expressed above are the ONLY warranties provided by the manufacturer. These warranties give you specific legal rights, and you may also have other rights which vary from state to state.

IMPLIED WARRANTIES, INCLUDING WAR-

ATION OF INCIDENTAL OR CONSE-

UENTIAL DAMAGES, OR LIMITATIONS ON THE

DURATION OF IMPLIED WARRANTIES OF MER-

TIONS MA Y NO T APPL Y TO YOU. THIS

O PROVINCE. Notes: When contacting about a ser vice problem, please include a.Your name, address and telephone number. b. Model number and serial number.

Name and address of y our dealer or ser vicer

d. A clear description of the problem you are having. e. Proof of purchase (sales receipt).Congélateurs verticaux Deepfreeze

Center P.O. Box 39 403 West 4th Street North

AUSES POSSIBLES Normal Normal Normal

EST DONC POSSIBLE QUE CES LIMITATIONS NE

Center P.O. Box 39 403 West 4th Street North
