USER MANUAL IM1213SIS Avanti

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC

P.O.Box 520604 -Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Ice-Maker Safety	3
Important Safeguides	4
Help Us Help You	5
Parts and Features	6
Important Safety Instructions	7
Installation Instructions	7
Before Using Your Appliance	7
Installation of Your Appliance	7
Electrical Connection	8
Operating Your Appliance	9
Control Panel Description	9
Operating Instructions	9
Getting Ice from Ice-bin	10
Care and Maintenance	10
Cleaning Your Appliance	10
Space Requirements	10
Power Failure	10
Troubleshooting Guide	11
Service for Your Appliance	11
Your Avanti Products Warranty	12
Instrucciones en Espanol	13 - 17
Instructions en Français	18 - 28
Registration Information and Registration Card	Last Page

ICE MAKER SAFETY

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT.

We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to

Potential hazards that can kill or injure you and others.

All safety messages will follow the safety alert symbol

And either the words "DANGER", "WARNING" or "CAUTION".

DANGER

WARNING

Danger means that failure to heed this safety statement may result in severe personal injury or death.

CAUTION

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

All safety messages will alert you to know what potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

PROP. 65 WARNING FOR CALIFORNIA RESIDENTS

WARNING:

Cancer And Reproductive Harm

www.p65 warnings.ca.gov

IMPORTANT SAFEGUIDES

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, Including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
  It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

Use two or more people to move and install appliance. Failure to do so can result in back or other injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ (16c) and below 90^ (32c). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
The appliance should not be located next to ovens, grills or other sources of high heat.
- The appliance must be installed with all electrical connections in accordance with state and local codes. A standard electrical supply (115 v ac only, 60 hz), properly grounded in accordance with the national electrical code and local codes and ordinances is required.
- Do not kink or pinch the power supply cord of appliance.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.

• Check for leaks after connection.
• Never allow children to operate, play with the appliance.
• Although the unit has been tested at the factory, due to long-term transit and storage, the first batch of cubes must be discarded.
• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
• Do not use this apparatus for other than its intended purpose.

Help us help you...

Read this guide carefully.

It is intended to help you operate and maintain your new ice maker properly.

Keep it handy to answer your questions. If you don't understand something or you need more help, please call:

Avanti customer service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a plate located on the rear wall of the ice maker.

Please write these numbers here:

Date of purchase

Model number

Serial number

Use these numbers in any correspondence or service calls concerning your ice maker.

If you received a damaged ice maker, immediately contact the dealer (or builder) that sold you the ice maker.

Save time and money. Before you call for service, check the troubleshooting guide. It lists causes of minor operating problems that you can correct yourself.

If you need service

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

First, contact the people who serviced your ice maker. Explain why you are not pleased. In most cases, this will solve the problem.

Next, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30^th Street

Miami, FI 33172 USA

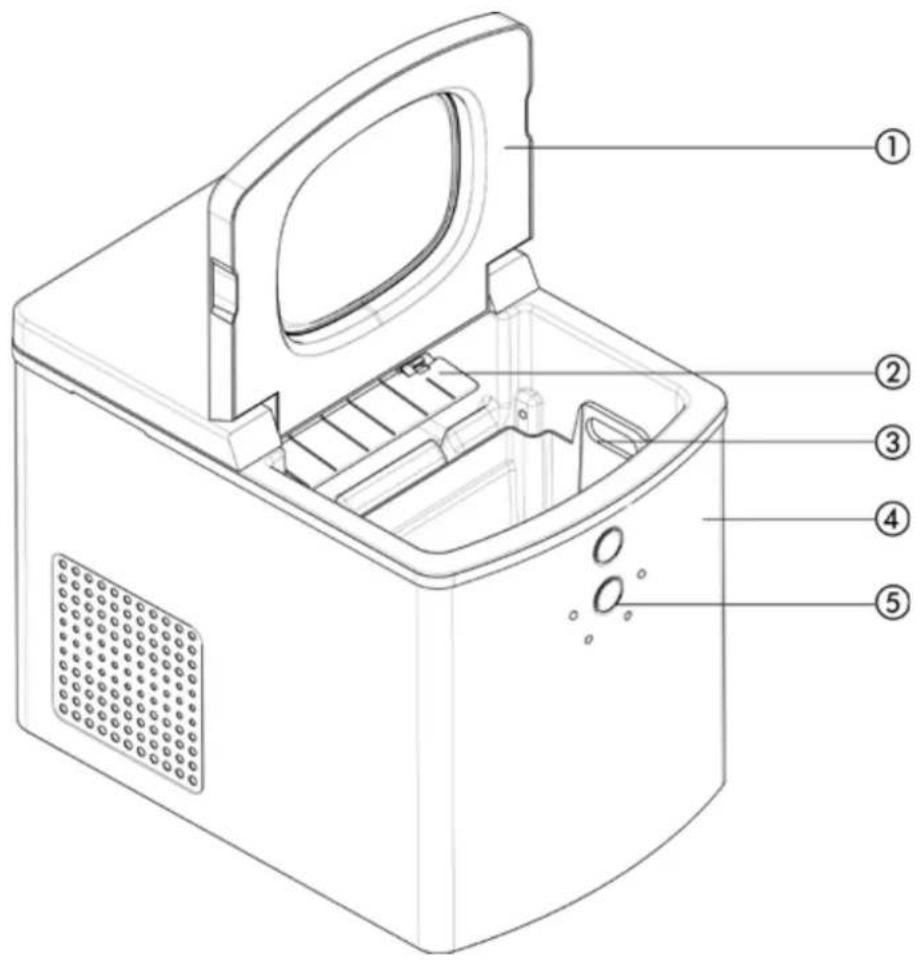

PARTS AND FEATURES

1	Top Lid
2	Ice Making System
3	Ice Basket
4	Cabinet
5	Control Panel

Control Panel Features	①	ON/OFF
1-Indicator Light-Power On/Off	②
2-Power On/Off button	③
3-Indicator Light-Ice Making System	④
4-Selector Button	⑤
5-Large Cube Indicator Light(Green)	⑥
6-Small Cube Indicator Light(Green)	⑦
7-Ice Full Alarm Indicator Light(Red)	⑧
8-Add Water Alarm Indicator Light(Red)	⑨
	⑩
	⑪

IMPORTANT SAFETY INSTRUCTIONS

~ WARNING~

To reduce the risk of fire, electrical shock, or injury when using your ice maker, follow these basic precautions:

·Read all instructions before using the ice maker. ·Danger or Warning: Risk of child entrapment. ·Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous. . . Even if they will "just sit in the garage a few days." ·Never allow children to operate, play with, or crawl inside the appliance. ·Never clean ice maker parts with flammable fluids. The fumes can create a fire hazard or explosion. ·Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other ice maker. The fumes can create a fire hazard or explosion. -save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Ice Maker

• Remove the exterior and interior packing.

• Check to be sure you have all of the following parts:

1 Instruction Manual
1 Ice Scoop
1 Ice Basket

Before connecting the ice maker to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.

Installation Of Your Ice Maker

• Locate the ice maker away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the painted coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the ice maker not to perform properly.
• Plug the ice maker into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and or grounding should be directed toward a certified electrician or an authorized Avanti products service center.

IMPORTANT: Do not install the Ice maker near an oven, radiator, or other heat source.

Warning\~

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115/120 Volt AC /60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

y SURGE PROTECTOR

Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

The indicator above the word "ON/OFF" &"SELECT" will illuminate in RED when the unit is plugged in.

It will be illuminated in BLUE when the unit is turned on.

ADD WATER INDICATOR

The ice maker automatically checks the water level in the tank. If the water level is too low, the indicator will illuminate in RED and will stop working automatically. Press the ON/OFF button, add water to the unit and push the ON/OFF button again the indicator will turn off and will resume normal operation.

ICE FULL INDICATOR

When the ice-bin is full, the indicator will illuminate in RED. The indicator will remain lit until the ice in the bin either melts away slowly or has been removed. The unit will stay in a "Standby" mode until ice has been removed / melted at which time the unit will automatically start operation as normal.

LARGE

When the system in the process of a large size ice making cycle, the light will illuminate in GREEN during the ice making process.

SMALL

When the system in the process of a small size ice making cycle, the light will illuminate in GREEN during the ice making process.

NOTES

In the event of an ice jam or other ice making process issue, the "ON/OFF", "SELECT", "LARGE" or "SMALL", "ICE FULL" and "ADD WATER" indicator lights will illuminate in RED together.

Operating Instructions

Starting your Ice maker

• Open the top cover and remove the ice basket.
• Remove any dust or objects that may be in the water tank
• Fill the water tank up to the area marked "MAX".
• The ice-maker will automatically check the water level in the reservoir periodically. The ice maker will detect any shortage of water and will stop the ice-making cycle, and then the ADD WATER indicator will be lit.
• Press the ON/OFF button and fill the reservoir with water, press the ON/OFF button again to restart the ice-making cycle and the ADD WATER indicator goes out as the ice-maker will begin its normal operation cycle automatically.
• When the ice cubes are collected and reach the bin sensor, the ice maker will stop operating and the ICE FULL indicator will be lit.

WARNING:

Direct sunlight may affect the infrared sensors and cause the unit to malfunction.

If at any time the unit does not stop the ice-making operation even when the ice-bin is full, move the unit to another location where it is out of direct sunlight.

• For best performance, water temperature should be between 7^ (45^) and 35^ (95^) and ambient between 15^ (59^) and 25^ (77^) .
  Actual ice making capacity will depend on the ambient temperature of the surroundings of the ice maker as well as the temperature and quality of the water used to make the ice.

Getting Ice from the Ice-bin

• Open the top cover to access the ice basket.
• Remove the amount of ice as desired and close the top.

CARE AND MAINTENANCE

Caution

Failure to unplug the ice maker could result in electrical shock or personal injury.

Cleaning Your Ice Maker

To ensure the cleanliness of the ice cubes, it is recommended that you use filtered water.
- Remove the drain plug to drain remaining water from the water reservoir when the ice maker will not be used for long period of time. Put the drain plug back in place after the water has been drained.
- Always change with fresh water before starting ice production at initial installation or after long shut-off periods.
- Please clean your ice maker regularly. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the Ice maker. Do not spray Ice maker with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.

Space Requirements

During transportation, the incline angle of the cabinet should not be over 45^
- Do not turn the Ice maker upside down. Problems could occur in the compressor and sealed system.
- The Ice maker should be placed horizontally on a properly leveled surface.
- To ensure proper ventilation for your Ice maker allow 6" of space at the top, the back and on each side.
Before using the ice maker for the first time, please wait 2 hours after positioning it.
- Clean the inner liner, ice-bin, and water box.

IMPORTANT: Do not install the Ice maker near an oven, radiator, or other heat source.

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your ice maker if you minimize the number of times the ice-bin is opened. If the power is going to be OFF for a longer period of time, you need to take the proper steps to disconnect your appliance.

PROBLEMS WITH YOUR ICE MAKER?

You can solve many common ice maker problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

Problem	Possible Cause	Suggested Solutions
The compressor works abnormally with a buzzing Noise.	The voltage is lower than recommended.	Stop the ice maker and do not restart until the voltage is normal.
Add Water indicator Light is on.	There is not enough water in the reservoir.	Press the ON/OFF button, fill with water, and press the power button again to restart.
Ice full indicator light is on.	Ice storage cabinet is full to the top.	Remove some of the ice.
Indicator lights are off.	Blown fuse/ no power/blown breaker	Replace fuse / turn power on.
The ice made is too large and with pieces sticking together.	The water temperature in the storage tray or ambient is too low.	Stop the machine and reset the ice making cycle. Restart the machine after turning it off.
Conditions for ice making cycle are right but no ice is made.	Refrigerant leaks/ sealed system is blocked.	Contact customer service.
Ice Full (RED) and Add Water (RED) indicator lights are on.	Possible cooling system issue.	Press the ON/OFF button and unplug the unit to allow the system to reset. Wait approximately 10 minutes before connecting the unit and restarting the ice making process. If the problem persists, contact customer service.

Service For Your Ice Maker

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti ice maker. With the purchase of your Avanti ice maker, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

Avanti Products Customer Services

Product information 800-323-5029	Whatever your questions are about our products, help is available.
Part orders 800-220-5570	You may order parts and accessories that will be delivered directly to your home, by personal check, money order, master card, or visa.
In-home repair service 800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your ice maker inside and out.
YOUR AVANTI PRODUCTS WARRANTY	Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED - LIMITED ONE-YEAR WARRANTY Avanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 3.5 cubic feet capacity or less must be brought/ sent to the appliance service center for repair.
LIMITED SECOND THROUGH FIFTH YEAR WARRANTY For the second through the fifth year from the date of original purchase, Avanti Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Costs involved to move the product to the service center and back to the user's home, as maybe required, are the user's responsibility.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED: The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
• A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations. • Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
• Content losses of food or other content due to spoilage. • Incidental or consequential damages • Parts and labor costs for the following will not be considered as warranty: • Plastic cabinet liners. • Punctured evaporator that voids the warranty on the complete sealed system.	• Shipping and handling costs associated with the replacement of the unit. • Repairs performed by unauthorized servicers. • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God. • Failure of the product if it is used for other than it intended purpose. • The warranty does not apply outside the Continental USA. • Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooding, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCT Avanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.

MEDIDAS DE PRECAUCION IMPORTANTES

Avanti Products 10880 NW 30 Street Miami, FL 33172

Avanti Products Services clients

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products LLC

P.O.Box 520604 - Miami, Florida 33152

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

y Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(_detach here)

Avanti Registration Card

Name		Model #	Serial #
Address		Date Purchased	Store / Dealer Name
City	State	Zip
Area Code	Phone Number	E-mail Address
Did You Purchase An Additional Warranty		Occupation
£ Extended		As your Primary Residence, Do You:
£ None		£ Own	£ Rent
Your Age:
Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:		£ under 18	£ 18-25 £ 26-30
		£ 31-35	£ 36-50 £ over 50
		Marital Status:
		£ Married	£ Single
£ Price		Is This Product Used In The:
£ Product Features		£ Home	£ Business
£ Avanti Reputation
£ Product Quality
£ Salesperson Recommendation		How Did You Learn About This Product:
£ Other:		£ Advertising
£ Friend / Relative Recommendation		£ In-Store Demo
£ Warranty		£ Personal Demo
£ Other:

Comments:

IM1211B-IS IM1213S-IS 01/16/2019

PRINTED IN CHINA
