USER MANUAL NSLCD22 INSIGNIA

Insignia NS-LCD22 LCD TV

Contents

Introduction 1

Safety information 1

Features. 3

Setting up your television. 5

Using your television .8

Maintaining. 18

Troubleshooting 19

Specifications. 20

Legal notices 20

Warranty. 21

Francais. 22

Espanol 46

Introduction

Congratulations on your purchase of a high-quality Insignia product. Your NS-LCD22 represents the state of the art in television design, and is designed for reliable and trouble-free performance.

Safety information

Warning

To reduce the risk of fire or electric shock, do not expose your television to rain or moisture.

Warning

Continued safety, replace safety critical components only.

Manufacturer's recommended parts (refer to set)

Jure).

Electric shock warning

CAUTION

Risk of Electric Shock Do Not Open

DO RstOpen

Warning

To reduce the risk of electric shock, do not remove the cover or
back. There are no user-serviceable parts inside. Refer to servicing to qualified service personnel.

This lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the television's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the television.

Warning

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org

INSIGNIA

Important safeguards

Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This television has been engineered and manufactured with the highest priority on safety. But improper use can result in potential electrical shock or fire hazard. In order to prevent potential danger, please observe the following instructions when installing, operating, and cleaning the television. To ensure your safety and prolong the service life of your television, read the following precautions carefully before using the product.

1 Read these instructions—All operating instructions must be read and understood before the product is operated.
2 Keep these instructions—These safety and operating instructions must be kept in a safe place for future reference.
3 Heed all warnings—All warnings on the product and in the instructions must be observed closely.
4 Follow all instructions—All operating instructions must be followed.
5 Do not use this television near water-for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. Do not use this television immediately after moving from a low temperature to high temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards.
6 Clean only with dry cloth—Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
7 Ventilation—Do not block any ventilation openings. Install in accordance with the manufacturer instructions. The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the television. Do not place the television on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This television is not designed for a built-in installation. Do not place the television in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.
8 Heat sources—Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9 Grounding or Polarization—Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

INSIGNIA

Insignia NS-LCD22 LCD TV

10 Power cord protection-Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the television.

11 Attachments—Only use attachments/ accessories specified by the manufacturer. Do not use attachments not recommended by the manufacturer. Use of improper attachments can result in accidents.

12 Stand—Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the television. Do not place the television on an unstable cart, stand, tripod, or table. Placing the television on an unstable base can cause the television to fall, resulting in serious personal injuries as well as damage to the television. When mounting the television on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

13 Move carefully—When a cart is used, use caution when moving the cart/ television combination to avoid injury from tip-over. Sudden stops, excessive force and uneven floor surfaces can cause the television to fall from the cart.

Never attempt to move the television unless the AC power cord has been disconnected.

14 If an outside antenna or cable system is connected to your television, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Reference Grounding component

1 Electric service equipment

2 Power service grounding electrode system (NEC Art 250, Part H)

3 Ground clamp

4 Grounding conductors (NEC Section 810-21)

Reference Grounding component

5 Antenna discharge unit (NEC Section 810-20)

6 Ground clamp

7 Antenna lead-in wire

• Use No. 10AWG (5.3 mm²) copper, No. 8AWG (8.4 mm²) aluminum, No. 17AWG (1.0 mm²) copper-clad steel or bronze wire, or larger, as a ground wire.
• Secure the antenna lead-in and ground wires to the house with stand-off insulators spaced from 4-6 feet (1.22-1.83 meter) apart.
• Mount the antenna discharge unit as close as possible to where the lead-in enters the house.
• Use a jumper wire not smaller than No. 6AWG (13.3 mm²) copper, or the equivalent, when a separate antenna-grounding electrode is used. See ANSI/NFPA70.

15 Lightning—Unplug this television during lightning storms or when unused for long periods of time.
For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.
16 Servicing—Refer all servicing to qualified service personnel. Servicing is required when the television has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the television, the television has been exposed to rain or moisture, does not operate normally, or has been dropped.
17 Replacement parts—In case the television needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
18 Overloading—Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.
19 Entering of objects and liquids—Never insert an object into the television through vents or openings. High voltage flows in the television, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the television.

20 Damage requiring service—If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.
- When the power cord or plug is damaged.
- When a liquid is spilled on the television or when objects have fallen into the television.
- When the television has been exposed to rain or water.
- When the television does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.
If the television has been dropped or the cabinet has been damaged in any way.
- When the television displays an abnormal condition or exhibits a distinct change in performance. Any noticeable abnormality in the television indicates that the television needs servicing.

21 Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the television is in proper operating condition.
22 Wall or ceiling mounting—When mounting the television on a wall or ceiling, be sure to install the television according to the method recommended by the manufacturer. This is a safety feature.
23 Power source—This television is intended to be supplied by a listed power supply indicated on the marking label. If you are not sure of the type of power supply to your home, consult your television dealer or local power company. For added protection for this television during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the television due to lightning and power line surges. When the television has to be used with another power supply voltage, the power cable must be changed. Consult your television dealer. The socket outlet should be installed near the equipment and easily accessible. Use only the power cord designated by our dealer to ensure safety and EMC. When connecting other televisions such as VCRs and personal computers, you should turn off the power of the television for protection against electric shock.
24 Panel protection—The display panel used in this television is made of glass. Therefore, it can break when the television is dropped or impacted upon by other objects. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

25 Pixel defect—The display panel is a very high technology television, giving you finely detailed pictures. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green, or red. Please note that this does not affect the performance of your television.

Note to cable television system installer

This reminder is provided to call the cable television system installer's attention to Section 820 40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Features

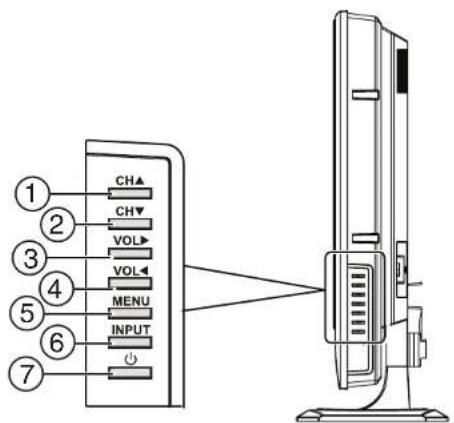

Front control panel

INSIGNIA

Side control panel Rear connections

Item Description

1	CH▲—Press to scan up a channel or to navigate through a menu.
2	CH▼—Press to scan down a channel or to navigate through a menu.
3	VOL▶—Press to make the sound louder or to navigate through a menu.
4	VOL▲—Press to make the sound quieter or to navigate through a menu.
5	MENUPress to access the on-screen menu.
6	INPUT—Press to display the SOURCE INPUT menu.
7	●—Press to turn the television on or off.

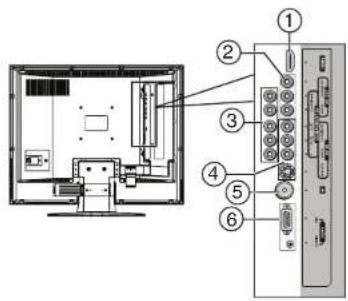

Item Description

1 HDMI input jack—Connect a device with an HDMI interface, such as a set top box or DVD player) to this jack.

2 AV output Jacks—Connect a VCR to these Jacks. Only analog TV programs, AV1 input source can be output through the AV output Jacks.

3 COMPONENT input Jacks—Connect your DVD player or set top box component video (YPbPr or YCbCr) and audio (L/R) Jacks to these Jacks.

4 AV input Jacks (S-VIDEO, VIDEO, AUDIO L/R)—Connect the AV output Jacks of a VCR or DVD player to these Jacks. S-video provides better picture quality than the video connection.

5 RF (coaxial antenna input) jack—Connect your cable system, satellite system, or outside antenna to this jack.

6 VGA PIC (Video)/AUDIO input jack—Connect devices with a VGA Interface, such as a computer, to this jack.

Note

Power VOL CH INPUT, and
MENU on the television have the same functions as the corresponding buttons on the remote control.
This user manual provides a description based on operating functions with the remote control.

Side connections

Item Description

1 RS-232 control interface
2 Headphone jack—Connect headphones to this jack.

Caution

Black labeled RS-232 is for service only. Do not expect anything to this jack.

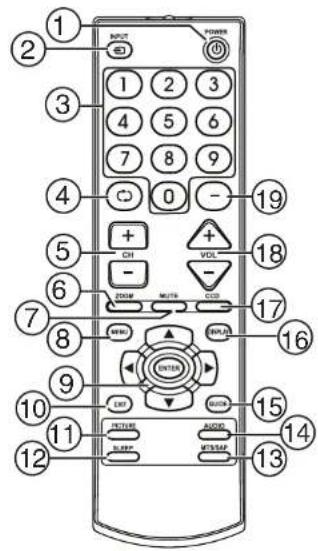

Remote control

Item Description

16 DISPLAY Press to display the channel status or signal information.
17 CCD—Press to turn closed captioning on or off and to select the caption mode.
18 VOL+/—Press to increase or decrease the volume.
19-Press to enter a program number for multiple program channels such as 2-1, or 2-2.

Setting up your television

Installing batteries in the remote control

To install batteries in the remote control:

1 Open the battery cover.

2 Insert two AAA batteries.

Item Description

1 Press to turn the television on or off.
2 INPUT—Press to select the input source for the television.
3 Numeric pad—Press to enter a channel number or password.

4 Press to go to the last viewed channel.
5 CH + / - Press to go up or down one channel.
6 ZOOM—Press to select the screen aspect ratio.
7 MUTE—Press to turn off the sound. Press again to turn the sound back on.
8 MENU—Press to open the on-screen menu.
9 Menu navigation buttons:

and Press to move up or down in the menu.

and Press to move left or right in the menu or to adjust a menu setting.

ENTER—Press to confirm a selection or toggle between settings of the selected menu item.

10 EXIT—Press to exit the menu.

11 PICTURE-Press to select the picture mode.

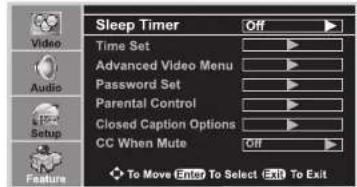

12 SLEEP—Press to set the sleep timer.
13 MTS/SAP—Press to select STEREO, SAP, or MONO in analog TV mode. Press to select the audio language in DTV mode.
14 AUDIO—Press to select the sound mode.
15 GUIDE-Press to display the program guide. When watching DTV programs, you can press this button to display program guide information if available. You can obtain program broadcasting time and program name from the guide.

INSIGNIA

Insignia NS-LCD22 LCD TV

3 Replace the cover.

Caution

Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.
- Place batteries with their terminals
corresponding to the (+) and (-) indications.
Different types of batteries have different characteristics. Do not mix batteries of different types.
- Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old batteries to leak chemicals.
- Remove batteries as soon as they are non-operative. Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe with a cloth.
The batteries supplied with the remote may have a shorter life expectancy due to storage conditions.
If the remote control is not used for an extended period of time, remove the batteries from the remote control.

Before connecting devices

• Carefully check the terminals for position and type before making any connections.
• The illustration of the external equipment may be different depending on your model.
• Loose connectors can result in image or color problems. Make sure that all connectors are securely inserted into their terminals.
  Refer to the user manual of the external device as well.
• When connecting an external device, turn the power off on the panel to avoid any issues.

Locating the television

Install the television in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Connecting the antenna

Optimum reception of color requires a good signal and generally means that an outdoor antenna must be used. The exact type and position of the antenna depends upon your particular area.

Note

We recommend that the 75-ohm coaxial cable be used to eliminate interference and noise which may occur due to radio wave conditions.
- Do not bundle the antenna cable with the power cord.
- If you cannot install the antenna correctly, contact your dealer for assistance.

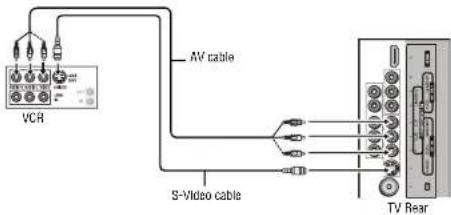

Connecting a VCR

Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the television and VCR.

Note

Cables are often color-coded to connectors. Connect red to red, white to white, and yellow to yellow.

Note

• For better video, you can use the S-video terminal if your source supports it.
• The S-video terminal shares the same audio jacks with VIDEO and has priority over the VIDEO jack. To use a device connected to the video jack, disconnect any plug from the S-video terminal.

To play the VCR:

1 Turn on your television, then press the INPUT button. The SOURCE INPUT menu opens.
2 Press or to select Composite (or S-Video if the S-VIDEO terminal is used), then press ENTER to confirm.
3 Turn on your VCR, insert a videotape, then press the Play button.

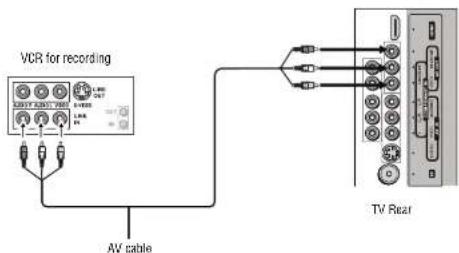

Connecting a VCR (for recording)

Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the television and VCR.

Note Cables are often color-coded to connectors. Connect red to red, white to white, and yellow to yellow.

Note

Only analog TV programs or AV Input source can be output through the AV output jacks.

To record a program:

1 Turn on your television, then select a program you want to record.
2 Turn on your VCR, then insert a videotape for recording.
3 Press the Record button to begin recording.

Connecting a camcorder or video game console

Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the television and camcorder or video game console.

Note

Cables are often color-coded to connectors. Connect red to red, white to white, and yellow to yellow.

Note

• For better video, you can use the S-video terminal if your source supports it.
• The S-video terminal shares the same audio jacks with VIDEO and has priority over the VIDEO jack. To use a device connected to the video jack, disconnect any plug from the S-video terminal.

To play the camcorder:

1 Turn on your television, then press the INPUT button. The SOURCE INPUT menu opens.
2 Press or to select Composite, then press ENTER to confirm.
3 Turn on your camcorder and set it to output mode.

4 Insert a videotape, then press.

Note For more information about using your camcorder or video game console, see your user guide.

Connecting a HDMI device

Connect the HDMI cable between the HDMI interface on the television and HDMI output on the device.

To play from the device using HDMI:

1 Turn on your television, then press the INPUT button. The SOURCE INPUT menu opens.
2 Press or to select HDMI, then press ENTER to confirm.
3 Turn on your device and set it to the correct mode.

Note For more information about using your HDMI device, see your user guide.

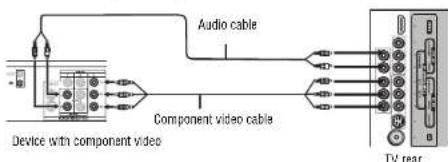

Connecting component video

To connect the device:

1 Connect the component video cable between the Y, Cb/Pb, Cr/Pr input jacks on the television and the Y, Cb/Pb, Cr/Pr output jacks on the device.
2 Connect the audio cable between the AUDIO input jacks on the television and the AUDIO output jacks on the device.

Note Cables are often color-coded to connectors. Connect red to red, white to white, green to green, and blue to blue.

To play component video from a device:

1 Turn on your television, then press the INPUT button. The SOURCE INPUT menu opens.

INSIGNIA

Insignia NS-LCD22 LCD TV

2 Press or to select Component, then press ENTER to confirm.
3 Turn on your device and set it to the correct mode.

Note

For more information about using your component video device, see your user guide.

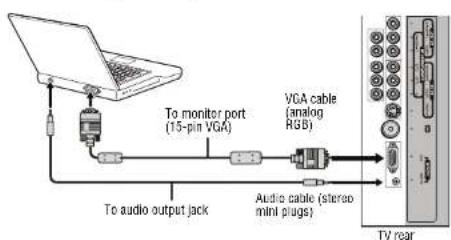

Connecting a computer

To connect a computer:

1 Connect a VGA cable between the VGA jack on the computer and the VGA input jack on the television.
2 Connect an audio cable between the AUDIO input jack on the television and the AUDIO output jack on the computer.

To play video from a computer:

1 Turn on your television, then press the INPUT button. The SOURCE INPUT menu opens.
2 Press or to select VGA, then press ENTER to confirm.
3 Turn on your computer and adjust the display properties as required.

Connecting headphones

To connect headphones:

• Insert the headphone plug into the television's headphone jack.

Warning

To avoid hearing damage when using headphones, adjust the headphone volume to avoid excessive levels.

Using your television

Using the Remote Control

Use the remote control by pointing it towards the television's remote sensor window. Objects between the remote control and sensor window may prevent proper operation.

Caution

• Do not expose the remote control to shock. In addition, do not expose the remote control to liquids, and do not place in an area with high humidity.
• Do not install or place the remote control under direct sunlight. The heat may cause deformation of the television.
• The remote control may not work properly if the remote sensor window of the main television is under direct sunlight or strong lighting. In such a case, change the angle of the lighting or television set, or operate the remote control closer to the remote sensor window.

Note

This illustration is for reference only. The remote sensor may be in different locations on different models.

Turning the television on and off

To turn the television on:

1 Insert the power cord into the wall socket.
2 Press on the remote control or television. The television turns on.

To turn the television off:

• Press on the remote control or television. The television turns off.

Viewing the menus and displays

This television has an easy-to-use menu system that appears on the screen. This system makes it convenient and fast to use features on the television. You can also display the status of these features while watching a program.

To navigate the menu:

1 With the television turned on, press the MENU button. The main menu opens.
2 Press to select a menu page.
3 Press ENTER or to enter that menu page.
4 Within the menu, use or to navigate through the options or adjust an option. Press ENTER or to confirm a setting, enter a sub-menu, or toggle the settings of the selected menu item.
5 Press MENU to return to the previous level menu, or press EXIT to exit the main menu and return to your program.

Note

Menu items that are not selectable are grayed out.

Displaying the information banner

To display the information banner:

• Press the DISPLAY button to display the information banner. The information banner displays status information such as the channel number and signal source. Depending on the mode, different information is displayed. In DTV mode, more information, such as the channel number, channel name, and signal resolution can be displayed.

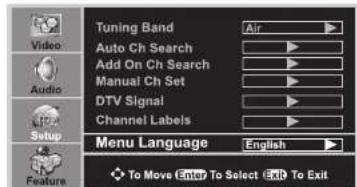

Selecting the on-screen menu language

To select the menu language:

1 Press MENU.

2 Press or to select Setup menu, then press ENTER or access the submenu.

3 Press or to select Menu Language, then press ENTER or to select the language.
4 Press EXIT to return to watching the television.

Selecting the input signal source

To select the input signal source:

1 Press INPUT. The SOURCE INPUT menu opens.
2 Press to select the input source.

Options include:

• TV—Watch the TV signal.
  Composite (or S-Video)—Watch the signal from the AV INPUT or S-Video terminals.
• Component—Watch the signal from the COMPONENT INPUT terminals.
  VGA—Watch the signal from the VGA jack.
  HDMI—Watch the signal from the HDMI input jack.

3 Press ENTER or to select the input source.
4 Press EXIT to return to watching the television.

Memorizing the channels

When you turn on the television for the first time, you should perform an auto channel search to set up the stations on your television.

Note

Be sure to select the TV source input before completing this procedure.

Selecting the tuning band

Before your television can memorize the available channels, you must specify the type of signal source that is connected to the television, such as antenna or cable.

To select the tuning band:

1 Press MENU.
2 Press or to select Setup menu, then press ENTER or to access the submenu.

INSIGNIA

Insignia NS-LCD22 LCD TV

3 Press or to select Tuning Band, then press ENTER or to select the tuning band. Options include:

Air
Cable
Cable HRC
Cable IRC
Cable Auto

Note

If using cable, select the type of cable system your television is connected to. If you are not sure, select Cable Auto.

4 Press EXIT to return to watching the television.

Searching for channels

You should complete an auto channel search to search for all channels available to your television. The television then stores them in memory on the channel list.

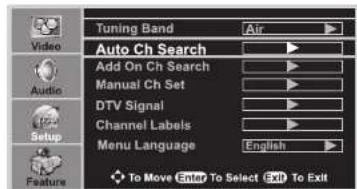

To search for channels:

1 Press MENU.

2 Press or to select Setup menu, then press ENTER or to access the submenu.

3 Press or to select Auto Ch Search, then press ENTER or begin the auto channel search. The television automatically searches for all available TV/DTV (if using an antenna) or CATV/CAETV (if using cable) program.

Note

If you want to stop the search, press the EXIT button.

Automatically adding channels

After the initial auto channel search, you can use the Add On Channel Search option to search for new stations, and add them to the channel list.

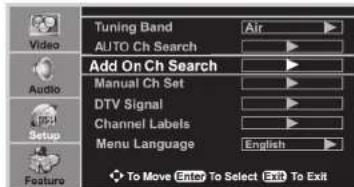

To automatically add channels:

1 Press MENU.

2 Press or to select Setup menu, then press ENTER or access the submenu.

3 Press or to select Add On Ch Search, then press ENTER or to begin the add on channel search. The television automatically searches for new stations and adds them to the channel list.

Note

if you want to stop the search, press the EXIT button.

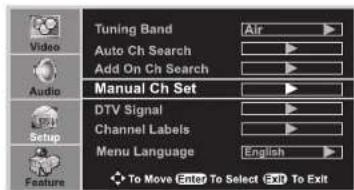

Manually adding or deleting channels

After saving channels into memory, you can manually add or delete channels from the channel list.

To manually add or delete channels: 1 Press MENU.

2 Press or to select Setup menu, then press ENTER or to access the submenu.

3 Press or to select Manual Ch Set, then press ENTER or open the Manual Channel Set Menu.

4 Press to navigate and select a channel, then press ENTER to add (displays Viewable) or delete (displays Not Viewable) the channel.

5 Press EXIT to return to watching the television.

You can use the CH + / - buttons to cycle among the viewable channels. Not viewable channels are skipped.

Note

You can use the Manual Channel Set Menu to select a channel you want to view.

Monitoring DTV signal strength

You can use the DTV signal strength monitor to check how strong your DTV signal is, and then determine if you need to adjust your antenna or digital cable input. The higher the signal strength, the less likely you are to experience picture degradation.

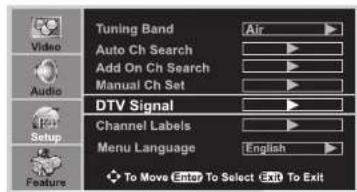

To monitor DTV signal strength:

1 Press MENU.

2 Press or to select Setup menu, then press ENTER or access the submenu.

3 Press or to select DTV Signal, then press ENTER or view the on-screen signal strength monitor and see the quality of the signal being received.

Labeling channels

If a channel is not already labeled, you can label the channel so you know what channel you are watching.

Note

If a channel label is provided on the signal from the broadcasting station, the television displays the short name for the DTV channel, even if you didn't set up a label for that channel.

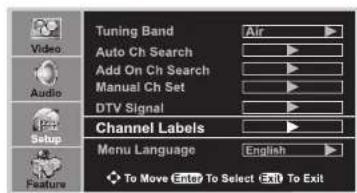

To label your channels:

1 Press MENU

2 Press or to select Setup menu, then press ENTER or to access the submenu.

3 Press or to select Channel Labels, then press ENTER or to view the Channel Labels Menu.

4 Within the menu, press to move the highlight or cursor. Press to select the channel number, or select a character. Press ENTER to return to the previous menu.

5 Press EXIT to return to watching the television.

Selecting channels

You can use one of three methods to select a channel:

• Use the number pad
  Use the CH+ and CH- buttons
• Use the previous channel button

Using the number pad

To go to a specific channel number:

• Press the number buttons (0-9) and the dash (-) button, then wait for the television to change channels, or press ENTER to go immediately to that channel.

For example, if you want to select channel 8-3, press 8-3 on the remote control. (Make sure that you press the buttons within three seconds of each other, or the channel won't be entered correctly.)

Note

In some situations, virtual channel numbers do not correspond to physical frequencies.

Using the CH+ and CH- buttons

To browse through the channels:

Press:

• CH+ to browse up the channels.
• CH- to browse down the channels.

Using the previous channel button

To switch between two channels:

• Press the previous channel button to switch between the current channel and the previous channel.

Information about USA channel numbering

• The ATSC PSIP channel uses a two part channel number which includes:

a major channel number
a minor channel number

Note

Example: Channel 5-1. The "5" is the major channel number and the "1" is the minor channel number.

In the US, in most locations the major channel number is the same for both analog and digital channels (It is equal to the NTSC channel number for existing broadcasters.)
- In the US, a minor channel number of zero is used for a broadcaster's analog channel.

INSIGNIA

Channel Numbering Example

• Original NTSC channels for Des Moines, IA: 5, 8, 11, 13, and 17.
  Possible NTSC + ATSC channels for Des Moines, IA: 5-0, 8-0, 11-0, 13-0, and 17-0 (channel numbers for existing analog channels) and 5-1, 5-2, 8-1, 8-2, 8-3, 8-4, and 13-1 (channel numbers for digital channels).

Customizing the picture

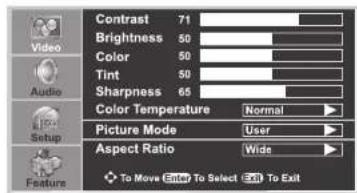

To customize the picture:

1 Press MENU
2 Press or to select Video menu, then press ENTER or access the submenu.

3 Within the menu, use or to navigate through the options or adjust an option. Press ENTER or to confirm a setting, enter a sub-menu, or toggle the settings of the selected menu item. Options include:

Options Description

Contrast Adjust the image contrast.
Brightness Adjust the screen brightness for easier viewing of dark picture such as night scenes and black hair.
Color Adjust the color saturation.
Tint Adjust the image tint.
Sharpness Adjust the image sharpness.
Color Temperature	Select from one of three automatic color temperatures: • Cool—Less intense colors with more blue. • Warm—More hotter colors, such as red. • Normal—Average colors.
Picture Mode	Select from one of four picture modes: • Nature—Displays a normal picture. • Soft—Displays a finely detailed picture. • Bright—Display a bright picture. • User—Create your own picture quality. Note: To quickly change the picture mode, press the PICTURE button on the remote control repeatedly.

Options Description

Aspect Ratio

Select from one of five aspect ratios (display proportions) according to your video signal type or personal preference. You can select from: - Wide-Displays picture in 16:9 format with a black bar on the top and bottom. - Fill- Displays a full-screen picture. - Cinema-Stretches the picture at the edges while maintaining a good aspect ratio at the center of the screen. - Normal-Selects the correct aspect ratio to match the source's image (4:3 or 16:9) - Zoom-Magnifies the picture while maintaining correct screen proportions. Note: To quickly change the aspect ratio, press the ZOOM button on the remote control repeatedly.

Adjusting the video features

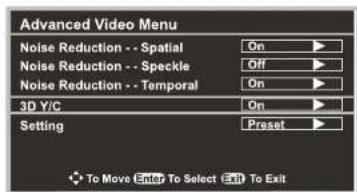

To adjust the video features:

1 Press MENU
2 Press or to select the Feature menu, then press ENTER or access the submenu.

3 Press to Select Advanced Video Menu, then press ENTER or to access the menu.
4 Within the menu, use to Select a menu option. Press ENTER or no confirm a setting, enter a sub-menu, or toggle the settings of the selected menu item. Options include:

Options	Description
Noise Reduction—Spatial	Select [ON] to reduce noise in the picture (commonly called snow).
Noise Reduction—Speckle	Select [OFF] to turn off this function.
Noise Reduction—Temporal
3D Y/C	Select [ON] to provide high quality images with minimal dot crawl and cross color noise. Select [OFF] to turn off this function.
Setting	Select and activate this function to reset Advanced Video Menu settings and adjustments to the defaults.

Adjusting the volume

To adjust the volume:

• Press the VOL+ button to increase the volume or press the VOL- button to decrease the volume.
• Press the MUTE button to turn off all sound.
  Press the MUTE button again to restore the sound.

Customizing the sound

To customize the sound:

1 Press MENU.

2 Press or to select the Audio menu, then press ENTER or to access the menu.

3 Within the menu, use ,or to navigate through the options or adjust an option. Press ENTER or to confirm a setting, enter a sub-menu, or toggle the settings of the selected menu item. Options include:

Options Description
Bass Adjust the bass (low sounds)
Treble Adjust the treble (high sounds)
Balance Adjust the volume balance (left and right volumes)
Audio Mode Select an audio mode. You can select from the following: • News—Select for a program that has speech or conversation. • Music—Select for a music program. • Movie—Select for a movie program. • User—Specify your own custom mode. Note: To quickly change the audio mode, press the AUDIO button repeatedly.
Audio Language	Select an alternate language if the program has more than one language. This option works only for digital programs. Note: To quickly select an audio language, press the MTS/SAP button repeatedly.

Options Description

MTS (multi-channel TV sound)

Select a stereo mode as a default mode when you switch your television to an analog program. You can select from the following:

Mono-Select for monophonic reception. Use this option to reduce noise during weak stereo broadcasts.
- Stereo—Select for stereo reception when viewing a program broadcast in stereo.
SAP Select to automatically switch the television to second audio programs when this signal is received.
s option works only for log programs.
e:To quickly select a stereo
de,press the MTS/SAP
on repeatedly.

4 Press EXIT to return to watching the television.

Setting up the clock automatically

If you set up the clock automatically, the time is set from a digital channel signal. The digital signal includes information for the current time provided by the broadcasting station. If the automatic time is set incorrectly, set up the clock manually.

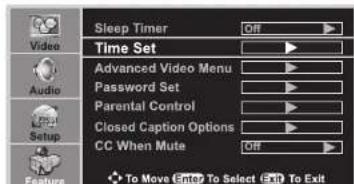

To set up the clock automatically:

1 Press MENU.

2 Press or to select the Feature menu, then press ENTER or to access the submenu.

3 Press ▲ or ▼ to select Time Set, then press ENTER or ▶ to access the Time Set Menu.
4 Press or to select Time Set Mode, then press ENTER or to select Auto.

5 Press or to select Time Zone, then press ENTER or no select your viewing area time zone from the following: Pacific, Alaska, Hawaii, Eastern, Central, Mountain.

INSIGNIA

6 Press EXIT to return to watching the television.

Setting up the clock manually

If you set up the clock automatically and the wrong time is set, you can set the clock manually.

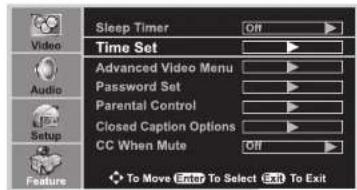

To set up the clock manually:

1 Press MENU.

2 Press or to select the Feature menu, then press ENTER or access the submenu.

3 Press ▲ or ▼ to select Time Set, then press ENTER or No access the Time Set Menu.
4 Press or to select Time Set Mode, then press ENTER or to select Manual.

5 Press or to select the Year, Date, or Time option, then use ENTER, or to set the year, date, and time options.
6 Press EXIT to return to watching the television.

Note

If the television loses power, the clock setting is cleared.

Using the sleep timer

The sleep timer lets you select the amount of time before your television turns itself off automatically. This setting is cleared when the television is turned off.

To set the sleep timer:

1 Press MENU.

2 Press or to select the Feature menu, then press ENTER or no access the submenu.

Insignia NS-LCD22 LCD TV

3 Press or to select Sleep Timer, then press ENTER or to select the amount of time. To turn off the sleep timer, select OFF.

Note

you can also set the sleep timer by pressing the LEEP button on the remote control.

Viewing closed captions

The television decodes and displays the closed captions that are broadcast with certain television shows. These captions are usually subtitles for the hearing-impaired or foreign language translations. All VCRs record the closed caption signal from television programs, so home-recorded video tapes also provide closed captions. Most prerecorded commercial video tapes provide closed captions as well. Check for the close caption symbol in your television schedule and on the tape's packaging

Note

• The caption feature does not work with Component. VGA, or HDMI.

Not all programs and videos offer closed captioning. Look for the closed caption symbol to make sure that captions will be shown.

Analog broadcasting system captions

To view closed captions for analog broadcasts:

• Press the CCD button on the remote control to select a caption mode. Options include:

CC1
CC2
CC3
CC4
·T
T

m = 311

OFF

The closed caption broadcasts can be viewed in two modes: CAPTION and TEXT. For each mode, four channels are available.

The CAPTION mode shows subscripts of dialogues and commentaries of television shows and news programs while allowing a clear view of the picture.

The TEXT mode displays various information over the picture, such as a TV program schedule or weather forecast, that is independent of the television show.

Digital broadcasting system captions

To view closed captions for digital broadcasts:

• Press the CCD button on the remote control to select a caption mode.

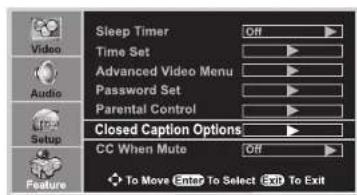

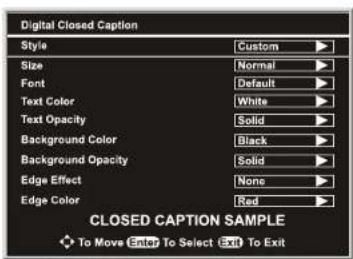

To customize closed captions for digital broadcasts:

1 Press MENU.

2 Press or to select Feature menu, then press ENTER or to access the submenu.

3 Press to select Closed Caption Options, then press ENTER or to open the Digital Closed Caption menu.

4 Press or to select Style, then press ENTER or No select Custom.

5 Press toSelect an option, then press ENTER or to customize the option. A preview sample is provided at the bottom of the menu screen for you to see the effect. Options include:

• Size—Set the text size.
• Font—Set the text typeface.
• Text Color—Select the text color.
• Text Opacity—Specify the opacity for the text color.
• Background Color—Select a background color.
• Background Opacity—Select the opacity for the background color.
• Edge Effect—Select an edge effect.
• Edge Color—Select a color for the edges.

Viewing closed caption when the volume is muted

The television can automatically display closed captions when you mute the sound.

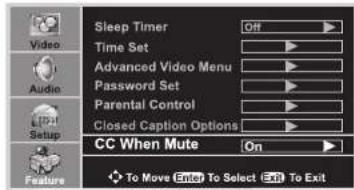

To view closed captions when the volume is muted:

1 Press MENU.
2 Press or to select the Feature menu, then press ENTER or access the submenu.

3 Press or to select CC when Mute, then press ENTER or to select ON or OFF.

Using parental controls

The parental control feature restricts television programs from being viewed on your television. It helps prevent children from watching violent or sexual scenes that you may deem harmful.

Restriction of television programs includes two ratings that contain information about the program, the MPAA rating and the TV Parental Guidelines. The MPAA rating is restricted by age. The TV Parental Guidelines are restricted by age and content.

A program may use either the MPAA rating or the TV Guidelines. Both ratings should be adjusted for complete control.

Setting the password

To use the parental control function, you need to set your password.

To set the password:

1 Press MENU.

2 Press or to select the Feature menu, then press ENTER or no access the submenu.

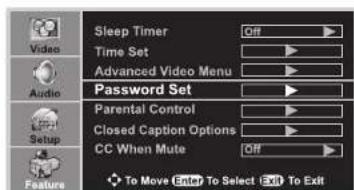

3 Press or to select Password Set, then press ENTER or

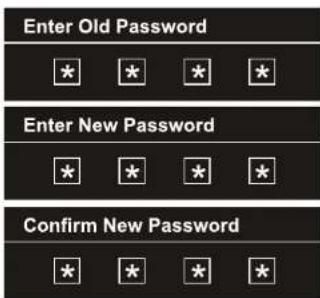

4 Enter your four-digit password. The factory preset password is 0000.

INSIGNIA

Insignia NS-LCD22 LCD TV

5 Enter your new four-digit password, then enter the same password a second time to confirm.

Note

• Be sure to write down your password and retain it for future use.

If you forget your password, you may use the super password (1397) to access the Password Set menu and set a new password.

Setting the MPAA rating

To set the MPAA rating:

1 Press MENU.

2 Press or to select the Feature menu, then press ENTER or No access the submenu.
3 Press or to select Parental Control, then press ENTER or

4 Enter your password to access the Parental Control Menu.

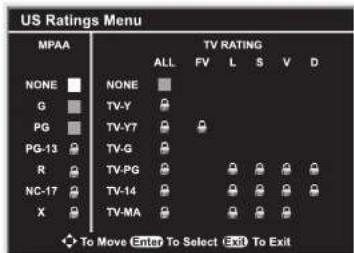

5 Press or to select US Ratings, then press ENTER or to access the US Ratings Menu.

6 Within the menu, use ,or to navigate through the ratings. Press ENTER to block or unblock a rating. MPAA movie ratings include:

G—General audience
PG—Parental guidance suggested
PG-13-Ages13 years and up
R—Restricted to ages 17 and under
NC-17-Adults 18 years and up
X - A d u l t
- NONE—Not rated

Example: If you set the rating level to PG-13: G and PG movies are available and PG-13, R, NC-17, and X are blocked.

Setting the TV rating

To set the TV rating:

1 Press MENU.

2 Press or to select the Feature menu, then press ENTER or to access the submenu.
3 Press or to select Parental Control, then press ENTER or

4 Enter your password to access the Parental Control Menu.

5 Press or to select US Ratings, then press ENTER or to access the US Ratings Menu.

6 Within the menu, use or to navigate through the ratings. Press ENTER to block or unblock a rating.

TV ratings include:
TV-Y—All children
TV-Y7-Ages 7 years and up
TV-G-General audience
- TV-PG—Parental guidance suggested
TV-14 14 years and up
- TV-MA—Mature audience

Content-based ratings include:

• FV: fantasy violence—applies only to TV-Y7
  V: Violence—applies to TV-PG, TV-14, and TV-MA
  S: Sex scenes--applies to TV-PG, TV-14, and TV-MA
  L: adult language applies to TV-PG, TV-14, and TV-MA
  D: sexual dialogue--applies to TV-PG and TV-14

Note

Age-based ratings can be modified by the content-based ratings in the combinations listed above.
- Choosing a lower age-based rating blocks the higher age-based ratings regardless of content ratings settings.

Example: If you set the rating level to then TV-Y and TV-Y7 are blocked.

Setting the Canadian ratings

To set the Canadian ratings:

1 Press MENU.

2 Press or to select the Feature menu, then press ENTER or no access the submenu.

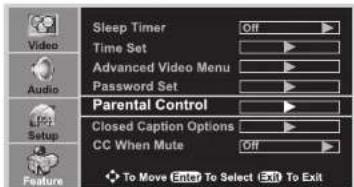

3 Press or to select Parental Control, then press ENTER or

4 Enter your password to access the Parental Control Menu.

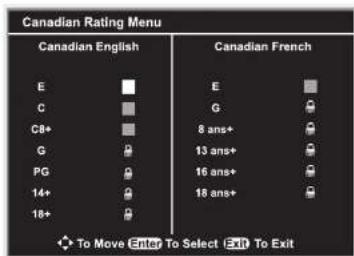

5 Press or to select Canadian Ratings, then press ENTER or to access the Canadian Ratings Menu.

6 Within the menu, use or to navigate through the ratings. Press ENTER to block or unblock a rating.

Canadian English ratings include:

Exempt
C-Children.
C8+Children 8 years and older.
G-General programming, suitable for all audiences.
PG—Parental guidance.
14+Viewers 14 years and older.
18+ Adult programming.

Canadian French ratings include:

Exempt
G-General programming
- 8 ans+—Children 8 years and older.
13 ans+Children 13 years and older.
16 ans+Viewers 16 years and older.
18 ans+—Adult programming.

Advance rating setup

If the broadcasting program uses RRT5 (Rating Region Table-Region 5) criteria rating in accordance with the FCC rules, its rating can be downloaded to this TV and can be used for parental controls.

To set the advanced ratings:

1 Press MENU
2 Press or to select the Feature menu, then press ENTER or to access the submenu.

INSIGNIA

Insignia NS-LCD22 LCD TV

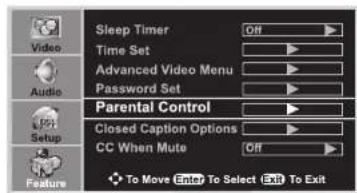

3 Press or to select Parental Control, then press ENTER or

4 Enter your password to access the Parental Control Menu.
5 Press or to select Advanced Rating, then press ENTER or to select ON.

6 Press to Select Advanced Parental Lock, then press ENTER or to access the Advanced Parental Lock screen.
7 Press to select an item, then press ENTER or to access the next-level menu.
8 Press to navigate and select, then press ENTER to block or unblock the rating.

Note The actual menu options of this rating vary, depending on the broadcaster.

Setting up for VGA(PC) Mode/Component Mode

To set up for VGA or component mode: 1 Press MENU.

2 Press or to select the Feature menu, then press ENTER or access the submenu.

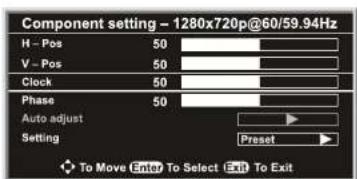

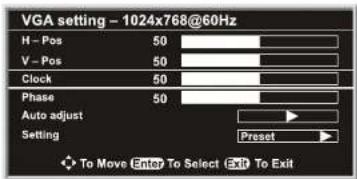

3 Press or to select VGA Set (or Component Set), then press ENTER or to access the VGA or Component Setting screen.

4 Within the menu, use ,or to navigate or adjust. Press ENTER or no confirm, enter a sub-menu, or toggle the settings of the selected menu item. Options include:

Options Description

H-Pos Moves the image on the screen left or right.

V-Pos Moves the image on the screen up or down.

Clock Adjusts the sample frequency.

Phase Improves the focusing of a stable image.

Auto adjust (PC mode only) Selects and activates to start auto adjustment. The television automatically adjusts the image settings, such as frequency and position.

Setting Selects and activates the television to reset the previous settings to the factory defaults.

Maintaining

About temperature

• Do not use the television in hot and cold rooms (locations).
• When the television is used in rooms (locations) with low temperature, the picture may leave trails or appear slightly delayed. This is not a malfunction and the television will recover when the temperature returns to normal.
• Do not leave the television in a hot or cold location. Also, do not leave the television in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the screen to malfunction.
  Storage temperature: 32 to 122^ (0 to 50^ )
• Working temperature: 41 to 104^ F( 5to40^ C)

About After-Image

The extended use of a fixed image program can cause a permanent after-image (also known as burn-in) on the screen. This background image is viewable on normal programs in the form of a stationary fixed image. This irreversible screen damage can be limited by doing the following:

• Reduce the brightness/contrast setting to a minimum viewing level.
• Do not display the fixed image for extended periods of time.
• Turn the power to the television off when not in actual use.

Caution

• Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the screen.
  Examples of still pictures include logos, video games, computer Images, teletext, and images displayed in 4:3 mode.
  The permanent after-image on the screen resulting from fixed image use is not an operating defect and as such is not covered by the warranty.
  This television is not designed to display fixed images for extended periods of time.

Cleaning and Maintenance

To clean this television, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.

• Use eyeglass cleaner to remove stubborn dirt from the screen.
• Never use alcohol, paint thinner, or benzine to clean this television.
  Before using a chemically treated cloth, read the instructions that came with the cloth carefully.
• Keep the remote dry. If it gets wet, wipe it dry immediately.
• Use and store the remote only in normal temperature environments.
• Handle the remote gently and carefully. Don't drop it.
• Wipe the remote with a damp cloth to keep it looking like new.

Troubleshooting

If, after reading these operating instructions, you have additional questions related to the use of your television, call the service center. Before calling service, check the symptoms and follow the suggested solutions.

Category	Problem Possible Solution
Remote control	Remote control does not operate	The batteries may be weak. Replace the batteries. Check the orientation of the batteries. Make sure the power cord is plugged in.

Category	Problem Possible Solution
Video and Audio	No picture (screen is not lit) No sound	Make sure that the power cord is plugged in. Press POWER on the television or on the remote control. Try another channel. It could be station trouble.
	Dark, poor, or no picture (screen is lit) Good sound	Select a different picture mode. Adjust the brightness in the video setting. Check the antenna/cable connections.
	No color/dark picture/color is not correct	Adjust the color saturation in the video setting.
	Only snow and noise appear on the screen	Check the antenna/cable connections. Try another channel. It could be station trouble.
	Dotted lines or stripes	Adjust the antenna. Move the television away from noise sources such as cars, neon signs, or hair dryers.
	Double images • Use a highly directional outdoor antenna or a cable television provider.
	Black box on screen	You have selected a text option and no text is available. Turn off the Close Caption feature or select a different option.
	Good picture, no sound	The sound may be muted. Press MUTE again to cancel. Make sure that the stereo mode is set to stereo or mono.
	Audio noise • Communication problems may occur if Infrared communication equipment (such as infrared cordless headphones) is used near the television. Move the infrared communication equipment away from the television until the noise is eliminated.
General One or more channels can't be displayed	These channels may be locked. Use the parental controls to unlock them. These channels may be set to Not Viewable in the channel list. Set the channel to Viewable or select the channel with the 0-9 number buttons.
	Lost password • Use the super password (1397) to access the Password Set menu and set a new password as desired. Write down your new password.
	Some items can't be accessed	If a setting option appears in gray, this indicates that the settings option is unavailable in current input mode.

INSIGNIA

Insignia NS-LCD22 LCD TV

Category	Problem	Possible Solution
	Television cabinet creaks	·When the television is in use, there is a natural rise in temperature, causing the cabinet to expand or contract and may be accompanied by a slight creaking noise. This is not a malfunction.
	Control buttons do not operate	·Disconnect the power cord and wait for a few seconds. Then re-connect the power cord and turn on the television again.

Caution

Never attempt to repair a defective television yourself.

Note

If your problem is not solved, turn your television off and then on again.

Specifications

Note

• Design and specifications are subject to change without notice.
• Weight and dimensions shown are approximate.
• Specifications and external appearance may be changed for the sake of improvement.

Type LCD TV
Panel 22-inch TFT LCD
TV system American TV standard ATSC/NTSC system
Receiving channels VHF 2-13, UHF 14-69, CATV 1-125, CADTV 1-135, DTV 2-69
Audio multiplex BTSC system
Audio out 4W x 2
Power requirement AC 100-240 V. 50/60 Hz
Power consumption	60 W
Dimensions 23.2 x 19.2 x 7.1-inches (589 x 487 x 180 mm)
Weight 24 lbs/11 kg
Input terminals 1 Composite Video/Audio (L/R)
	1 S-video
	1 Component Video/Audio (L/R)
	1 HDMI interface
	1 VGA/Audio
	1 Antenna
Output terminals	1 Composite Video/Audio (L/R)
	1 headphone jack
Control terminals	1 RS-232

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undes operation.

This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced technician for help.

FCC warning

Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

DHHS and FDA safety certification

This product is made and tested to meet safety standards of the FCC, requirements and compliance with safety performance of the U.S. Department of Health and Human Services, and also with FDA Radiation Performance Standards 21 CFR Subchapter J.

Canada ICES-003 statement

This Class B digital apparatus complies with Canadian ICES-003.

RSS 310 statement

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

Copyright

© 2007 Insignia. Insignia and the Insignia logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation. For service and support call [phone].

Warranty

1-year limited warranty

Insignia Products ("Insignia") warrants to you, the original purchaser of this new NS-LCD22 ("Product"), that the Product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period"). This Product must be purchased from an authorized dealer of Insignia brand products and packaged with this warranty statement. This warranty does not cover refurbished Product. If you notify Insignia during the Warranty Period of a defect covered by this warranty that requires service, terms of this warranty apply.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. The purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from an online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the product in the United States and Canada.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to acts of God, such as lightning strikes
• Accident
  Misuse
  ·Abuse
  Negligence
  Commercial use
• Modification of any part of the Product, including the antenna

This warranty also does not cover:

• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility
  authorized by Insignia to service the Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been altered or removed

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTYES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTYES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTYES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTYES. WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

INSIGNIA

Air
Cable
Cable HRC
Cable IRC
Cable Auto

Remarque

	Weak	Normal	Good
Signal Level

TEXT1
T
1 E X 12
- T E X T 3
- T E X T 4

OFF (Désactives)

-une manipulation abusive

• la négligence:

-uneutilisationcommerciale:

Air (air e)
Cable
Cable HRC

INSIGNIA

Cable IRC
Cable Auto

Nota

	Weak	Normal	Good
Signal Level

Etiquetando canales

Distributed by Insignla™ Products

7601 Penn Avenue South

Richfield, MN USA 55423-3645

www.Insignia-Products.com

2007 InsigniaIN Products

All rights reserved. All other products and brand names are trademarks of their respective owners.

2007 products Insignia

© 2007 productsInsigniaTM
