Product Type	LCD TV
Brand	Insignia
Model	NS-LCD26F (NSLCD26)
Screen Size	26 inches (diagonal)
Resolution	WXGA (1366 x 768 pixels)
Viewing Angle	160° horizontal, 150° vertical
Dimensions (W x D x H)	68.1 x 22 x 52.3 cm (without stand)
Weight	Approximately 12 kg (estimated)
Power Supply	AC 120 V, 60 Hz
Power Consumption	See rating plate (approximately 100 W)
Video Inputs	HDMI, VGA, Component (YPbPr), Composite (AV1, AV2), S-Video
Audio Outputs	Headphone jack, analog audio output (AV OUT)
Main Features	Automatic channel memory, parental control (V-Chip), closed captions, sleep timer, picture modes (Standard, Soft, User, Bright)
Remote Control	Yes (AAA batteries included)
Maintenance and Cleaning	Soft, dry cloth; avoid strong solvents
Safety	Antenna grounding, do not expose to water, unplug during thunderstorms
Spare Parts and Repairability	Contact authorized Insignia service at 1-877-467-4289
Warranty	1 year limited (parts and labor)

Frequently Asked Questions - NSLCD26 INSIGNIA

What to do if the TV does not turn on?

Check that the power cord is properly plugged in and that the wall outlet is powered. Make sure the TV is turned on by pressing the POWER button. If the power indicator does not light, unplug the cord for 10 seconds then plug it back in.

Why is there no sound but the picture is fine?

Check the volume setting (VOL+/VOL-) and that the MUTE function is not activated. Switch to another channel to rule out a broadcast problem. Make sure the audio mode is not set to an incorrect external output.

The remote control does not work, what to do?

Replace the batteries (two AAA) observing polarity (+/-). Check that there is no obstacle between the remote and the TV's infrared sensor. Make sure the sensor is not exposed to direct sunlight. Maximum range: approximately 6 meters.

How to connect a DVD player or set-top box?

Use an HDMI cable for the best quality, or RCA cables (yellow for video, white/red for audio) on the AV1 or AV2 inputs. For component source, use the YPbPr jacks with the corresponding audio cables. Then press INPUT to select the appropriate source.

How to set up parental control?

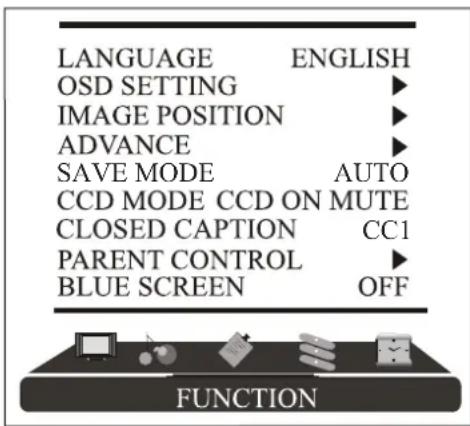

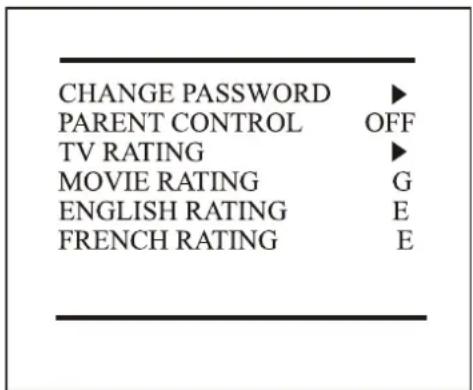

Access the FUNCTION menu via the MENU button, select PARENT CONTROL. Enter the default password 0000. You can change the password and choose MPAA ratings (age) or TV parental guidelines (age and content) to block.

How to perform an automatic channel search?

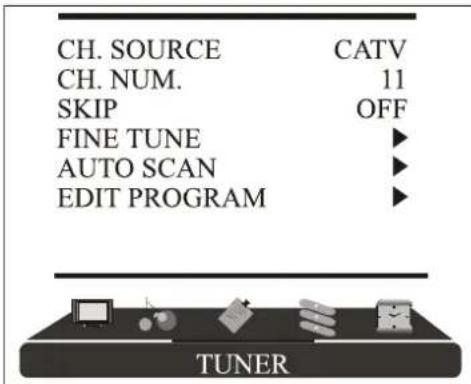

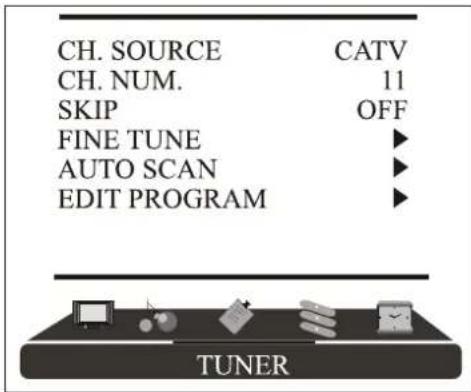

Press MENU, select the TUNER menu. Choose CH SOURCE to select CATV (cable) or AIR (antenna). Then select AUTO SCAN and press VOL+ to start the search. The TV will memorize all available channels.

How to activate closed captions?

Press the CCD (Closed Captions) button on the remote to cycle through modes: CC1, CC2, CC3, CC4, TEXT1 to TEXT4. You can also configure the mode in the FUNCTION menu under CCD MODE to display them while muted or always.

How to set the sleep timer?

Press the SLEEP button on the remote repeatedly to choose the duration: from 5 to 240 minutes. The TV will shut off automatically after the selected time. To cancel, press until SLEEP TIMER 0 is displayed.

What are the different picture modes available?

Press the PICTURE button on the remote to cycle through modes: STANDARD, SOFT, USER (user - custom settings), and BRIGHT (bright, for sports). You can fine-tune contrast, brightness, color, etc. in the PICTURE menu.

How to clean the screen and the TV cabinet?

Use a soft, dry cloth. For stubborn stains, lightly dampen the cloth with a mild detergent solution. Never use alcohol, benzene, or thinners as they can damage the surface. Do not spray liquid directly onto the screen.

USER MANUAL NSLCD26 INSIGNIA

Insignia NS-LCD26F/NS-LCD32F LCD TV

Contents

Welcome. 1

Safety information. 1

Features	2
Accessories	2
Front and side views	3
Rear view - connectors	3
Remote control	4

Setting up your TV	4
Installing the remote control batteries	4
Using the remote control	4
Connecting to video sources	5

Using your TV	6
Turning the power on and off	6
Changing the volume	6
Changing the video source	6
Changing channels	6

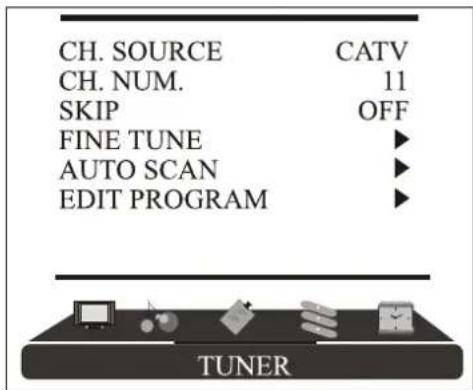

Programming channels into memory	7
Displaying status information	8
Setting the sleep timer	8
Viewing closed captions	8
Setting parental controls	8

Customizing TV settings.	10
Opening and navigating the on-screen menus.	10
Using the on-screen menu.	10
On-screen menus.	10

Troubleshooting	11
Maintaining	11
Specifications	12
Legal Notices	12
1 Year Limited Warranty	13
Français	15

Welcome

Congratulations on your purchase of a high-quality Insignia product. Your new TV represents the state of the art in television design, and is designed for reliable and trouble-free performance.

Safety information

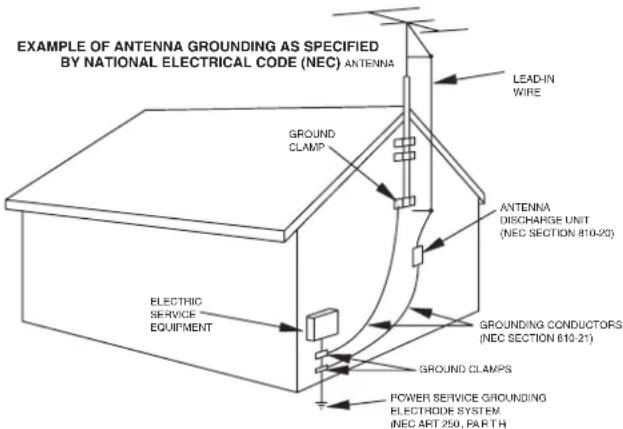

Antenna connections

If an outside antenna is connected to the television equipment, make sure that the antenna system is grounded to provide protection against voltage surges and built-up static electricity charges. Section 810 of the National Electrical Code provides information on proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of the grounding

conductors, location of the antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

• For added protection during a lightning storm, or when the product is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power line surges.

• An outside antenna system should not be located near overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, because contact with them can be fatal.

Risk of shock

To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

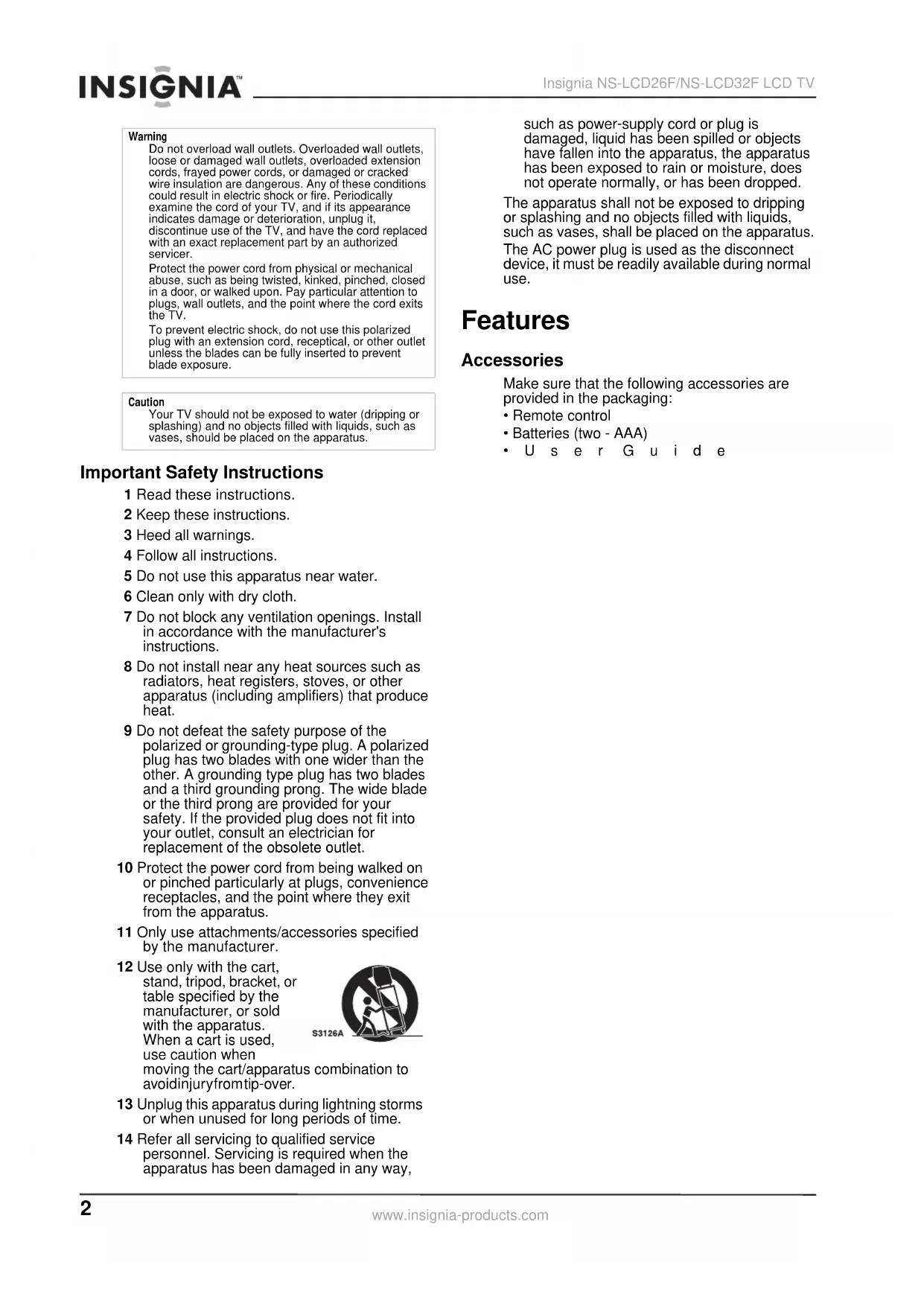

Warning

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, overloaded extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your TV, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the TV, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the TV.

To prevent electric shock, do not use this polarized plug with an extension cord, receptical, or other outlet unless the blades can be fully inserted to prevent blade exposure.

Caution

Your TV should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

Important Safety Instructions

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. The AC power plug is used as the disconnect device, it must be readily available during normal use.

Features

Accessories

Make sure that the following accessories are provided in the packaging:

Remote control
- Batteries (two - AAA)
Use r Guide

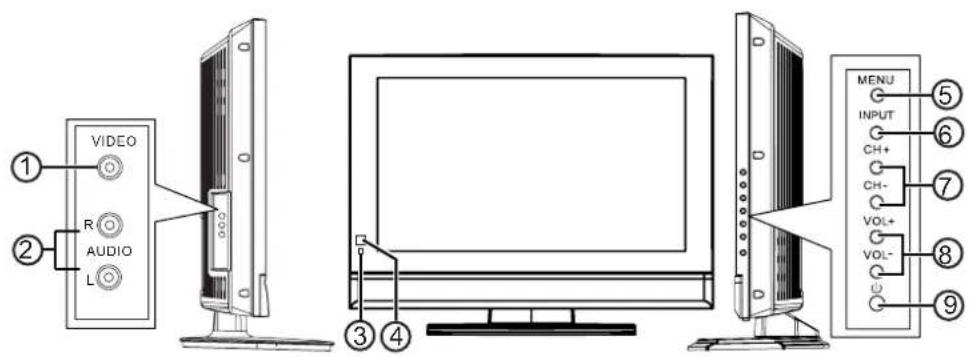

Front and side views

Item Description

1VIDEO (AV2) output jack

2 Right and Left AUDIO output jacks

3 Power Indicator LED. Turns green when the TV is turned on and turns yellow when the TV is in standby mode.

4 Remote sensor. Receives signals from the remote control.

5 MENU button. Press to open the main on screen menu.

6 INPUT button. Press to select the AV signal input between TV, AV1, AV2, S-VIDEO, YPbPr, VGA, and HDMI.

7 CH +/- buttons. Press to change the channel.

8 VOL +/- buttons. Press to increase or decrease the volume.

9 POWER button. Press to turn on and turn off the TV.

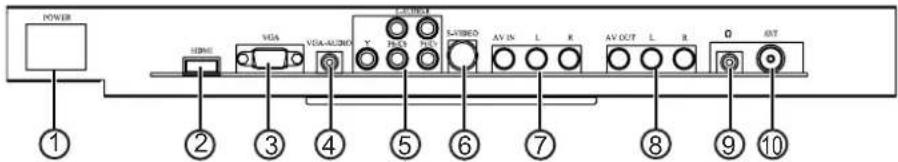

Rear view - connectors

Item Description
1	P o w e
2 HDMI input jack
3 VGA (D-sub) input jack
4 VGA audio input jack
5 Component (YPbPr) and Audio (L and R) input jacks
6 S-Video input jack
7 AV IN (AV1) Composite video/audio input jacks
8 AV OUT Composite video/audio output jacks
9 Headphone jack
10 RF (75 ohm) antenna connector

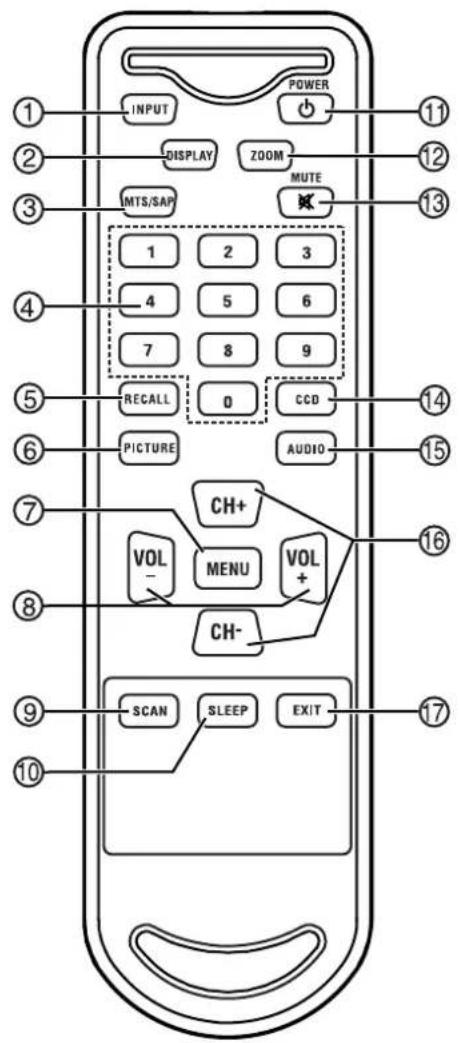

Remote control

Item Description

15 AUDIO button. Press to cycle through the audio modes (STANDARD, NEWS, USER, and MUSIC).

16 CH +/- buttons. Press to skip to the next or previous channel while in TV mode.

17 EXIT button. Press to turn off the on screen display.

Setting up your TV

Installing the remote control batteries

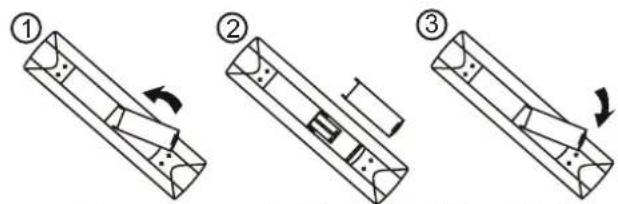

To install the batteries:

1 Open the battery compartment (1) on the back of the remote control.

2 Insert the two AAA batteries (2)(provided) into the battery compartment. Make sure that the (+) and (-) symbols on the batteries match the diagram inside the compartment.
3 Close the battery compartment (3).

Using the remote control

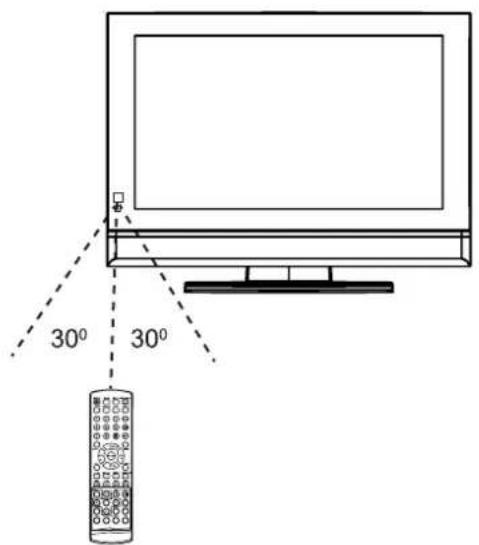

To use the remote control:

• Point it directly at the TV, within a 30^ angle of the IR sensor on the front of the TV, and within 20 feet.

Item Description

1 INPUT button. Press to select the AV signal input between TV, AV1, AV2, YPbPr, VGA, and HDMI.

2 DISPLAY button. Press to show information about the program playing.

3 MTS/SAP button. Press to select STEREO, SAP, or MONO mode.

4 Number buttons: Press to directly enter channel numbers

5 RECALL button. While in TV mode, press to return to the previous channel.

6 PICTURE button. Press to cycle through the picture modes (USER, BRIGHT, STANDARD, and SOFT).

7 MENU button. Press to open the TV menu. Press again to exit.

8 VOL-/+ buttons. Press to change the volume.

9 SCAN button. Press to scan through memorized TV channels.

10 SLEEP button. Press to set the sleep timer.

11 POWER button. Press to turn the TV on and off.

12 ZOOM button. Press to zoom in on the picture (WIDE, NORMAL, ZOOM, and CINEMA).

13 MUTE button. Press to mute the sound.

14 CCD button. Press to select Close Captions modes while in TV, AV1, AV2, or S-VIDEO mode.

Note

Objects between the remote control and the sensor may weaken the remote control's IR signal. Range can be diminished by direct sunlight shining on the TV's IR sensor.

Cautions

Do not expose the remote control to liquids, direct sunlight, or shock.

The remote control may not work correctly if the TV's IR sensor is under direct sunlight or strong lighting. In these cases, change the angle of the lighting or the TV screen, or operate the remote control closer to the IR sensor.

Connecting to video sources

Connecting to an antenna or cable/satellite receiver

To connect an external antenna or cable/ satellite receiver:

1 Connect the antenna cable from an antenna or cable/satellite receiver to the antenna input jack on the TV.
2 Press the INPUT button to set the TV's signal input to TV.

Notes

To improve picture quality in a poor signal area, you can purchase and install a signal amplifier.
To split the signal from an antenna, you will need a 2-way signal splitter.

Connecting to a VCR

To connect your TV to a VCR:

1 Turn off the TV and the VCR (or other source).
2 Connect an RF cable to the VCR, then to the ANT. jack on the back of the TV.
3 Connect RCA audio cables to the VCR's audio output jacks, then to the AV IN L and R jacks on the back of the TV.
4 Turn on the TV and the VCR.
5 Press the INPUT button to set the TV's signal input to TV.

Connecting to a DVD or other video source

To connect your TV to a DVD or other video source:

1 Turn off the TV and the DVD (or other source).

2 Connect RCA video and audio cables from the DVD player to the VIDEO and AUDIO IN jacks on the back of your TV.

· Y e l l o w - V i d e o
- White - Audio left
Red - Audio right
-OR

Connect an S-Video cable and audio cables from the DVD player to the S-VIDEO and AUDIO IN (L and R) jacks on the back of your TV.

• White - Audio left
  Red - Audio right
  -OR

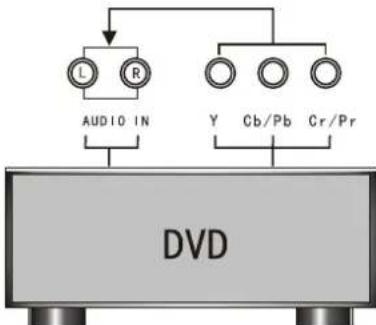

Connect RCA cables to the DVD's COMPONENTVIDEO Out jacks and the AUDIO OUT jacks (L and R), then to the COMPONENT IN jacks (Y, Cb/Pb, and Cr/Pr) and the AUDIO IN (L and R) jacks on the back of the TV.

3 Turn on the TV and the VCR.
4 Press the INPUT button to set the TV's signal input to S-VIDEO or YPbPr (as appropriate).

To connect your TV to a DVD player with an HDMI cable:

1 Turn off the TV and the DVD player.
2 Connect an HDMI cable to the HDMI output jack on the DVD player, then connect it to the HDMI jack on your TV.

3 Press the INPUT button to set the TV's signal input to HDMI.

Connecting to a cable box

To connect your TV to a cable box with an RF cable:

1 Turn off the TV and the cable box.
2 Connect a 75 ohm RF cable from the cable box to the ANT. jack on the back of your TV.
3 Set the cable box output switch to channel 3 or 4, then tune your TV to the same channel.
4 Turn on the TV and the cable box.
5 Change channels at the cable box or with the cable box remote.

To connect your TV to a cable box with a AV cables:

1 Turn off the TV and the cable box.
2 Connect RCA video and audio cables from the cable box to the VIDEO and AUDIO IN jacks on the back of your TV.

· Y e l l o w - V i d e o
- White - Audio left
Red - Audio right

3 Turn on the TV and the cable box.
4 Press the INPUT button to set the TV's signal input to AV1.
5 Change channels at the cable box or with the cable box remote.

Connecting to a computer

To connect a computer video source to the VGA jacks:

1 Connect a VGA cable from the computer to the VGA jack on the TV.

2 Connect a male-to-male audio cable from the computer to the VGA-AUDIO port on the TV.
3 Turn on the TV, then turn on the PC.
4 Press the INPUT button to set the TV's signal input to VGA.

Using your TV

Turning the power on and off

To turn the power on and off:

1 Press the POWER button on the front panel of the TV or on the remote control. The POWER indicator turns green.
2 To turn off the TV, press the POWER button again. The screen image disappears and the POWER indicator turns yellow (standby status).

Note A small amount of electric power is consumed even when the power is turned off.

Changing the volume

You can change the volume using the TV's front panel or the remote control.

To change the volume:

1 Press VOL+ or VOL-
2 Press MUTE on the remote control to mute the sound, and press it again (or the VOL+ or VOL-) to restore the sound.

Changing the video source

Your TV supports multiple video sources.

To select the video source:

• Press the INPUT button to select from the following input modes:

TV
AV1
AV2
·S - V I D E O
• Y P b P r
VGA
HDMI

The name of the input source appears on the screen when it is selected.

Notes on HDMI

• HDMI™ - The HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI Licensing.
  This TV can receive HDMI.
  This TV supports the HDCP (High-bandwidth Digital Contents Protection) protocol for 720× 480p , 1280× 720p , and 1920× 1080i resolution.
• When connected to a source device (DVD player, set top box, or PC) supporting the Auto HDMI function, the output resolution of the source device will be set automatically to 1280 × 720p . If the source device does not support Auto HDMI, you must set the output resolution appropriately. For best picture quality, adjust the DVD player, set top box output resolution to 1280 × 720p , or the PC graphics card output to 1280 × 768 , 60Hz .
  If the source device has HDMI output, no audio connection is necessary.

Changing channels

To change channels:

• Press CH+ or CH-

To enter a channel number directly:

• Press the number buttons on the remote control.

To switch between two channels:

1 Press RECALL to change from the currently tuned channel to the previous channel.
2 Press RECALL again to change back to the originally tuned channel.

Changing the picture mode

To change the picture mode:

• Press PICTURE on the remote control to cycle through the following modes:

STANDARD-normal mode
- SOFT-softens the image
- USER-set the image effect you want
BRIGHT-suitable for sports images

Programming channels into memory

To select the channel source:

1 Press MENU on the TV or remote control, then press VOL- or VOL+ to access the TUNER menu. The TUNER menu opens.

2 Press CH- or CH + to select CH SOURCE, then press VOL- or VOL+ to choose CATV or AIR.

To automatically program channels into memory:

1 Press MENU on the TV or remote control, then press VOL- or VOL+ to access the TUNER menu. The TUNER menu opens.

2 Press CH- or CH + to select AUTO SCAN, then press VOL- or VOL+ to begin searching.

3 The TV searches and memorizes all channels on the selected antenna input available in your area.
4 To stop the auto scan, press MENU.

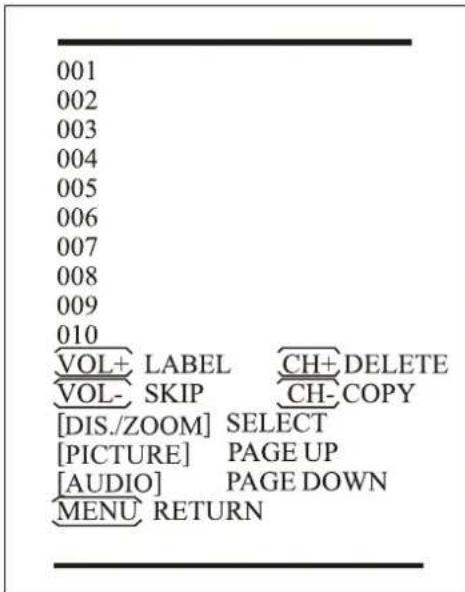

To edit programmed channels:

1 Press MENU on the TV or remote control, then press VOL- or VOL+ to access the TUNER menu. The TUNER menu opens.

2 Press CH- or CH+ to select EDIT PROGRAM, then press VOL- or VOL+ to enter the sub-menu. The Edit Program sub-menu opens.

3 Press DIS./ZOOM to select the channel. Then you can:

• Label the channel by pressing the VOL+ button.
• Skip the channel by pressing the VOL button.
• Delete the label and skip the channel by pressing the CH+ button.
• Copy the label by pressing the CH button.

4 To cancel the action, press the VOL- button.

Displaying status information

To display status information:

• Press the DISPLAY button. Your TV displays status information, such as the channel number or signal source.

Setting the sleep timer

The sleep timer lets you select the amount of time before your TV turns off automatically.

To set the sleep timer:

• Press the SLEEP button on the remote control repeatedly until the time duration you want is shown on the screen. Options include:

SLEEP TIMER 240 MIN
SLEEP TIMER 180 MIN
SLEEP TIMER 120 MIN
SLEEP TIMER 90 MIN
SLEEP TIMER 60 MIN
SLEEP TIMER 45 MIN
SLEEP TIMER 30 MIN
SLEEP TIMER 15 MIN
SLEEP TIMER 10 MIN
SLEEP TIMER 5 MIN
- SLEEP TIMER 0

Viewing closed captions

To view closed captions:

• Press the CCD button to select CC1, CC2, CC3, CC4, TEXT1, TEXT2, TEXT3, or TEXT4.

Setting parental controls

Your TV has a V-chip that lets you control the type of programs your children can watch. Parental controls include two ratings: MPAA (based on age) and TV Parental Guidelines (based on content and age). A TV program may have an MPAA or TV Parental Guidelines rating, so you should set controls for both ratings. Before you can select ratings, you need to set up a parental controls password.

To set up a password:

1 Press MENU on the TV or remote control, then press VOL- or VOL+ to select the FUNCTION menu. The FUNCTION menu opens.

2 Press CH- or CH+ to select PARENT CONTROL, then press VOL- or VOL+. The Password box opens.

PLEASE INPUT

password

****

3 Press the number buttons to enter 0000 (the default initial password). The PARENT CONTROL menu opens.

CHANGE PASSWORD

PARENT CONTROL

TV RATING

MOVIERATING

ENGLISH RATING

FRENCH RATING

OFF

G

E

E

4 Press CH- or CH+ to select CHANGE PASSWORD, then press VOL- or VOL+. The Password Change box opens.

INPUT NEW

password

****

5 Press the number buttons to enter a new password. You are asked to enter the new password again.

INPUT NEW

password

****

AGAIN****

6 Press the number buttons to enter the new password again, to confirm.

Caution

Write down your password and save it for future use.

Note

If you forget your password, enter 0000 for the old password, then enter a new password. This password always remains valid for resetting your password.

Setting the Parental Control level

To set the Parental Control level:

1 Press MENU on the TV or remote control, then press VOL- or VOL+ to select the FUNCTION menu. The FUNCTION menu opens.

2 Press CH- or CH + to select PARENT CONTROL, then press VOL- or VOL+. The Password box opens.

3 Press the number buttons to enter 0000 (the default initial password). The PARENT CONTROL menu opens.

4 Press CH- or CH + to select the option you want to set, then press VOL- or VOL+ to change the setting.
5 Press MENU to close the menu.

TV Parental Guidelines ratings

Rating Description

NONE or NR Not rated.

TV-Y All children.

TV-Y7 Children over seven years of age.

TV-G General audiences.

TV-PG Parental guidance suggested.

TV-14 Parents strongly cautioned.

TV-MA Mature audiences only.

Some of the age-based TV Parental Guidelines ratings also have PG Content-based ratings.

Rating Description
FV FANTASY VIOLENCE.
D	D	I AL
L	LANGUAGE.
S	SEX
V	VIOLENCE.

American MPAA (Movie) ratings

Rating Description
NONE or NR Not rated.
G	General audiences.
PG	Parental guidance suggested. Some material may not be suitable for children.
PG 13	Parental guidance strongly suggested. Some material may not be suitable for children under 13 years of age.
R	Restricted. Not suitable for children under 17 years of age unless accompanied by a parent or guardian.
NC 17	Not suitable for children under 17 years of age.
X	Adults only.

Canadian MPAA (Movie) ratings

Rating Description
E	Exempt - includes news, sports,documentaries, talk shows.
C*	Children (English)
G**	Children (French)
8+** Children	8 years and above (French)
C8+*	Children 8 years and above (English)
G*	General audience (English)
PG	Parental guidance suggested.
13+**	13 years old and above (French)
14+* 14 years	old and above (English)
16+**	16 years old and above (French)
18+	Adult programming
OFF	No controls

• Can. English only
  ** Can. French only

Customizing TV settings

Opening and navigating the on-screen menus

Using the on-screen menu

Your TV has an on-screen menu system that lets you adjust TV settings, such as video and audio settings.

To use the on-screen menu:

1 Press MENU on the TV or remote control, then press VOL- or VOL+ to access the menu you want.
2 PressCH- or CH+ to select the menu item, then press VOL- or VOL+ to adjust/change that item or go to the sub-menu for that item.
3 Press MENU to close the on-screen menu.

On-screen menus

On-screen menu	Options
TUNER CH SOURCE	-Selects the TV antenna source (AIR or CATV).CH.NUM.-The current channel selected. Press CH+/CH- to change the setting.SKIP-Setting this to ON causes the current channel (see CHANNEL above) to be skipped on the channel list. You can select a skipped channel by inputting the channel number using the number buttons.FINE TUNE-Use to manually adjust tuning to improve image and sound quality. Do not use unless reception is poor.AUTO SCAN-Automatically sets up a list of the channels available in your area for the antenna type selected. For more information, see "Programming channels into memory" on page 7.EdIT PROGRAM-Lets you label or skip a channel, and delete or copy a label.
PICTURE PICTURE	MODE-Lets you select one of four preset picture modes, including STANDARD, SOFT, USER, or BRIGHT.CONTRAST-Increases the picture level to adjust the white areas of the picture. Decreases the picture level to adjust the black areas of the picture. (0 ~ 100)BRIGHTNESS-Increases the brightness to add more light to dark areas of the picture.Decreases the brightness to add more dark to light areas of the picture. (0 ~ 100)TINT-Change settings from green (0) to red (100).COLOR (saturation)-Lets you increase or decrease the color saturation of the picture. (0 ~ 100)SHARPNESS-Increases the sharpness for a cleaner and clearer image. Decreases the sharpness for a smoother picture. (0~100)COLOR TEMP-Adjusts the overall color of the picture. (NORMAL, COOL, or WARM)ZOOM-Lets you choose the picture size.(ZOOM, CINEMA, WIDE, or NORMAL).

On-screen menu	Options
SOUND SOUND-Selects an audio equalization mode for the TV sound (STANDARD, NEWS, USER, or MUSIC)BALANCE-Adjusts the right and left speaker volumes.AVC-Automatic Volume Control. Reduces the effect of high volume by limiting volume peaks across all channels.EQUALIZER-Lets you change the sound equalizer settings.SURROUND-Lets you select a preset surround sound setting. (ROOM, THEATER, OFF, or VALLEY)DIGITAL BASS-Lets you turn digital bass on or off to adjust the low sounds (bass).
FUNCTION LANGUAGE-Selects the language for the on-screen display (OSD).OSD SETTING-Lets you set the duration and opacity of the on-screen display. IMAGE POSITION-Lets you adjust the horizontal and vertical position of the picture. In VGA mode you can adjust the phase of the PC image to remove horizontal distortion and sharpen characters and adjust the LCD to match the PC input source clock frequency.ADVANCE-Lets you adjust the quality and expressive force of the image. Available options include:· AAA-Presents to change the brightness, contrast, and arrangement of the image. (ON, SPLIT, MOVE, and ZOOM)· CTI-Turn this on to restrain color bleed over from one image to another.· LTI-Turn this on to optimize the brightness of the image.· DLC-Turn this on to optimize the depth of the image.· SKIN-Turn this on to optimize the skin tones of the image.· DNR-Set this to control image noise. (OFF, WEAK, MEDIUM, and STRONG)SAVE MODE-Lets you turn on power saving modes. Options include:· A U T O· MODE1· MODE2CCD MODE-Selects the CCD Mode. Options include:· CCD ON MUTE· OFF· ONCLOSED CAPTION-Selects the Closed Caption type for viewing.· CC1-Turns on Closed Captioning in the primary language of your area.· CC2-CC4-Turns on other modes of video-related broadcast information in a secondary language.· Text1-Turns on the program guide provided by broadcasters.· Text2-Text4-Turns on other types of information provided by broadcasters. PARENTAL CONTROL-Accesses V-chip controls. For more information, see “Setting parental controls” on page 8.BLUE SCREEN-Sets the option to turn on the blue screen if there is no signal for three seconds.
TIMER SLEEP TIMER-Lets you set the sleep timer to turn off the TV after a preselected interval. CLOCK-Lets you set the clock, which is shown when the DISPLAY button is pressed. TIME OFF-Lets you set a specific time for the TV to turn off. WAKE TIME-Lets you set a specific time to watch a program. WAKE CHAN-Lets you set a specific channel to watch in the Wake Time you set.

Troubleshooting

Please check the following items before calling for service:

Problem Solution
No picture or sound.	Check all cable connections. Make sure that the TV is plugged in and turned on. Make sure that electricity is available at the AC power outlet.
Picture is OK, but no sound.	Check the volume level and mute settings. Switch to another channel to determine if the station is the problem.
No picture Make sure that the TV is working properly. Press the INPUT button to select TV input. Make sure the color system is set correctly.
Sound is OK, but no color.	Check the color control and adjust it. Check the program's color features, because it may be a black and white movie.
The picture has overlapped images.	Make sure that the antenna is installed correctly. If not, adjust the antenna toward the broadcasting station.
Picture has “snow.” Check the antenna and its connection. If there are problems, correct them. If all connections are tight, the problem may be with a faulty antenna or cable. Check whether car traffic or neon signs disturb the image.
Stripes on picture. Check for interference from other electronic devices, such as radios and televisions, and keep magnetic or electronic devices away from the TV.
Remote control does not work.	Change the batteries in the remote control. Remove any obstacles between the TV's IR sensor and the remote control.
Image is not clear. In VGA mode, adjust the PHASE control.
Image is not centered.	Adjust the Horizontal or Vertical control.
Bad sound quality Make sure that the audio output mode is set correctly. Make sure that the audio connection between the unit and amplifier (if used) is secure.
The TV doesn't operate normally	Disconnect the power plug for ten seconds, then reconnect it. If the problem persists, contact Insignia or your dealer for help.

Notes

• If the problem is not fixed after you check the above items, do not attempt to remove the back cover by yourself.
• You may hear a snapping sound from the TV occasionally. This is normal and is caused by temperature changes in the operating environment and does not affect the operation of the TV.
• Do not let the TV remain on static images for long periods of time because it can result in permanent residual images on the screen. If this situation occurs, the TV may recover automatically after 12 hours if you change to dynamic programming.

Maintaining

Handling and cleaning the TV

Shipping the TV

Please save the original shipping carton and packing materials. If you need to ship the TV, for maximum protection, re-pack the it as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the TV.
• Do not leave rubber or plastic products in contact with the TV for a long period of time because they can leave marks on the surface.

Cleaning the case

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution.
- Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the player.

Maintaining the TV

This TV is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use. For details, please contact your nearest authorized service center.

Specifications

Model	NS-LCD26F/NS-LCD32F
Screen type	A-si TFT active matrix
Viewable angle	160° H and 150° V - NS-LCD26F 170° H and 170° V - NS-LCD32F
Picture and sound system	NTSC (AV) Mono
Video input	CVBS, S-VIDEO, YPb/Pr, YCb/Cr, VGA, HDMI
YPb/Pr	Composite, 480i/p, 576i, 720p, 1080i, 1080p
Power	See rating plate on TV
Power consumption	See rating plate on TV
Dimensions (W×D×H)	26.8 × 8.6 × 20.6 inches (68.1 × 22.0 × 52.3 cm) - NS-LCD26F 32 × 10 × 24.2 inches (81.3 × 25.5 × 61.4 cm) - NS-LCD32F
Environmental	Working temp: 41° F~95° F (+5° C~+35° C) Working humidity: 20%-80% Storage temp: 5° F~113° F (-15° C~+45° C) Storage humidity: 5%-90%
Accessories	Remote control Batteries (two - AAA) User Guide Power cord

Legal Notices

Copyright

© 2007 Insignia. Insignia and the Insignia logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation.

For service and support call [phone].

1 Year Limited Warranty

Insignia Products ("Insignia") warrants to you, the original purchaser of this new LCD TV ("Product"), that the Product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period"). This Product must be purchased from an authorized dealer of Insignia brand products and packaged with this warranty statement. This warranty does not cover refurbished Product. If you notify Insignia during the Warranty Period of a defect covered by this warranty that requires service, terms of this warranty apply.

HOW LONG DOES THE COVERAGE LAST?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. The purchase date is printed on the receipt you received with the Product.

WHAT DOES THIS WARRANTY COVER?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

HOW TO OBTAIN WARRANTY SERVICE?

If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from an online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain in-home warranty service for a television with a screen 25 inches or larger, call 1-888-BESTBUY. Call agents will diagnose and correct the issue over the phone or will have an Insignia-approved repair person dispatched to your home.

WHERE IS THE WARRANTY VALID?

This warranty is valid only to the original purchaser of the product in the United States and Canada.

WHAT DOES THE WARRANTY NOT COVER?

This warranty does not cover:

• Customer instruction
• Installation
• Set up adjustments
  Cosmetic damage
• Damage due to acts of God, such as lightning strikes
• Accident
  Misuse
  Abuse
  Negligence
• Commercial use
• Modification of any part of the Product, including the antenna
• Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

This warranty also does not cover:

• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Insignia to service the Product

• Products sold as is or with all faults
  -Consumables, such as fuses or batteries

• Products where the factory applied serial number has been altered or removed

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTY WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTY FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTY. WHETHER EXPRESS OR IMplied, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Insignia:

For customer service please call 1-877-467-4289

www.insignia-products.com

INSIGNIATM is a trademark of Best Buy Enterprise

Services, Inc.

Distributed by Best Buy Purchasing, LLC.

Insignia, 7601 Penn Avenue South, Richfield,

Minnesota, U.S.A.

Insignia, 7601 Penn Avenue South, Richfield,

Minnesota, U.S.A.

INSIGNIA

Distributed by Insignia™ Products

7601 Penn Avenue South,

Richfield, MN USA 55423-3645

www.Insignia-Products.com

©2007 Insignia™ Products

All rights reserved. All other products and brand names are trademarks of their respective owners.
