USER MANUAL GLC322RLBN LG

ENGLISH Please read this manual carefully before operating your set and retain it for future reference.

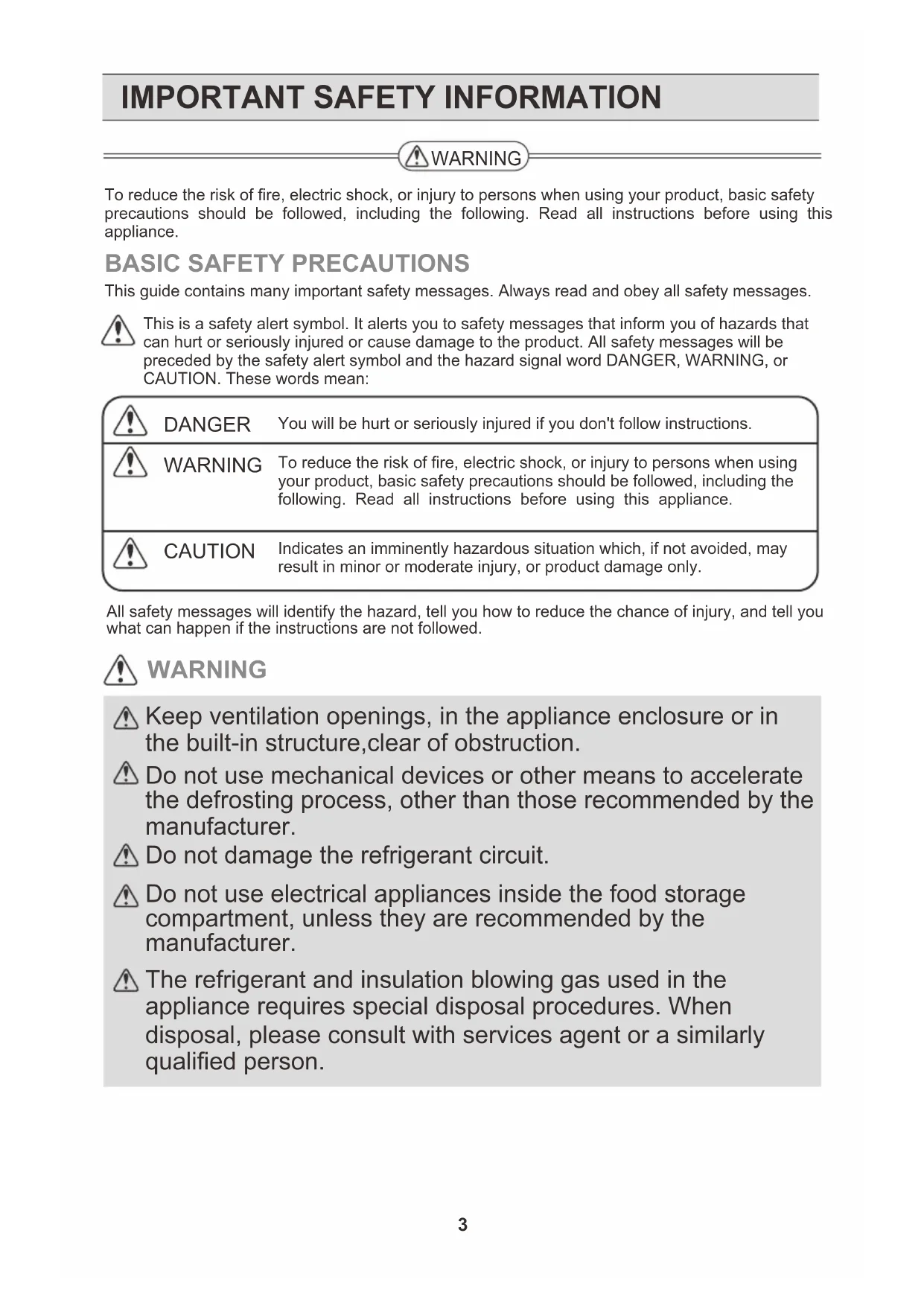

WARNINGTo reduce the risk of fire, electric shock, or injury to persons when using your product, basic safetyprecautions should be followed, including the following. Read all instructions before using thisappliance.

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.This is a safety alert symbol. It alerts you to safety messages that inform you of hazards thatcan hurt or seriously injured or cause damage to the product. All safety messages will bepreceded by the safety alert symbol and the hazard signal word DANGER, WARNING, orCAUTION. These words mean:You will be hurt or seriously injured if you don't follow instructions.To reduce the risk of fire, electric shock, or injury to persons when usingyour product, basic safety precautions should be followed, including thefollowing. Read all instructions before using this appliance.Indicates an imminently hazardous situation which, if not avoided, mayresult in minor or moderate injury, or product damage only.All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell youwhat can happen if the instructions are not followed. DANGER WARNING CAUTION WARNING Keep ventilation openings, in the appliance enclosure or in the built-in structure,clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartment, unless they are recommended by the manufacturer. The refrigerant and insulation blowing gas used in the appliance requires special disposal procedures. When disposal, please consult with services agent or a similarly qualified person.

3IMPORTANT SAFETY INFORMATION

If gas used is R600a This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. Never startup an appliance showing any signs of damage. If in doubt, consult your dealer.

DISPOSAL OF YOUR OLD APPLIANCE

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

The correct disposal of your old appliance will help prevent potential negative consensus for the environment and human health.

For more detailed information about the disposal of your old appliances, please contact your city office, waste disposal service or the shop where you purchased the product.

(*NOTE - 1,2,3 are applicable for Jordan Regulations and other countries as per applicability)

IMPORTANT SAFETY INFORMATION

Dedicated outlet should be used. Using several devices at one outlet may cause fire.

Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator. Plug may get damaged, which causes fire or electric shock.

1. When connecting the power

4IMPORTANT SAFETY INFORMATION

Do not allow the power cord to bend or pressed by heavy object. It may damage the power cord and cause fire or electric shock.

Do not extend or modify the length of the power plug. It damages the power cord and cause electric shock or fire.

Unplug the power plug while cleaning, handling or replacing the interior LED lamp of the refrigerator. It may cause electric shock or injury.

Do not pull out the cord or touch the power plug with wet hand It may cause electric shock or injury.

1. When connecting the power

Remove water or dust from the power plug and insert it with the ends of the pins securely connected. Dust, water or unstable connection may cause fire or electric shock

Make sure of grounding. Incorrect grounding may cause breakdown and electric shock.

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them. It may cause electric shock or short circuit.

The tempered glass on door can be broken by impact, do not touch the broken parts you may injured.

2. When using the refrigerator

Do not cling to the door or the shelves of the door or home bar of the freezer or the cool chamber. It may make the refrigerator fall over or damage the hands. Especially, do not allow the children to do the above.

Do not place heavy object or the dangerous object (container with liquid) on the refrigerator. It may fall and cause injury, fire or electric shock when opening or closing the door.

Do not use or store inflammable materials like ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator. It may cause explosion or fire.

Do not install the refrigerator in wet place or place where water or rain splashes. Deterioration of insulation of electric parts may cause electric leakage.

Do not use drier to dry the inside, nor light a candle to remove odor It may cause explosion or fire.

Do not store medicine or academic materials in the refrigerator. When the material with strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Install in places away from the fire such as the place where flammable gas is leaked. It may cause fire.• Do not use the combustible spray near the refrigerator. It may cause fire.• Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator. It may cause fire, electric shock or injury by dropping down.

Use the submerged refrigerator only after checking it. It may cause electric shock or fire.

6When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately. During the handling / delivering, installation if used gas is (1) Tetrafluroethane (R134a) - in spite of being Environment friendly & Non flammable, it may cause irritation to skin, eyes with small amount of vapor, hence proper ventilation across the Refrigerator area is must. (2) Natural Gas (isobutene, R600a) - is an environment- friendly refrigerant, even a small amount (80~90g) is combustible. When the gas is leaked due to severe damage during delivering, installing or using the refrigerator, any spark may cause fire or burn.

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner. Deterioration of insulation of electric parts may cause electric shock or fire

When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact to the service center. It may cause fire.• Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator. It may cause injury, electric shock or fire.

Do not use the refrigerator for non- domestic purpose (storing medicine or testing material, using at the ship, etc.). It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Install the refrigerator on a solid and level floor. Installing it on an unstable place may cause injury by falling down the refrigerator when opening or closing the door.

When disposing the refrigerator, remove the packing materials like gasket from the door. It may cause to lock out the child.

What to do with your old refrigerator? Your refrigerator contains liquid (refrigerant, lubricant) made of recyclable materials, All these materials must be sent to a recycling waste disposal site as they can be reused after a specific recycling process.

Do not insert hand or metal stick into the exit of cool air, cover, bottom of the refrigerator, heat proof grill (exhaust hole) at backside. It may cause electric shock or injury.

Place all the components in the right places before connecting the power. In case of thunder and lightning, or if not in use for a long period of time, detach the power plug. There is a danger ofelectric shock or fire.

Never leave lit candles on the fridge, high risk of causing fire or product damage. Wait for 5 minutes or longer when reconnecting the plug. It may cause the operationof the freezer to fail.

Do not touch food or containers at the freezer with wet hands. It may cause frostbite.• CAUTION Violating these directions may cause injury or damage to health, house or furniture.Always be careful, please. Do not insert hand into the bottom of the refrigerator. The iron plate of thebottom may cause injury.

Carry the refrigerator with the handle bar provided at the bottom-front and top-rear of the refrigerator. Otherwise, your handsmay be slipped tocause injury.

Pull out the power plug not by grasping the cord. But by the plug of its end. It may cause electric shock orshort circuit to fire.

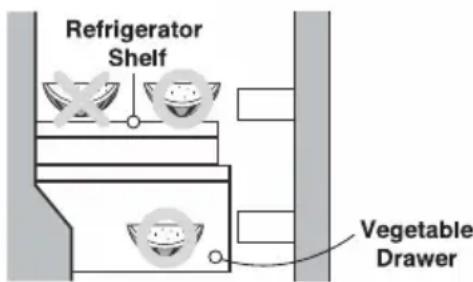

Do not put bottle in the freezer. Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing.

Completely empty inside before taking out the container from the door. Opening or closing the door of the refrigerator may cause injury to the person around it, please be careful. Opening or closing the door may cause feet or hands to be caught in the chink in door or child hand get hurt by the corner.

May get damaged or break if dropped.• Movable parts like shelf, basket, etc. should be handled with care. WARNING Do not put any living animal in the refrigerator. Do not lean on the doors, Hinges may deregulate themselves, causing air leak and performance deterioration

• Please do not use a dishwasher to clean the lower drawers; the high temperature may cause damage to the baskets which make them unusable.

• If the appliance is equipped with a lock (some countries only), keep the key out of reach of children.

Avoid placing the unit near heat sources, direct sunlight or moisture.

To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear for better performance and to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise( ) to raise the unit, counterclockwise ( ) to lower it.

Don't install this appliance below 5°. It may cause the debasement of the refrigerator.

Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.

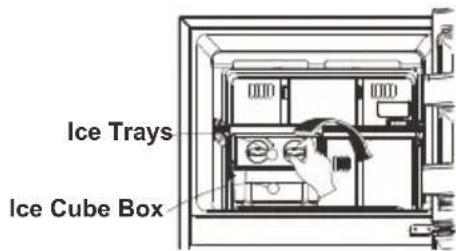

Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.

Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.

Prior to storing food, leave your refrigerator on for 6 hours . Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

After installing the appliance, connect the power plug into a socket outlet. Before moving and discarding the appliance, disconnect the plug from the socket outlet.

Dimensions and Clearances Too small of a distance from adjacent items may result in degradation of freezing capability and increased electricity costs. Allow over 50mm clearance from each adjacent wall when installing the appliance. Ambient Temperature The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone. do not use the appliance at a temperature exceeding the limit. The internal temperatures could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and so on. The climate class can be found on the rating label. Climate Class Ambient Temperture

Range C SN (Extended Temperate) +10 - +32 N (Temperate) +16 - +32 ST (Subtropical) +16 - +38 T (Tropical) +16 - +43/+10 - +43* *Australia, India, Kenya NOTE The appliances rated from SN to T are intended to be used at an ambient temperature between

Image for representation purpose onlyINNER PARTS This guide covers several different models. The refrigerator you have purchased mayhave some or all of the features shown above.To keep a position of inner parts like as baskets, drawers and shelves supplied bymanufacturer is the most efficient usage for energy saving.Due to continuously development, model specification subjected to change.

Please do not keep the door open for a long time, close door in the shortest time. Too much food are not advised to be put in enough space should be kept for cool air circulating freely. Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor. Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills. Do not block air vents with food. Smooth circulation of cold air keeps refrigerator-freezer temperature even. Do not open the door frequently. Opening the door lets warm air enter the refrigerator-freezer, and cause temperature to rise.

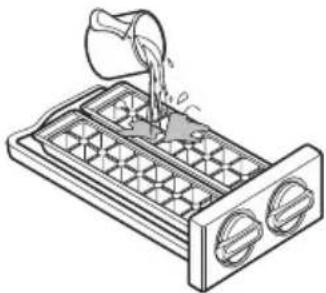

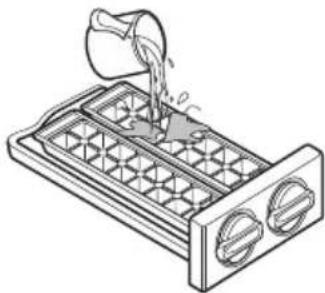

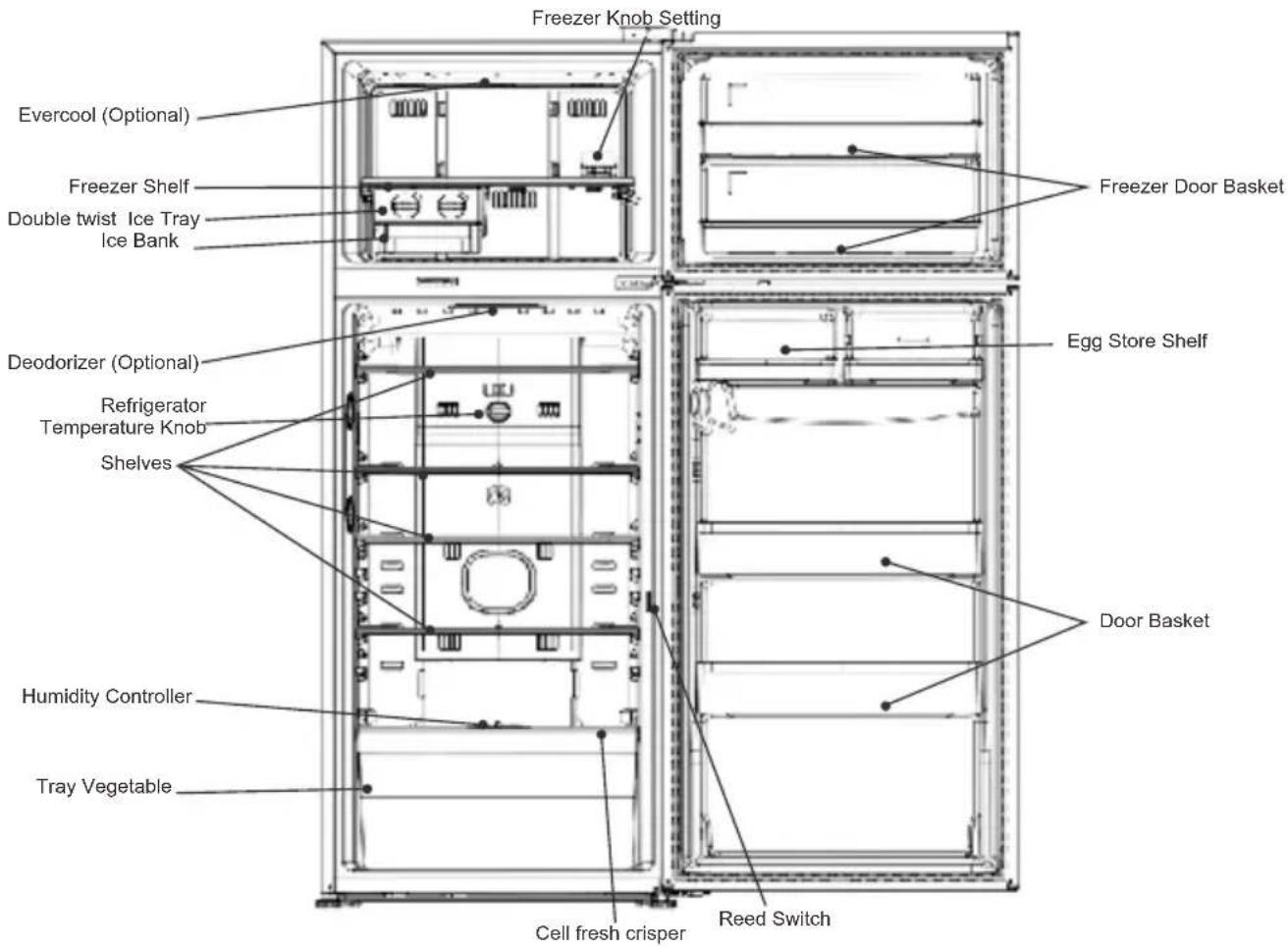

Freezer Door BasketEgg Store ShelfDoor BasketEvercool (Optional)Freezer ShelfDouble twist Ice TrayIce BankDeodorizer (Optional)ShelvesRefrigerator Temperature Knob Humidity ControllerTray VegetableFreezer Knob SettingCell fresh crisperReed Switch- Entire freezer compartment is 2 STAR. The automatic defrosting system in the appliance ensures that the compartment remains free of ice build up under normal operating conditions If gasket is damaged, efficiency may be lowered owing to the escape of cool air Please store this manual in a place where it can be easily accessed whenever required.OPERATIONS / FEATURES STARTING

When your refrigerator is firstly installed, allow 6 hours for the temperature to stabilize prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. The temperature of the refrigerator is kept constant regardless of changes in room temperature. It is recommended that, once set, the temperature settings (the controls for the refrigerator and freezer compartments) not be changed unless necessary. This refrigerator has one temperature control dial for the refrigerator compartment and one temperature control dial for the freezer compartment. The default setting of the temperature control dial for the refrigerator compartment is '4' The default setting of the temperature control dial for freezer is '3'. Your refrigerator contains a built in diagnostic capability. If it develops a malfunction in certain areas, it will display an error code to assist the repair technician. While an error code is displayed, other control and display functions will not operate. This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the compressor automatically as needed. If an error code is displayed, contact a service center. Do not disconnect the power cord from the outlet. The higher number on control setting is, the lower the temperature of the freezer compartment becomes. Since the temperature of the refrigerator and freezer compartments is controlled with a fixed amount of cooled air, the refrigerator compartment will be warmer if the freezer compartment becomes colder. When the freezer compartment is not cold enough in winter, adjust the control for the freezer to High (3 / • / ••).

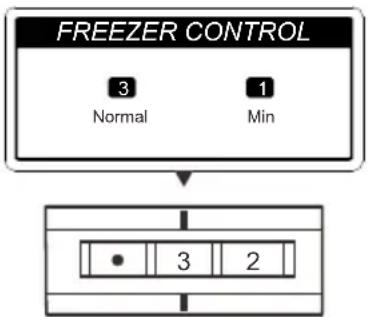

For achieving temperature in Freezing, Energy and Storage Test, Freezer control may be required to set at • or ••. FREEZER CONTROL Normal

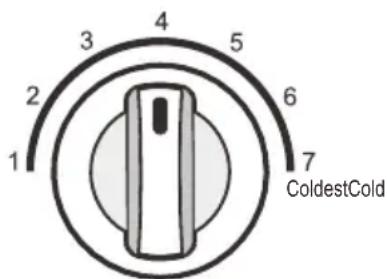

ColdestCold For colder temperatures, adjust the control knob to COLDEST, and for warmer temperatures, adjust the control knob to COLD position.OPERATIONS / FEATURES VEGETABLE DRAWER (OPTIONAL) Cell Fresh Crisper It keeps your vegetables fresh by holding moisture & prevents them from getting rotten. DEFROSTING Defrosting takes place automatically. The defrosted water flows down to the evaporating tray which is located in the lower back side of the refrigerator and is evaporated automatically. DEODORIZER (OPTIONAL) Unpleasant odor of food in fresh food compartment is deodorized with no harm to the user and the food. How to use As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling. Do not prick the cooling air inlet with a sharp tip because Deodorizer may get damaged. When storing food with strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods. Re-Using of Deodorizer Used some length and the odor is strong, Deodorizer can be revived and re-used. Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or malodor and oxidize under sunlight to decomposing malodor by ultraviolet.

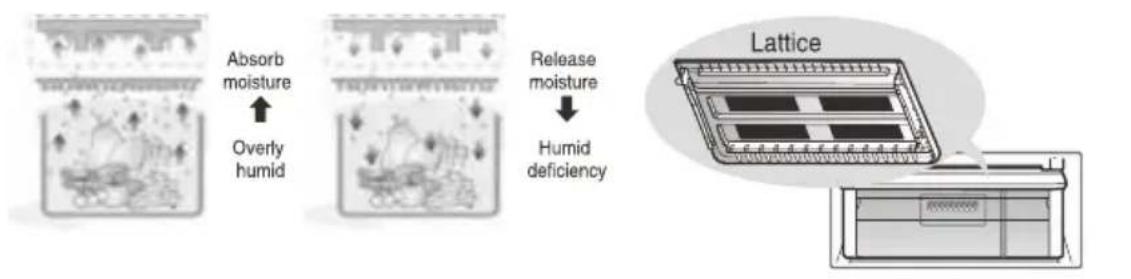

HUMIDITY CONTROLLER Humidity Controller is for controlling the humidity inside the vegetable box. Humidity ControllerIce TraysIce Cube Box OPERATIONS / FEATURES ICE MAKING (OPTIONAL) Twisting Ice Serve Type To make ice cubes, fill the ice tray with water and insert in its position. To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop into the ice cube box. You can remove the Twisting Ice Serve to make the freezer compartment larger. You should remove the ice Trays and Ice Cube Box first, and then pull the frame out toward the right side. Do not use anything other than water. Fill the water up to the marked line. LAMP REPLACEMENT NOTE : This product applies LED Lamp which cannot be replaced by the user. Please contact authorized service centre for the lamp replacement.

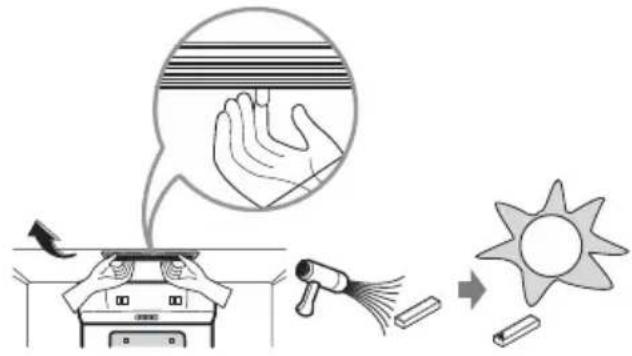

If water or foreign substances enter the cool air vent while cleaning, efficiency will be lowered. During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life.If you are leaving the appliance turned off for an extended period of time, remove all food and unplug the power cord. Clean the interior, and leave the doors slightly ajar to prevent mould from growing in the appliance. VACATION TIME When the door of refrigerator is opened for 1 minute, an alarm will sound. Door Alarm (Optional)SMART DIAGNOSIS (Only for Selected Internal Micom Models) Smart diagnosis function is... Use this function when calling the Customer Call Centre and receive precise diagnosis when the Refrigerator malfunctions or fails. Use it only when advised by the consultant and not otherwise. How to use the function

1. Open all the doors of the refrigerator.SDS can be input even in Test Mode & Error status.

CAUTION The transmission sound may be irritating. Do not take away the telephone until the sound stops for good diagnosis. Be aware! Difference of the regional call qualities may have influence on the function. If you use home phone, better communication performance will enable much better service. Smart diagnosis data transmission may not be successful if the call is made from a mobile phone with poor network reception.

First, call LG service center. Smart Diagnosis feature to be used only when instructed to do so by the LG call center agent.

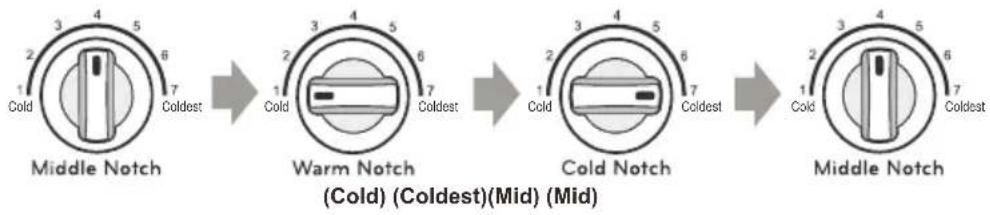

2. Turn knob to Middle notch.

3. Turn knob to Warm notch and keep that status for 2sec.

4. Turn knob to Cold notch within 3sec and keep that status for 2sec.

5. Turn knob to Middle notch within 3sec and keep that status for 2sec.

6. Place the phone near the speaker hole in the top right side door hinge.

Ensure the microphone of the telephone is toward the speaker hole. Do not take away the telephone while data is being transmitted. During the data transmission for smart diagnosis, hold the telephone 10cm away from the speaker hole and avoid any background noises.

7. When SDS is input, buzzer let you know by ringing 4times.

(Frequency of SDS Buzzer is 2000Hz, 0.2sec Off/ 0.2sec On 4times)

8. After inputting SDS, SDS buzzer will ring.

9. After the completion of data transmission, the consultant will explain the result of smart

diagnosis and advise accordingly. When the data transmission is completed, the refrigerator will be automatically turned Off and On a few seconds later. Coldest Cold Coldest Cold Coldest Cold Coldest Cold (Cold) (Coldest)(Mid) (Mid)

(OPTIONAL)SUGGESTIONS ON FOOD STORAGE

STORING FOOD Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor. Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons. Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills! When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients. Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even. Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise. FREEZER COMPARTMENT Do not store bottles in the freezer compartment - they may break when frozen. Do not refreeze food that has been thawed. This causes loss of taste and nutrition. When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack. REFRIGERATOR COMPARTMENT Avoid placing moist food on deep interior refrigerator shelves, it could freeze by direct contact with chilled air. To avoid this it is better to store food in the covered container. It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the refrigerator to avoid being frozen by direct contact with chilled air. Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling. When storing eggs in their storage rack, ensure that they are fresh, and always store them in a upright position, which keeps them fresh for longer time.

In the event of a blackout, call the electricity company and ask how long it is going to last. -You should avoid door openings while the power is off. -When the power supply gets back to normal, check the condition of the food. If there are chill compartments in the appliance, do not store vegetables and fruits with higher moisture content in the chill compartments as they may freeze due to the lower temperature. Freezer section marked is -12C compartment/section, that is suitable for short term storage of frozen food(optional).CLEANING It is important that your refrigerator is kept clean to prevent undesirable odors. Spilled food should be wiped immediately, since it may acidify and stain plastic surfaces if allowed to settle. Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface. Before you clean, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands. EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry. INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry. INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry. Always remove power cord from the wall outlet prior to cleaning. Wipe excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids. Caution for Cleaning - Not to use: Surface active agent, Car wax, Anti-corrosive, All sorts of oil, Gasoline, Acids, Wax. Mild detergents, dish washable solutions and soapy water can be used Careless usage can lead to colour change.

GENERAL INFORMATION Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. During power failures of longer duration, place a block of dry ice on top of your frozen packages. POWER FAILURE

Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the leveling screw(s), turn them all the way into the base. ANTI-CONDENSATION PIPE The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation. Don't be alarmed. This is due to the anti- condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall. Anti-Condensation Pipe Electrical Shock Hazard Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box. NOTE : Moving the control to OFF position does not remove power from the light circuit. WARNING CautionIMPORTANT WARNINGS

POWER CORD LENGTH. The refrigerator-freezer should in such a positionthat the supply plug is accessible for quickdisconnection when accident happens. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. In the event of an electric short circuit, grounding(earthing) reduces the risk of electric shock byproviding an escape wire for the electric current.In order to prevent possible electric shock, thisappliance must be grounded.Improper use of the grounding plug can result inan electric shock. Consult a qualified electrician orservice person if the grounding instructions arenot completely understood, or if you have doubtson whether the appliance is properly grounded.It will cause electric shockor fire.If possible, connect the refrigerator to its ownindividual electrical outlet to prevent it and otherappliances or household lights from causing anoverload that could cause a power outage.

VERY DANGEROUS ATTRACTION

An empty refrigerator can be a dangerousattraction to children. Remove either gaskets,latches, lids or the entire door from yourunused appliance, or take some other actionto make it harmless.This appliance must be grounded (earthed). DON'T WAIT! DO IT NOW! Do not store inflammable materials, explosivesor chemicals in the refrigerator. Disposal of the old appliance This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable. All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

“(For CENELEC countries) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.BEFORE CALLING FOR SERVICE SERVICE CALLS CAN OFTEN BE AVOIDED! IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST:

PROBLEM POSSIBLE CAUSES

CABINET SURFACE Has a house fuse blown or circuit breaker tripped? Has the power cord plug been removed or loosened from the electrical wall outlet? Temperature control not set on proper position. Appliance is placed close to wall or heat source. Warm weather-frequent door openings. Door left open for a long time. Large amount of foods are kept in the refrigerator. Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting. Unnecessary objects placed in the back side of the refrigerator. Foods with strong odors should be tightly covered or wrapped. Interior needs cleaning. Not unusual during periods of high humidity. Door may have been left ajar.

IMPORTANT WARNINGS "This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance." Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.”
