USER MANUAL NN-GD369M PANASONIC

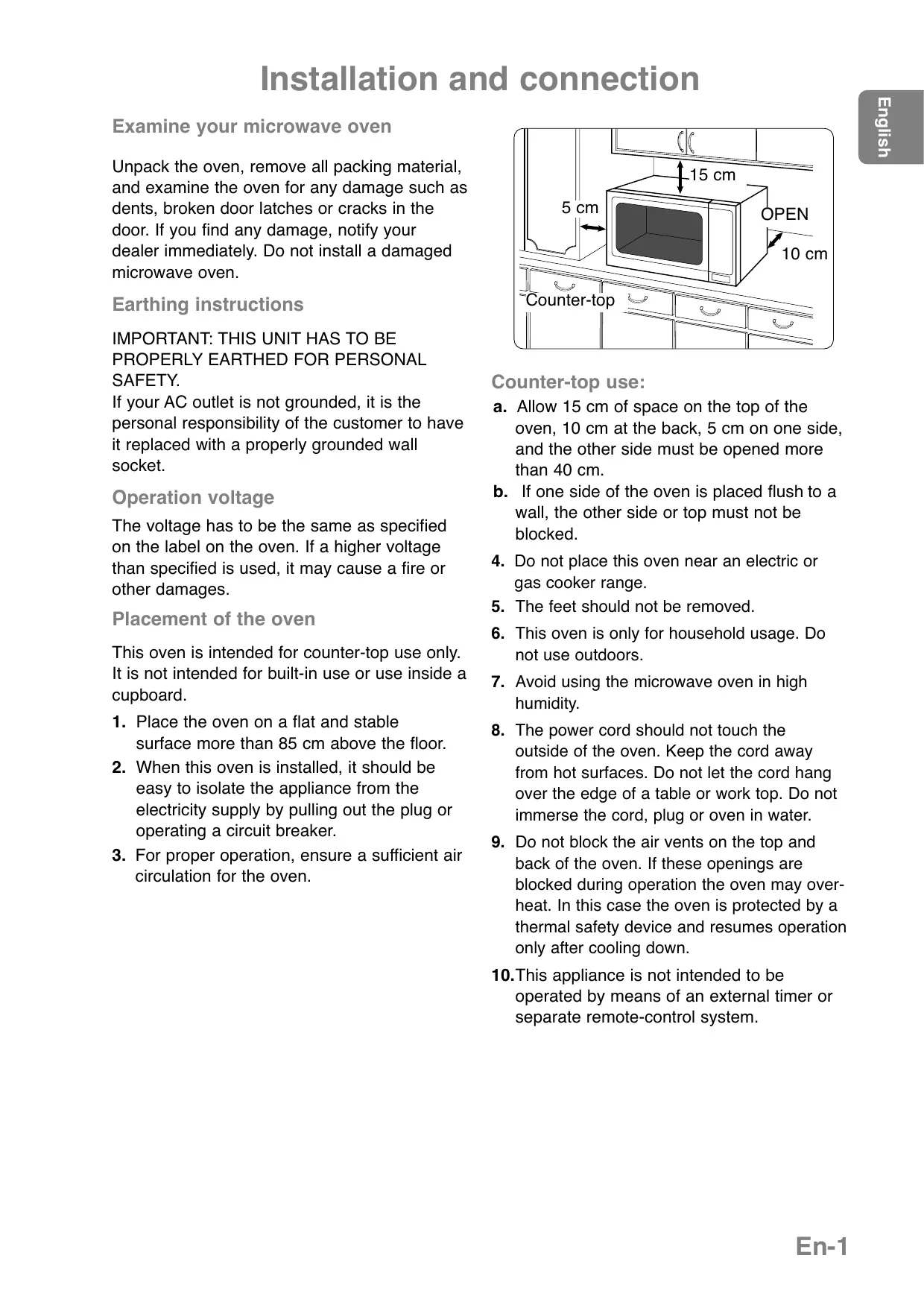

English Deutsch Français Installation and connection Examine your microwave oven Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you find any damage, notify your dealer immediately. Do not install a damaged microwave oven. Earthing instructions

IMPORTANT: THIS UNIT HAS TO BE

PROPERLY EARTHED FOR PERSONAL

SAFETY. If your AC outlet is not grounded, it is the personal responsibility of the customer to have it replaced with a properly grounded wall socket. Operation voltage The voltage has to be the same as specified on the label on the oven. If a higher voltage than specified is used, it may cause a fire or other damages. Placement of the oven This oven is intended for counter-top use only. It is not intended for built-in use or use inside a cupboard.

1. Place the oven on a flat and stable

surface more than 85 cm above the floor.

2. When this oven is installed, it should be

easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.

3. For proper operation, ensure a sufficient air

circulation for the oven. 15 cm 5 cm OPEN 10 cm Counter-top Counter-top use: a. Allow 15 cm of space on the top of the oven, 10 cm at the back, 5 cm on one side, and the other side must be opened more than 40 cm. b. If one side of the oven is placed flush to a wall, the other side or top must not be blocked.

4. Do not place this oven near an electric or

5. The feet should not be removed.

6. This oven is only for household usage. Do

7. Avoid using the microwave oven in high

8. The power cord should not touch the

outside of the oven. Keep the cord away from hot surfaces. Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water.

9. Do not block the air vents on the top and

back of the oven. If these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down. 10.This appliance is not intended to be operated by means of an external timer or separate remote-control system. En-1 Installation and connection WARNING Important safety instructions

1. The door seals and seal areas should be

cleaned with a damp cloth. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

2. Do not attempt to tamper with or make any

adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy. Repairs should only be done by a qualified service person.

3. Do not operate this appliance if it has a

damaged CORD OR PLUG, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service. En-2

4. If the supply cord is damaged, it must be

replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. Only allow children to use the oven without

supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. Liquids and other foods must not be heated

in sealed containers since they are liable to explode.

7. This appliance is not intended for use by

persons (including childen) with reduced sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Attention: Hot Surfaces Use of your oven Oven light

1. Do not use the oven for any reason other

than the preparation of food. This oven is specifically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products. When it becomes necessary to replace the oven light, please consult your dealer.

2. Before use, check that utensils/containers

are suitable for use in microwave ovens.

3. Do not attempt to use this microwave oven

to dry newspaper, clothing or any other materials. They may catch on fire.

4. When the oven is not being used, do not

store any objects other than oven accessories inside the oven in case it is accidentally turned on.

5. The appliance shall not be operated by

MICROWAVE or COMBINATION WITHOUT FOOD IN THE OVEN. Operation in this manner may damage the appliance.

6. If smoke or a fire occurs in the oven, press

Stop/Cancel Pad and leave the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at fuse or circuit breaker panel. Heater operation

1. Exterior oven surfaces, including air vents

on the cabinet and the oven door will get hot during COMBINATION and GRILLING, take care when opening or closing the door and when inserting or removing food and accessories.

2. The oven has two heaters situated in the

top of the oven. After using the COMBINATION and GRILL function, these surfaces will be very hot. Care should be taken to avoid touching the heating elements inside the oven. N.B: After cooking by these modes, the oven accessories will be very hot.

3. The accessible parts may become hot in

combination use. Young children should be kept away, and children should only use the oven under adult supervision due to the temperatures generated. Accessories The oven comes equipped with a variety of accessories. Always follow the directions given for use of the accessories. Glass tray

1. Do not operate the oven without

the roller ring and the glass tray in place.

2. Never use another type of glass tray than

the one specially designed for this oven.

3. If the glass tray is hot, let it cool before

cleaning or placing in water.

4. The glass tray can turn in either direction.

5. If the food or cooking vessel on the glass

tray touches the oven walls and stops the tray rotating, the tray will automatically rotate in the opposite direction. This is normal.

6. Do not cook foods directly on the glass

1. The roller ring and the oven floor should be

cleaned frequently to prevent noise and build-up of remaining food.

2. The roller ring must always be used for

cooking together with the glass tray. Wire rack

1. The wire rack is used to facilitate browning

of small dishes and help with the good circulation of the heat.

2. Do not use any metal container directly on

the wire rack in COMBINATION with MICROWAVE.

3. Do not use the wire rack in MICROWAVE

mode only. Panacrunch pan- See En-17. En-3 English Safety Instructions Important Information

1) Cooking times

To prevent this possibility the followingsteps should be taken: a) Avoid using straight-sided containers with narrow necks. b) Do not overheat. c) Stir the liquid before placing the container in the oven and again halfway through the cooking time. d) After heating, allow it to stand in the oven for a short time, stir again before carefully removing the container. The cooking time depends on the condition, temperature, amount of food and on the type of cookware. Begin with the minimum cooking time to help prevent overcooking. If the food is not sufficiently cooked you can always cook it for a little longer. N.B.: If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

7) Paper/plastic

2) Small quantities of foods

Small quantities of food or foods with low moisture content can burn, dry out or catch on fire if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket.

3) Eggs

Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs may explode, even after the microwave heating has ended.

4) Piercing skin

Food with non porous skins, such as potatoes, egg yolks and sausages must be pierced before cooking by MICROWAVE to prevent bursting.

8) Utensils/foil

5) Meat thermometer

Use a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer in the microwave oven because it may cause sparking. When heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. En-4 Do not heat any closed cans or bottles because they might explode. Metal containers or dishes with metallic trim should not be used during microwave cooking. Sparking will occur. If you use any aluminium foil, meat spikes or metalware the distance between them and the oven walls and door should be at least 2 cm to prevent sparking.

9) Feeding bottles/baby food jars

6) Liquids

When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated. Do not use recycled paper products (e.g. Kitchen Roll) unless the paper product is labelled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or fires during use. Remove wire twist-ties from roasting bags before placing the bags in the oven.

The top and teat or lid must be removed from feeding bottles or baby food jars before placing in the oven. The contents of feeding bottles and baby food jars are to be stirred or shaken. The temperature has to be checked before consumption to avoid burns. English Outline diagram [8] [13] [6] [4] [2] [12] [5]

1. Door release button

Press to open the door. When you open the oven door during cooking, the cooking is stopped temporarily without clearing earlier made settings. The cooking is resumed as soon as the door is closed and Start Pad pressed.

2. Oven window

3. Door safety lock system

4. Oven air vent

5. Control panel

6. Glass tray

7. Roller ring

8. External oven air vents

9. Wire rack

10. Panacrunch pan

11. Panacrunch pan handle

12. Power cord

13. Caution label (Hot surfaces)

En-5 (1) Display window (2) Auto weight Microwave programs (3) Auto weight Combination programs (4) Auto weight Turbo Defrost programs (5) Time/weight Dial (6) Microwave power Pad (7) Grill Pad (8) Combination Pad (9) Delay/Stand Pad (10) Clock Pad (11) Stop/Cancel Pad: Before cooking: One press clears your instructions. During cooking: One press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display. (12) Start Pad

• The design of your control panel may vary from the panel displayed (depending on colour), but the words on the pads will be the same. This oven is equipped with an energy saving function. Please Note:

1. When in stand-by mode the brightness

of the display will be reduced.

2. The oven will enter stand-by mode,

when first plugged in and immediately after the last operation has completed. Beep sound: When a pad is touched correctly a beep will be heard. If a pad is touched and no beep is heard, the unit has not or cannot accept the instruction. At the end of any complete program, the oven will beep 5 times. N.B: If an operation is set and start pad is not pressed, after 6 minutes, the oven will automatically cancel the operation. The display will revert back to clock mode. En-6 English Setting the clock When the oven is first plugged in “88:88” appears in display window.

• Press Clock Pad once. The colon starts to blink.

• Enter the time by turning the

• Press Clock Pad once. Time/Weight Dial. The time appears in the display and the colon blinks. The colon stops blinking and the time of day is entered. N.B.

1. To reset time of day, repeat step 1 through to step 3.

2. The Clock will keep the time of day as long as the oven is plugged in and electricity is supplied.

3. This is a 24 hour clock, i.e. 2pm = 14:00 not 2:00.

Child safety lock Using this system will make the oven controls inoperable; however, the door can be opened. Child Lock can be set when the display shows a colon or the time. To Cancel: To Set:

Press Start Pad three times. The time of day will disappear. Actual time will not be lost. ʻ- - - -ʼ is indicated in the display.

Press Stop/Cancel Pad three times. The time of day will reappear in the display. NOTE: To activate child lock, start pad must be pressed 3 times within a 10 second period. En-7 Microwave cooking and defrosting The glass tray must always be in position when using the oven. Wattage Max 1 Press 850 Watts 2 Presses Defrost 270 Watts 3 Presses Medium 600 Watts 4 Presses Low 440 Watts 5 Presses Simmer 250 Watts 6 Presses 100 Watts Warm

• Press the Microwave Power Pad. • Set the cooking time using Select desired power level - The microwave indicator lights and the wattage appears in the display. the Time/Weight Dial (Max power: up to 30 minutes Other powers: up to 90 minutes).

• Press Start Pad. The cooking program will start and the time in the display will count down. CAUTION: The oven will automatically work on MAX microwave power if a cooking time is entered without the power level previously being selected. Multi-Stage Cooking The oven has 3 stage cooking, so you can program up to 3 different instructions and the oven will switch automatically from power to power (Repeat steps 1 and 2 above but only press Start after all stages have been entered). N.B. Auto Weight / Defrost Pad can be programmed in first stage only. En-8 Delay start cooking English By using Delay/Stand Pad, you are able to program Delay Start cooking. e.g.

• Press Delay/ Stand Pad. NOTE:

• Set the delay time by turning the Time/ Weight Dial (up to 9 hours).

• Set the desired cooking

• Press Start Pad. program and cooking time.

1. Three stage cooking can be programmed including Delay Start cooking.

2. If the programmed delay time exceeds one hour, the time will count down in units of minutes. If

less than one hour, the time will count down in units of seconds.

3. Delay Start cannot be programmed before any Auto Programs.

Stand time By using Delay/Stand Pad, you can program Stand Time after cooking is completed or use to program the oven as a minute timer. e.g.

• Set the desired cooking program and cooking time.

• Press Delay/Stand Pad.

• Set desired amount of

• Press Start Pad. time by turning the Time / Weight Dial (up to 9 hours). NOTE:

1. Three stage cooking can be programmed including Stand Time.

2. If the oven door is opened during the Stand Time or Minute Timer, the time in the display

window will continue to count down.

3. This feature may also be used as a timer. In this case press Delay/Stand Pad, set time and

press Start Pad. En-9 Defrosting guidelines Tips for defrosting Check the defrosting several times, even if you use the auto programs. Observe the standing times. Minced meat or cubes of meat and seafood Standing times Individual portions of food may be cooked almost immediately after defrosting. It is normal for large portions of food to be frozen in the centre. Before cooking, allow to stand for a minimum of one hour. During this standing time, the temperature becomes evenly distributed and the food is defrosted by conduction. N.B. If the food is not going to be cooked immediately, store it in the refrigerator. Never refreeze defrosted food without first cooking it. Since the outside of these foods quickly defrosts, it is necessary to separate them, break the blocks into pieces frequently while defrosting and remove them when they have defrosted. Small portions of food Joints and poultry Chops and chicken pieces must be separated as soon as possible so that they defrost evenly throughout. Fatty parts and the ends defrost more quickly. Place them near the centre of the turntable or protect them. It is preferable to place the joints on an upturned plate or plastic rack so that they are not resting in the juices. It is essential to protect delicate or projecting parts of this food with small pieces of foil to prevent these parts from cooking. It is not dangerous to use small pieces of foil in your oven, provided they do not come into contact with the oven walls. En-10 Bread Loaves will require standing time to allow the centre to thaw. Standing time can be shortened if slices are separated and rolls and loaves cut in half. Grilling English

• Press Grill Pad to select level 1 press grill 1 (high) 2 presses grill 2 (medium) 3 presses grill 3 (low) The grill indicator lights and grill level (1, 2 or 3) appears in the display. N.B.

• Set the cooking time using the Time/Weight Dial (up to 90 minutes).

• Press Start Pad The time counts down in the display.

1. Place food on wire rack on turntable. Place a heatproof plate (Pyrex ) underneath to catch fat

2. Never cover foods when grilling.

3. DO NOT attempt to preheat the grill.

4. The grill will only operate with the oven door closed. It is not possible to use the grill function

5. There is no microwave power on the GRILL only program.

6. Most foods require turning halfway during cooking. When turning food, open oven door and

CAREFULLY remove wire rack using oven gloves.

7. After turning, return food to the oven and close door. After closing oven door, press Start Pad.

The oven display will continue to count down the remaining grilling time. It is quite safe to open the oven door at any time to check the progress of the food as it is grilling.

8. The grill will glow on and off during cooking - this is normal. Always clean the oven after using

the Grill and before using the microwave or combination. CAUTION: The wire rack must always be used with the glass tray in position. Remove wire rack from oven by holding the rack and heatproof dish firmly. Use oven gloves when removing accessories. Never touch the outside window or inside metal parts of the door or oven when taking food in or out due to the high temperatures involved. En-11 Combination cooking

• Press Combination Pad to select level The combination indicator lights and combination level (1, 2 or 3) appears in the display. Press 1 press 2 presses 3 presses

• Set the cooking time using the Time/Weight Dial (up to 90 minutes).

• Press Start Pad The time counts down in the display. Level Grill combi 1 440W 1100W combi 2 250W 1100W combi 3 440W 950W When cooking by combination, the microwave power cooks food quickly whilst the grill gives traditional browning and crisping. N.B.

1. The wire rack is designed to be used for Combination and Grilling. Never attempt to use any

other metal accessory except the one provided with the oven. Place a heatproof dish underneath to catch any fat or drips.

2. Use the wire rack only as described. DO NOT use if operating the oven with less than 200g of

food on a manual program. For small quantities do not cook by Combination, cook by GRILL or MICROWAVE ONLY for best results.

3. Never cover foods when cooking on Combination.

4. DO NOT preheat the grill on Combination.

5. Arcing may occur if the incorrect weight of food is used, the wire rack has been damaged, or a

metal container has been used accidentally. Arcing is flashes of blue light seen in the microwave. If this occurs, stop the oven immediately.

6. Some foods should be cooked on Combination without using the wire rack i.e. roasts, gratins,

pies and puddings. The food should be placed in a heatproof non-metallic dish and placed directly onto the turntable.

7. DO NOT use plastic MICROWAVE containers on combination programs (unless suitable for

combination cooking.) Dishes must be able to withstand the heat of the top grill - heatproof glass e.g. Pyrex or ceramic are ideal.

8. DO NOT use your own metal dishes or tins, as the microwaves will not penetrate the food

evenly. CAUTION: The wire rack must always be used with the glass tray in position. Remove grill rack from oven by holding the rack and heatproof dish firmly. Use oven gloves when removing accessories. Never touch the outside window or inside metal parts of the door or oven when taking food in or out due to the high temperatures involved. En-12 English Auto weight defrost With this feature you can defrost frozen food according to the weight.

• Select the desired Auto Defrost Program 1 Press small pieces 2 Presses big piece Auto Program number appears in the display. The auto and defrost indicators light.

• Set the weight of the frozen
• Press Start Pad. food by using the Remember to stir or Time/Weight Dial. turn the food during Turning the dial slowly will count defrosting. up in 10g steps. Turning the dial quickly will count up in 100g steps. Program Min./Max. Weight Hints 1 Small Pieces

100 - 1000g

Small pieces of meat, escallop, sausages, minced meat, fish fillets, steaks, chops (each 100g to 400g). Turn / stir at beeps. 2 Meat Joints

400 - 2000g

Big pieces of meat, roast, whole chicken, big piece of fish. Turn at beeps. IMPORTANT: see page En-9 for defrosting guidelines Auto weight reheat / cook With this feature food can be cooked or reheated according to the weight. The weight has to be entered in grams. e.g.

• Select desired category. The auto indicator light and the program number appears in the display.

• Set Weight. Set the weight of the food by using the Time/Weight Dial.

• Press Start Pad. En-13 Auto weight microwave programs Program Recommended Weight

150 - 1200g

1 Press FRESH MEAL 2 Presses

200 - 1100g

To cook fresh vegetables. Place prepared vegetables into a suitable sized container. Sprinkle with 1 tbsp water per 100g vegetables. Cover with pierced cling film or a lid. Select program fresh vegetables (3 presses of auto microwave program pad). Turn / stir at beeps. FRESH VEGETABLES

200 - 900g

En-14 To reheat a fresh plated meal or casserole. All foods must be pre-cooked. Foods should be at refrigerator temperature approx. +5°C or room temperature. Select program fresh meal (1 press of auto mirowave program pad). Stir at beeps. Allow a few minutes standing time. Ensure food is piping hot before serving. Large pieces of fish / meat in a thin sauce, may require longer cooking. 1cup - 150g 1 bowl - 300g 2 bowls - 600g 3 Presses FRESH FISH Instructions For reheating 1 cup (150g), 1 bowl (300g) or 2 bowls (600g) of hot drink (eg tea, coffee, milk, or soup). Select program reheat cup/bowl (2 presses of auto microwave program pad). Enter weight 150g, 300g or 600g and press start pad. Stir at end of heating. REHEAT CUP/BOWL 4 Presses Accessories For cooking fresh fish. Place in a suitable sized container, add 2 tbsp (30ml) water. Cover with pierced cling film or a lid. Select program fresh fish (4 presses of auto microwave program pad). English Auto weight combination programs Panacrunch programs

1. Select the desired

program and place the Panacrunch Pan in the oven directly on the glass tray. Program

2. Press the start Pad

to preheat the Panacrunch Pan. Recommended Weight

3. After pre-heating

beeps sound. Place the food in the pan, set weight. Accessories For reheating, crisping the base and browning the top of frozen pre-cooked pizza. Remove all packaging and place the pizza in the preheated Panacrunch Pan.

150 - 480g

2 Presses FRESH PIZZA For reheating, crisping the base and browning the top of fresh precooked pizza. Remove all packaging and place the pizza in the preheated Panacrunch Pan. For reheating, crisping the pastry base and browning the top of fresh pre-cooked quiche. Remove all packaging and place the quiche in the preheated Panacrunch Pan.

150 - 400g

4 Presses FROZEN POTATO PRODUCTS For reheating, crisping and browning frozen potato products. After preheating the pan, spread out potato products in the pan. For best results, cook in a single layer and turn at beep. En-15 Auto weight combination programs With this feature food can be cooked or reheated according to the weight. The weight has to be entered in grams. e.g.

• Select desired category. The auto indicator light and the program number appears in the display. Program Recommended Weight En-16 Instructions

300 - 1000g

150 - 1000g

For cooking fresh chicken pieces. e.g. breasts, thighs, drumsticks and quarters. Place in a heatproof dish on wire rack on Glass Tray. Select program fresh chicken pieces (6 presses of auto combination program pad). Turn at beeps.

• Press Start Pad. For reheating, browning and crisping the top of pre-cooked frozen gratin. This program is suitable for frozen lasagne, cannelloni, potato topped dishes, pasta bakes. Remove all packaging and place frozen gratin in heatproof dish on Glass Tray. Select program frozen gratin (5 presses of auto combination program pad). 5 Presses FROZEN GRATIN 6 Presses FRESH CHICKEN PIECES

• Set Weight. Set the weight of the food by using the Time/Weight Dial. For reheating frozen bread, rolls and Croissants. Remove all packaging and place on wire rack on Glass Tray. Select program bread/croissants (7 presses of auto combination program pad). Turn at beeps Panacrunch pan Notes: Some foods cooked by microwave can have soft and soggy crusts. Your Panacrunch Pan accessory will brown and crisp pizzas, quiches, pies, breaded products just as a conventional oven. Your Panasonic Panacrunch Pan works in three ways: heating the pan by absorbing microwaves, heating the food directly by microwaves and heating the food by the grill. The base of the pan absorbs the microwaves and transfers them into heat. Then the heat is conducted through the pan to the food. The heating effect is maximised by the non-stick surface.

1. Do not pre-heat the Pan more than 8

2. Always place the pan in the centre of the

glass tray and ensure it does not touch the wall of the oven cavity. Failure to do so, may cause sparking which would damage the cavity. Using the Panacrunch Pan (Manual operation)

• For best results, pre-heat the pan before

6. Do not place any heat-sensitive materials

on the hot Pan as this may cause burning. using. Place directly on the glass turntable and pre-heat on Combination 1 for 3 minutes. To assist browning, brush the pan with oil before preheating for items such as sausages and beefburgers.

Remove the pan from the oven and place the food in the pan. Use the Panacrunch Pan handle or oven gloves as the pan will be very hot. For best results, it is important that the food is placed on the pan immediately after pre-heating. Performance cannot be guaranteed with a time delay.

3. Always use the Pan on the Glass Turntable.

Do not use with the Wire Rack.

4. Always use the Panacrunch Pan handle or

oven gloves when handling the hot pan.

5. Ensure all food packaging is removed

7. The Pan can be used in a conventional

8. For best results, use the Pan in

COMBINATION GRILL and MICROWAVE. Care of the pan

• Never use any sharp utensils on the pan as this will damage the non-stick surface.

After use, wash the pan in hot soapy water and rinse in hot water. Do not use any abrasive cleaning substances or scouring pads as this will damage the surface of the pan.

The pan is dishwasher safe. En-17 English The ʻconceptʼ Questions and answers Q: Why wonʼt my oven turn on? A: When the oven does not turn on, check the following:

1. Is the oven plugged in securely? Remove the plug from

the outlet, wait 10 seconds and reinsert.

2. Check the circuit breaker and the fuse. Reset the circuit

breaker or replace the fuse if it is tripped or blown.

3. If the circuit breaker or fuse is all right, plug another

appliance into the outlet. If the other appliance works, there probably is a problem with the oven. If the other appliance does not work, there probably is a problem with the outlet. If it seems that there is a problem with the oven, contact an authorized Service Center. Q: My microwave oven causes interference with my TV. Is this normal? A: Some radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven. Q: The oven wonʼt accept my program. Why? A: The oven is designed not to accept an incorrect program. For example, the oven will not accept a fourth stage. Q: Sometimes warm air comes from the oven vents. Why? A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking. Q: Can I use a conventional oven thermometer in the oven? A: Only when you are using GRILL cooking mode. The metal in some thermometers may cause arcing in your oven and should not be used on MICROWAVE and COMBINATION cooking modes. Q: There are humming and clicking noises from my oven when I cook by COMBINATION. What is causing these noises? A: The noises occur as the oven automatically switches from MICROWAVE power to GRILL to create the combination setting. This is normal. A: This display indicates a problem with the microwave Q: The oven stops cooking by generation system. Please contact an authorised Service microwave and 'H97' or 'H98' Centre. appears in the display. Why? En-18 Care of your oven

3. Do not use harsh, abrasive cleaners or

sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering the glass.

9. When using the GRILL or COMBINATION

mode, some foods may inevitably splatter grease on to the oven walls. If the oven is not cleaned occasionally, it may start to “smoke” during use.

4. The outside oven surface should be

cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

10. A steam cleaner is not to be used for

5. If the Control Panel becomes dirty, clean it

with a soft, dry cloth. Do not use harsh detergents or abrasives on the Control Panel. When cleaning the Control Panel leave the oven door open to prevent the oven from accidentally turning on. After cleaning touch STOP/CANCEL Pad to clear display window.

6. If steam accumulates inside or around the

outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.

7. It is occasionally necessary to remove the

glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.

11. This oven should only be serviced by

qualified personnel. For maintenance and repair of the oven contact the nearest authorized dealer.

12. Failure to maintain the oven in a clean

condition could lead to deterioration of surfaces that could affect the life of the appliance and possibly result in a hazardous situation.

13. Keep air vents clean at all times. Check

that no dust or other material is blocking any of the air vents on the top, bottom or rear of the oven. If air vents become blocked this could cause overheating which would affect the operation of the oven and possibly result in a hazardous situation. En-19 English

2. Clean the inside of the oven, door seals

and door seal areas regularly. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended.

DO NOT USE COMMERCIAL OVEN

8. The roller ring and oven cavity floor should

be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affects the bottom surface or roller ring wheels. After removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.

1. Turn the oven off before cleaning.

Technical specifications Power Source: Power Consumption: Output: Outside Dimensions: Oven Cavity Dimensions: Uncrated Weight: Noise: 230 V, 50 Hz Maximum; 1800 W Microwave; 1125 W Grill; 1100 W Microwave; 850 W (IEC-60705) Grill Heater;1100 W 482 (W) x 364 (D) x 284 (H) mm (NN-GD379S) 482 (W) x 368 (D) x 284 (H) mm (NN-GD359W / NN-GD369M) 325 (W) x 330 (D) x 191 (H) mm

9.5 kg (NN-GD359W / NN-GD369M)

10.0 kg (NN-GD379S)

58.8 dB (EN60704)

Specifications subject to change without notice. This product is an equipment that fulfills the European standard for EMC disturbances (EMC = Electromagnetic Compatibility) EN 55011. According to this standard this product is an equipment of group 2, class B and is within required limits. Group 2 means that radio-frequency energy is intentionally generated in the form of electromagnetic radiation for warming up of foods. Class B means that this product may be used in normal household areas. Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Pursuant to the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15,22525 Hamburg, F.R.Germany Manufactured by Panasonic Home Appliances Microwave Oven (Shanghai) Co.,Ltd, 898 Longdong Road, Pudong, Shanghai, 201203, China. En-20 Mikrowelle 440W 250W 440W Mikrowelle 440W 250W 440W Instelling combi 1 combi 2 combi 3 Magnetron 440W 250W 440W 230 V, 50 Hz Maximum; 1800 W 1125 W 1100 W Magnetron; 850 W (IEC-60705) 1100 W 482 (W) x 364 (D) x 284 (H) mm (NN-GD379S) 482 (W) x 368 (D) x 284 (H) mm (NN-GD359W / NN-GD369M) 325 (B) x 330 (D) x 191 (H) mm

9.5 kg (NN-GD359W / NN-GD369M)

10.0 kg (NN-GD379S)

58.8 dB (EN60704)

2 pressions Décongélation 270 Watts 3 pressions Moyen 600 Watts 4 pressions Doux 440 Watts 5 pressions Mijotage 250 Watts 6 pressions Maintien 100 Watts Puissance Micro-ondes Gril combiné 1 440W 1100W combiné 2 250W 1100W combiné 3 440W 950W 230 V, 50 Hz Maximale 1800 W 1125 W 1100 W Micro-ondes 850 W (IEC-60705) 1100 W 482 (W) x 364 (D) x 284 (H) mm (NN-GD379S) 230 V, 50 Hz Massimo; 1800 W 1125 W 1100 W Microonde; 850 W (IEC-60705) 1100 W 482 (W) x 364 (D) x 284 (H) mm (NN-GD379S) 230 V, 50 Hz Máximo: 1800 W 1125 W 1100 W Microondas 850 W (IEC-60705) 1100 W 482 (W) x 364 (D) x 284 (H) mm (NN-GD379S) 482 (W) x 368 (D) x 284 (H) mm (NN-GD359W / NN-GD369M) 325 (ancho) x 330 (fondo) x 191 (alto) mm

9.5 kg (NN-GD359W / NN-GD369M)

10.0 kg (NN-GD379S)

58.8 dB (EN60704)

3 tryck FÄRSKA GRÖNSAKER

130 - 500g

FÄRSK PAJ

230 V, 50 Hz Maksimum: 1800 W 1125 W Grill 1100 W Mikrobølger 850 W (IEC-60705) Grill 1100 W 482 (W) x 364 (D) x 284 (H) mm (NN-GD379S) 482 (W) x 368 (D) x 284 (H) mm (NN-GD359W / NN-GD369M) 325 (B) x 330 (D) x 191 (H) mm

9.5 kg (NN-GD359W / NN-GD369M)

10.0 kg (NN-GD379S)

58.8 dB (EN60704)

• Still inn forsink- MRAŽENÉ POKRMY S KŘUPAVOU KŮRKOU 6 stisknutí Příslušenství Panacrunch Pánev Princip Poznámky: Szint Grill Kombi 1 440 W 1100 W Kombi 2 250 W 1100 W Kombi 3 440 W 950 W © Panasonic Corporation 2009 Z00039C30EP
